CURT / 45042
Part #: 45042
UPC: 612314002887
Loading...
Notify me when this item is in stock.
Description: Loaded Ball Mount with 2-5/16" Ball (2" Shank, 7,500 lbs., 4" Drop); CURT 45042 Trailer Hitch Mount with 2-5/16-Inch Ball & Pin, Fits 2-Inch Receiver, 7,500 lbs, 4-Inch Drop
Description:
Description

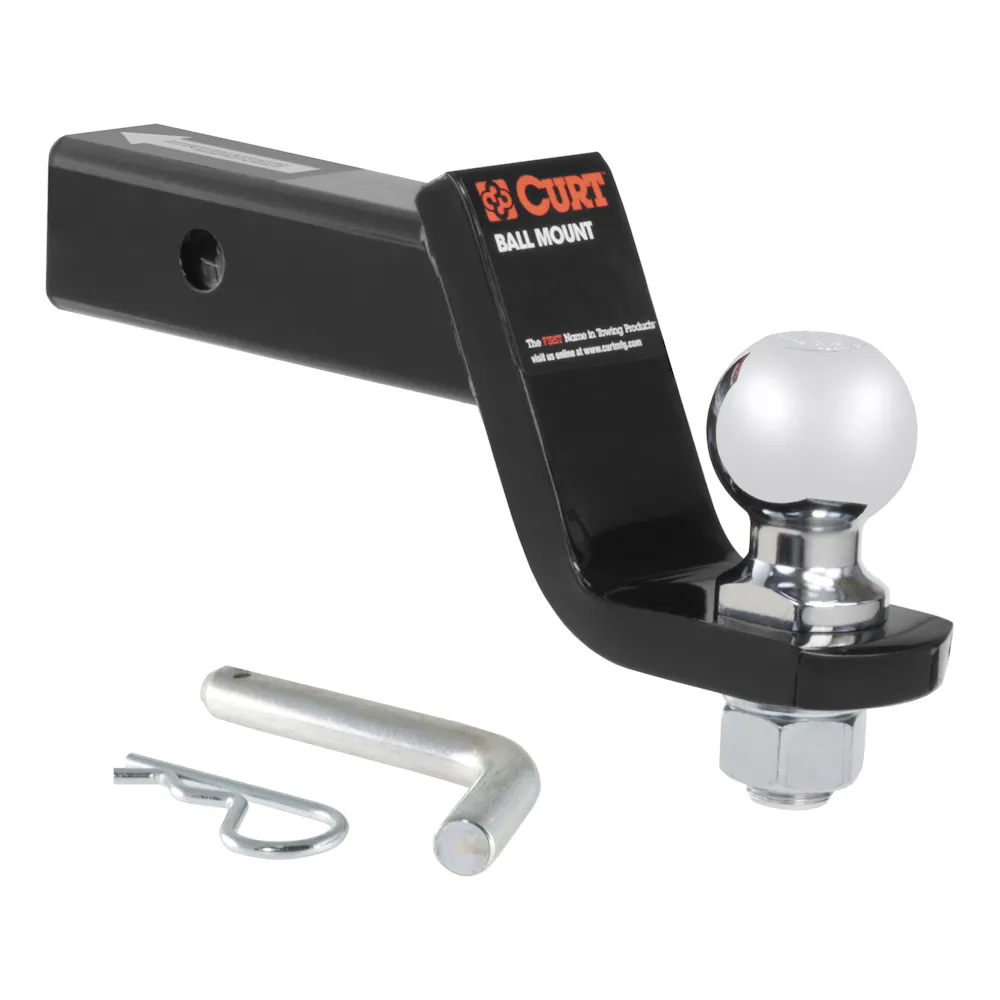

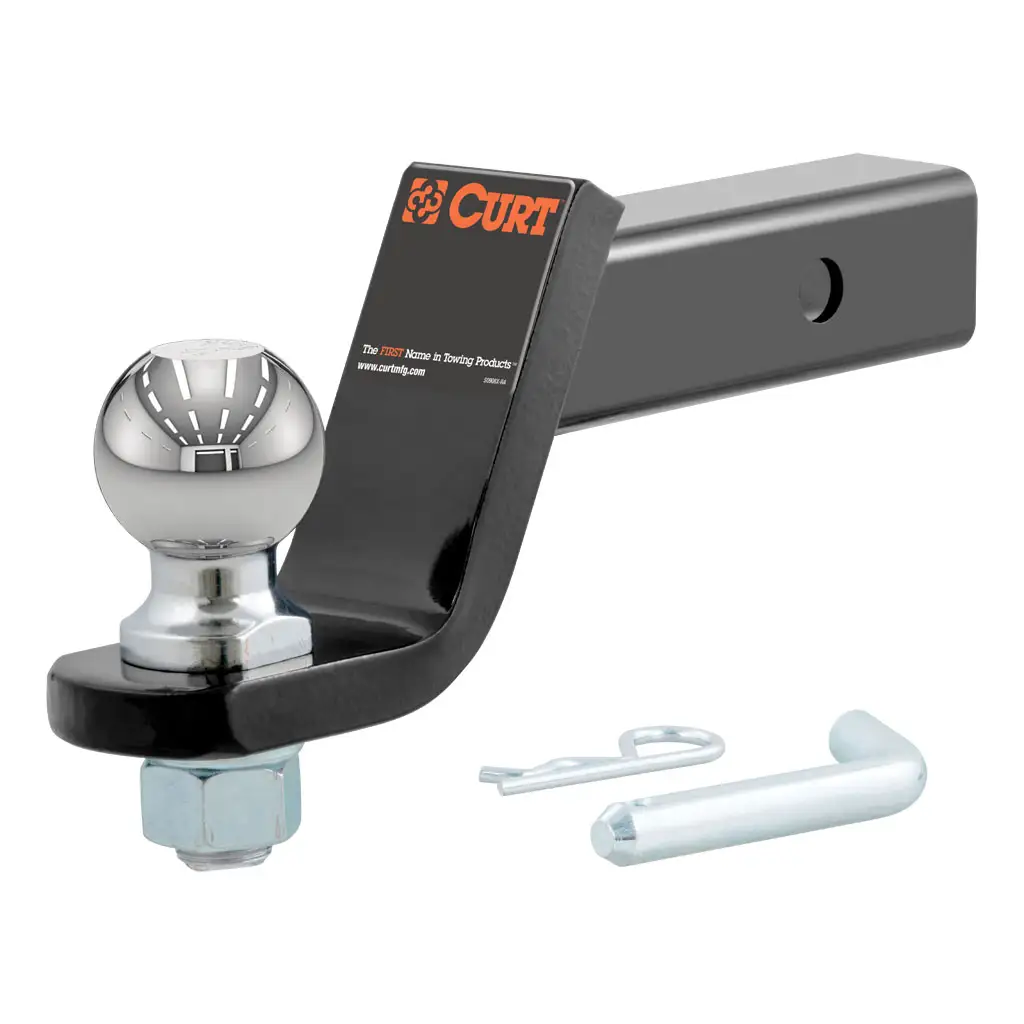

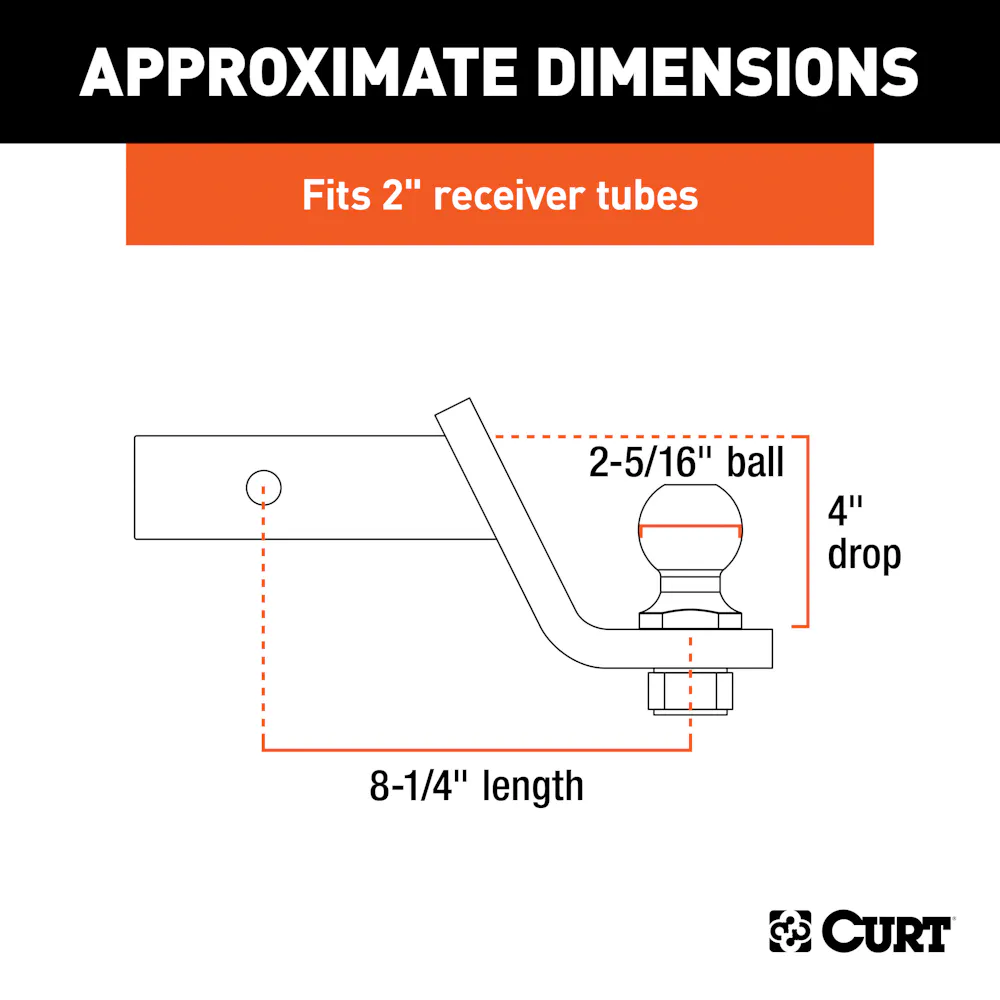

When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers come with all necessary towing components and are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! Each one also comes with a pin and clip for mounting the ball mount into the appropriate size receiver tube. CURT offers loaded ball mounts in a variety of styles and weight ratings. This CURT loaded ball mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It comes with a 2-5/16" trailer ball, making it an excellent choice for towing most boat trailers, utility trailers, campers, livestock trailers and recreational vehicle trailers used for hauling dirt bikes, motorcycles and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 8-1/4", a drop of 4" and comes with a gloss black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2" x 2" shanks and are made with the same superior quality we put into each of our products.

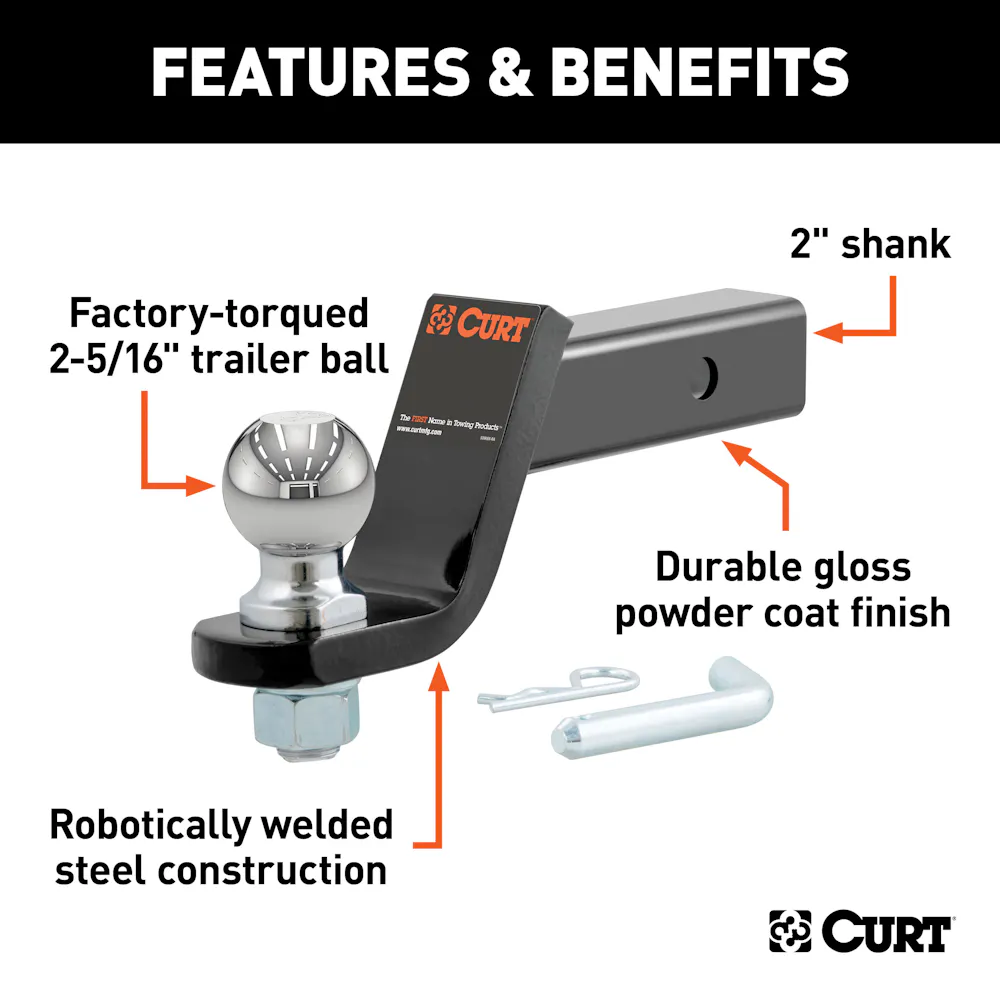

Features & benefits
- Rated to 7,500 lbs. gross trailer weight and 750 lbs. tongue weight
- Trailer ball features a polished chrome-plated finish
- 5/8" hitch pin & clip for secure mounting in receiver tube
- Designed, welded, and coated in Wisconsin
- Limited lifetime warranty (one-year finish, one-year parts)

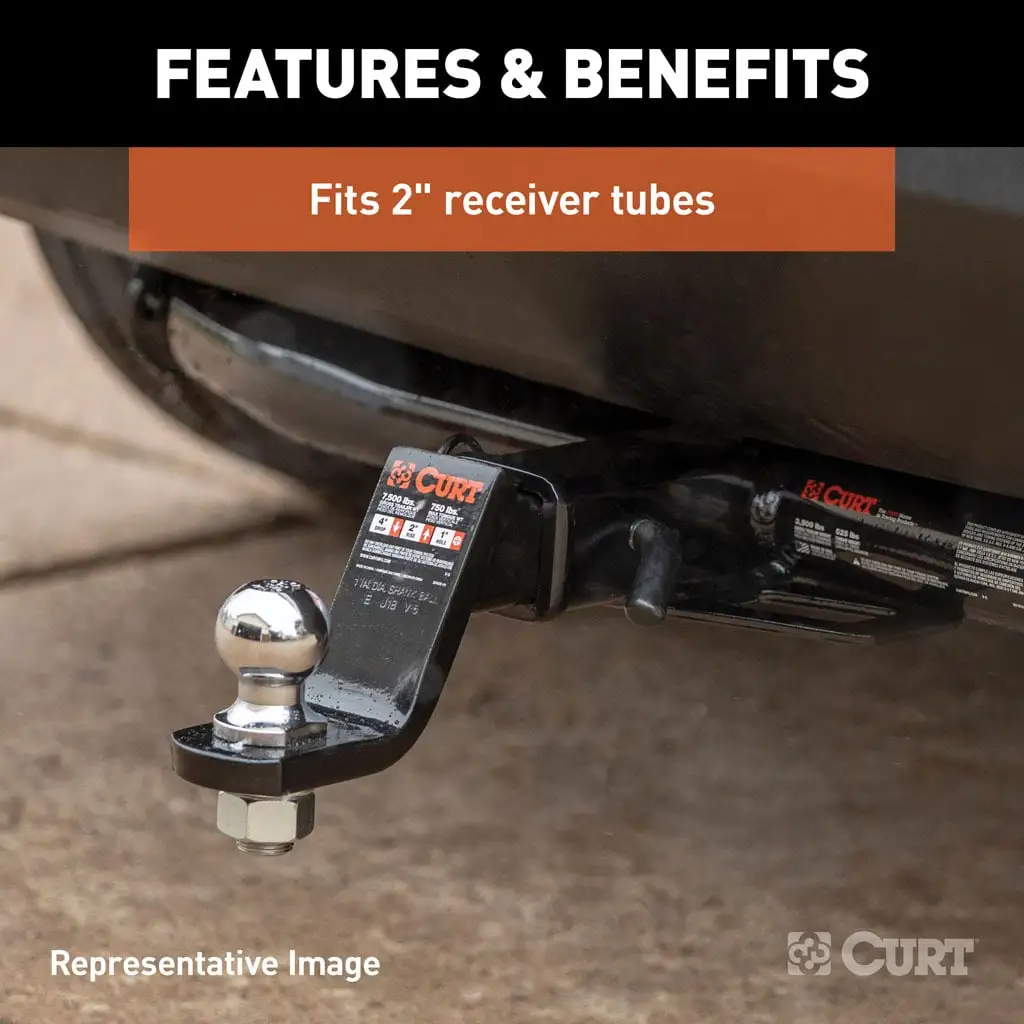

- Fits trailer hitches with a 2" x 2" receiver tube opening

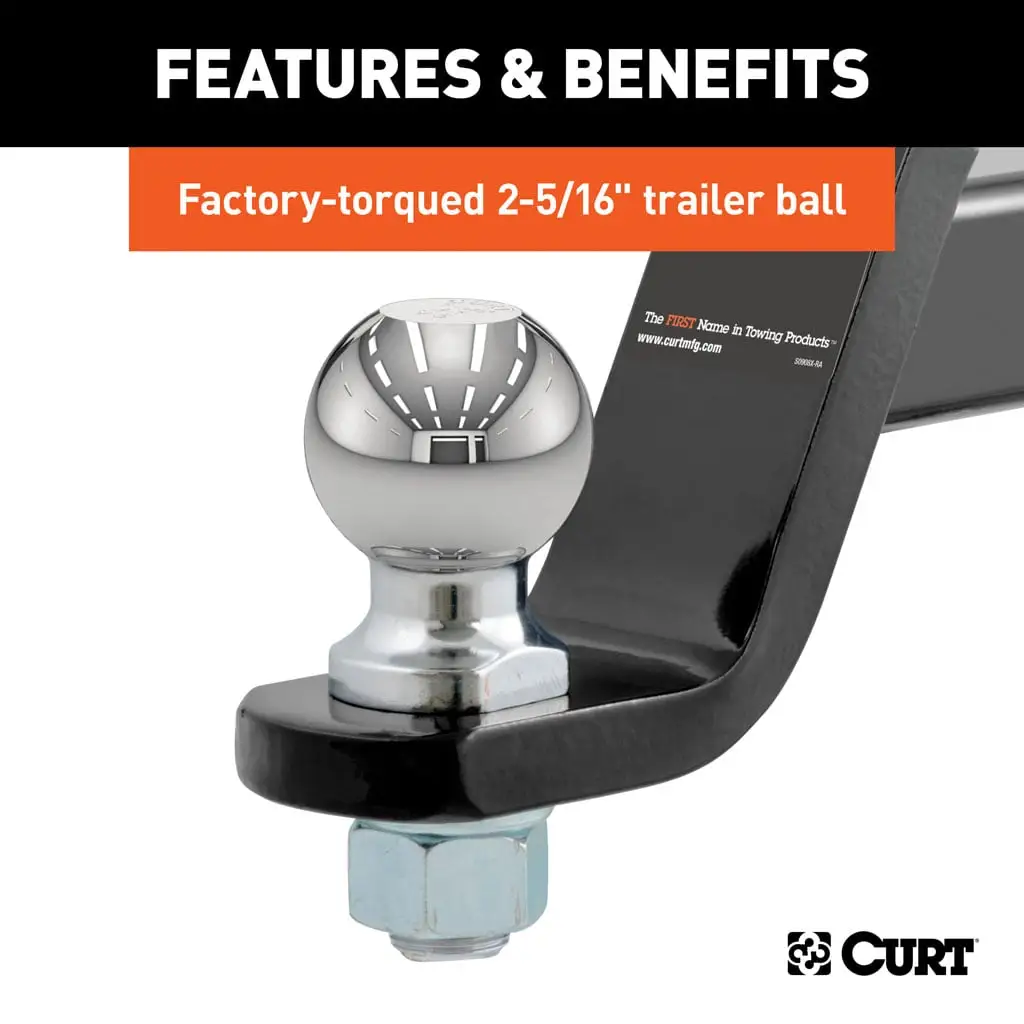

- Factory-torqued CURT trailer ball accepts a 2-5/16" coupler
- 4" drop for precise trailer leveling
- Hollow shank weighs less and can be used with an anti-rattle kit
- CNC-formed, robotically welded and mechanically descaled for a perfect fit
- Protected by a durable powder coat finish
Information
Protected by a durable powder coat finish
Application summary
| Year | Make / model |
|---|---|
| 5042 | Trailer Hitch Mount with 2-5/16-Inch Ball & Pin, Fits 2-Inch Receiver, 7,500 lbs, 4-Inch Drop |
Specifications
- GTIN
- 00612314002887
- Weight
- 10.55 lb
- Height
- 3 in
- Length
- 12 in
- Width
- 5 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Ball Mount, 4" Drop, 7500/750 Loaded
- Ball Diameter
- 2.3125 in.
- Ball Diameter (in.)
- 2.3125
- Box Height in Inches - XA
- 3
- Box Length in Inches - XA
- 15
- Box Width in Inches - XA
- 5
- California Proposition 65
- Yes
- Class ID
- 0
- Container Cases Qty - XA
- 3780
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 20
- Container Type - XA
- 40GP
- Container Unit Qty - XA
- 7560
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 38372
- Container Weight Lbs - XA
- 84418
- Drop
- 4.000 in.
- Drop (in.)
- 4.000 in.
- Finish
- GLOSS BLACK POWDER COAT
- Finish - XA
- GLOSS BLACK POWDER COAT
- Gross Trailer Weight
- 7500 lbs.
- Gross Trailer Weight (GTW)
- 7,500 LB
- Gross Trailer Weight (lbs.)
- 7500
- Gross Trailer Weight(GTW)
- 7,500 LB
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 6.000
- Master Case ITF14
- 20612314002881
- Master Case ITF14 - XA
- 20612314002881
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 12.250
- Master Case Qty - XA
- 2
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 22.100
- Master Case Width Inches - XA
- 6.000
- Material - XA
- Blank
- Mount Type Description - XA
- Blank
- Overall Length
- 8.250 in.
- Overall Length (in.)
- 8.250 in.
- Pallet Case Per - XA
- 189
- Pallet Case Per Layer - XA
- 21
- Pallet Cases Per - XA
- 189
- Pallet Cases Per Layer - XA
- 21
- Pallet Layer of Cases - XA
- 9
- Pallet Qty - XA
- 425.000
- Pallet Total Height Inches - XA
- 59.000
- Pallet Total Weight Per - XA
- 4220.900
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 10.550
- Rate Class - XA
- 60.0
- Receiver Tube Size
- 2.000 in.
- Retail Height - XA
- 3.000
- Retail Length - XA
- 12.000
- Retail Width - XA
- 5.000
- Rise
- No Rise
- Rise (in.)
- No Rise
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- BALL MOUNT
- Shipping Weight - XA
- 10.550
- Side Application Type Description - XA
- Blank
- Style
- Fixed
- Tariff 301 - XA
- Yes
- Title
- Loaded Ball Mount with 2-5/16" Ball (2" Shank, 7,500 lbs., 4" Drop)
- Tongue Weight (TW)
- 750 LB
- Tongue Weight(TW)
- 750 LB
- Truckload Cases Qty - XA
- 4158
- Truckload Dom Pickup Location - XA
- Eau Claire, Wi
- Truckload Pallets Qty - XA
- 22
- Truckload Units Qty - XA
- 8316
- Truckload Volume Cubic Feet - XA
- 122.00000
- Truckload Weight - XA
- 92859
- WC Tongue Weight
- 750
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 45042 Trailer Hitch Mount with 2-5/16-Inch Ball & Pin, Fits 2-Inch Receiver, 7,500 lbs, 4-Inch Drop
