Part #: 45040
UPC: 612314404001

Loading availability... Loading...

Notify me when this item is in stock.

Brand: CURT Series: Ball Mounts

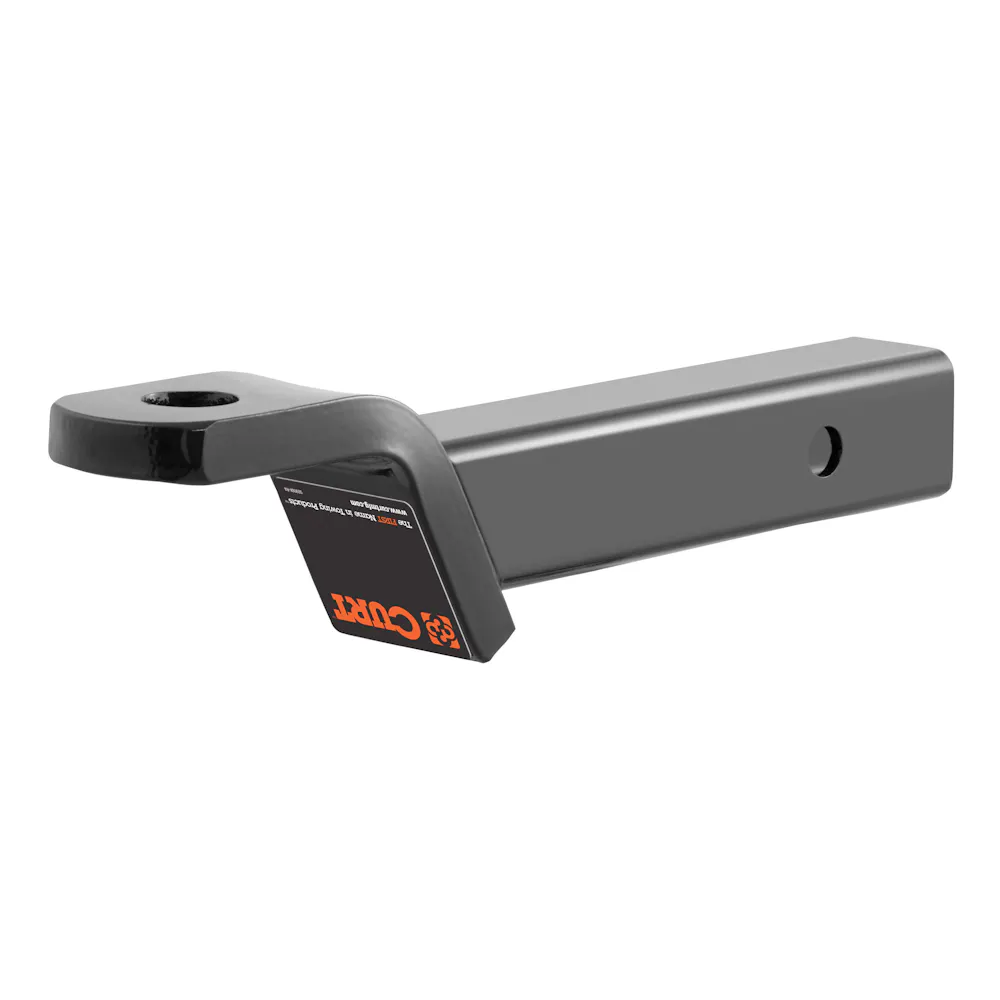

Description: Class 3 Ball Mount (2" Shank, 7,500 lbs., 2" Drop, 10-1/4" Long); CURT 45040 Class 3 Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 2-In Drop, 3/4-Inch Rise

Log in to order

Proposition 65 Warning

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 10-1/4", a drop of 2" and a possible rise of 3/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.

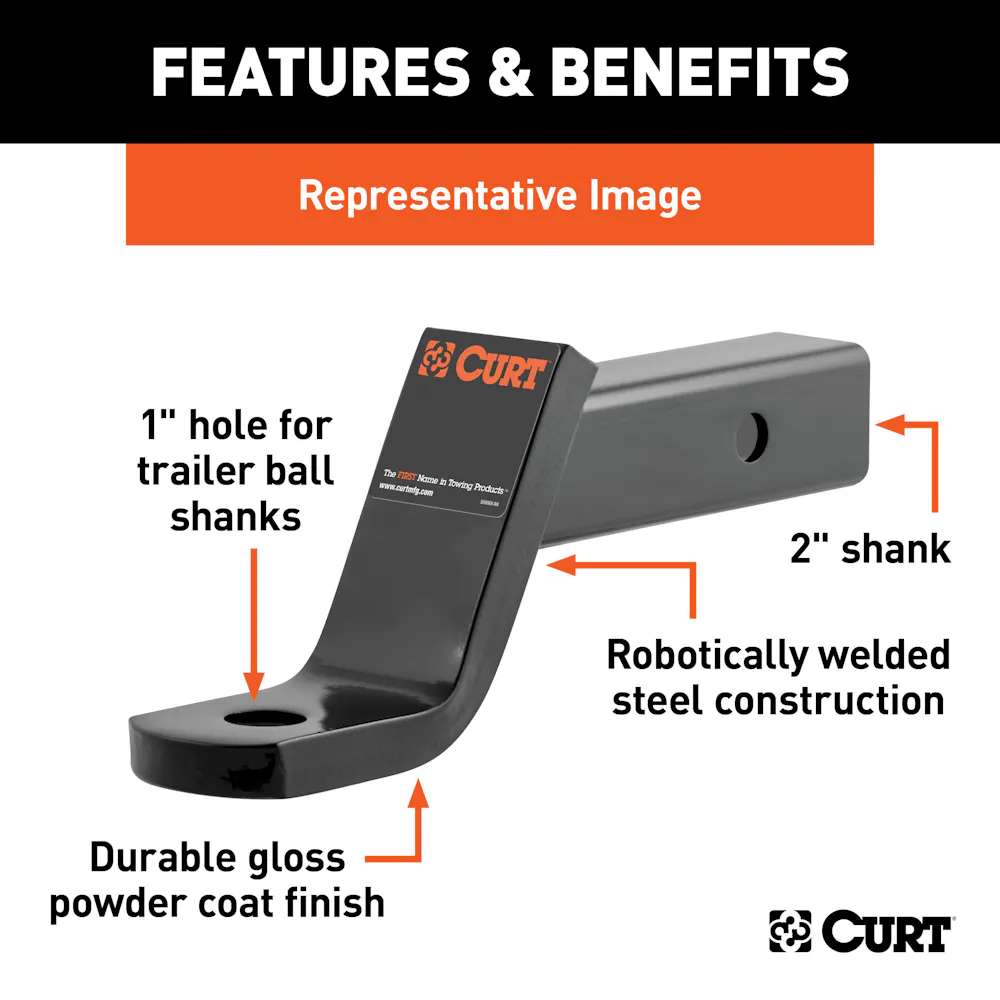

Features & benefits

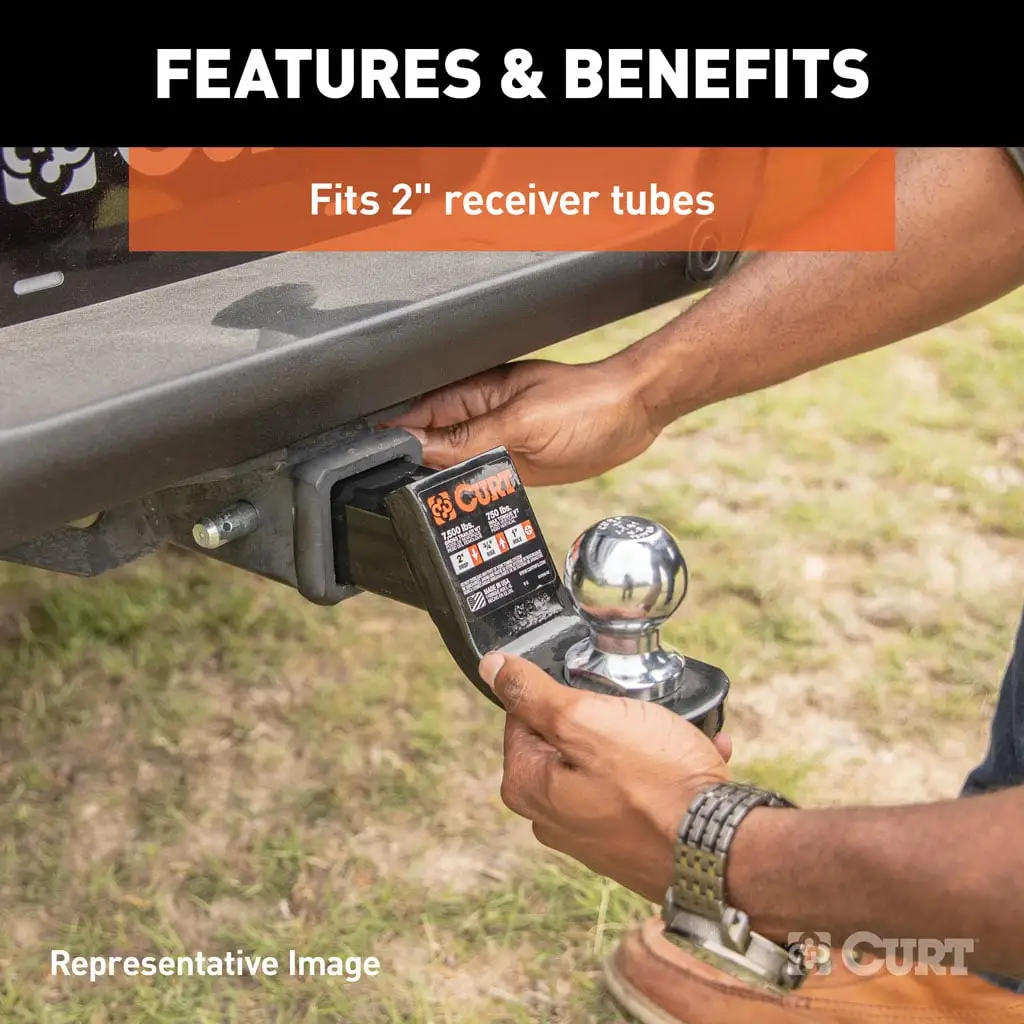

Fits trailer hitches with a 2" x 2" receiver tube opening
Equipped with a 1" hole to accept a trailer ball shank

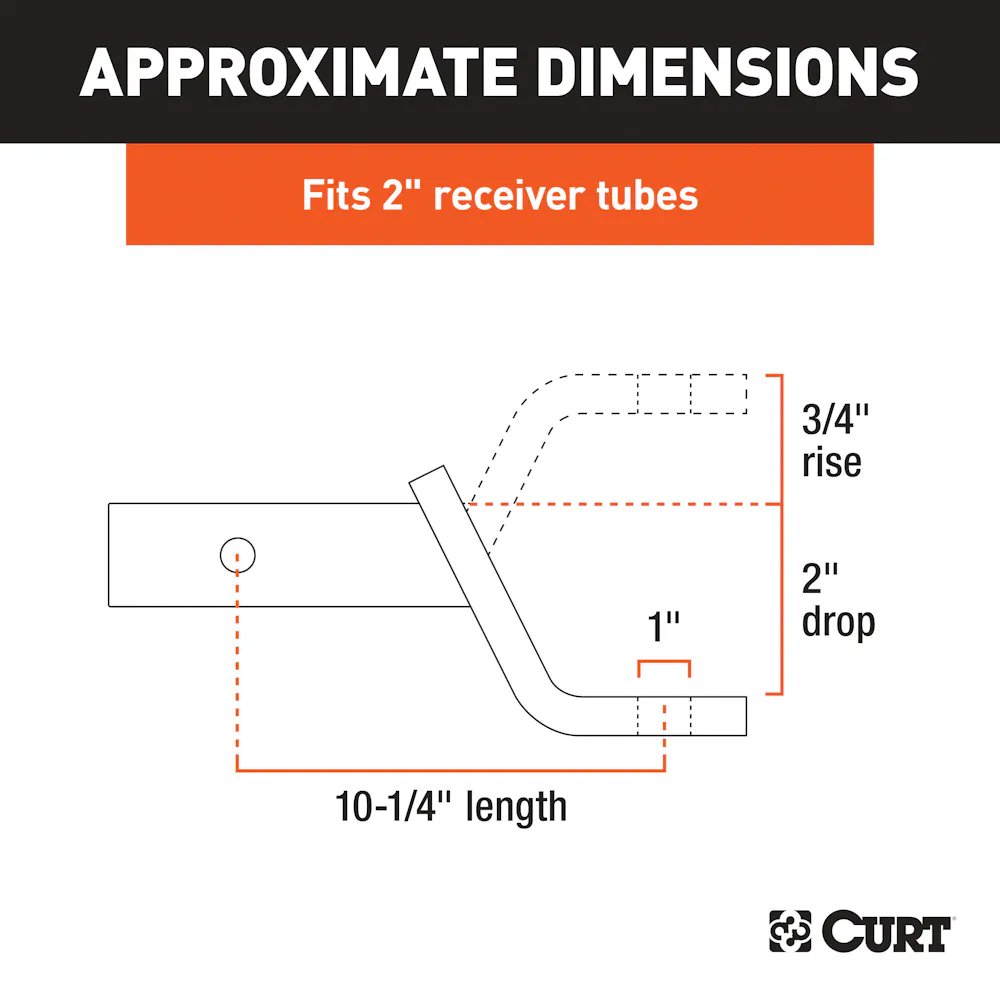

3/4" rise or 2" drop for precise trailer leveling
Hollow shank weighs less and can be used with an anti-rattle kit
CNC-formed, robotically welded and mechanically descaled for a perfect fit
Protected by a durable powder coat finish
Designed, welded, and coated in Wisconsin
Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year	Make / model
5040	Class 3 Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 2-In Drop, 3/4-Inch Rise

Specifications

GTIN: 00612314404001
Weight: 8 lb
Height: 3 in
Length: 14 in
Width: 4 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

AAM Long Description: 2" Drop Ball Mount 10.25" Long 7.5K
Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
California Proposition 65: Yes
Class ID: 0
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Drop: 2.000 in.
Drop (in.): 2.000 in.
Finish: GLOSS BLACK POWDER COAT
Finish - XA: GLOSS BLACK POWDER COAT
Gross Trailer Weight: 7500 lbs.
Gross Trailer Weight (GTW): 7,500 LB
Gross Trailer Weight (lbs.): 7500
Gross Trailer Weight(GTW): 7,500 LB
Item Class - XA: OMF
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 3.000
Master Case ITF14: 0
Master Case ITF14 - XA: 0
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 14.000
Master Case Qty - XA: 1
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 8.000
Master Case Width Inches - XA: 4.000
Material - XA: Carbon Steel
Mount Type Description - XA: Blank
Overall Length: 10.250 in.
Overall Length (in.): 10.250 in.
Pallet Case Per - XA: 264
Pallet Case Per Layer - XA: 24
Pallet Cases Per - XA: 264
Pallet Cases Per Layer - XA: 24
Pallet Layer of Cases - XA: 11
Pallet Qty - XA: 324.000
Pallet Total Height Inches - XA: 38.000
Pallet Total Weight Per - XA: 5280.000
Parcel Allowed - XA: Yes
Product Weight - XA: 0.000
Rate Class - XA: 60.0
Receiver Tube Size: 2.000 in.
Retail Height - XA: 3.000
Retail Length - XA: 14.000
Retail Width - XA: 4.000
Rise: 0.750 in.
Rise (in.): 0.750 in.
Sales Family Code - XA: ACCES
Sales Family Description - XA: ACCESSORIES
Sales Group Description - XA: BALL MOUNT
Shipping Weight - XA: 8.000
Side Application Type Description - XA: Blank
Style: Fixed
Tariff 301 - XA: No
Title: Class 3 Ball Mount (2" Shank, 7,500 lbs., 2" Drop, 10-1/4" Long)
Tongue Weight (TW): 750 LB
Tongue Weight(TW): 750 LB
Truckload Cases Qty - XA: 5280
Truckload Pallets Qty - XA: 21
Truckload Units Qty - XA: 5280
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 43040
WC Tongue Weight: 750
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
