CURT · 40166

Part #: 40166
UPC: 612314401666

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: CURT Series: Trailer Balls

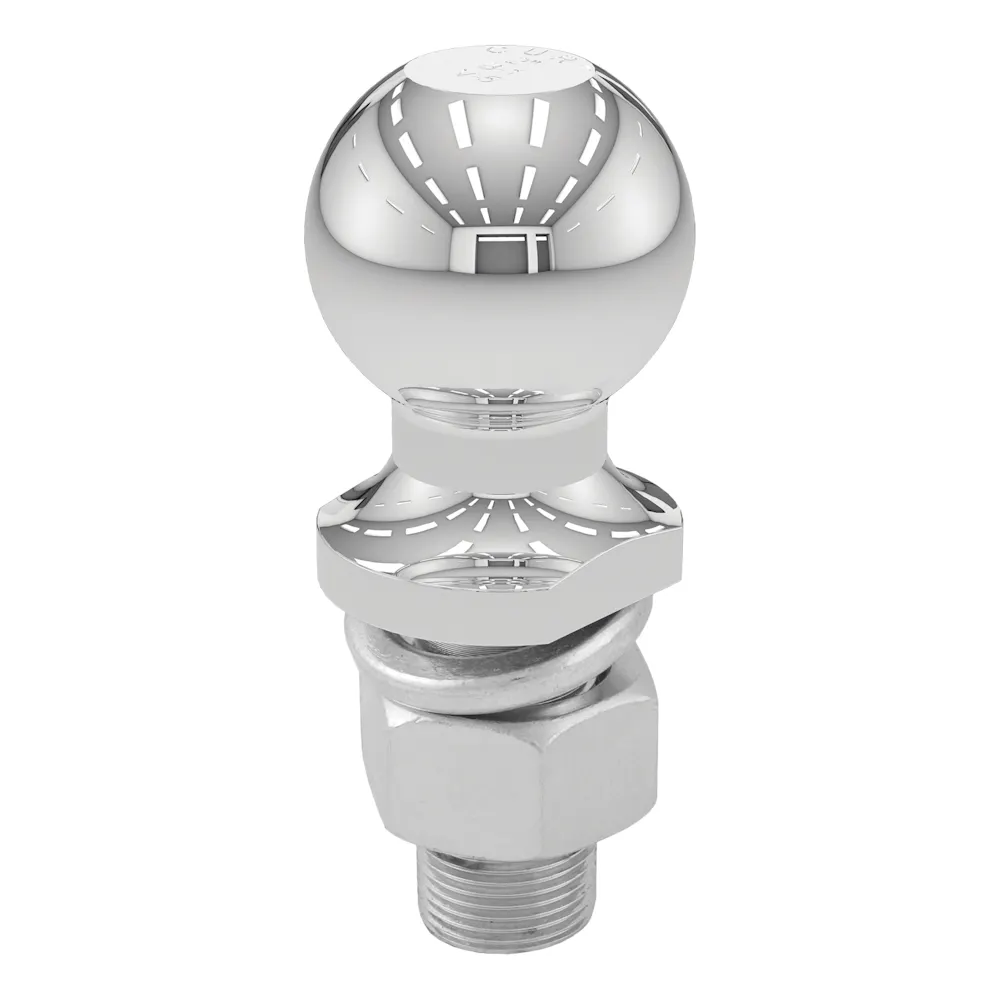

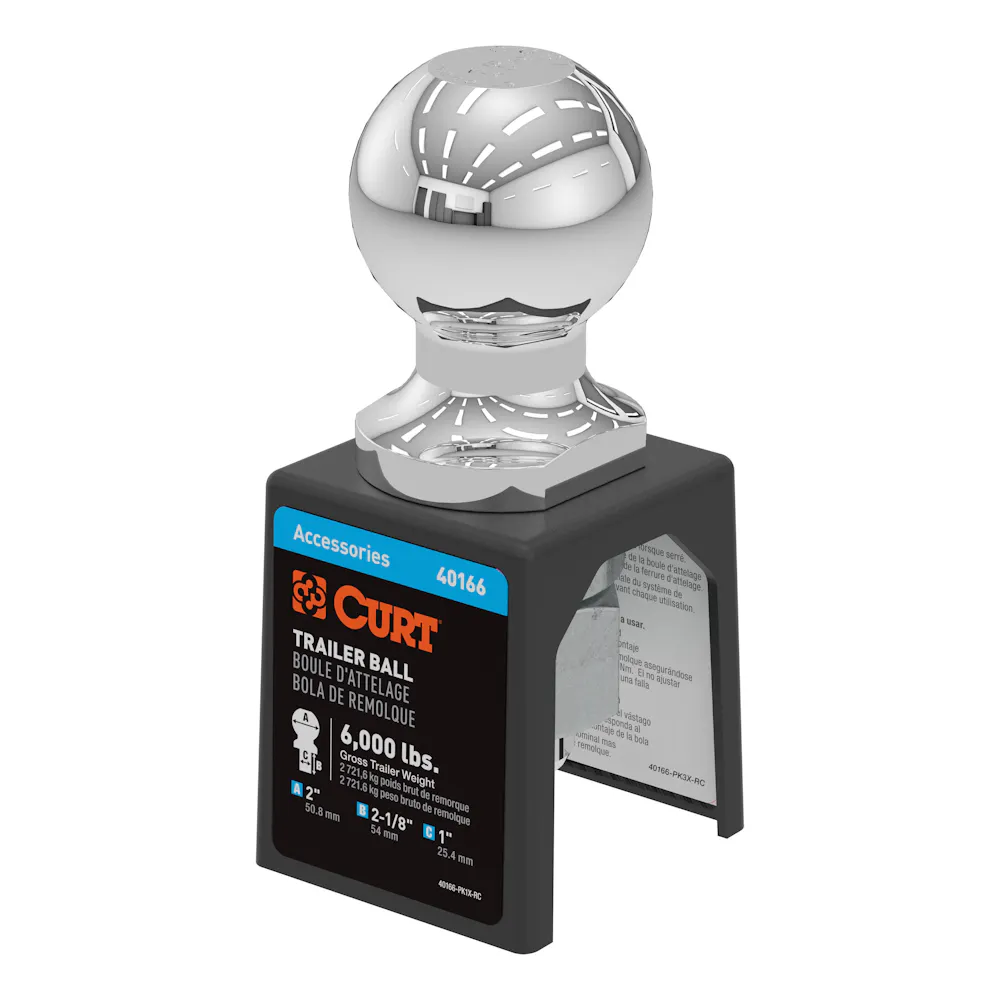

Description: 2" Trailer Ball (1" x 2-1/8" Shank, 6,000 lbs., Chrome, Packaged); CURT 40166 Chrome Trailer Hitch Ball, 6,000 lbs, 2-Inch Diameter, 1 x 2-1/8-In Shank

Description:

Description

Out of the monotony comes one name that rises above all others. CURT trailer balls are designed for strength, ease of use and, ultimately, to get you to your destination without hassle. CURT 2" trailer hitch balls are constructed from quality steel and are made with precision to fit your 2" trailer coupler like a hand in a glove. They are able to tow most standard-duty and heavy-duty trailers such as utility trailers, boat trailers, campers, livestock trailers and recreational vehicle trailers for hauling ATVs, snowmobiles, personal watercraft and more. These tow balls are an excellent extension of your class 3 or class 4 trailer hitch and ball mount, and are the ideal choice for most pickup trucks and SUVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This particular 2" trailer ball offers a ball capacity of 6,000 lbs. It features a 1" shank diameter, a 2-1/8" shank length, 0" of rise and a nickel-chrome finish to protect against rust and scratches. With its fine-threaded shank, this 2" trailer ball also offers an added measure of holding strength and provides smooth installation and torqueing. To give you peace of mind while towing to that next destination, we also carefully test our trailer balls and ensure that each one meets U.S. VESC specifications.

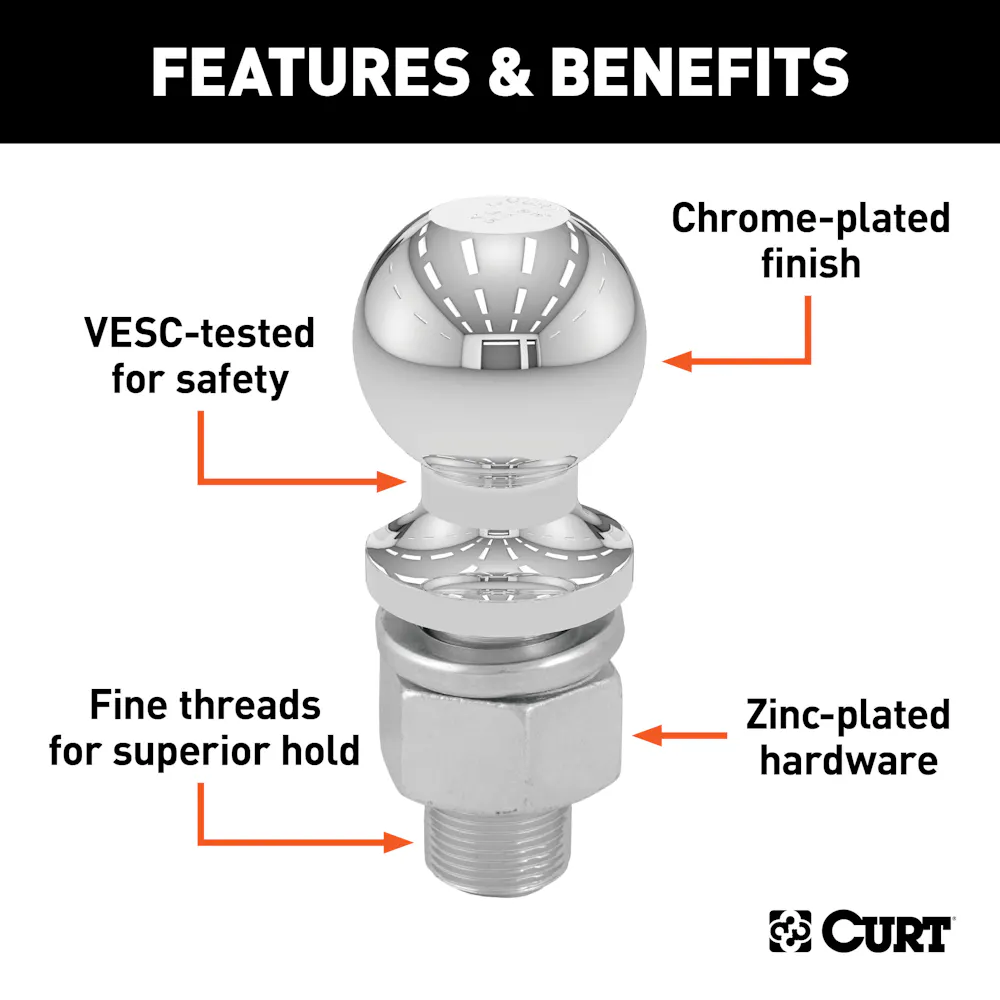

Features & benefits

  • Fits 2" couplers and accepts up to 6,000 lbs. GTW
  • Constructed from high-strength, hot-forged steel
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Tested for safety to meet U.S. VESC V-5 specifications
  • Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year Make / model
0166 Chrome Trailer Hitch Ball, 6,000 lbs, 2-Inch Diameter, 1 x 2-1/8-In Shank

Specifications

GTIN
00612314401666
Weight
2.47 lb
Height
2.4 in
Length
5.75 in
Width
2.4 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

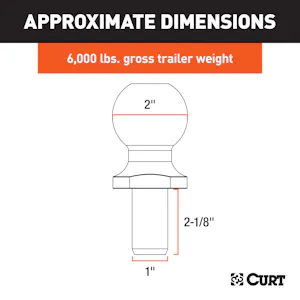

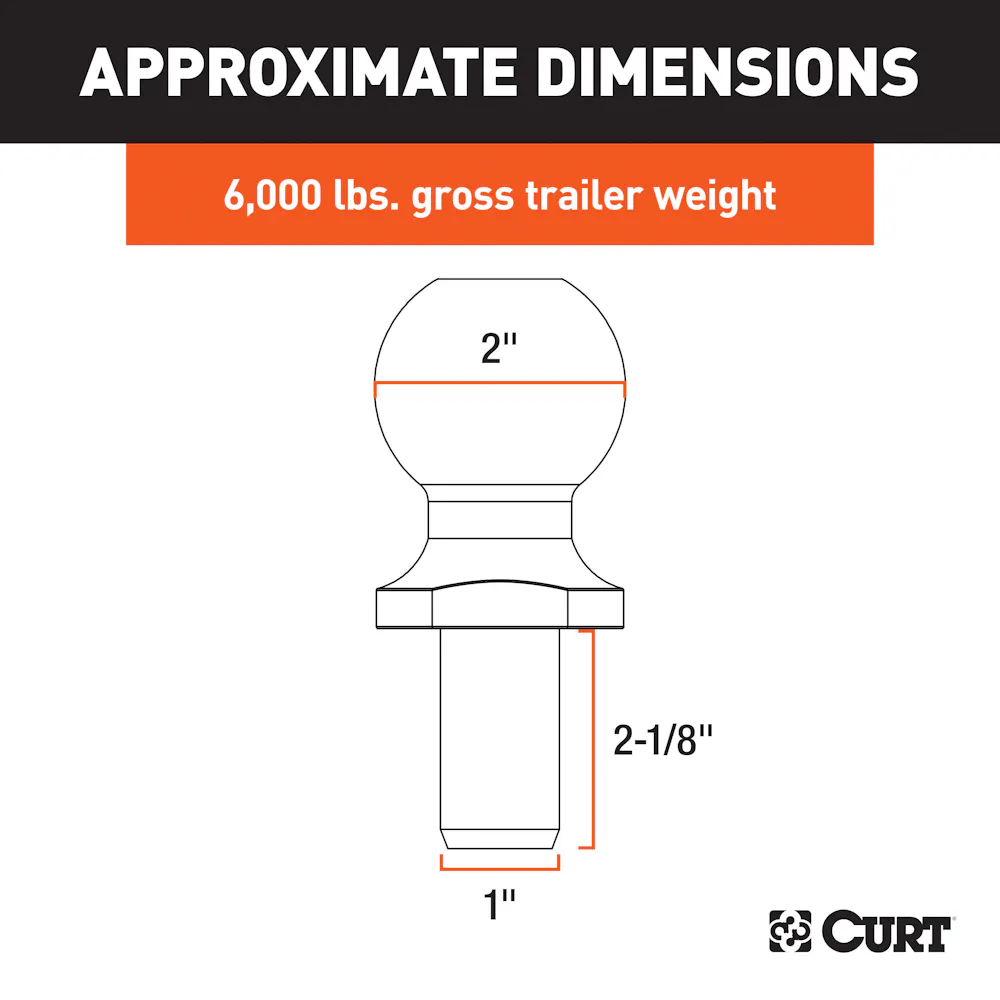

Ball Capacity
6,000 LBS
Ball Diameter
2.000 in.
Ball Shank Diameter
1.000 in.
Box Height in Inches - XA
3
Box Length in Inches - XA
6
Box Width in Inches - XA
4
California Proposition 65
Yes
Container Cases Qty - XA
1260
Container Load Type - XA
PALLETS
Container Pallet Qty - XA
10
Container Type - XA
20GP
Container Unit Qty - XA
15120
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
43866
Finish
CHROME-PLATED
Finish - XA
CHROME-PLATED
Gross Load
6000 lbs.
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
7.000
Master Case ITF14
60612314401668
Master Case ITF14 - XA
60612314401668
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
11.800
Master Case Qty - XA
12
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
34.640
Master Case Width Inches - XA
8.260
Material - XA
FORGED STEEL
Mount Type Description - XA
Blank
Pallet Case Per - XA
126
Pallet Case Per Layer - XA
18
Pallet Cases Per - XA
126
Pallet Cases Per Layer - XA
18
Pallet Layer of Cases - XA
7
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
53.000
Pallet Total Weight Per - XA
4386.640
Parcel Allowed - XA
Yes
Product Weight - XA
2.470
Rate Class - XA
85.0
Retail Height - XA
2.400
Retail Length - XA
5.750
Retail Width - XA
2.400
Sales Family Code - XA
ACCES
Sales Family Description - XA
ACCESSORIES
Sales Group Description - XA
TRAILER BALLS
Shank Diameter
1 IN
Shank Length
2.125 in.
Shipping Weight - XA
2.470
Side Application Type Description - XA
Blank
Tariff 301 - XA
Yes
Title
2" Trailer Ball (1" x 2-1/8" Shank, 6,000 lbs., Chrome, Packaged)
Truckload Cases Qty - XA
1260
Truckload Pallets Qty - XA
10
Truckload Units Qty - XA
15120
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
43866

Fitment status

This product is universal and will fit your application.

Application summary

CURT 40166 Chrome Trailer Hitch Ball, 6,000 lbs, 2-Inch Diameter, 1 x 2-1/8-In Shank
