CURT · 40092
Part #: 40092
UPC: 612314192007
Log in for inventory
Notify me when this item is in stock.

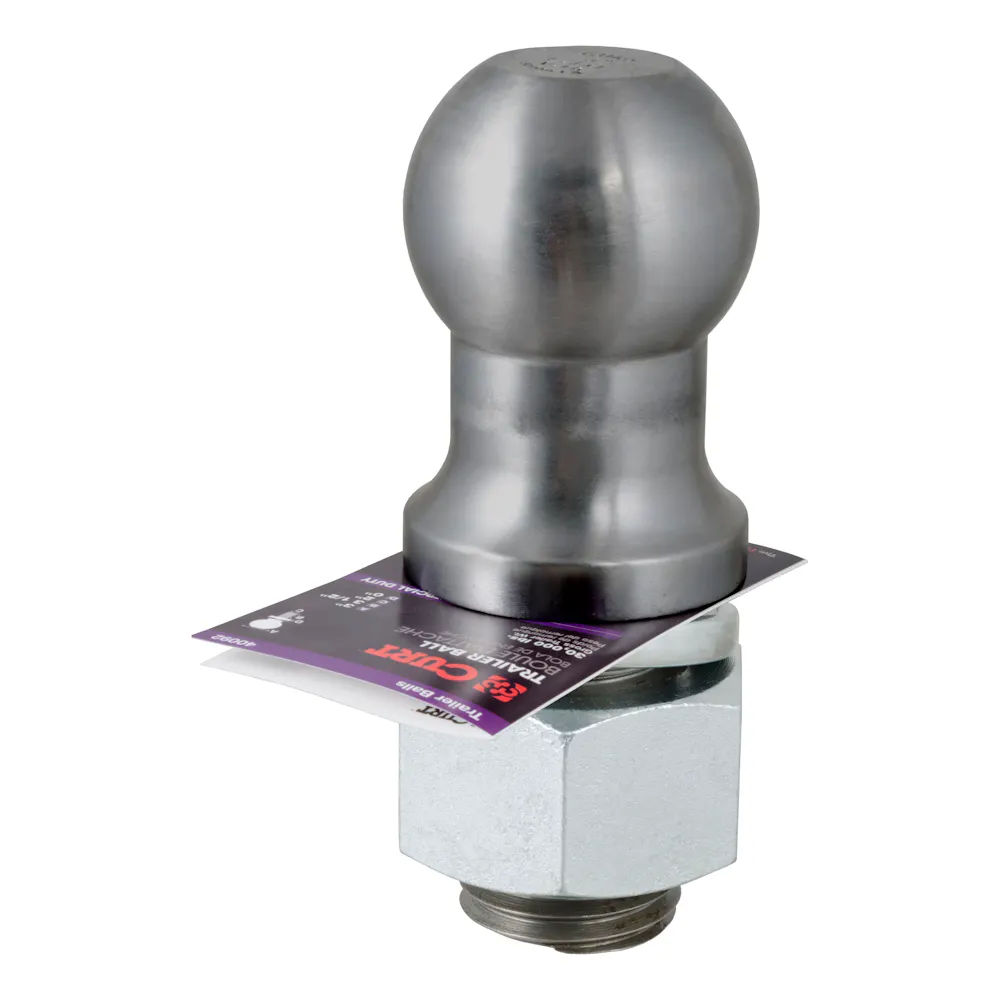

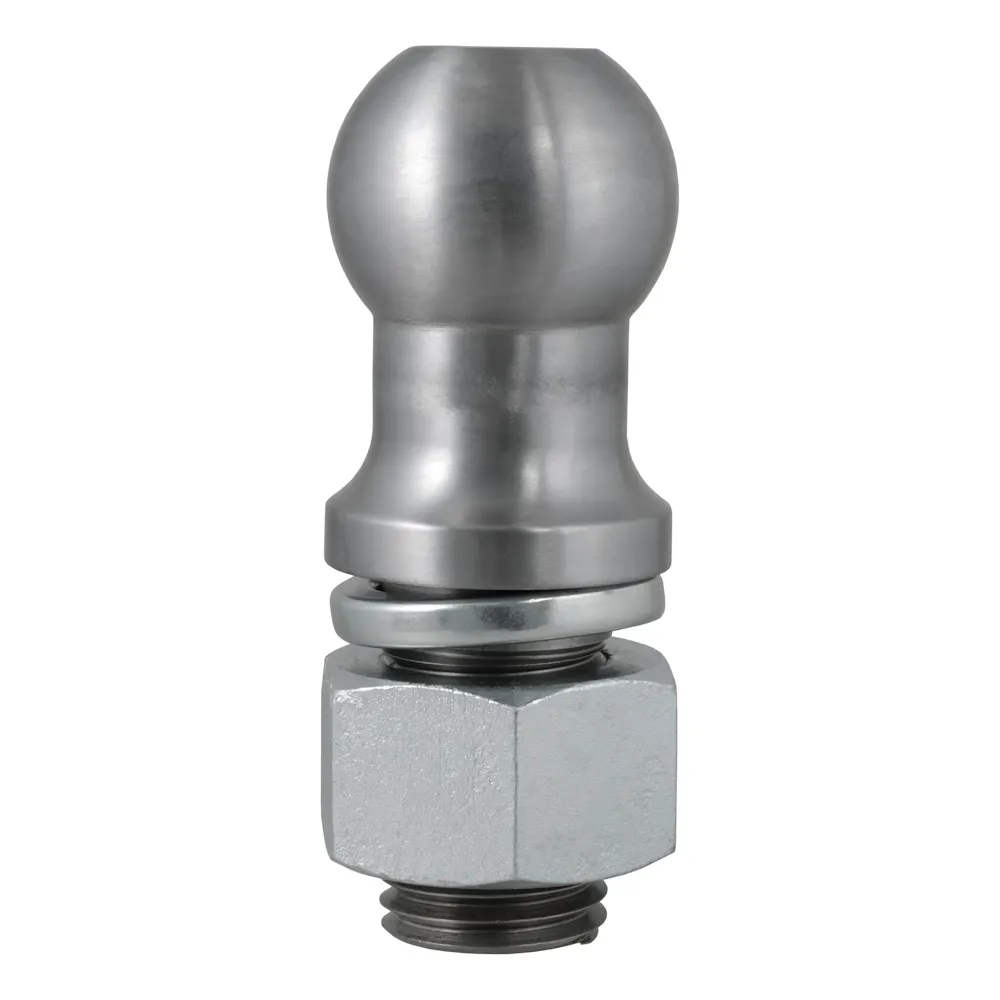

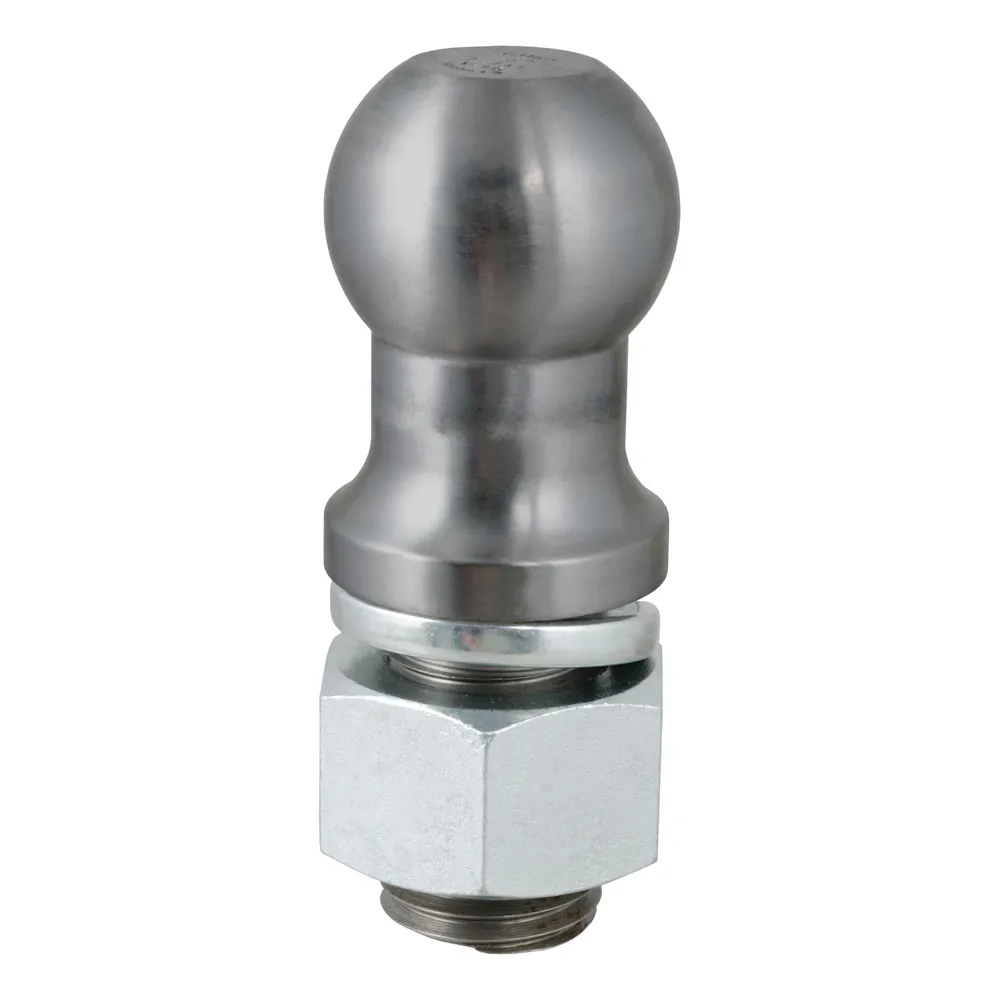

Description: 3 Trailer Ball (2 x 3-1/2 Shank, 30,000 lbs., Raw Steel); CURT 40092 Raw Steel Trailer Hitch Ball, Gooseneck, 30,000 lbs, 3-Inch Diameter, 2 x 3-1/2-Inch Shank
Description:
Description
When you need towing strength unlike anything your average trailer ball can provide, you need something that goes beyond conventional means. CURT 3 trailer balls are unparalleled in their towing capacity and design. With a wide 3 ball diameter, they offer a solid mounting place for your trailer coupler and peace of mind down every road. CURT 3 trailer hitch balls weigh in with a ball capacity of 30,000 lbs. This means they are capable of towing virtually any trailer your class 5 trailer hitch and ball mount can tow. The CURT 3 tow ball comes with a 2 shank diameter for added structural strength and a raw steel finish, giving it a tough layer protection against the stress of pulling large loads. Whether its commercial machinery, industrial supplies, construction equipment or farming materials, these trailer balls are built to thrive in heavy-duty applications (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Also, to give them an added advantage, CURT 3 trailer balls are heat-treated and feature coarse threads. To make sure our trailer balls are fit to take on the CURT name, we put them through strenuous testing. Not only does this ensure they are capable of performing at their listed capacities, but it also gives you the confidence you need to tow that trailer wherever the highway leads. Our 3 trailer balls are made for performance and endurance and meet U.S. VESC specifications for your safety.
Features & benefits
- Fits 3 In. Couplers And Accepts Up To 30000 Lbs. Tw
- Constructed From High-Strength Raw Steel
- Heat-Treated For Optimum Wear Resistance
- Zinc-Plated Hex Nut And Helical Lock Washer For Secure Mounting
- Tested For Safety To Meet U.S. Vesc V-19 Specifications
Information
3 Trailer Ball (2 x 3-1/2 Shank, 30,000 lbs., Raw Steel); Fits 3 couplers and accepts up to 30,000 lbs. GTW; Constructed from high-strength raw steel; Heat-treated for optimum wear resistance; Zinc-plated hex nut and helical lock washer for secure mounting; Tested for safety to meet U.S. VESC V-19 specifications; Limited lifetime warranty (one-year finish, one-year parts)
Specifications
- GTIN
- 00612314192007
- Weight
- 11 lb
- Height
- 3 in
- Length
- 8 in
- Width
- 4 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Hitch Ball, 3 In X 2 In X 3 1/4 In
- Ball Capacity
- 30,000 LBS
- Ball Diameter
- 3 IN
- Ball Diameter (in.)
- 3
- Ball Shank Diameter
- 2.000 in.
- Ball Shank Diameter (in.)
- 2
- Box Height in Inches - XA
- 2
- Box Length in Inches - XA
- 7
- Box Width in Inches - XA
- 4
- California Proposition 65
- No
- Class ID
- 0
- Color
- Raw Steel
- Finish
- Raw
- Finish - XA
- Raw
- Gross Load
- 30000 lbs.
- Gross Load (lbs.)
- 30000
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 70.0
- Retail Height - XA
- 3.000
- Retail Length - XA
- 8.000
- Retail Width - XA
- 4.000
- Shank Diameter
- 2
- Shank Length
- 3 1/2 IN
- Shank Length (in.)
- 3.25
- Shank Rise
- 0 IN
- Shipping Weight - XA
- 11.000
- Tariff 301 - XA
- Yes
- Title
- 3" Trailer Ball (2" x 3-1/2" Shank, 30,000 lbs., Raw Steel)
- Torque
- 4550 FT LB
- Torque Capacity
- 4550 ft/lbs.
- Torque Capacity (ft/lbs.)
- 4550 ft/lbs.
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
