CURT · 40087

Part #: 40087
UPC: 612314400874

Loading availability... Loading...

Notify me when this item is in stock.

Brand: CURT Series: Trailer Balls

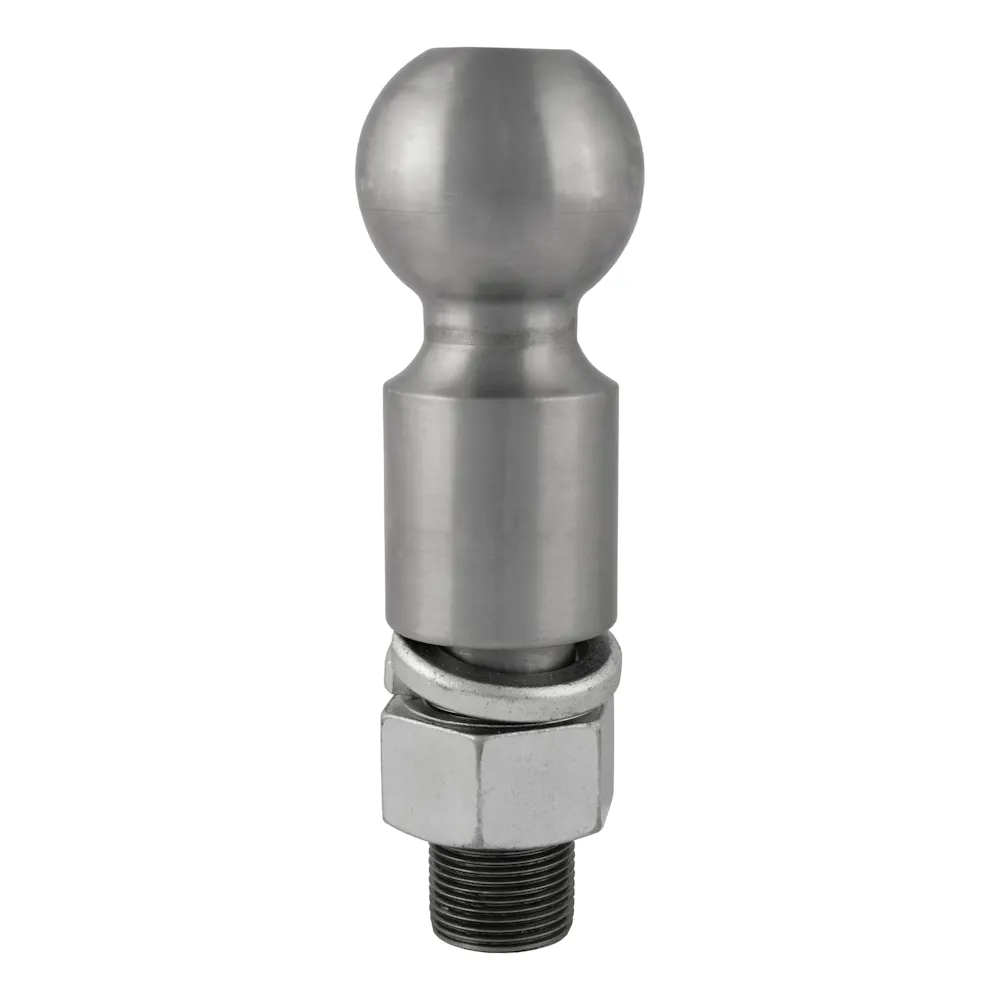

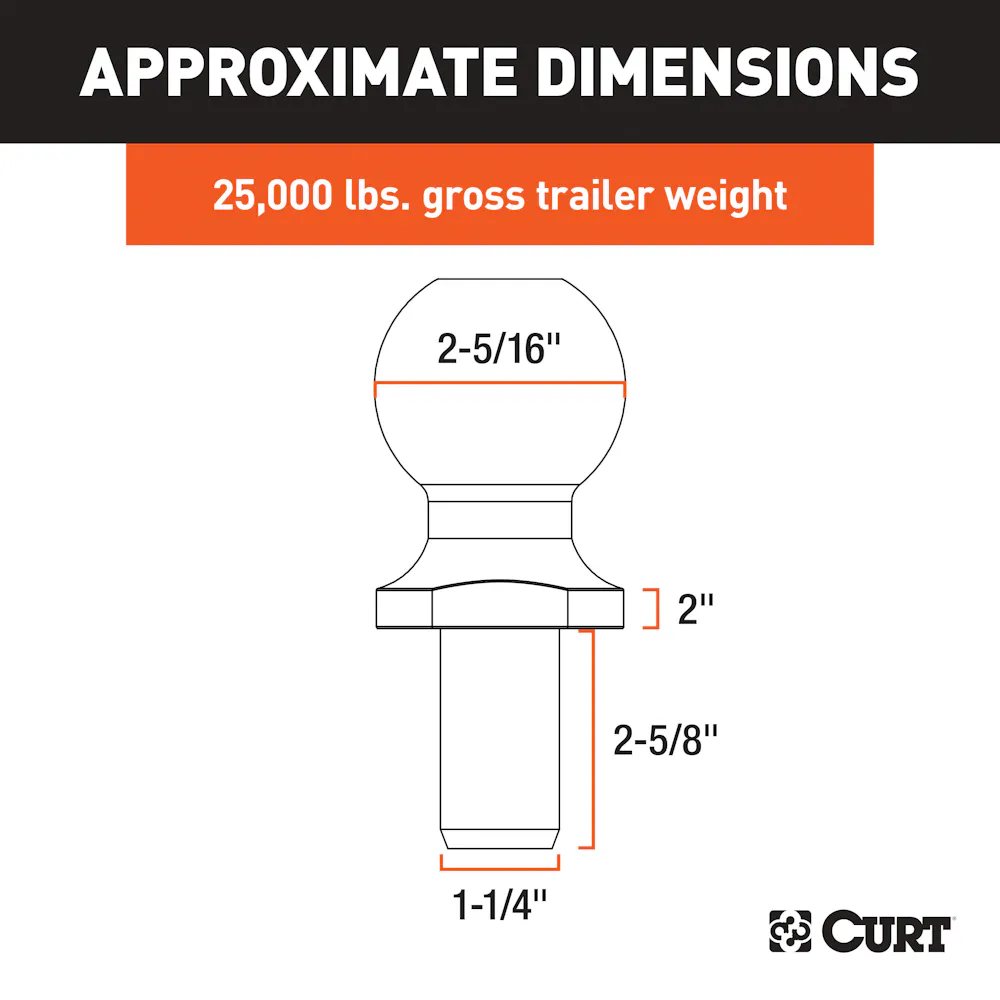

Description: 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 2" Rise, 25,000 lbs., Raw Steel); CURT 40087 Raw Steel Trailer Hitch Ball, 25,000 lbs, 2-Inch Rise, 2-5/16-Inch Diameter, 1-1/4 x 2-5/8-Inch Shank

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 25,000 lbs. It features a 1-1/4" shank diameter, a 2-5/8" shank length, 2" of rise and a raw steel finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.

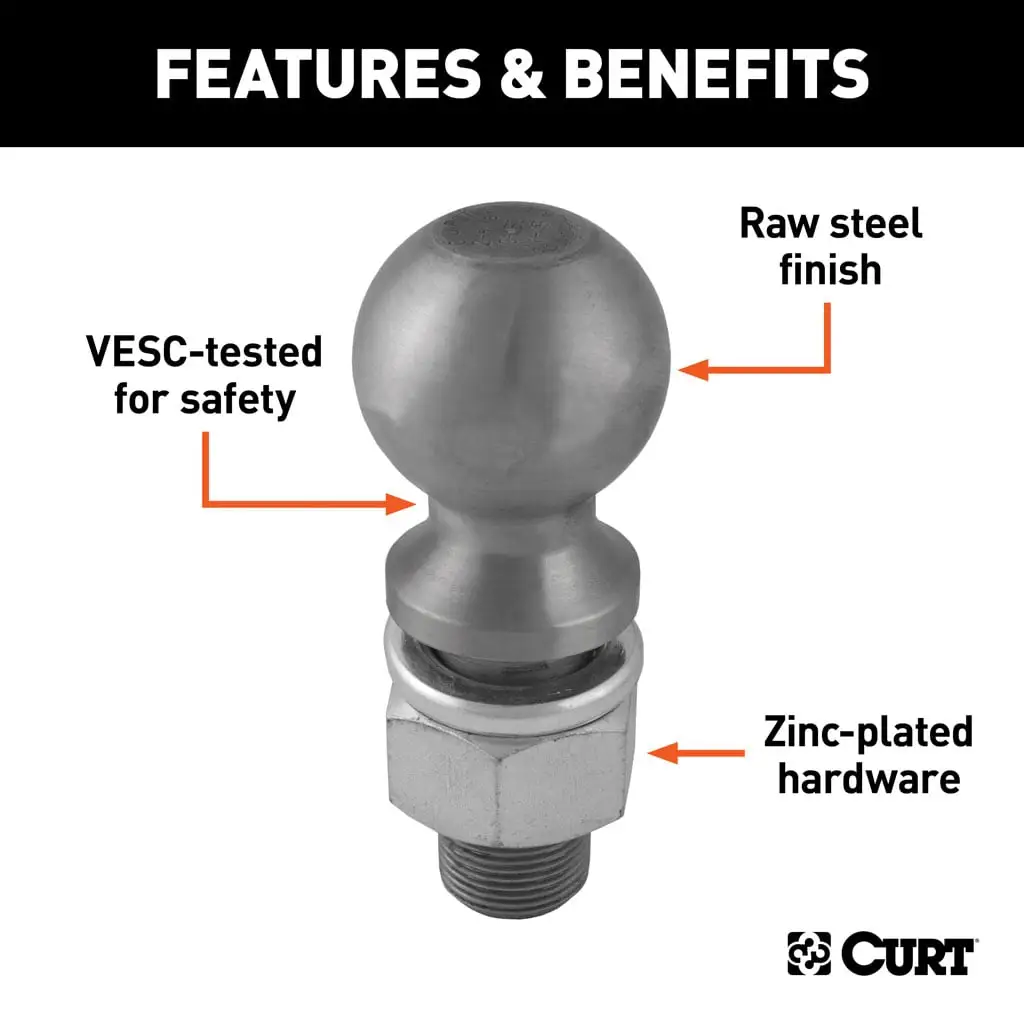

Features & benefits

Heat-treated for optimum wear resistance
Zinc-plated hex nut and helical lock washer for secure mounting
Features fine threads for superior holding strength
Tested for safety to meet U.S. VESC V-19 specifications
Limited lifetime warranty (one-year finish, one-year parts)
Fits 2-5/16" couplers and accepts up to 25,000 lbs. GTW
2" shank rise for precise trailer leveling
Constructed from high-strength raw steel

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year	Make / model
0087	Raw Steel Trailer Hitch Ball, 25,000 lbs, 2-Inch Rise, 2-5/16-Inch Diameter, 1-1/4 x 2-5/8-Inch Shank

Specifications

GTIN: 00612314400874
Weight: 5.15 lb
Height: 2.5 in
Length: 7.5 in
Width: 2.5 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

AAM Long Description: 2 5/16" Raw Trailer Ball, 1 1/4" Shank, 2" Rise, 25K Capacity
Ball Capacity: 25,000 LBS
Ball Diameter: 2.3125 in.
Ball Diameter (in.): 2.3125
Ball Shank Diameter: 1.250 in.
Ball Shank Diameter (in.): 1 1/4
Box Height in Inches - XA: 2
Box Length in Inches - XA: 7
Box Width in Inches - XA: 4
California Proposition 65: Yes
Class ID: 0
Container Cases Qty - XA: 1200
Container Load Type - XA: PALLETS
Container Pallet Qty - XA: 15
Container Type - XA: 20GP
Container Unit Qty - XA: 7200
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 37633
Finish: RAW
Finish - XA: RAW
Gross Load: 25000 lbs.
Gross Load (lbs.): 25000
Item Class - XA: OBS
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 8.000
Master Case ITF14: 60612314400876
Master Case ITF14 - XA: 60612314400876
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 8.000
Master Case Qty - XA: 6
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 31.000
Master Case Width Inches - XA: 5.100
Material - XA: FORGED STEEL
Mount Type Description - XA: Blank
Pallet Case Per - XA: 80
Pallet Case Per Layer - XA: 40
Pallet Cases Per - XA: 80
Pallet Cases Per Layer - XA: 40
Pallet Layer of Cases - XA: 2
Pallet Qty - XA: 12.000
Pallet Total Height Inches - XA: 22.000
Pallet Total Weight Per - XA: 2487.000
Parcel Allowed - XA: Yes
Product Weight - XA: 0.000
Rate Class - XA: 85.0
Retail Height - XA: 2.500
Retail Length - XA: 7.500
Retail Width - XA: 2.500
Sales Family Code - XA: ACCES
Sales Family Description - XA: ACCESSORIES
Sales Group Description - XA: TRAILER BALLS
Shank Diameter: 1.25
Shank Length: 2.625 in.
Shank Length (in.): 2.625
Shank Rise: 2 IN
Shipping Weight - XA: 5.150
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Title: 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 2" Rise, 25,000 lbs., Raw Steel)
Torque: 450 FT LB
Torque Capacity: 450 ft/lbs.
Torque Capacity (ft/lbs.): 450 ft/lbs.
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
