CURT · 40080
Part #: 40080
UPC: 612314100804
Loading...
Notify me when this item is in stock.

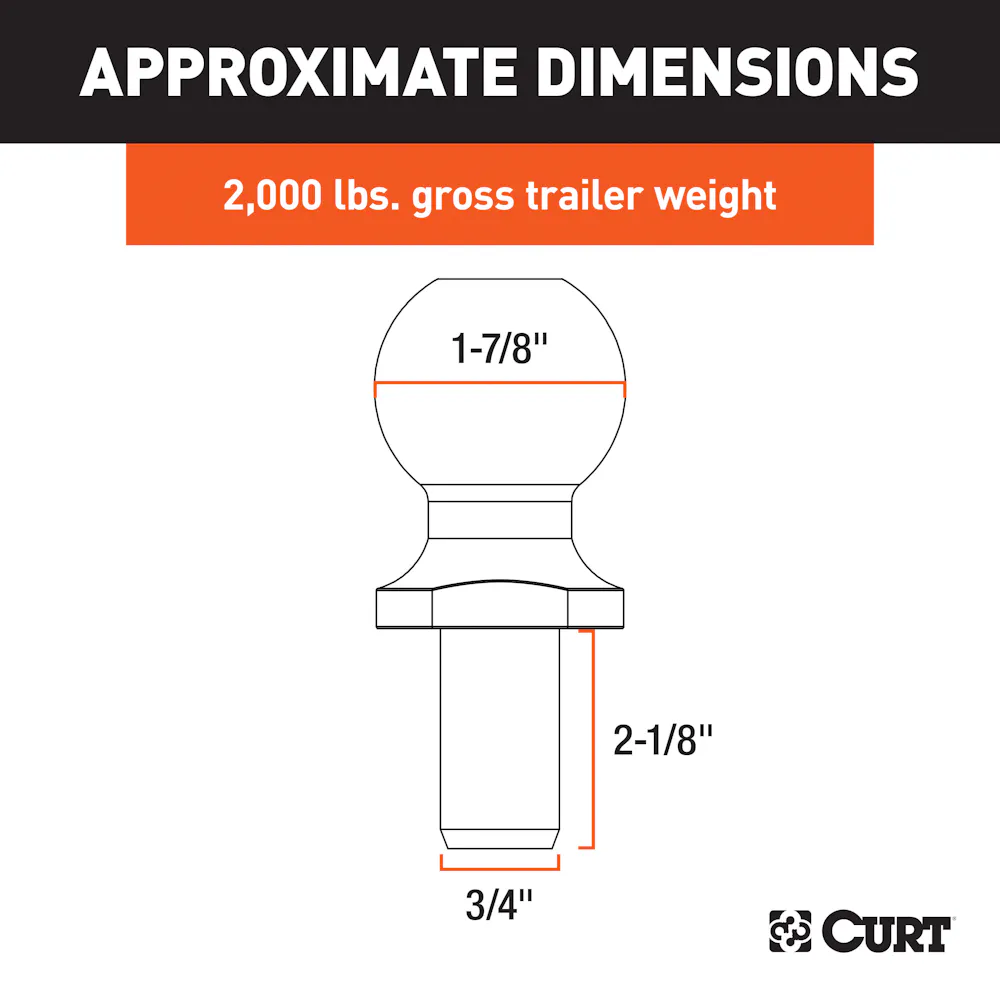

Description: 1-7/8" Trailer Ball (3/4" x 2-1/8" Shank, 2,000 lbs., Stainless, Packaged); CURT 40080 Stainless Steel Trailer Hitch Ball, 2,000 lbs, 1-7/8-Inch Diameter, 3/4 x 2-1/8-Inch Shank
Description:
Description
CURT 1-7/8" trailer balls are constructed from high-strength steel to match the towing power of your class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, we engineer our trailer balls to be precisely fitted. When we stamp 1-7/8" into the top of each hitch ball, we actually mean 1-7/8".This CURT tow ball features a ball capacity of 2,000 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 3/4" shank diameter, a 2-1/8" shank length, 0" of rise and a stainless steel finish to protect against corrosion and wear. Like all CURT trailer balls, our 1-7/8" balls are tested for your safety and meet all U.S. VESC specifications.

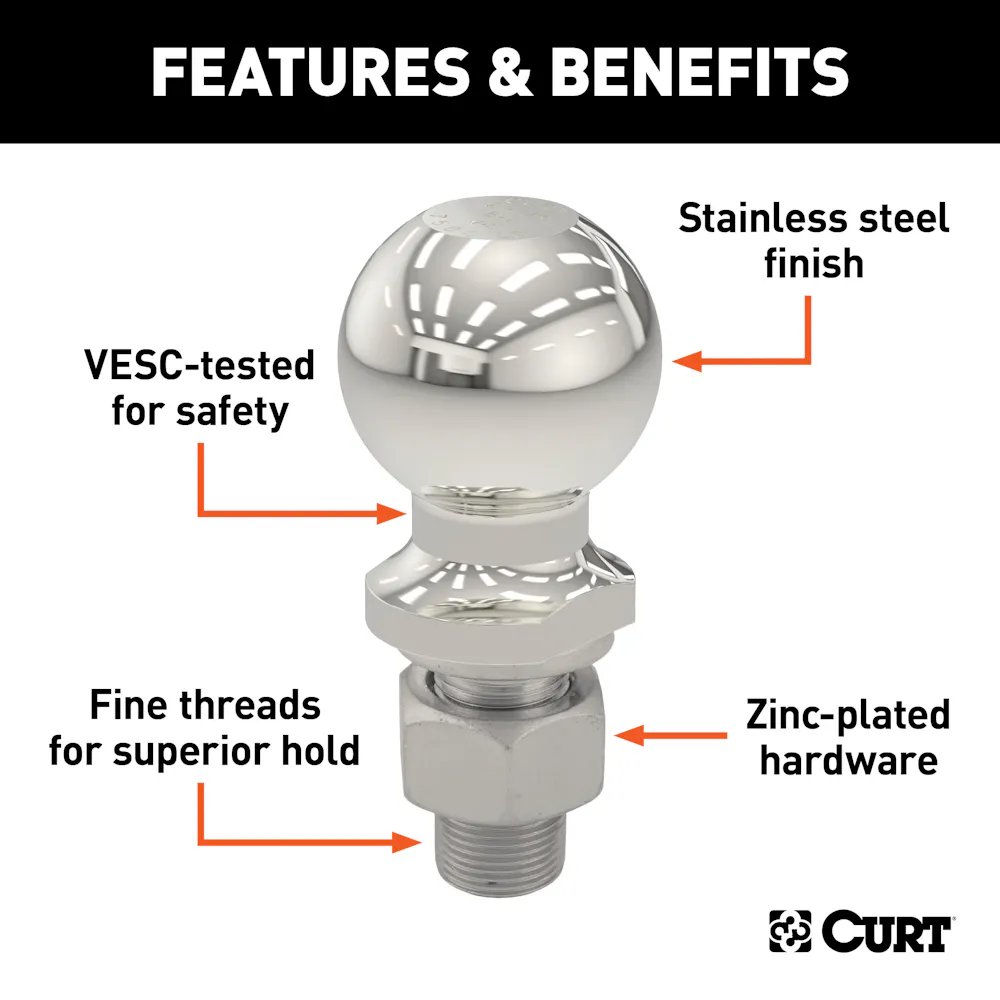

Features & benefits
- Fits 1-7/8" couplers and accepts up to 2,000 lbs. GTW
- Stainless steel construction for excellent rust resistance
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
- Tested for safety to meet U.S. VESC V-5 specifications
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 0080 | Stainless Steel Trailer Hitch Ball, 2,000 lbs, 1-7/8-Inch Diameter, 3/4 x 2-1/8-Inch Shank |
Specifications
- GTIN
- 00612314100804
- Weight
- 1.22 lb
- Height
- 3 in
- Length
- 8 in
- Width
- 4 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Hitch Ball, 1 7/8 In x 3/4 In x 2 1/8 In
- Ball Capacity
- 2,000 LBS
- Ball Diameter
- 1.875 in.
- Ball Diameter (in.)
- 1.875
- Ball Shank Diameter
- 0.750 in.
- Ball Shank Diameter (in.)
- 3/4
- Box Height in Inches - XA
- 2
- Box Length in Inches - XA
- 7
- Box Width in Inches - XA
- 4
- California Proposition 65
- Yes
- Class ID
- 0
- Color
- Stainless
- Container Cases Qty - XA
- 864
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 18
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 10368
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 22071
- Finish
- POLISHED STAINLESS
- Finish - XA
- POLISHED STAINLESS
- Gross Load
- 2000 lbs.
- Gross Load (lbs.)
- 2000
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 8.300
- Master Case ITF14
- 60612314100806
- Master Case ITF14 - XA
- 60612314100806
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 15.000
- Master Case Qty - XA
- 12
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 24.400
- Master Case Width Inches - XA
- 9.000
- Material - XA
- FORGED STEEL
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 48
- Pallet Case Per Layer - XA
- 12
- Pallet Cases Per - XA
- 48
- Pallet Cases Per Layer - XA
- 12
- Pallet Layer of Cases - XA
- 4
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 37.200
- Pallet Total Weight Per - XA
- 1226.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 85.0
- Retail Height - XA
- 3.000
- Retail Length - XA
- 8.000
- Retail Width - XA
- 4.000
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- TRAILER BALLS
- Shank Diameter
- .75
- Shank Length
- 2.125 in.
- Shank Length (in.)
- 2.125
- Shank Rise
- 0 IN
- Shipping Weight - XA
- 1.220
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- Yes
- Title
- 1-7/8" Trailer Ball (3/4" x 2-1/8" Shank, 2,000 lbs., Stainless, Packaged)
- Torque
- 160 FT LB
- Torque Capacity
- 160 ft/lbs.
- Torque Capacity (ft/lbs.)
- 160 ft/lbs.
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 40080 Stainless Steel Trailer Hitch Ball, 2,000 lbs, 1-7/8-Inch Diameter, 3/4 x 2-1/8-Inch Shank
