CURT / 40074

Part #: 40074
UPC: 612314000746

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: Trailer Balls

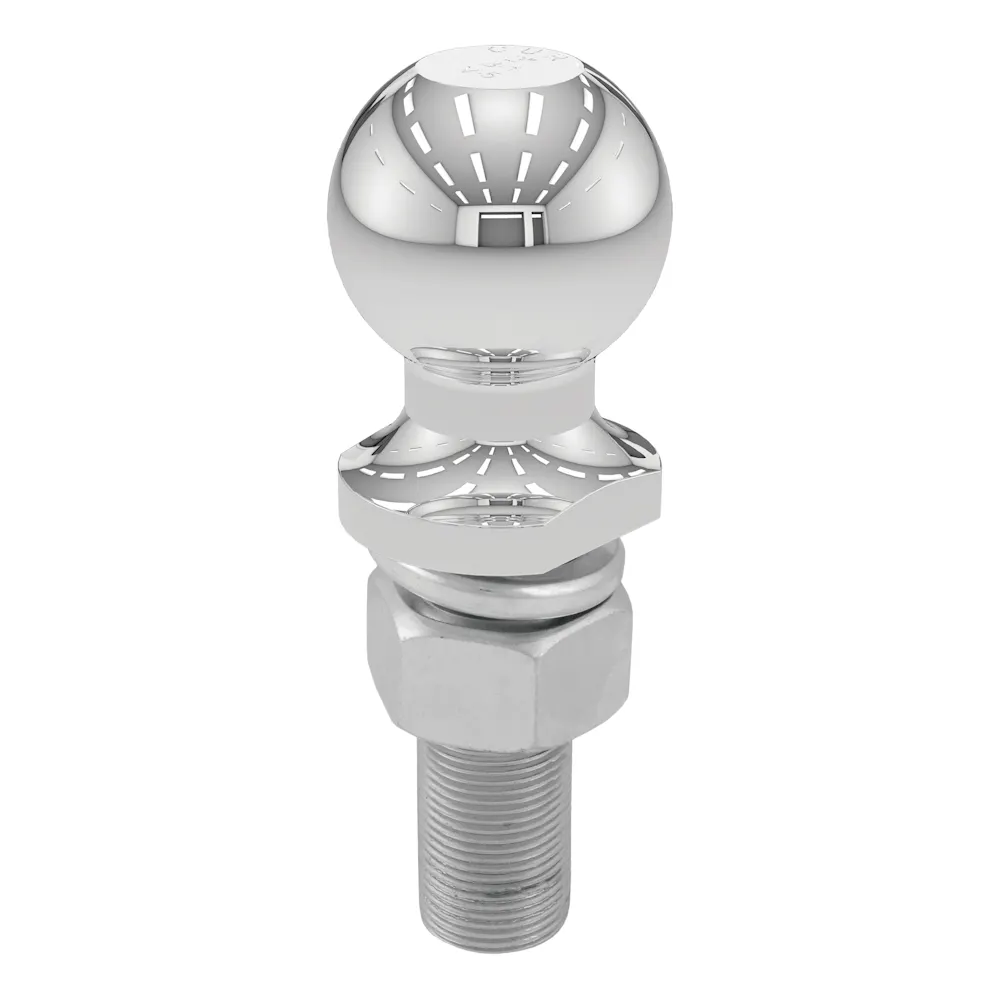

Description: 2" Trailer Ball (1" x 3" Shank, 6,000 lbs., Chrome, Packaged); CURT 40074 Chrome Trailer Hitch Ball, 6,000 lbs, 2-Inch Diameter, 1 x 3-Inch Shank

Description:

Description

Out of the monotony comes one name that rises above all others. CURT trailer balls are designed for strength, ease of use and, ultimately, to get you to your destination without hassle. CURT 2" trailer hitch balls are constructed from quality steel and are made with precision to fit your 2" trailer coupler like a hand in a glove. They are able to tow most standard-duty and heavy-duty trailers such as utility trailers, boat trailers, campers, livestock trailers and recreational vehicle trailers for hauling ATVs, snowmobiles, personal watercraft and more. These tow balls are an excellent extension of your class 3 or class 4 trailer hitch and ball mount, and are the ideal choice for most pickup trucks and SUVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular 2" trailer ball offers a ball capacity of 6,000 lbs. It features a 1" shank diameter, a 3" shank length, 0" of rise and a nickel-chrome finish to protect against rust and scratches. With its fine-threaded shank, this 2" trailer ball also offers an added measure of holding strength and provides smooth installation and torqueing. To give you peace of mind while towing to that next destination, we also carefully test our trailer balls and ensure that each one meets U.S. VESC specifications.

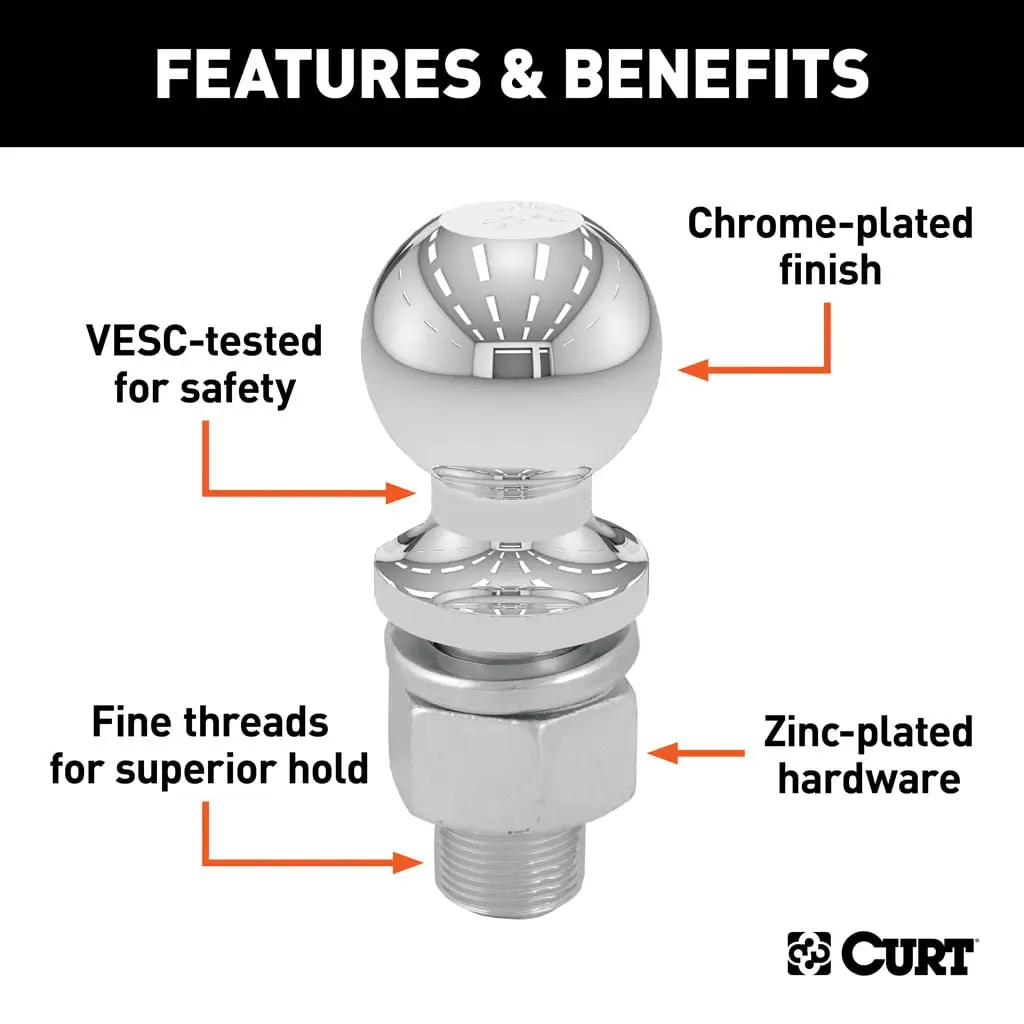

Features & benefits

  • Fits 2" couplers and accepts up to 6,000 lbs. GTW
  • Constructed from high-strength, hot-forged steel
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Tested for safety to meet U.S. VESC V-5 specifications
  • Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year Make / model
0074 Chrome Trailer Hitch Ball, 6,000 lbs, 2-Inch Diameter, 1 x 3-Inch Shank

Specifications

GTIN
00612314000746
Weight
2.75 lb
Height
2 in
Length
7 in
Width
4 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Packaged Hitch Ball 6K, 2" x 1" x 3"
Ball Capacity
6,000 LBS
Ball Diameter
2.000 in.
Ball Diameter (in.)
2
Ball Shank Diameter
0.750 in.
Ball Shank Diameter (in.)
3/4
Box Height in Inches - XA
4
Box Length in Inches - XA
8
Box Width in Inches - XA
5
California Proposition 65
Yes
Class ID
0
Color
Silver
Container Cases Qty - XA
864
Container Load Type - XA
PALLETS
Container Pallet Qty - XA
18
Container Type - XA
20GP
Container Unit Qty - XA
10368
Container Volume Cubic Feet - XA
830.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
33822
Finish
CHROME-PLATED
Finish - XA
CHROME-PLATED
Gross Load
6000 lbs.
Gross Load (lbs.)
6000
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
8.300
Master Case ITF14
60612314000748
Master Case ITF14 - XA
60612314000748
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
15.000
Master Case Qty - XA
12
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
38.000
Master Case Width Inches - XA
9.000
Material - XA
FORGED STEEL
Mount Type Description - XA
Blank
Pallet Case Per - XA
48
Pallet Case Per Layer - XA
12
Pallet Cases Per - XA
48
Pallet Cases Per Layer - XA
12
Pallet Layer of Cases - XA
4
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
42.000
Pallet Total Weight Per - XA
1879.000
Parcel Allowed - XA
Yes
Product Weight - XA
2.750
Rate Class - XA
85.0
Retail Height - XA
3.000
Retail Length - XA
8.000
Retail Width - XA
4.000
Sales Family Code - XA
ACCES
Sales Family Description - XA
ACCESSORIES
Sales Group Description - XA
TRAILER BALLS
Shank Diameter
1
Shank Length
3.000 in.
Shank Length (in.)
3
Shank Rise
0 IN
Shipping Weight - XA
2.750
Side Application Type Description - XA
Blank
Tariff 301 - XA
Yes
Title
2" Trailer Ball (1" x 3" Shank, 6,000 lbs., Chrome, Packaged)
Torque
250 FT LB
Torque Capacity
250 ft/lbs.
Torque Capacity (ft/lbs.)
250 ft/lbs.
Truckload Cases Qty - XA
864
Truckload Pallets Qty - XA
18
Truckload Units Qty - XA
10368
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
33822
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 40074 Chrome Trailer Hitch Ball, 6,000 lbs, 2-Inch Diameter, 1 x 3-Inch Shank
