CURT · 40063

Part #: 40063
UPC: 612314163007

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: CURT Series: Trailer Balls

Description: 1-7/8" Trailer Ball (3/4" x 2-1/8" Shank, 2,000 lbs., Chrome, Packaged); CURT 40063 Chrome Trailer Hitch Ball, 2,000 lbs, 1-7/8-Inch Diameter, 3/4 x 2-1/8-Inch Shank

Description:

Description

CURT 1-7/8" trailer balls are constructed from high-strength steel to match the towing power of your class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, we engineer our trailer balls to be precisely fitted. When we stamp 1-7/8" into the top of each hitch ball, we actually mean 1-7/8".This CURT tow ball features a ball capacity of 2,000 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 3/4" shank diameter, a 2-1/8" shank length, 0" of rise and a nickel-chrome finish to protect against corrosion and wear. Like all CURT trailer balls, our 1-7/8" balls are tested for your safety and meet all U.S. VESC specifications.

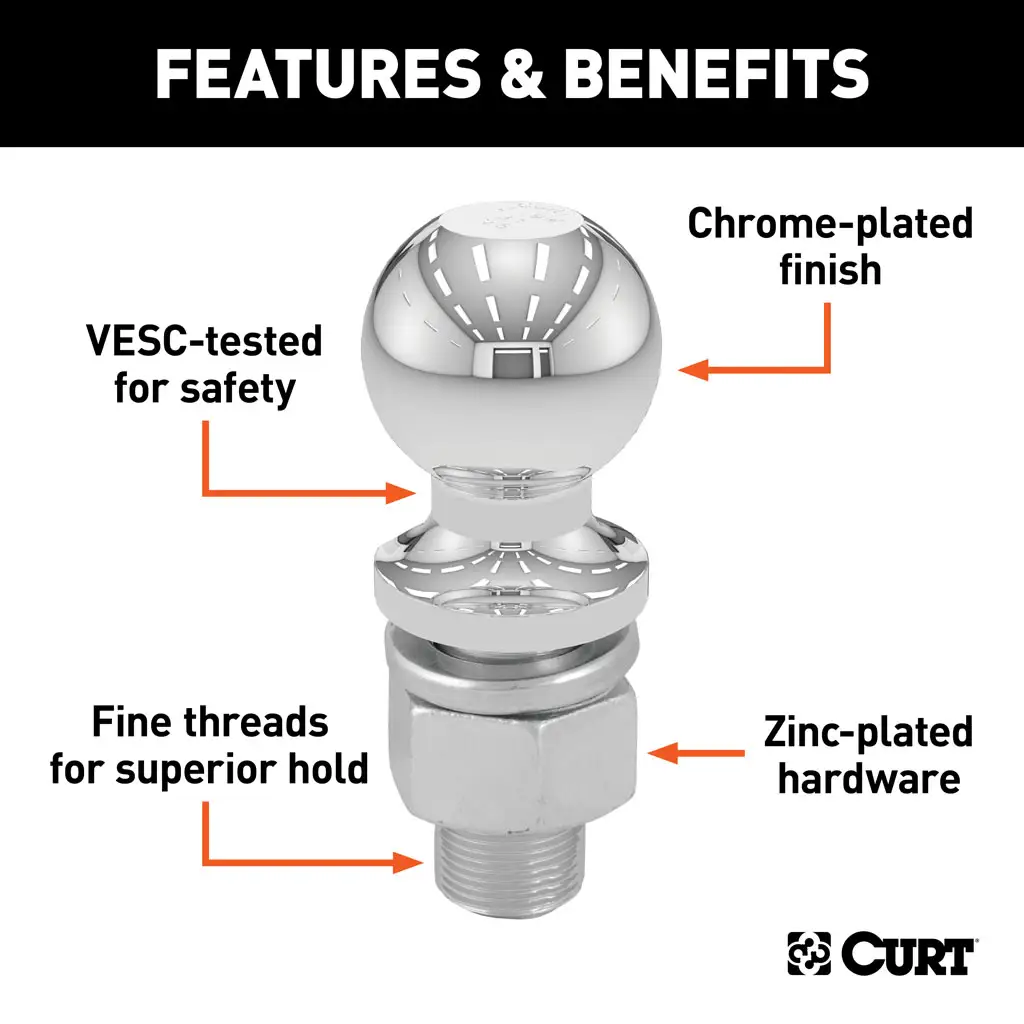

Features & benefits

  • Fits 1-7/8" couplers and accepts up to 2,000 lbs. GTW
  • Constructed from high-strength, hot-forged steel
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Tested for safety to meet U.S. VESC V-5 specifications
  • Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year Make / model
0063 Chrome Trailer Hitch Ball, 2,000 lbs, 1-7/8-Inch Diameter, 3/4 x 2-1/8-Inch Shank

Specifications

GTIN
00612314163007
Weight
3 lb
Height
7.87 in
Length
17.32 in
Width
8.07 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Packaged Hitch Ball 2K, 1 7/8" x 3/4" x 2 1/8"
Ball Capacity
2,000 LBS
Ball Diameter
1.875 in.
Ball Diameter (in.)
1.875
Ball Shank Diameter
0.750 in.
Ball Shank Diameter (in.)
3/4
Box Height in Inches - XA
2
Box Length in Inches - XA
7
Box Width in Inches - XA
4
California Proposition 65
Yes
Class ID
0
Color
Silver
Container Cases Qty - XA
864
Container Load Type - XA
PALLETS
Container Pallet Qty - XA
18
Container Type - XA
20GP
Container Unit Qty - XA
10368
Container Volume Cubic Feet - XA
830.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
22068
Finish
CHROME-PLATED
Finish - XA
CHROME-PLATED
Gross Load
2000 lbs.
Gross Load (lbs.)
2000
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
8.300
Master Case ITF14
60612314163009
Master Case ITF14 - XA
60612314163009
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
15.000
Master Case Qty - XA
12
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
24.400
Master Case Width Inches - XA
9.000
Material - XA
FORGED STEEL
Mount Type Description - XA
Blank
Pallet Case Per - XA
48
Pallet Case Per Layer - XA
12
Pallet Cases Per - XA
48
Pallet Cases Per Layer - XA
12
Pallet Layer of Cases - XA
4
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
37.200
Pallet Total Weight Per - XA
1226.000
Parcel Allowed - XA
Yes
Product Weight - XA
3.000
Rate Class - XA
85.0
Retail Height - XA
7.870
Retail Length - XA
17.320
Retail Width - XA
8.070
Sales Family Code - XA
ACCES
Sales Family Description - XA
ACCESSORIES
Sales Group Description - XA
TRAILER BALLS
Shank Diameter
.75
Shank Length
2.125 in.
Shank Length (in.)
2.125
Shank Rise
0 IN
Shipping Weight - XA
3.000
Side Application Type Description - XA
Blank
Tariff 301 - XA
Yes
Title
1-7/8" Trailer Ball (3/4" x 2-1/8" Shank, 2,000 lbs., Chrome, Packaged)
Torque
160 FT LB
Torque Capacity
160 ft/lbs.
Torque Capacity (ft/lbs.)
160 ft/lbs.
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 40063 Chrome Trailer Hitch Ball, 2,000 lbs, 1-7/8-Inch Diameter, 3/4 x 2-1/8-Inch Shank
