CURT · 40056
Part #: 40056
UPC: 612314047147
Log in for inventory
Notify me when this item is in stock.

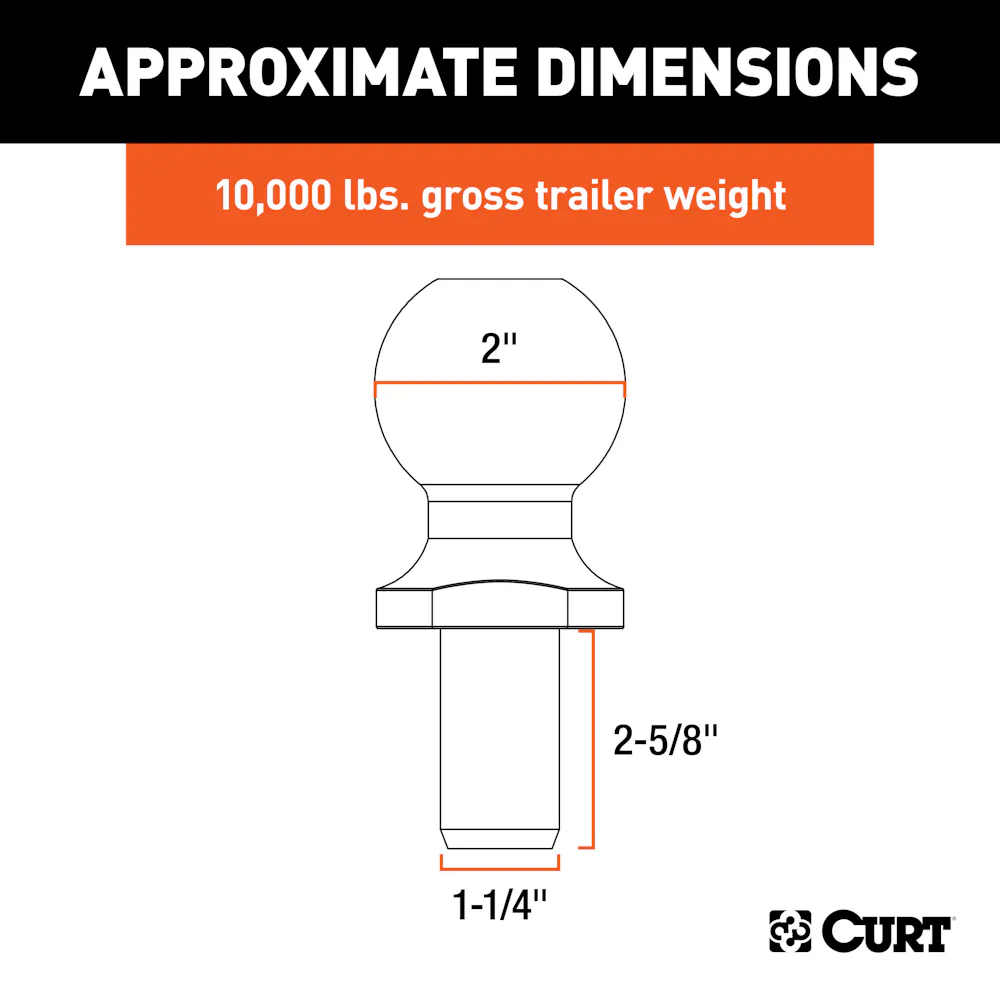

Description: 2" Trailer Ball (1-1/4" x 2-5/8" Shank, 10,000 lbs., Stainless); CURT 40056 Stainless Steel Trailer Hitch Ball, 10,000 lbs, 2-Inch Diameter, 1-1/4 x 2-5/8-Inch Shank
Description:
Description
CURT 2" trailer hitch balls are constructed from quality steel and are made with precision to fit your 2" trailer coupler like a hand in a glove. They are able to tow most standard-duty and heavy-duty trailers. These tow balls are an excellent extension of your class 3 or class 4 trailer hitch and ball mount, and are the ideal choice for most pickup trucks and SUVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This particular 2" trailer ball offers a ball capacity of 10,000 lbs. It features a 1-1/4" shank diameter, a 2-5/8" shank length and a stainless steel construction to protect against rust and scratches. With its fine-threaded shank, this 2" trailer ball also offers an added measure of holding strength and provides smooth installation and torqueing. To give you peace of mind while towing to that next destination, we also carefully test our trailer balls and ensure that each one meets U.S. VESC specifications.

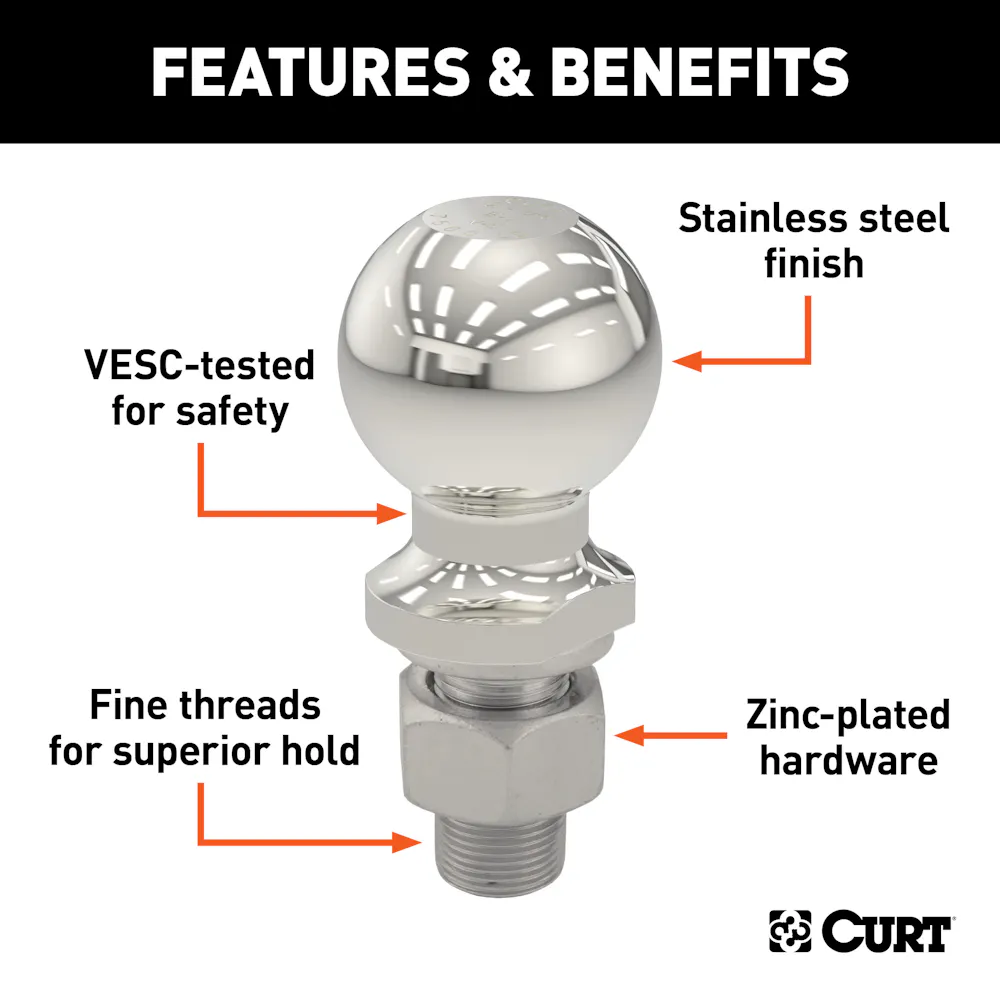

Features & benefits
- Fits 2" couplers and accepts up to 10,000 lbs. GTW
- Stainless steel construction for excellent rust resistance
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
- Tested for safety to meet U.S. VESC V-5 specifications
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 0056 | Stainless Steel Trailer Hitch Ball, 10,000 lbs, 2-Inch Diameter, 1-1/4 x 2-5/8-Inch Shank |
Specifications
- GTIN
- 00612314047147
- Weight
- 3 lb
- Height
- 2 in
- Length
- 5.5 in
- Width
- 2 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Ball Capacity
- 10,000 LBS
- Ball Diameter
- 2.000 in.
- Ball Shank Diameter
- 1.250 in.
- Box Height in Inches - XA
- 3
- Box Length in Inches - XA
- 12
- Box Width in Inches - XA
- 4
- California Proposition 65
- Yes
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Finish
- POLISHED STAINLESS
- Finish - XA
- POLISHED STAINLESS
- Gross Load
- 10000 lbs.
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 8.000
- Master Case ITF14
- 20612314047141
- Master Case ITF14 - XA
- 20612314047141
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 8.500
- Master Case Qty - XA
- 9
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 30.558
- Master Case Width Inches - XA
- 8.000
- Material - XA
- Stainless Steel
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 50
- Pallet Case Per Layer - XA
- 25
- Pallet Cases Per - XA
- 50
- Pallet Cases Per Layer - XA
- 25
- Pallet Layer of Cases - XA
- 2
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 25.000
- Pallet Total Weight Per - XA
- 1568.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 85.0
- Retail Height - XA
- 2.000
- Retail Length - XA
- 5.500
- Retail Width - XA
- 2.000
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- TRAILER BALLS
- Shank Diameter
- 1-1/4 IN
- Shank Length
- 2.625 in.
- Shipping Weight - XA
- 3.000
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- Yes
- Title
- 2" Trailer Ball (1-1/4" x 2-5/8" Shank, 10,000 lbs., Stainless)
- Torque
- 450 FT LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 40056 Stainless Steel Trailer Hitch Ball, 10,000 lbs, 2-Inch Diameter, 1-1/4 x 2-5/8-Inch Shank
