CURT / 40030
Part #: 40030
UPC: 612314004157
Loading...
Notify me when this item is in stock.

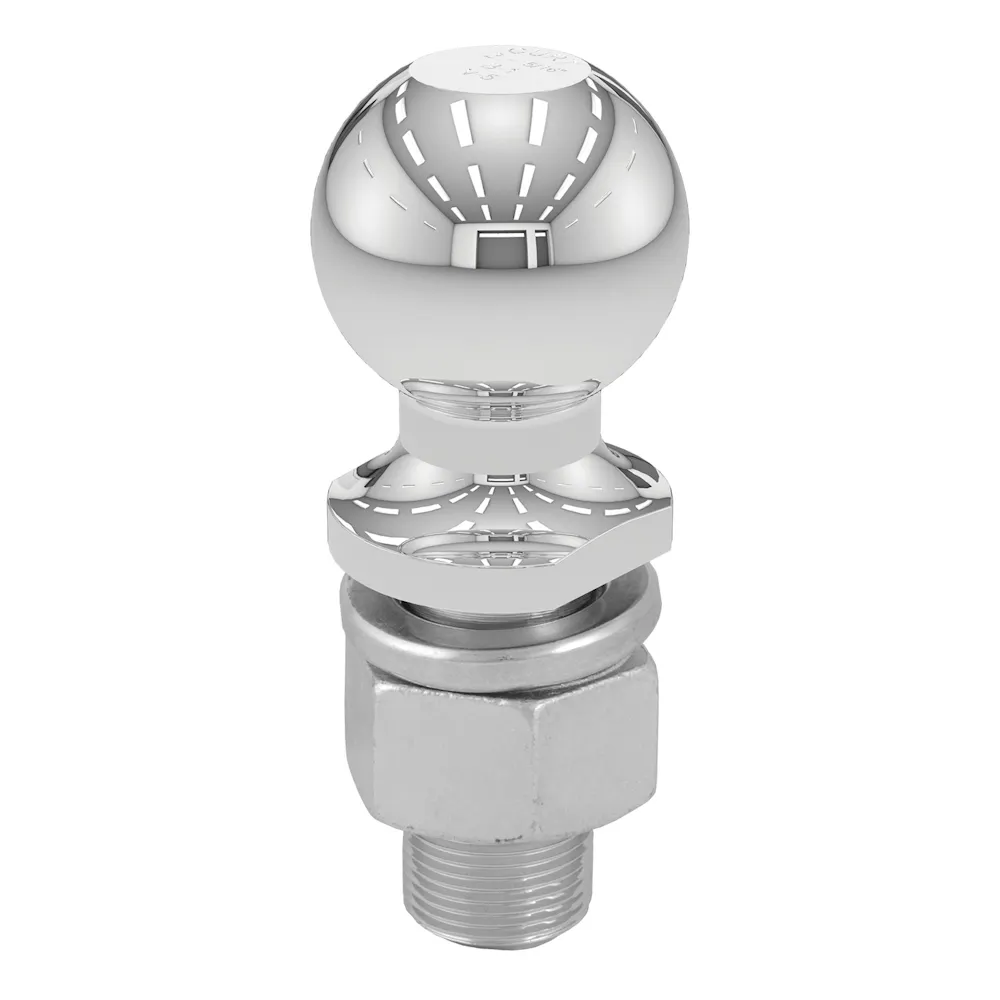

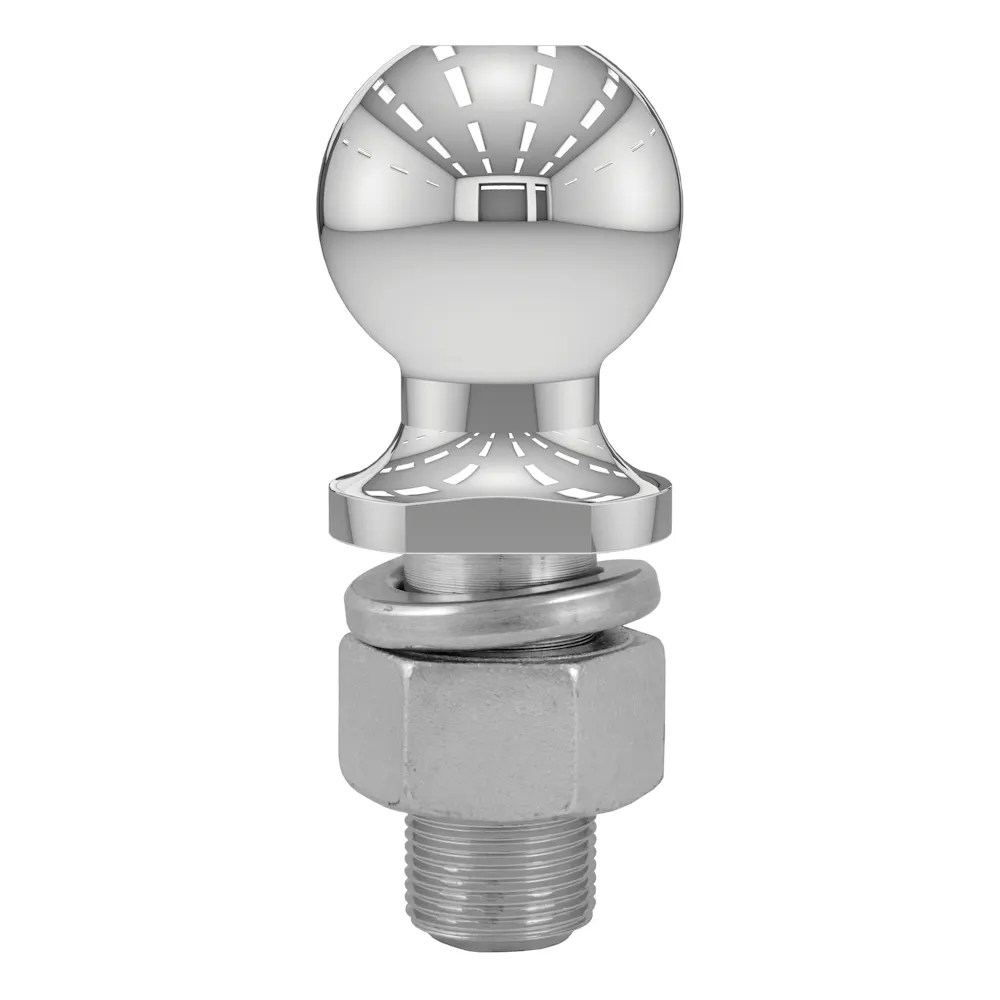

Description: 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 15,000 lbs., Chrome); CURT 40030 Chrome Trailer Hitch Ball, 15,000 lbs, 2-5/16-Inch Diameter, 1-1/4 x 2-5/8-Inch Shank
Description:
Description

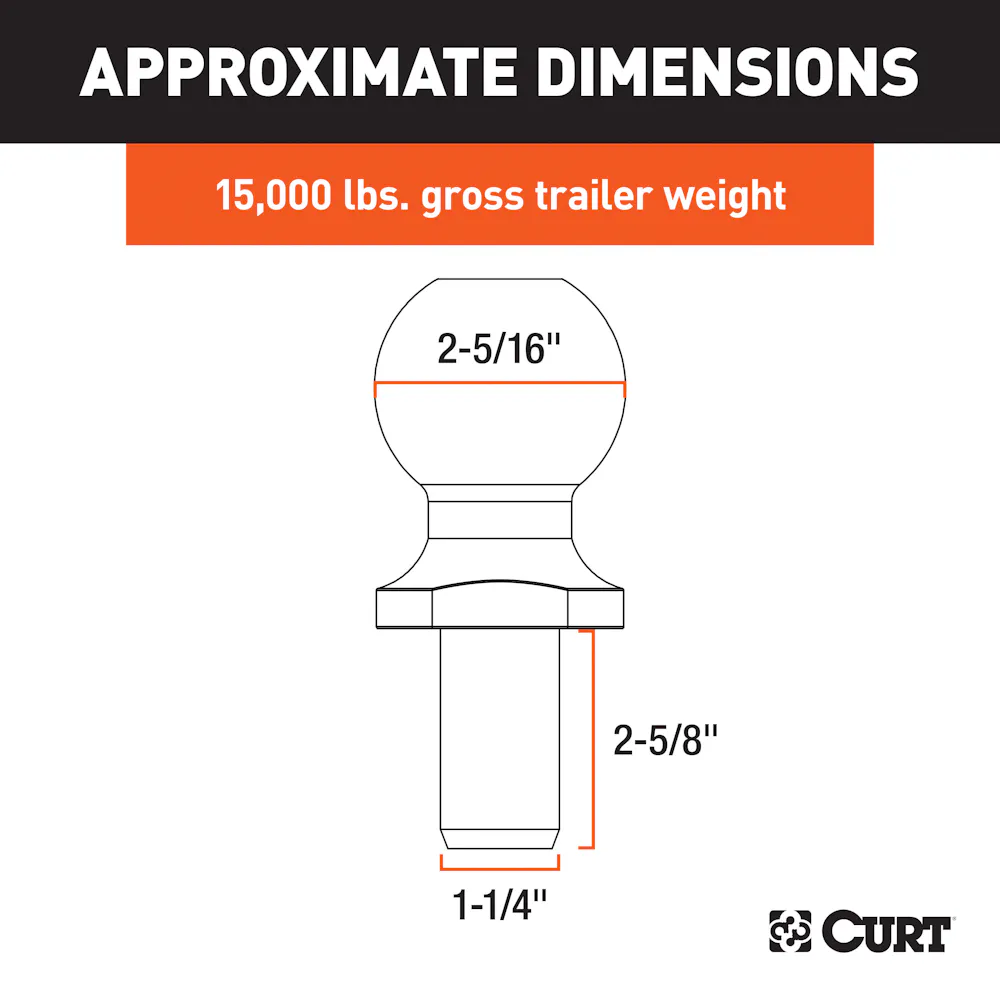

The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 15,000 lbs. It features a 1-1/4" shank diameter, a 2-5/8" shank length, 0" of rise and a nickel-chrome finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.

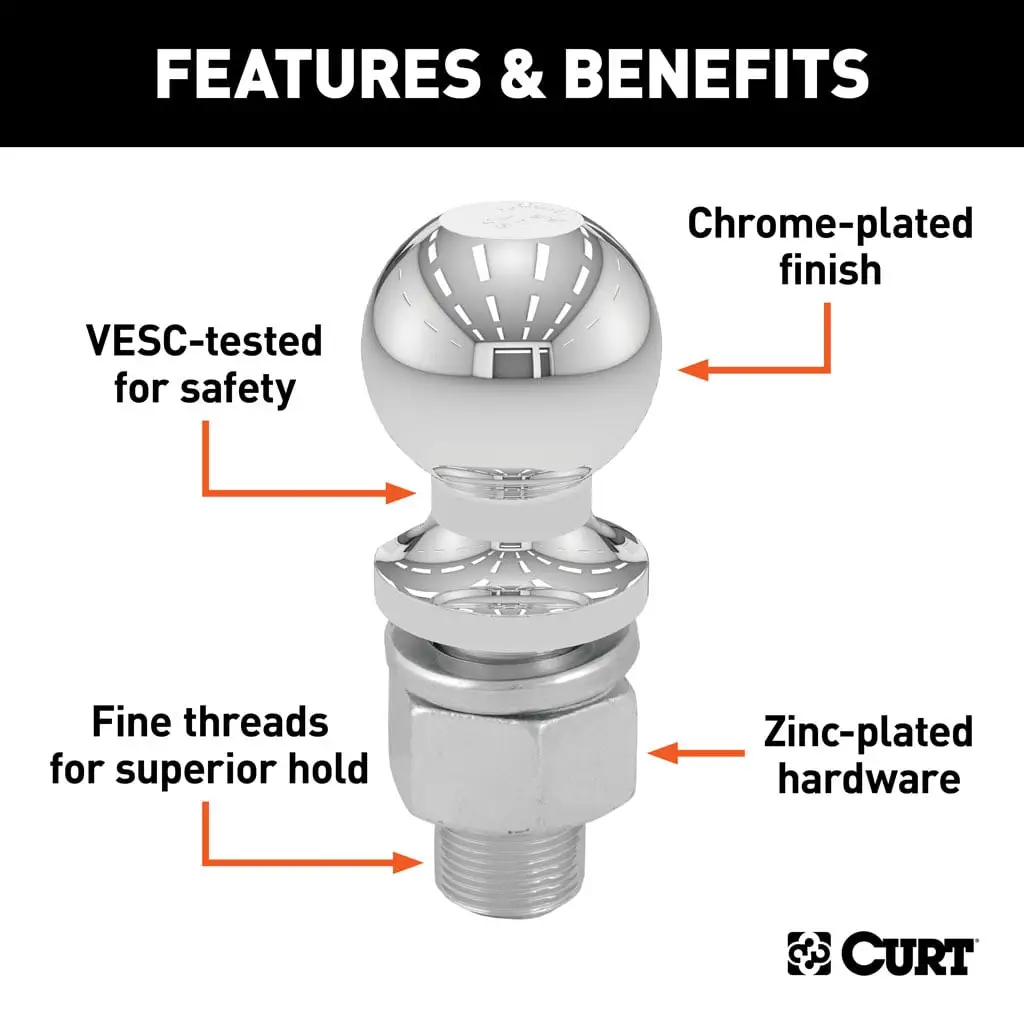

Features & benefits
- Fits 2-5/16" couplers and accepts up to 15,000 lbs. GTW
- Constructed from high-strength, hot-forged steel
- Heat-treated for optimum wear resistance
- Protected by a durable chrome-plated finish
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
- Tested for safety to meet U.S. VESC V-5 specifications
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 0030 | Chrome Trailer Hitch Ball, 15,000 lbs, 2-5/16-Inch Diameter, 1-1/4 x 2-5/8-Inch Shank |
Specifications
- GTIN
- 00612314004157
- Weight
- 3.8 lb
- Height
- 2 in
- Length
- 6 in
- Width
- 2 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Hitch Ball, 2 5/16 In x 1 1/4 In x 2 5/8 In 15K
- Ball Capacity
- 15,000 LBS
- Ball Diameter
- 2.3125 in.
- Ball Diameter (in.)
- 2.3125
- Ball Shank Diameter
- 1.250 in.
- Ball Shank Diameter (in.)
- 1 1/4
- Box Height in Inches - XA
- 2
- Box Length in Inches - XA
- 7
- Box Width in Inches - XA
- 4
- California Proposition 65
- Yes
- Class ID
- 0
- Color
- Silver
- Container Cases Qty - XA
- 1470
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 21
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 8820
- Container Volume Cubic Feet - XA
- 445.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 37800
- Finish
- CHROME-PLATED
- Finish - XA
- CHROME-PLATED
- Gross Load
- 15000 lbs.
- Gross Load (lbs.)
- 15000
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 7.100
- Master Case ITF14
- 60612314004159
- Master Case ITF14 - XA
- 60612314004159
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 8.300
- Master Case Qty - XA
- 6
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 25.000
- Master Case Width Inches - XA
- 5.500
- Material - XA
- FORGED STEEL
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 70
- Pallet Case Per Layer - XA
- 35
- Pallet Cases Per - XA
- 70
- Pallet Cases Per Layer - XA
- 35
- Pallet Layer of Cases - XA
- 2
- Pallet Qty - XA
- 480.000
- Pallet Total Height Inches - XA
- 20.000
- Pallet Total Weight Per - XA
- 1800.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 3.800
- Rate Class - XA
- 85.0
- Retail Height - XA
- 2.000
- Retail Length - XA
- 6.000
- Retail Width - XA
- 2.000
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- TRAILER BALLS
- Shank Diameter
- 1.25
- Shank Length
- 2.625 in.
- Shank Length (in.)
- 2.625
- Shank Rise
- 0 IN
- Shipping Weight - XA
- 3.800
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- Yes
- Title
- 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 15,000 lbs., Chrome)
- Torque
- 450 FT LB
- Torque Capacity
- 450 ft/lbs.
- Torque Capacity (ft/lbs.)
- 450 ft/lbs.
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 40030 Chrome Trailer Hitch Ball, 15,000 lbs, 2-5/16-Inch Diameter, 1-1/4 x 2-5/8-Inch Shank
Resources
- Brand logo

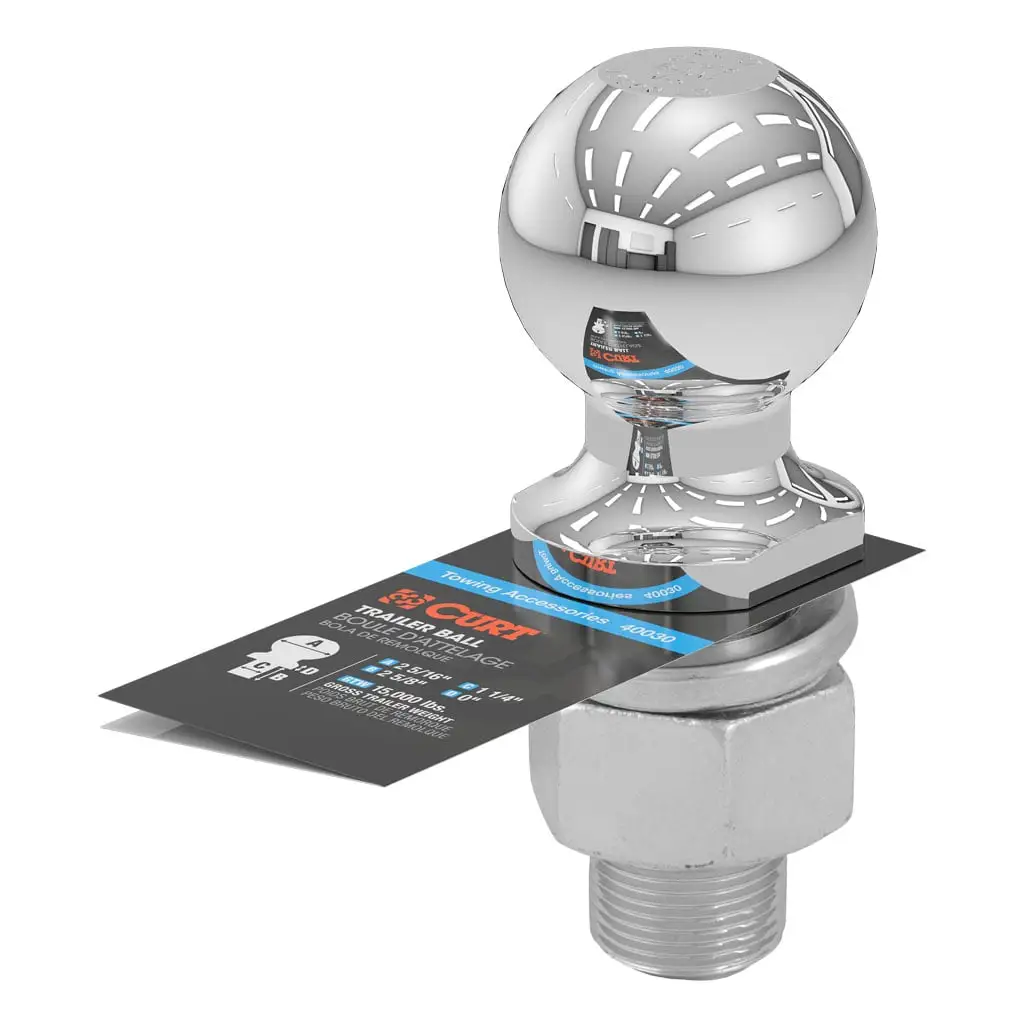

- Photo - Out of Package
