CURT · 40010
Part #: 40010
UPC: 612314052066
Log in for inventory
Notify me when this item is in stock.

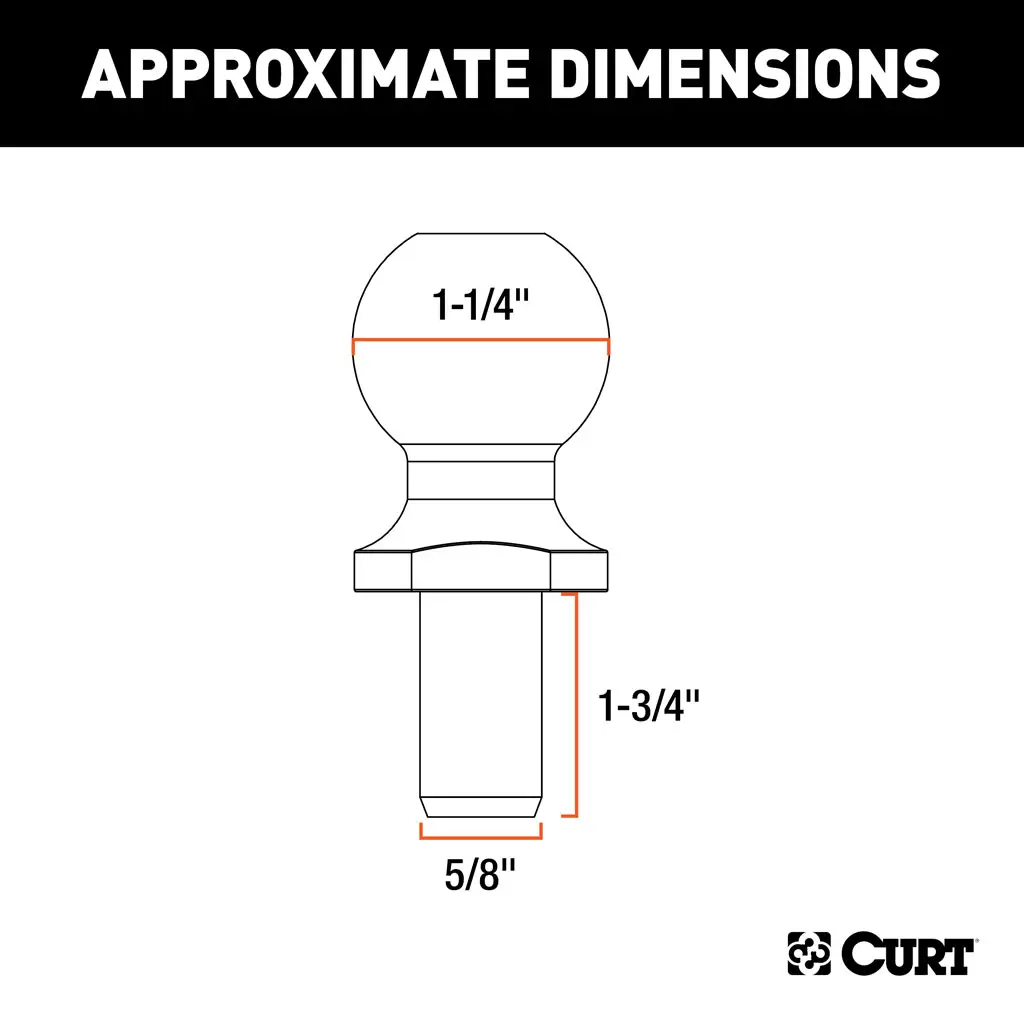

Description: Replacement 1-1/4" Sway Control Ball (5/8" x 1-3/4" Shank, Packaged); CURT 40010 Replacement Trailer Sway Control Ball, 1-1/4-Inch Diameter, 5/8 x 1-3/4-In Shank, Packaged
Description:
Description

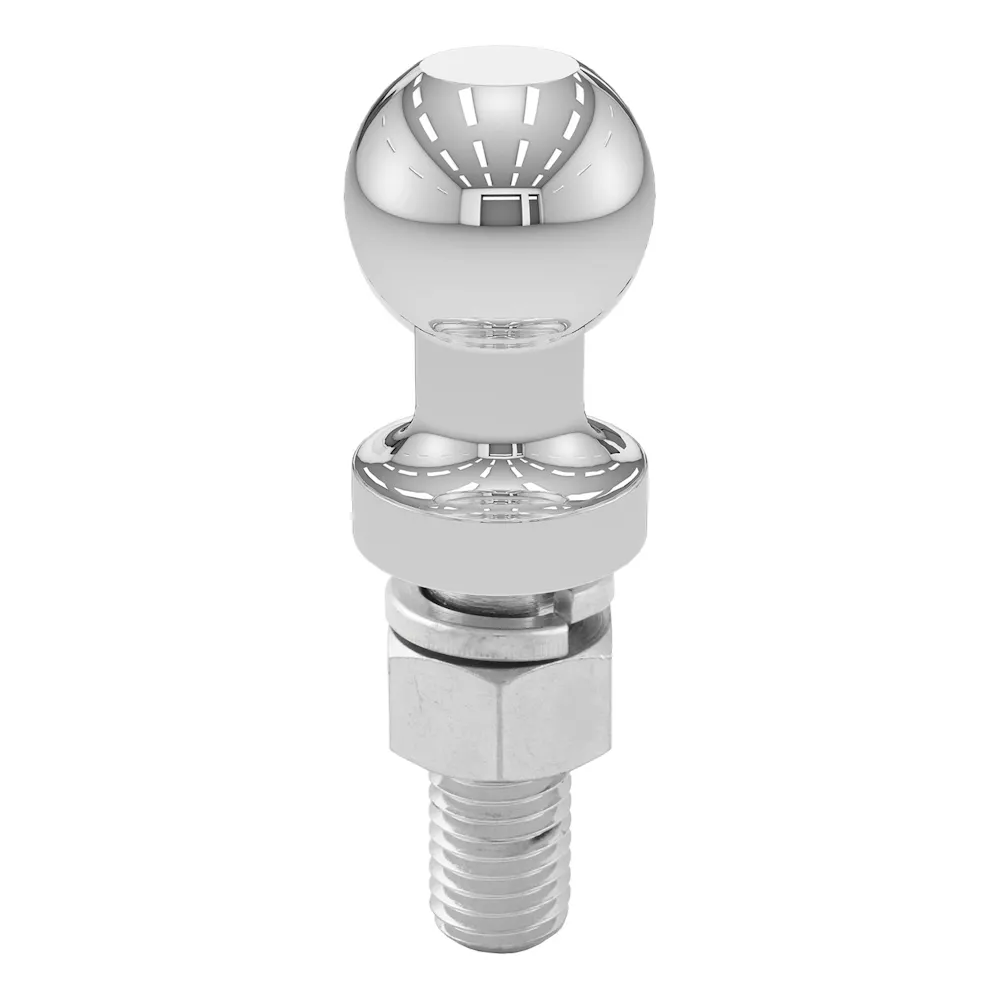

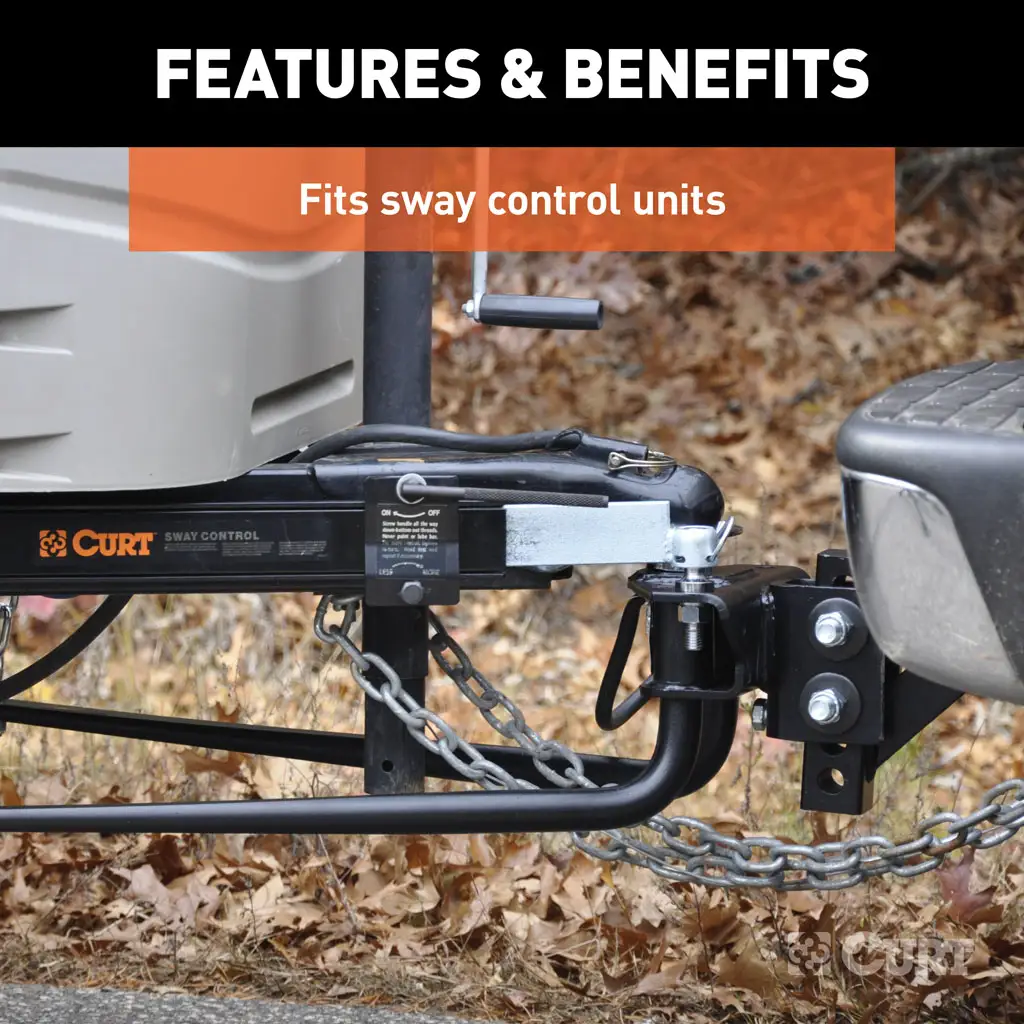

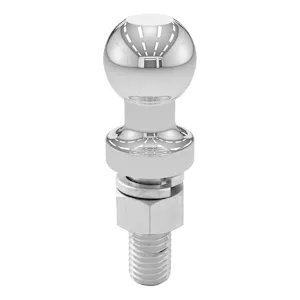

A sway control unit is an inexpensive solution to the problem of a wandering trailer. CURT sway control units are designed to attach to your vehicle and trailer at the coupling point and counteract any lateral movement in your trailer, keeping your tow load straighter on the road and giving you more control over your vehicle. The sway bar uses a material like that used in brake pads to provide the necessary resistance while still allowing your vehicle to complete proper turns with your trailer attached. The sway control mounts onto the frame of your trailer and connects to the vehicle's ball mount using a separate trailer ball from that used for coupling the trailer. This sway control replacement ball is designed to attach a sway control unit to the vehicle-side of the connection. With its 5/8" shank diameter, it mounts into the mounting tab of a weight distribution hitch or a sway control ball mount. It features a ball diameter of 1-1/4" to fit the CURT sway control unit #17200 and features a chrome-plated finish for long-lasting rust resistance.

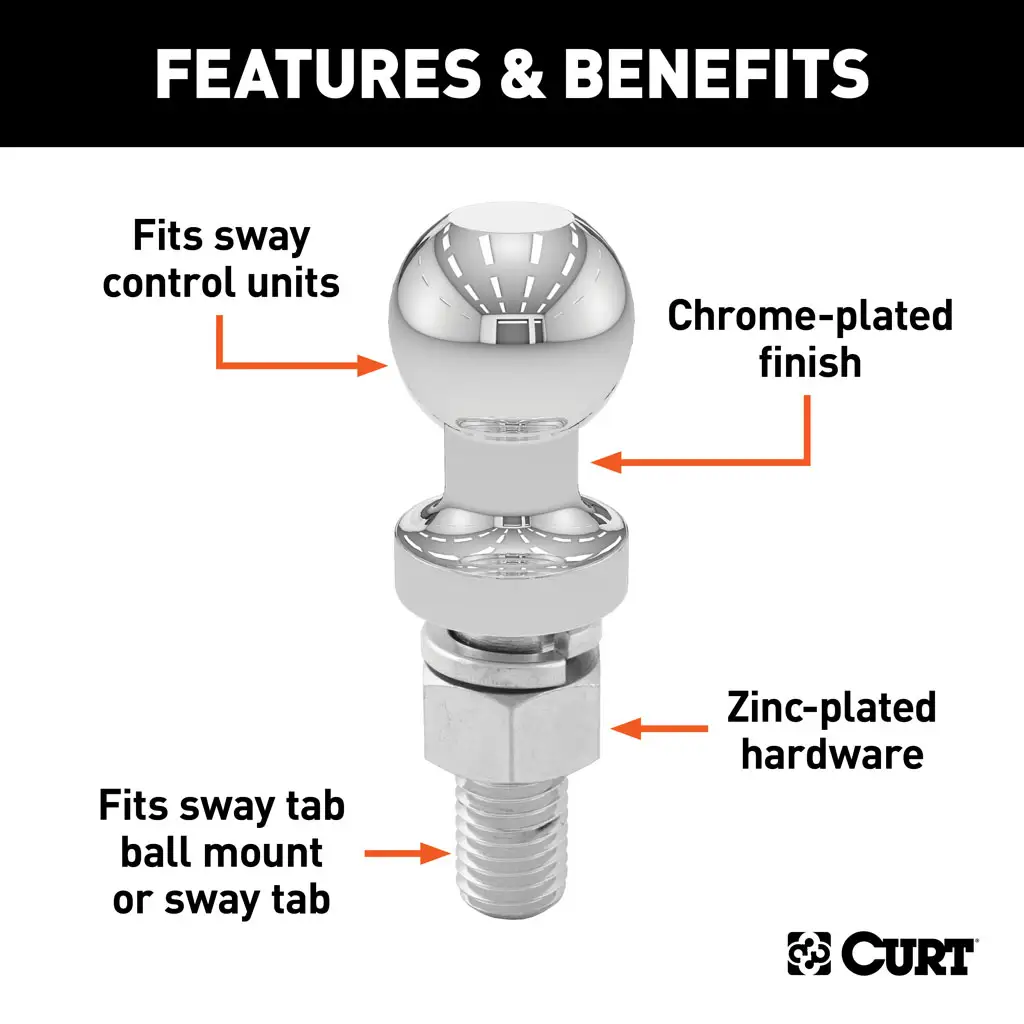

Features & benefits
- Hitch-mounted attachment ball for the sway control unit #17200
- 5/8" diameter shank fits most weight distribution hitches
- Also compatible with sway tab ball mount #45820 or weld-on sway tab #45822
- Sway control helps reduce lateral trailer movement
- Constructed from high-strength steel
- Protected by a durable chrome-plated finish
- Zinc-plated hex nut and helical lock washer for secure mounting
Information
Zinc-plated hex nut and helical lock washer for secure mounting
Application summary
| Year | Make / model |
|---|---|
| 0010 | Replacement Trailer Sway Control Ball, 1-1/4-Inch Diameter, 5/8 x 1-3/4-In Shank, Packaged |
Specifications
- GTIN
- 00612314052066
- Weight
- 1 lb
- Height
- 2 in
- Length
- 6 in
- Width
- 3 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Ball Diameter
- 1-1/4 IN
- Box Height in Inches - XA
- 4
- Box Length in Inches - XA
- 6
- Box Width in Inches - XA
- 6
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Container Cases Qty - XA
- 640
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 10
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 15360
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 18960
- Finish
- CHROME-PLATED
- Finish - XA
- CHROME-PLATED
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 7.400
- Master Case ITF14
- 20612314052060
- Master Case ITF14 - XA
- 20612314052060
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 15.860
- Master Case Qty - XA
- 24
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 29.000
- Master Case Width Inches - XA
- 9.360
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 64
- Pallet Case Per Layer - XA
- 8
- Pallet Cases Per - XA
- 64
- Pallet Cases Per Layer - XA
- 8
- Pallet Layer of Cases - XA
- 8
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 62.900
- Pallet Total Weight Per - XA
- 1896.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 85.0
- Retail Height - XA
- 2.000
- Retail Length - XA
- 6.000
- Retail Width - XA
- 3.000
- Sales Family Code - XA
- REPL
- Sales Family Description - XA
- REPLACEMENT PARTS
- Sales Group Description - XA
- REPLACMENT PARTS CURT
- Shipping Weight - XA
- 1.000
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- Yes
- Title
- Replacement 1-1/4" Sway Control Ball (5/8" x 1-3/4" Shank, Packaged)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- One-Year Limited Warranty
Fitment status
This product is universal and will fit your application.
Application summary
CURT 40010 Replacement Trailer Sway Control Ball, 1-1/4-Inch Diameter, 5/8 x 1-3/4-In Shank, Packaged
