CURT · 31433
Part #: 31433
UPC: 612314314331
Log in for inventory
Notify me when this item is in stock.
Description: 2" Front Receiver Hitch, Select Jeep Wrangler JK; CURT 31433 2-Inch Front Receiver Hitch, Fits Select Jeep Wrangler JK
Description:
Description

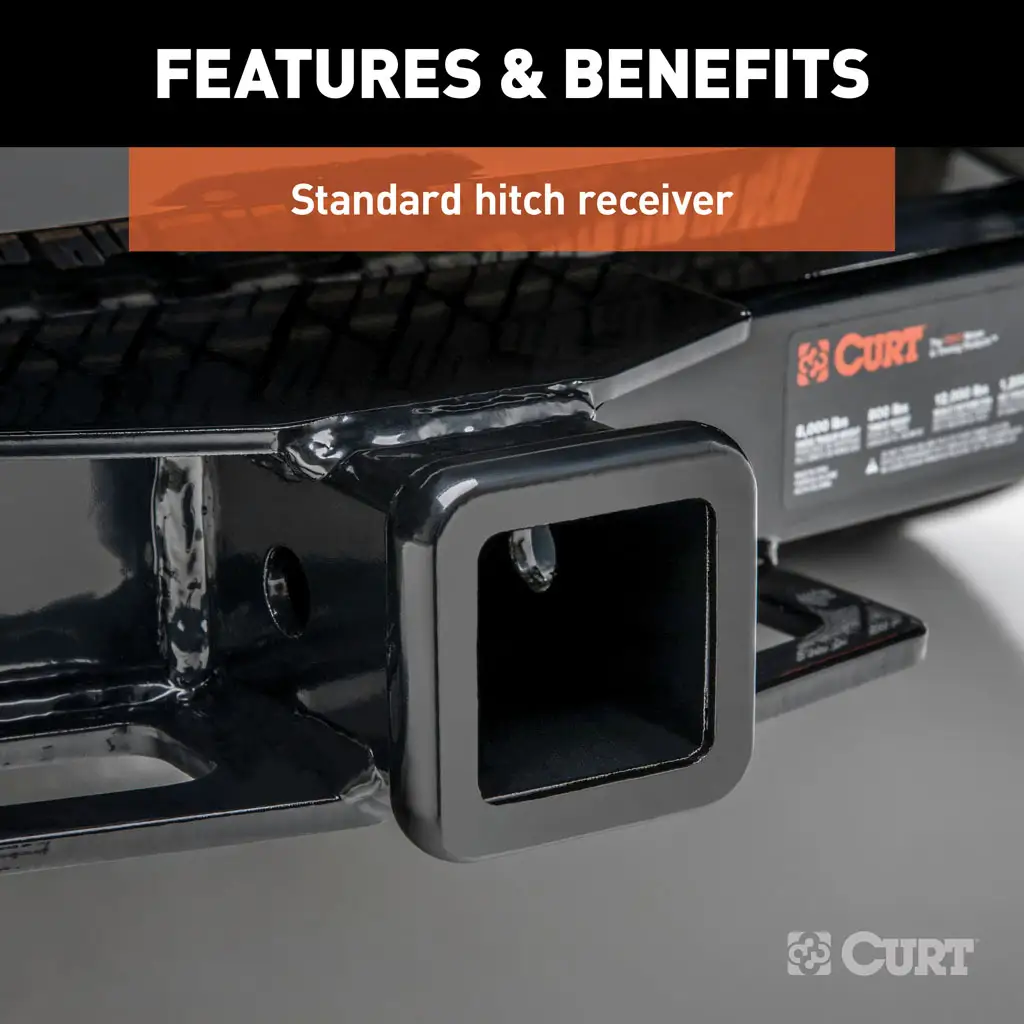

A CURT front trailer hitch allows you to use the front end of your vehicle for a variety of towing applications. They can be used for mounting a winch, a snow plow, a number of towing accessories and can even be used for some trailering applications. When space is limited, a front trailer hitch is commonly used to hold a cargo carrier, freeing up space inside the vehicle for extra cargo and making the rear mount receiver available to pull a trailer. At the boat ramp, your boat trailer can be hitched up to the front receiver hitch, giving you better control over the trailer as you launch. Some of the other accessories that can be used with a front tow hitch are the CURT winch mount, step pad, license plate holder, spare tire mount, skid shield and tow hooks. All CURT front trailer hitches provide a useful receiver tube to accept a 2" x 2" shank, and they are commonly used on trucks, vans and SUVs. This front trailer hitch is rated for 3,500 lbs. GTW and 350 lbs. TW. It also has a straight-line pull rating of 9,000 lbs. It is designed to be a custom trailer hitch for certain years of the Jeep Wrangler JK (to verify your vehicle compatibility, see application info). It comes with all necessary hardware for a complete installation and is backed by a limited lifetime warranty.

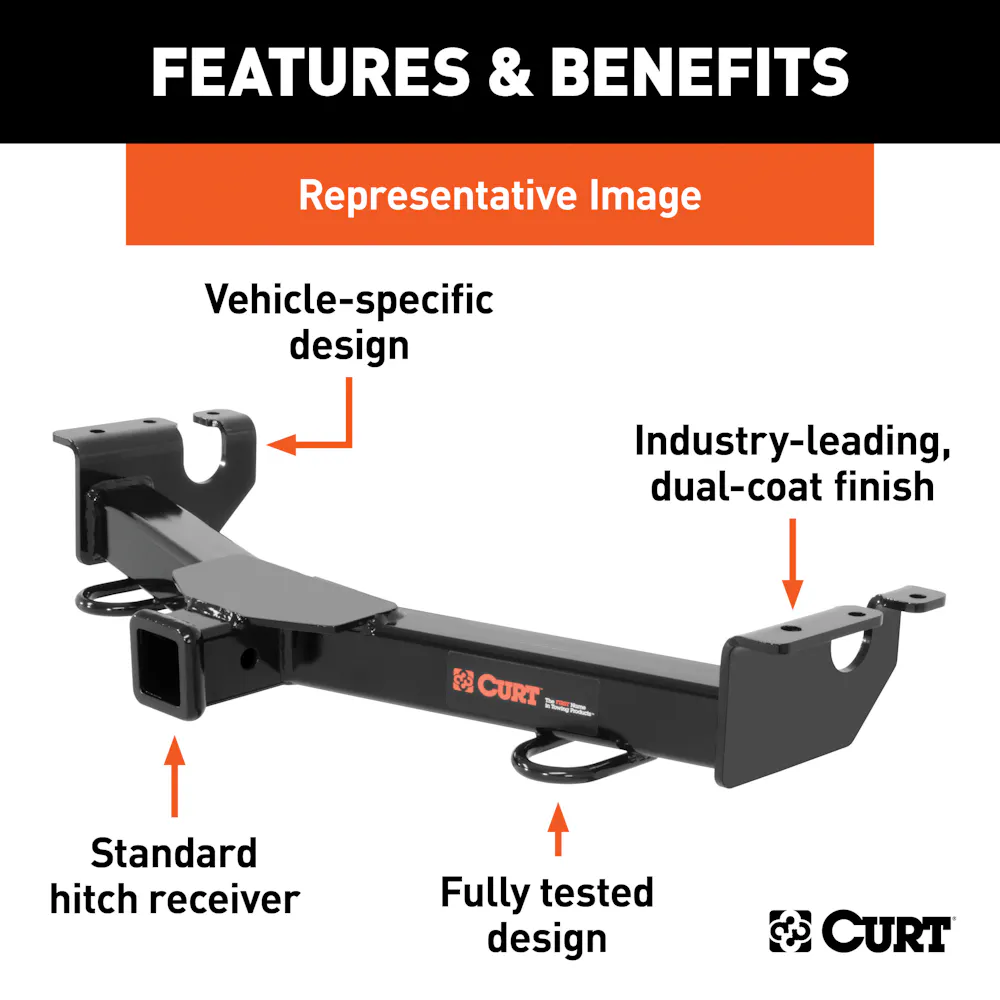

Features & benefits

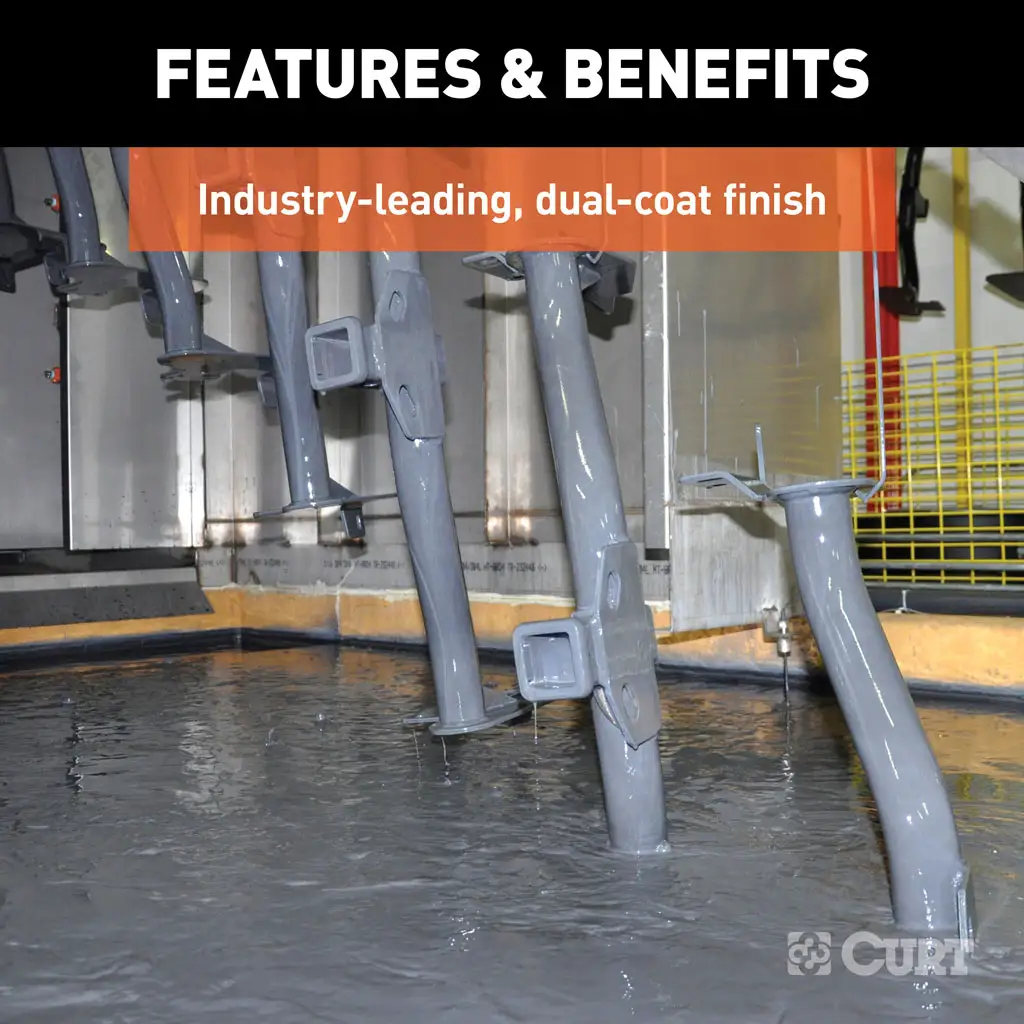

- Co-cured in a rust-resistant liquid A-coat, inside and out
- Protected by a durable black powder coat finish
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Compatible with a tow hook or shackle mount (9,000 lbs. straight-line pull)
- Made with a vehicle-specific design for a custom fit
- Provides a convenient mount for hitch accessories
- Ideal for attaching a snow plow, cargo carrier or other front hitch mount
- Allows for easy maneuvering of a trailer into a tight spot
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
Information
Precisely welded for superior strength and fit
Application summary
| Year | Make / model |
|---|---|
| 2007-2017 | Jeep Wrangler |
| 2018 | Jeep Wrangler JK |
Specifications
- GTIN
- 00612314314331
- Weight
- 28 lb
- Height
- 7.5 in
- Length
- 43.5 in
- Width
- 13.63 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Attachment Location
- Front
- Body Shape
- Square
- Box Height in Inches - XA
- 13
- Box Length in Inches - XA
- 43
- Box Width in Inches - XA
- 7
- California Proposition 65
- Yes
- Class ID
- 5
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drilling Required
- No
- Finish
- GLOSS BLACK POWDER COAT
- Finish - XA
- GLOSS BLACK POWDER COAT
- Gross Trailer Weight
- 3500 lbs.
- Gross Trailer Weight (lbs.)
- 3500
- Hitch Class
- III
- Install Time
- 20 Minutes
- Item Class - XA
- MFH
- Item Height - XA
- 6.130
- Item Length - XA
- 34.750
- Item Width - XA
- 9.000
- Main Body Shape
- Square
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material
- Carbon Steel
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Mounting Hardware Included
- Yes
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 24.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Position
- Front
- Price Code - XA
- 59
- Product Weight - XA
- 24.000
- Rate Class - XA
- 85.0
- Receiver Included
- Yes
- Receiver Size
- 2
- Receiver Tube Size
- 2 IN
- Retail Height - XA
- 13.630
- Retail Length - XA
- 43.500
- Retail Width - XA
- 7.500
- Sales Family Code - XA
- HITCH
- Sales Family Description - XA
- HITCH
- Sales Group Description - XA
- FRONT MOUNT
- Shipping Weight - XA
- 28.000
- Side Application Type Description - XA
- Blank
- Straight Line Pull Capacity
- 9,000 LB
- Tariff 301 - XA
- No
- Title
- 2" Front Receiver Hitch, Select Jeep Wrangler JK
- Tongue Weight (TW)
- 350 LB
- Tongue Weight(TW)
- 525 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Visibility
- Exposed
- WC Tongue Weight
- 525
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity
- 3500
- Weight Carrying Capacity (WC)
- 3,500 LB
- Weight Carrying Capacity(WC)
- 3,500 LB
- Weight Distribution (WD)
- N/A
- Weight Distribution Tongue Weight (WDTW)
- N/A
- Weight Distribution Tongue Weight(WDTW)
- N/A
- Weight Distribution(WD)
- N/A
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK
