CURT · 31077

Part #: 31077
UPC: 612314036578

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: Front Mount Hitches

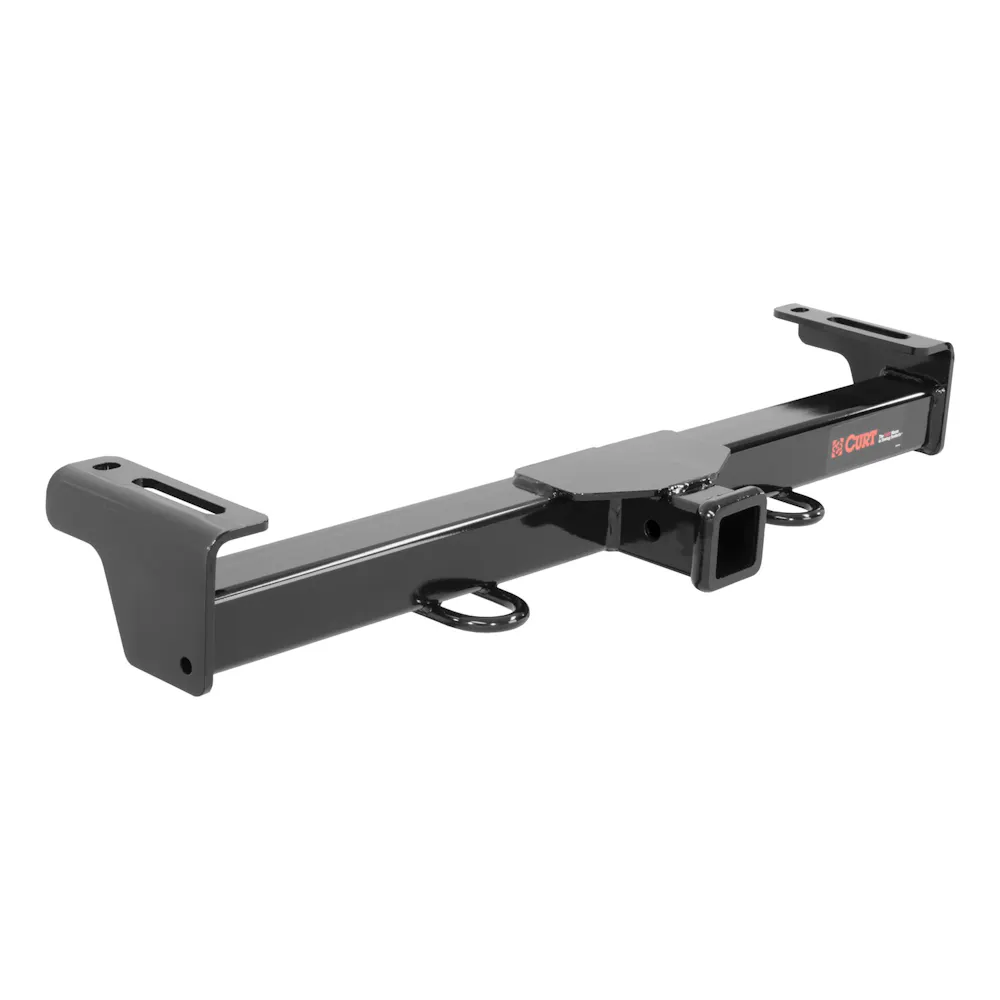

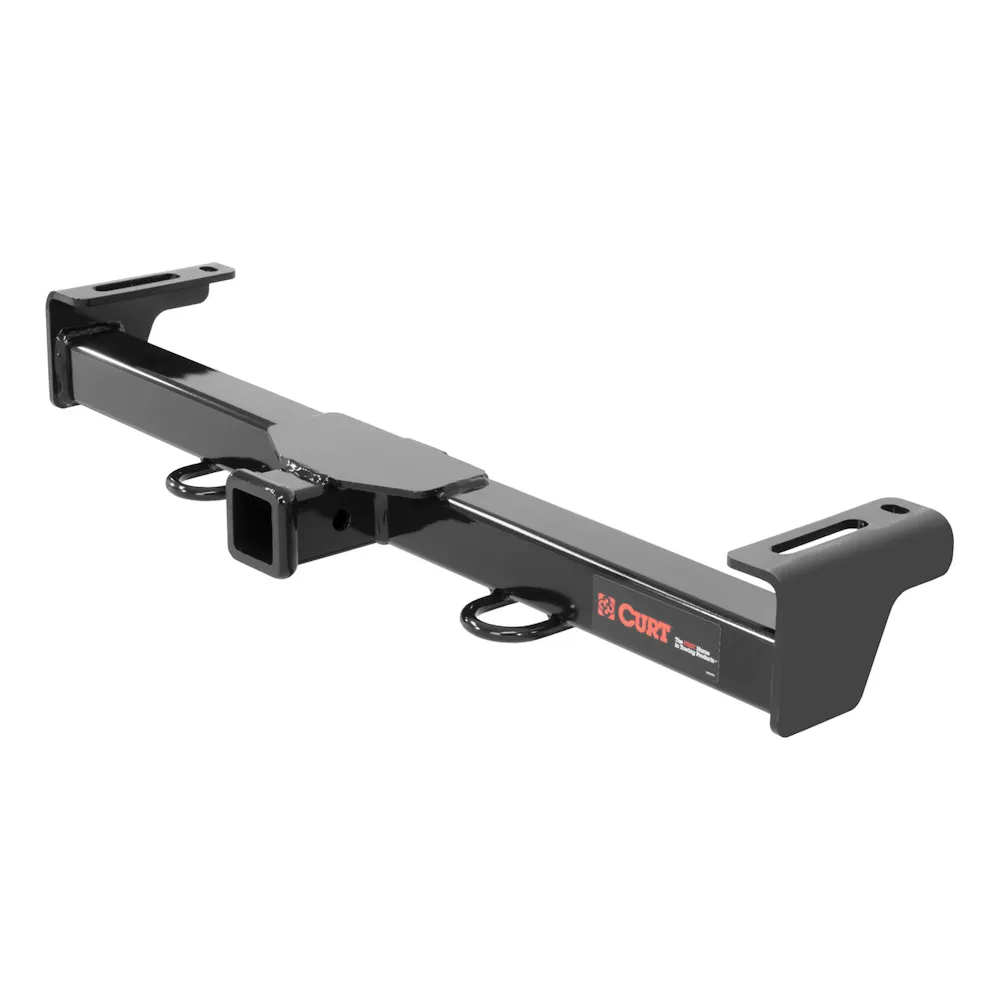

Description: 2" Front Receiver Hitch, Select Nissan Titan XD; CURT 31077 2-Inch Front Receiver Hitch, Fits Select Nissan Titan XD

Description:

Description

A CURT front trailer hitch allows you to use the front end of your vehicle for a variety of towing applications. They can be used for mounting a winch, a snow plow, a number of towing accessories and can even be used for some trailering applications. When space is limited, a front trailer hitch is commonly used to hold a cargo carrier, freeing up space inside the vehicle for extra cargo and making the rear mount receiver available to pull a trailer. At the boat ramp, your boat trailer can be hitched up to the front receiver hitch, giving you better control over the trailer as you launch. Some of the other accessories that can be used with a front tow hitch are the CURT winch mount, step pad, license plate holder, spare tire mount, skid shield and tow hooks. All CURT front trailer hitches provide a useful receiver tube to accept a 2" x 2" shank, and they are commonly used on trucks, vans and SUVs. This front trailer hitch is rated for 5,000 lbs. GTW and 500 lbs. TW. It also has a straight-line pull rating of 9,000 lbs. It is designed to be a custom trailer hitch for certain years of the Nissan Titan XD (to verify your vehicle compatibility, see application info). It comes with all necessary hardware for a complete installation and is backed by a limited lifetime warranty.

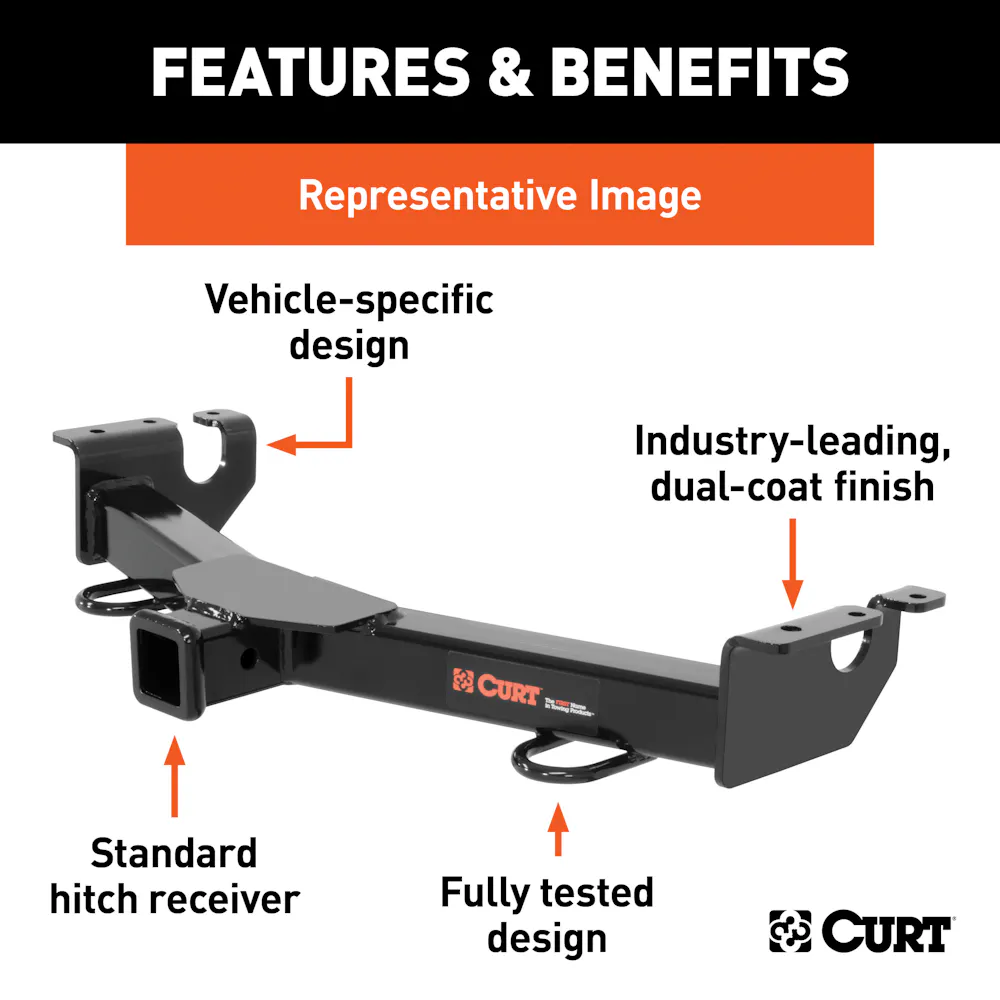

Features & benefits

  • Rated to 5,000 lbs. gross trailer weight and 500 lbs. tongue weight
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a durable black powder coat finish
  • Co-cured in a rust-resistant liquid A-coat, inside and out
  • Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
  • Includes all necessary installation hardware
  • Compatible with a tow hook or shackle mount (9,000 lbs. straight-line pull)
  • Made with a vehicle-specific design for a custom fit
  • Provides a convenient mount for hitch accessories
  • Ideal for attaching a snow plow, cargo carrier or other front hitch mount
  • Allows for easy maneuvering of a trailer into a tight spot

Information

Allows for easy maneuvering of a trailer into a tight spot

Application summary

Year Make / model
2016-2021 Nissan NV1500
2016-2021 Nissan NV2500
2016-2021 Nissan NV3500
2016-2017 Nissan TITAN XD

Specifications

GTIN
00612314036578
Weight
31.55 lb
Height
5 in
Length
37 in
Width
11 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
2" Receiver Front Mount Hitch
Attachment Location
Front
Box Height in Inches - XA
13
Box Length in Inches - XA
43
Box Width in Inches - XA
7
California Proposition 65
Yes
Class ID
5
Color
Black
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Direct Fit
Bolt-On
Drilling Required
No
Finish
Powder Coated
Finish - XA
GLOSS BLACK POWDER COAT
Gross Trailer Weight
5000 lbs.
Gross Trailer Weight (lbs.)
5000
Hitch Class
III
Install Time
20 Minutes
Installation Hardware Included
Yes
Item Class - XA
MFH
Item Height - XA
4.920
Item Length - XA
36.820
Item Width - XA
11.090
Main Body Shape
Square
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material
Carbon Steel
Material - XA
Carbon Steel
Mount Type Description - XA
Blank
Mounting Hardware Included
Yes
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
24.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Position
Front
Price Code - XA
43
Product Weight - XA
31.550
Rate Class - XA
92.5
Receiver Included
Yes
Receiver Size
2
Receiver Tube Size
2 IN
Retail Height - XA
37.000
Retail Length - XA
5.000
Retail Width - XA
11.000
Sales Family Code - XA
HITCH
Sales Family Description - XA
HITCH
Sales Group Description - XA
FRONT MOUNT
Shipping Weight - XA
31.550
Side Application Type Description - XA
Blank
Straight Line Pull Capacity
9,000 LB
Tariff 301 - XA
No
Title
2" Front Receiver Hitch, Select Nissan Titan XD
Tongue Weight (TW)
500 LB
Tongue Weight(TW)
500 LB
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Visibility
Exposed
WC Tongue Weight
500
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity
5000
Weight Carrying Capacity (WC)
5,000 LB
Weight Carrying Capacity(WC)
5,000 LB
Weight Distribution (WD)
n/a
Weight Distribution Tongue Weight (WDTW)
n/a
Weight Distribution Tongue Weight(WDTW)
n/a
Weight Distribution(WD)
n/a

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2016-2021 Nissan NV1500; 2016-2021 Nissan NV2500; 2016-2021 Nissan NV3500; 2016-2017 Nissan TITAN XD
