CURT / 29435

Part #: 29435
UPC: 612314294350

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: Trailer Winches

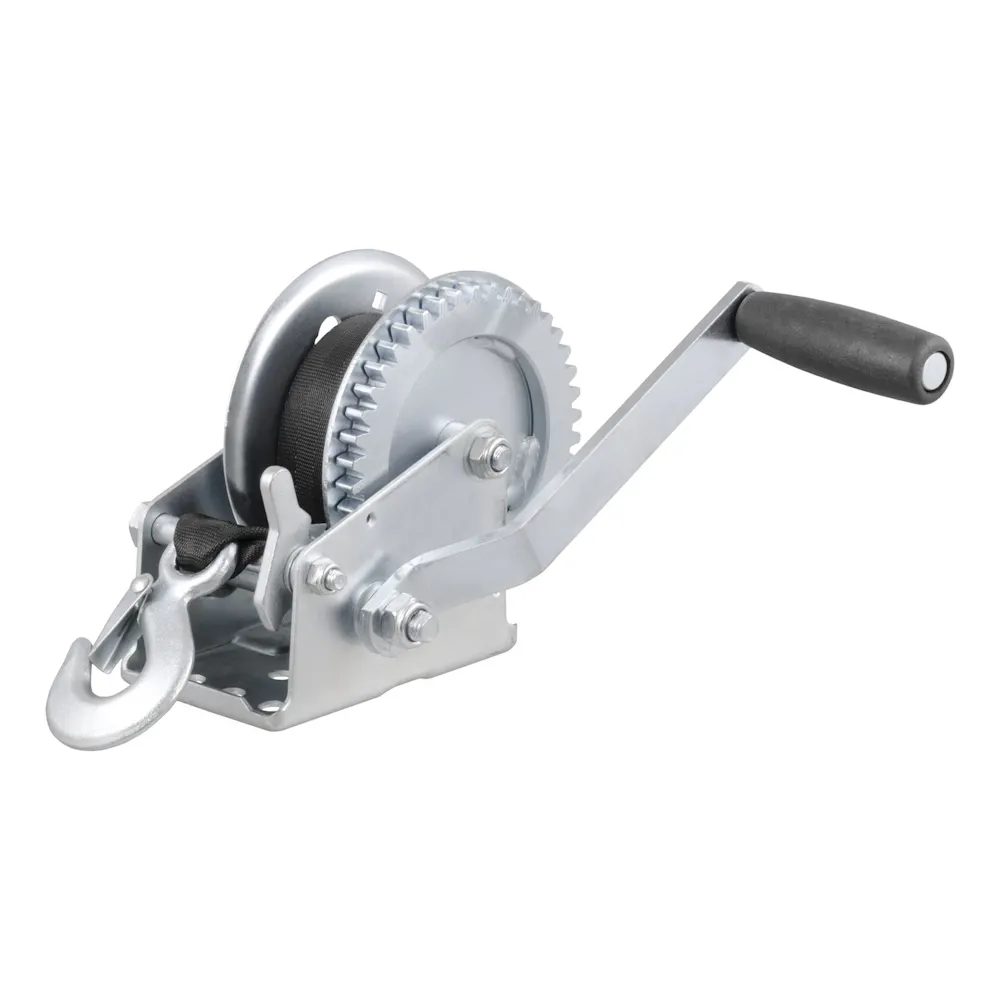

Description: Hand Crank Winch with 20' Strap (1,400 lbs, 7-1/2" Handle); CURT 29435 Manual Hand Crank Boat Trailer Winch, 1,400 lbs Capacity, 7-1/2" Handle, 4.2:1 Gear Ratio, 20' Strap

Description:

Description

After a full day on the water, you and your crew are tired. It doesn't matter if you were swimming off the back of the pontoon boat, racing around the lake in your speed boat or just casting a line off the side of your fishing boat -- when you get to shore, the last thing you want to deal with is a faulty hand crank on your boat trailer. You want a winch that makes your job easy and that lets you get out of the marina and back home sooner. CURT hand winches are constructed from cold-forged steel to provide structurally superior pinions and eliminate gear-to-shaft bonding failures. They are designed to be mounted on a variety of trailers and are especially useful for boat trailers. CURT boat winches can also serve a number other winch applications, though they are not designed for vehicle towing. This CURT hand winch or boat winch features a capacity of 1,400 lbs. with a gear ratio of 4.2:1. It has a hub diameter of 3/4" and a handle length of 7-1/2". It also comes with a 20' winch strap and zinc-plated snap hook.

Features & benefits

  • Crank-style boat winch for boat trailers or hoisting applications
  • Base features slotted screw holes for flexible mounting
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Compatible CURT winch straps #29007, #29450 or #29451

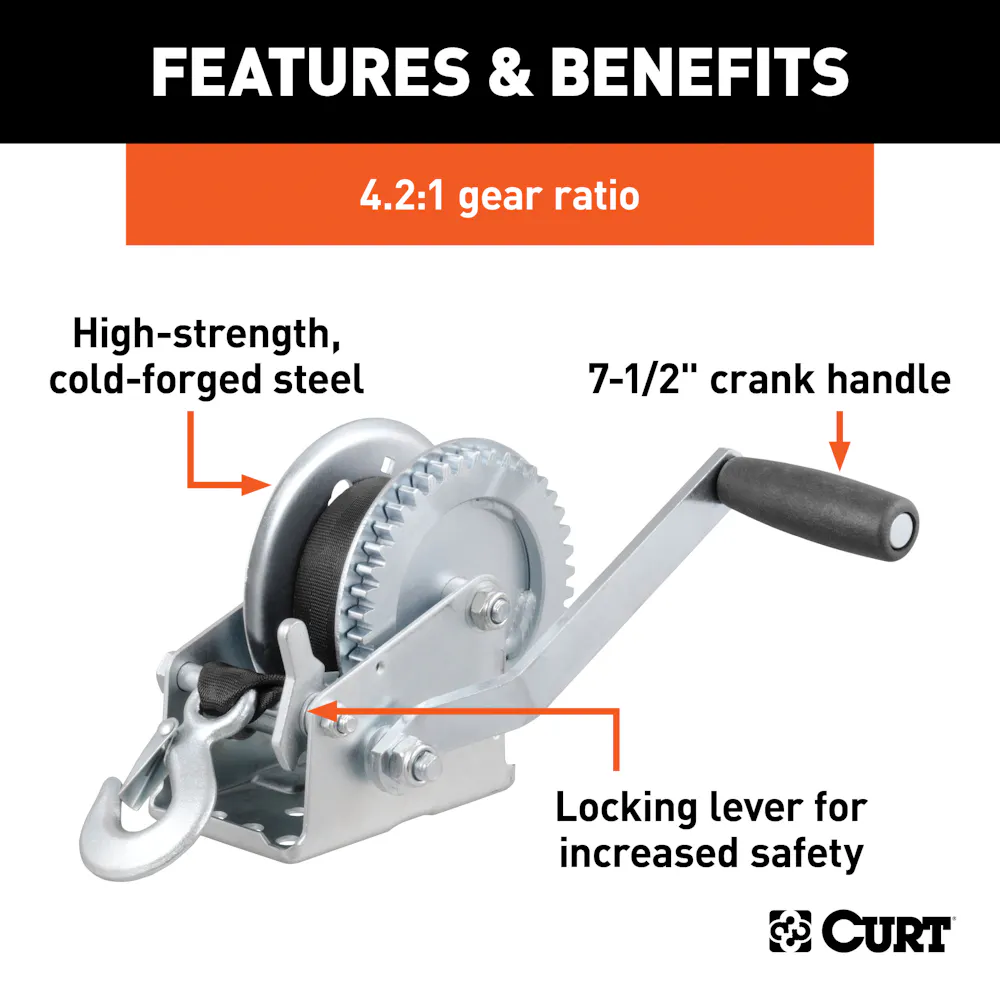

  • Constructed from high-strength, cold-forged steel
  • Includes 20' winch strap #29451 with zinc-plated snap hook

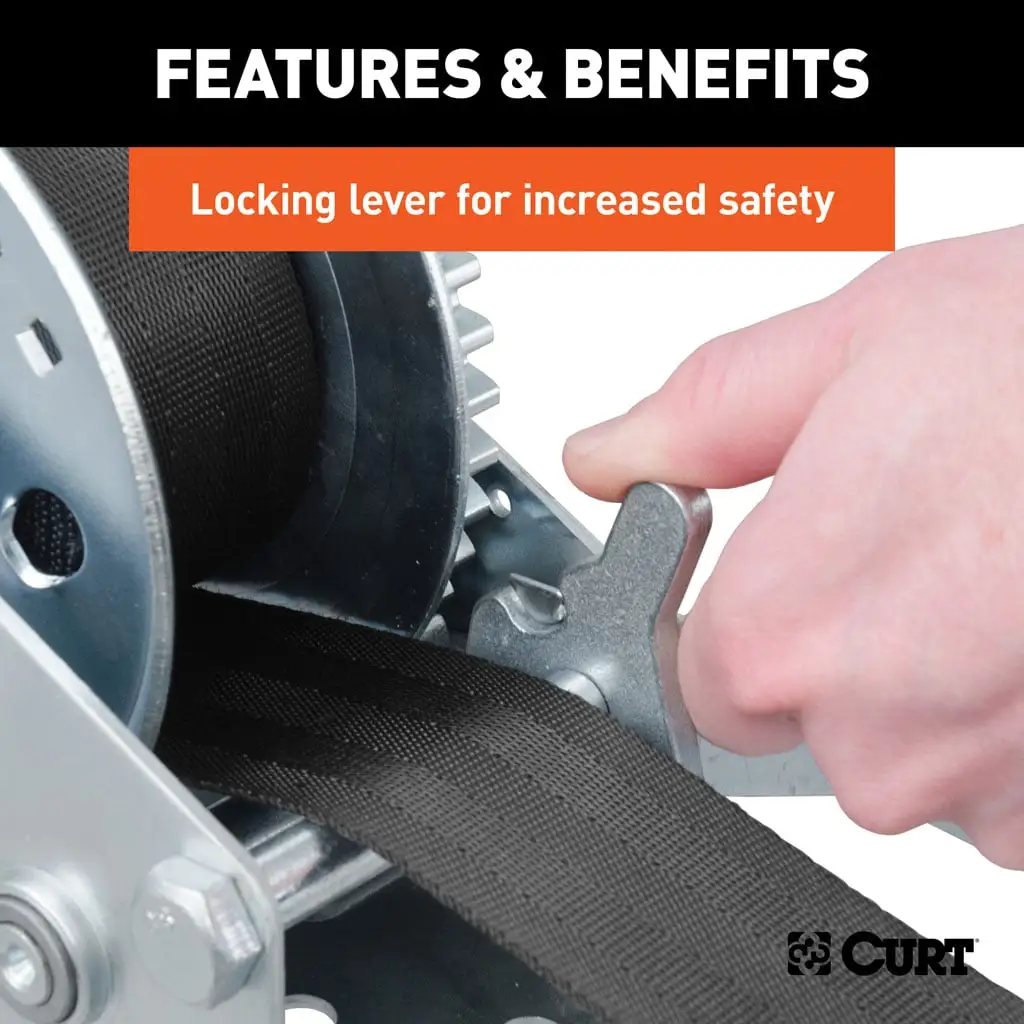

  • Equipped with a locking lever for increased safety
  • Strong pinions eliminate gear-to-shaft bonding failures

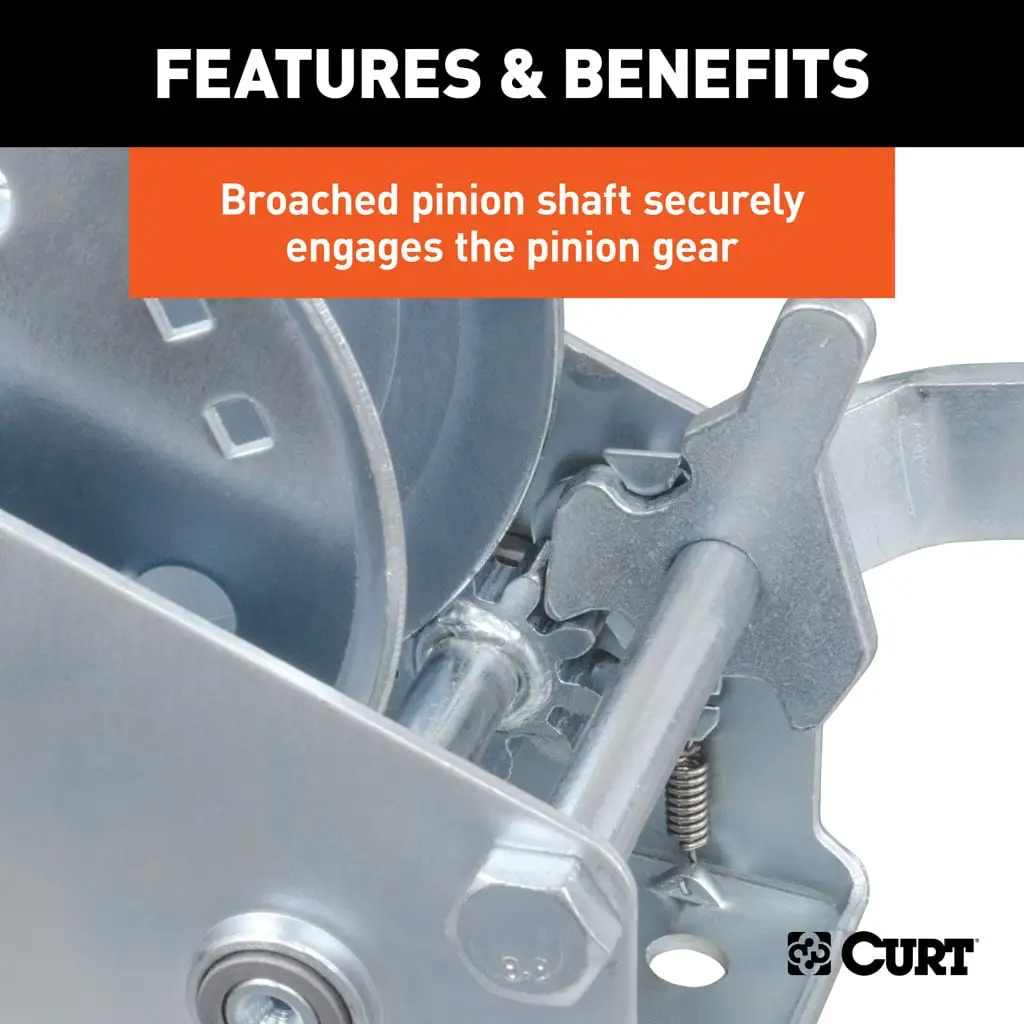

  • Broached pinion shaft securely engages the pinion gear
  • 7-1/2" handle with plastic grip cover for easy, comfortable operation

Information

7-1/2" handle with plastic grip cover for easy, comfortable operation

Application summary

Year Make / model
9435 Manual Hand Crank Boat Trailer Winch, 1,400 lbs Capacity, 7-1/2 Handle, 4.2:1 Gear Ratio, 20' Strap

Specifications

GTIN
00612314294350
Weight
8 lb
Height
5.5 in
Length
8.25 in
Width
6.75 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Hand Winch, 1400 Lb Capacity, With 20' Strap
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
Yes
Capacity
1400 lbs.
Capacity (lbs.)
1400
Class ID
0
Container Cases Qty - XA
640
Container Load Type - XA
PALLETS
Container Pallet Qty - XA
20
Container Type - XA
20GP
Container Unit Qty - XA
5120
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
42200
Finish
CLEAR ZINC
Finish - XA
CLEAR ZINC
Gear Ratio
4.2:1
Handle Length
7 1/2 IN
Hub Diameter
.75
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
13.980
Master Case ITF14
20612314294354
Master Case ITF14 - XA
20612314294354
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
17.520
Master Case Qty - XA
8
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
65.000
Master Case Width Inches - XA
12.204
Material - XA
Blank
Mount Type Description - XA
Blank
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
32
Pallet Cases Per Layer - XA
8
Pallet Layer of Cases - XA
4
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
47.000
Pallet Total Weight Per - XA
2110.000
Parcel Allowed - XA
Yes
Product Weight - XA
0.000
Rate Class - XA
92.5
Retail Height - XA
5.500
Retail Length - XA
8.250
Retail Width - XA
6.750
Sales Family Code - XA
TPACC
Sales Family Description - XA
TRAILER PARTS AND ACCESS
Sales Group Description - XA
WINCH
Shipping Weight - XA
8.000
Side Application Type Description - XA
Blank
Tariff 301 - XA
Yes
Title
Hand Crank Winch with 20' Strap (1,400 lbs, 7-1/2" Handle)
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 29435 Manual Hand Crank Boat Trailer Winch, 1,400 lbs Capacity, 7-1/2 Handle, 4.2:1 Gear Ratio, 20' Strap
