CURT · 28570
Part #: 28570
UPC: 612314006731
Loading...
Notify me when this item is in stock.
Description: Direct-Weld Square Jack with Top Handle (8,000 lbs, 15" Travel); CURT 28570 Direct Weld On Heavy-Duty Trailer Jack, 8,000 lbs. Support Capacity, 15-1/4 Inches Vertical Travel
Description:
Description
In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the farm. CURT square jacks are a heavy-duty trailer jack option. They are designed to weld directly onto the frame of your trailer for superior holding strength. This CURT direct weld square jack features a support capacity of 8,000 lbs., a lift capacity of 7,000 lbs. and a travel of 15". With a jack foot plate attached to the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a top-wind handle and is an excellent choice to meet the high demands of the farming life and construction industry. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer your trailer wrong, CURT has the answer.
Features & benefits

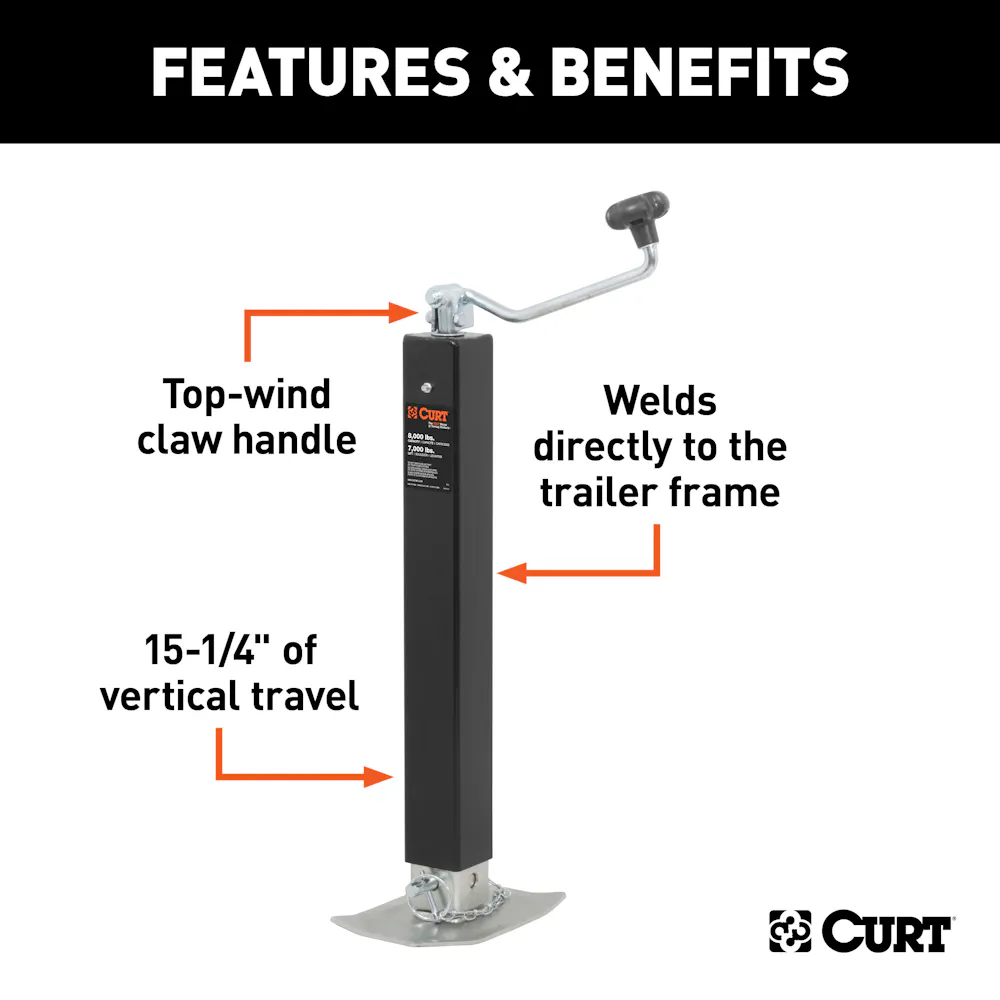

- Rated for 8,000 lbs. support capacity and 7,000 lbs. lift capacity

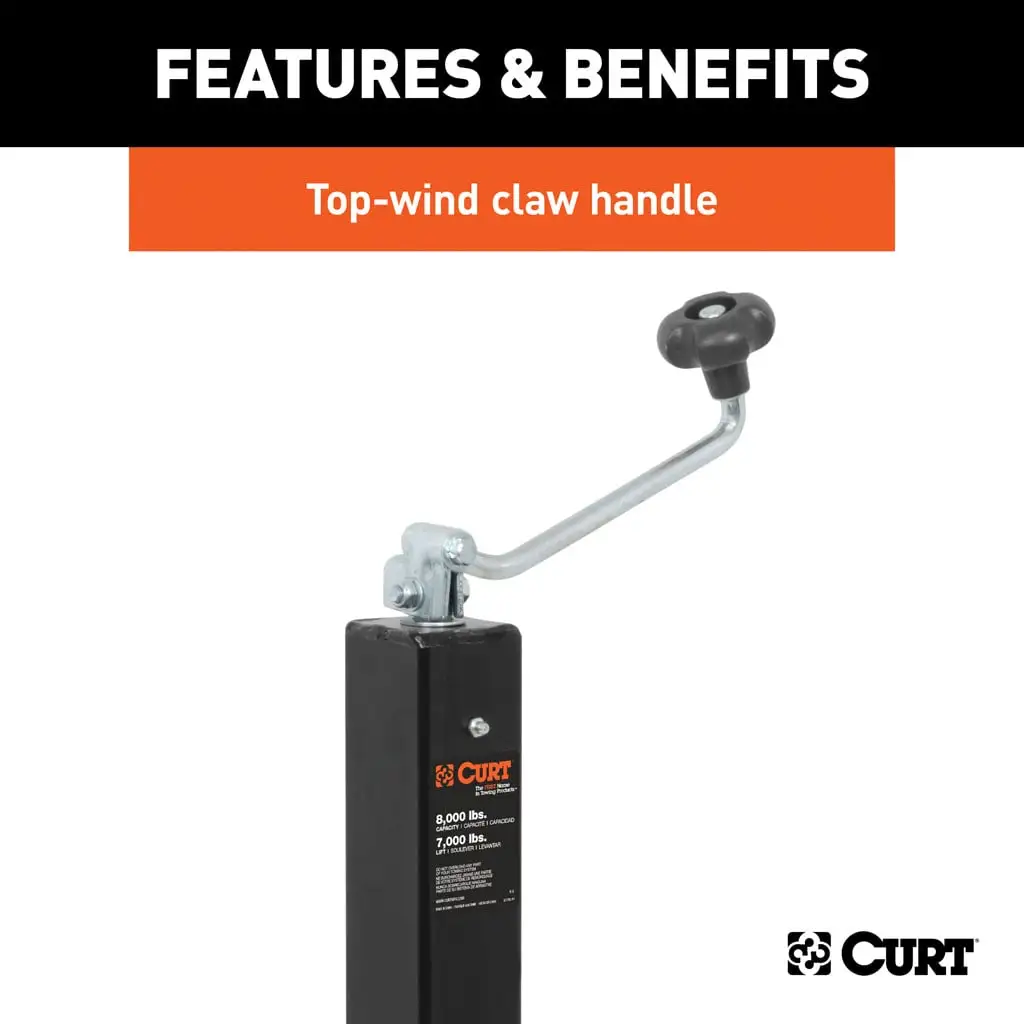

- Top-wind claw handle easily raises or lowers trailer coupler
- Designed to weld directly to the trailer frame
- 15" of vertical travel accommodate multiple ball heights
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 8570 | Direct Weld On Heavy-Duty Trailer Jack, 8,000 lbs. Support Capacity, 15-1/4 Inches Vertical Travel |
Specifications
- GTIN
- 00612314006731
- Weight
- 21.9 lb
- Height
- 6 in
- Length
- 25 in
- Width
- 8 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Heavy Duty Drop Leg Jack, Top Wind, 8000# Support Capacity, 7000# Lift Capa
- Attached Wheels
- No
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Class ID
- 0

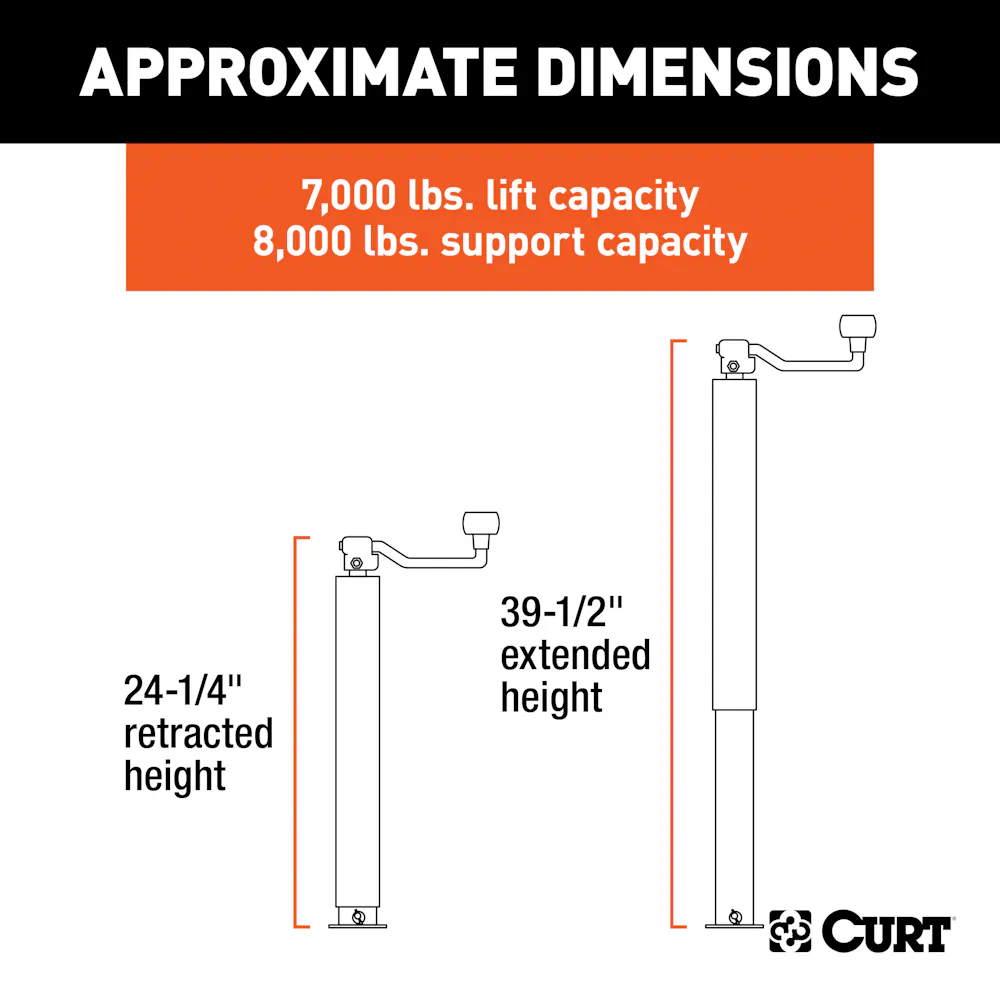

- Collapsed Height
- 24.25
- Color
- Black / Silver
- Container Cases Qty - XA
- 19
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 19
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 1710
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 38399
- Finish
- CARBIDE BLACK POWDER COAT
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Item Class - XA
- OBS
- Item Height - XA
- 5.800
- Item Length - XA
- 24.900
- Item Width - XA
- 7.900
- Lift Capacity
- 7000
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 90
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 1972.000
- Master Case Width Inches - XA
- 0.000
- Material
- Steel
- Material - XA
- Blank
- Maximum Extended Height
- 39.5
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 90
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 90
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 37.000
- Pallet Total Weight Per - XA
- 2021.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 100.0
- Retail Height - XA
- 6.000
- Retail Length - XA
- 25.000
- Retail Width - XA
- 8.000
- Sales Family Code - XA
- TPACC
- Sales Family Description - XA
- TRAILER PARTS AND ACCESS
- Sales Group Description - XA
- TRAILER JACK
- Shipping Weight - XA
- 21.900
- Side Application Type Description - XA
- Blank
- Support Capacity
- 8000
- TRAVEL
- 15
- Tariff 301 - XA
- Yes
- Title
- Direct-Weld Square Jack with Top Handle (8,000 lbs, 15" Travel)
- Travel
- 15
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Capacity
- 8,000
Fitment status
This product is universal and will fit your application.
Application summary
CURT 28570 Direct Weld On Heavy-Duty Trailer Jack, 8,000 lbs. Support Capacity, 15-1/4 Inches Vertical Travel
