CURT · 28359

Part #: 28359
UPC: 612314283590

Loading availability... Loading...
Notify me when this item is in stock.

Description: Direct-Weld Square Jack with Side Handle (5,000 lbs, 15" Travel); CURT 28359 Direct Weld On Heavy-Duty Trailer Jack, 5,000 lbs. Support Capacity, 15-1/4 Inches Vertical Travel

Description:

Description

In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the farm. CURT square jacks are a heavy-duty trailer jack option. They are designed to weld directly onto the frame of your trailer for superior holding strength. This CURT direct weld square jack features a support capacity of 5,000 lbs., a lift capacity of 3,000 lbs. and a travel of 15". With a jack foot plate attached to the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a side-wind handle and is an excellent choice to meet the high demands of the farming life and construction industry. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer your trailer wrong, CURT has the answer.

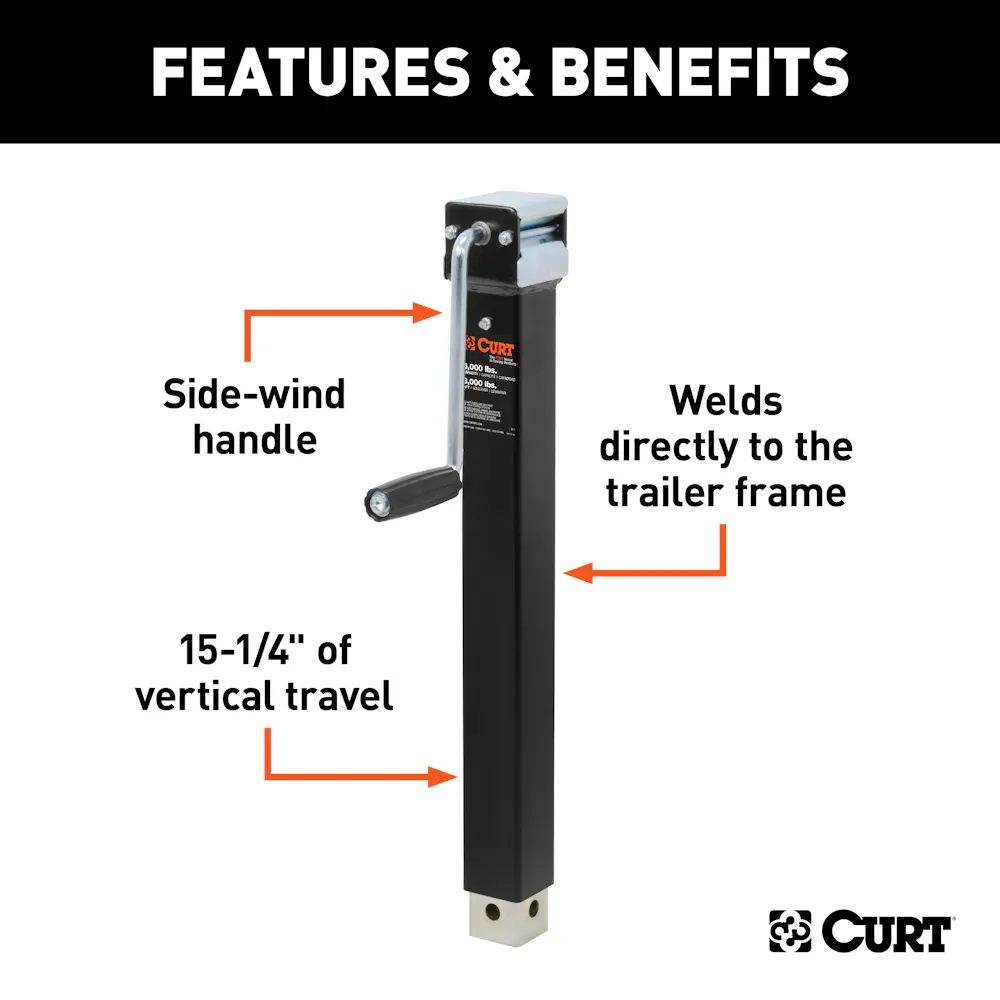

Features & benefits

  • Rated for 5,000 lbs. support capacity and 3,000 lbs. lift capacity

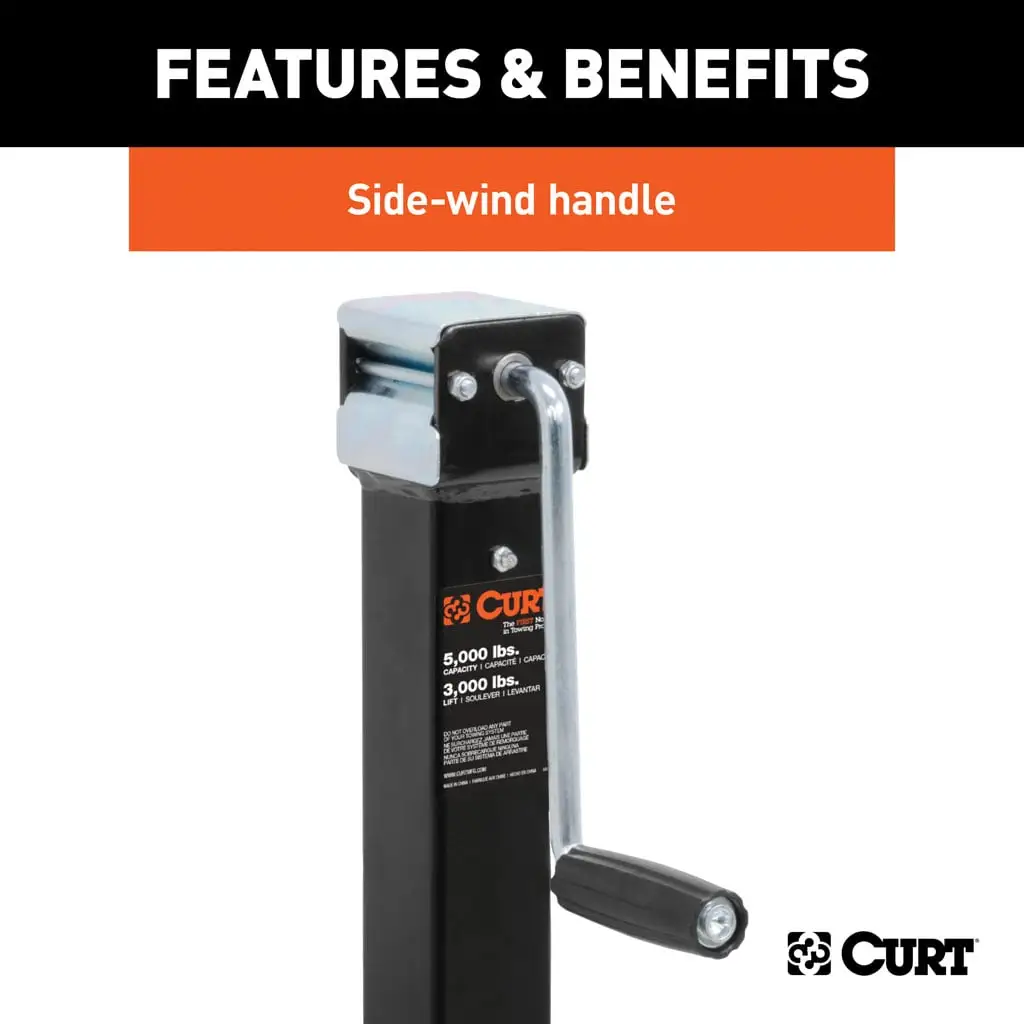

  • Side-wind handle easily raises or lowers trailer coupler
  • Designed to weld directly to the trailer frame
  • 15" of vertical travel accommodate multiple ball heights
  • Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year Make / model
8359 Direct Weld On Heavy-Duty Trailer Jack, 5,000 lbs. Support Capacity, 15-1/4 Inches Vertical Travel

Specifications

GTIN
00612314283590
Weight
18 lb
Height
3 in
Length
25 in
Width
8 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Jack 3000lb Lift/5000lb Support, Weld-On Side Wind
Attached Wheels
No
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Class ID
0
Collapsed Height
24.625
Color
Black / Silver
Container Cases Qty - XA
22
Container Load Type - XA
PALLETS
Container Pallet Qty - XA
22
Container Type - XA
20GP
Container Unit Qty - XA
2200
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
40700
Finish
CARBIDE BLACK POWDER COAT
Finish - XA
CARBIDE BLACK POWDER COAT
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Lift Capacity
3,000 LBS
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
100
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
1801.000
Master Case Width Inches - XA
0.000
Material
Steel
Material - XA
Blank

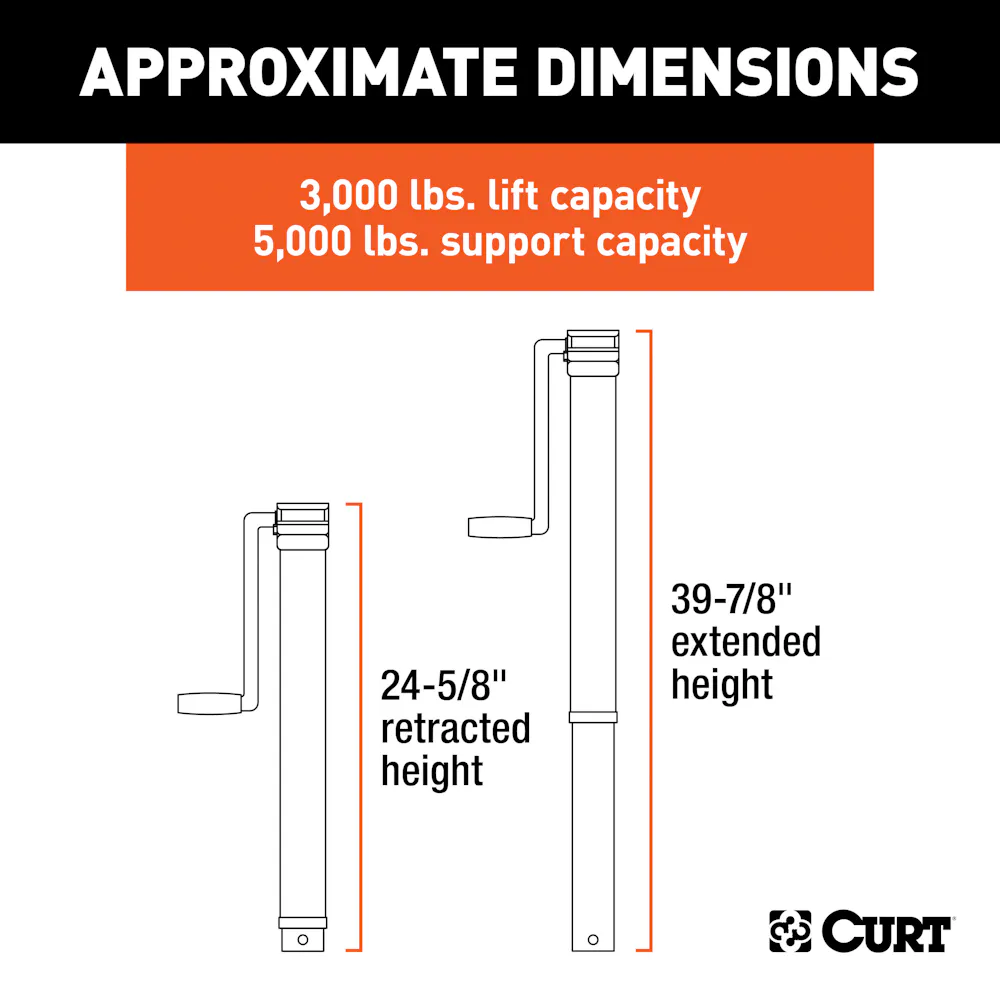

Maximum Extended Height
39.875
Mount Type Description - XA
Blank
Pallet Case Per - XA
100
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
100
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
37.000
Pallet Total Weight Per - XA
1850.000
Parcel Allowed - XA
Yes
Product Weight - XA
0.000
Rate Class - XA
100.0
Retail Height - XA
7.500
Retail Length - XA
24.750
Retail Width - XA
8.500
Sales Family Code - XA
TPACC
Sales Family Description - XA
TRAILER PARTS AND ACCESS
Sales Group Description - XA
TRAILER JACK
Shipping Weight - XA
18.000
Side Application Type Description - XA
Blank
Support Capacity
5000
TRAVEL
15
Tariff 301 - XA
Yes
Title
Direct-Weld Square Jack with Side Handle (5,000 lbs, 15" Travel)
Travel
15
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Capacity
5,000

Fitment status

This product is universal and will fit your application.

Application summary

CURT 28359 Direct Weld On Heavy-Duty Trailer Jack, 5,000 lbs. Support Capacity, 15-1/4 Inches Vertical Travel
