CURT / 28113

Part #: 28113
UPC: 612314006113

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: Marine Trailer Jacks

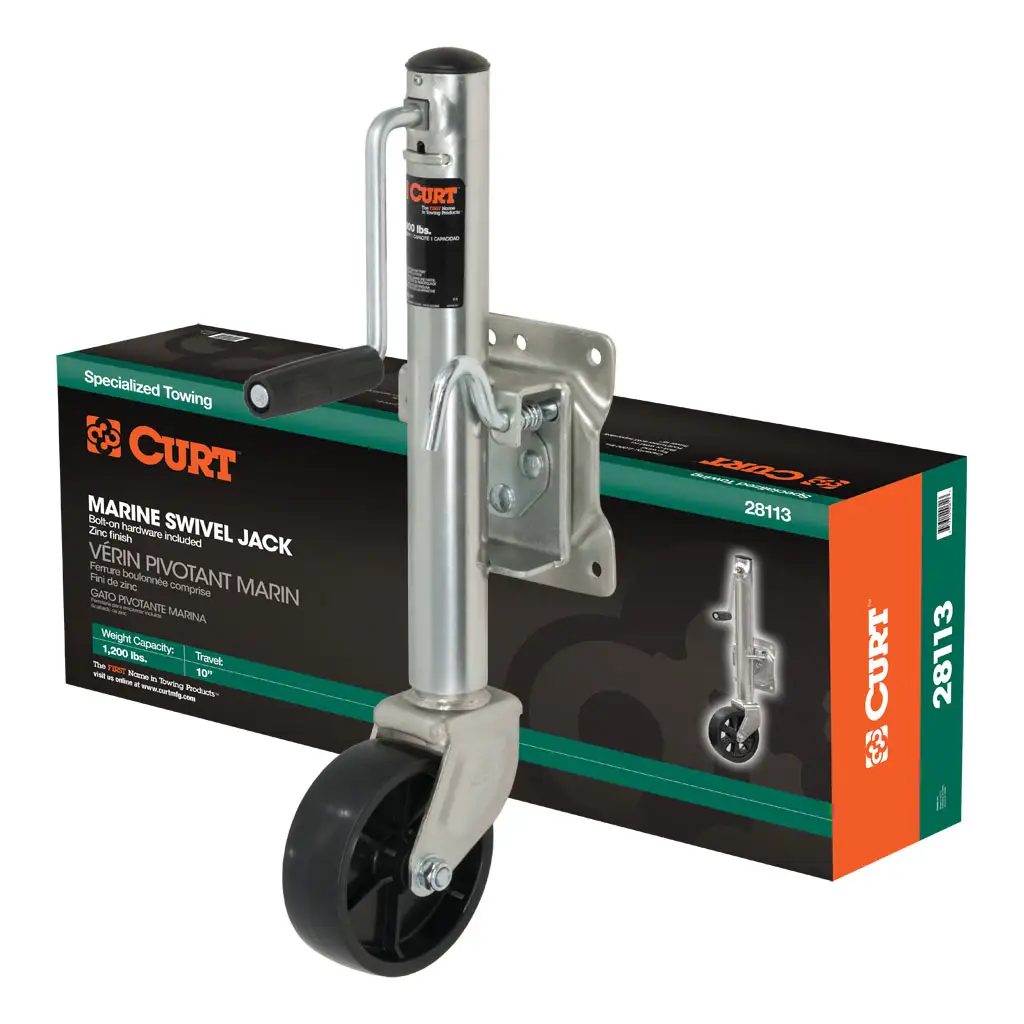

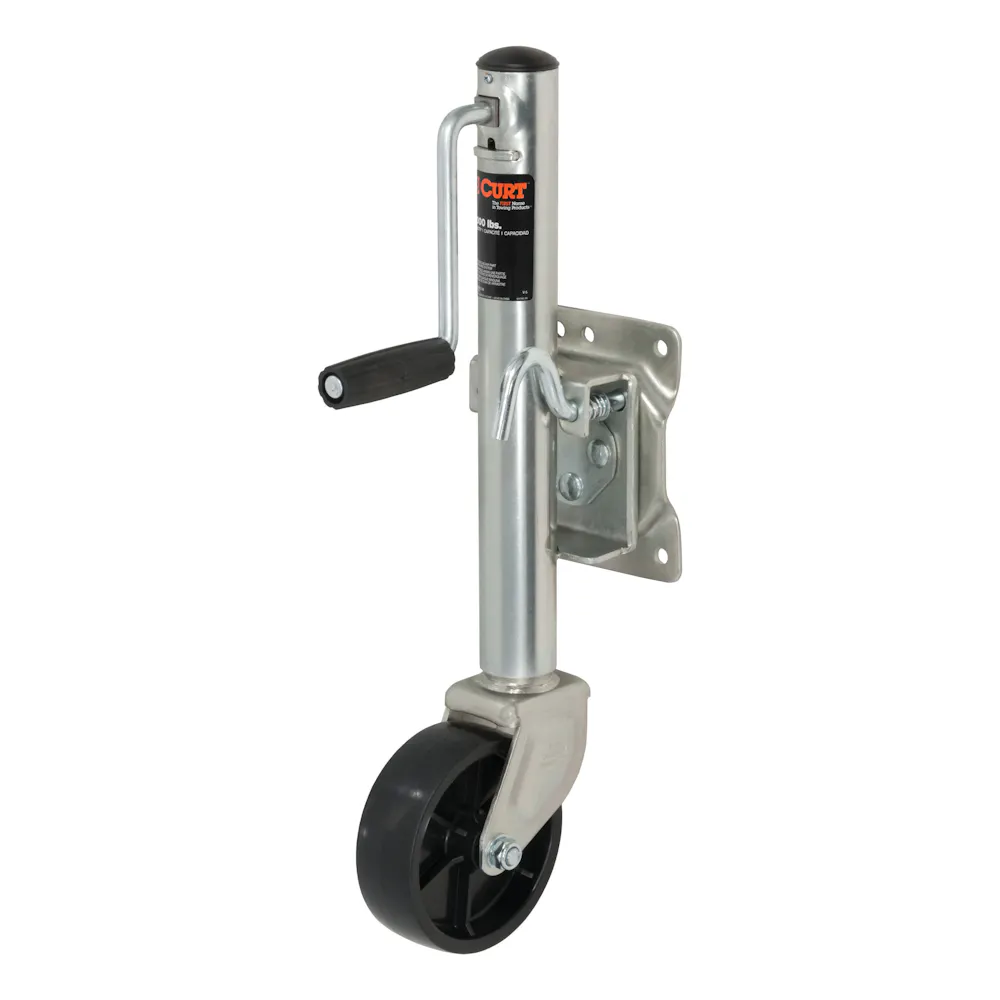

Description: Marine Jack with 6" Wheel (1,200 lbs, 10" Travel, Packaged); CURT 28113 Marine Boat Trailer Jack with 6-Inch Wheel, 1,200 lbs. 11 Inches Vertical Travel

Description:

Description

In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. Designed to withstand the wear and tear of frequent water exposure, CURT marine jacks are the jack of choice for the avid fisherman or boating enthusiast. Our marine jacks have a few features that make them a special addition to our trailer jack line. Unlike any of our other jacks, CURT marine trailer jacks are equipped with wheels, allowing for greater mobility and easier coupling of your trailer. Choose from models with one or two wheels. Marine jacks also have a heavy-duty pull-pin that allows them to pivot on their mounting bracket to be out of the way for travel. To protect them from corrosion and the damage of moisture, these jacks come with a zinc finish. This CURT marine jack features a weight capacity of 1,200 lbs., a travel of 10" and a wheel diameter of 6". It comes with a side-wind handle and all the necessary bolt-on hardware for a complete installation. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer.

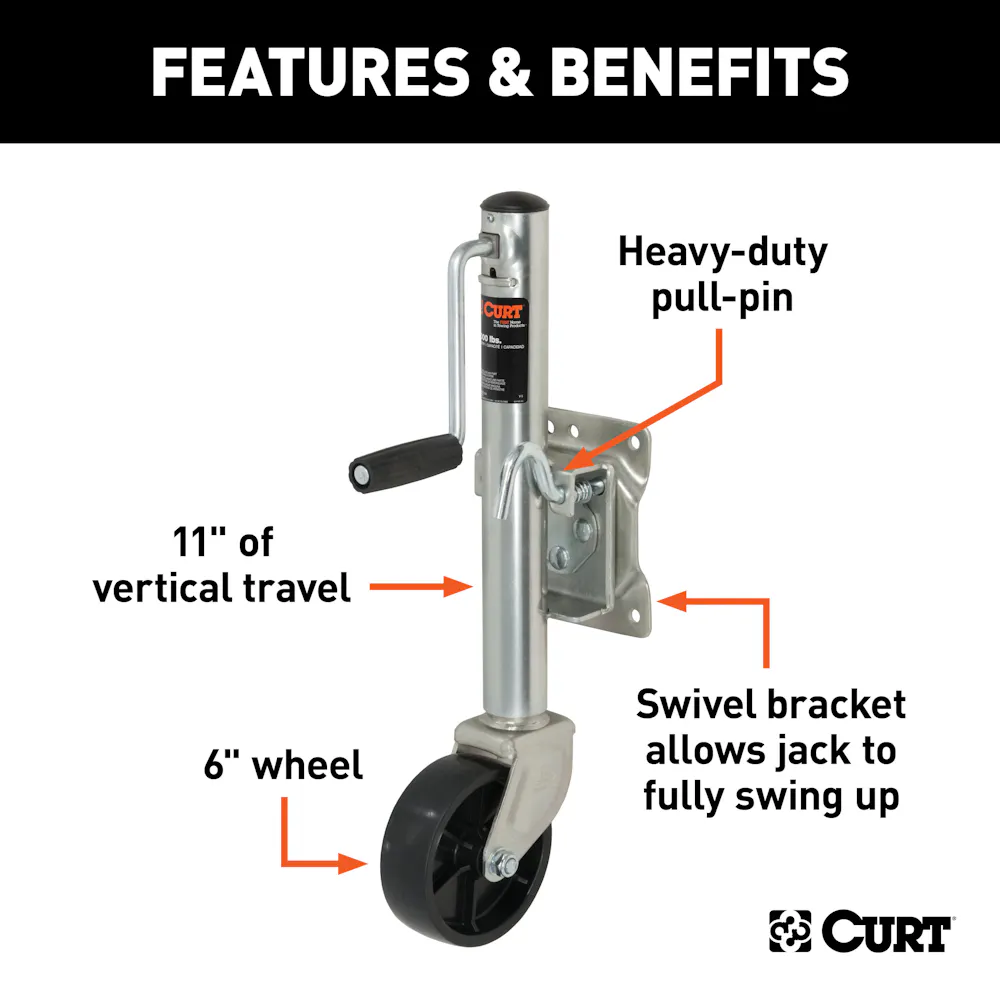

Features & benefits

  • Supports up to 1,200 lbs. trailer tongue weight
  • Side-wind handle easily raises or lowers trailer coupler

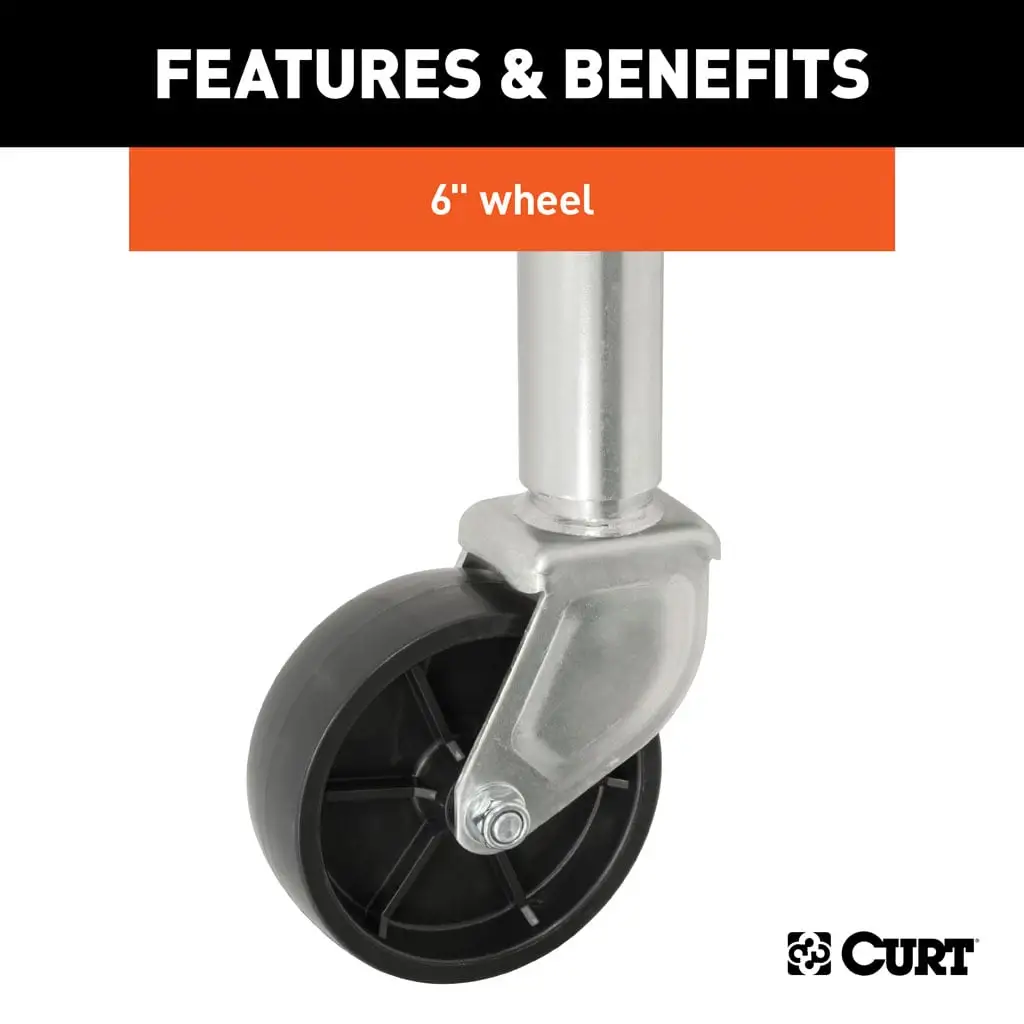

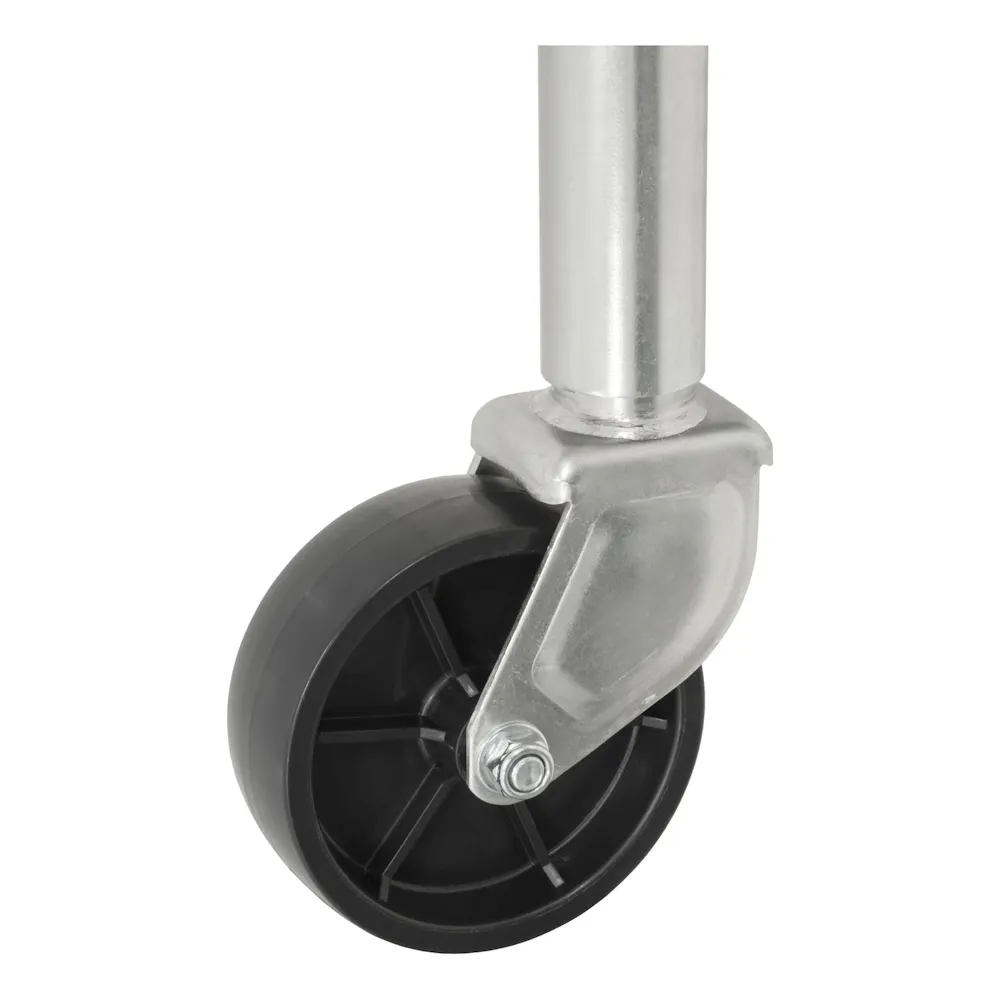

  • 6" wheel for convenient trailer mobility and coupling

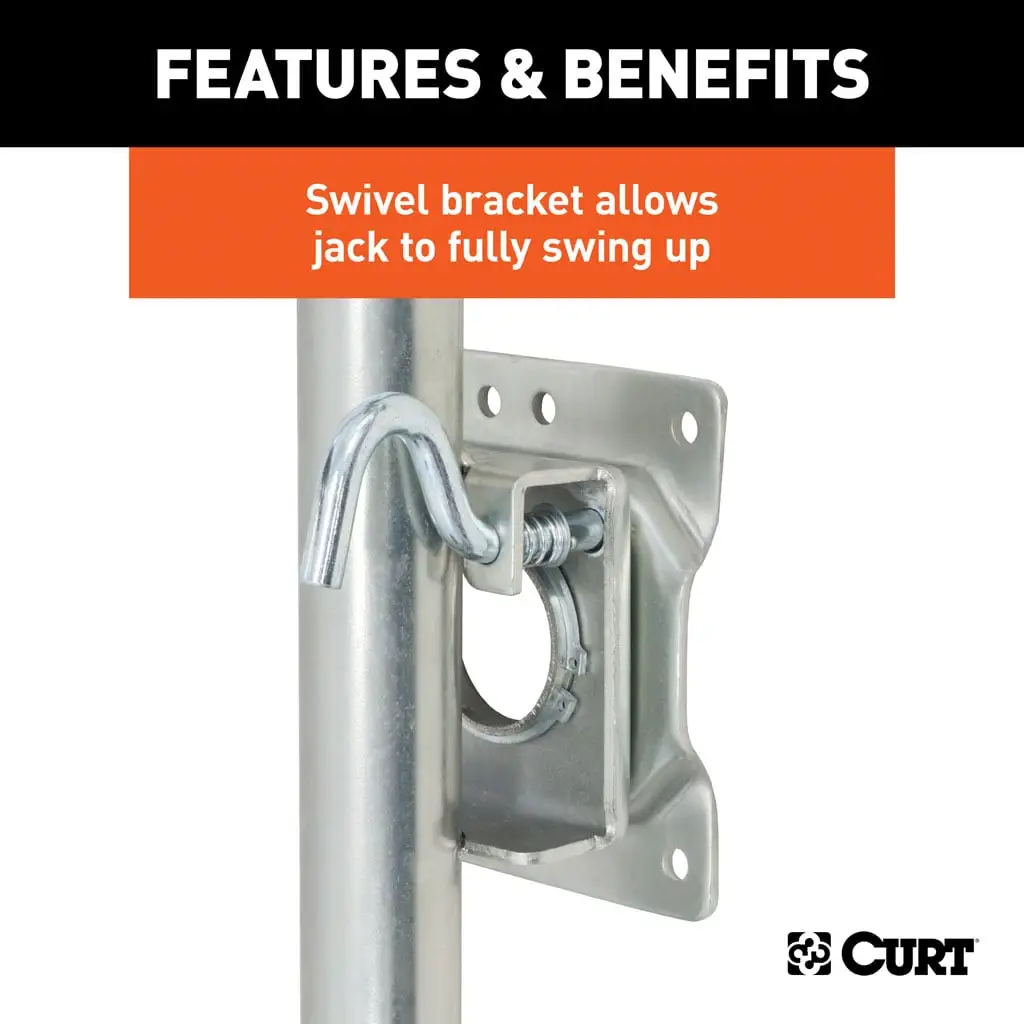

  • Swivel bracket allows jack to fully swing up and out of the way for travel
  • Heavy-duty pull-pin keeps jack securely locked in place
  • 10" of vertical travel accommodate multiple ball heights

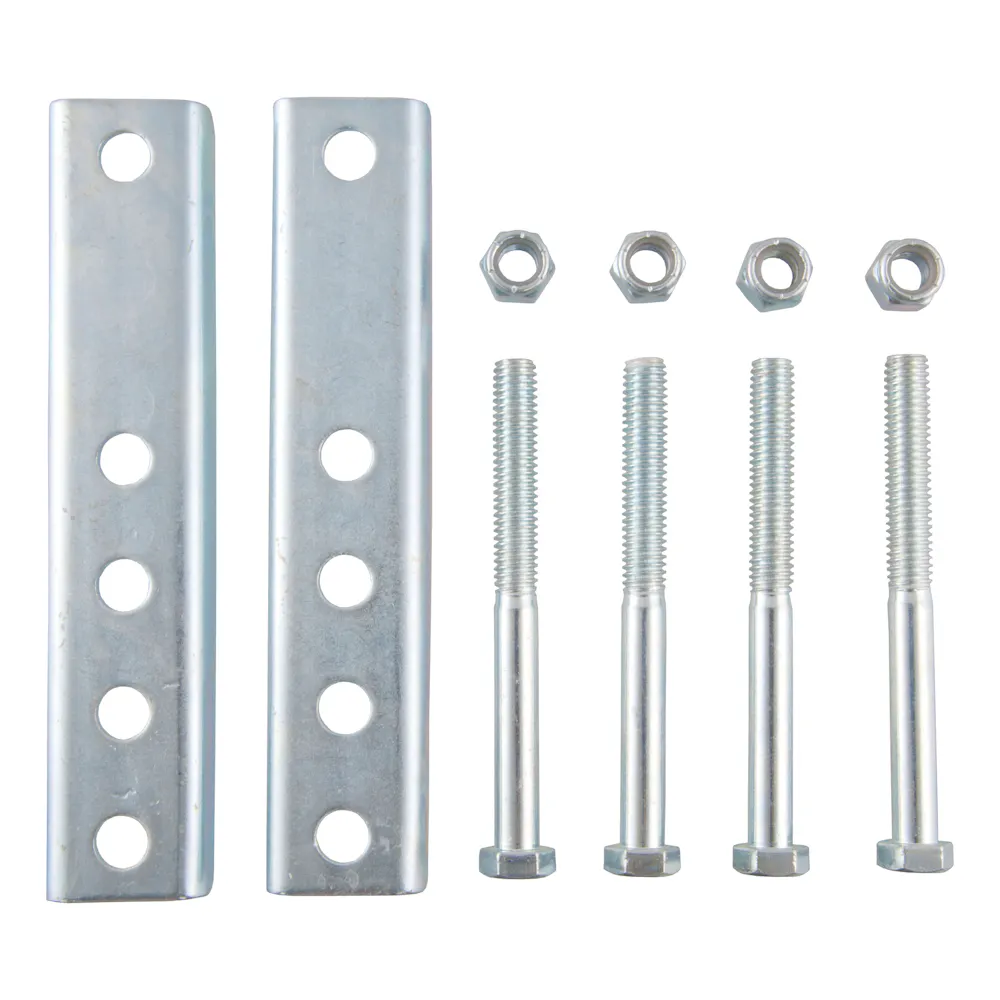

  • 3/8-16 x 4" bolt-on hardware included to fit 2" x 2" to 3" x 5" trailer frames
  • Protected by a durable zinc-plated finish
  • Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year Make / model
8113 Marine Boat Trailer Jack with 6-Inch Wheel, 1,200 lbs. 11 Inches Vertical Travel

Specifications

GTIN
00612314006113
Weight
17.45 lb
Height
6.5 in
Length
24.88 in
Width
10.38 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Packaged Marine Jack, 1.2 K, 6" Caster
Attached Wheels
Yes
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
Bracket Height
12.6875
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Capacity
1200 lbs.
Capacity (lbs.)
1200
Class ID
0
Collapsed Height
12.5
Color
Silver
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Finish
CLEAR ZINC
Finish - XA
CLEAR ZINC
Item Class - XA
OMF
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material
Steel
Material - XA
Blank

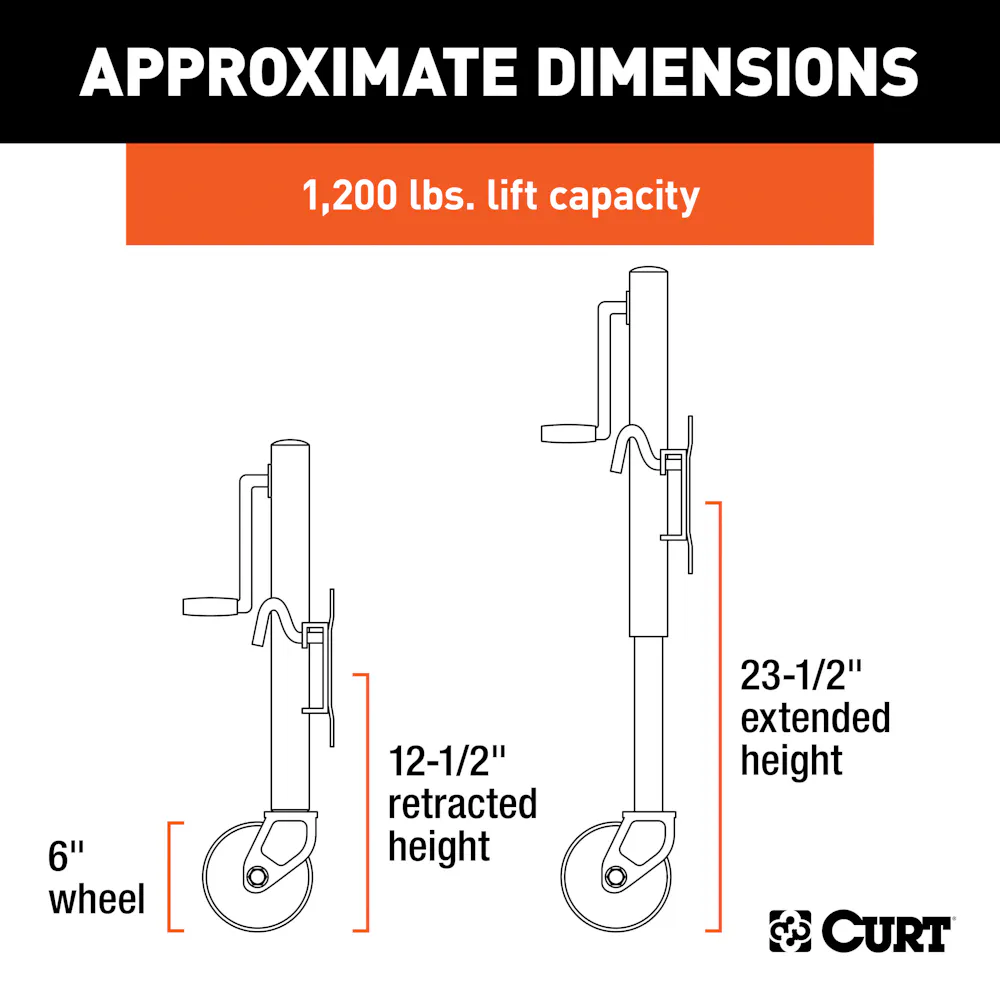

Maximum Extended Height
23.5
Mount Type Description - XA
Blank
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
42.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Product Weight - XA
0.000
Rate Class - XA
100.0
Retail Height - XA
6.500
Retail Length - XA
24.875
Retail Width - XA
10.375
Sales Family Code - XA
TPACC
Sales Family Description - XA
TRAILER PARTS AND ACCESS
Sales Group Description - XA
TRAILER JACK
Shipping Weight - XA
17.450
Side Application Type Description - XA
Blank
TRAVEL
10
Tariff 301 - XA
Yes
Title
Marine Jack with 6" Wheel (1,200 lbs, 10" Travel, Packaged)
Travel
10
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Capacity
1,200
Wheel Diameter
6

Fitment status

This product is universal and will fit your application.

Application summary

CURT 28113 Marine Boat Trailer Jack with 6-Inch Wheel, 1,200 lbs. 11 Inches Vertical Travel
