Description: QuickPin No-Latch 2-5/16" A-Frame Trailer Coupler, 14,000 lbs; CURT 25474 QuickPin No-Latch A-Frame Trailer Coupler for 2-5/16-Inch Hitch Ball, 14,000 lbs
Description:
Description

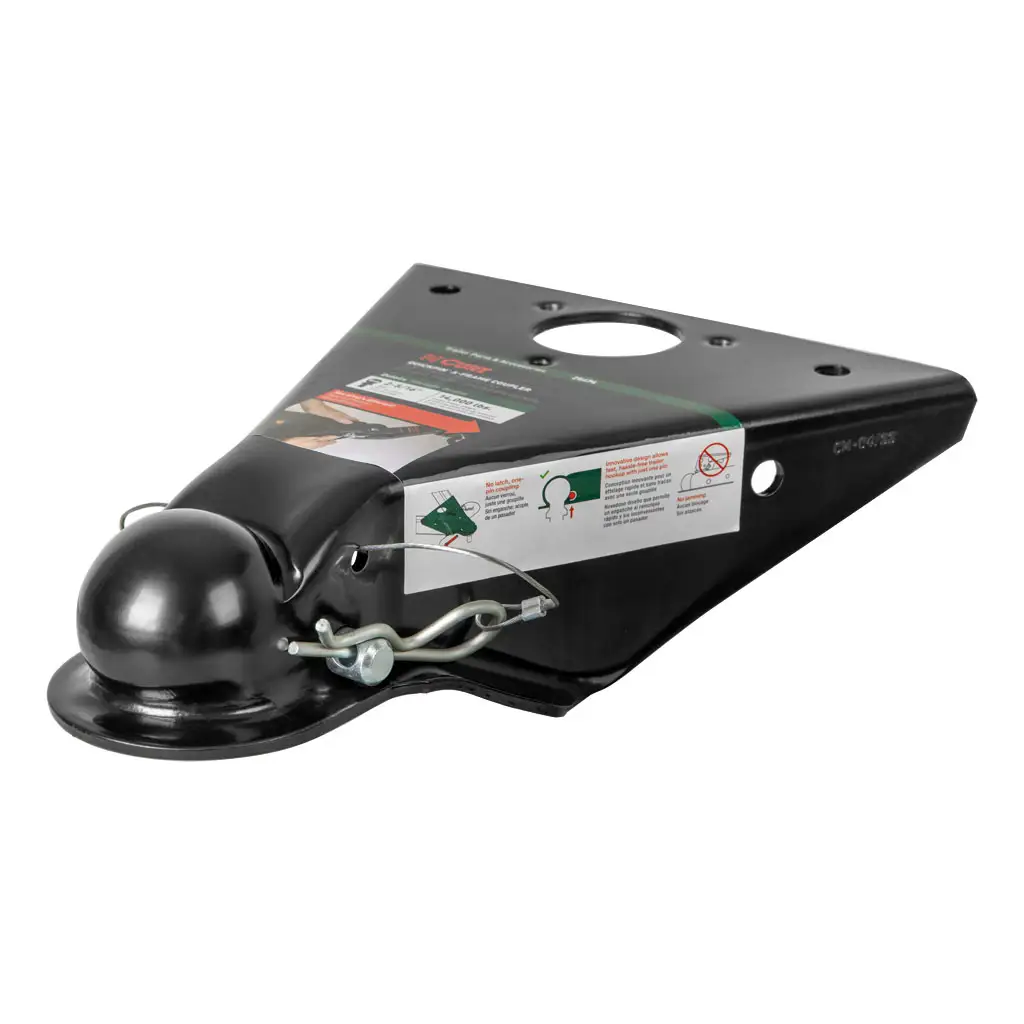

The CURT QuickPin trailer coupler is a revolutionary coupler design, doing away with the traditional latch mechanism for simple, stress-free trailer hookup. Most couplers use a complicated hinging latch that's prone to wear out and become corroded, leading to difficulties and frustration. Instead of a latch, QuickPin uses a simple hitch pin to create a safe, reliable, hassle-free towing connection. It's as easy as dropping the trailer tongue onto the hitch ball, inserting the QuickPin hitch pin, and that's it! No more wrestling with a rusty latch, and no adjustment or tightening needed. This A-frame trailer hitch coupler is fully tested according to SAE J684 specifications. It is rated for 14,000 pounds and fits any standard 2-5/16-inch diameter trailer ball. The coupler can be mounted on an A-frame trailer tongue with a 50-degree angle (mounting hardware not included). It is also finished in a durable black powder coating for lasting rust resistance. NOTE: This coupler comes with a hitch pin that must be used when connecting the trailer. It may not be replaced with a different pin.
Features & benefits
- Innovative design allows fast, hassle-free trailer coupling with just one pin
- Stamped steel construction for dependable strength (14,000 lbs. capacity)
- Passes SAE J684 performance testing
- Accepts standard 2-5/16" diameter trailer ball
- 50-degree A-frame angle to fit most A-frame trailers
- Bolt-on or weld-on installation for versatile mounting options
- Protected by a durable black powder coat finish
- No jamming or complicated hinging components prone to wear
- Easier to use than traditional couplers
- Fastens securely with included hitch pin and clip
- No adjustments or tightening needed
- Lasso lanyard secures pin to coupler to avoid missing pieces
Information
Lasso lanyard secures pin to coupler to avoid missing pieces
Application summary
| Year | Make / model |
|---|---|
| 5474 | QuickPin No-Latch A-Frame Trailer Coupler for 2-5/16-Inch Hitch Ball, 14,000 lbs |
Specifications
- GTIN
- 00612314052530
- Weight
- 7 lb
- Height
- 5 in
- Length
- 15 in
- Width
- 11 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Ball Diameter
- 2-5/16 IN
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Container Cases Qty - XA
- 2560
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 40
- Container Type - XA
- 40GP
- Container Unit Qty - XA
- 5120
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 40200
- Finish
- A-COAT
- Finish - XA
- A-COAT
- Gross Trailer Weight (GTW)
- 14,000 LBS
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Latch Style
- Pin & Clip
- Master Case Height Inches - XA
- 4.720
- Master Case ITF14
- 20612314052534
- Master Case ITF14 - XA
- 20612314052534
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 11.420
- Master Case Qty - XA
- 2
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 15.000
- Master Case Width Inches - XA
- 17.320
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 64
- Pallet Case Per Layer - XA
- 8
- Pallet Cases Per - XA
- 64
- Pallet Cases Per Layer - XA
- 8
- Pallet Layer of Cases - XA
- 8
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 42.500
- Pallet Total Weight Per - XA
- 1005.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 7.000
- Rate Class - XA
- 100.0
- Retail Height - XA
- 4.500
- Retail Length - XA
- 15.000
- Retail Width - XA
- 11.000
- Sales Family Code - XA
- TPACC
- Sales Family Description - XA
- TRAILER PARTS AND ACCESS
- Sales Group Description - XA
- COUPLER
- Shipping Weight - XA
- 7.000
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- Yes
- Title
- QuickPin No-Latch 2-5/16" A-Frame Trailer Coupler, 14,000 lbs
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 25474 QuickPin No-Latch A-Frame Trailer Coupler for 2-5/16-Inch Hitch Ball, 14,000 lbs
