CURT · 25471
Part #: 25471
UPC: 612314049967
Loading...
Notify me when this item is in stock.
Description: QuickPin No-Latch 2" Trailer Coupler (2-1/2" Channel, 3,500 lbs); CURT 25471 QuickPin No-Latch Trailer Coupler for 2-Inch Hitch Ball, 2-1/2-In Channel, 3,500 lbs
Description:
Description
The CURT QuickPin trailer coupler is a revolutionary coupler design, doing away with the traditional latch mechanism for simple, stress-free trailer hookup. Most couplers use a complicated hinging latch that's prone to wear out and become corroded, leading to difficulties and frustration. Instead of a latch, QuickPin uses a simple hitch pin to create a safe, reliable, hassle-free towing connection. It's as easy as dropping the trailer tongue onto the hitch ball, inserting the QuickPin hitch pin, and that's it! No more wrestling with a rusty latch, and no adjustment or tightening needed. This trailer hitch coupler is fully tested according to SAE J684 specifications. It is rated for 3,500 pounds and fits any standard 2-inch diameter trailer ball. The coupler channel can be mounted on a 2-1/2-inch wide trailer tongue beam, featuring standard mounting holes to fit most existing bolt patterns (mounting hardware not included). It is also finished in a durable black powder coating for lasting rust resistance. NOTE: This coupler comes with a 1/2-inch pin that must be used when connecting the trailer. It may not be replaced with a different 1/2-inch pin.
Features & benefits

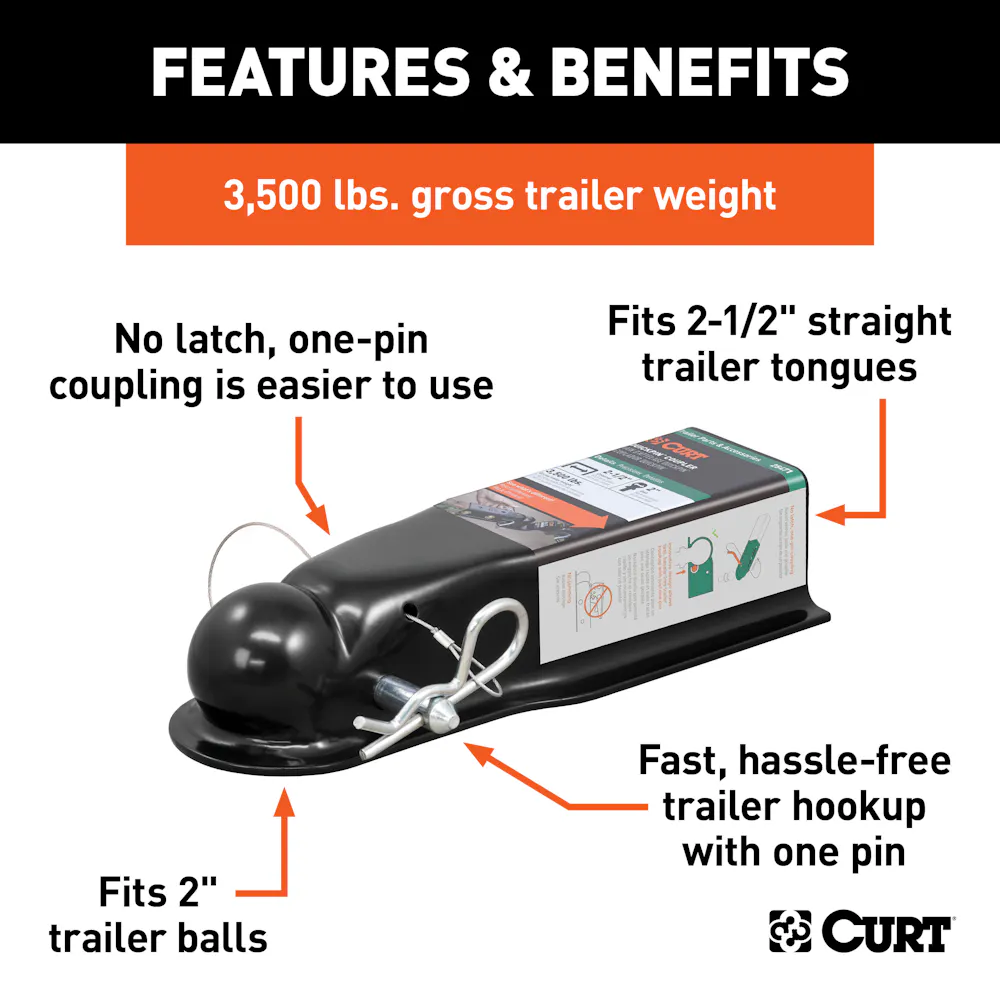

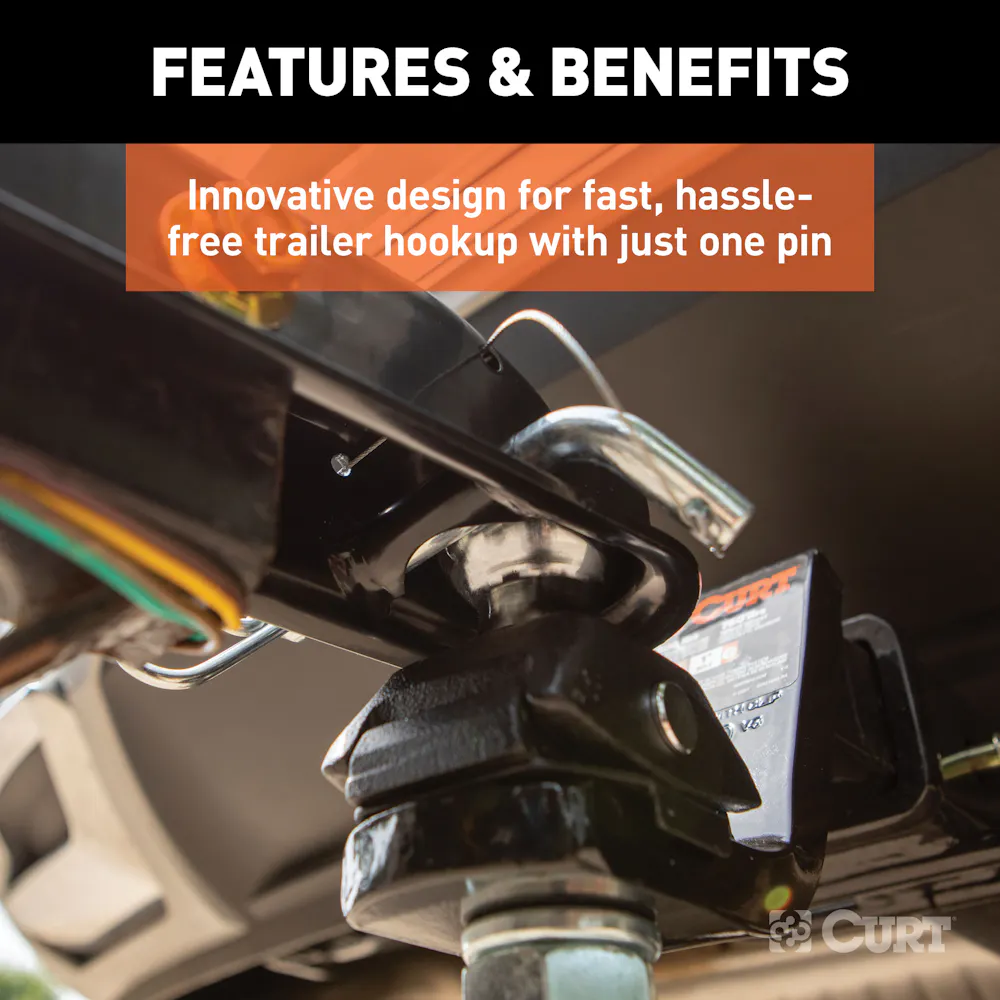

- Innovative design allows fast, hassle-free trailer coupling with just one pin
- Lasso lanyard secures pin to coupler to avoid missing pieces
- Stamped steel construction for dependable strength (3,500 lbs. capacity)
- Passes SAE J684 performance testing as a class 2 coupler
- Accepts standard 2" diameter trailer ball
- Compatible with most existing coupler mounting hole configurations

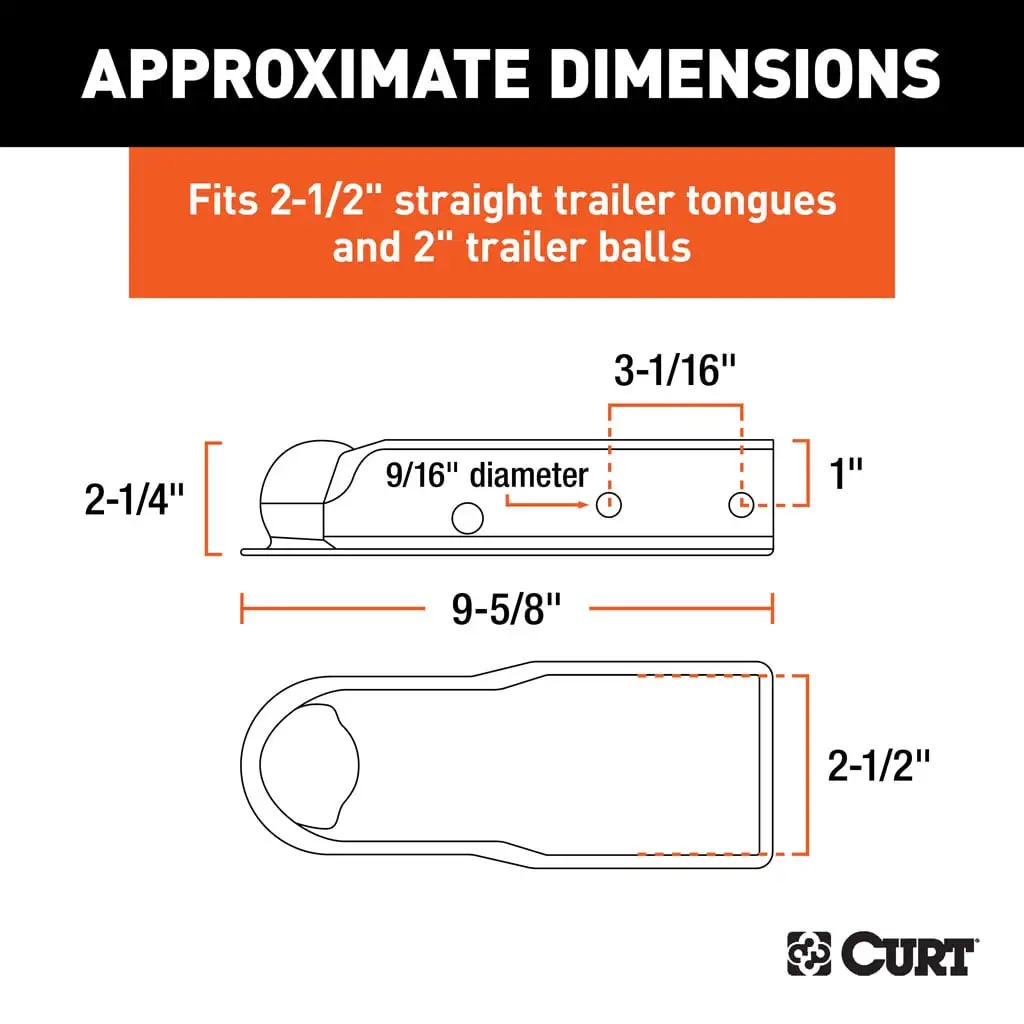

- Channel attaches to 2-1/2" wide trailer tongue beam
- Protected by a durable black powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
- No jamming or complicated hinging components prone to wear
- Easier to use than traditional couplers
- Fastens securely with included 1/2" diameter pin and clip
- No adjustments or tightening needed
Information
No adjustments or tightening needed
Application summary
| Year | Make / model |
|---|---|
| 5471 | QuickPin No-Latch Trailer Coupler for 2-Inch Hitch Ball, 2-1/2-In Channel, 3,500 lbs |
Specifications
- GTIN
- 00612314049967
- Weight
- 3 lb
- Height
- 3 in
- Length
- 10 in
- Width
- 6 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Ball Diameter
- 2 IN
- Box Height in Inches - XA
- 3
- Box Length in Inches - XA
- 15
- Box Width in Inches - XA
- 5
- California Proposition 65
- Yes
- Channel Size
- 2-1/2 IN
- Container Cases Qty - XA
- 2268
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 18
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 9072
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 30204
- Finish
- A-COAT
- Finish - XA
- A-COAT
- Gross Trailer Weight (GTW)
- 3,500 LB
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 5.625
- Master Case ITF14
- 20612314049961
- Master Case ITF14 - XA
- 20612314049961
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 13.000
- Master Case Qty - XA
- 4
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 13.000
- Master Case Width Inches - XA
- 6.250
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 126
- Pallet Case Per Layer - XA
- 21
- Pallet Cases Per - XA
- 126
- Pallet Cases Per Layer - XA
- 21
- Pallet Layer of Cases - XA
- 6
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 38.750
- Pallet Total Weight Per - XA
- 1678.000
- Parcel Allowed - XA
- Yes
- Pin Diameter
- .5
- Product Weight - XA
- 0.000
- Rate Class - XA
- 100.0
- Retail Height - XA
- 3.000
- Retail Length - XA
- 10.000
- Retail Width - XA
- 6.000
- Sales Family Code - XA
- TPACC
- Sales Family Description - XA
- TRAILER PARTS AND ACCESS
- Sales Group Description - XA
- COUPLER
- Shipping Weight - XA
- 3.000
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- Yes
- Title
- QuickPin No-Latch 2" Trailer Coupler (2-1/2" Channel, 3,500 lbs)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 25471 QuickPin No-Latch Trailer Coupler for 2-Inch Hitch Ball, 2-1/2-In Channel, 3,500 lbs
