CURT · 25002

Part #: 25002
UPC: 612314052585

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: CURT Series: Trailer Accessories

Description: Hand Crank Winch with 15' Strap & Bow Loop (900 lbs, 6.5" Handle); CURT 25002 Manual Hand Crank Jet Ski Trailer Winch with Bow Loop, 900 lbs Capacity, 6.5-In Handle, 3.25:1 Gear Ratio, 15' Strap

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

After a full day on the water, you and your crew are tired. It doesn't matter if you were swimming off the back of the pontoon boat, racing around the lake in your speed boat or just casting a line off the side of your fishing boat -- when you get to shore, the last thing you want to deal with is a faulty hand crank on your boat trailer. You want a winch that makes your job easy and that lets you get out of the marina and back home sooner. CURT hand winches are constructed from cold-forged steel to provide structurally superior pinions and eliminate gear-to-shaft bonding failures. They are designed to be mounted on a variety of trailers and are especially useful for boat trailers. CURT boat winches can also serve a number other winch applications, though they are not designed for vehicle towing. This CURT hand winch comes with a 15' winch strap with an integrated bow loop and zinc-plated snap hook. The bow loop makes this an ideal jet ski trailer winch, providing a versatile attachment point to lash onto your PWC. The winch features a capacity of 900 lbs. with a gear ratio of 3.25:1. It has a hub diameter of 3/4" and a handle length of 6.5".

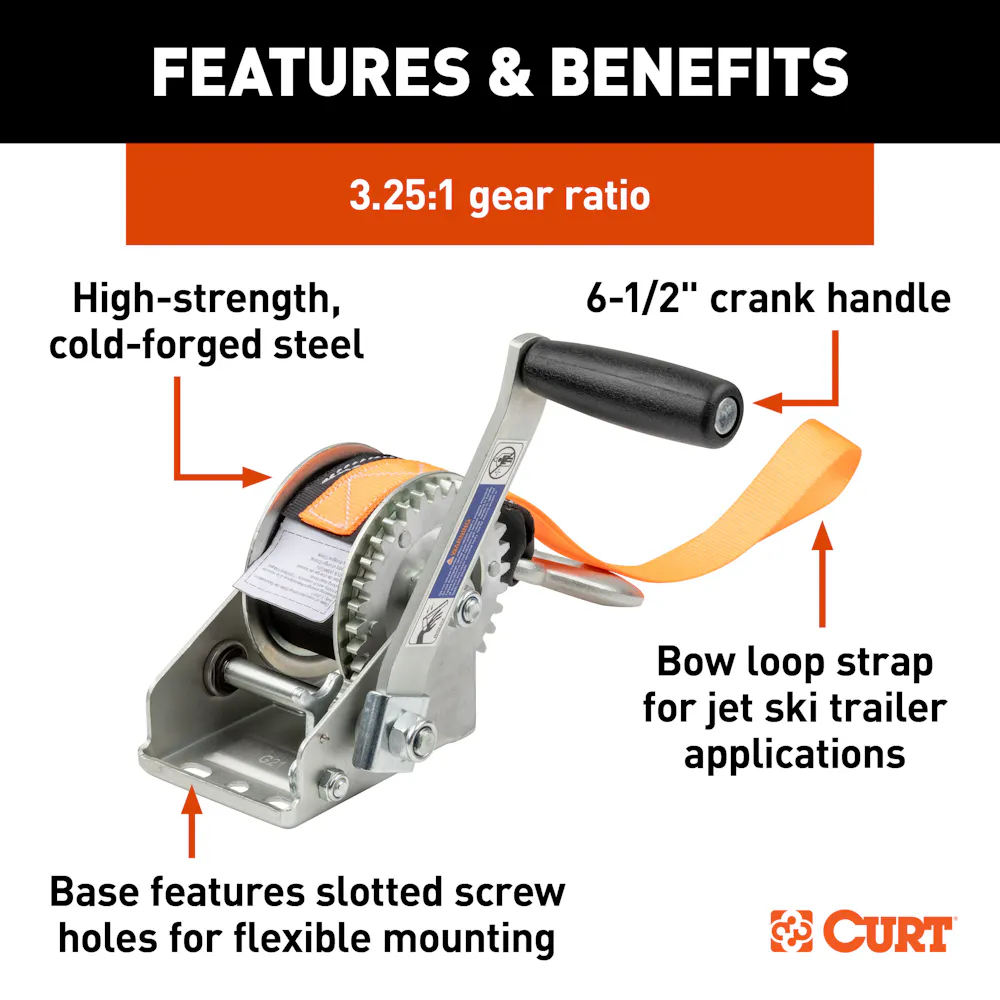

Features & benefits

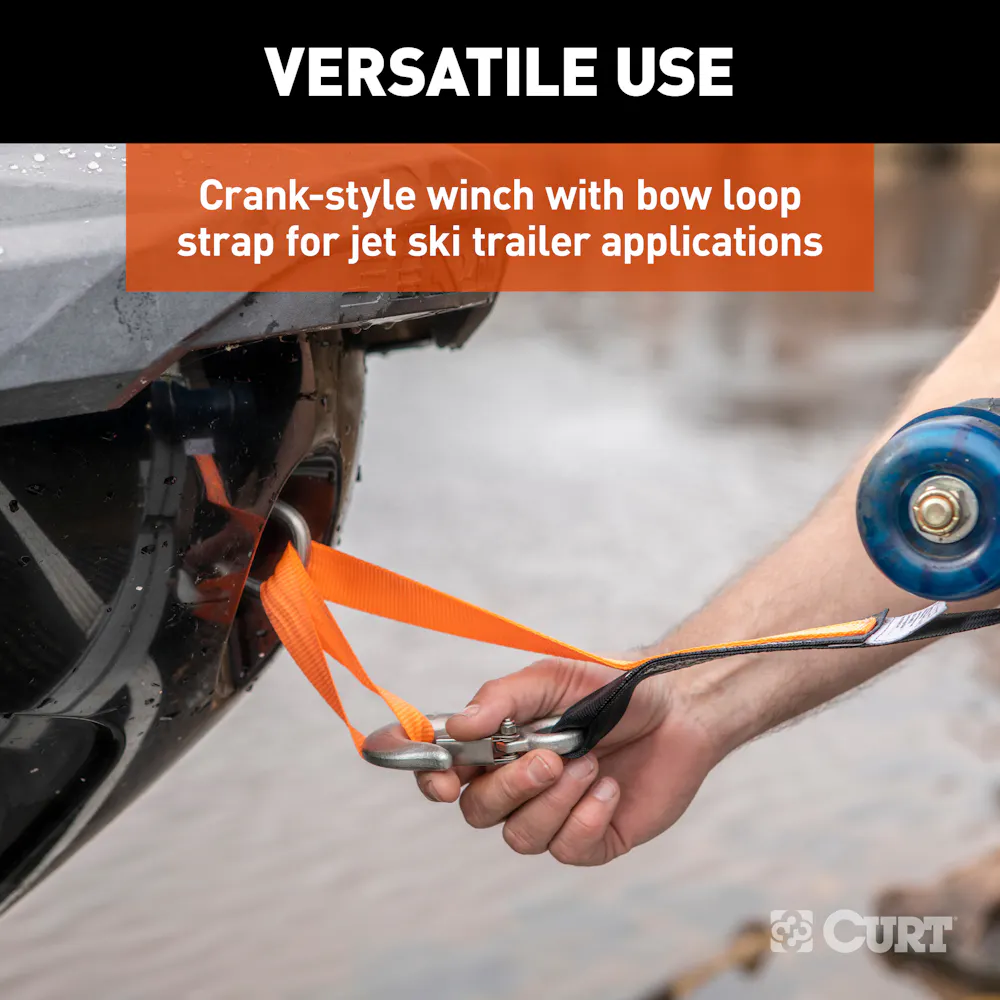

Crank-style winch with bow loop strap for jet ski trailer applications
Solid gears provide superior strength vs. laminated gears
Strong pinions eliminate gear-to-shaft bonding failures
Broached pinion shaft securely engages the pinion gear
6.5" handle with plastic grip cover for easy, comfortable operation
Base features slotted screw holes for flexible mounting
Limited lifetime warranty (one-year finish, one-year parts)
Also great for boat trailers or hoisting applications
Extra reinforcement plate prevents handle from stripping out
Constructed from high-strength, cold-forged steel
Includes 15' winch strap with bow loop and zinc-plated snap hook

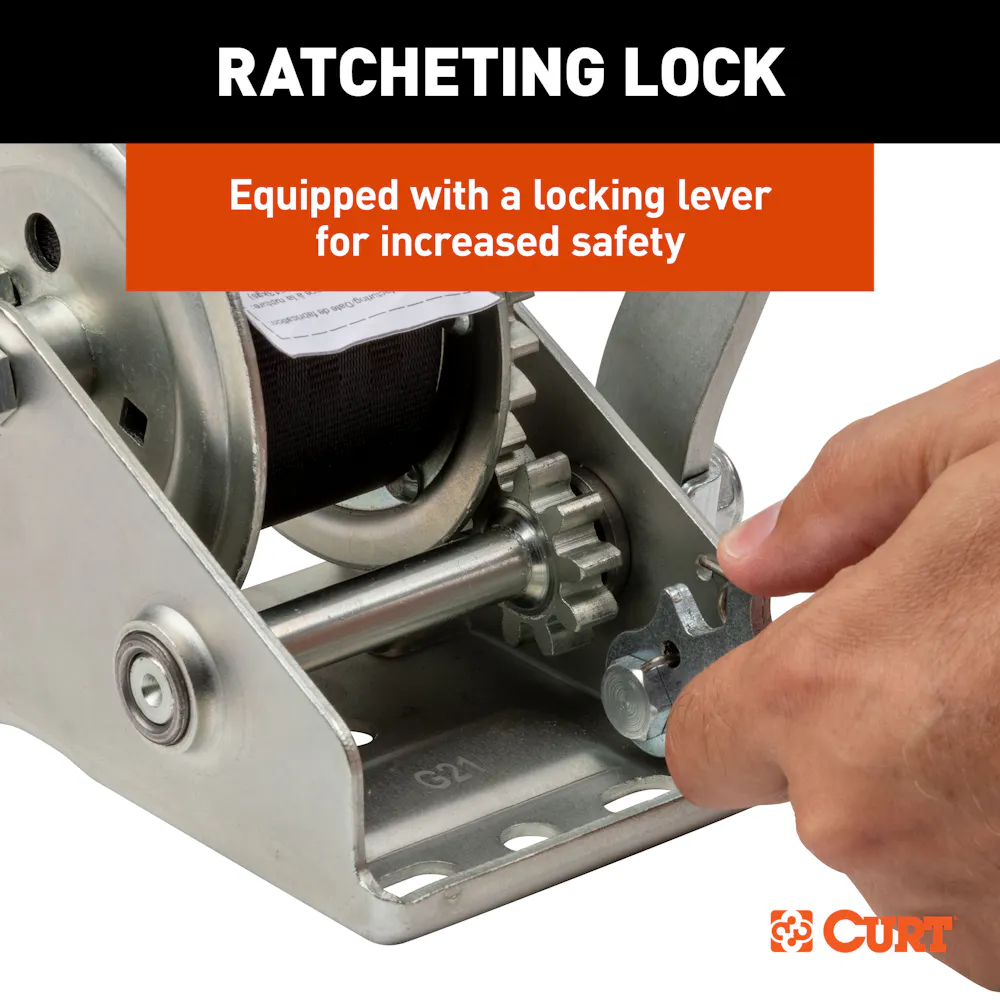

Equipped with a locking lever for increased safety

Information

Equipped with a locking lever for increased safety

Application summary

Year	Make / model
5002	Manual Hand Crank Jet Ski Trailer Winch with Bow Loop, 900 lbs Capacity, 6.5-In Handle, 3.25:1 Gear Ratio, 15' Strap

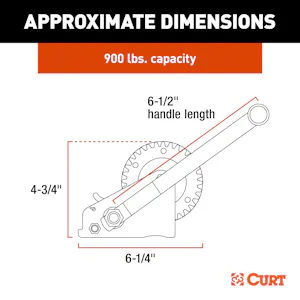

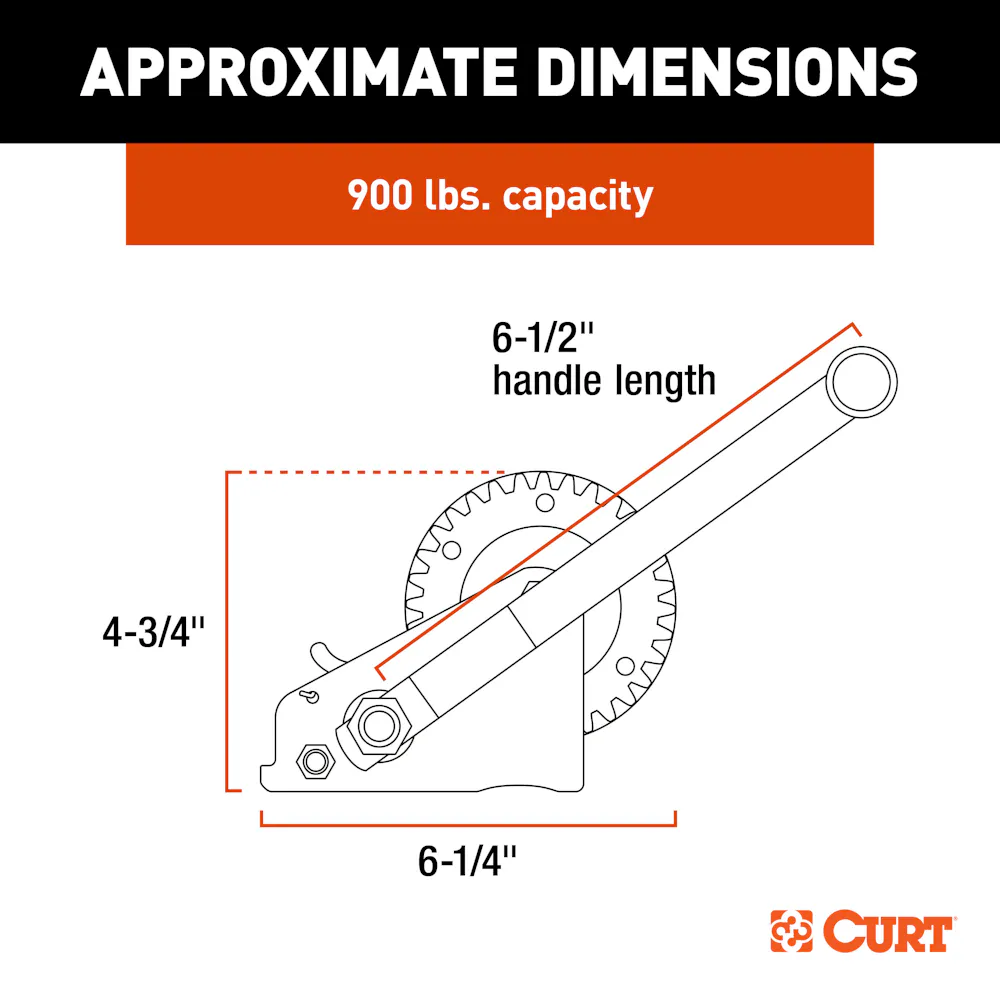

Specifications

GTIN: 00612314052585
Weight: 5.5 lb
Height: 5 in
Length: 6.5 in
Width: 5.5 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Capacity: 900 LBS
Container Cases Qty - XA: 480
Container Load Type - XA: PALLETS
Container Pallet Qty - XA: 16
Container Type - XA: 20GP
Container Unit Qty - XA: 5760
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 1040
Finish: CLEAR ZINC
Finish - XA: CLEAR ZINC
Gear Ratio: 3.25:1
Handle Length: 6 1/2 IN
Hub Diameter: .75
Item Class - XA: OBS
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 17.520
Master Case ITF14: 0
Master Case ITF14 - XA: 0
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 20.400
Master Case Qty - XA: 12
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 1.000
Master Case Width Inches - XA: 15.120
Material - XA: Carbon Steel
Mount Type Description - XA: Not Applicable
Pallet Case Per - XA: 30
Pallet Case Per Layer - XA: 10
Pallet Cases Per - XA: 30
Pallet Cases Per Layer - XA: 10
Pallet Layer of Cases - XA: 3
Pallet Qty - XA: 0.000
Pallet Total Height Inches - XA: 46.900
Pallet Total Weight Per - XA: 65.000
Parcel Allowed - XA: Yes
Product Weight - XA: 5.500
Rate Class - XA: 100.0
Retail Height - XA: 6.500
Retail Length - XA: 5.710
Retail Width - XA: 5.320
Sales Family Code - XA: TPACC
Sales Family Description - XA: TRAILER PARTS AND ACCESS
Sales Group Description - XA: WINCH
Shipping Weight - XA: 5.500
Side Application Type Description - XA: Not Applicable
Tariff 301 - XA: Yes
Title: Hand Crank Winch with 15' Strap & Bow Loop (900 lbs, 6.5" Handle)
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
