CURT · 21561
Part #: 21561
UPC: 612314215614
Log in for inventory
Notify me when this item is in stock.
Description: 1/2" Swivel Hitch Pin with 5/8" Adapter (1-1/4" or 2" Receiver, Zinc, Packaged); CURT 21561 Swivel Trailer Hitch Pin, 1/2-Inch Diameter with 5/8-Inch Adapter, Fits 1-1/4 or 2-Inch Receiver
Description:
Description

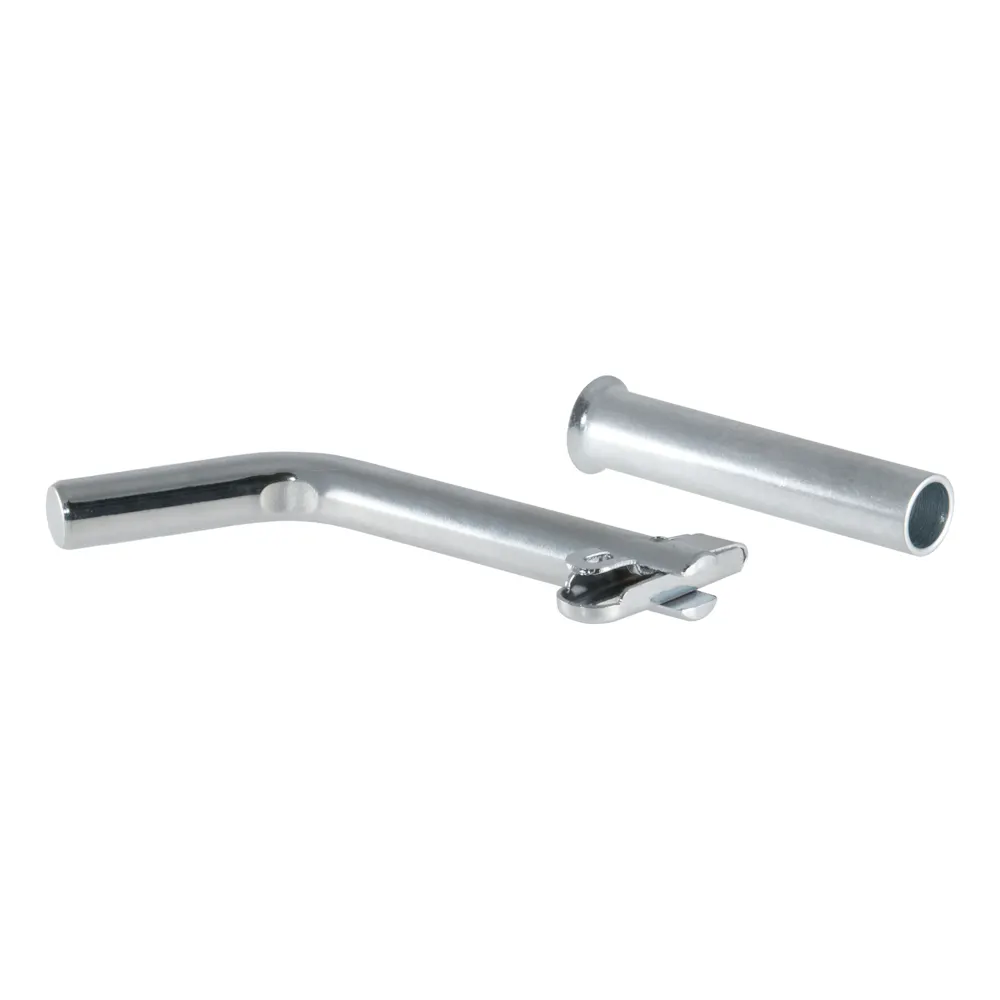

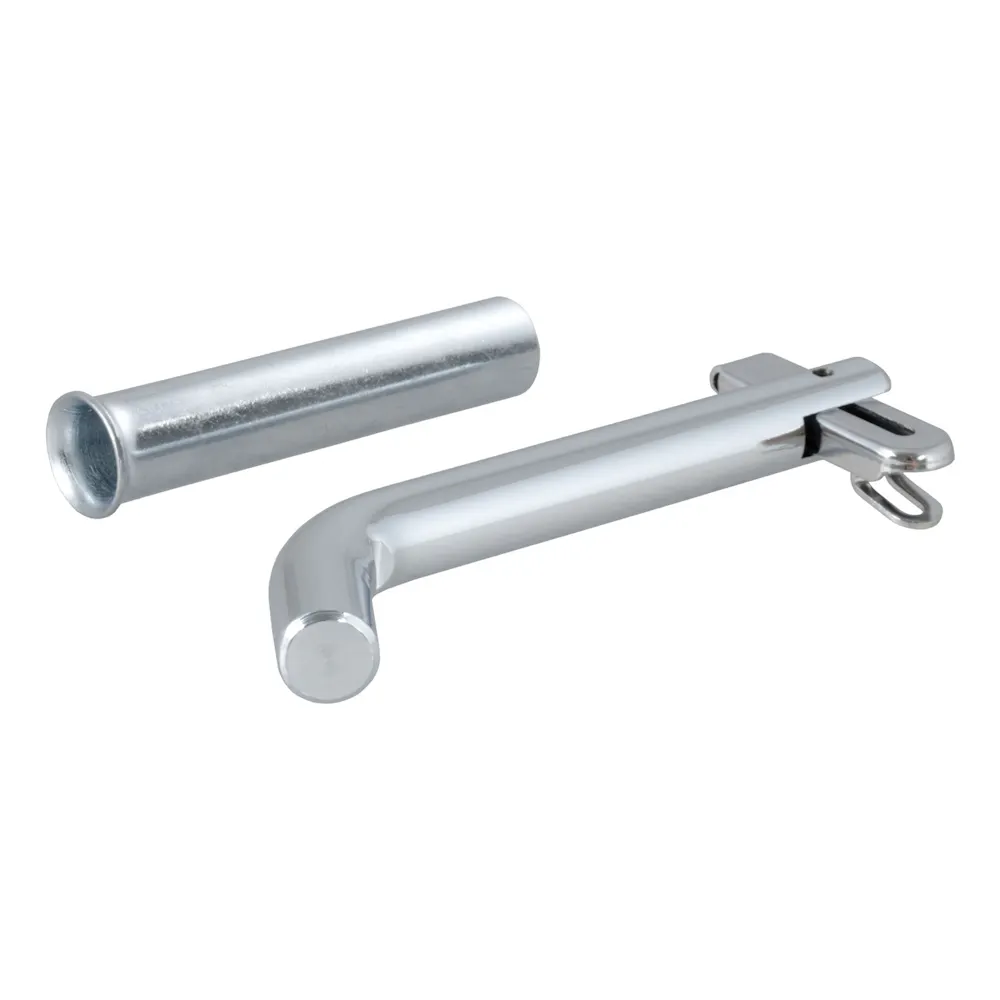

The job of a hitch pin is incredibly important in towing, and for this reason, CURT hitch pins and clips are made to be of the utmost quality, providing you with reliable security for your trailer and cargo. CURT 1/2" hitch pins measure a full half inch in diameter and are constructed from solid steel. This helps ensure they have the strength they need to serve your towing needs. Our 1/2" pins are available in a number of finishes to give you options for your specific vehicle and trailer hitch. CURT hitch pins are also constructed with a 105-degree bend, creating a useful handle for a better grip and allowing the pin to stay securely engaged in the trailer hitch and ball mount. This particular swivel hitch pin features an adapter sleeve that allows it to be used in either a 1/2" or 5/8" hole. It comes with a zinc finish and a swivel-type retainer. Instead of using a detachable clip as a retainer, the swivel pin features a metal tab mounted on a hinge on the end of the pin. When the pin is inserted into the receiver tube, the tab can be flipped sideways to keep the pin in place, and when you want to remove it, the tab can be rotated again to allow the pin to easily slide out. Operation is quick and easy, and there is no risk of losing the retainer clip. This swivel hitch pin with adapter provides reliable installation for any ball mount or hitch-mounted accessory with a 1-1/4" or 2" shank, allowing it to fit a variety of trailer hitches.

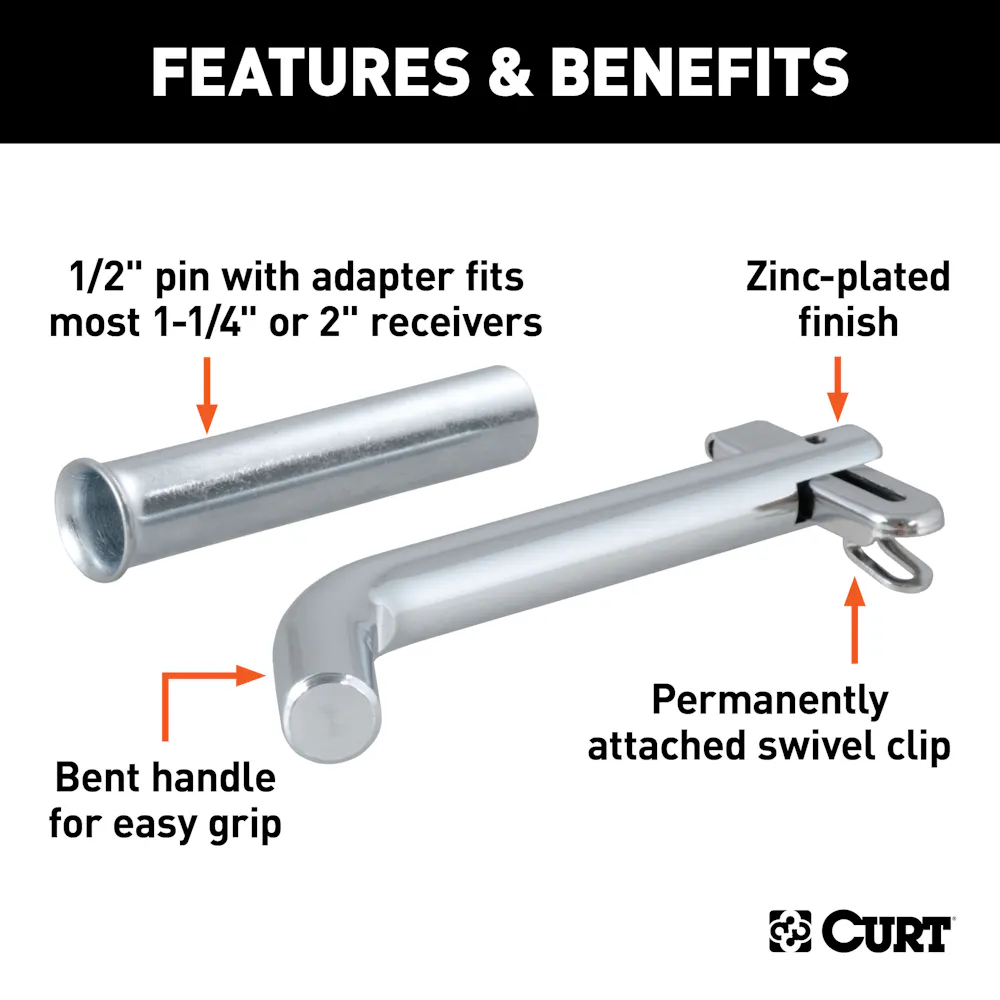

Features & benefits

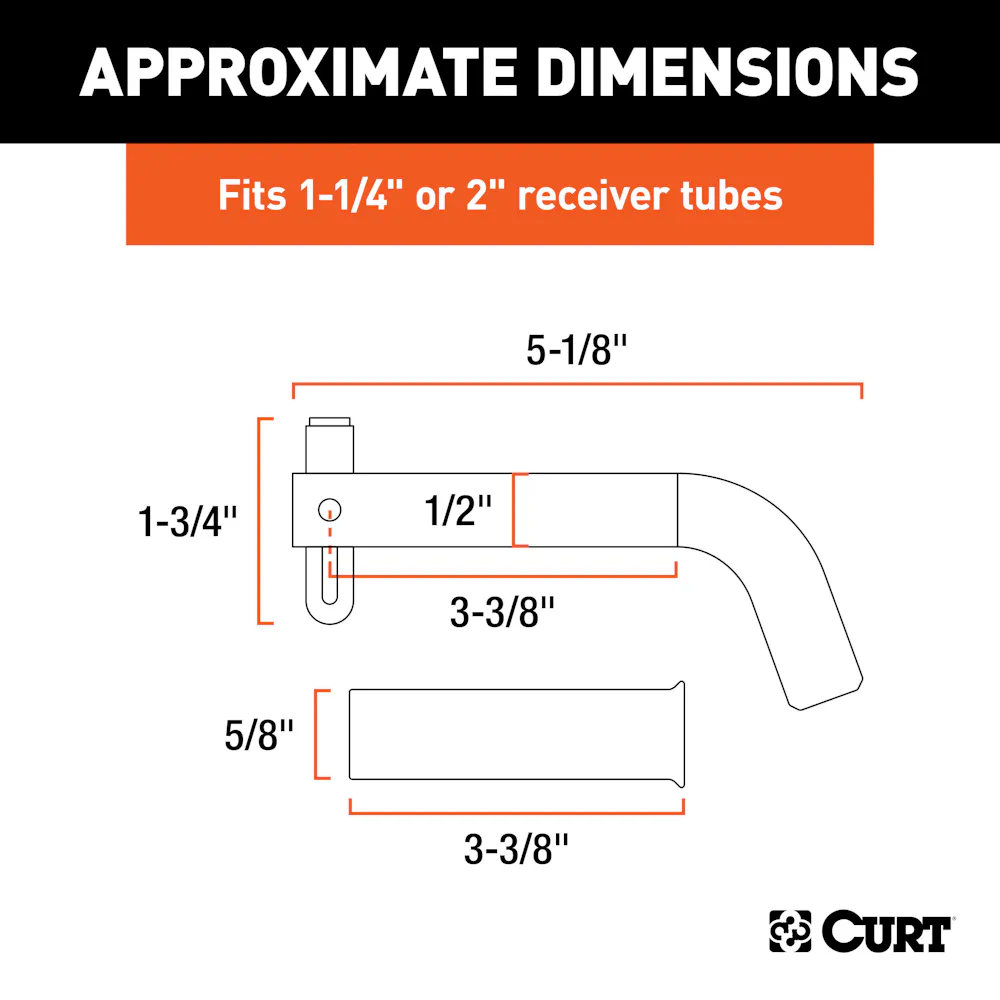

- 1/2" diameter pin with 5/8" adapter fits 1-1/4" or 2" receiver tubes

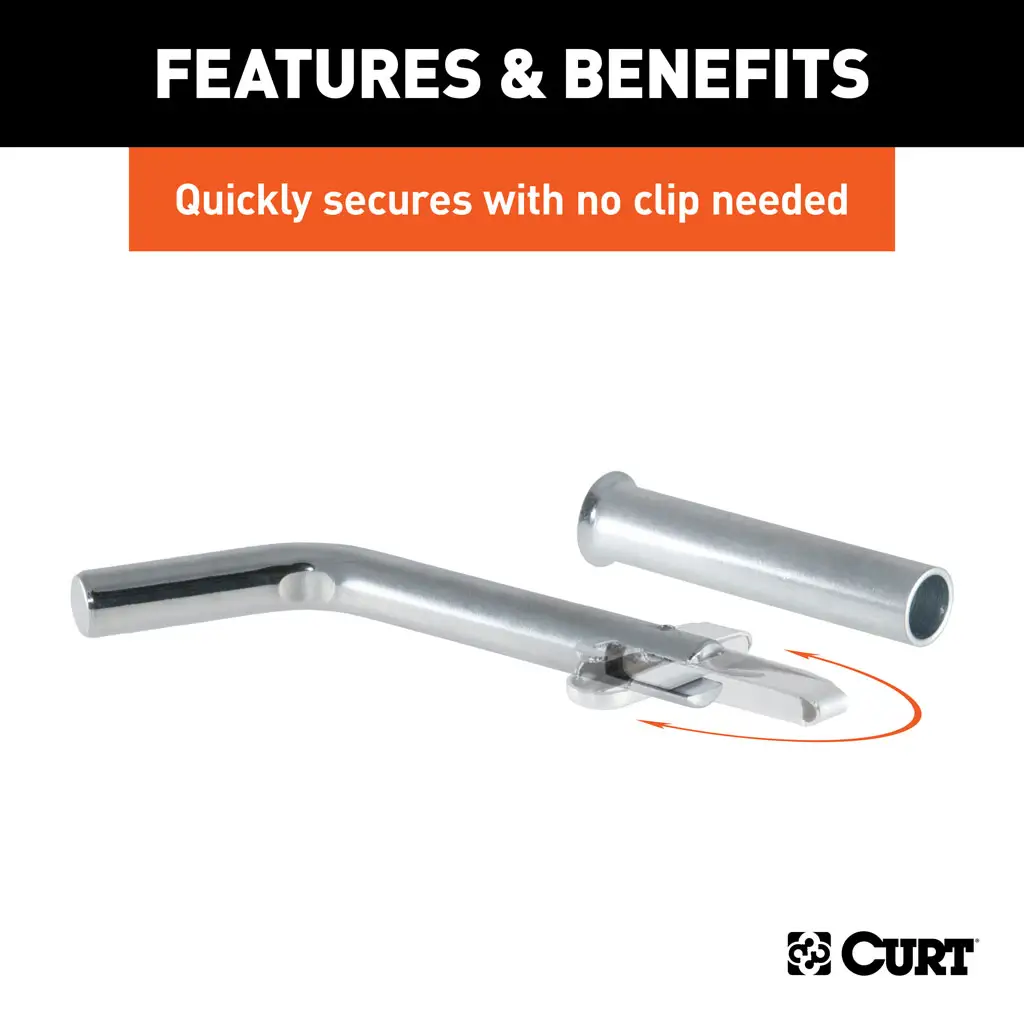

- Quickly secures ball mounts and other receiver tube inserts with no clip needed

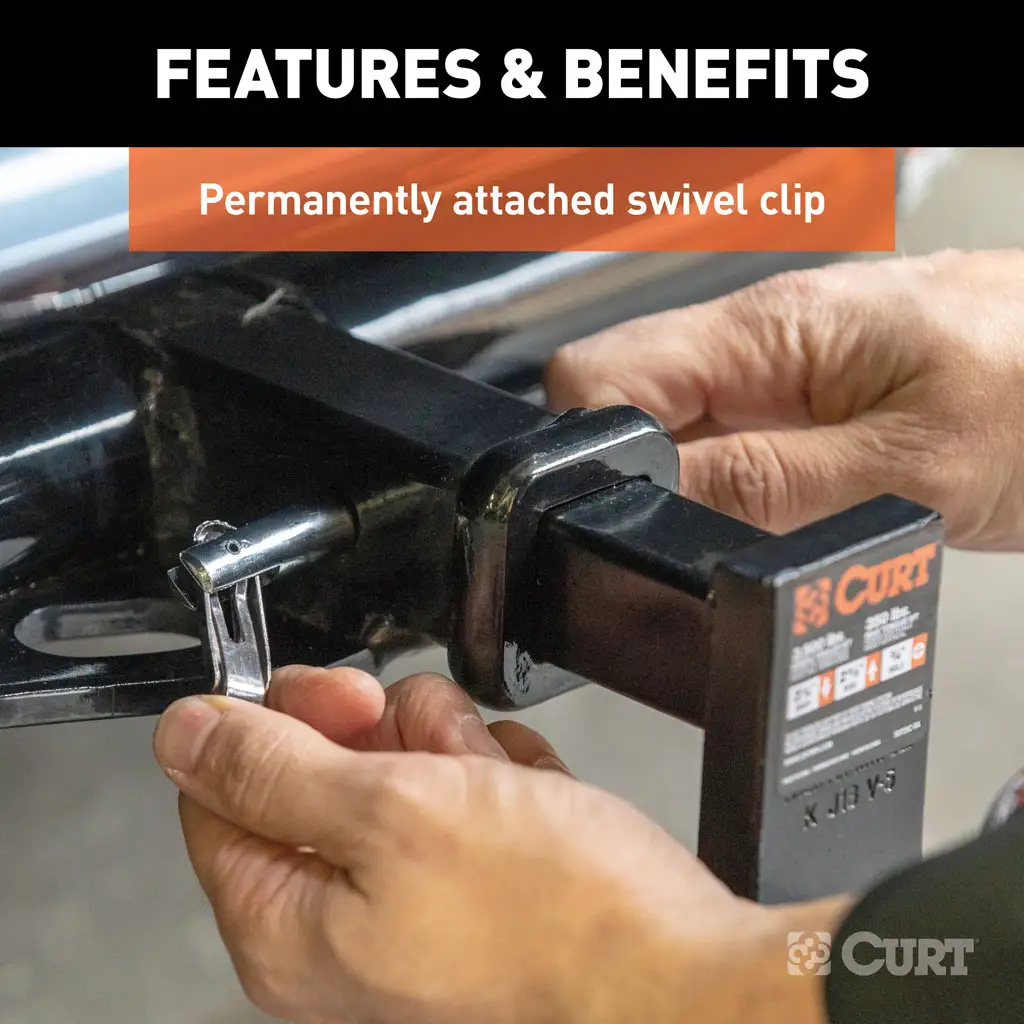

- Permanently attached swivel clip cannot be lost
- Bent handle for an easier grip
- Protected by a durable zinc-plated finish
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 1561 | Swivel Trailer Hitch Pin, 1/2-Inch Diameter with 5/8-Inch Adapter, Fits 1-1/4 or 2-Inch Receiver |
Specifications
- GTIN
- 00612314215614
- Weight
- 1 lb
- Height
- 1 in
- Length
- 6.5 in
- Width
- 2.88 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- 1/2" Swivel Pin W/Adapter Sleeve
- Box Height in Inches - XA
- 1
- Box Length in Inches - XA
- 9
- Box Width in Inches - XA
- 7
- California Proposition 65
- Yes
- Class ID
- 0
- Container Cases Qty - XA
- 1440
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 40
- Container Type - XA
- 40GP
- Container Unit Qty - XA
- 34560
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 24112
- Finish
- CLEAR ZINC
- Finish - XA
- CLEAR ZINC
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 10.600
- Master Case ITF14
- 60612314215616
- Master Case ITF14 - XA
- 60612314215616
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 11.000
- Master Case Qty - XA
- 24
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 15.800
- Master Case Width Inches - XA
- 10.800
- Material - XA
- Blank
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 36
- Pallet Case Per Layer - XA
- 12
- Pallet Cases Per - XA
- 36
- Pallet Cases Per Layer - XA
- 12
- Pallet Layer of Cases - XA
- 3
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 37.000
- Pallet Total Weight Per - XA
- 602.800
- Parcel Allowed - XA
- Yes
- Pin Diameter
- .5 and .625
- Product Weight - XA
- 0.450
- Rate Class - XA
- 100.0
- Receiver Tube Size
- 1-1/4 IN or 2 IN
- Retail Height - XA
- 1.000
- Retail Length - XA
- 6.500
- Retail Width - XA
- 2.875
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- HITCH PIN
- Shipping Weight - XA
- 1.000
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- Yes
- Title
- 1/2" Swivel Hitch Pin with 5/8" Adapter (1-1/4" or 2" Receiver, Zinc, Packaged)
- Truckload Cases Qty - XA
- 1440
- Truckload Pallets Qty - XA
- 40
- Truckload Units Qty - XA
- 34560
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 24112
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 21561 Swivel Trailer Hitch Pin, 1/2-Inch Diameter with 5/8-Inch Adapter, Fits 1-1/4 or 2-Inch Receiver
