CURT / 19030

Part #: 19030
UPC: 612314531905

Loading availability... Loading...
Notify me when this item is in stock.

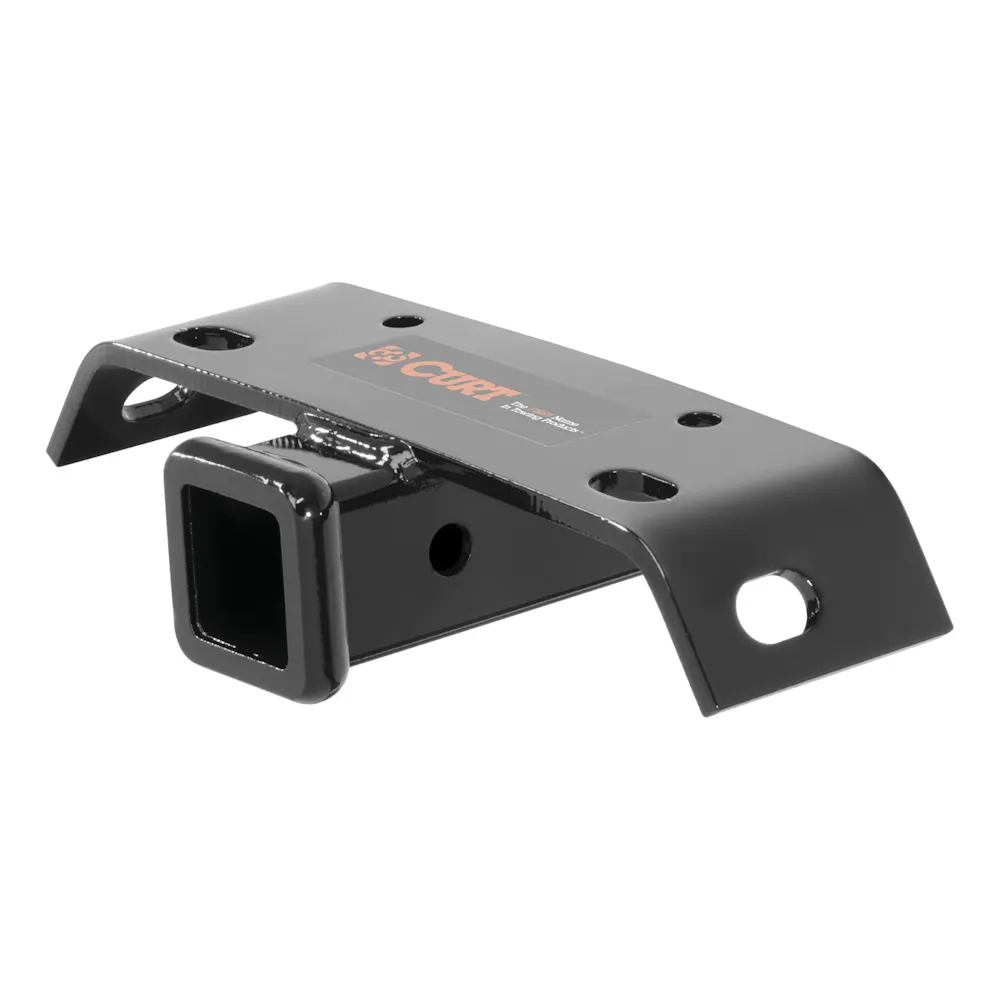

Description: Bumper Hitch with 2" Receiver; CURT 19030 Step Bumper Hitch Receiver, 2-Inch, 5,000 lbs.

Description:

Description

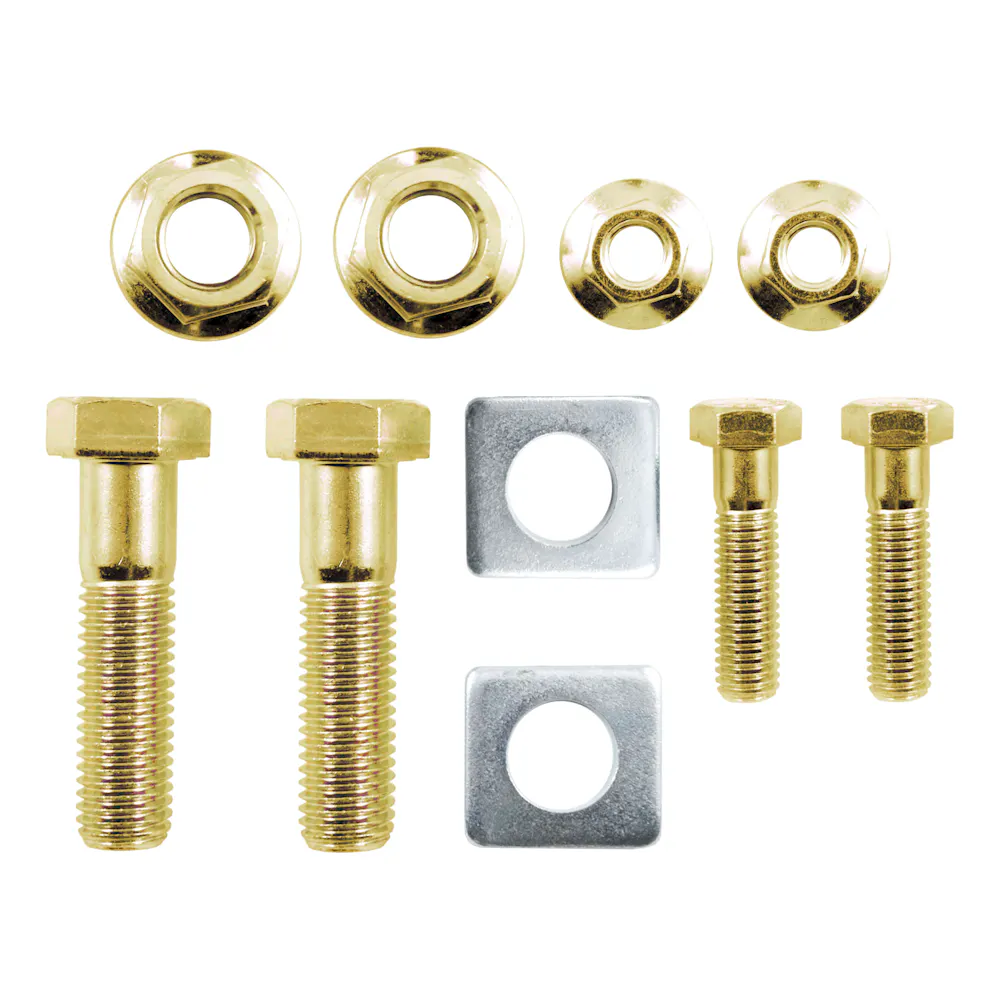

A CURT bumper hitch mounts onto your vehicle's bumper, rather than the frame, and provides a receiver tube for a ball mount, cargo carrier, bike rack or other hitch-mounted insert. Unlike a bumper mount, which is simply a hole in the vehicle's bumper for installing a trailer ball, a bumper hitch allows for adjustment and flexibility in towing application. This CURT receiver-style bumper mount hitch accepts a 2" x 2" ball mount shank and can tow up to 5,000 lbs. of gross trailer weight and 500 lbs. of tongue weight. This makes the bumper hitch a great choice for hauling many smaller types of trailers, including boat trailers, utility trailers, popup campers and more. It should be noted, however, that the weight carrying capacity is always dependent on the bumper's weight capacity rating. CURT bumper mount hitches come with a gloss black powder coat finish and provide a simple towing solution. They easily bolt onto the bottom of a step bumper on a pickup truck or SUV and offer a lower hitch point to provide level trailer towing. Each model comes complete with mounting hardware and safety chain hookups.

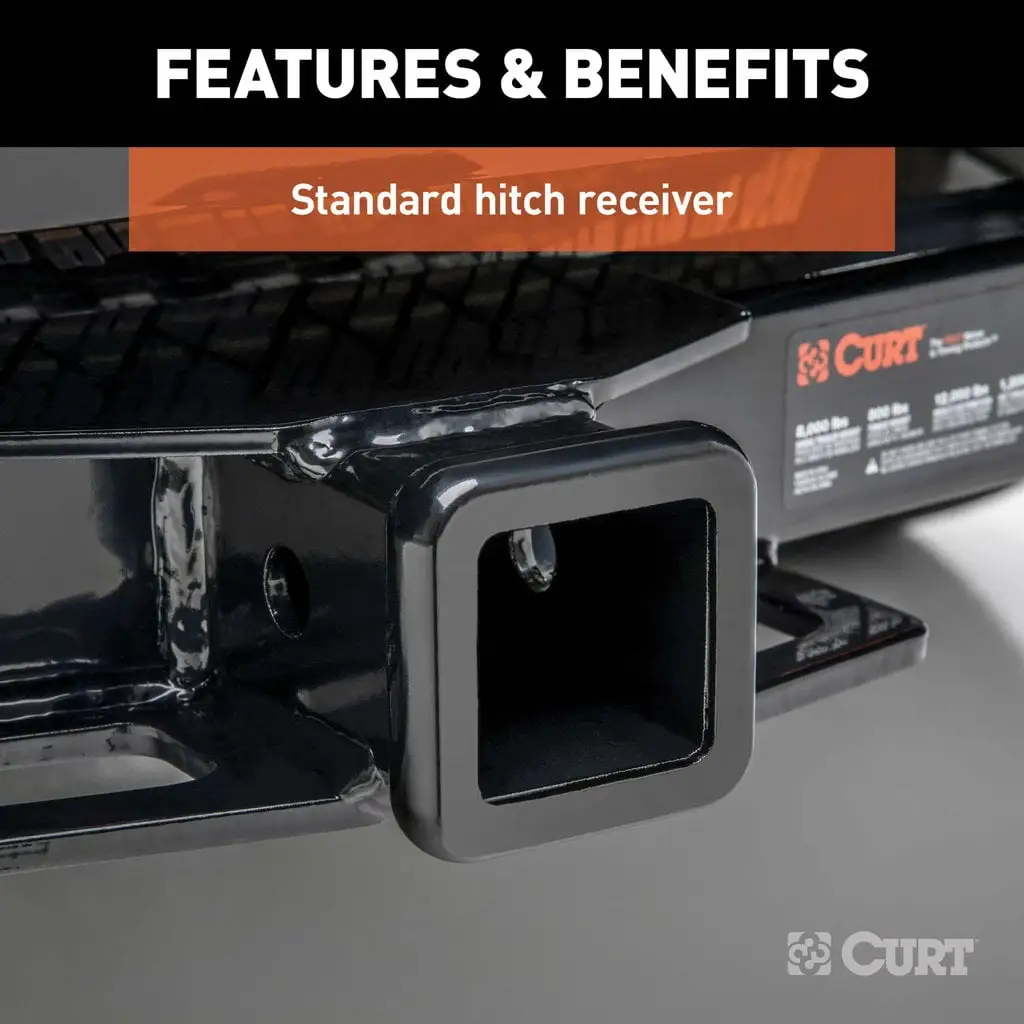

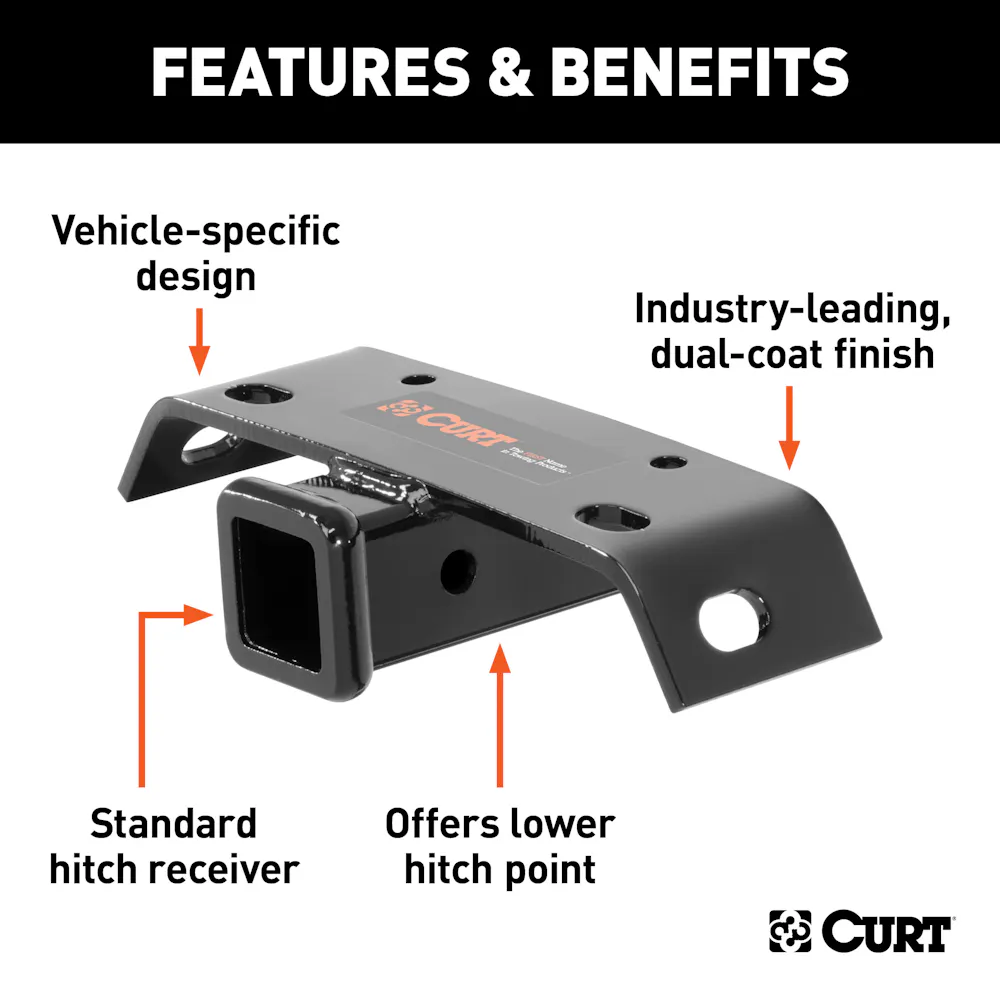

Features & benefits

  • Bolts onto the bottom of the truck's step bumper
  • Fits most factory steel bumpers
  • Mounting holes spaced 8-1/2" on-center
  • Offers lower hitch point to provide level trailer towing
  • Protected by a durable high-gloss black powder coat finish
  • Co-cured in a rust-resistant liquid A-coat
  • Equipped with an open-back receiver for easy cleaning
  • Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year Make / model
9030 Step Bumper Hitch Receiver, 2-Inch, 5,000 lbs.

Specifications

GTIN
00612314531905
Weight
10 lb
Height
4 in
Length
15 in
Width
7 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Trailer Hitch Hitch 2 In X 2 In
Attachment Location
Rear
Body Shape
N/A
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
Yes
Class ID
0
Color
Black
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Drilling Required
No
Finish
Powder Coated
Finish - XA
GLOSS BLACK POWDER COAT
Gross Trailer Weight
5000 lbs.
Gross Trailer Weight (GTW)
5,000 LB
Gross Trailer Weight (lbs.)
5000
Gross Trailer Weight(GTW)
5,000 LB
Hitch Class
III
Item Class - XA
OBS
Item Height - XA
4.000
Item Length - XA
16.000
Item Width - XA
7.000
Main Body Shape
N/A
Master Case Height Inches - XA
4.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
16.000
Master Case Qty - XA
1
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
13.500
Master Case Width Inches - XA
7.000
Material
Steel
Material - XA
Blank
Mount Type Description - XA
Blank
Mounting Hardware Included
Yes
Pallet Case Per - XA
120
Pallet Case Per Layer - XA
12
Pallet Cases Per - XA
120
Pallet Cases Per Layer - XA
12
Pallet Layer of Cases - XA
10
Pallet Qty - XA
144.000
Pallet Total Height Inches - XA
44.500
Pallet Total Weight Per - XA
1540.000
Parcel Allowed - XA
Yes
Position
Rear
Product Weight - XA
0.000
Rate Class - XA
100.0
Receiver Included
No
Receiver Size
2
Receiver Tube Size
2.000 in.
Retail Height - XA
4.000
Retail Length - XA
16.000
Retail Width - XA
7.000
Sales Family Code - XA
HITCH
Sales Family Description - XA
HITCH
Sales Group Description - XA
BUMPER
Shipping Weight - XA
12.500
Side Application Type Description - XA
Blank
Tariff 301 - XA
Yes
Title
Bumper Hitch with 2" Receiver
Tongue Weight (TW)
500 LB
Tongue Weight(TW)
500 LB
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
WC Tongue Weight
500
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Distribution (WD)
5,000 LB

Fitment status

This product is universal and will fit your application.

Application summary

CURT 19030 Step Bumper Hitch Receiver, 2-Inch, 5,000 lbs.
