CURT · 18402
Part #: 18402
UPC: 612314053759
Loading...
Notify me when this item is in stock.

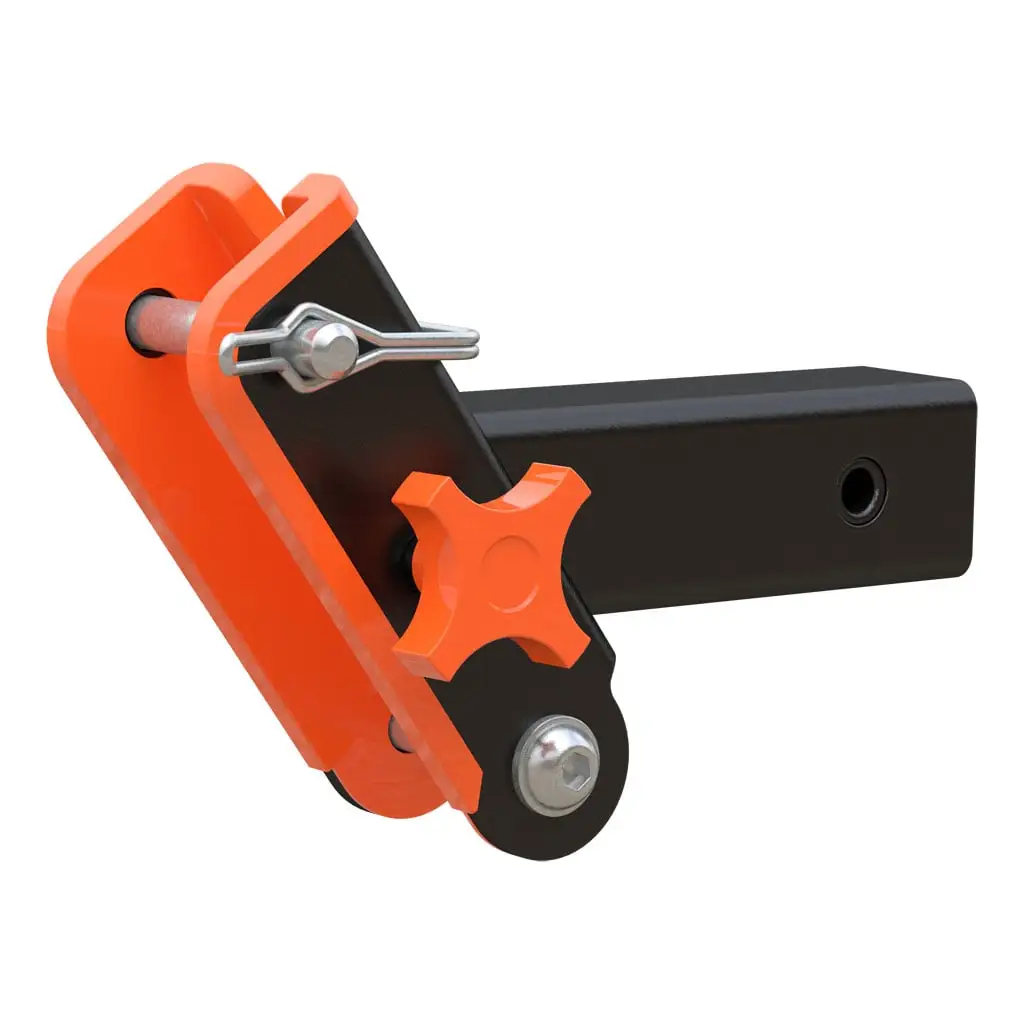

Description: CURT 18402 ActiveLink 2" Receiver Shank
Description:
Description
Enjoy your active, outdoor lifestyle with less stress with the CURT ActiveLink system. This revolutionary towing technology allows you to swap out any accessory faster and easier than a traditional hitch setup. The secret is the uniquely engineered ActiveLink shank. This shank installs in your hitch receiver, just like a traditional ball mount. However, once installed, it provides a highly versatile, multi-function connection point. Bike rack, cargo carrier or none of the above – the ActiveLink system provides a secure connection and allows for fast change-out of accessories whenever needed. At the bottom of the connection point is a bolt that provides a resting point for the accessory shank. Unlike a traditional hitch connection that requires you to get down near the underbelly of your vehicle to carefully line up the hitch pin holes, this pivot point lines the shank up exactly where it needs to be for a speedy and effortless connection. The CURT ActiveLink system also promotes a comfortable towing experience, featuring built-in anti-rattle features to suppress undesirable road noise. The components are made from high-strength steel and feature a weather-resistance powder coat finish.

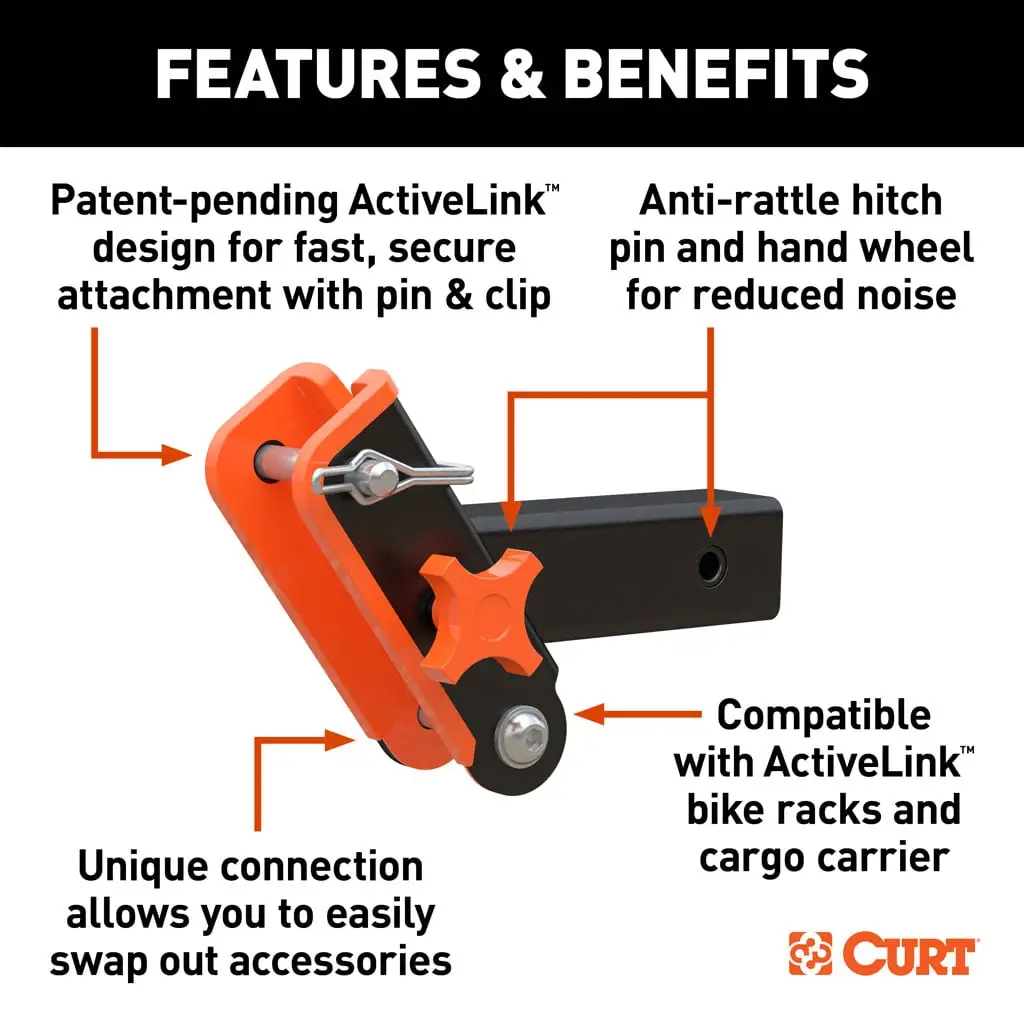

Features & benefits
- Unique connection allows you to easily swap out accessories as needed
- Strong steel construction
- Dual E-coat and carbide black powder coat for lasting weather resistance
- Patent-pending design for fast, secure accessory attachment with a pin and clip

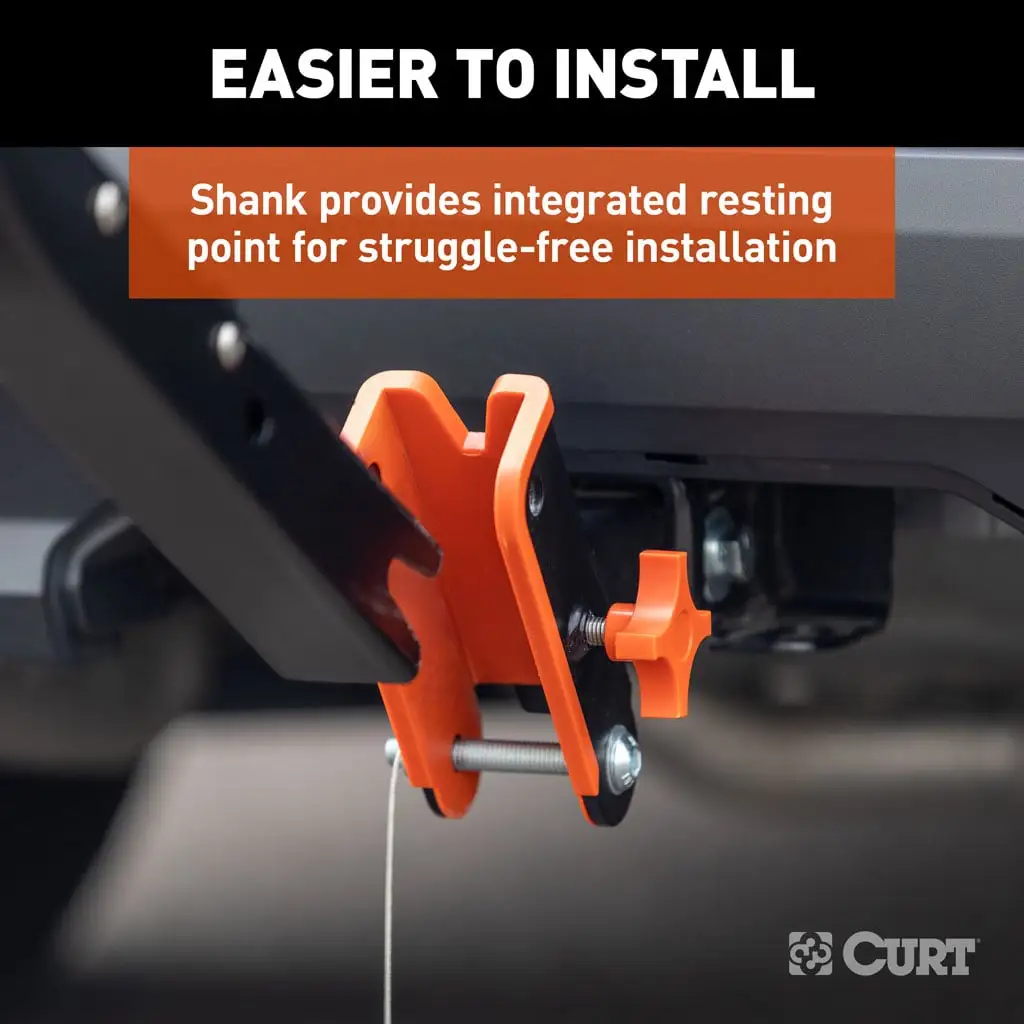

- Bottom bolt provides integrated resting point for struggle-free installation
- Tilt-away feature for easier access to the vehicle cargo area

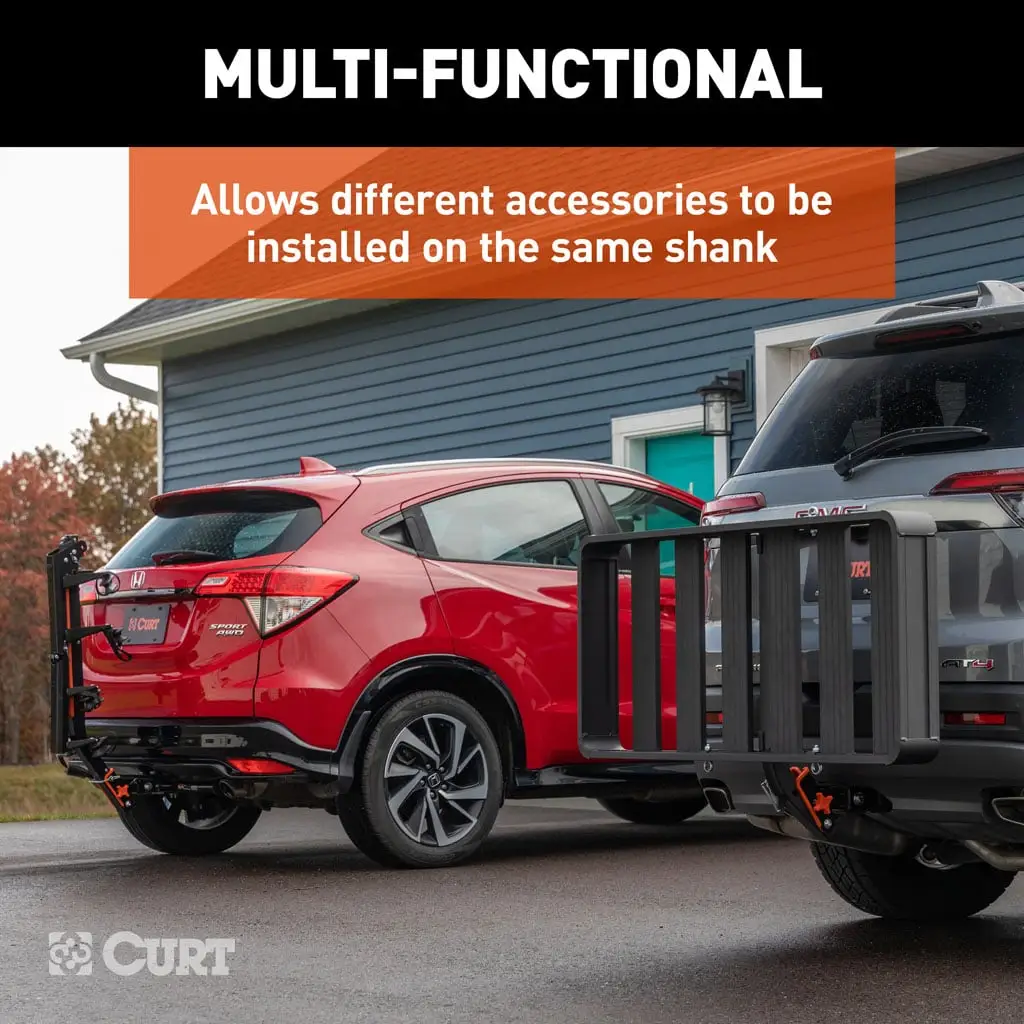

- Compatible with ActiveLink bike racks and cargo carrier
- Anti-rattle hitch pin and anti-rattle hand wheel for reduced noise
- Plastic interior lining protects against scratches and helps suppress vibration
- Tested and rated for 5,000 lbs. GTW and 500 lbs. TW
Information
Tested and rated for 5,000 lbs. GTW and 500 lbs. TW
Application summary
| Year | Make / model |
|---|---|
| 8402 | ActiveLink 2 |
Specifications
- GTIN
- 00612314053759
- Weight
- 5.72 lb
- Height
- 4.33 in
- Length
- 11.02 in
- Width
- 6.69 in
- Life cycle
- Available Only While Supplies Last
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Container Cases Qty - XA
- 0
- Container Load Type - XA
- FLOOR
- Container Pallet Qty - XA
- 0
- Container Type - XA
- 40GP
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Finish
- BLACK POWDER COAT
- Finish - XA
- BLACK POWDER COAT
- Gross Trailer Weight (GTW)
- 5,000 LBS
- Item Class - XA
- OBS
- Item Height - XA
- 4.330
- Item Length - XA
- 11.020
- Item Width - XA
- 6.690
- Master Case Height Inches - XA
- 4.330
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 11.020
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 1.000
- Master Case Width Inches - XA
- 6.690
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 5.720
- Rate Class - XA
- 100.0
- Receiver Tube Size
- 2 IN
- Retail Height - XA
- 4.330
- Retail Length - XA
- 11.020
- Retail Width - XA
- 6.690
- Sales Family Code - XA
- CARGO
- Sales Family Description - XA
- CARGO ACCESSORIES
- Sales Group Description - XA
- CARGO CARRIER
- Shank Diameter
- 2 IN
- Shipping Weight - XA
- 5.720
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- Yes
- Title
- ActiveLink 2" Receiver Shank
- Tongue Weight (TW)
- 500 LBS
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
Fitment status
This product is universal and will fit your application.
Application summary
CURT 18402 ActiveLink 2
