CURT · 17600

Part #: 17600
UPC: 612314052028

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: CURT Series: Specialized Towing

Description: TruTrack 2P Round Bar Weight Distribution with 2x Sway Control, 8-10K (No Shank); CURT 17600 TruTrack 2P Round Bar Weight Distribution Hitch with 2x Sway Control, Up to 10K (No Shank or Ball)

Description:

Description

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with passive sway control to deliver a smoother, safer ride. The TruTrack 2P features a unique spring bar attachment system. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty.

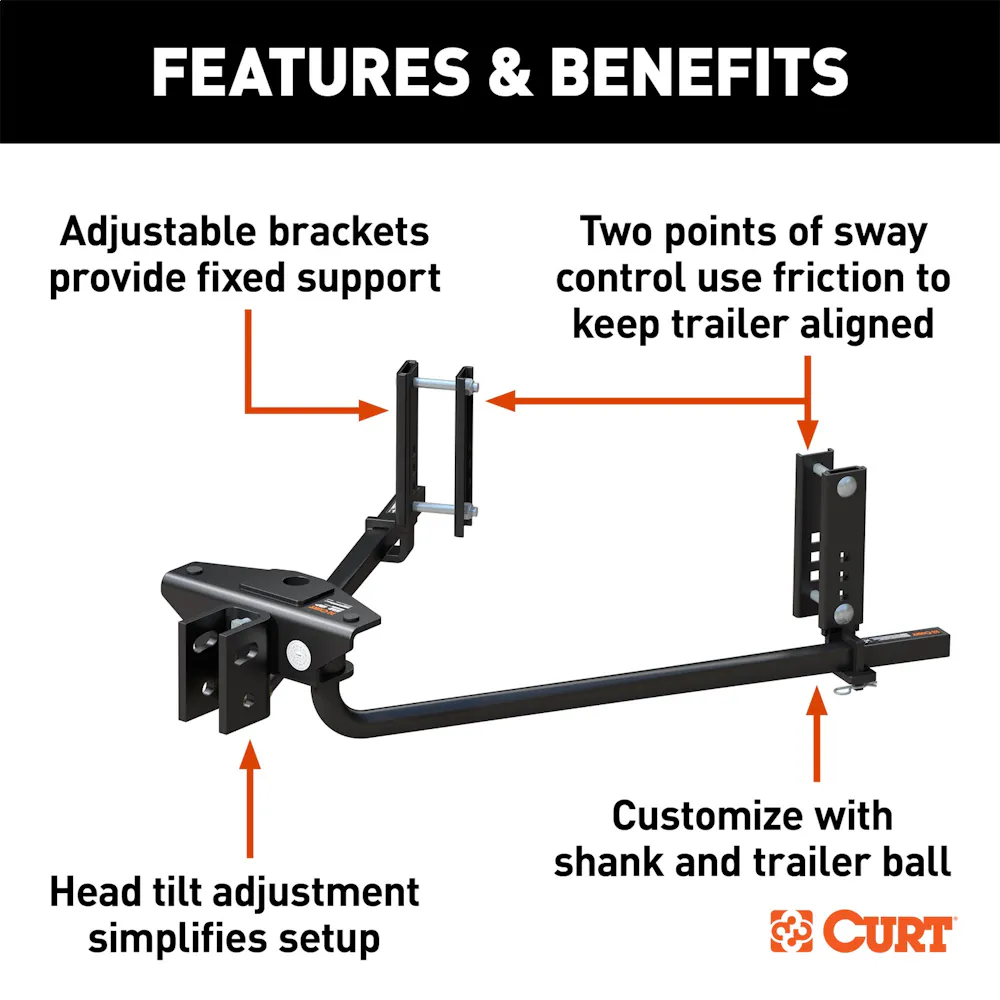

Features & benefits

  • Two distinct points of sway control, working together to keep trailer aligned
  • Equipped with durable, forged steel spring bars for reliable strength
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Protected by a durable carbide powder coat finish
  • Integrated sway control reduces sway and levels the vehicle and trailer
  • Up to 10,000 lbs. GTW / 1,000 lbs. TW

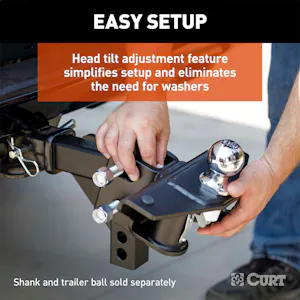

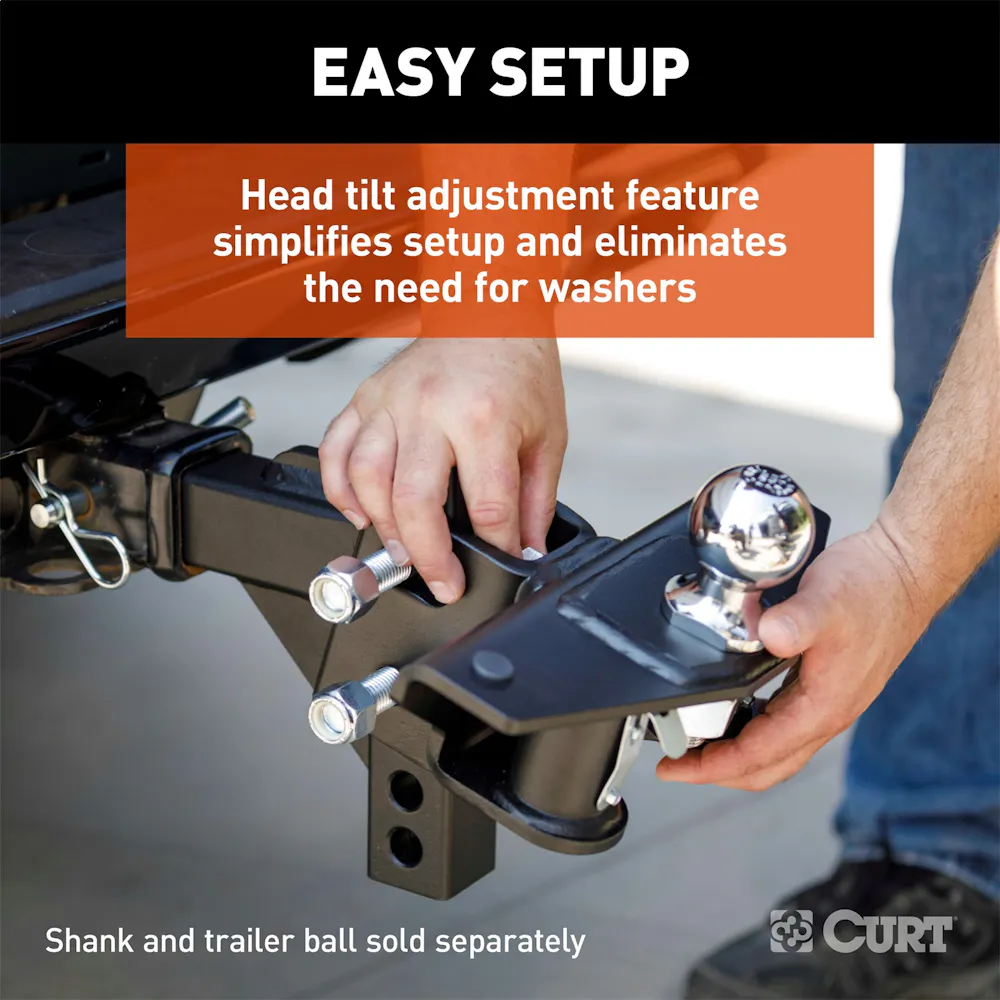

  • Head tilt adjustment feature simplifies setup and eliminates the need for washers
  • Adjustable brackets provide fixed support unlike spring bar chain models
  • Brackets use friction to resist lateral movement
  • Heavy-duty, fabricated head can be used for precise leveling

Information

Equipped with durable, forged steel spring bars for reliable strength

Application summary

Year Make / model
7600 TruTrack 2P Weight Distribution Hitch with 2x Sway Control, Up to 10K (No Shank or Ball)

Specifications

GTIN
00612314052028
Weight
70.7 lb
Height
37 in
Length
6 in
Width
14 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
Yes
Container Cases Qty - XA
648
Container Load Type - XA
PALLETS
Container Pallet Qty - XA
24
Container Type - XA
40GP
Container Unit Qty - XA
648
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
47421
Finish - XA
CARBIDE BLACK POWDER COAT
Gross Trailer Weight (GTW)
10,000 LBS
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
6.300
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
37.100
Master Case Qty - XA
1
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
71.700
Master Case Width Inches - XA
14.400
Material - XA
Carbon Steel
Mount Type Description - XA
Not Applicable
Pallet Case Per - XA
27
Pallet Case Per Layer - XA
3
Pallet Cases Per - XA
27
Pallet Cases Per Layer - XA
3
Pallet Layer of Cases - XA
9
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
62.000
Pallet Total Weight Per - XA
1975.900
Parcel Allowed - XA
Yes
Product Weight - XA
0.000
Rate Class - XA
100.0
Retail Height - XA
37.000
Retail Length - XA
6.000
Retail Width - XA
14.000
Sales Family Code - XA
WDIST
Sales Family Description - XA
WEIGHT DISTRIBUTION
Sales Group Description - XA
TRUTRACK WD SYSTEM
Shipping Weight - XA
70.700
Side Application Type Description - XA
Not Applicable
Tariff 301 - XA
Yes
Title
TruTrack 2P Weight Distribution Hitch with 2x Sway Control, 8-10K (No Shank)
Tongue Weight
1000 lbs.
Tongue Weight (TW)
1,000 LBS
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 17600 TruTrack 2P Weight Distribution Hitch with 2x Sway Control, Up to 10K (No Shank or Ball)
