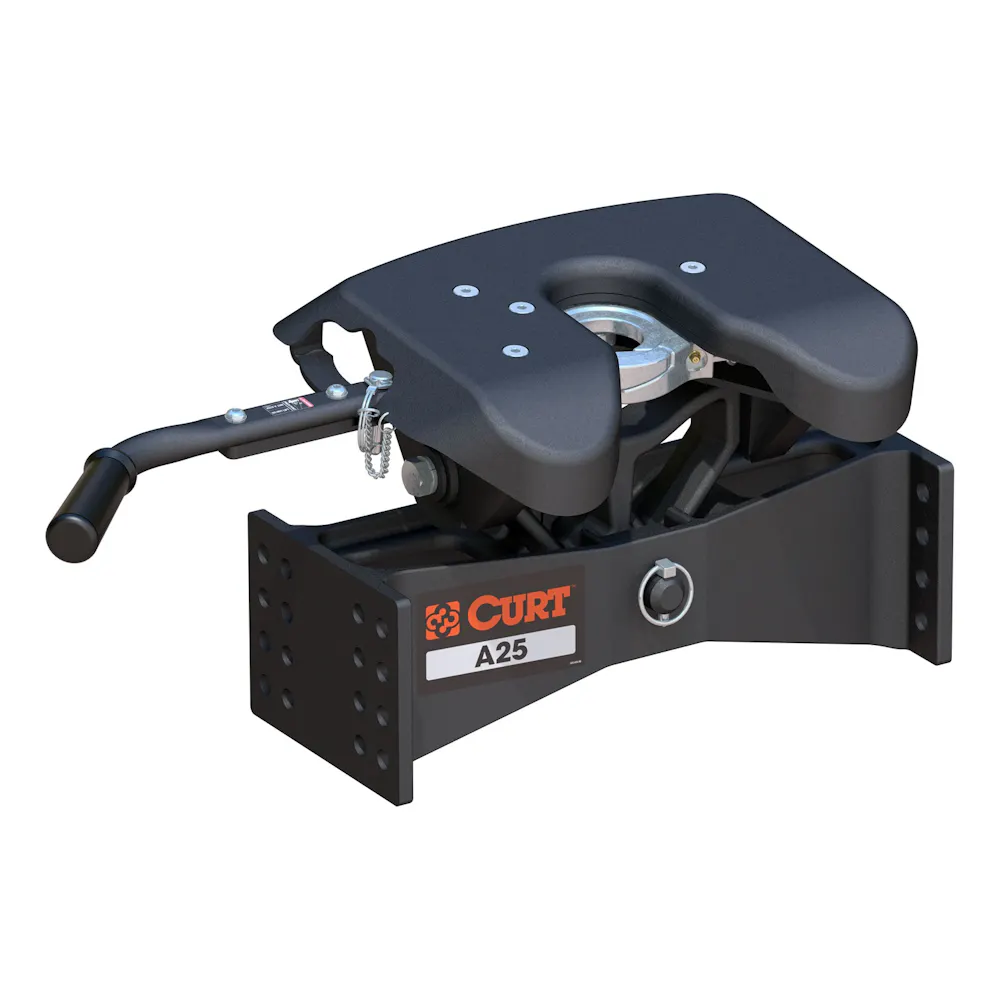

Description: CURT 16580 A25 5th Wheel Hitch Head Only, Legs or Roller Required, 25,000 lbs

Proposition 65 Warning

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

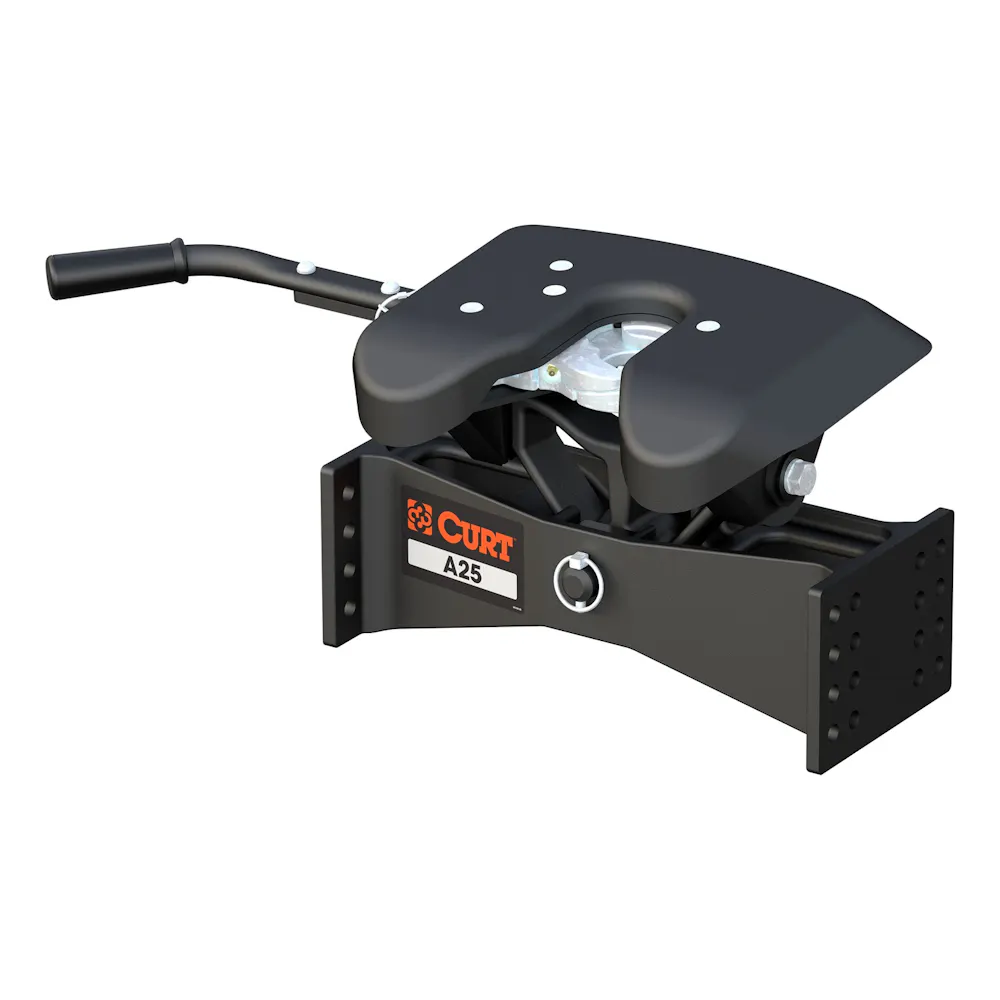

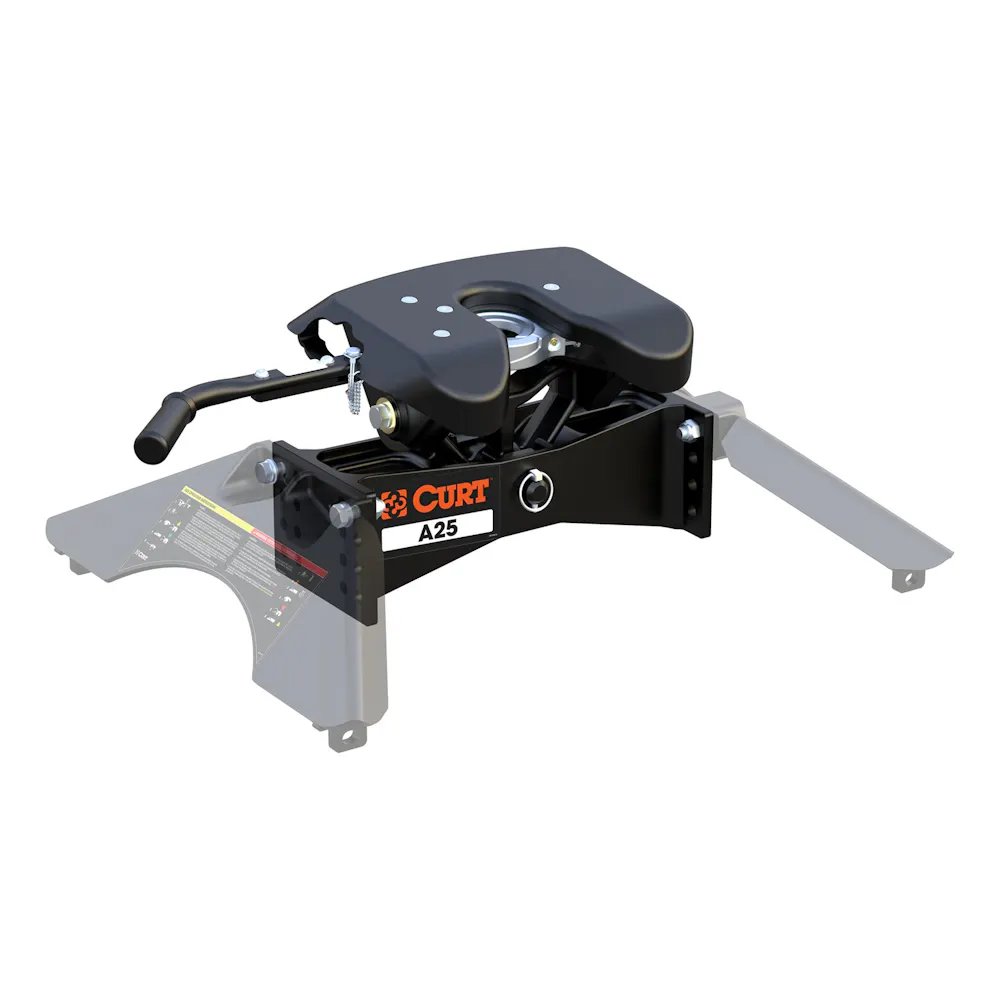

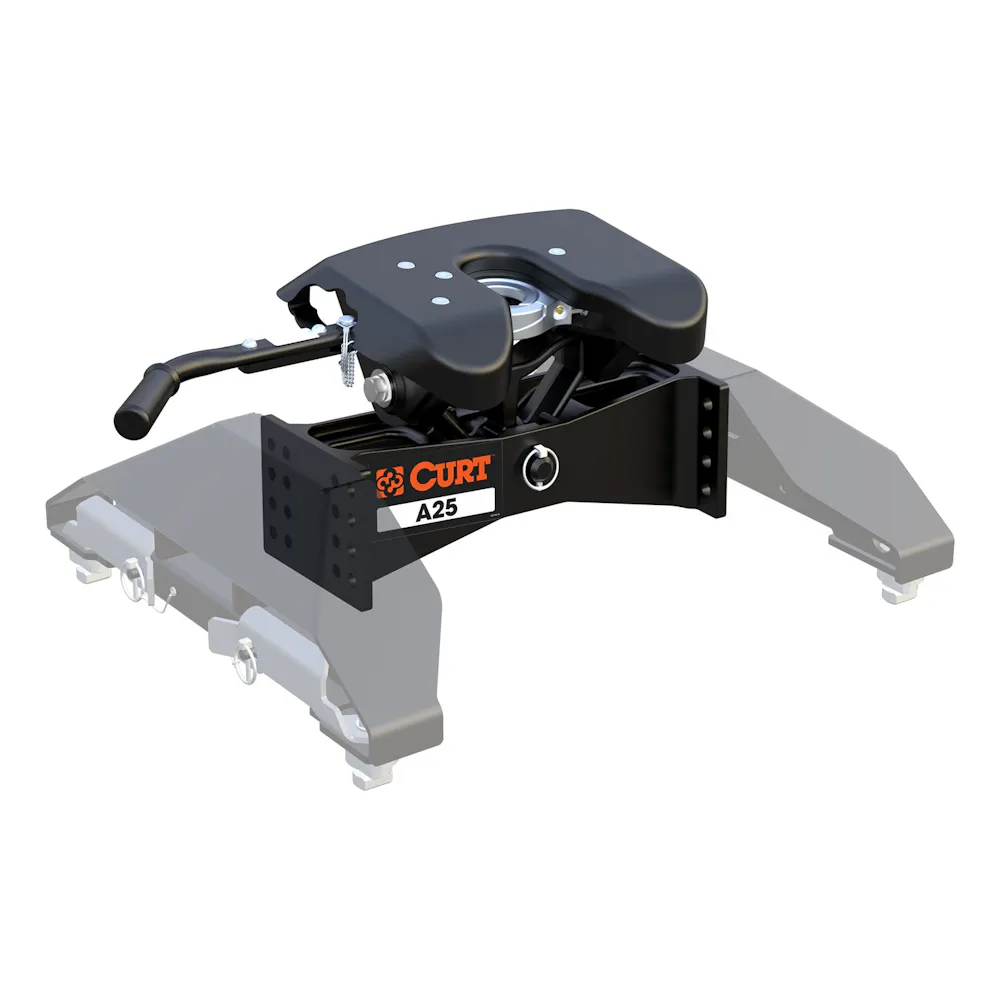

The CURT A25 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 25K 5th wheel hitch. Like our other A-series hitches, this 25K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A25 5th wheel hitch is also engineered for easier installation. The 5th wheel head has a fast, one-pin removal system to make installation and removal from the truck bed easier. This 25K 5th wheel can be mounted using 5th wheel legs or a CURT 5th wheel roller (sold separately). It can also be mounted into the puck system of a truck equipped with the towing prep package, using our OEM puck system legs or roller adapters. Once installed, the A25 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A25 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a black carbide powder coat finish and a limited lifetime warranty. We also test the A25 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.

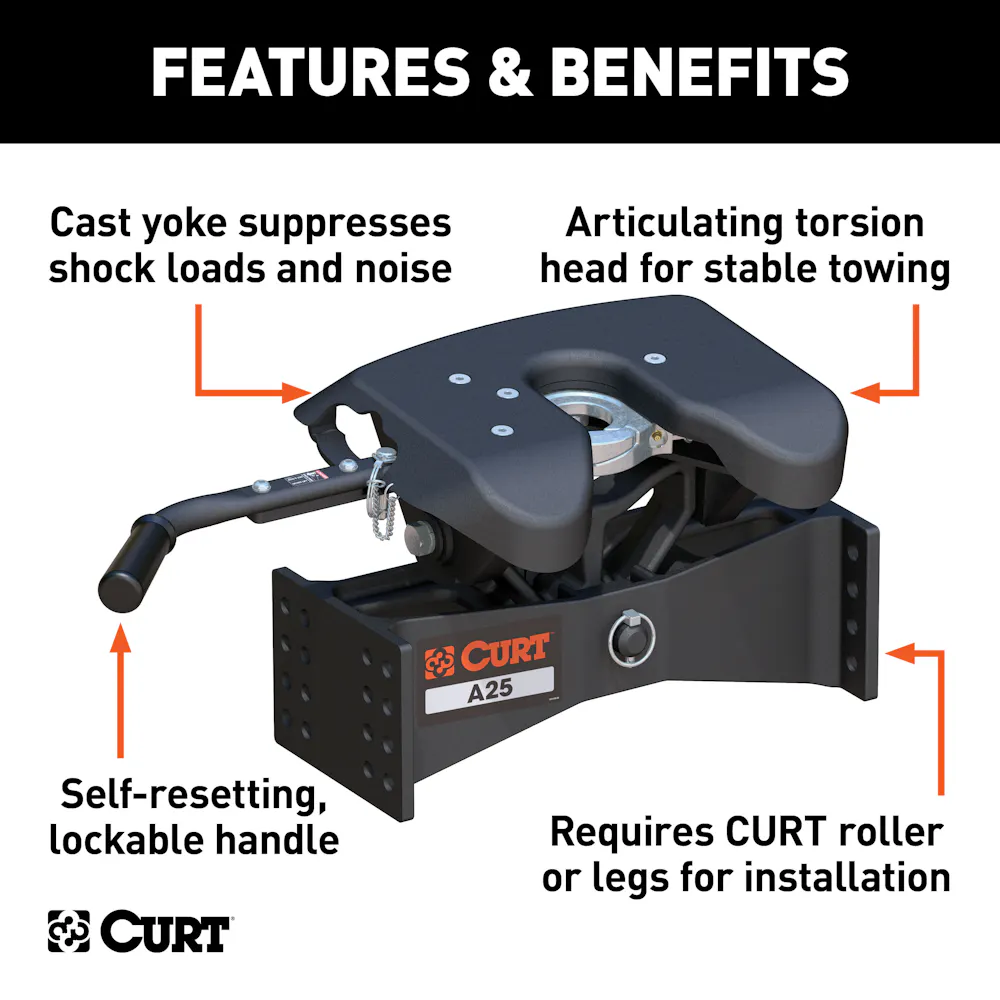

Features & benefits

Requires CURT 5th wheel roller or legs for installation

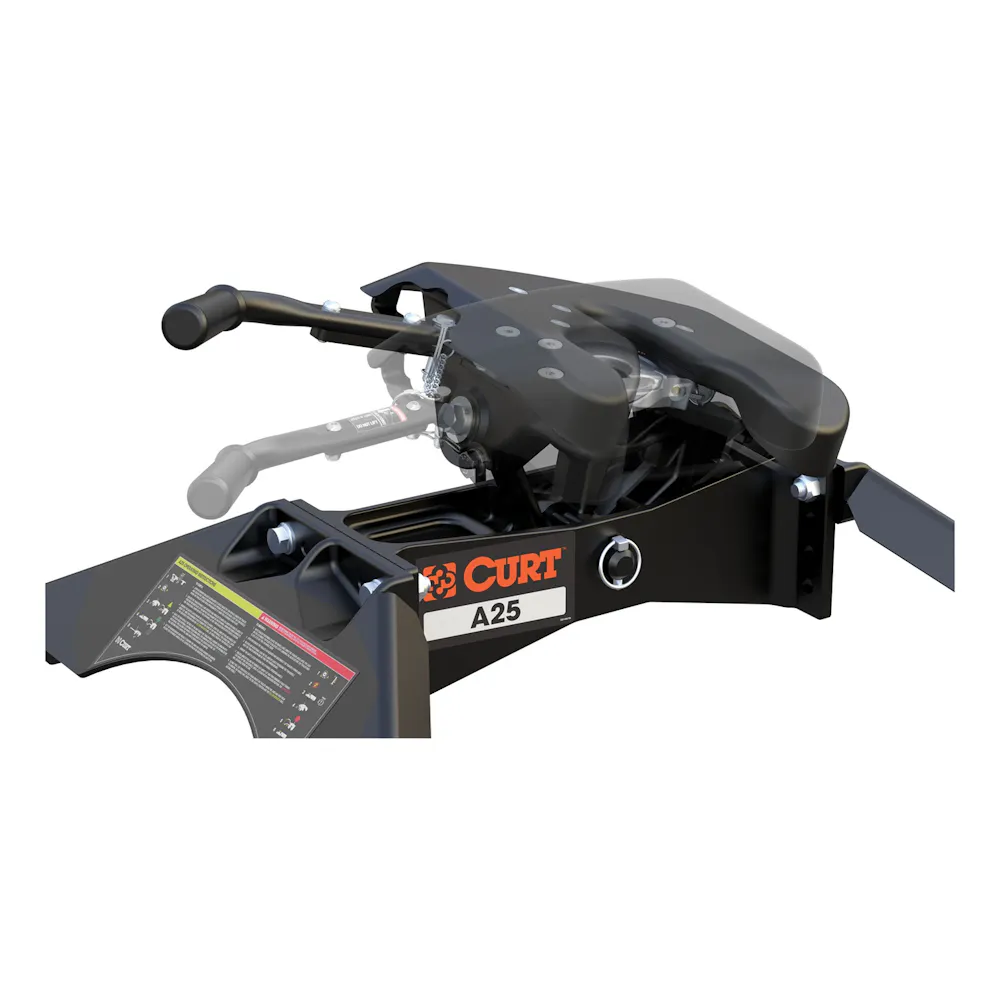

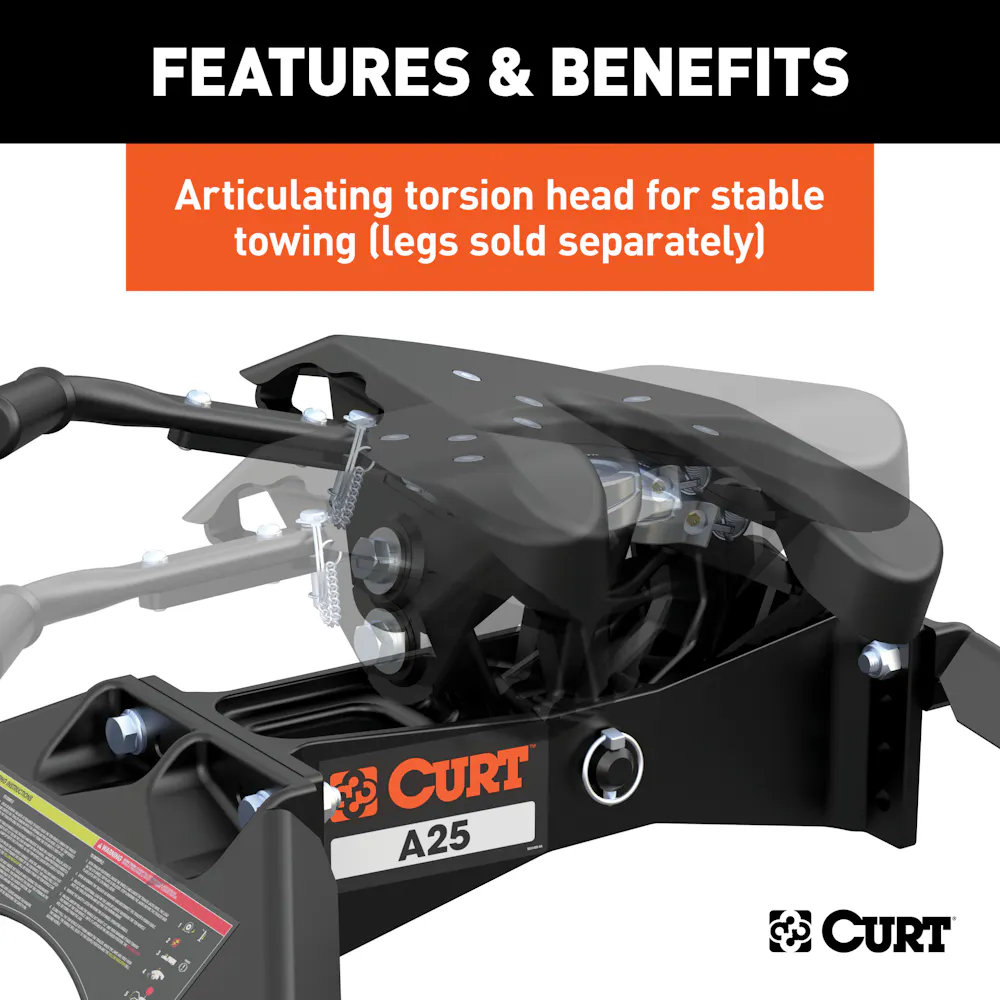

Fully articulating torsion head for controlled coupling and stable towing

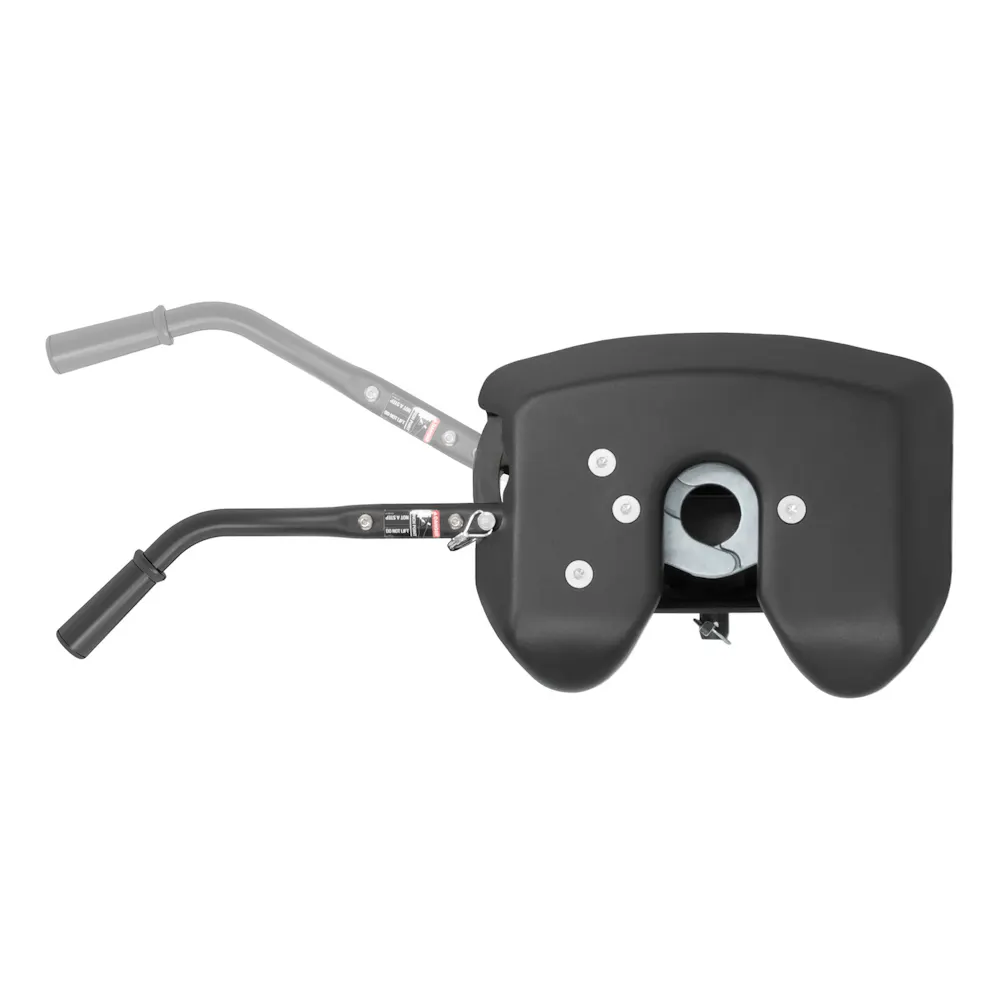

Lockable handle self-resets to the ready-to-couple position after uncoupling
Constructed with a cast steel main body for a more precise build

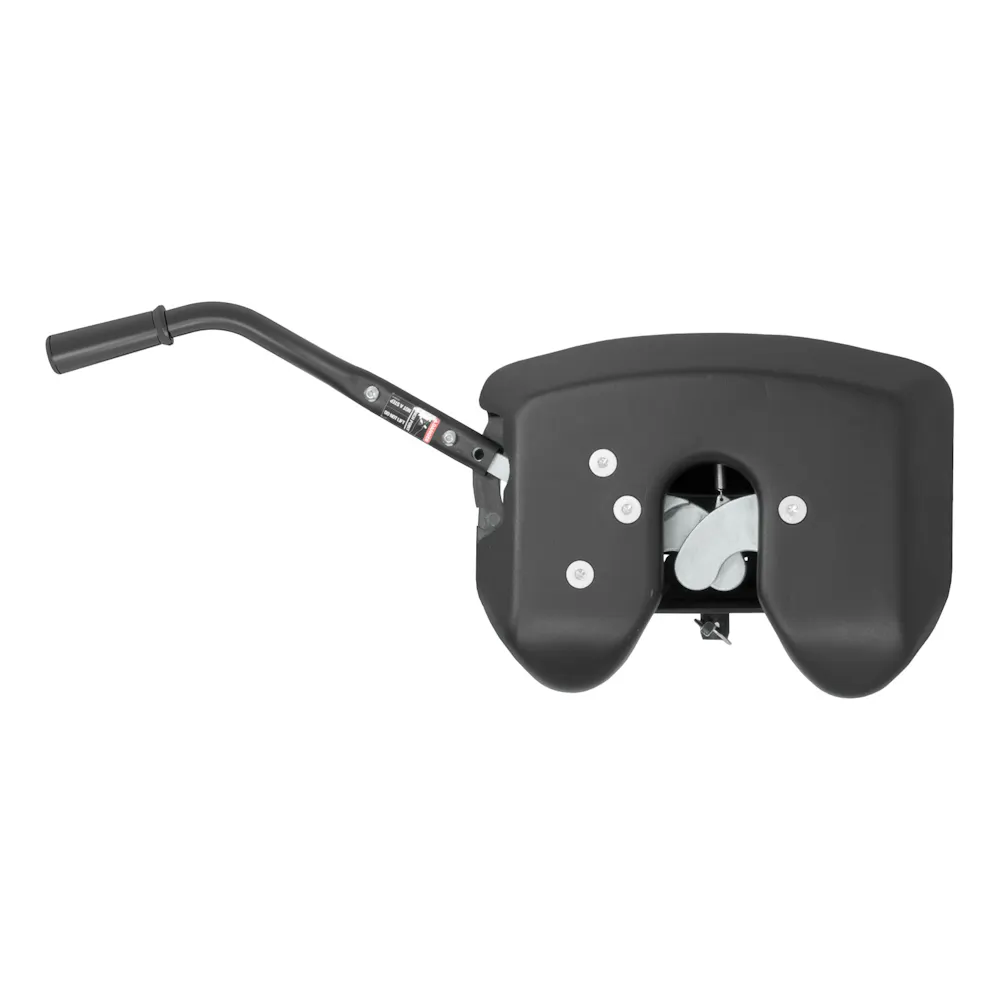

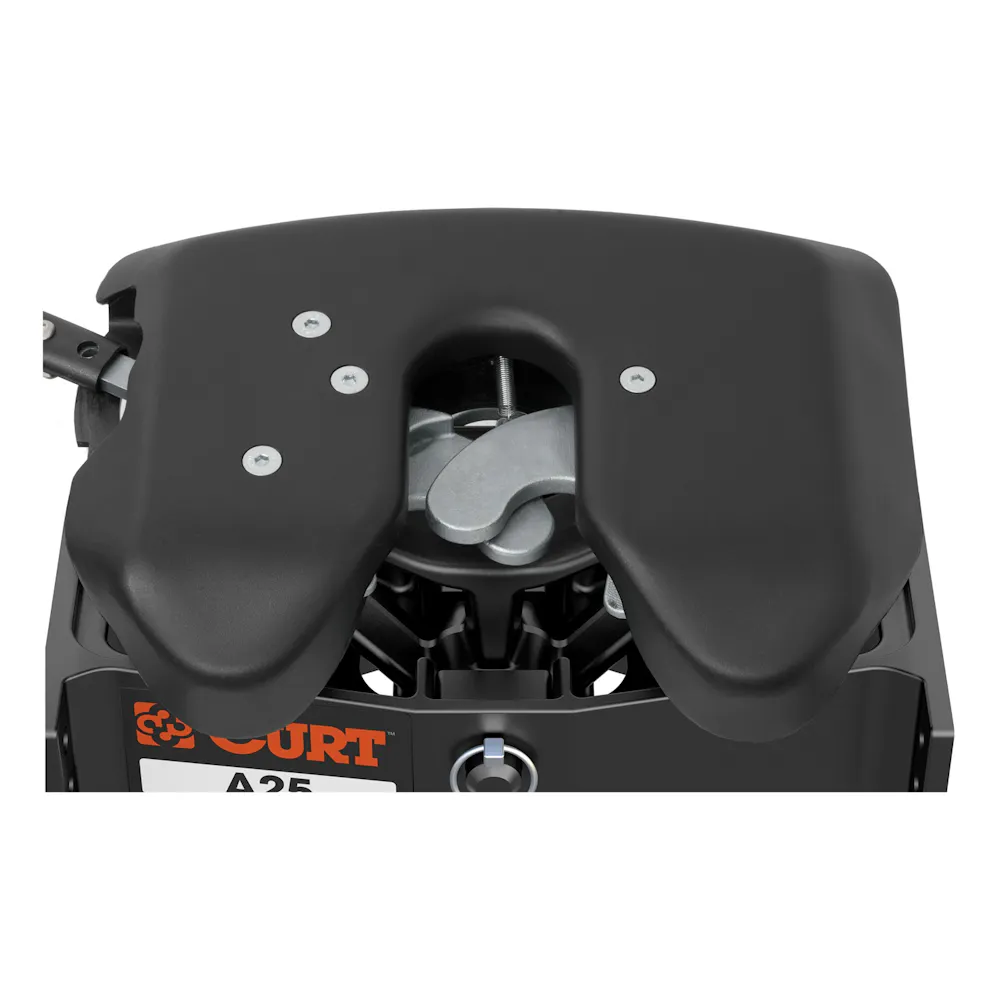

High-strength, interlocking jaws fully wrap the kingpin to minimize noise

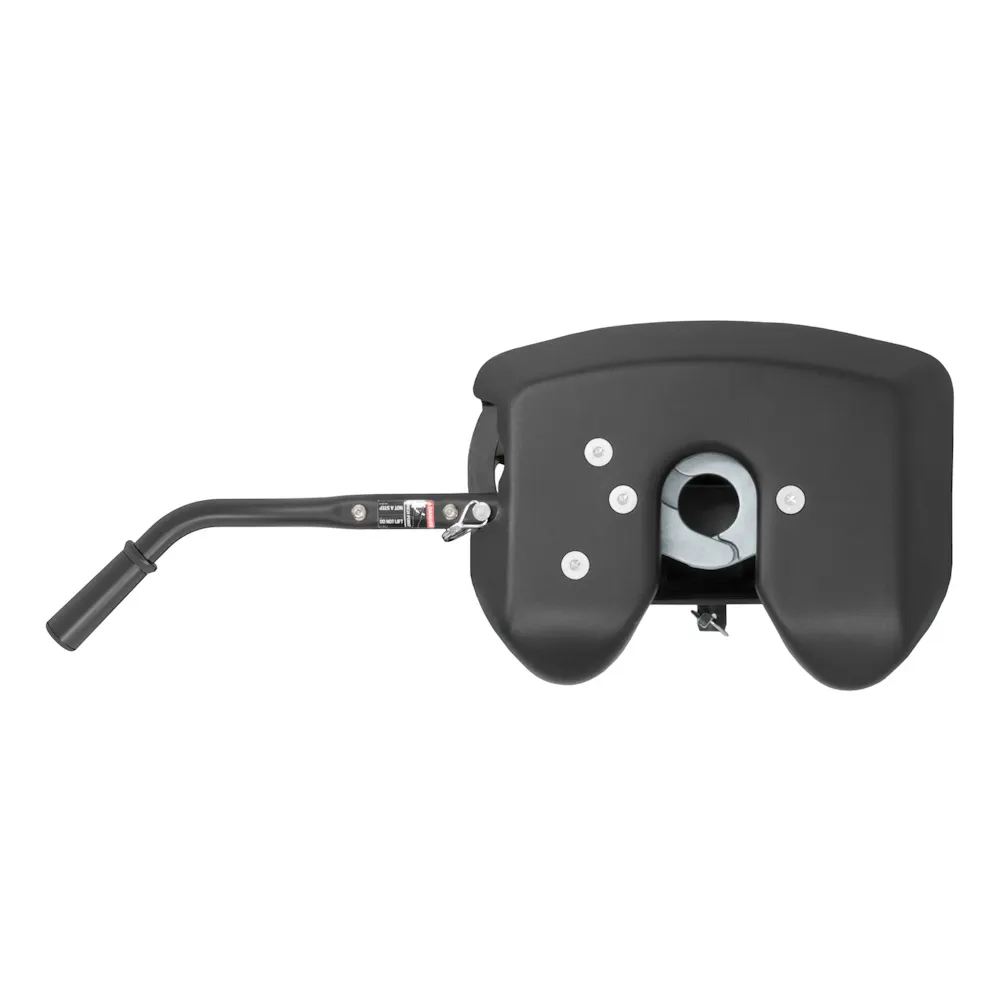

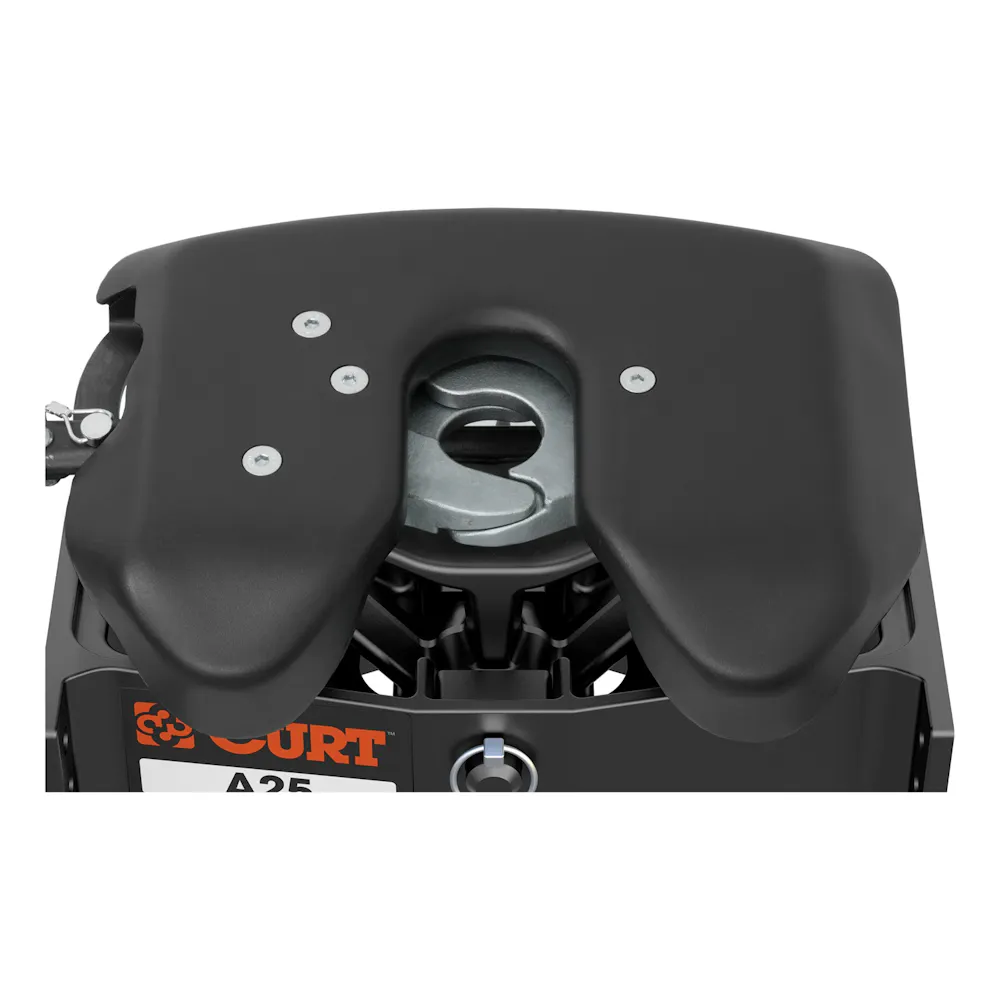

Extra wide head opening for easier coupling
Fast, one-pin head removal makes moving easy with smaller, lighter pieces
Alignment pegs and easy-access bolts for simple leg-to-body attachment

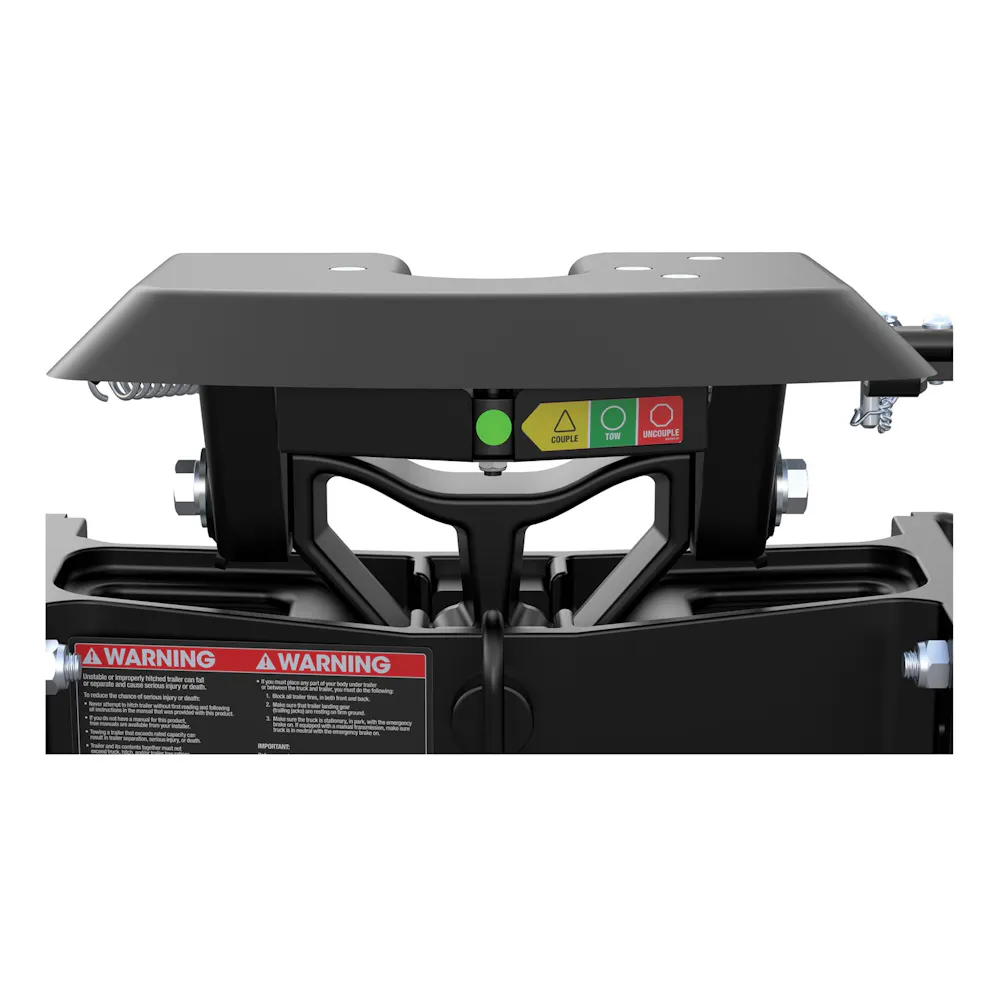

Three-position coupling indicator clearly shows coupling status
Compatible with kingpin extension boxes, including common pivoting pin boxes
Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)

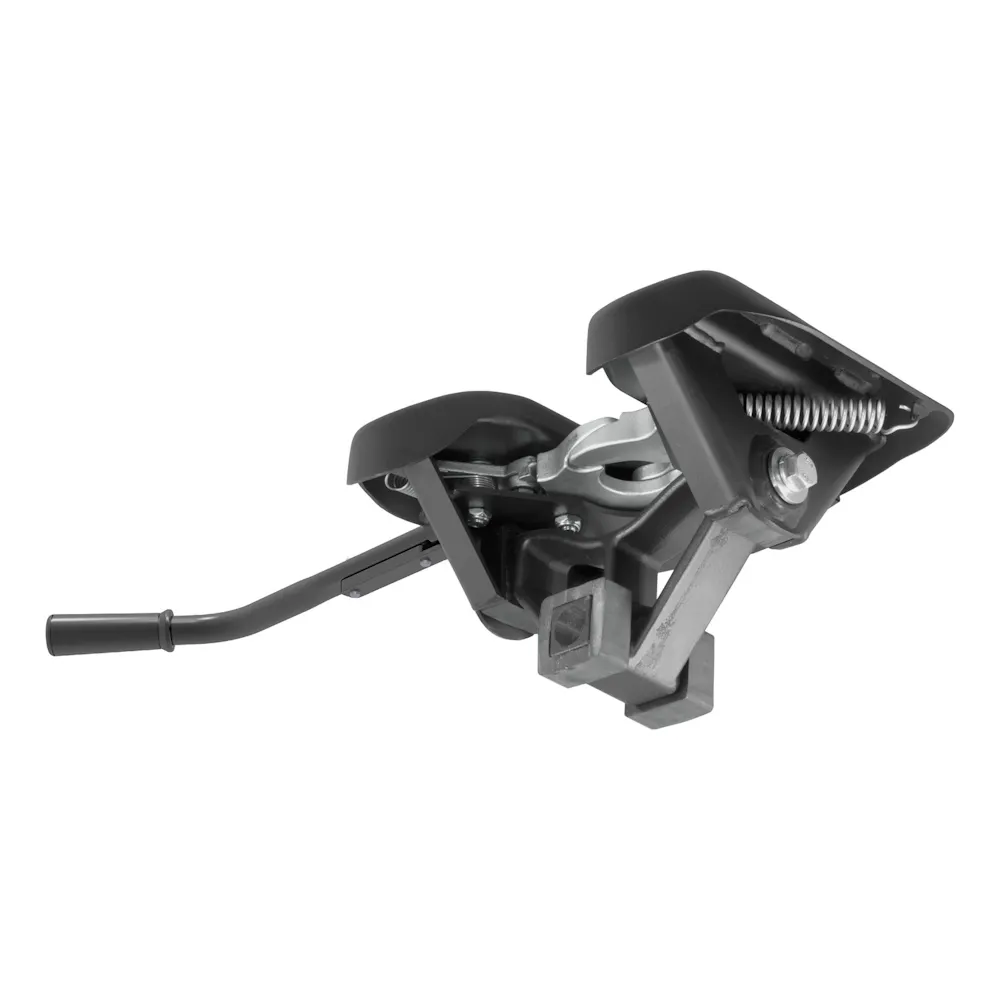

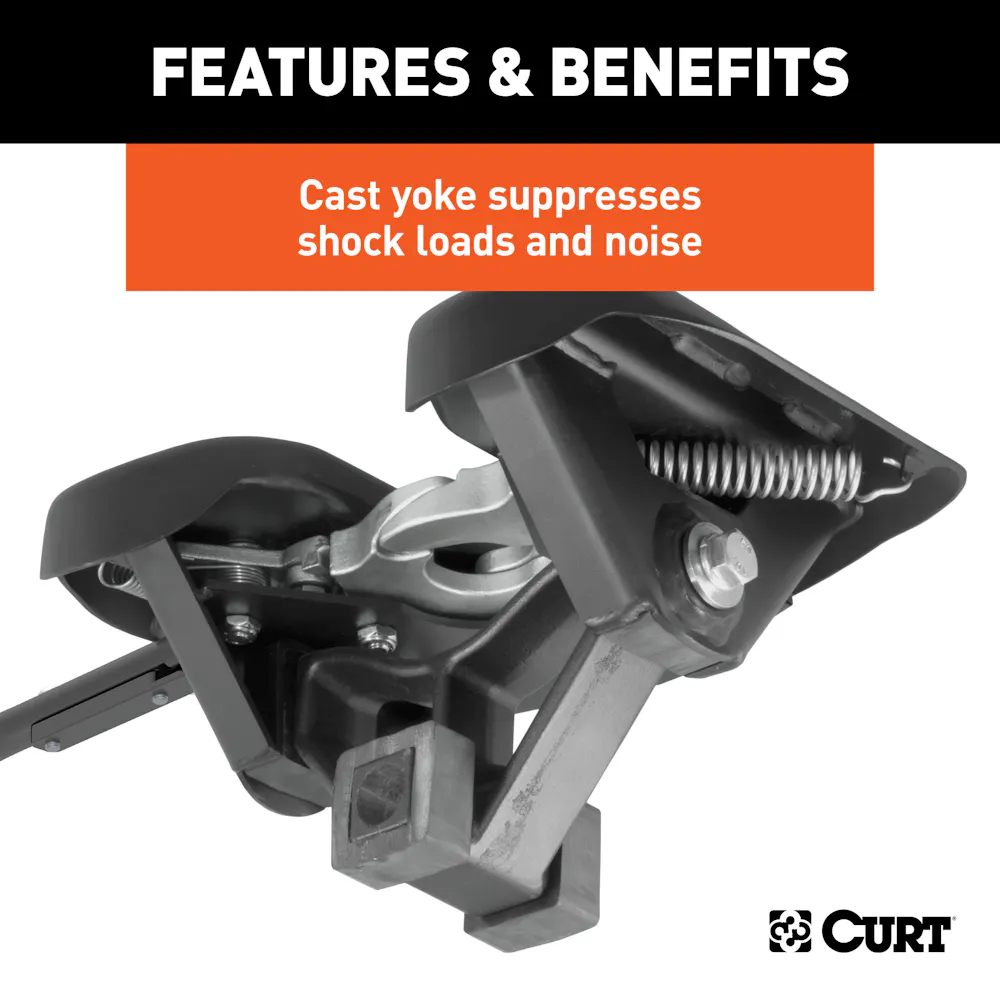

Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise

Information

Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise

Application summary

Year	Make / model
6580	A25 5th Wheel Hitch Head Only, Legs or Roller Required, 25,000 lbs

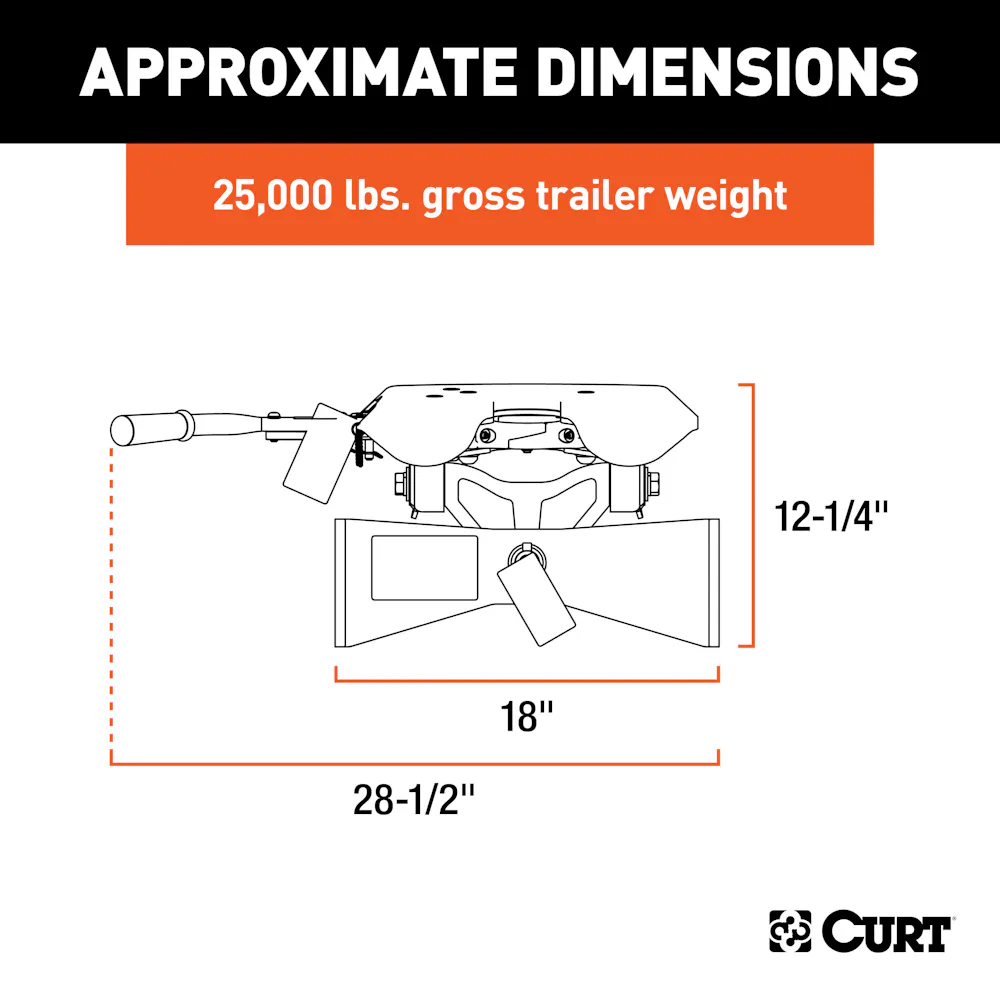

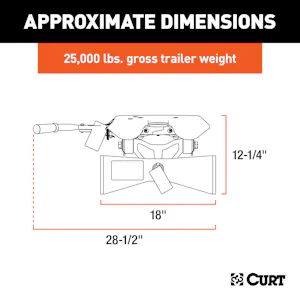

Specifications

GTIN: 00612314165803
Weight: 102 lb
Height: 14 in
Length: 24 in
Width: 16 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
California Proposition 65: Yes
Class ID: 0
Color: Black
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Finish: CARBIDE BLACK POWDER COAT
Finish - XA: CARBIDE BLACK POWDER COAT
Gross Trailer Weight: 25000 lbs.
Gross Trailer Weight (GTW): 25,000 LB
Gross Trailer Weight (lbs.): 25000
Gross Trailer Weight(GTW): 25,000 LB
Item Class - XA: OBS
Item Height - XA: 14.000
Item Length - XA: 24.000
Item Width - XA: 16.000
Master Case Height Inches - XA: 0.000
Master Case ITF14: 0
Master Case ITF14 - XA: 0
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 0.000
Master Case Qty - XA: 0
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 0.000
Master Case Width Inches - XA: 0.000
Material - XA: Blank
Mount Type Description - XA: Blank
Pallet Case Per - XA: 0
Pallet Case Per Layer - XA: 0
Pallet Cases Per - XA: 0
Pallet Cases Per Layer - XA: 0
Pallet Layer of Cases - XA: 0
Pallet Qty - XA: 0.000
Pallet Total Height Inches - XA: 0.000
Pallet Total Weight Per - XA: 0.000
Parcel Allowed - XA: No
Product Weight - XA: 0.000
Rate Class - XA: 125.0
Retail Height - XA: 14.000
Retail Length - XA: 24.000
Retail Width - XA: 16.000
Sales Family Code - XA: FIFTH
Sales Family Description - XA: FIFTH WHEEL
Sales Group Description - XA: 25K FIFTH WHEEL
Shipping Weight - XA: 102.000
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Title: A25 5th Wheel Hitch Head
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Vertical Load: 6250
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
