CURT · 16520

Part #: 16520
UPC: 612314165209

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: CURT Series: 5th Wheel Hitches

Log in to order

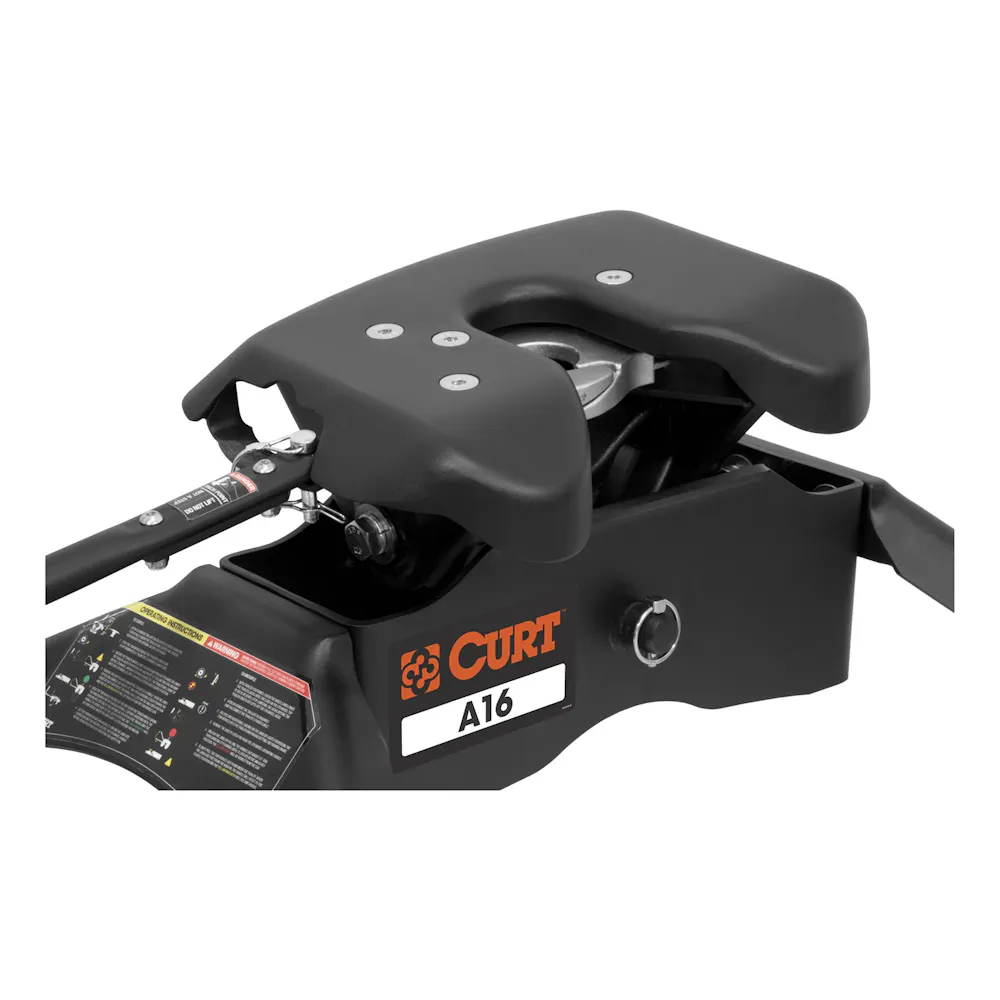

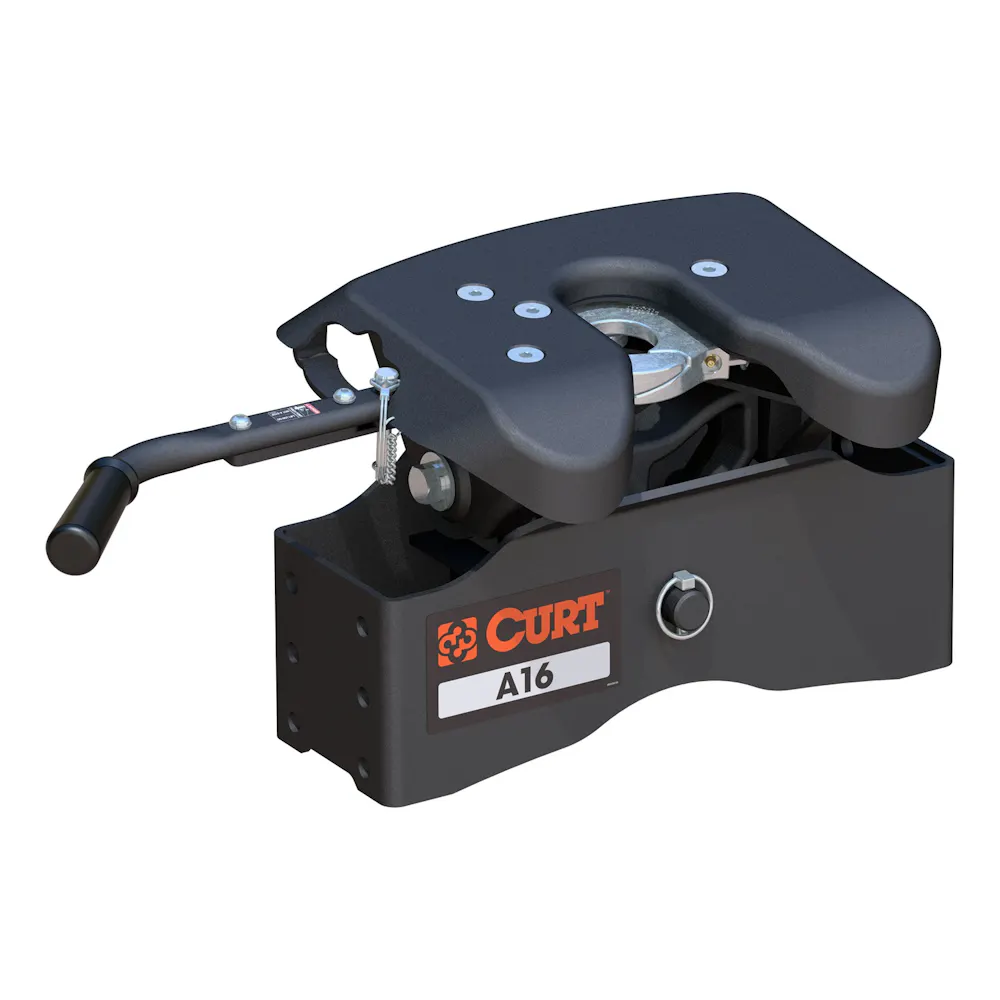

Description: CURT 16520 A16 5th Wheel Hitch Head, Interlocking Jaws, 16,000 lb

Proposition 65 Warning

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

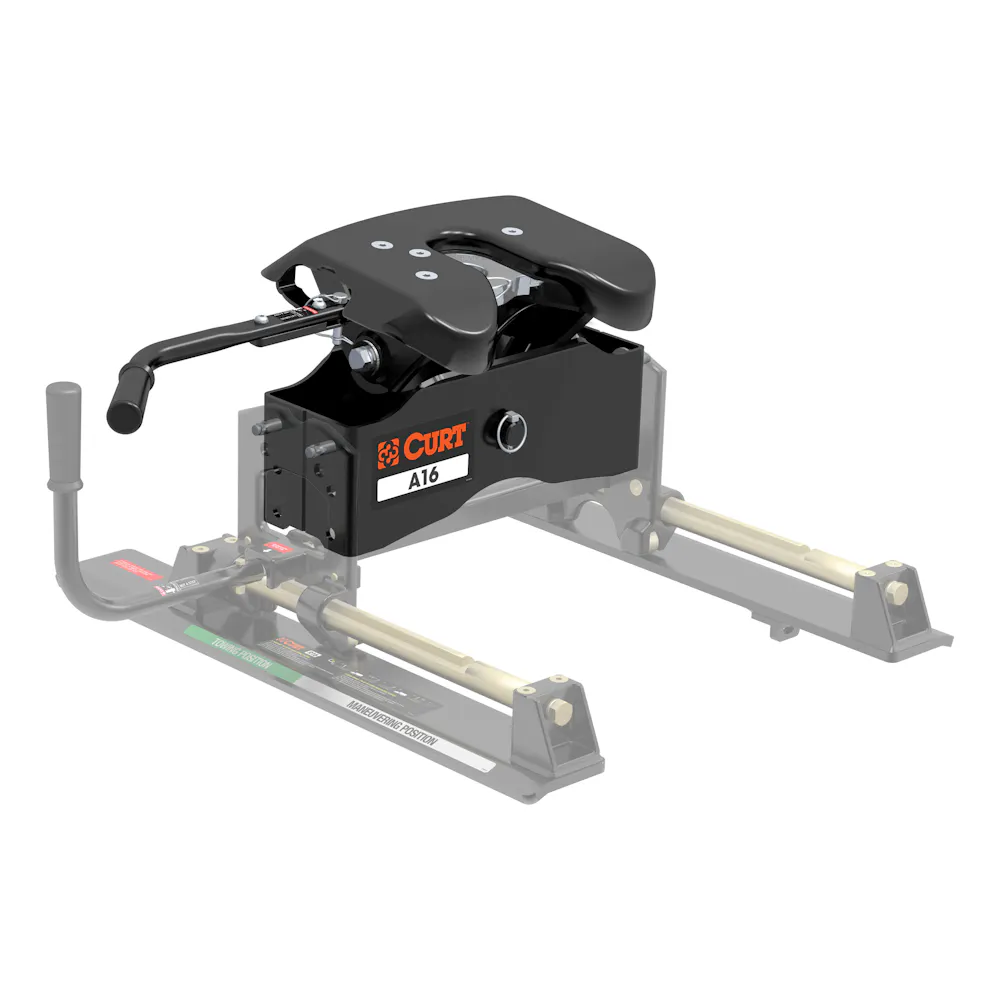

The CURT A16 is designed to provide a surprisingly quiet ride while maintain superior towing power. It has a gross trailer weight capacity of 16,000 lbs. and can handle a vertical load up to 4,000 lbs. It comes with a three-position coupling indicator visible from your pickup truck cab, an extra wide head for easier coupling and high-strength interlocking die-cast jaws for a secure hold on your 5th wheel trailer. This 16K 5th wheel hitch excels in quiet 5th wheel towing. It uses a fully articulating torsion head, a cast yoke with poly-torsion inserts and interlocking jaws to create stability for your trailer and tow vehicle. These components also allow the A16 to suppress shock and vibrations and reduce any additional noise coming from your trailer. Like the other CURT A-Series hitches, the A16 is coated with a durable carbide powder coat finish. It is tested in accordance with SAE J2638 for safety and includes a limited lifetime warranty to make this the best hitch ever to be mounted in the back of your pickup. This A16 5th wheel hitch head comes ready to be attached to the CURT R16 5th wheel roller.

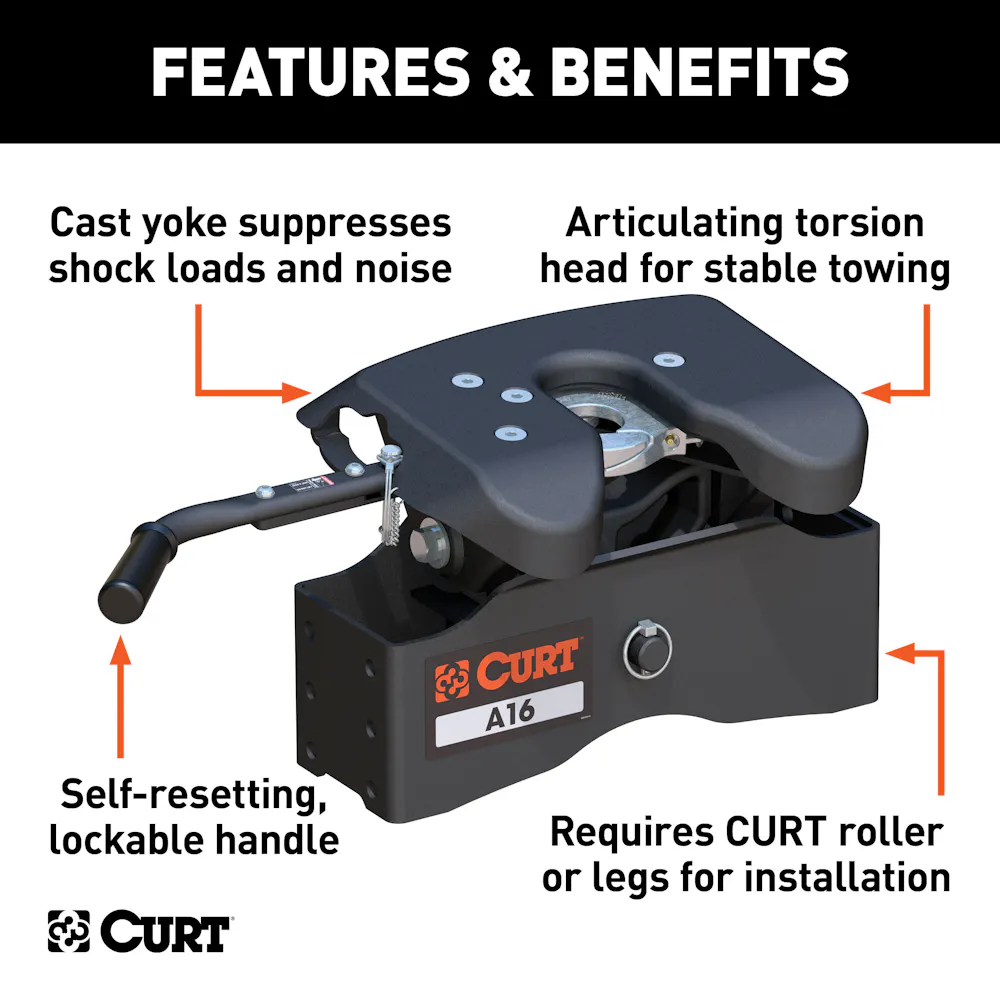

Features & benefits

Requires CURT 5th wheel roller or legs for installation

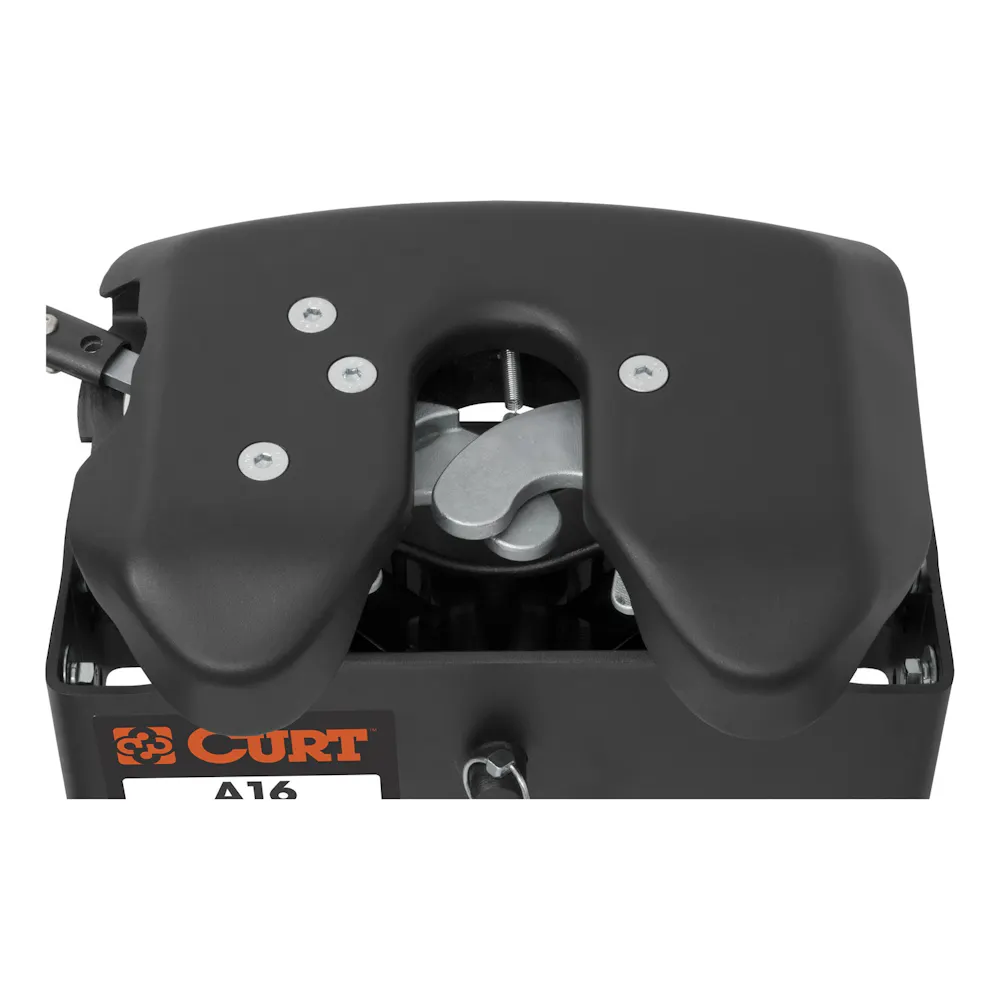

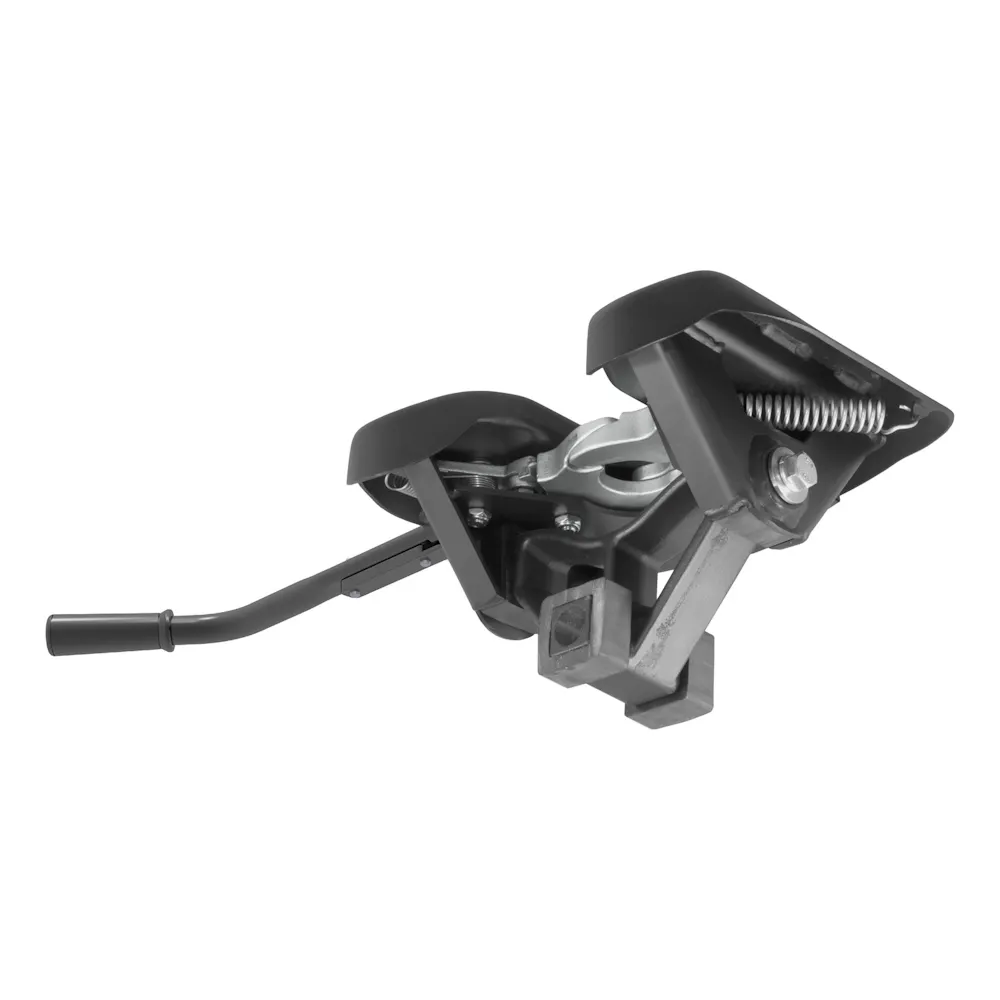

High-strength, interlocking jaws fully wrap the kingpin to minimize noise

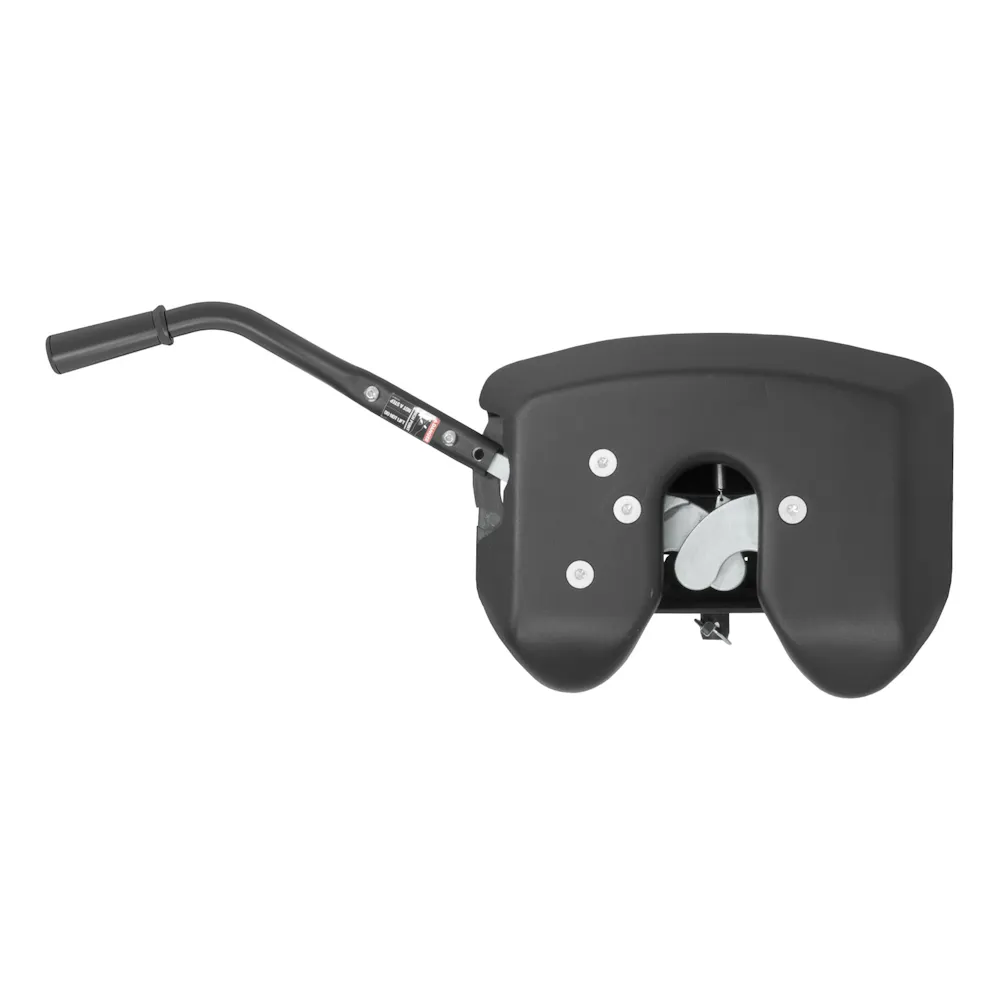

Extra wide head opening for easier coupling
Fast, one-pin head removal makes moving easy with smaller, lighter pieces
Three-position coupling indicator clearly shows coupling status
Compatible with kingpin extension boxes, including common pivoting pin boxes
Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)

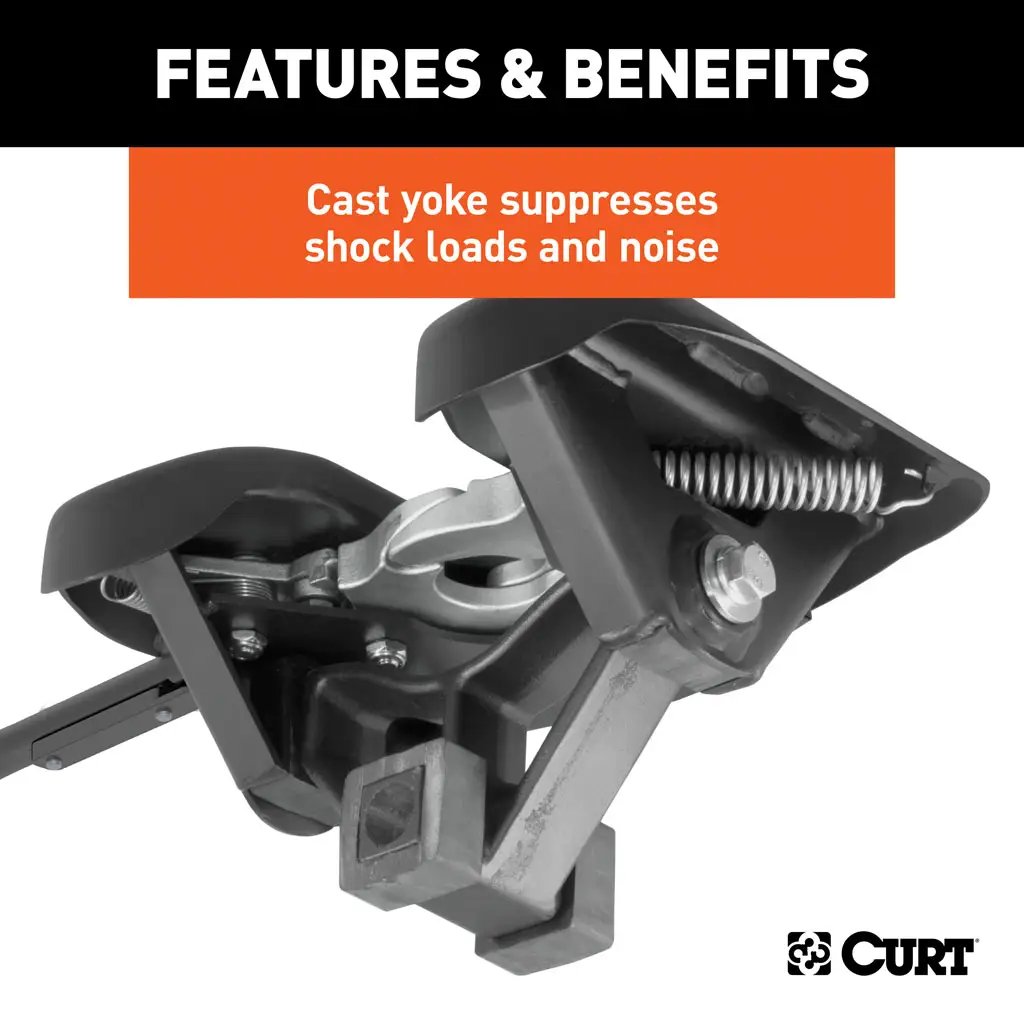

Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise

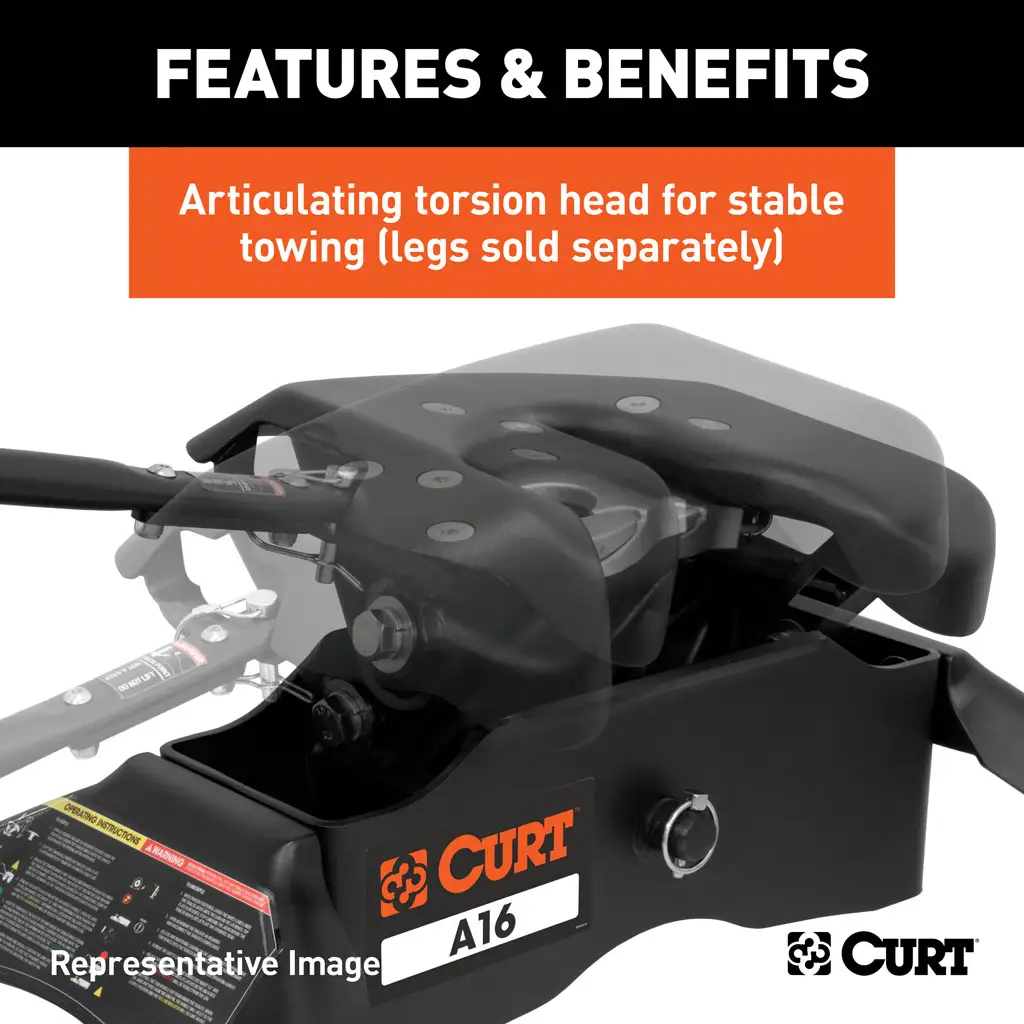

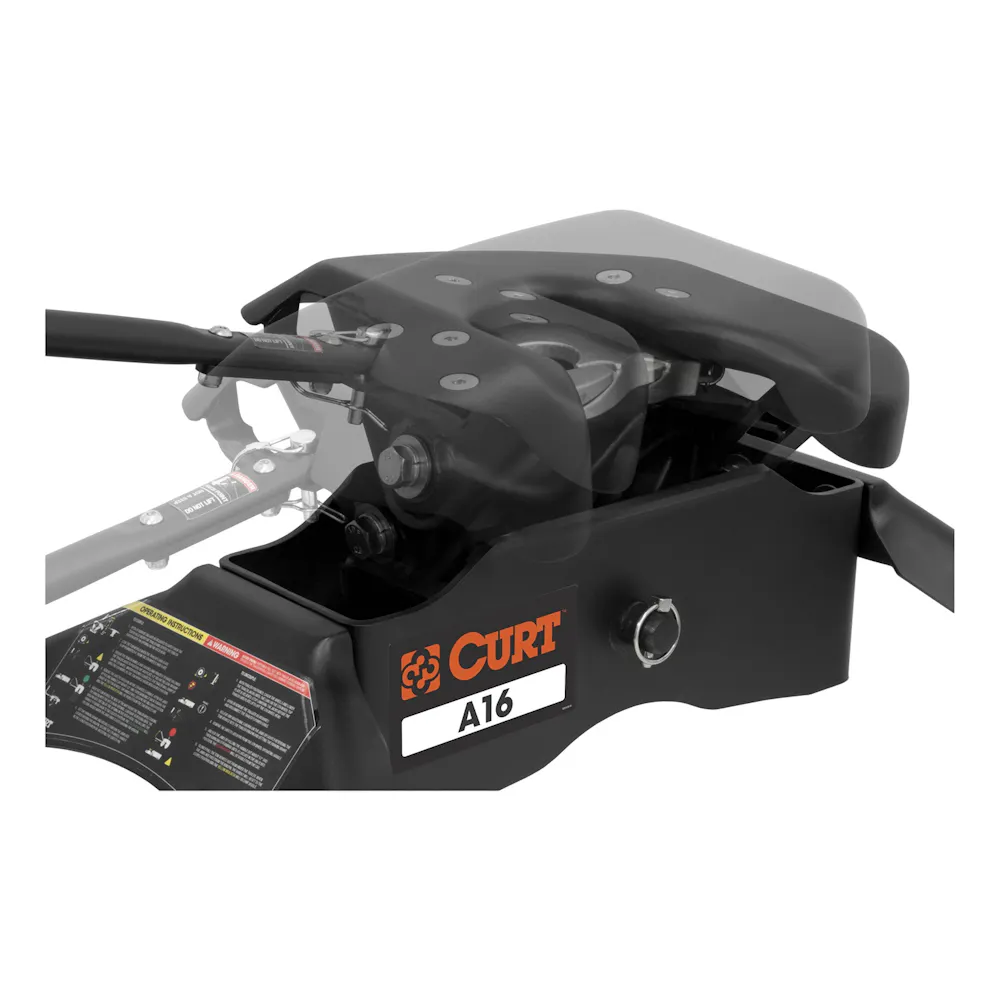

Fully articulating torsion head for controlled coupling and stable towing
Lockable handle self-resets to the ready-to-couple position after uncoupling

Information

Lockable handle self-resets to the ready-to-couple position after uncoupling

Application summary

Year	Make / model
6520	A16 5th Wheel Hitch Head Only, Legs or Roller Required, 16,000 lbs

Specifications

GTIN: 00612314165209
Weight: 84 lb

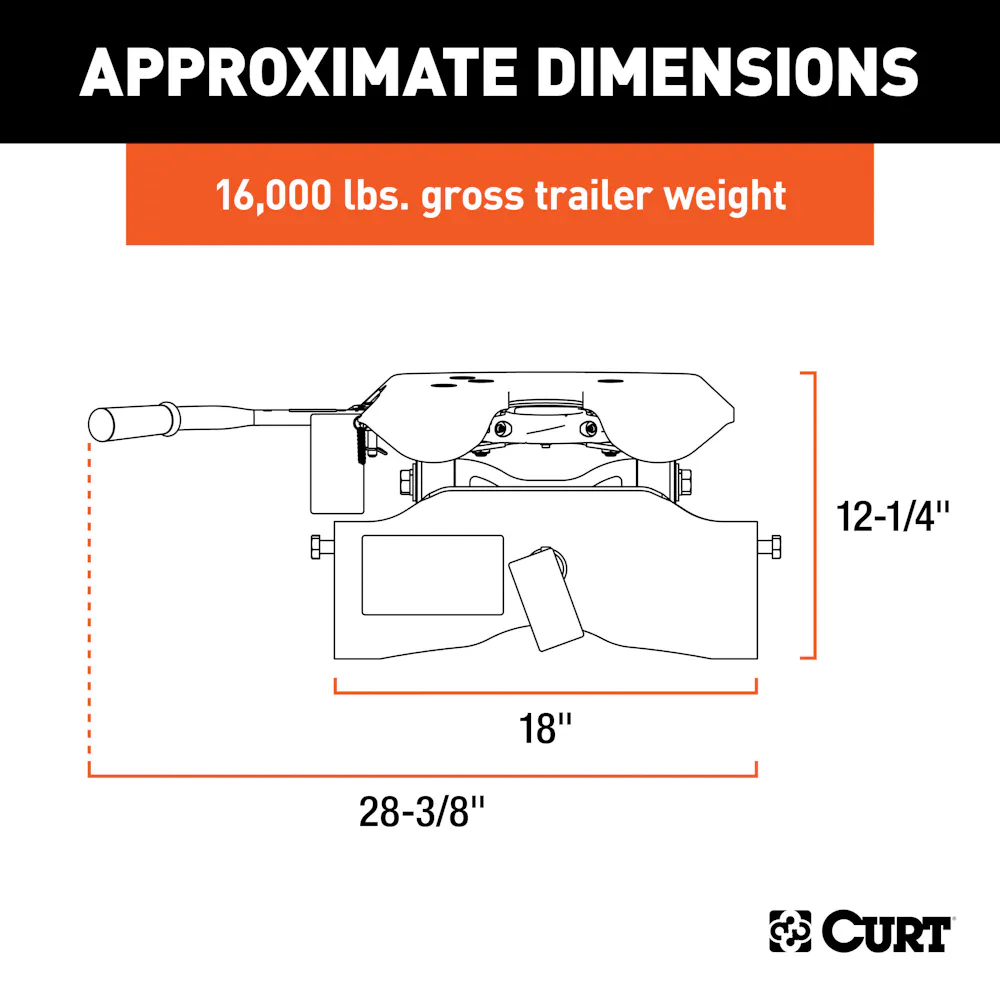

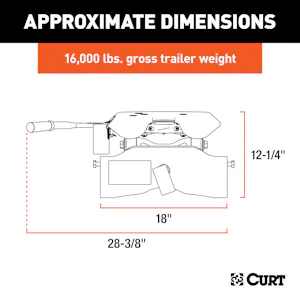

Height: 14.25 in
Length: 23 in
Width: 14.25 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

AAM Long Description: Q16 Fifth Wheel Head Unit
Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
California Proposition 65: Yes
Capacity: 16000 lbs.
Capacity (lbs.): 16000
Class ID: 0
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Finish: CARBIDE BLACK POWDER COAT
Finish - XA: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (GTW): 16,000 LB
Item Class - XA: OBS
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 0.000
Master Case ITF14: 0
Master Case ITF14 - XA: 0
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 0.000
Master Case Qty - XA: 0
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 0.000
Master Case Width Inches - XA: 0.000
Material - XA: Blank
Mount Type Description - XA: Blank
Pallet Case Per - XA: 0
Pallet Case Per Layer - XA: 0
Pallet Cases Per - XA: 0
Pallet Cases Per Layer - XA: 0
Pallet Layer of Cases - XA: 0
Pallet Qty - XA: 18.000
Pallet Total Height Inches - XA: 0.000
Pallet Total Weight Per - XA: 0.000
Parcel Allowed - XA: No
Product Weight - XA: 0.000
Rate Class - XA: 125.0
Retail Height - XA: 14.250
Retail Length - XA: 23.000
Retail Width - XA: 14.250
Sales Family Code - XA: FIFTH
Sales Family Description - XA: FIFTH WHEEL
Sales Group Description - XA: 16K FIFTH WHEEL
Shipping Weight - XA: 84.000
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Title: A16 5th Wheel Hitch Head
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Vertical Load: 4,000 LB
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 16520 A16 5th Wheel Hitch Head Only, Legs or Roller Required, 16,000 lbs
