CURT · 16181
Part #: 16181
UPC: 612314161812
Log in for inventory
Notify me when this item is in stock.
Description: A25 5th Wheel Hitch with Rails; CURT 16181 A25 5th Wheel Hitch with Base Rails, 25,000 lbs
Description:
Description

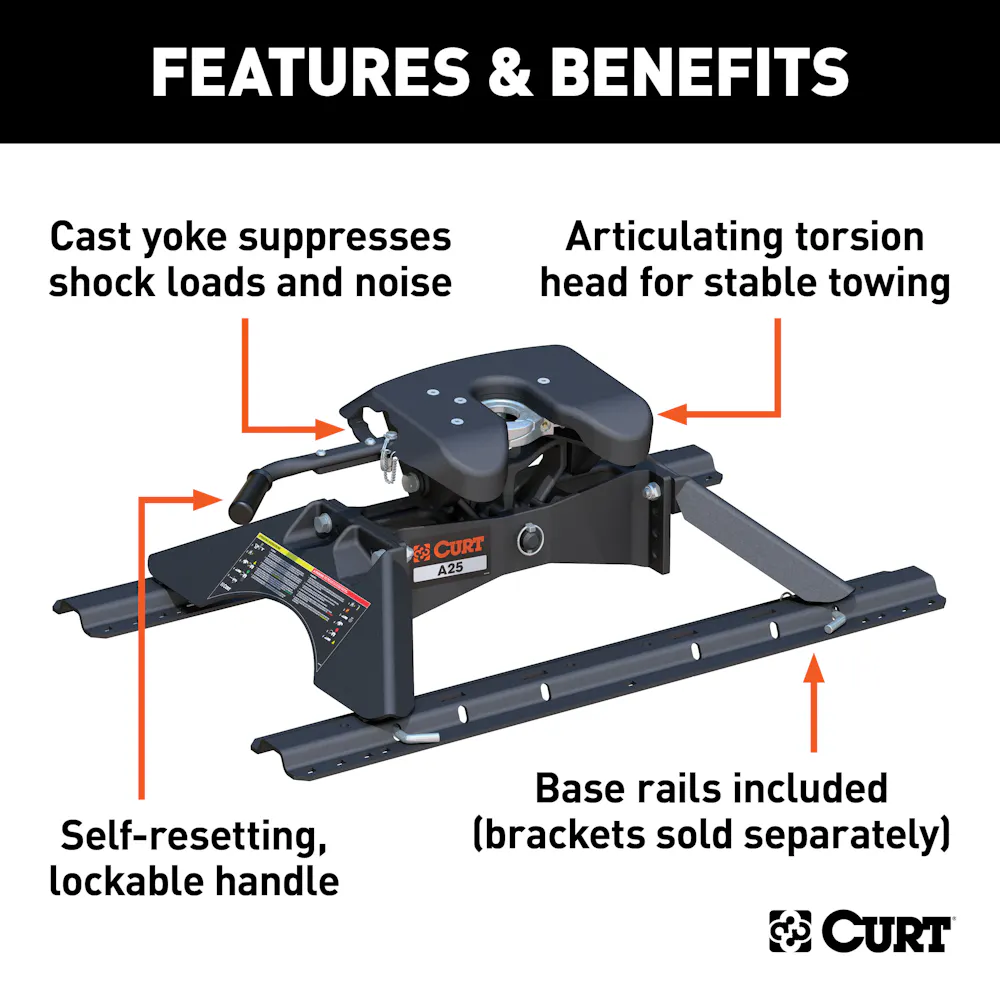

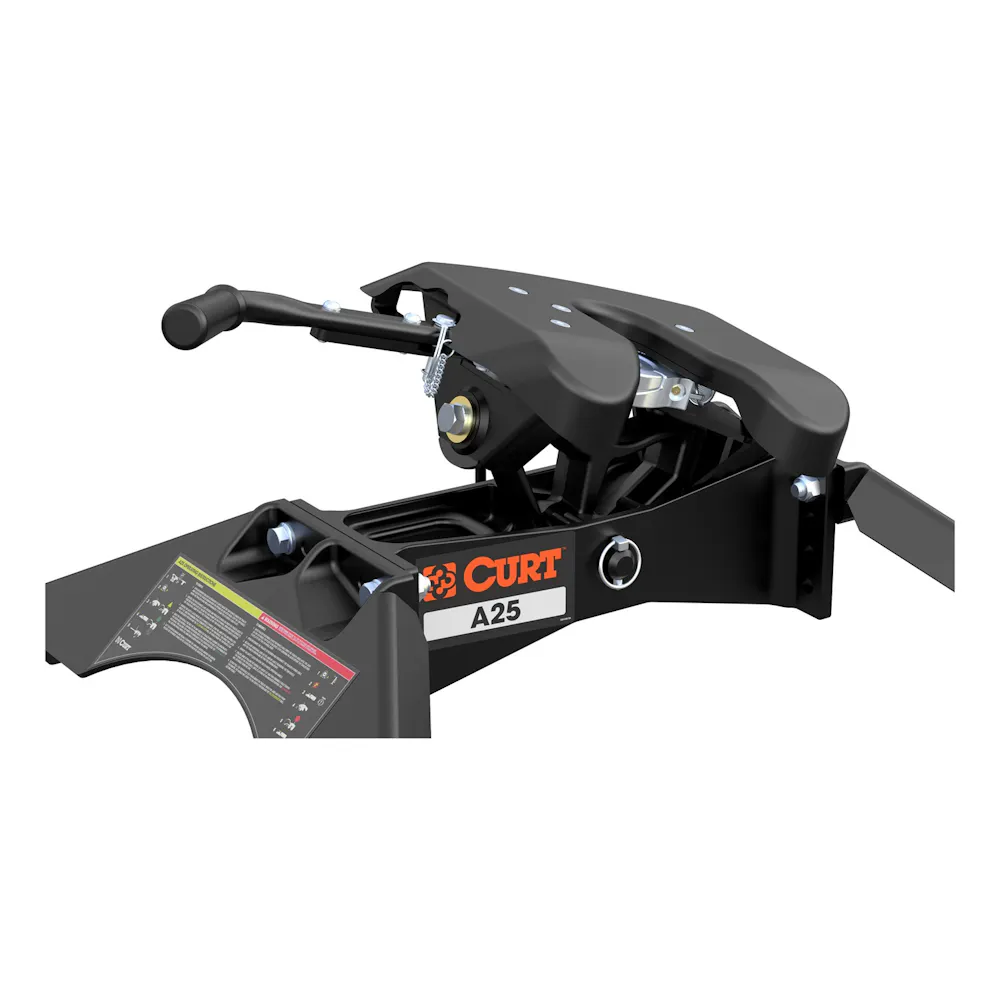

The CURT A25 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 25K 5th wheel hitch. Like our A16 and A20 hitches, this 25K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A25 5th wheel hitch is also engineered for easier installation. The legs are equipped with two pins to properly align with the mounting holes, and they have easy-access mounting bolts for ergonomic tightening. The 5th wheel head also has a fast, one-pin removal system to make installation and removal from the truck bed easier. This 25K 5th wheel includes a set of industry-standard 5th wheel base rails to mount onto custom 5th wheel brackets. Once installed, the A25 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A25 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a carbide black powder coat finish and a limited lifetime warranty. We also test the A25 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.
Features & benefits
- Compatible with kingpin extension boxes, including common pivoting pin boxes
- Constructed with a cast steel main body for a more precise build

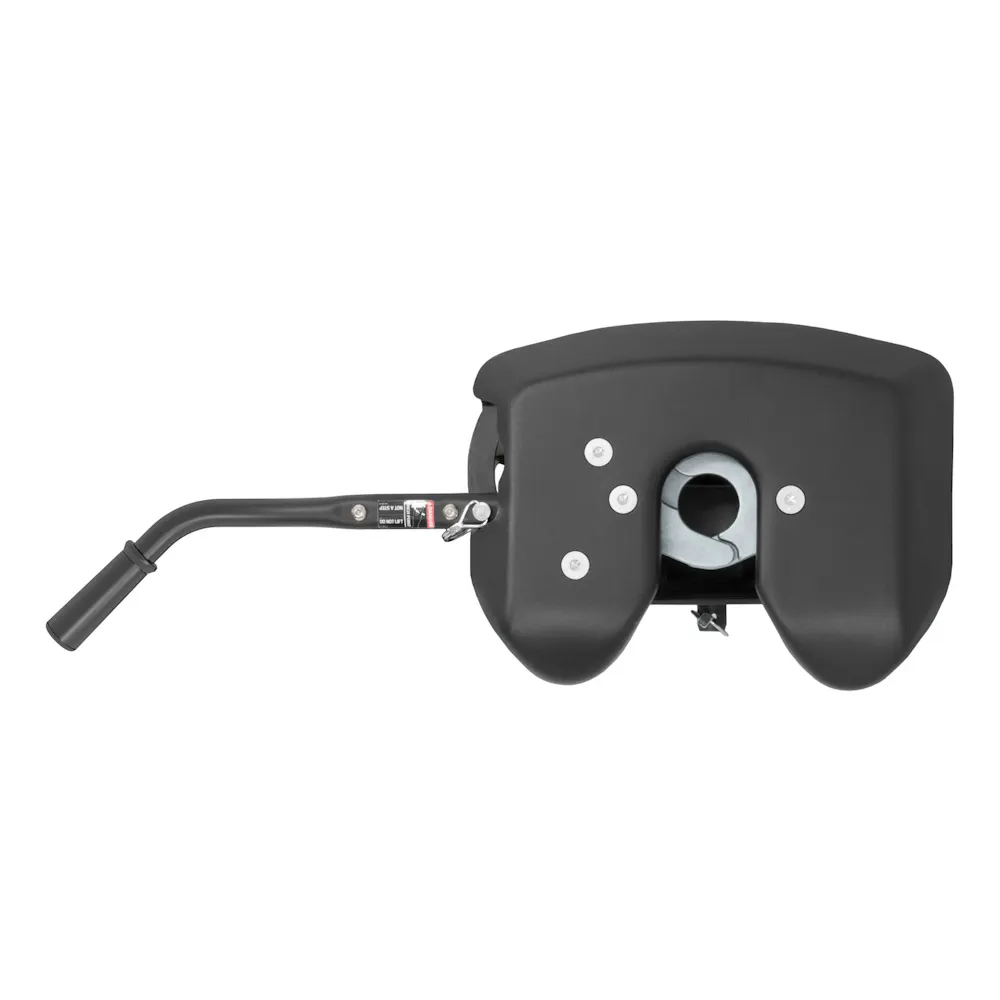

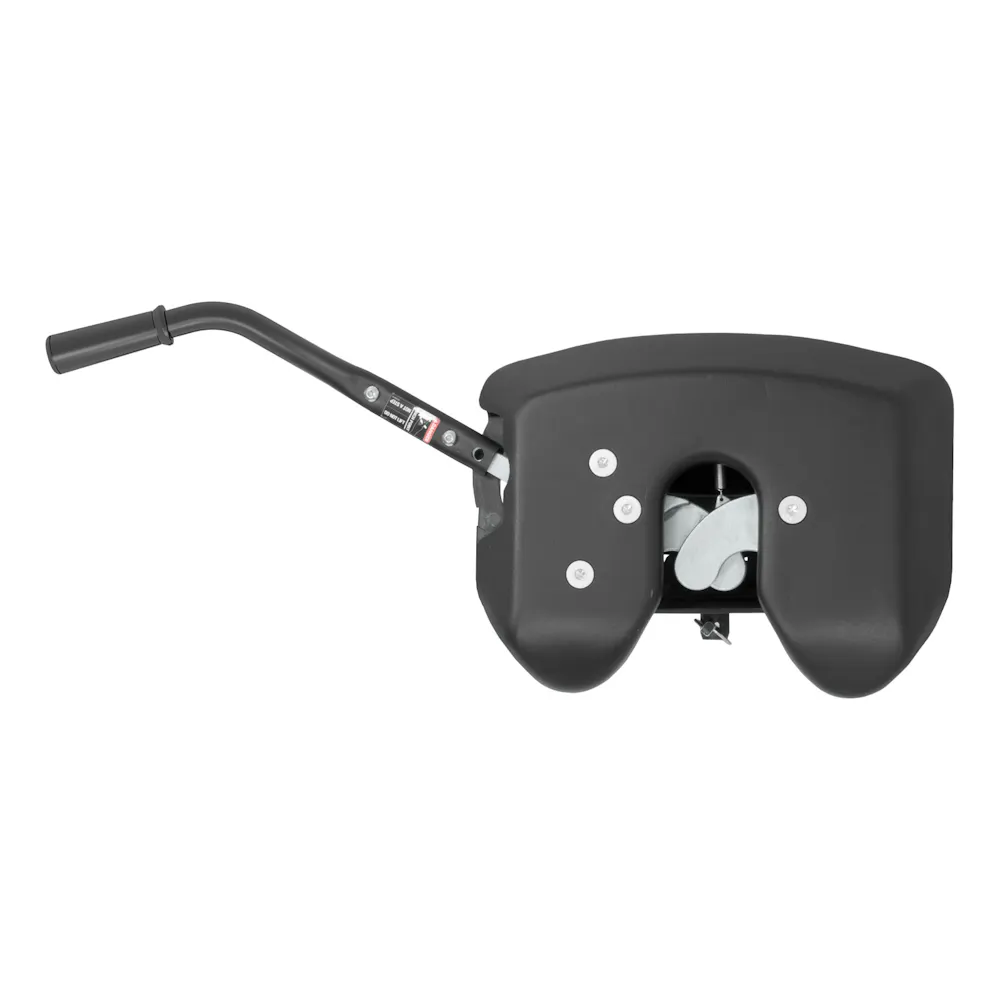

- High-strength, interlocking jaws fully wrap the kingpin to minimize noise
- Extra wide head opening for easier coupling

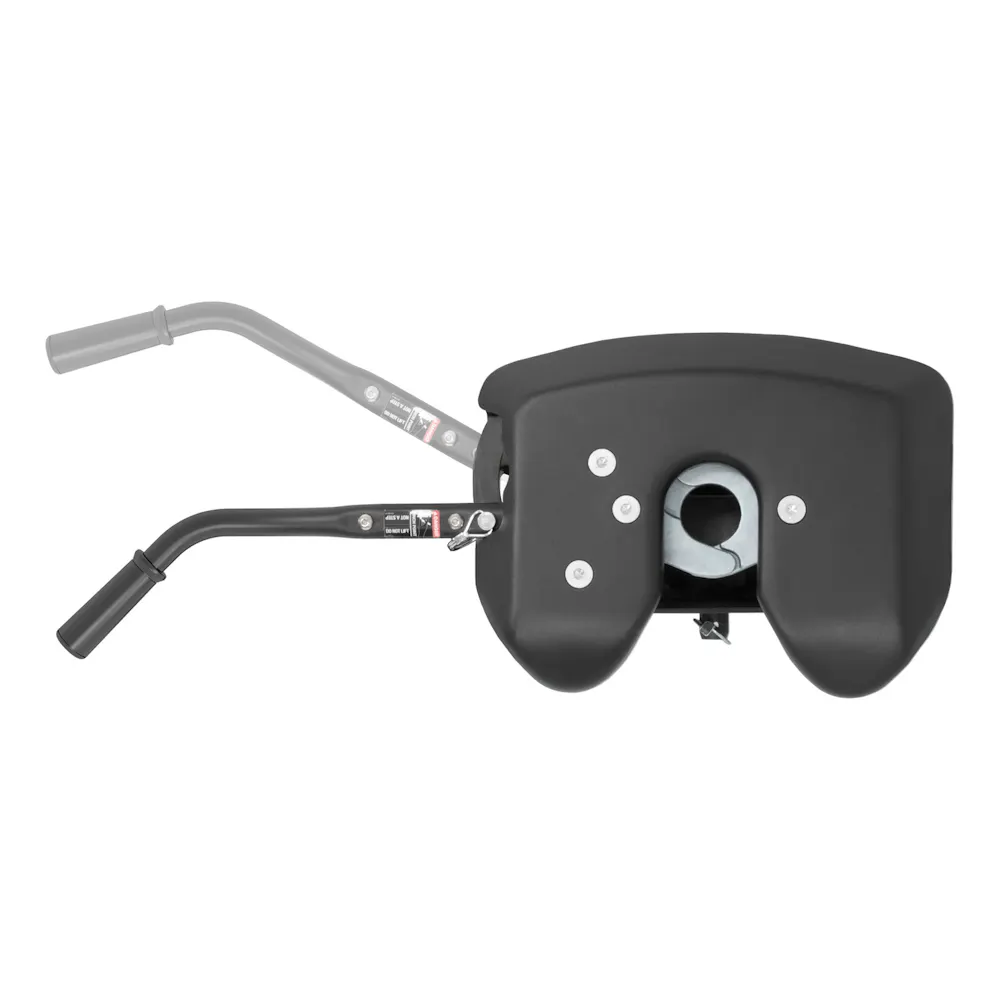

- Fast, one-pin head removal makes moving easy with smaller, lighter pieces
- Alignment pegs and easy-access bolts for simple leg-to-body attachment

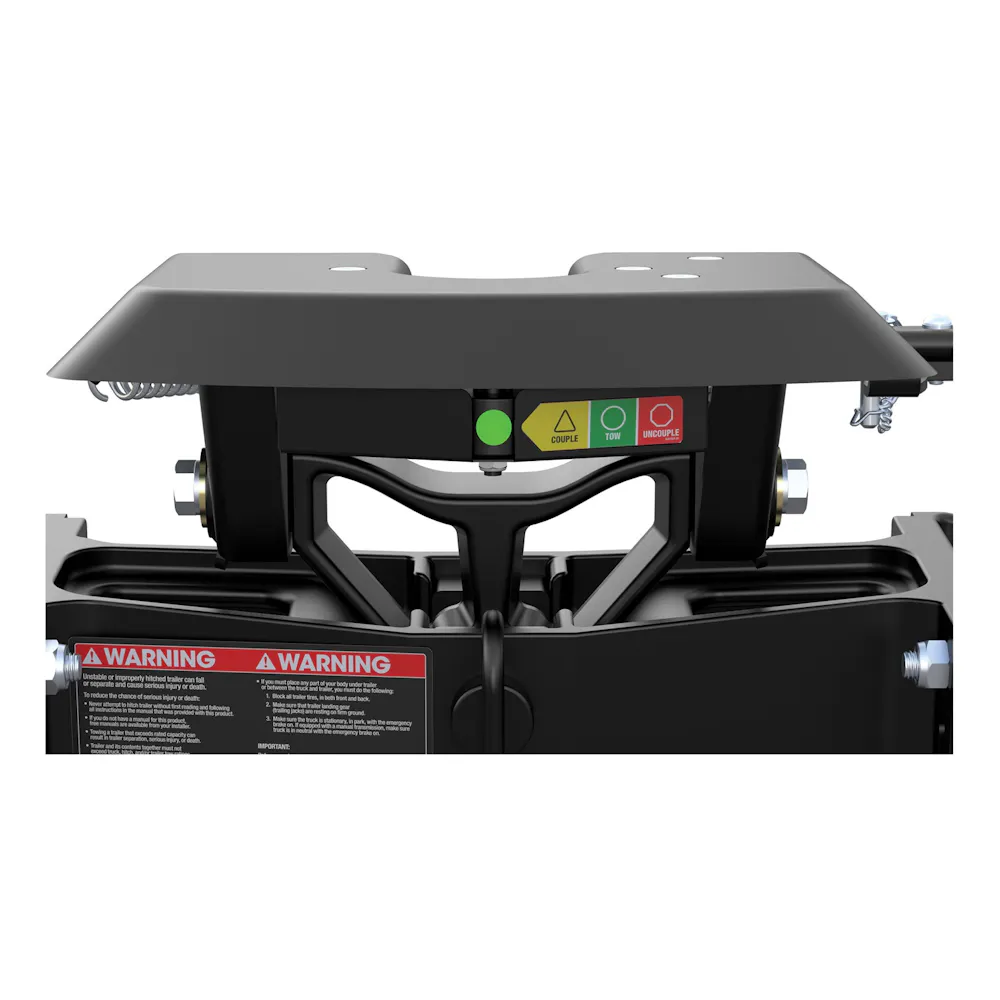

- Three-position coupling indicator clearly shows coupling status
- Offers three height adjustment positions to adapt to each unique truck bed
- Includes a polyethylene lube plate to eliminate messy grease deposits
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)

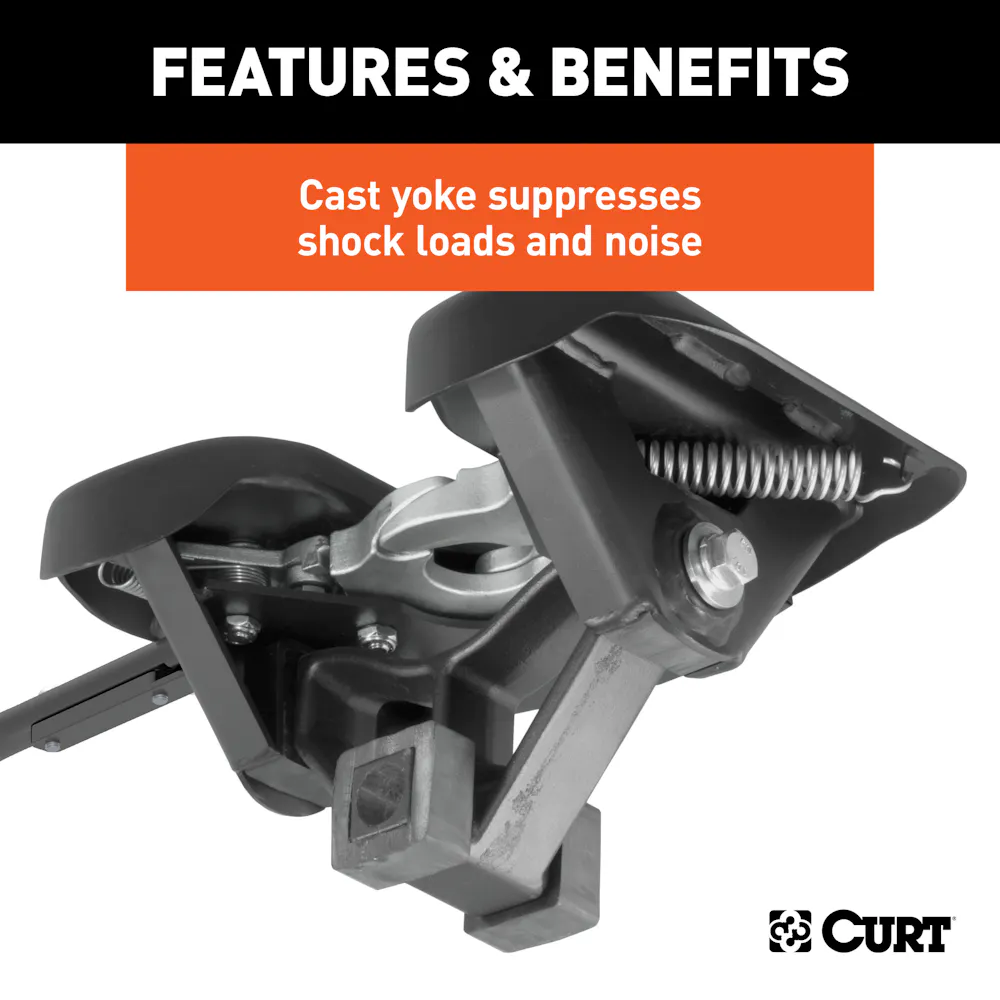

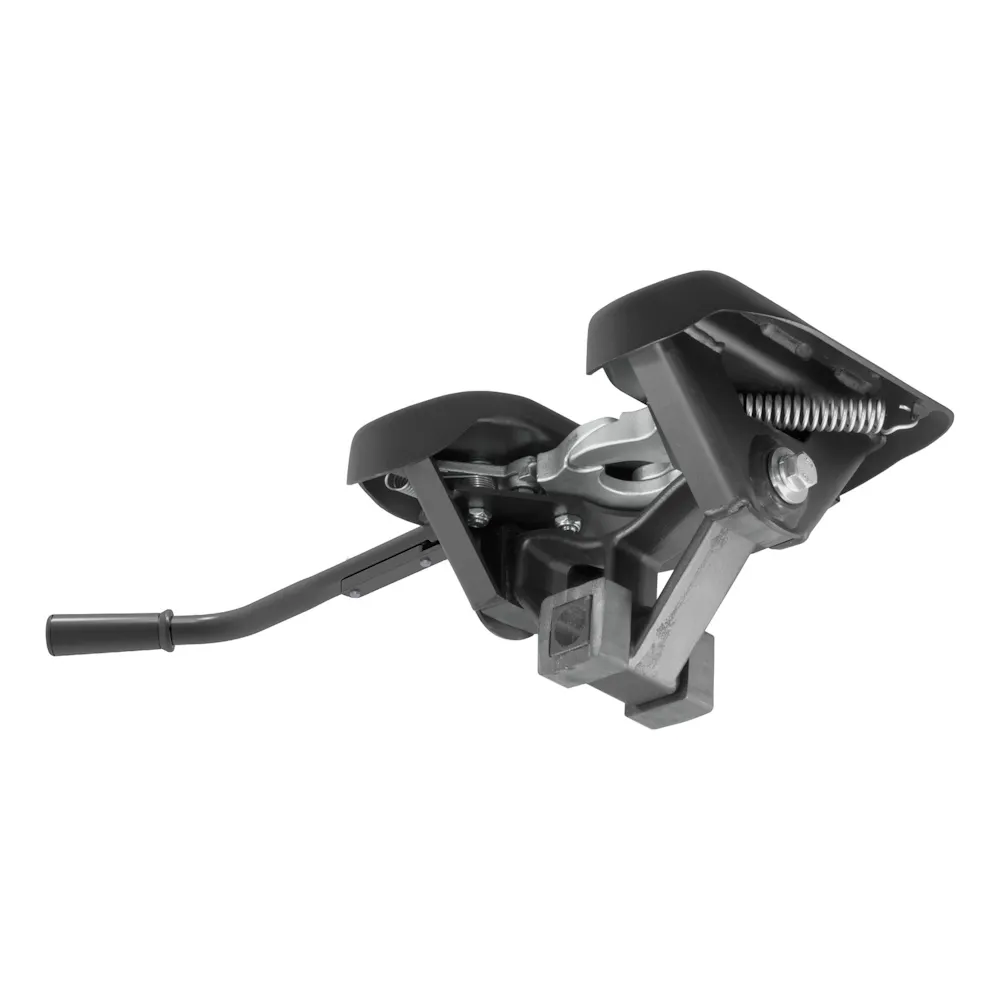

- Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise

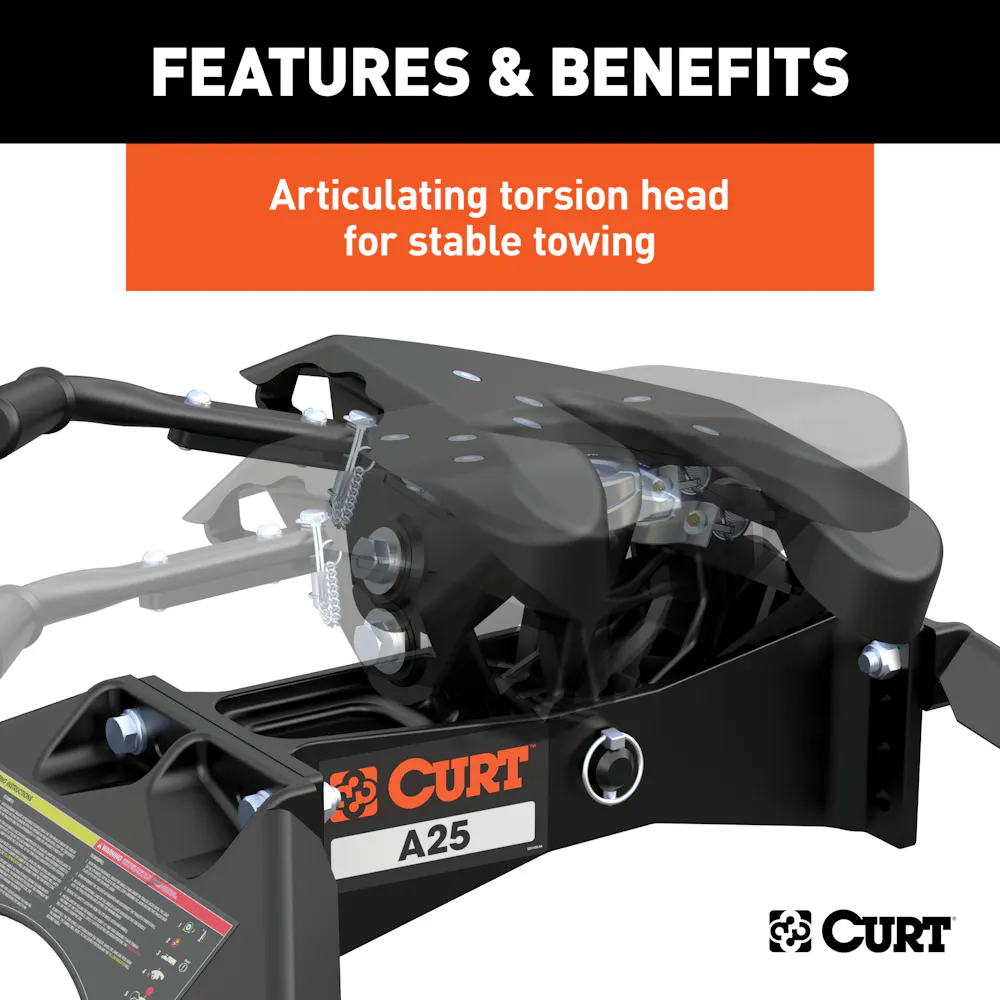

- Fully articulating torsion head for controlled coupling and stable towing
- Lockable handle self-resets to the ready-to-couple position after uncoupling
Information
Lockable handle self-resets to the ready-to-couple position after uncoupling
Application summary
| Year | Make / model |
|---|---|
| 1999-2016 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2001-2003 | Chevrolet Silverado 1500 HD |
| 2005-2006 | Chevrolet Silverado 1500 HD |
| 2007 | Chevrolet Silverado 1500 HD Classic |
| 1999-2004 | Chevrolet Silverado 2500 |
| 2001-2016 | Chevrolet Silverado 2500 HD |
| 2007 | Chevrolet Silverado 2500 HD Classic |
| 2001-2006 | Chevrolet Silverado 3500 |
| 2007 | Chevrolet Silverado 3500 Classic |
| 2007-2016 | Chevrolet Silverado 3500 HD |
| 2002-2010 | Dodge Ram 1500 |
| 2003-2010 | Dodge Ram 2500 |
| 2003-2010 | Dodge Ram 3500 |
| 1997-2014 | Ford F-150 |
| 2004 | Ford F-150 Heritage |
| 1997-1999 | Ford F-250 |
| 1997 | Ford F-250 HD |
| 1999-2016 | Ford F-250 Super Duty |
| 1999-2016 | Ford F-350 Super Duty |
| 1999-2014 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2001-2003 | GMC Sierra 1500 HD |
| 2005-2006 | GMC Sierra 1500 HD |
| 2007 | GMC Sierra 1500 HD Classic |
| 1999-2004 | GMC Sierra 2500 |
| 2001-2015 | GMC Sierra 2500 HD |
| 2007 | GMC Sierra 2500 HD Classic |
| 2001-2006 | GMC Sierra 3500 |
| 2007 | GMC Sierra 3500 Classic |
| 2007-2015 | GMC Sierra 3500 HD |
| 2004-2012 | Nissan TITAN |
| 2011-2016 | Ram 2500 |
| 2011-2016 | Ram 3500 |
| 2000-2014 | Toyota Tundra |
Specifications
- GTIN
- 00612314161812
- Weight
- 180 lb
- Height
- 4.25 in
- Length
- 48 in
- Width
- 16.75 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Class ID
- 0
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Finish
- CARBIDE BLACK POWDER COAT
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Gross Trailer Weight
- 25000 lbs.
- Gross Trailer Weight (GTW)
- 25,000 LB
- Gross Trailer Weight (lbs.)
- 25000
- Gross Trailer Weight(GTW)
- 25,000 LB

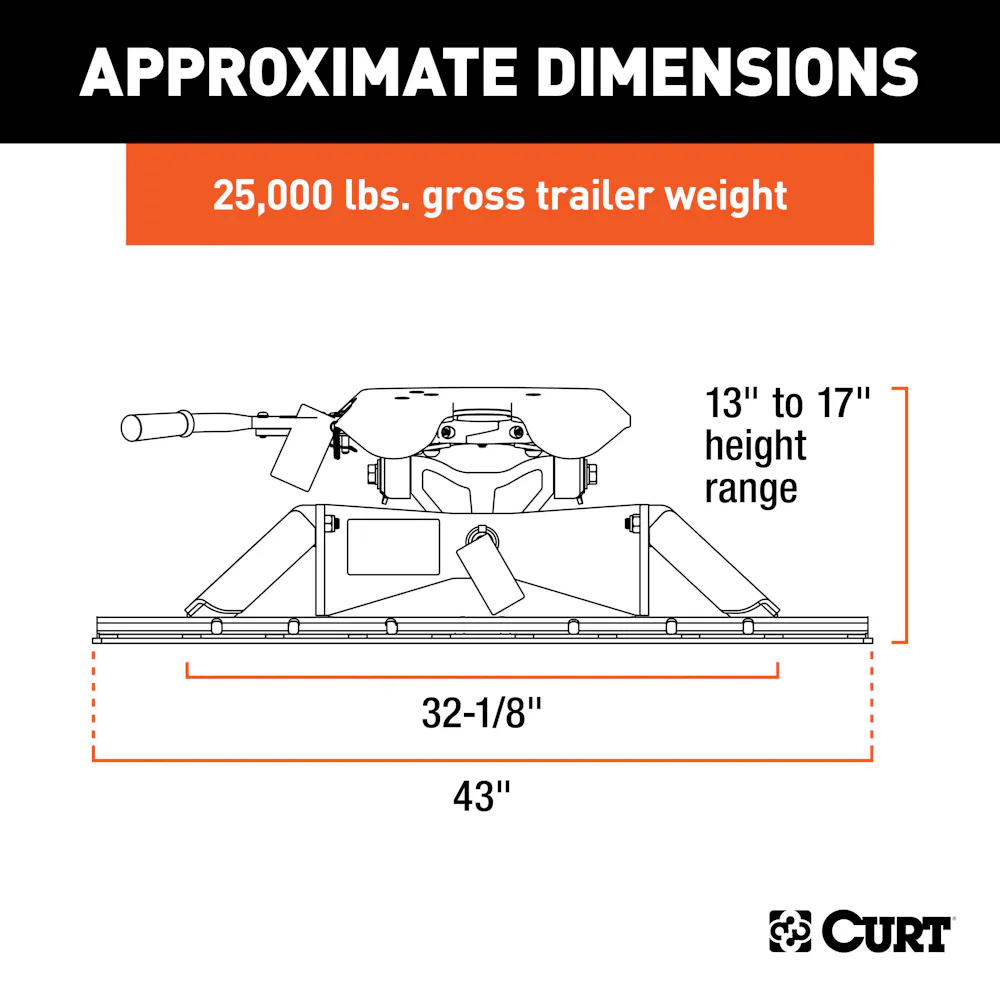

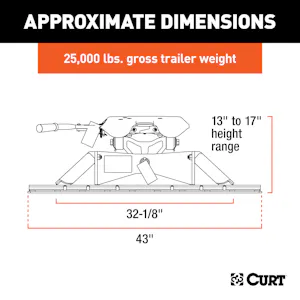

- Installation Height
- 13 - 17
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material - XA
- Blank
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- No
- Product Weight - XA
- 0.000
- Rate Class - XA
- 125.0
- Retail Height - XA
- 4.250
- Retail Length - XA
- 48.000
- Retail Width - XA
- 16.750
- Sales Family Code - XA
- FIFTH
- Sales Family Description - XA
- FIFTH WHEEL
- Sales Group Description - XA
- 25K FIFTH WHEEL
- Shipping Weight - XA
- 180.000
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- Yes
- Title
- A25 5th Wheel Hitch with Rails
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Vertical Load
- 6250
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
1999-2016 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2001-2003 Chevrolet Silverado 1500 HD; 2005-2006 Chevrolet Silverado 1500 HD; 2007 Chevrolet Silverado 1500 HD Classic; 1999-2004 Chevrolet Silverado 2500; 2001-2016 Chevrolet Silverado 2500 HD; 2007 Chevrolet Silverado 2500 HD Classic; 2001-2006 Chevrolet Silverado 3500; 2007 Chevrolet Silverado 3500 Classic; 2007-2016 Chevrolet Silverado 3500 HD; 2002-2010 Dodge Ram 1500; 2003-2010 Dodge Ram 2500; 2003-2010 Dodge Ram 3500; 1997-2014 Ford F-150; 2004 Ford F-150 Heritage; 1997-1999 Ford F-250; 1997 Ford F-250 HD; 1999-2016 Ford F-250 Super Duty; 1999-2016 Ford F-350 Super Duty; 1999-2014 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2001-2003 GMC Sierra 1500 HD; 2005-2006 GMC Sierra 1500 HD; 2007 GMC Sierra 1500 HD Classic; 1999-2004 GMC Sierra 2500; 2001-2015 GMC Sierra 2500 HD; 2007 GMC Sierra 2500 HD Classic; 2001-2006 GMC Sierra 3500; 2007 GMC Sierra 3500 Classic; 2007-2015 GMC Sierra 3500 HD; 2004-2012 Nissan TITAN; 2011-2016 Ram 2500; 2011-2016 Ram 3500; 2000-2014 Toyota Tundra
