CURT · 16141

Part #: 16141
UPC: 612314161416

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: CURT Series: 5th Wheel Hitches

Log in to order

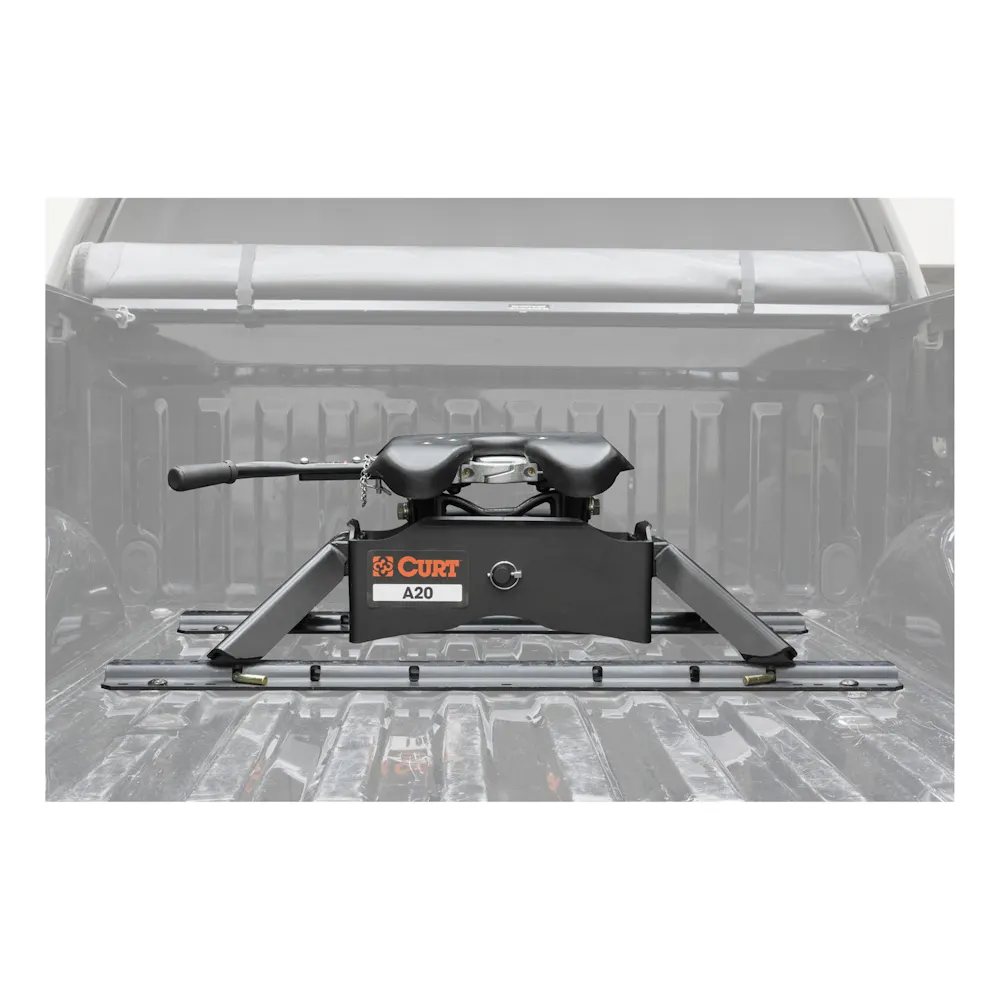

Description: A20 5th Wheel Hitch with Rails; CURT 16141 A20 5th Wheel Hitch with Base Rails, 20,000 lbs

Proposition 65 Warning

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

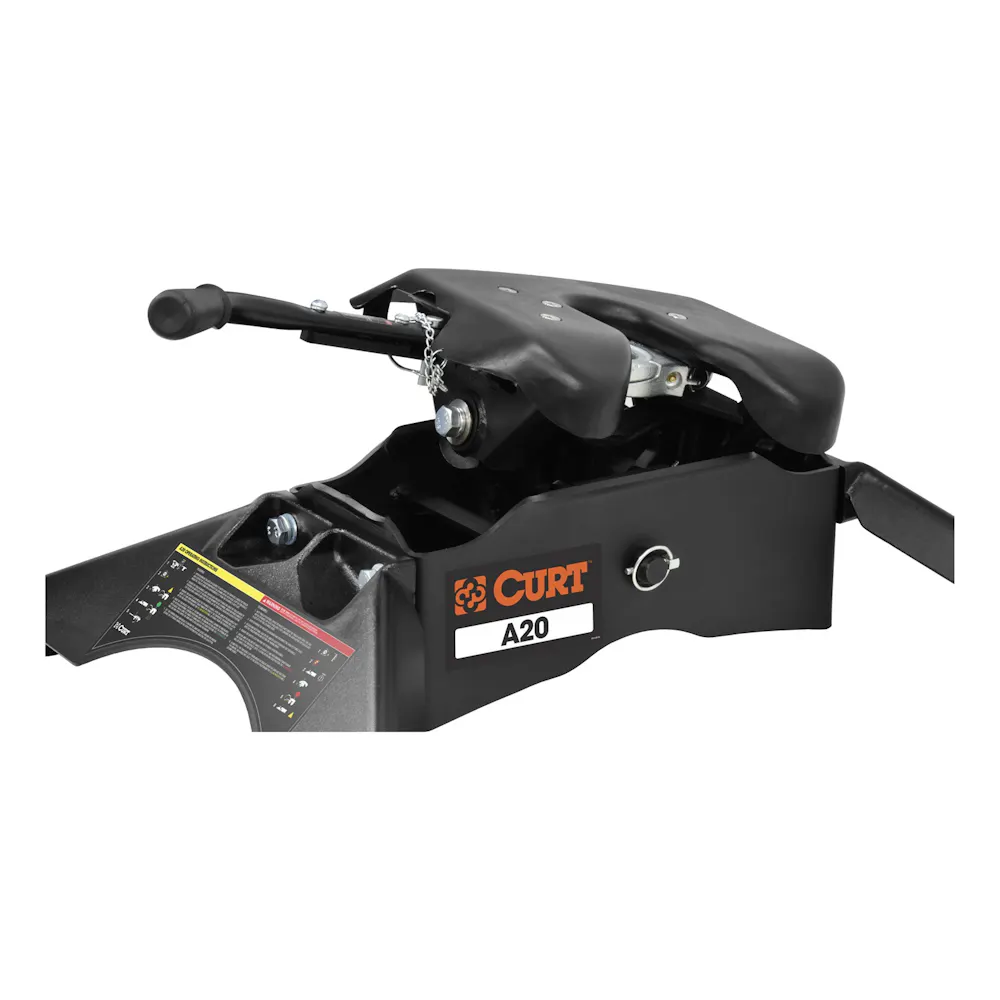

The CURT A20 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 20K 5th wheel hitch. Like our A16 hitch, this 20K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A20 5th wheel hitch is also engineered for easier installation. The legs are equipped with two pins to properly align with the mounting holes, and they have easy-access mounting bolts for ergonomic tightening. The 5th wheel head also has a fast, one-pin removal system to make installation and removal from the truck bed easier. This 20K 5th wheel includes a set of industry-standard 5th wheel rails to mount onto custom 5th wheel brackets (brackets sold separately). Once installed, the A20 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A20 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a black carbide powder coat finish and a limited lifetime warranty. We also test the A20 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.

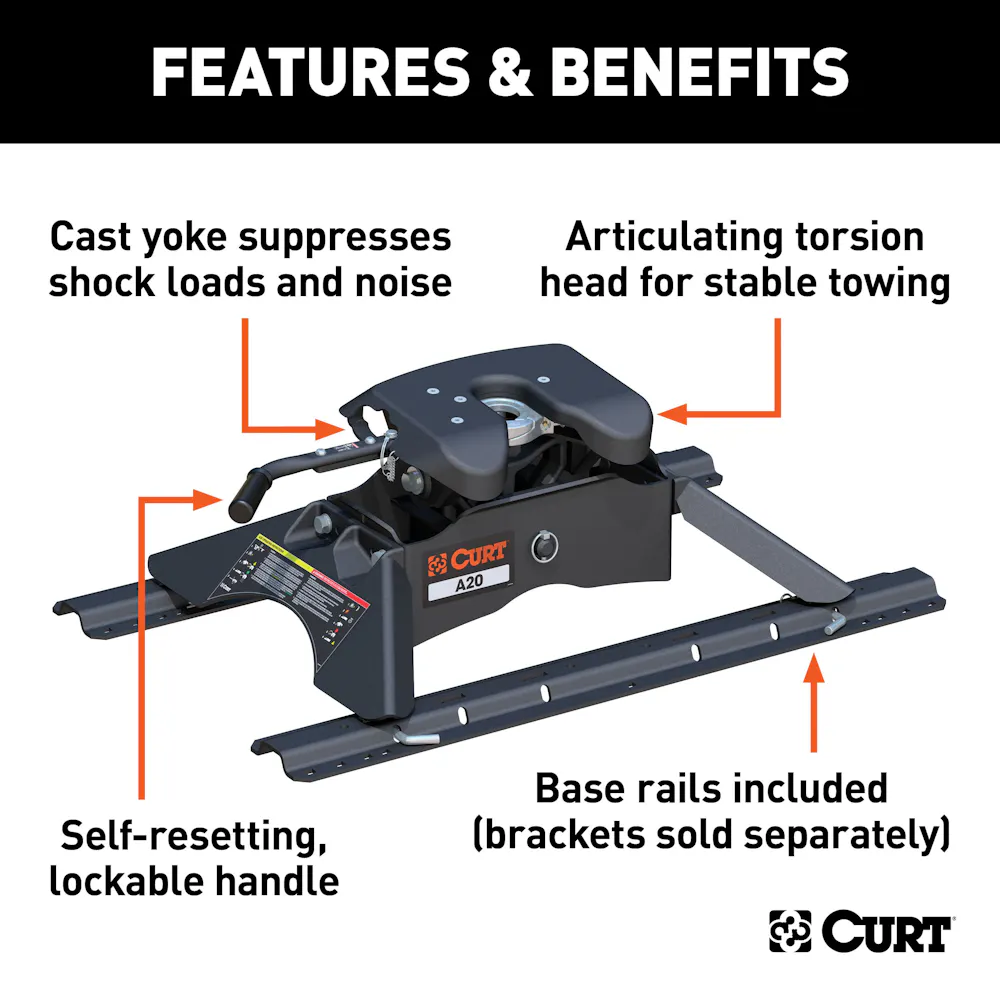

Features & benefits

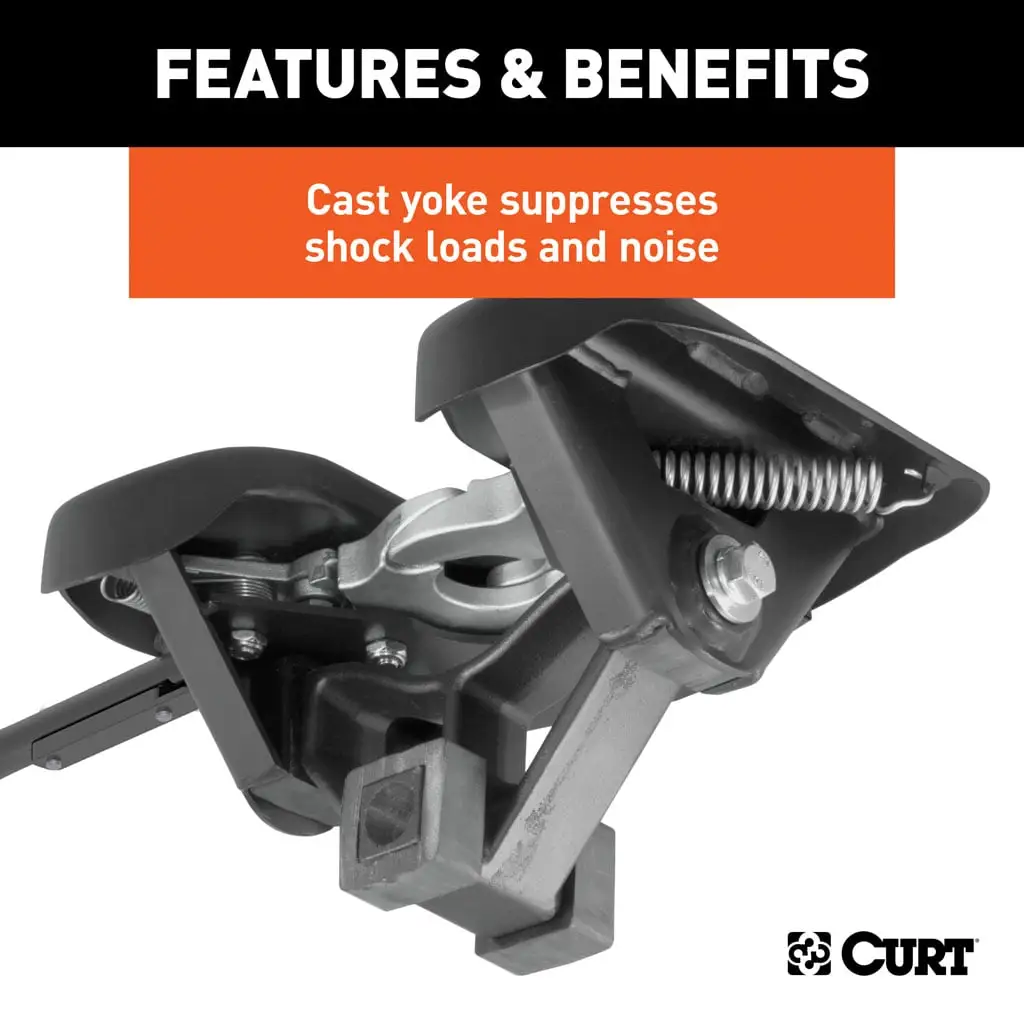

Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
Extra wide head opening for easier coupling

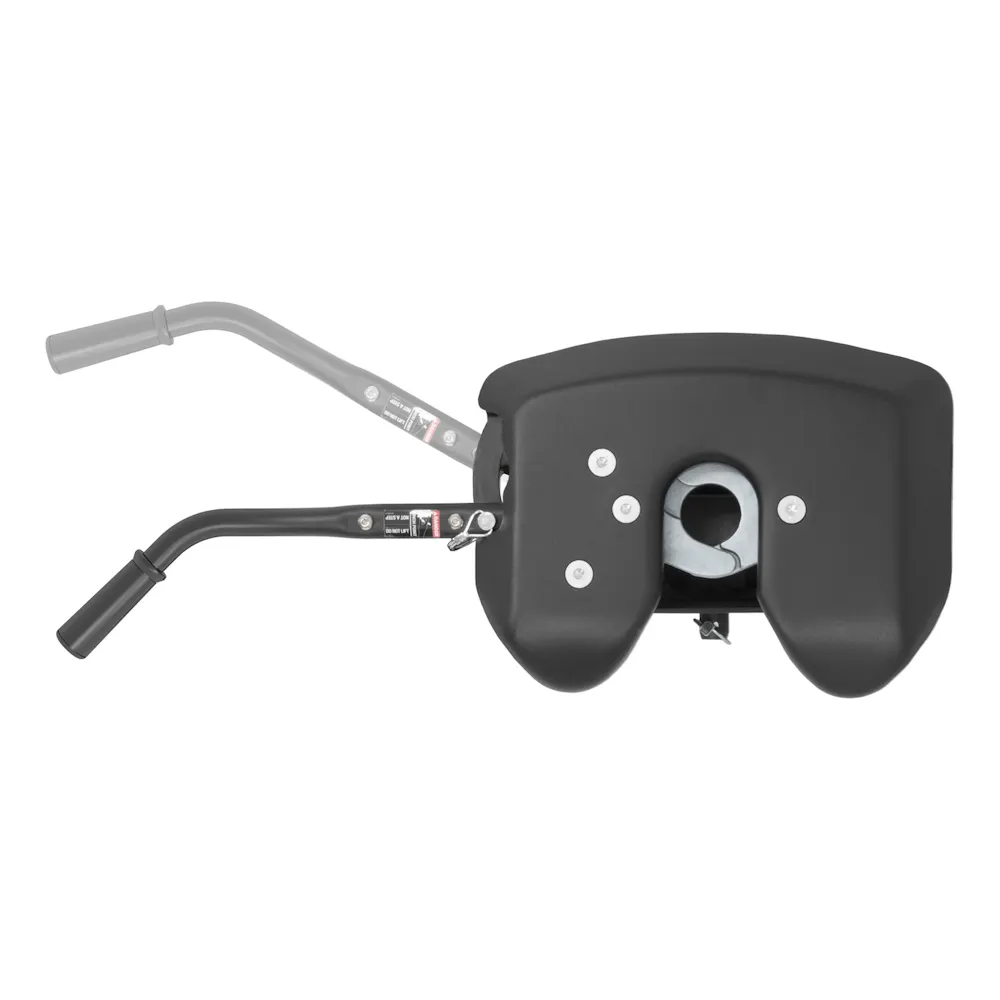

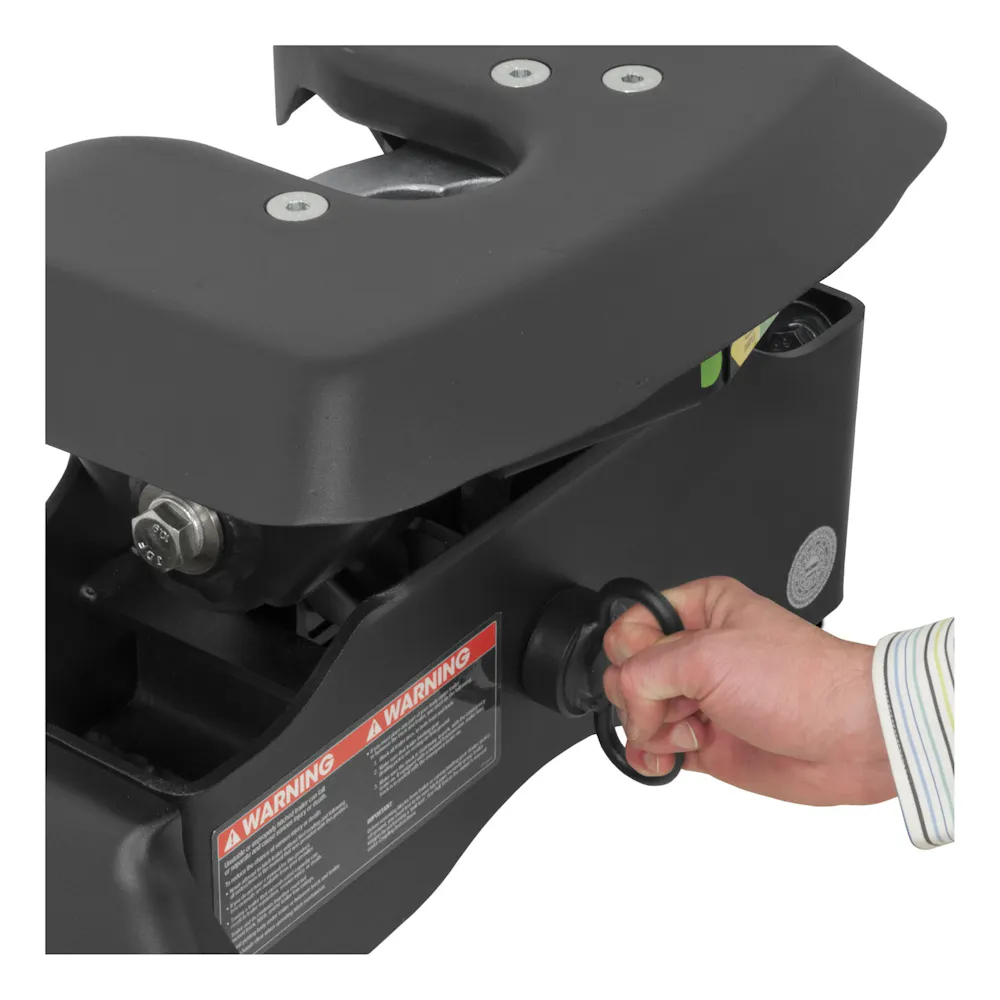

Fast, one-pin head removal makes moving easy with smaller, lighter pieces

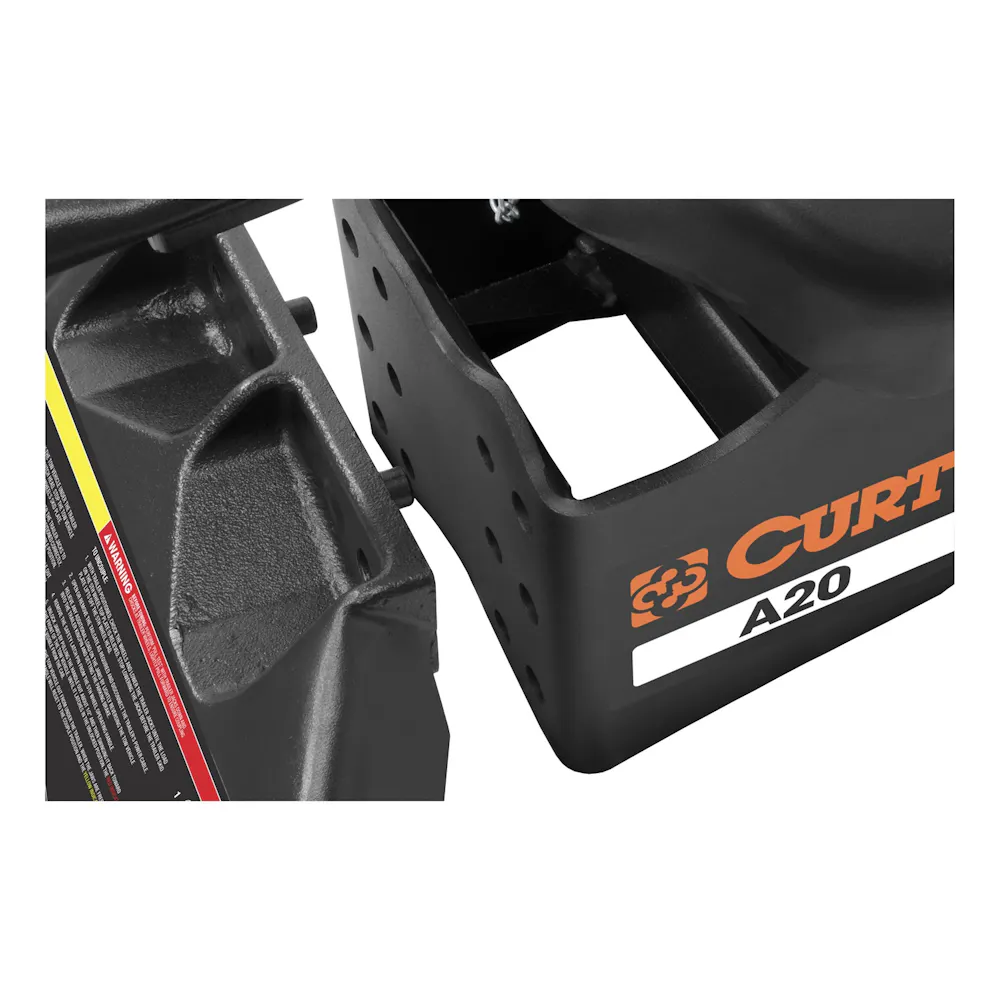

Alignment pegs and easy-access bolts for simple leg-to-body attachment

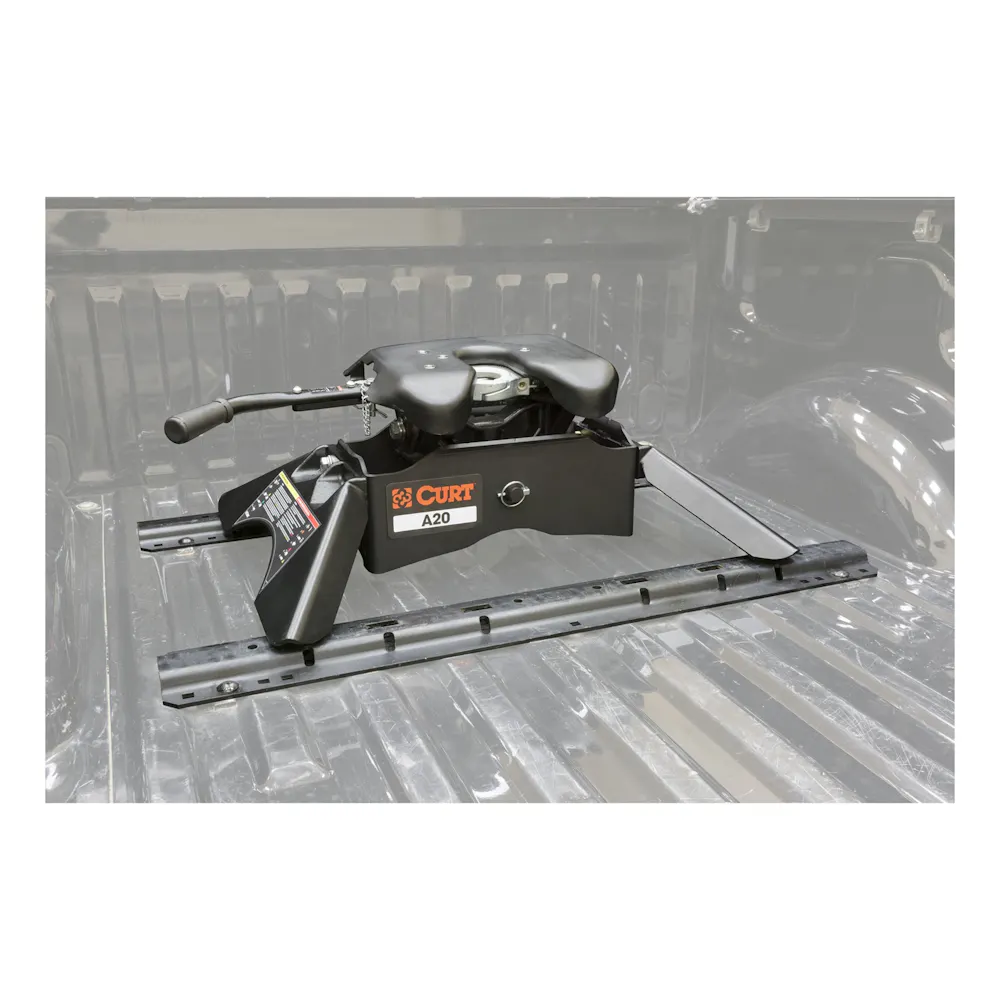

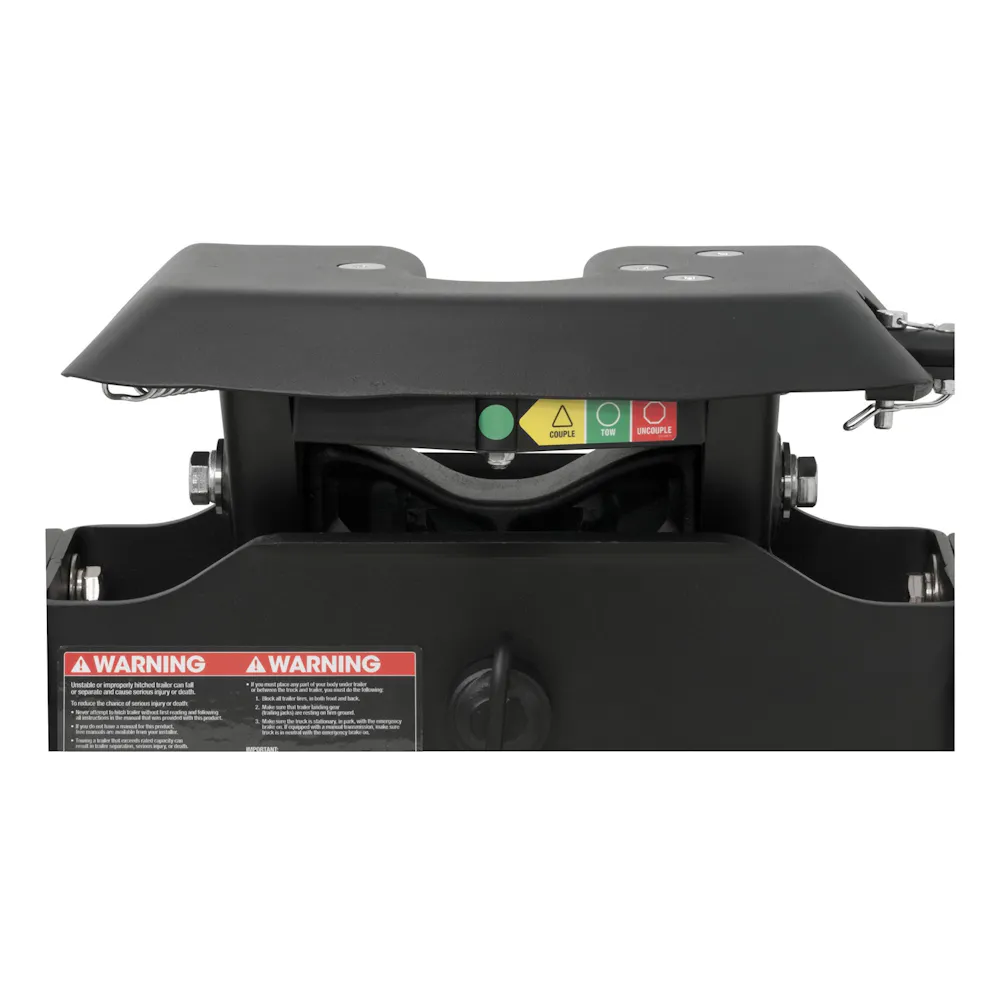

Three-position coupling indicator clearly shows coupling status
Compatible with kingpin extension boxes, including common pivoting pin boxes
Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)

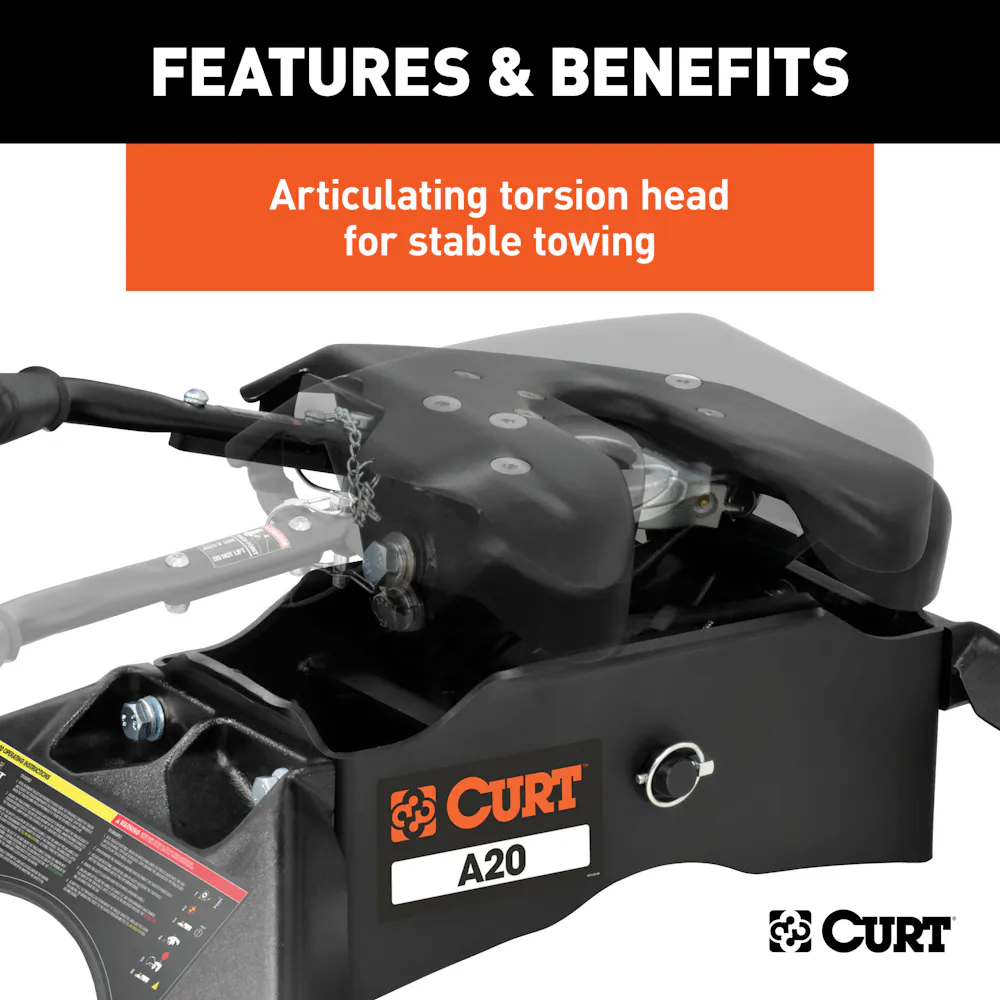

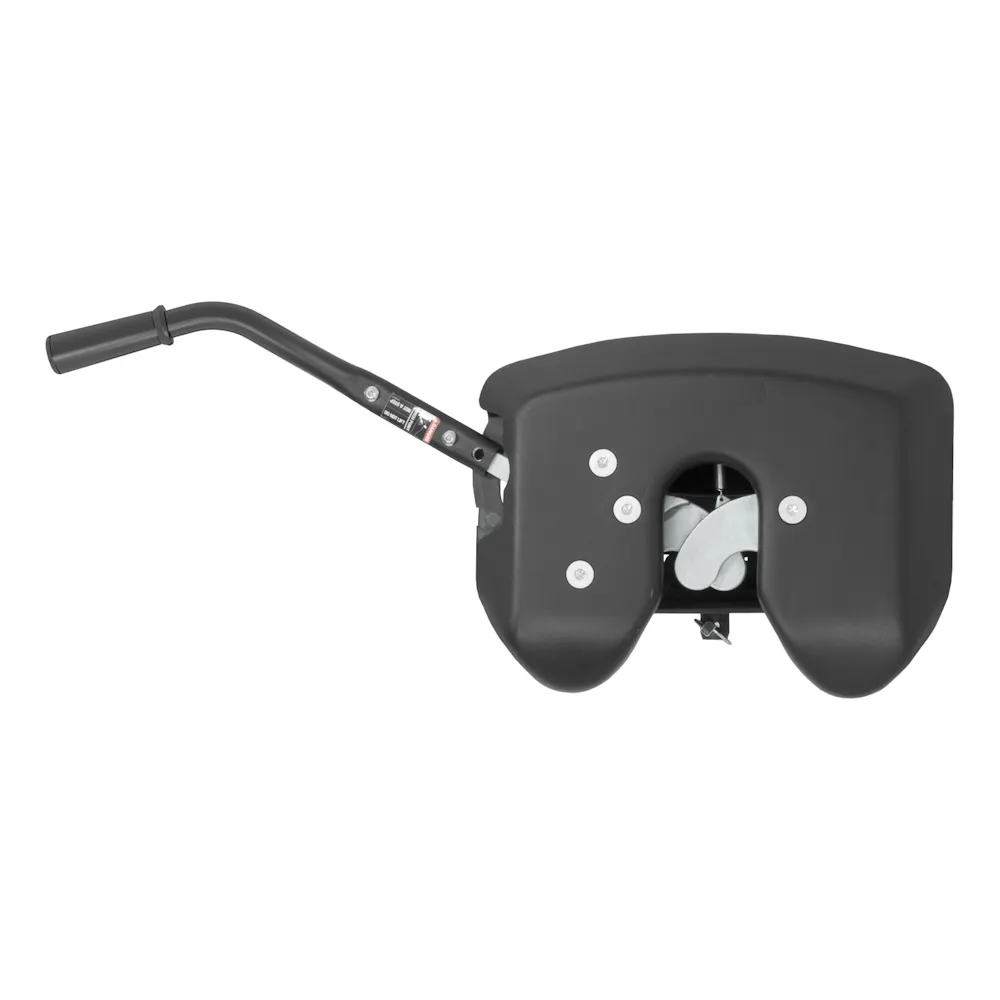

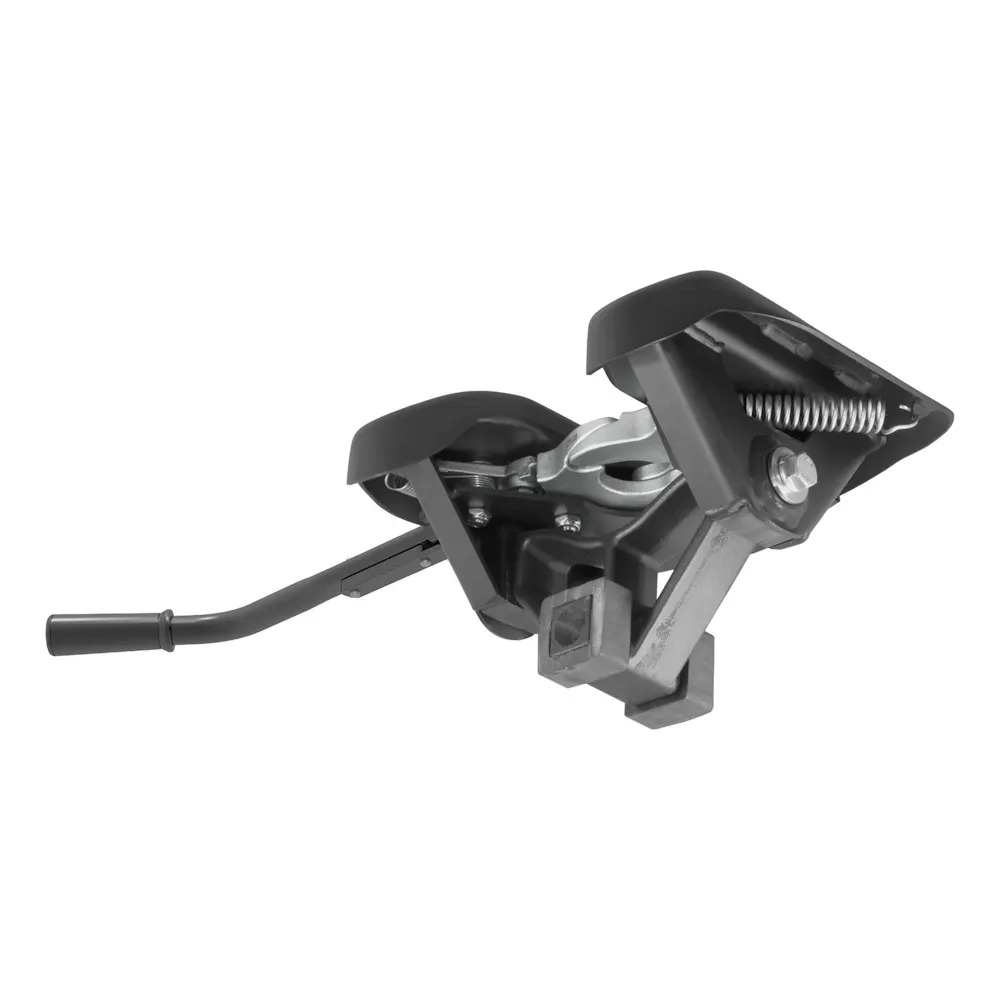

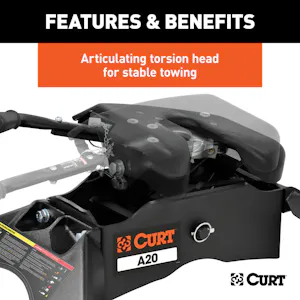

Fully articulating torsion head for controlled coupling and stable towing
Lockable handle self-resets to the ready-to-couple position after uncoupling

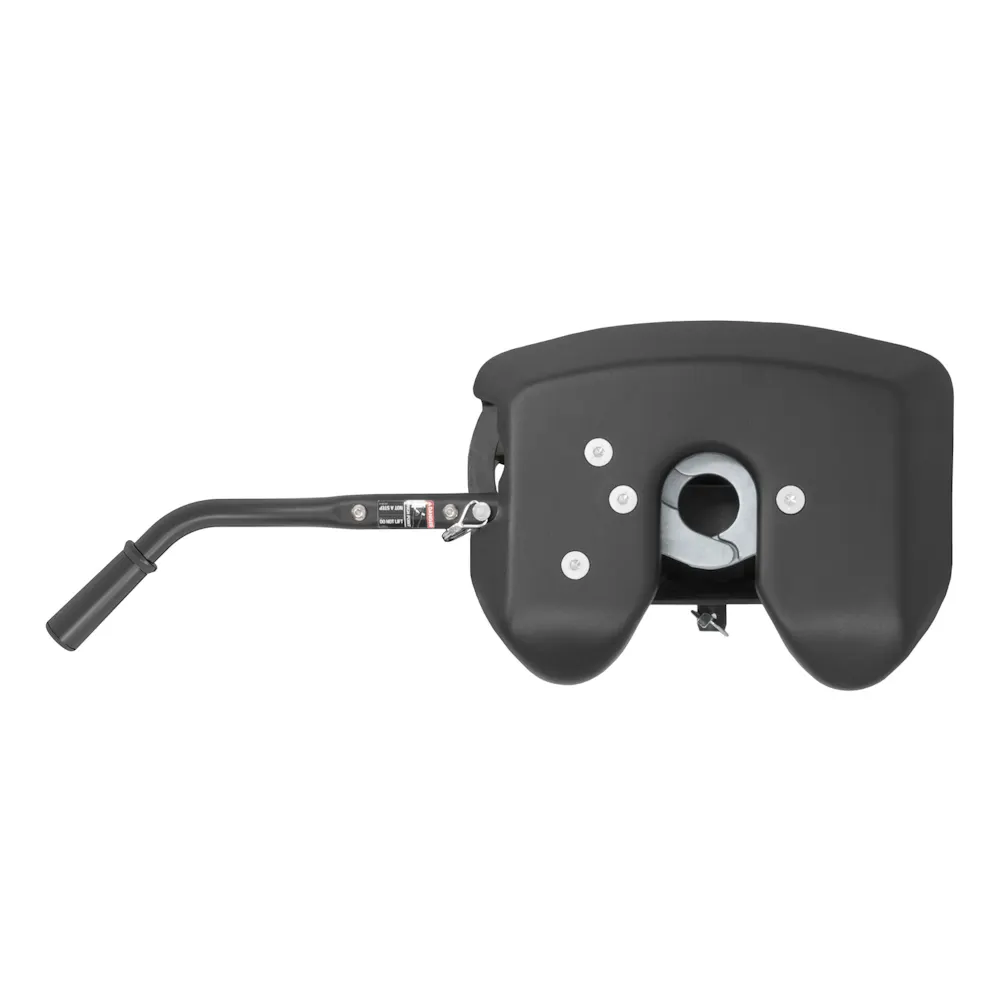

High-strength, interlocking jaws fully wrap the kingpin to minimize noise

Information

High-strength, interlocking jaws fully wrap the kingpin to minimize noise

Application summary

Year	Make / model
6141	A20 5th Wheel Hitch with Base Rails, 20,000 lbs

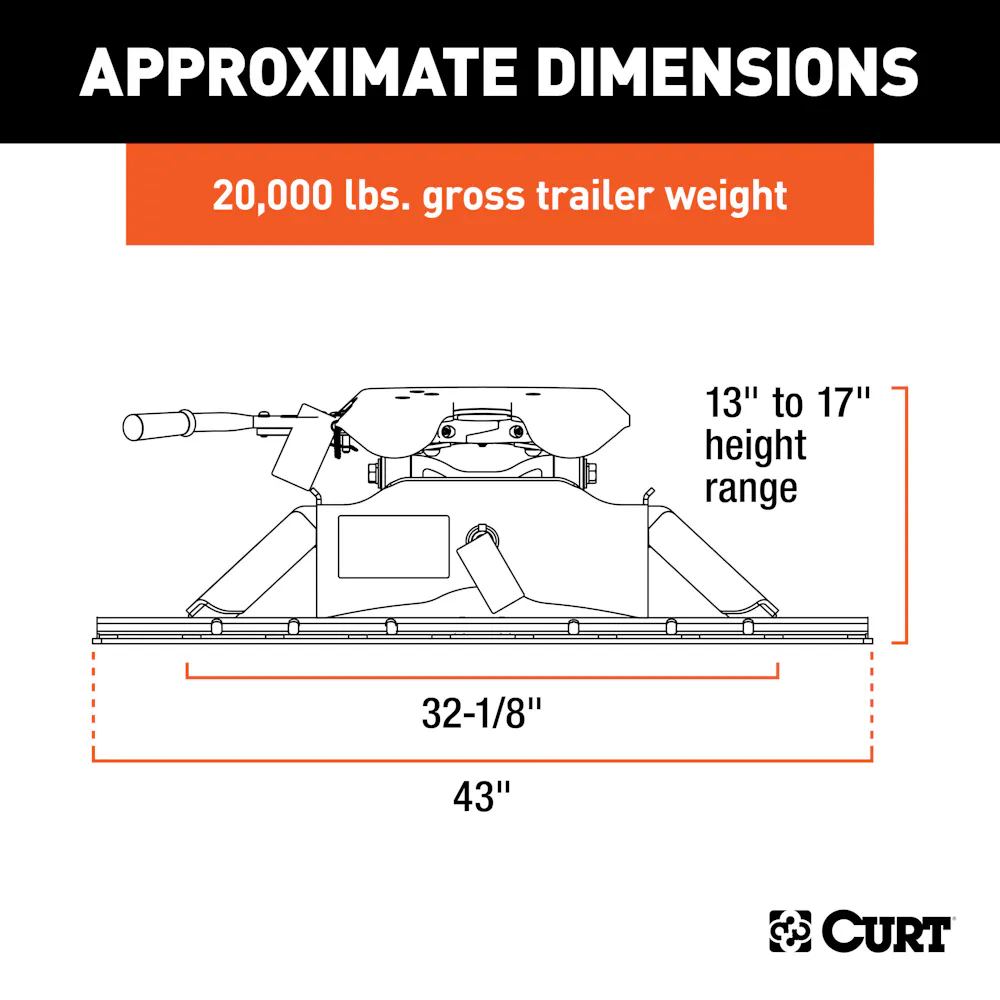

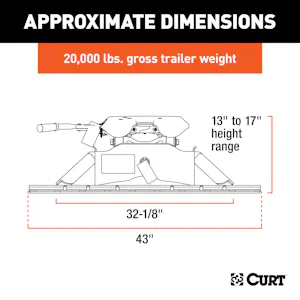

Specifications

GTIN: 00612314161416
Weight: 187 lb
Height: 15 in
Length: 48 in
Width: 17 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

AAM Long Description: Kit, 16140 & 16200
Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
California Proposition 65: Yes
Capacity: 20000 lbs.
Capacity (lbs.): 20000
Class ID: 0
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Finish: CARBIDE BLACK POWDER COAT
Finish - XA: CARBIDE BLACK POWDER COAT
Gross Trailer Weight: 20000 lbs.
Gross Trailer Weight (GTW): 20,000 LB
Gross Trailer Weight (lbs.): 20000
Item Class - XA: OBS
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 0.000
Master Case ITF14: 0
Master Case ITF14 - XA: 0
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 0.000
Master Case Qty - XA: 0
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 0.000
Master Case Width Inches - XA: 0.000
Material - XA: Blank
Mount Type Description - XA: Blank
Pallet Case Per - XA: 0
Pallet Case Per Layer - XA: 0
Pallet Cases Per - XA: 0
Pallet Cases Per Layer - XA: 0
Pallet Layer of Cases - XA: 0
Pallet Qty - XA: 0.000
Pallet Total Height Inches - XA: 0.000
Pallet Total Weight Per - XA: 0.000
Parcel Allowed - XA: No
Product Weight - XA: 187.000
Rate Class - XA: 125.0
Retail Height - XA: 15.000
Retail Length - XA: 48.000
Retail Width - XA: 17.000
Sales Family Code - XA: FIFTH
Sales Family Description - XA: FIFTH WHEEL
Sales Group Description - XA: 20K FIFTH WHEEL
Shipping Weight - XA: 187.000
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Title: A20 5th Wheel Hitch with Rails
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Vertical Load: 5000
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 16141 A20 5th Wheel Hitch with Base Rails, 20,000 lbs
