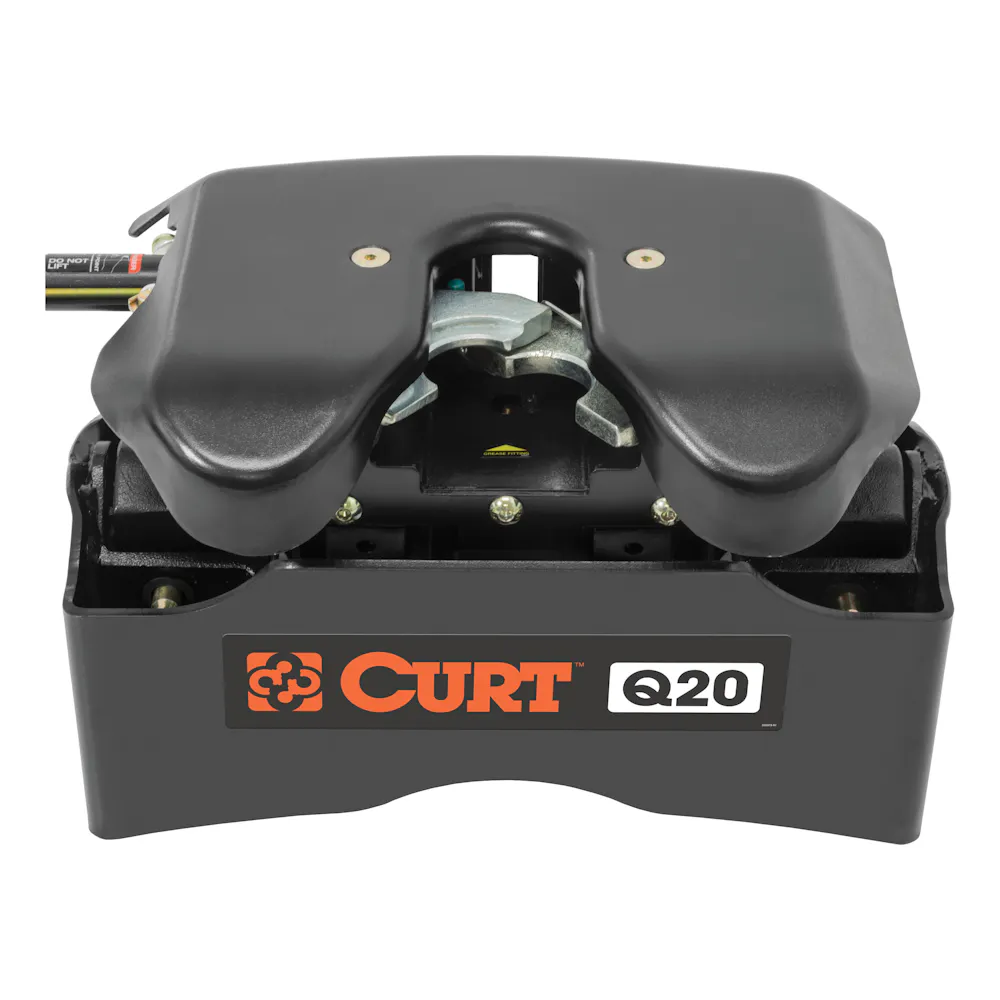

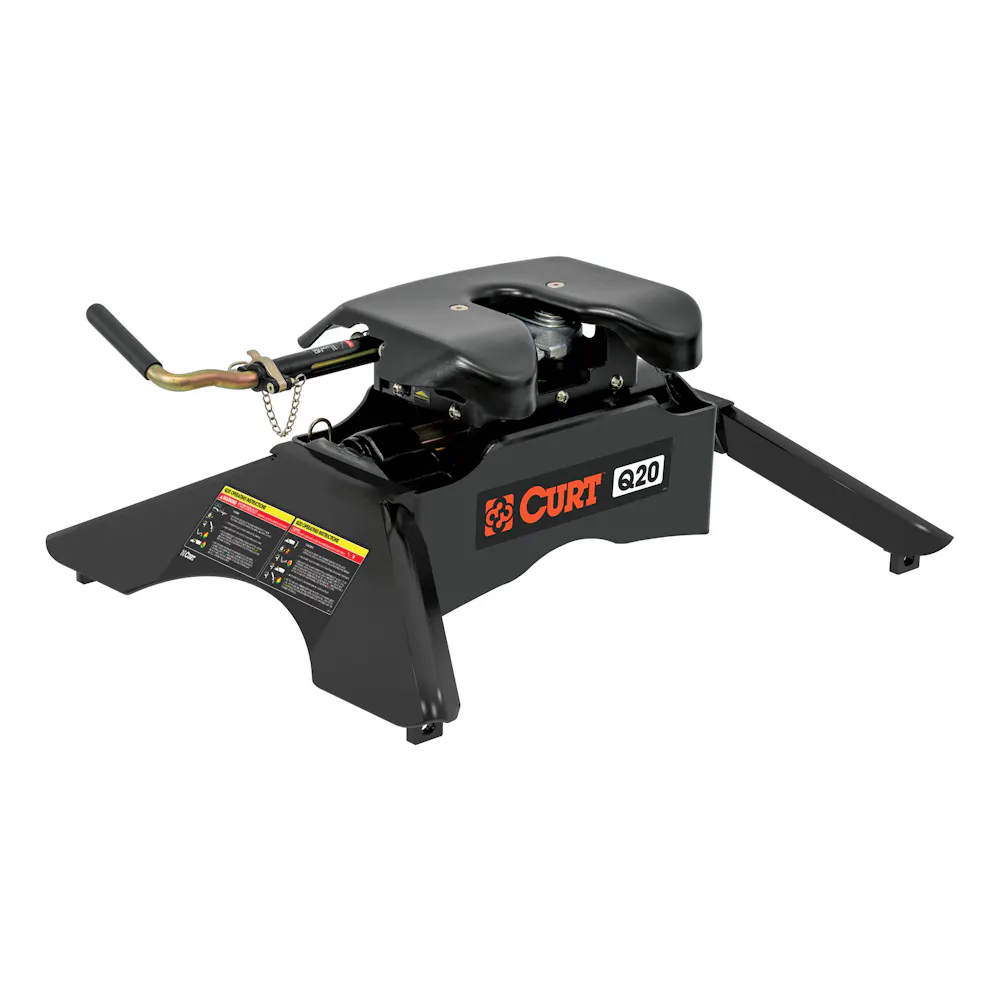

Description: CURT 16130 Q20 5th Wheel Hitch, 20,000 lbs
Description:
Description

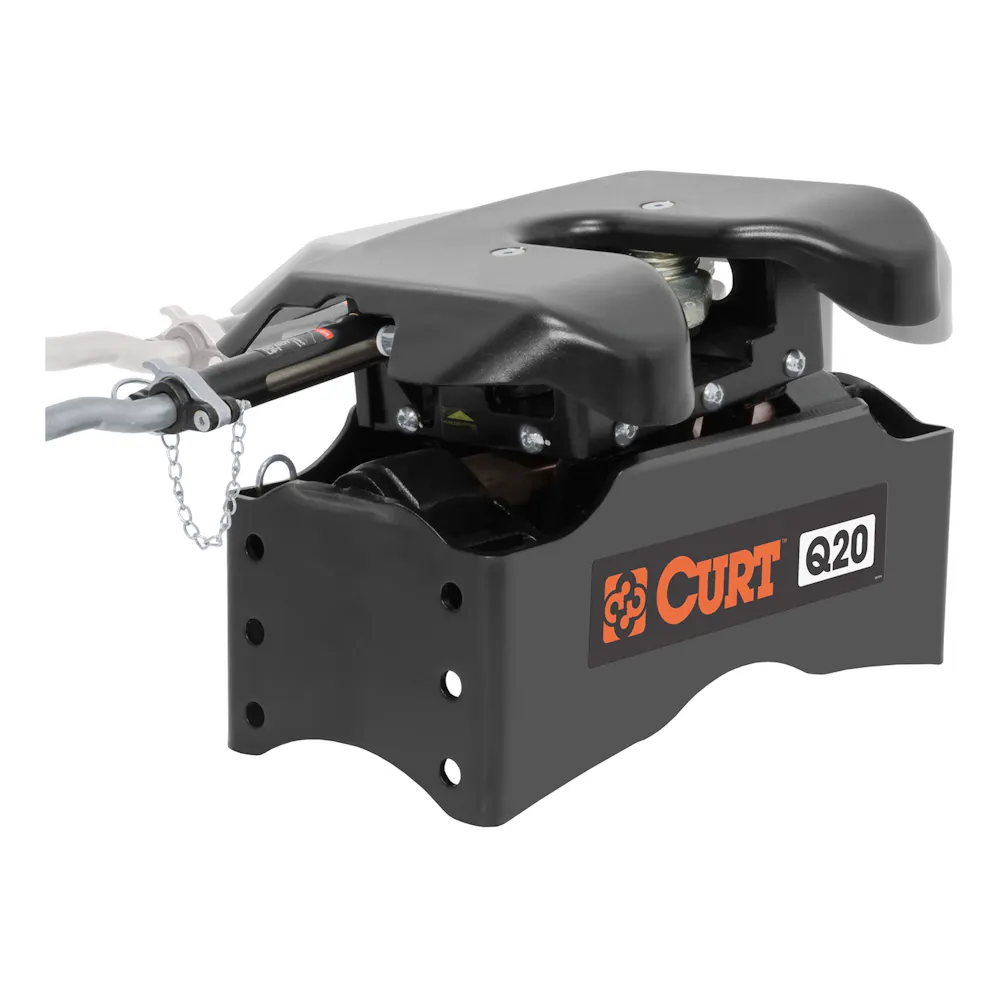

Like the other 5th wheel hitches of the CURT Q-Series, the CURT Q20 is a specialist in its class. It features a gross trailer weight capacity of 20,000 lbs. and can accept a vertical load limit of 5,000 lbs., giving it the capability to tow most large recreational vehicles, campers and many other 5th wheel trailers. Also like the Q24, the Q20 5th wheel has a superior hitch head, pivoting on a spherical axial bearing. This ensures smooth, quiet towing and allows unimpeded head movement and a wide turning radius for your trailer. The self-aligning head and dual-locking jaws make coupling easier, and with the three-position coupling mechanism, indicating when it safe to couple and when it is safe to tow, you can be out of the driveway and on your way quicker than ever. The Q20 comes with a durable carbide powder coat finish to give this hitch the best possible defense against corrosion, scratching, UV damage and whatever else you throw its way. It is tested in accordance with SAE J2638 for safety and is also backed by a limited lifetime warranty to give you peace of mind. This 20K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately). Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. Please contact CURT Product Support for compatibility information.

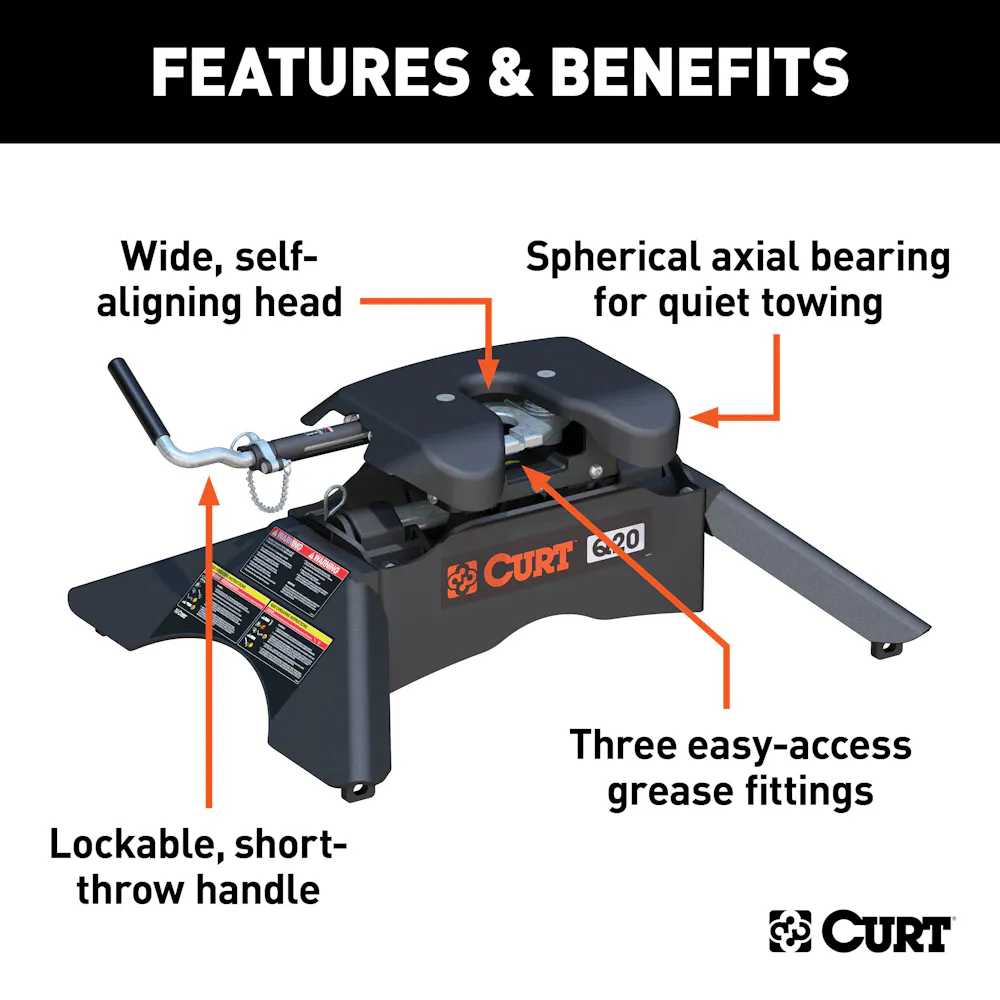

Features & benefits
- Spherical axial bearing tilts head in any direction for a smooth, quiet ride

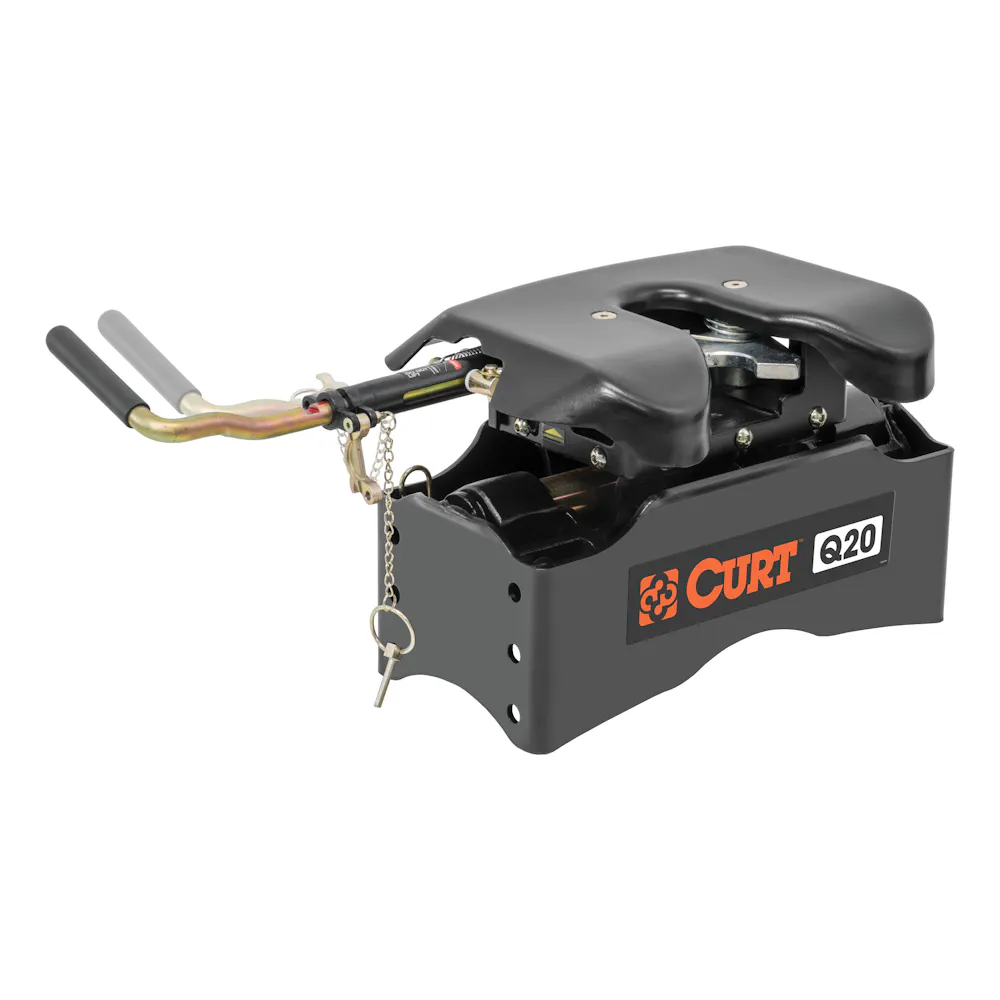

- Lockable, short-throw handle automatically engages with the kingpin

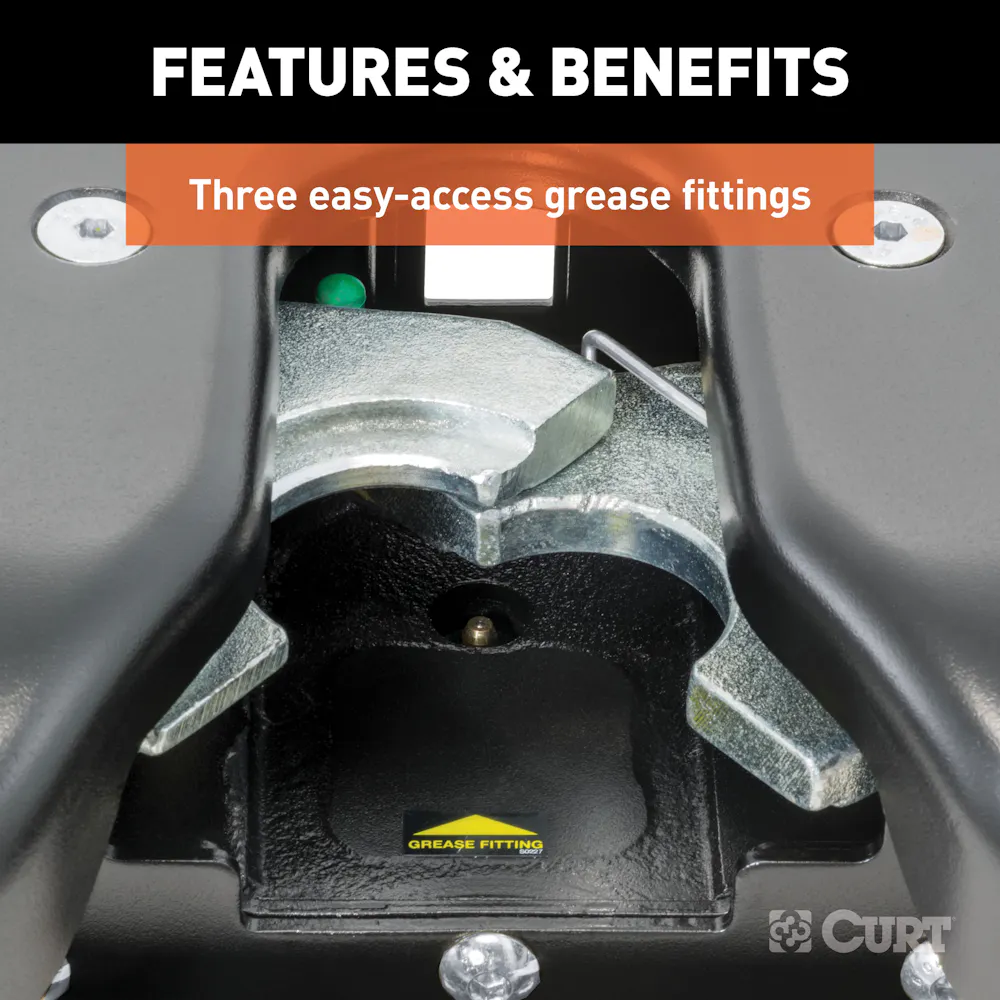

- Three easy-access grease fittings for lubrication

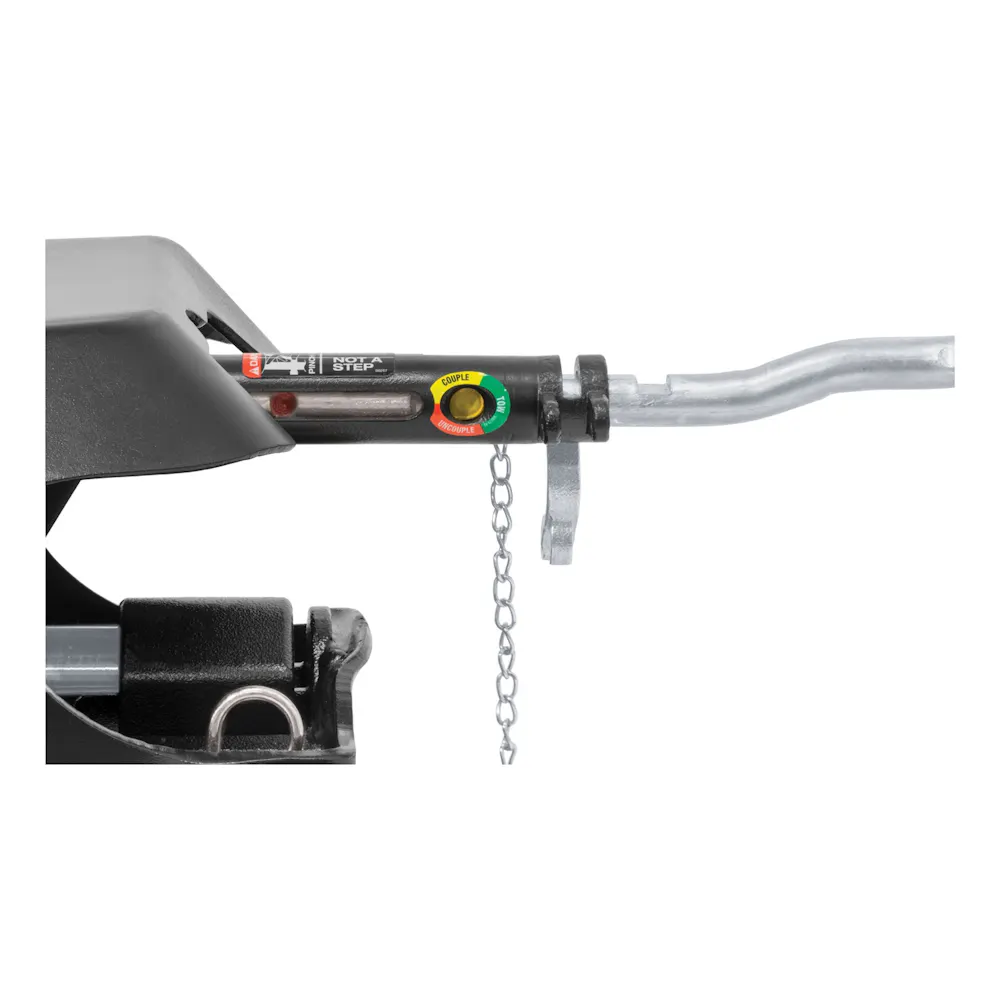

- Three-position coupling indicator clearly shows coupling status

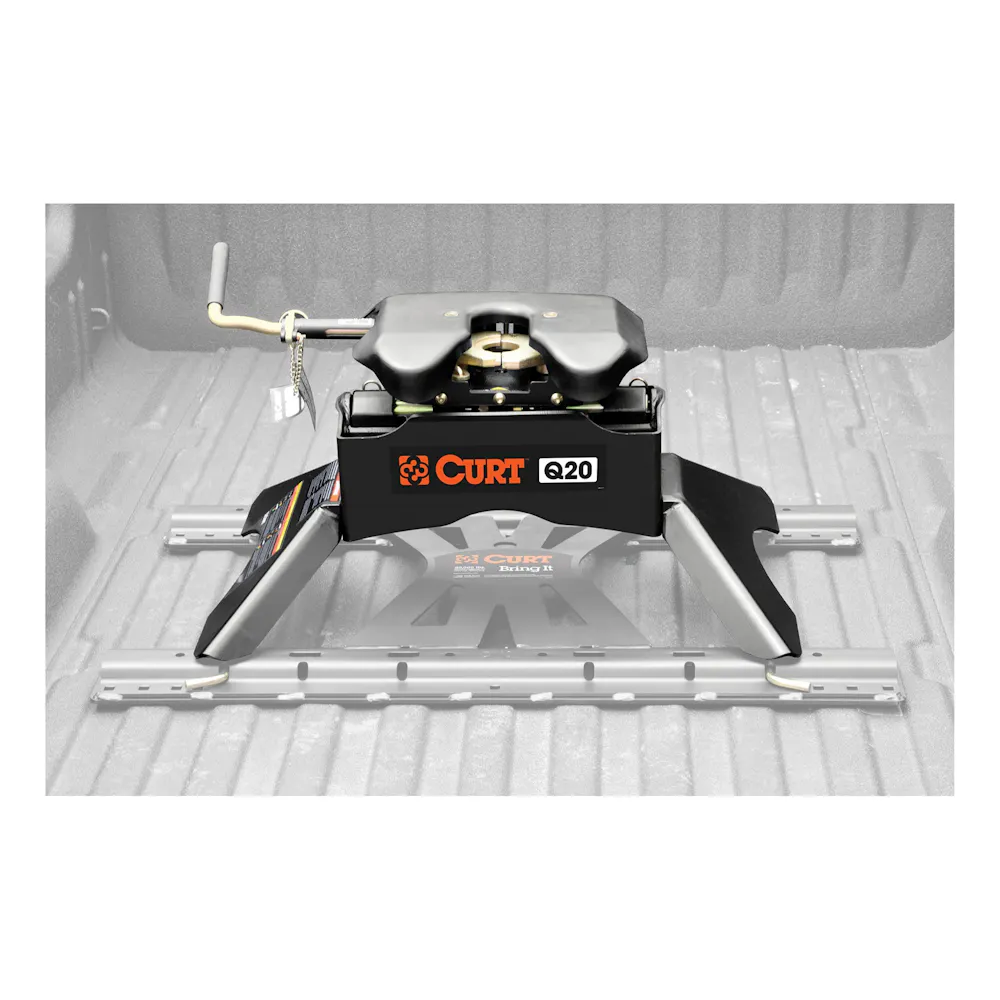

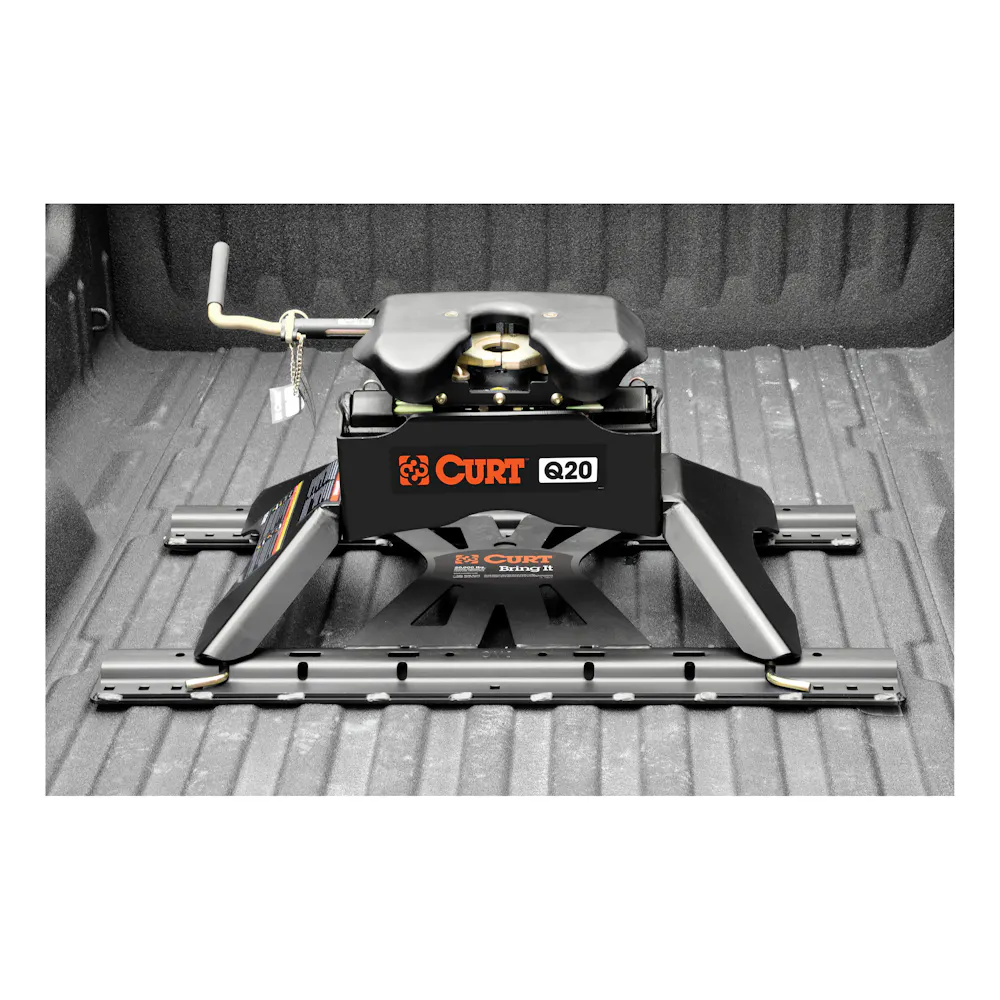

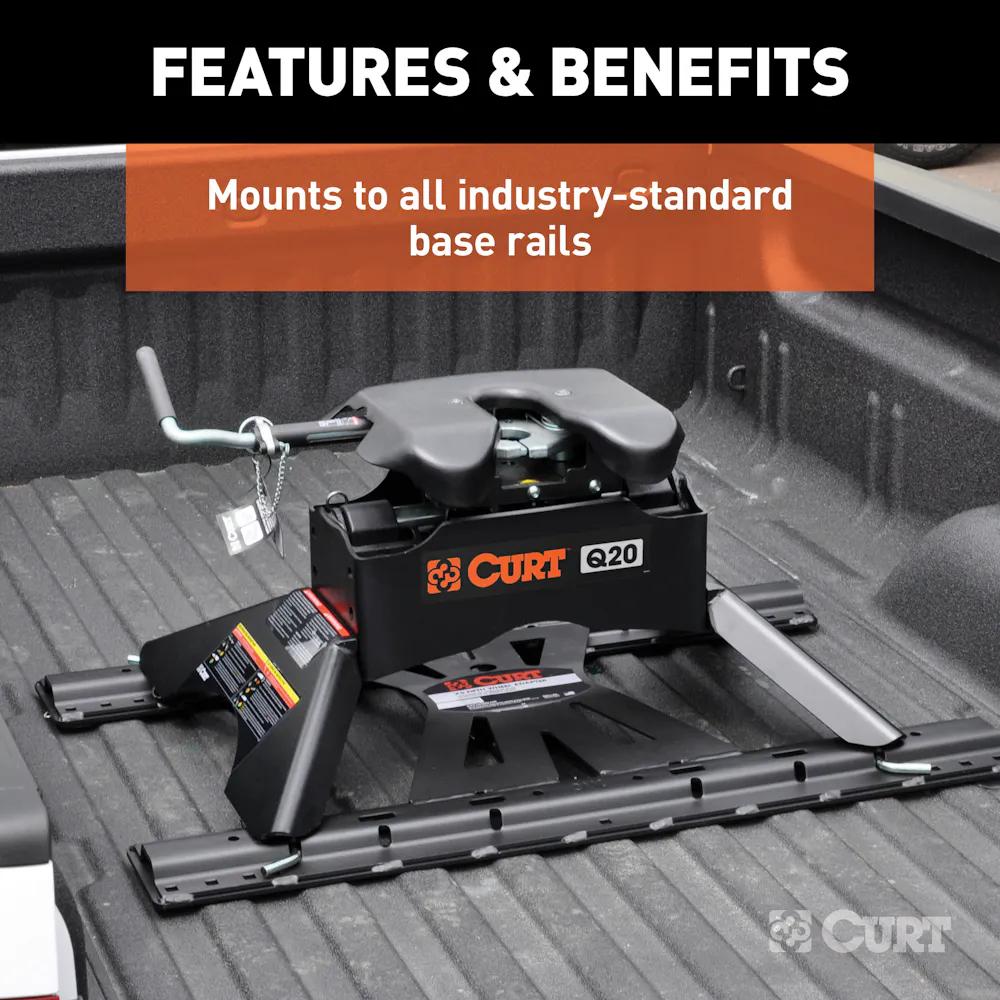

- Mounts to all industry-standard base rails
- Offers three height adjustment positions to adapt to each unique truck bed

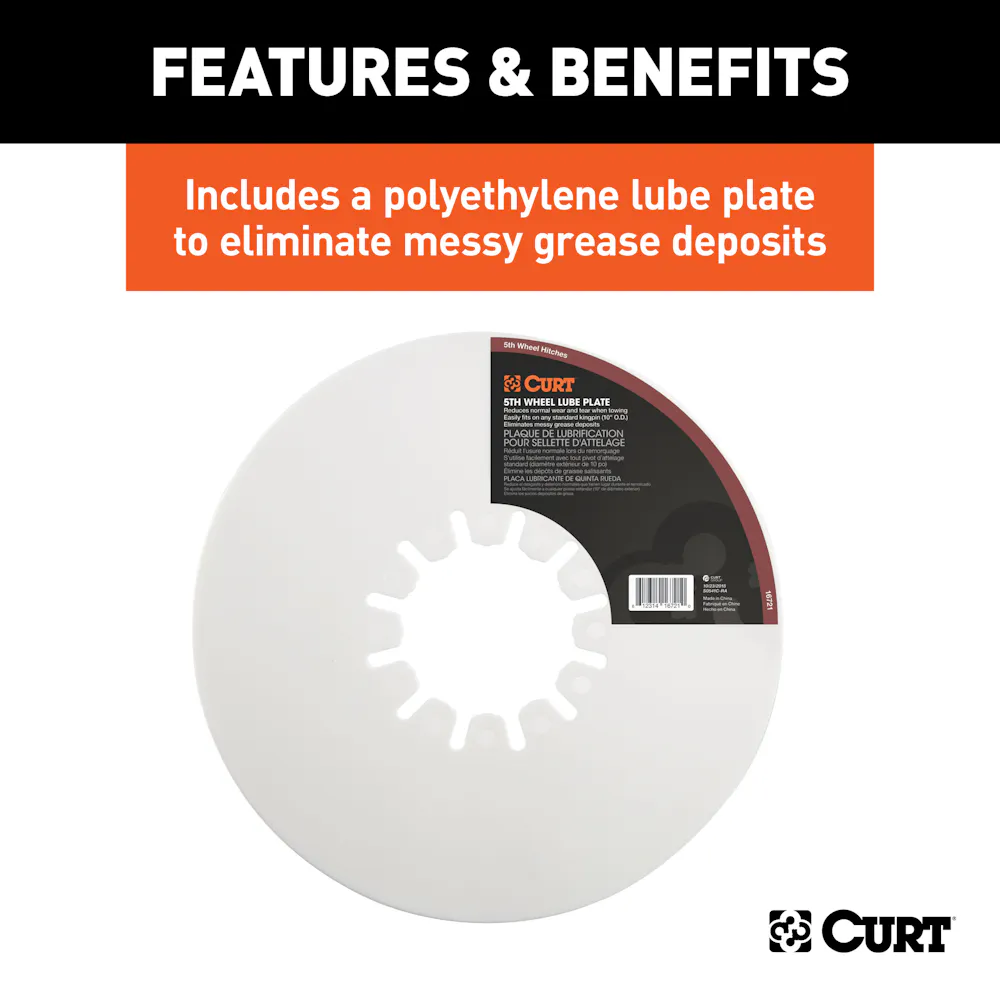

- Includes a polyethylene lube plate to eliminate messy grease deposits
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)

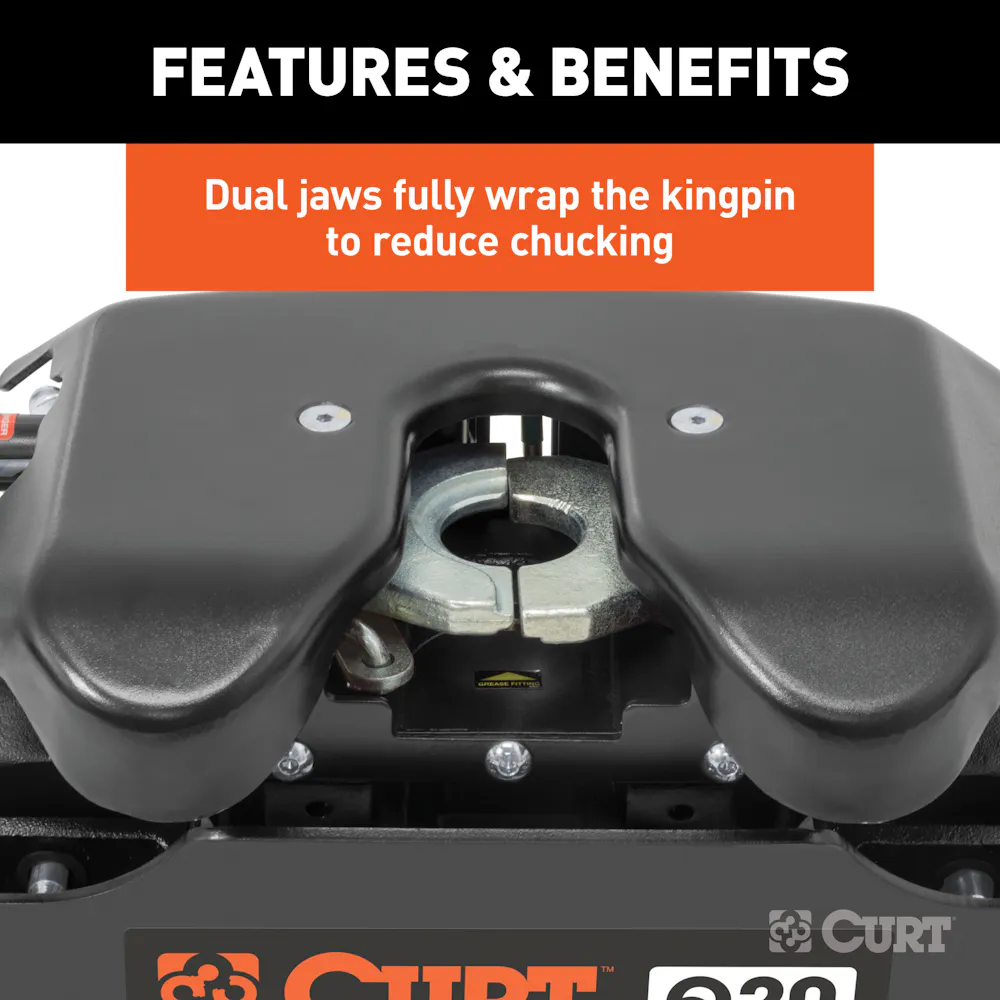

- Dual jaws fully wrap the kingpin to reduce chucking and increase security

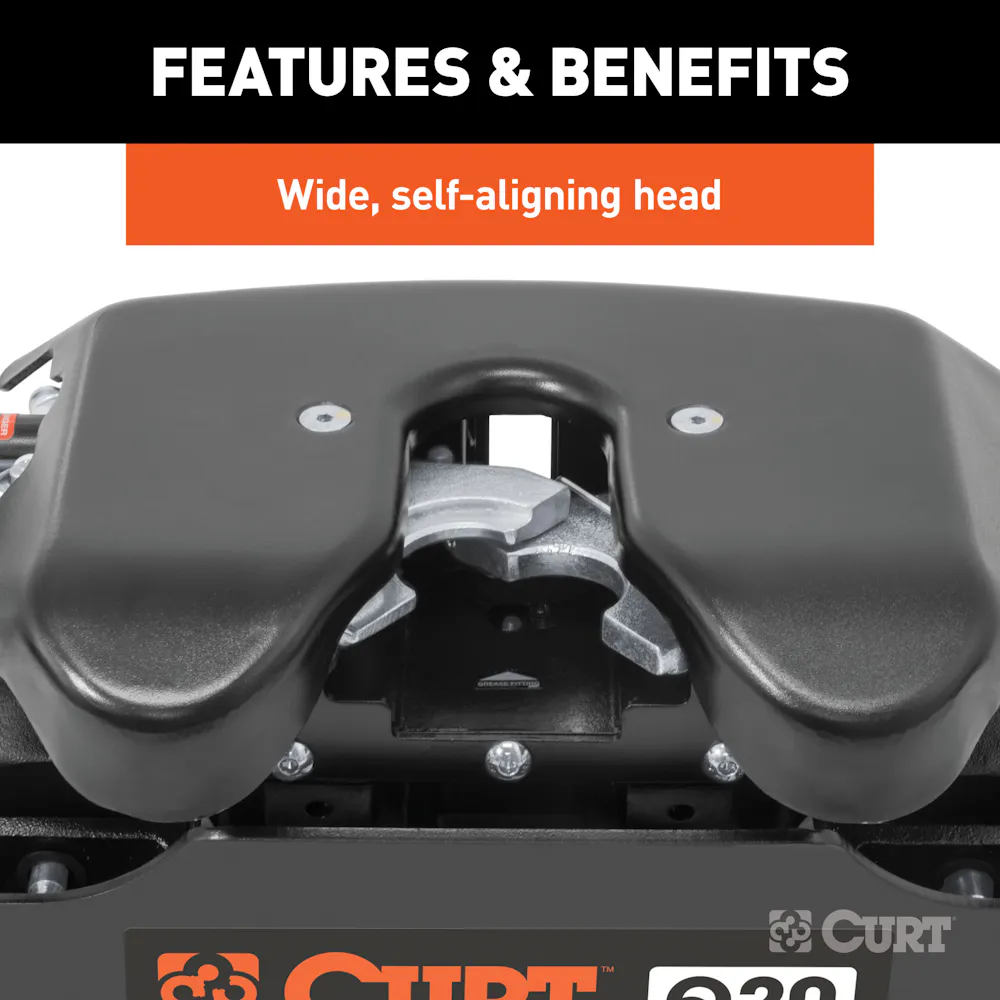

- Wide, self-aligning head helps eliminate errors when backing up to the trailer
Information

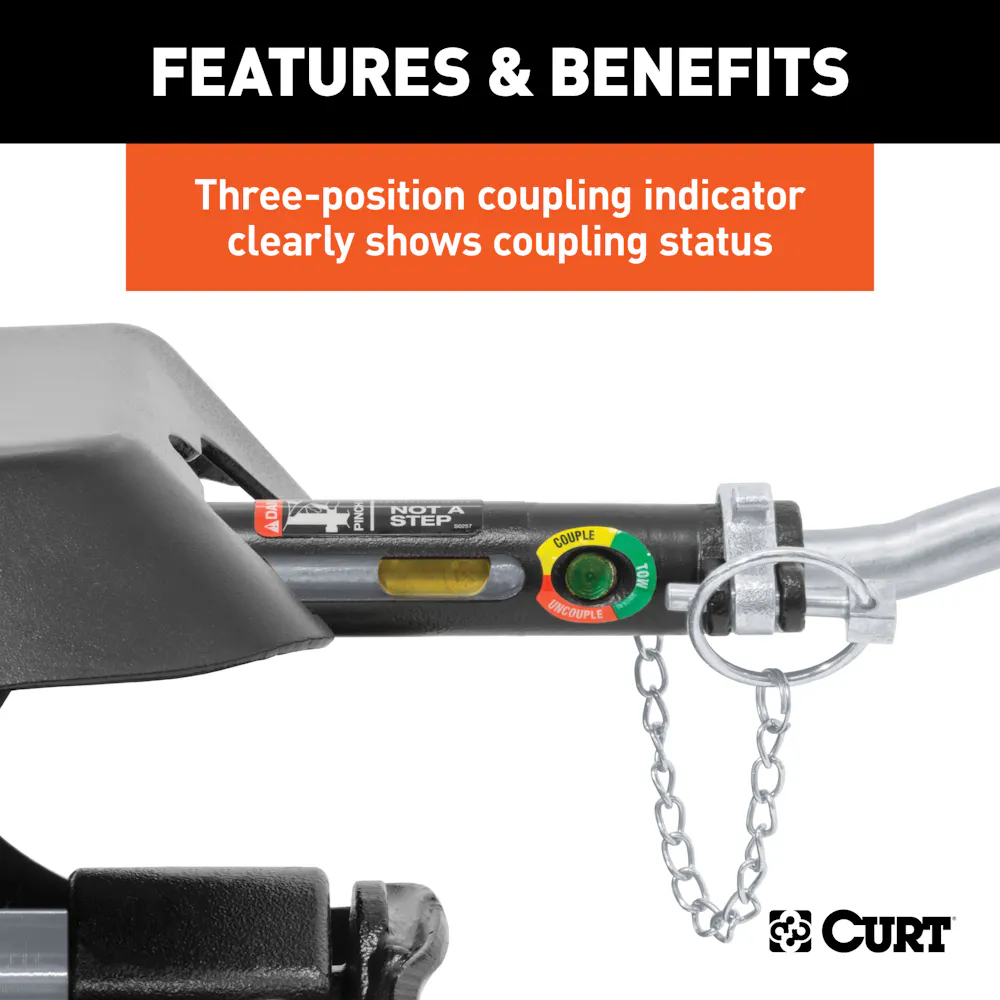

Three-position coupling indicator clearly shows coupling status
Application summary
| Year | Make / model |
|---|---|
| 6130 | Q20 5th Wheel Hitch, 20,000 lbs |
Specifications
- GTIN
- 00612314161300
- Weight
- 140 lb
- Height
- 15 in
- Length
- 30 in
- Width
- 17 in
- Life cycle
- Available Only While Supplies Last
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Fifth Wheel Hitch, 20K With Legs
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Capacity
- 20000 lbs.
- Capacity (lbs.)
- 20000
- Class ID
- 0
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Finish
- Carbide Black Powder Coat
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Gross Trailer Weight
- 20000 lbs.
- Gross Trailer Weight (GTW)
- 20,000 LB
- Gross Trailer Weight (lbs.)
- 20000
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material - XA
- Blank
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 20.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- No
- Product Weight - XA
- 0.000
- Rate Class - XA
- 125.0
- Retail Height - XA
- 15.000
- Retail Length - XA
- 30.000
- Retail Width - XA
- 17.000
- Sales Family Code - XA
- FIFTH
- Sales Family Description - XA
- FIFTH WHEEL
- Sales Group Description - XA
- 20K FIFTH WHEEL
- Shipping Weight - XA
- 140.000
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- Yes
- Title
- Q20 5th Wheel Hitch
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Vertical Load
- 5,000 LB
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 16130 Q20 5th Wheel Hitch, 20,000 lbs
