CURT · 16116
Part #: 16116
UPC: 612314161164
Log in for inventory
Notify me when this item is in stock.

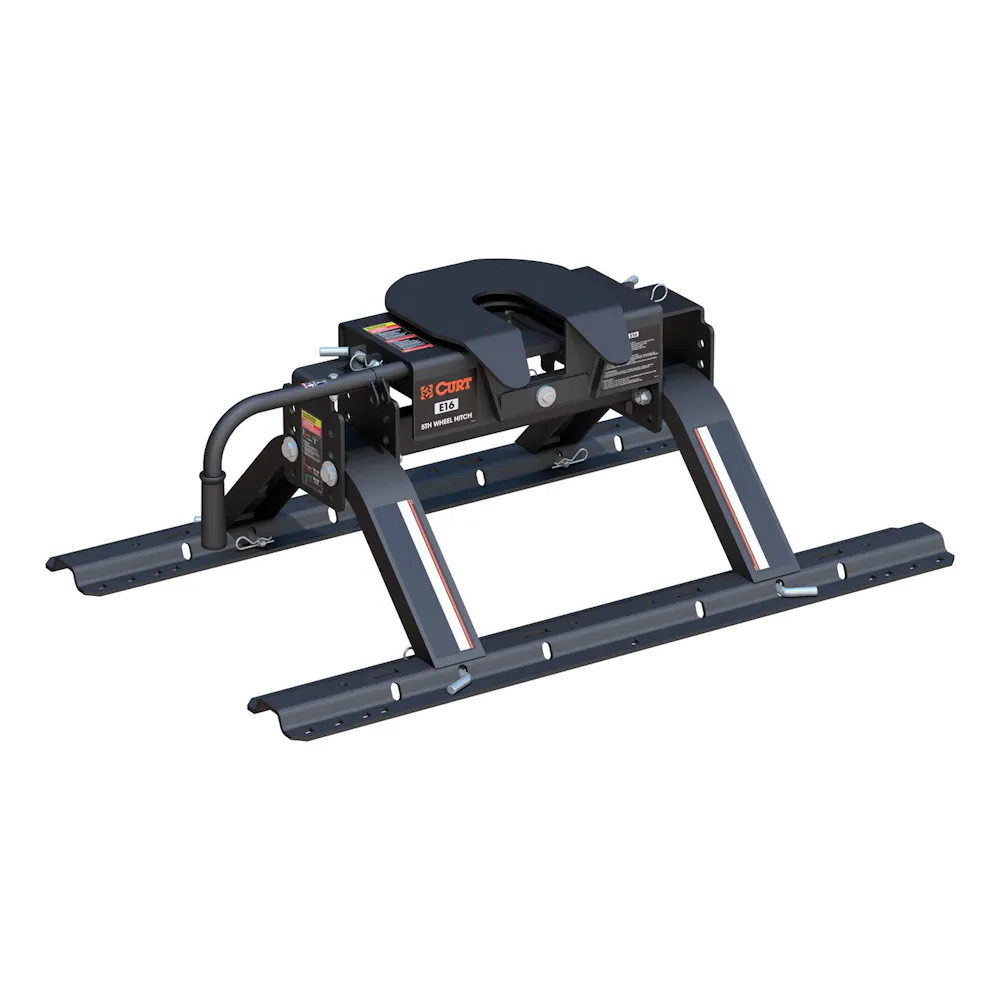

Description: E16 5th Wheel Hitch with Rails; CURT 16116 E16 5th Wheel Hitch with Base Rails, 16,000 lbs
Description:
Description
The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch comes with a set of standard 5th wheel legs and 5th wheel rails to be mounted in your truck bed with a 5th wheel bracket kit (brackets sold separately).
Features & benefits

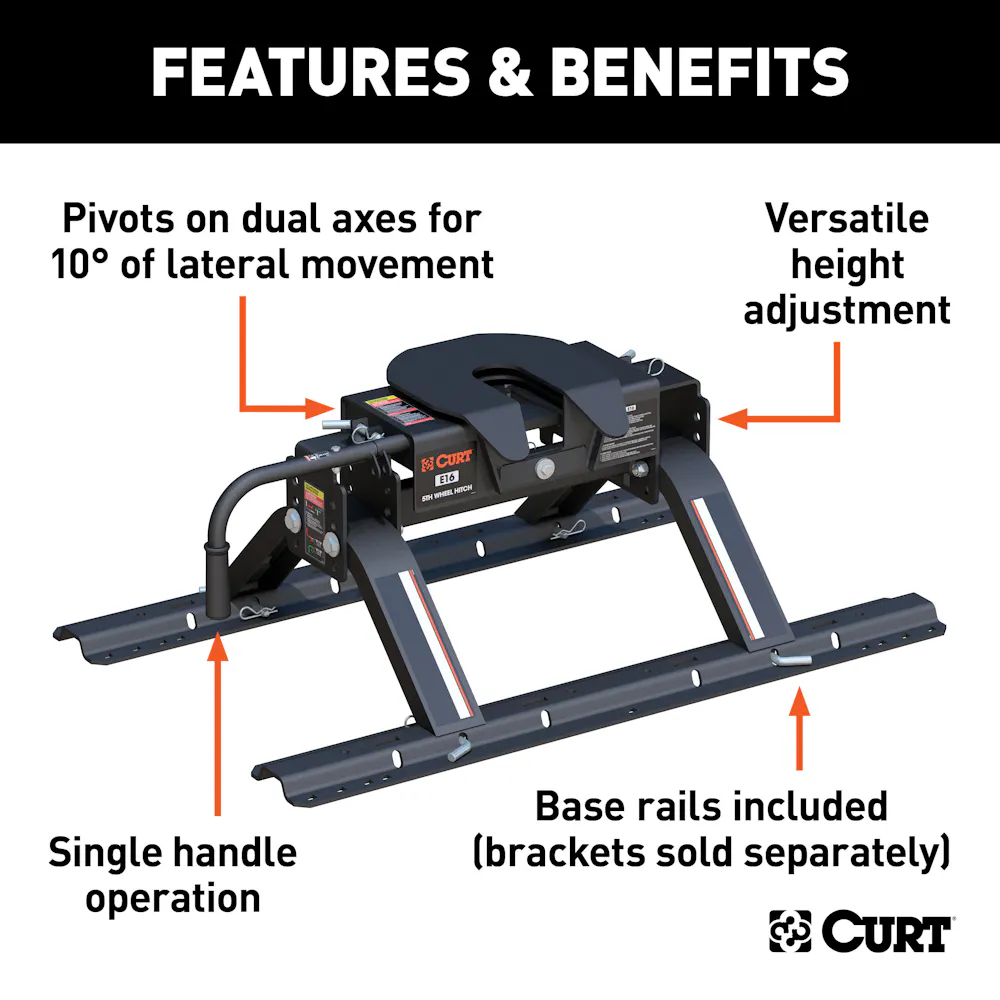

- Pivots on dual axes for 10 degrees of lateral movement
- Automatically locks for easy, secure coupling
- Operates using a single handle

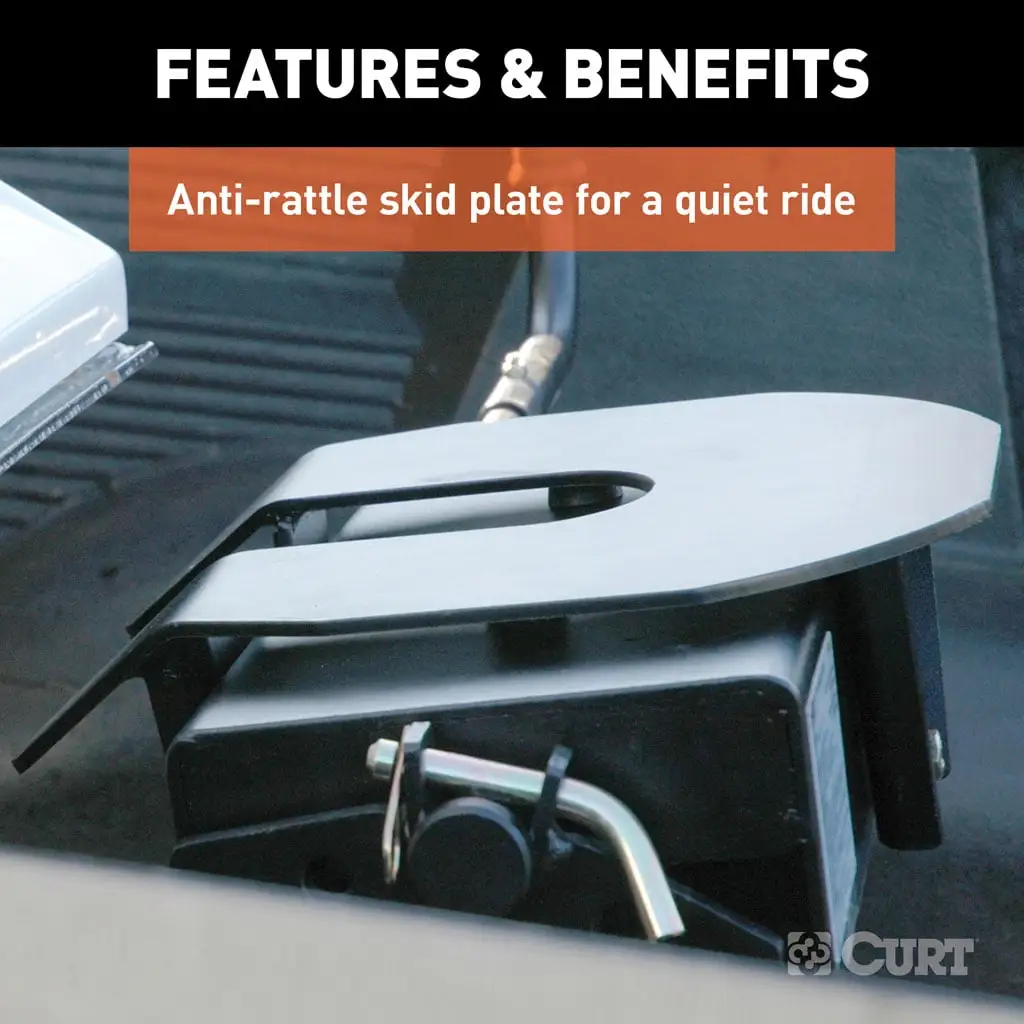

- Features an anti-rattle skid plate to help reduce noise
- Compatible with kingpin extension boxes, including common pivoting pin boxes

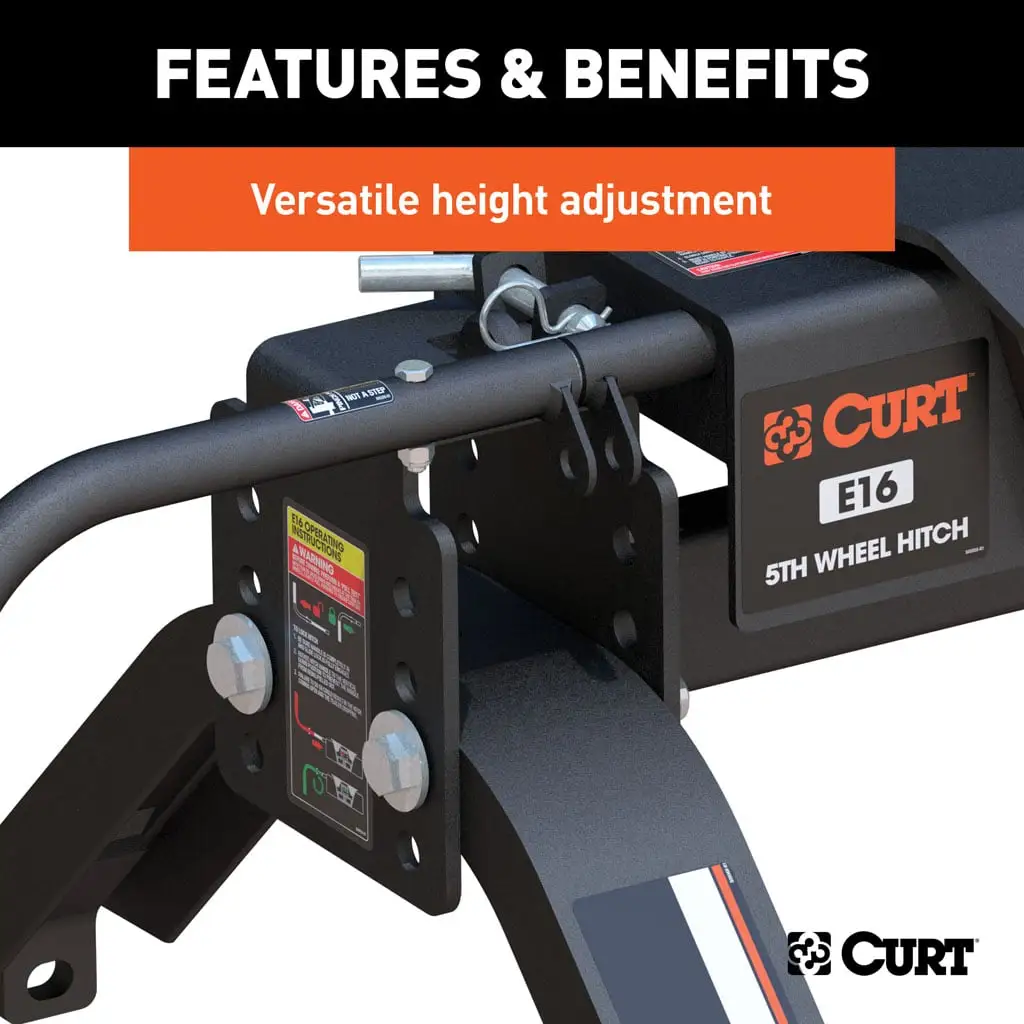

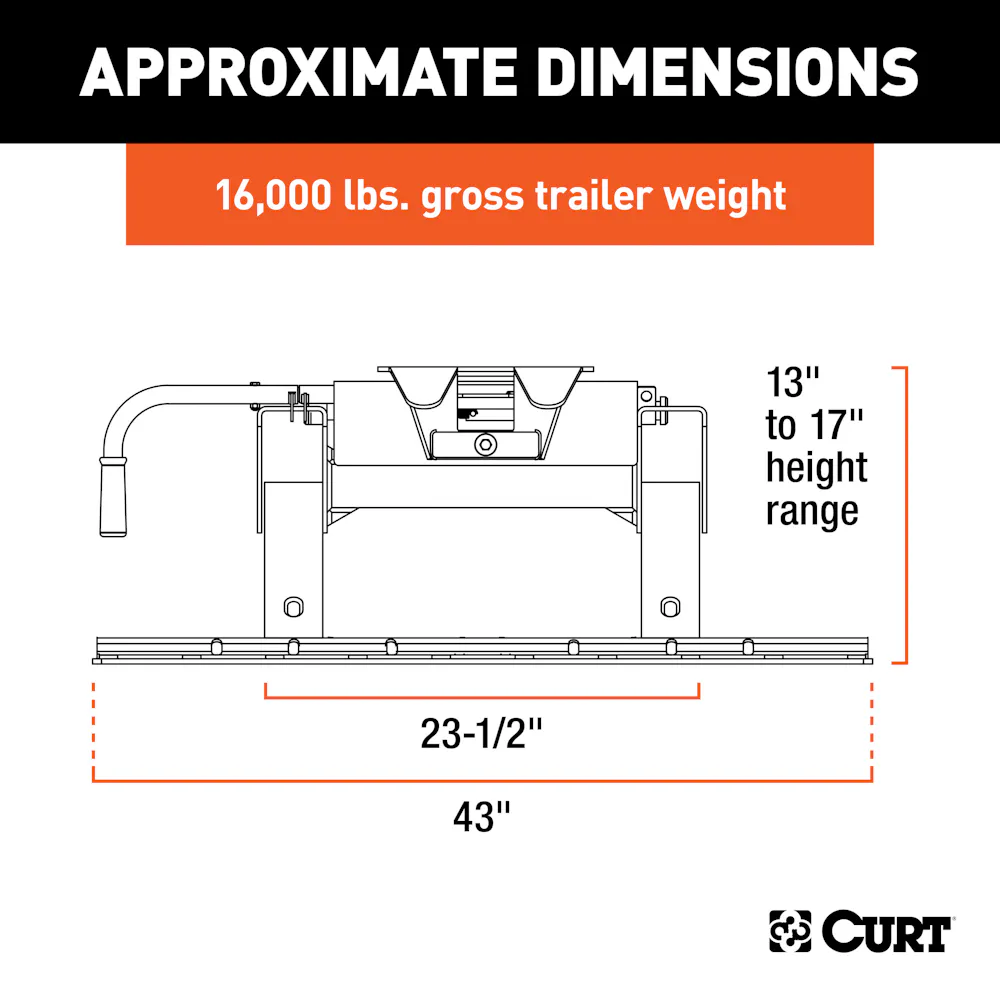

- Offers four height adjustment positions to adapt to each unique truck bed
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 6116 | E16 5th Wheel Hitch with Base Rails, 16,000 lbs |
Specifications
- GTIN
- 00612314161164
- Weight
- 148.05 lb
- Height
- 12 in
- Length
- 49 in
- Width
- 17 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- 16K 5th Wheel Hitch with Rails
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Capacity
- 16000 lbs.
- Capacity (lbs.)
- 16000
- Class ID
- 0
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Finish
- CARBIDE BLACK POWDER COAT
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Gross Trailer Weight
- 16000 lbs.
- Gross Trailer Weight (GTW)
- 16,000 LB
- Gross Trailer Weight (lbs.)
- 16000
- Item Class - XA
- OBS
- Item Height - XA
- 12.000
- Item Length - XA
- 49.000
- Item Width - XA
- 17.000
- Master Case Height Inches - XA
- 12.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 49.000
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 149.050
- Master Case Width Inches - XA
- 25.000
- Material - XA
- Blank
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 1
- Pallet Cases Per Layer - XA
- 1
- Pallet Layer of Cases - XA
- 1
- Pallet Qty - XA
- 1.000
- Pallet Total Height Inches - XA
- 17.000
- Pallet Total Weight Per - XA
- 174.050
- Parcel Allowed - XA
- No
- Product Weight - XA
- 148.050
- Rate Class - XA
- 125.0
- Retail Height - XA
- 12.000
- Retail Length - XA
- 49.000
- Retail Width - XA
- 17.000
- Sales Family Code - XA
- FIFTH
- Sales Family Description - XA
- FIFTH WHEEL
- Sales Group Description - XA
- 16K FIFTH WHEEL
- Shipping Weight - XA
- 148.050
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- Yes
- Title
- E16 5th Wheel Hitch with Rails
- Truckload Cases Qty - XA
- 20
- Truckload Pallets Qty - XA
- 20
- Truckload Units Qty - XA
- 20
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 3481
- Vertical Load
- 4,000 LB
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 16116 E16 5th Wheel Hitch with Base Rails, 16,000 lbs
