CURT / 16085

Part #: 16085
UPC: 612314160853

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: 5th Wheel Hitches

Description: Spyder 5th Wheel Rail Gooseneck Hitch with 2-5/16" Ball, 25K; CURT 16085 Spyder Rail-Mount Gooseneck Hitch, 2-5/16" Ball, 25,000 lb

Description:

Description

Just because you install 5th wheel brackets and rails in your truck bed does not mean your truck is limited to one type of towing. To give your truck the tools it needs to be the ultimate towing machine, CURT offers a gooseneck adapter for a 5th wheel setup. A 5th wheel / gooseneck plate is essentially a gooseneck hitch that mounts into a set of 5th wheel rails just like a 5th wheel trailer hitch. This allows you to pull both 5th wheel trailers and gooseneck trailers with the same pickup truck. CURT 5th wheel gooseneck hitches feature four pin-and-clip attachment points for a solid installation and quick removal when necessary, giving you full access and full use of your truck bed for hauling other loads. Best of all, our gooseneck adapter plates mount onto all industry standard rails. This particular 5th wheel to gooseneck adapter plate, the Spyder gooseneck, features an impressive gross trailer weight capacity of 25,000 lbs., a tongue weight capacity of 6,250 lbs. and offers a 2-5/16" trailer ball for pulling most types of gooseneck trailers, including livestock trailers, chopper boxes, gravity boxes, industrial equipment haulers, flatbeds and more. CURT 5th wheel gooseneck plates and gooseneck 5th wheel adapters are the ultimate versatility tools in heavy-duty towing. We coat our 5th wheel gooseneck hitches in a black carbide powder coat to ensure that they are highly resistant to rust, scratching and UV damage.

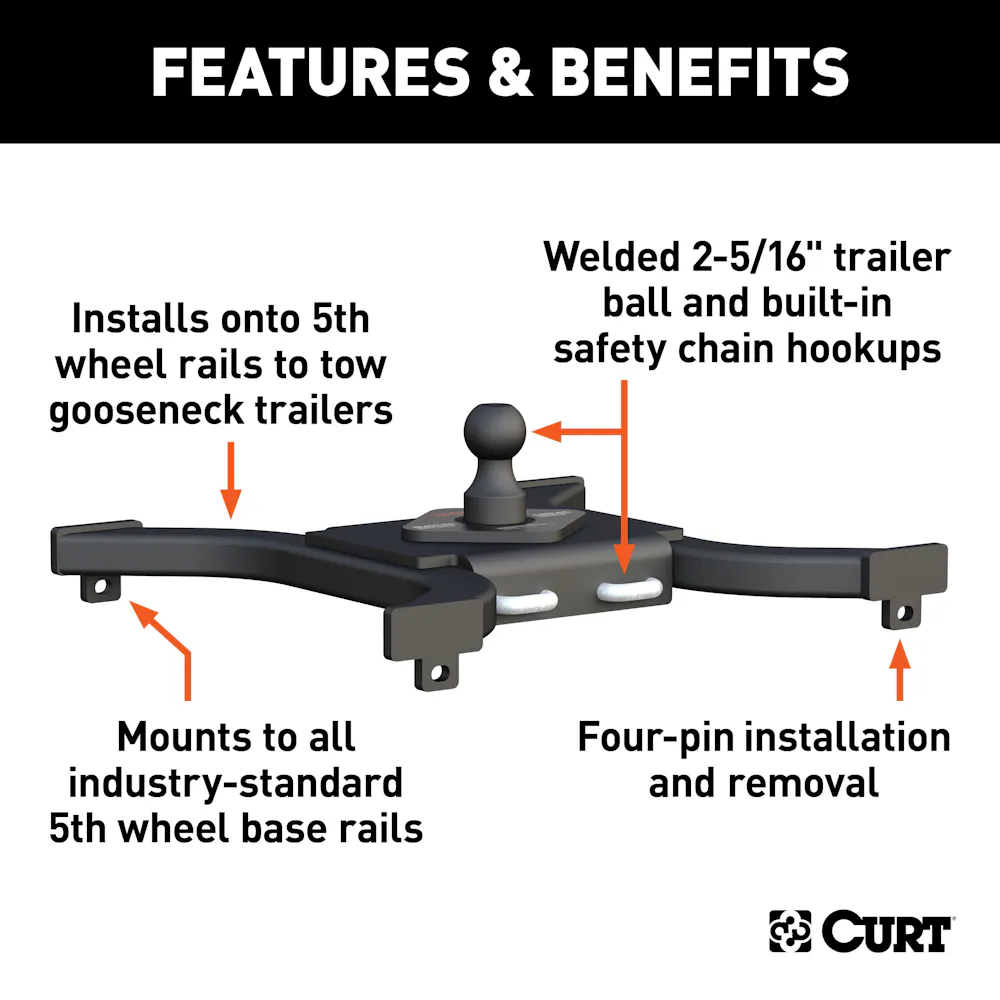

Features & benefits

  • Allows pickup trucks equipped with 5th wheel rails to tow gooseneck trailers
  • Rated for up to 25,000 lbs. gross trailer weight
  • Mounts to all industry-standard 5th wheel base rails

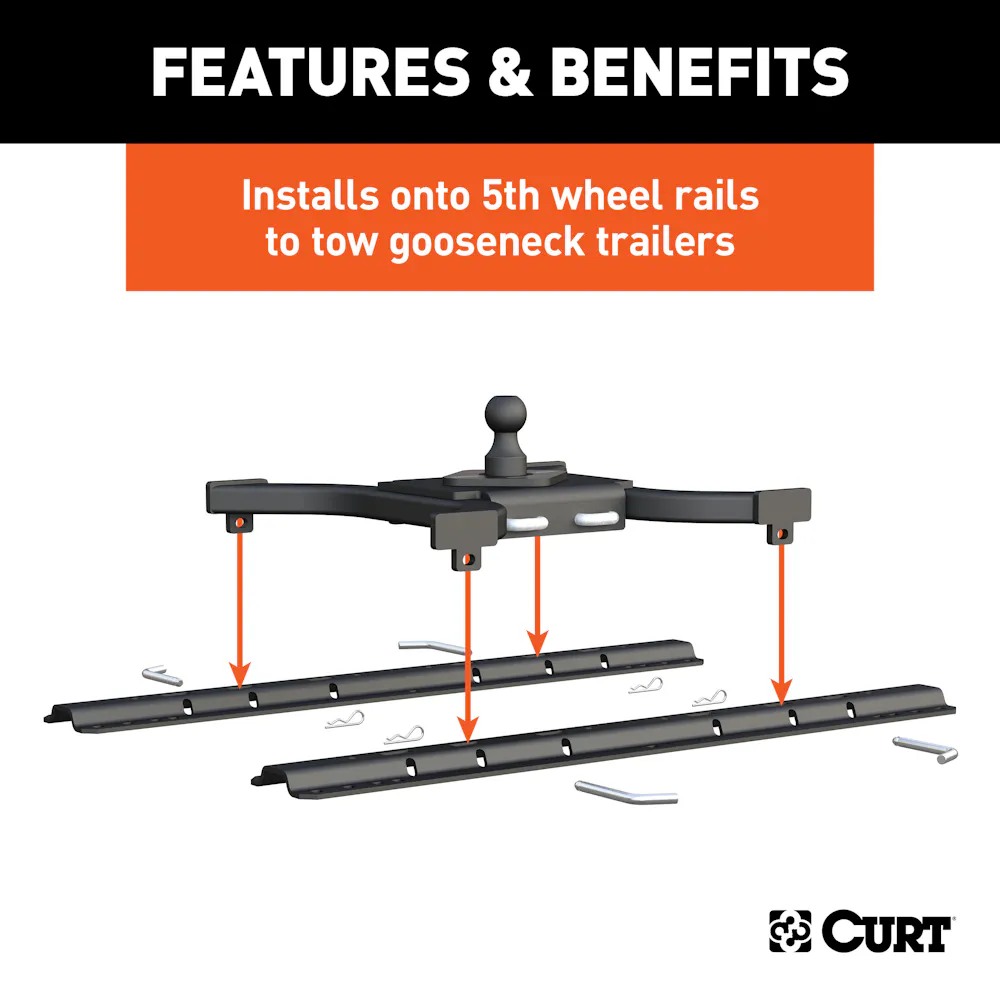

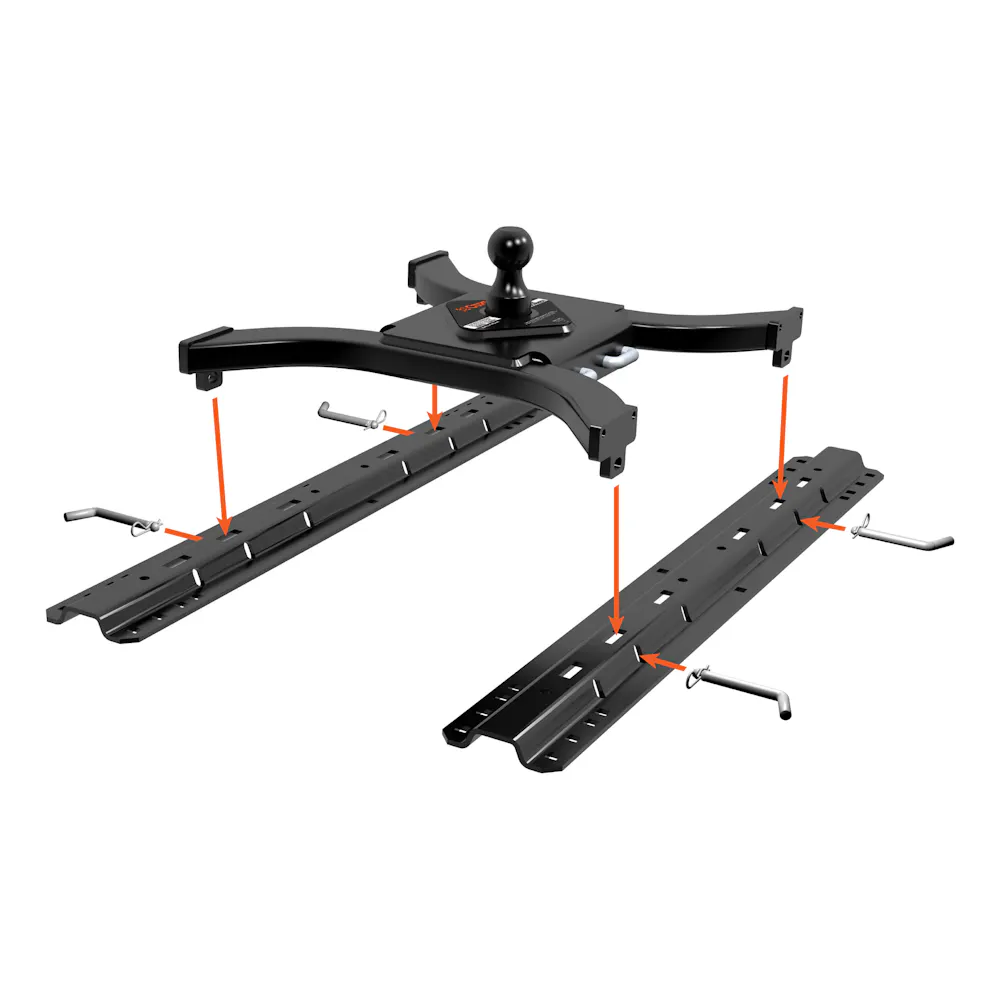

  • Four-pin installation and removal for easy truck bed access
  • Features a welded 2-5/16" trailer ball
  • Protected by a highly durable carbide powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year Make / model
6085 Spyder 5th Wheel to Gooseneck Adapter Hitch, Fits Industry-Standard Rails, 25,000 lbs, 2-5/16-Inch Ball

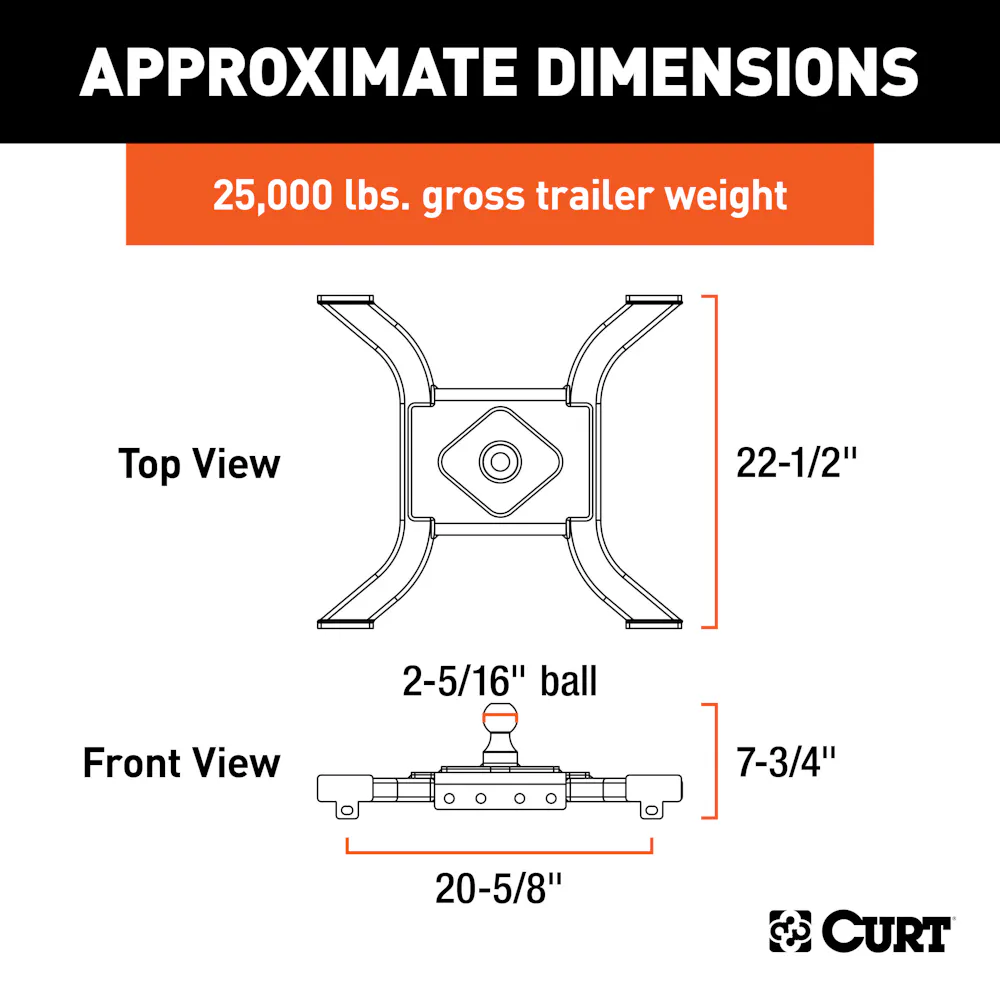

Specifications

GTIN
00612314160853
Weight
50 lb
Height
9 in
Length
26 in
Width
24 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Rail Mounted Gooseneck Hitch
Ball Diameter
2.3125 in.
Ball Diameter (in.)
2.3125
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
Yes
Class ID
0
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Finish
CARBIDE BLACK POWDER COAT
Finish - XA
CARBIDE BLACK POWDER COAT
Gross Trailer Weight
25000 lbs.
Gross Trailer Weight (GTW)
25,000 LB
Gross Trailer Weight (lbs.)
25000
Gross Trailer Weight(GTW)
25,000 LB
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material - XA
Blank
Mount Type Description - XA
Blank
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
10.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Product Weight - XA
0.000
Rate Class - XA
125.0
Retail Height - XA
9.000
Retail Length - XA
26.000
Retail Width - XA
24.000
Sales Family Code - XA
GOOSE
Sales Family Description - XA
GOOSENECK
Sales Group Description - XA
GOOSENECK HITCH HITCH
Shipping Weight - XA
50.000
Side Application Type Description - XA
Blank
Tariff 301 - XA
Yes
Title
Spyder 5th Wheel Rail Gooseneck Hitch with 2-5/16" Ball, 25K
Tongue Weight (TW)
6,250 LB
Tongue Weight(TW)
6,250 LB
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
WC Tongue Weight
6250
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 16085 Spyder 5th Wheel to Gooseneck Adapter Hitch, Fits Industry-Standard Rails, 25,000 lbs, 2-5/16-Inch Ball
