CURT · 16074

Part #: 16074
UPC: 612314038572

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: CURT Series: 5th Wheel Hitches

Description: A20 5th Wheel Hitch, Select Nissan Titan XD, 8' Bed Puck System; CURT 16074 A20 5th Wheel Hitch, 20,000 lbs, Select Nissan Titan XD, 8-Foot Bed Puck System

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

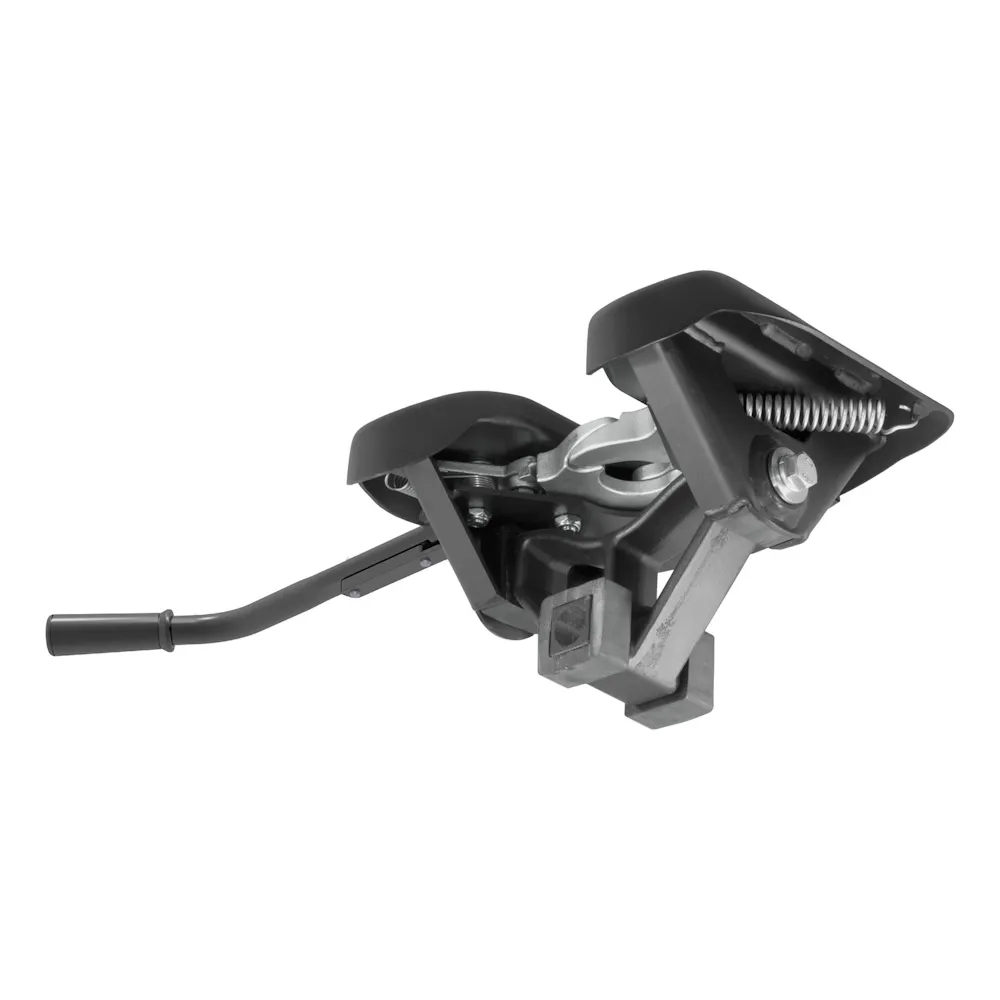

The CURT A20 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 20K 5th wheel hitch. Like our A16 hitch, this 20K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. This A20 5th wheel hitch also comes with a set of CURT OEM puck system 5th wheel legs designed to be mounted on a Nissan Titan XD truck with the truck bed puck system. The legs mount directly into the four-point mounting system, allowing the CURT A20 hitch to be installed quickly and easily. The most unique feature of these legs is their quarter-turn anchoring system. The variable-position anchors allow the 5th wheel hitch head to easily drop into the puck system, and with a quarter-turn, the hitch can be installed or removed as needed. The anchors can also be adjusted to eliminate any chucking noises. Once installed, the A20 is fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that is visible from the truck cab. To protect the A20 5th wheel hitch against rust and wear, it comes with a black carbide powder coat finish and a limited lifetime warranty. We also test the A20 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.

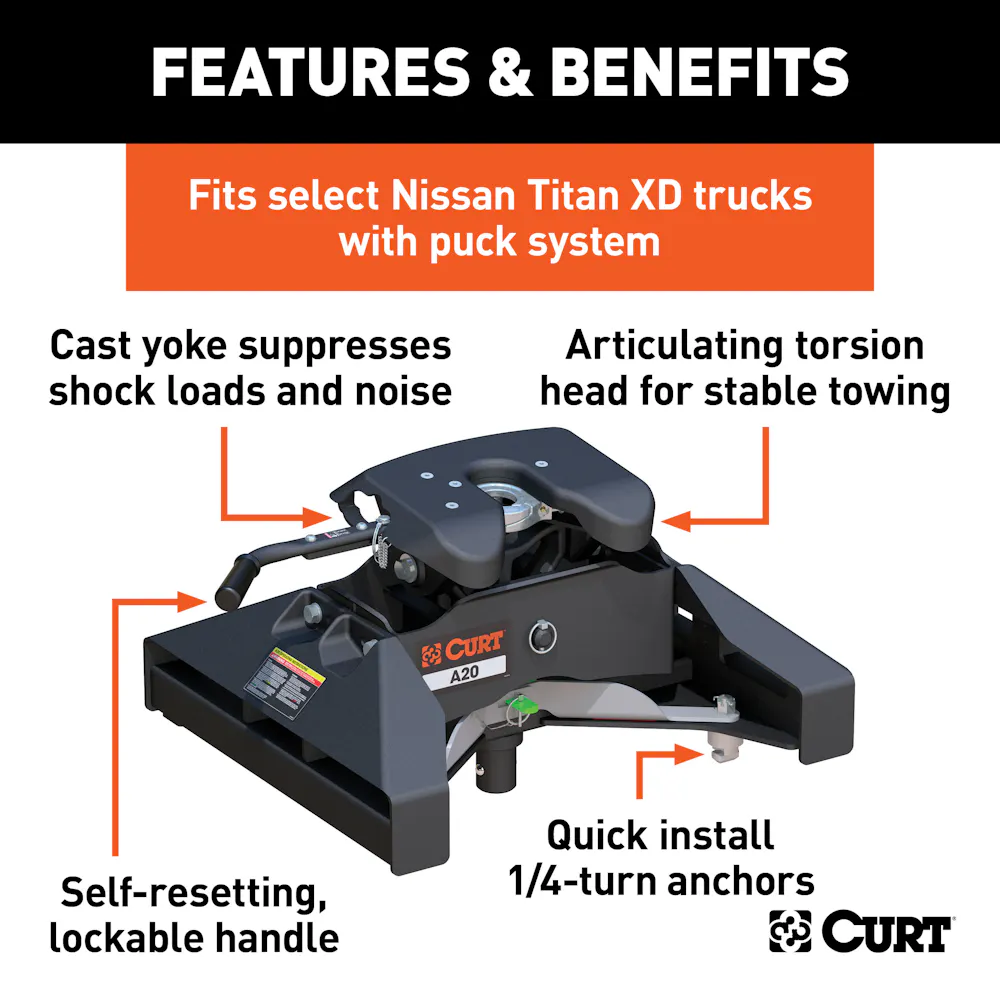

Features & benefits

Limited lifetime warranty (one-year finish, one-year parts)

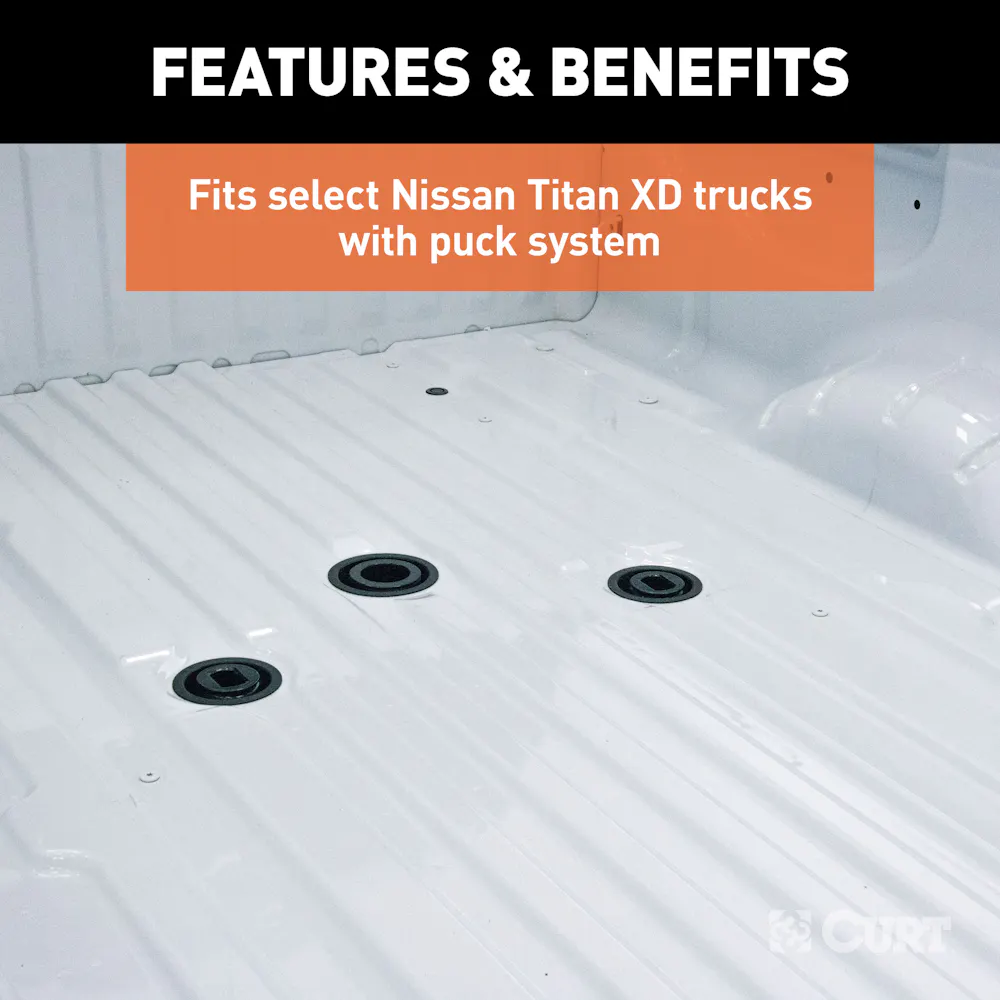

Requires Nissan puck system for installation (intended for long-bed trucks only)

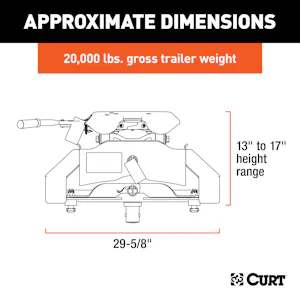

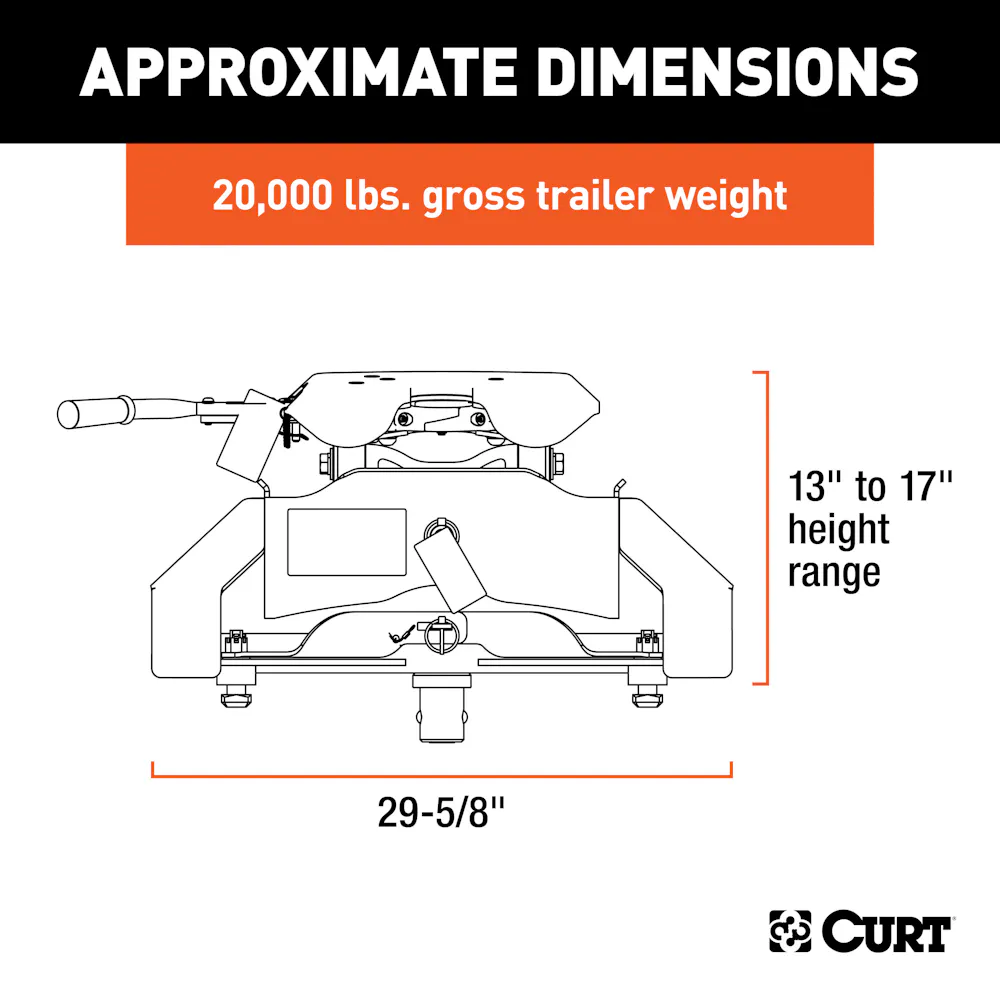

Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Includes A20 5th wheel hitch head #16540 and Nissan Titan XD puck system legs #16026
Fully articulating torsion head for controlled coupling and stable towing
Extra wide head opening for easier coupling

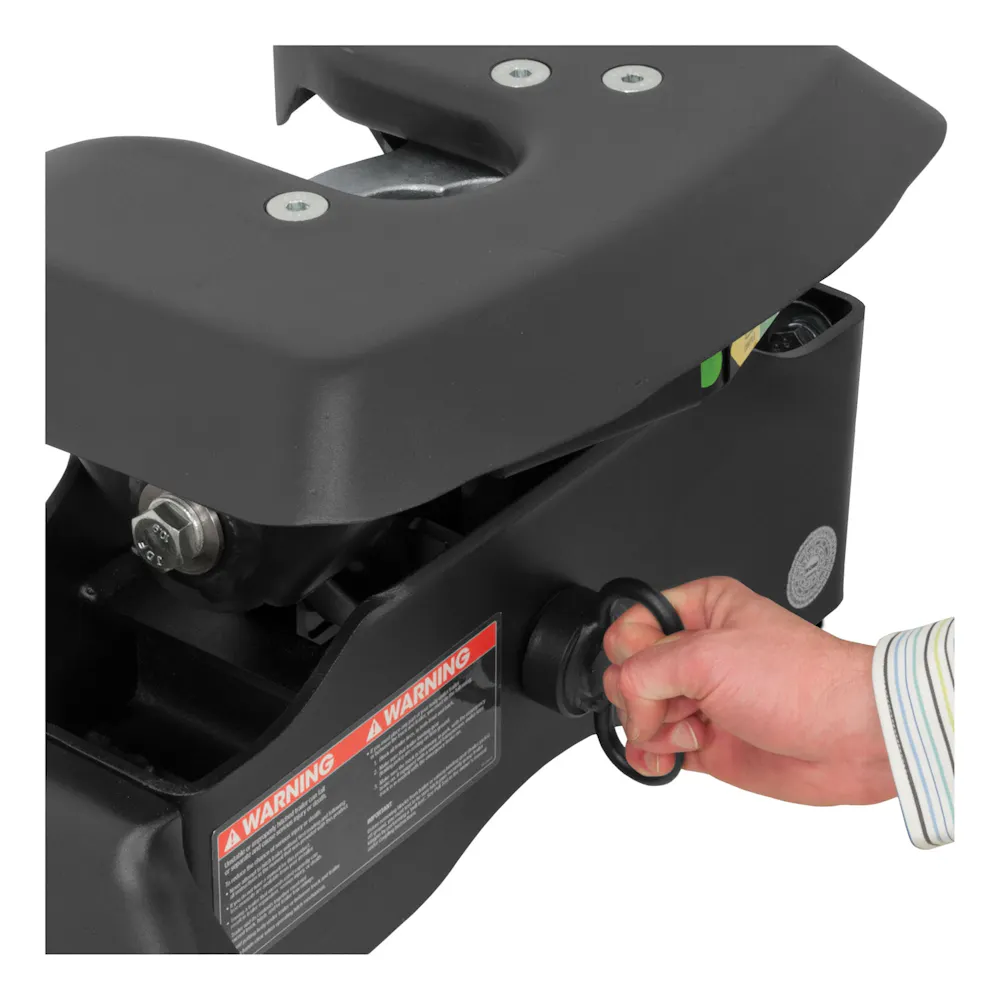

Fast, one-pin head removal makes moving easy with smaller, lighter pieces

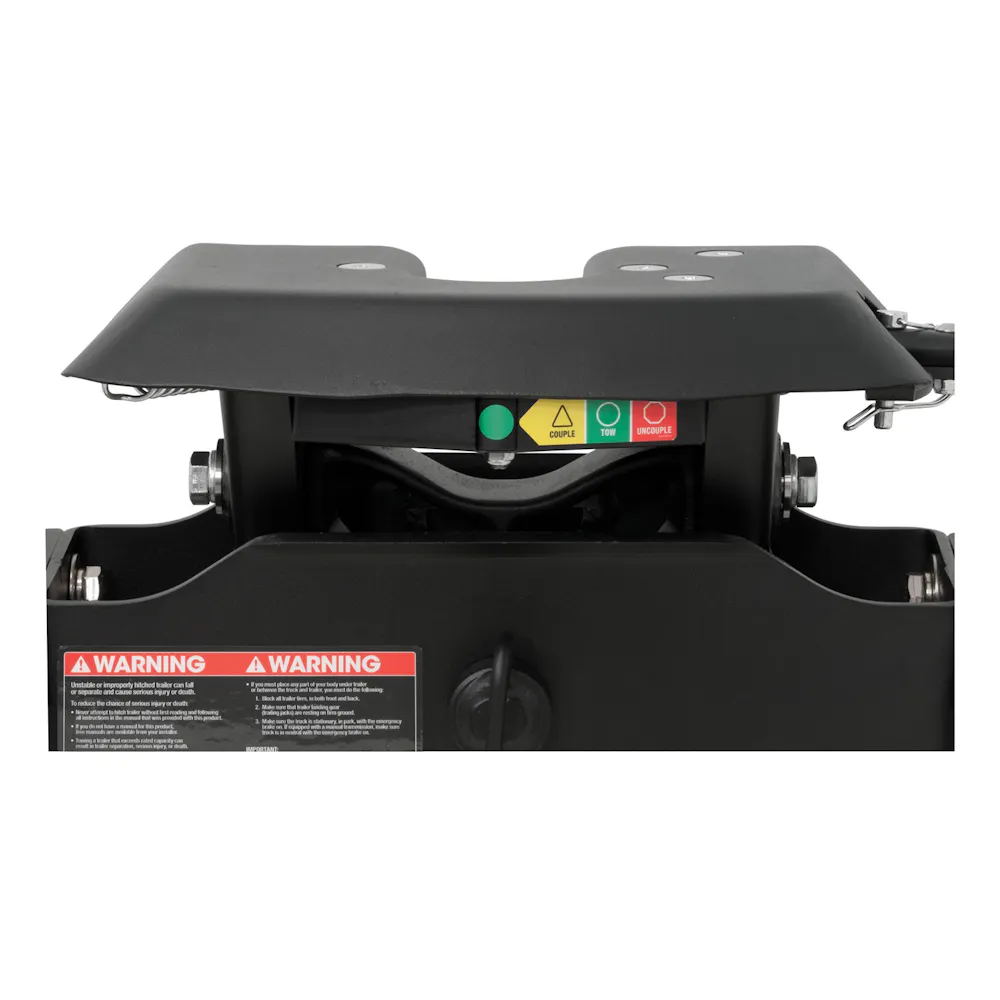

Three-position coupling indicator clearly shows coupling status

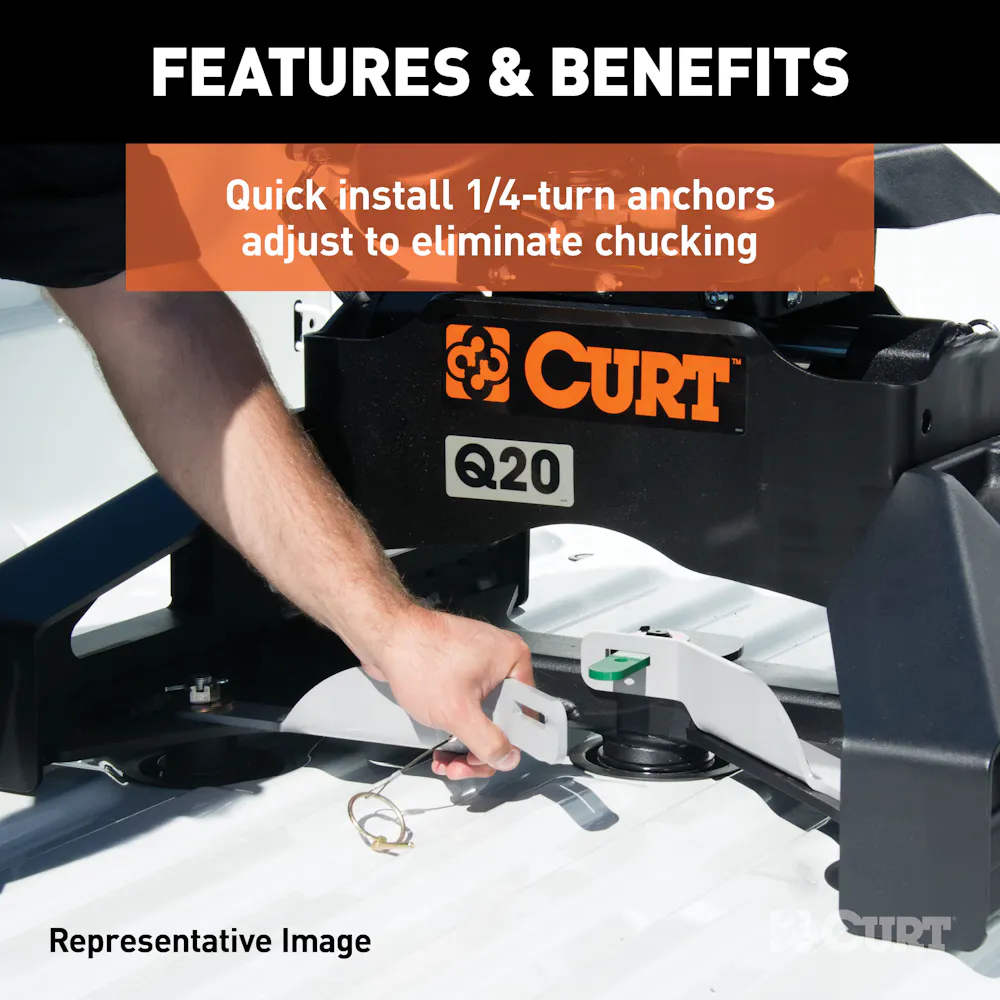

Quarter-turn anchoring system provides quick installation and removal
Adjustable anchors to eliminate chucking between the legs and under-bed platform
Compatible with kingpin extension boxes, including common pivoting pin boxes
