CURT · 16073

Part #: 16073
UPC: 612314038565

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: CURT Series: 5th Wheel Hitches

Description: A16 5th Wheel Hitch, Select Nissan Titan XD, 8' Bed Puck System; CURT 16073 A16 5th Wheel Hitch, 16,000 lbs, Select Nissan Titan XD, 8-Foot Bed Puck System

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

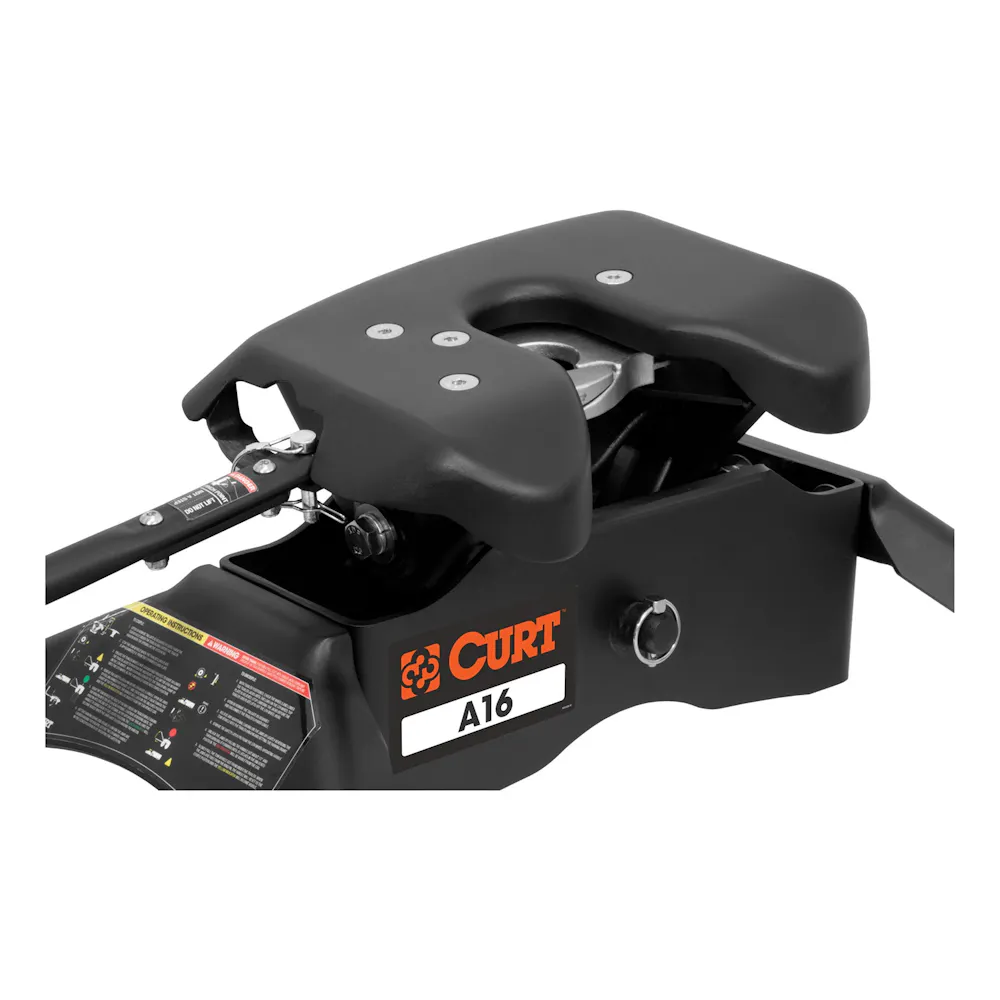

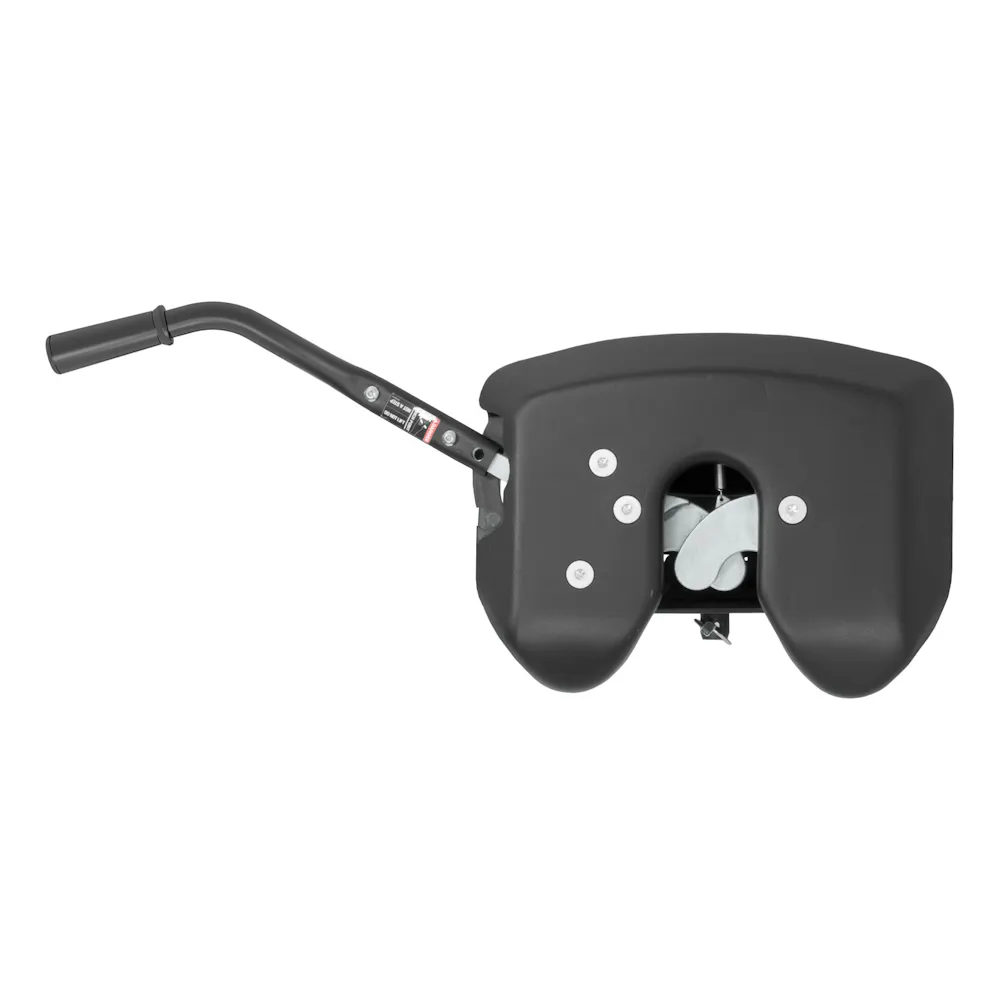

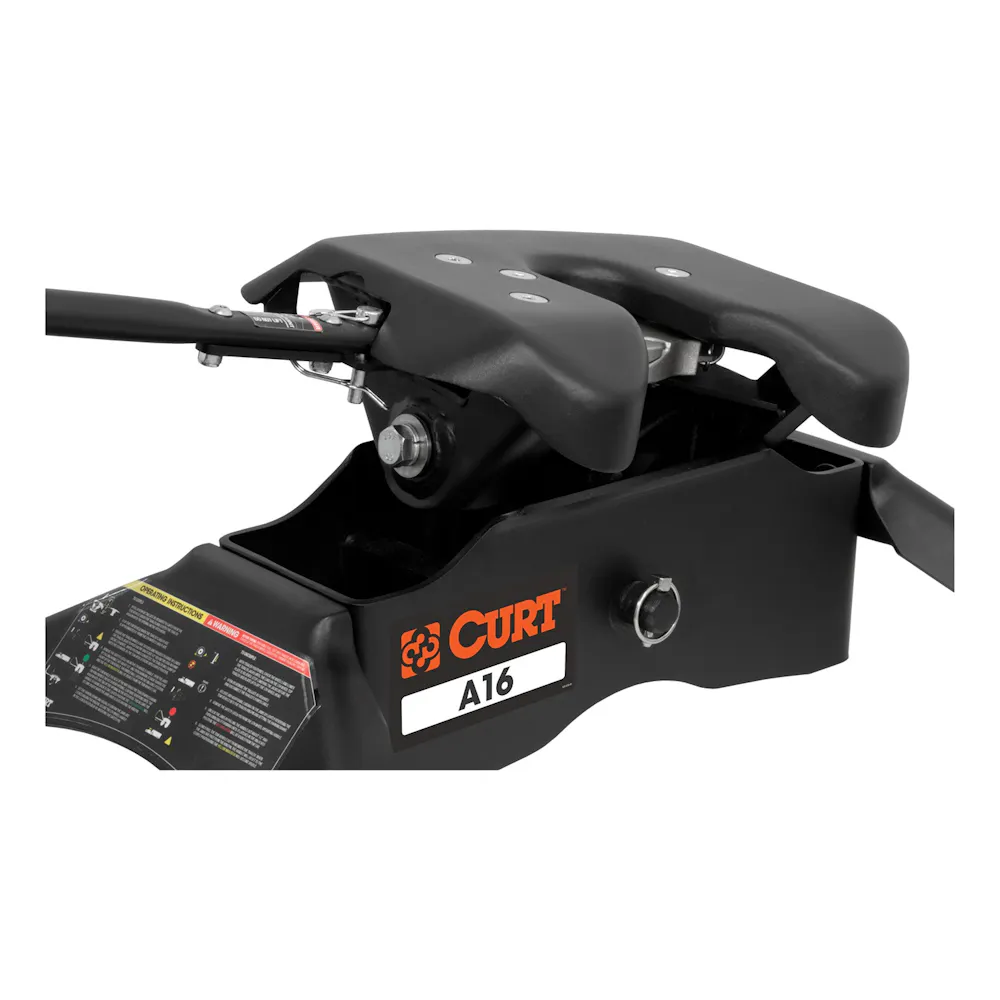

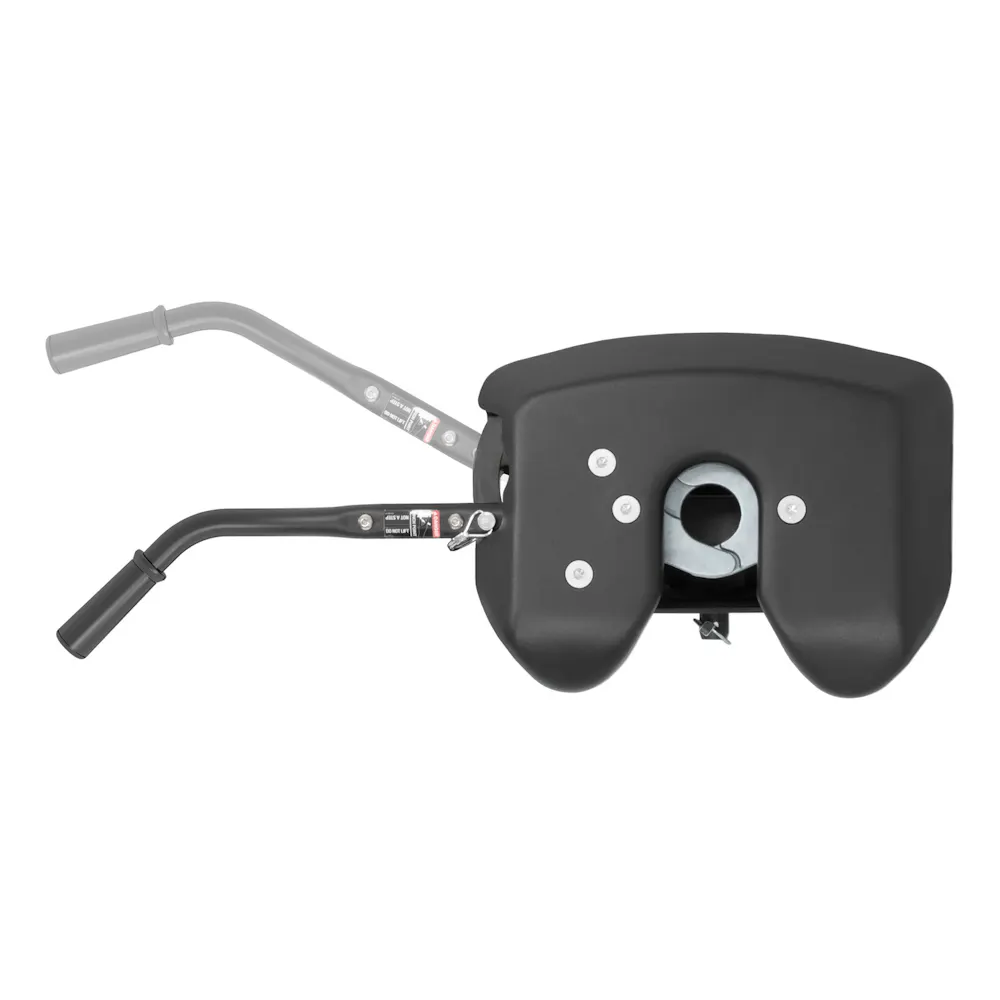

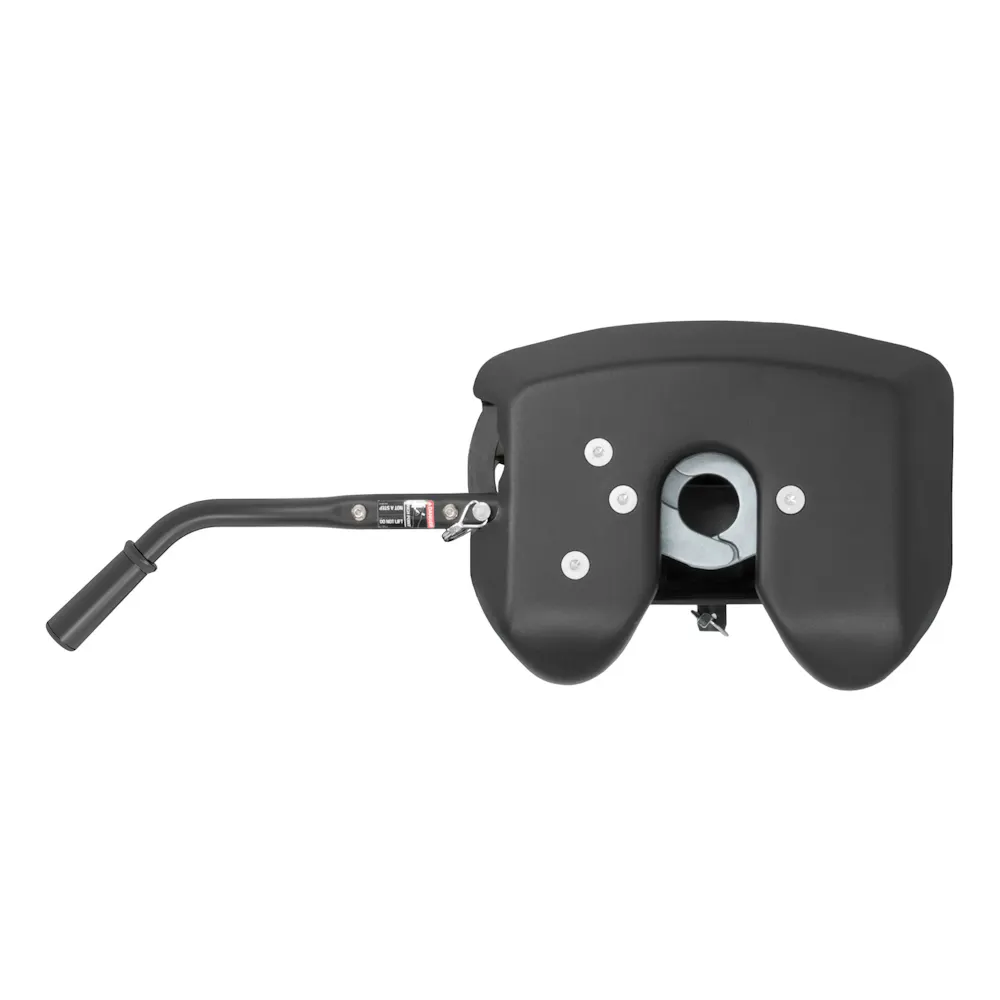

The CURT A16 5th wheel hitch excels in easy operation and stable, quiet 5th wheel towing. It does this with two key features: a single-throw handle and a patented head design. The single-throw handle only needs to be pulled once when coupling and uncoupling. It is designed to self-reset to the ready-to-couple position after uncoupling, allowing for fewer steps while hooking up your trailer. The patented head of the A16 features a cast yoke with poly-torsion inserts as well as interlocking jaws to create stability for your truck and trailer. These components allow the A16 to suppress shock and vibrations and reduce any additional noise coming from your trailer. In addition to its single-throw handle and cast yoke head, this 16K 5th wheel hitch comes with a three-position coupling indicator. The indicator is visible from the cab of your pickup truck and eliminates the need to get in and out of the truck cab to check the connection while coupling or uncoupling. The A16 also has an extra wide head to make coupling even easier, one-pin head removal to make it simple to move the hitch, and a GTW rating of 16,000 lbs. to tow a variety of 5th wheel trailers. Like the other CURT A-series hitches, the A16 is coated with a durable carbide powder coat finish. This particular A16 hitch comes with a set of CURT OEM puck system 5th wheel legs, designed to be mounted on a Nissan Titan XD long-bed pickup with the truck bed puck system. Using a set of quarter-turn anchors, the legs quickly and easily drop into the pucks, instantly mounting the A16 hitch and equipping the truck for 5th wheel towing. The anchors feature an adjustable design to perfectly lock the hitch into place and eliminate any chucking noises, and the legs are finished in a durable carbide black powder coat to be highly resistant to scratches, rust and UV damage. These legs are only intended to fit the Nissan puck system and cannot be installed without it.

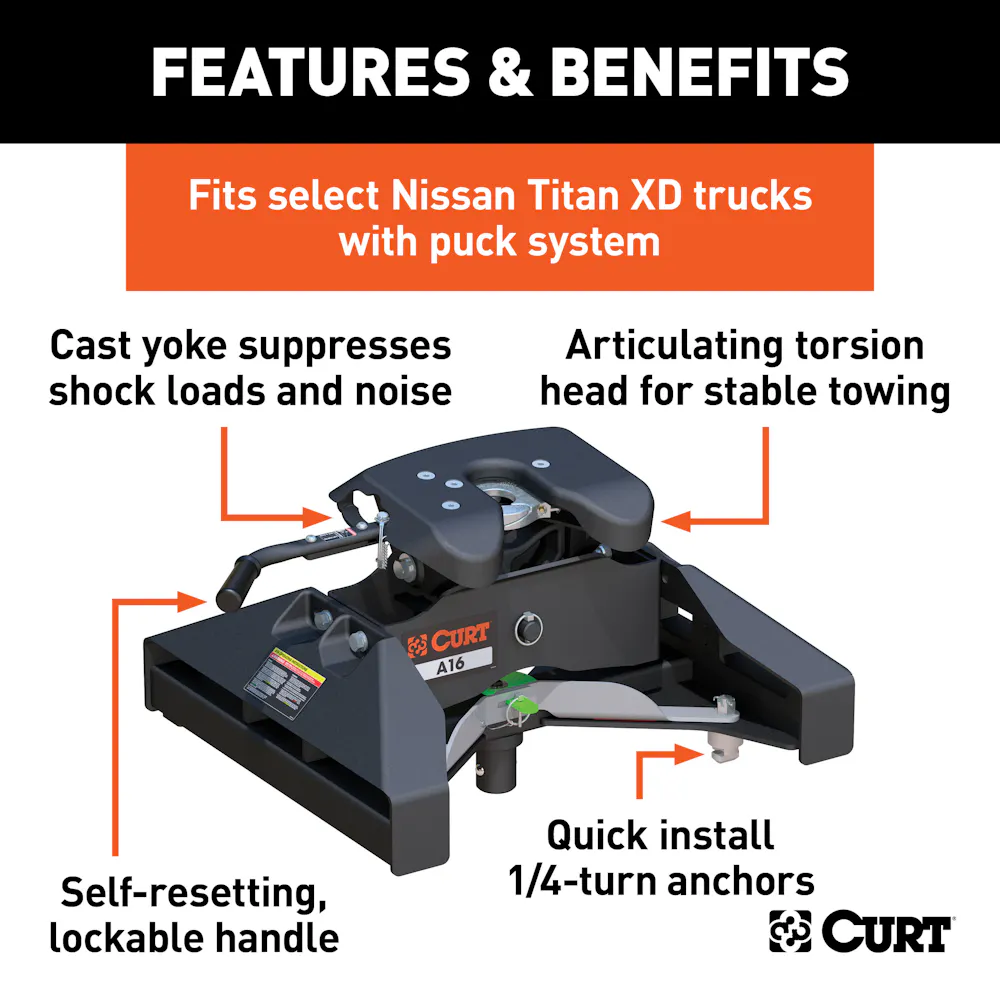

Features & benefits

Extra wide head opening for easier coupling
Adjustable anchors to eliminate chucking between the legs and under-bed platform
Compatible with kingpin extension boxes, including common pivoting pin boxes

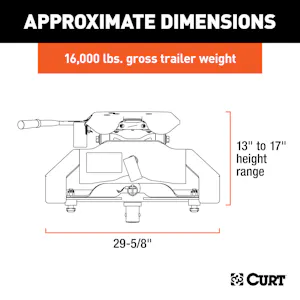

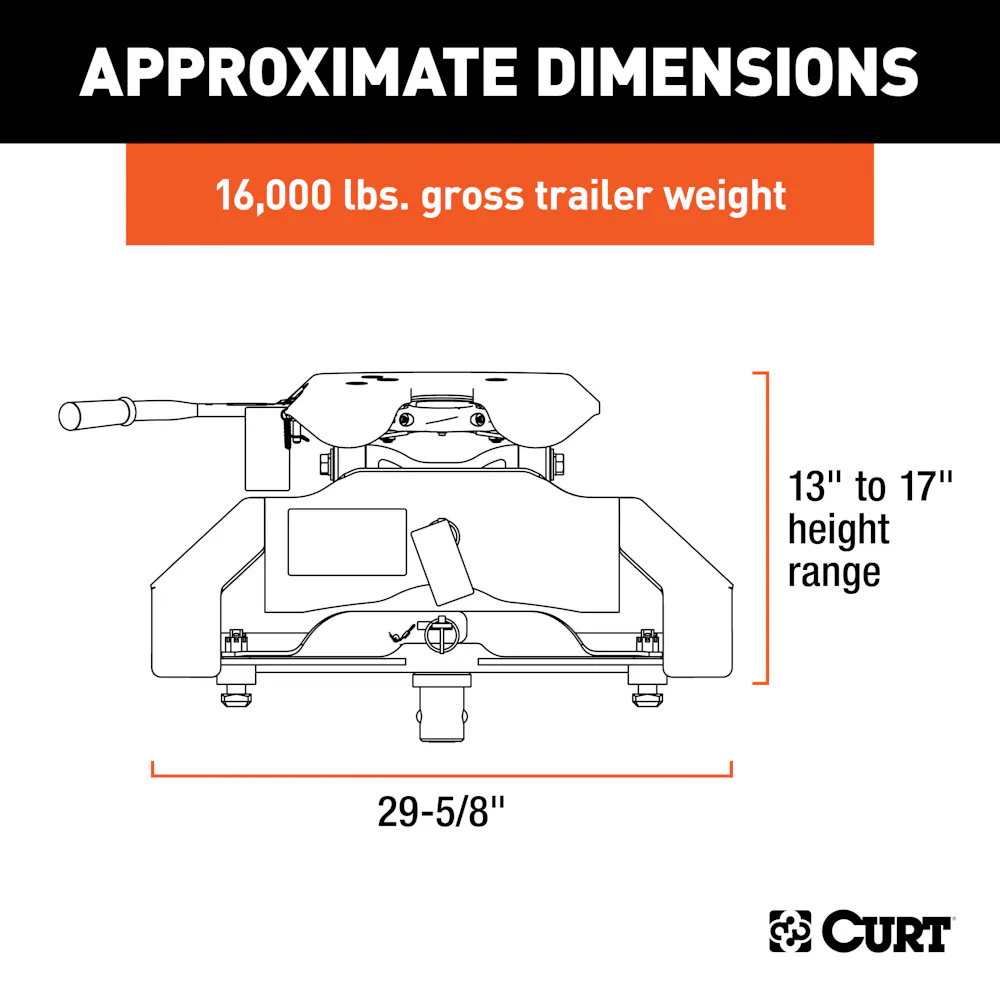

Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)

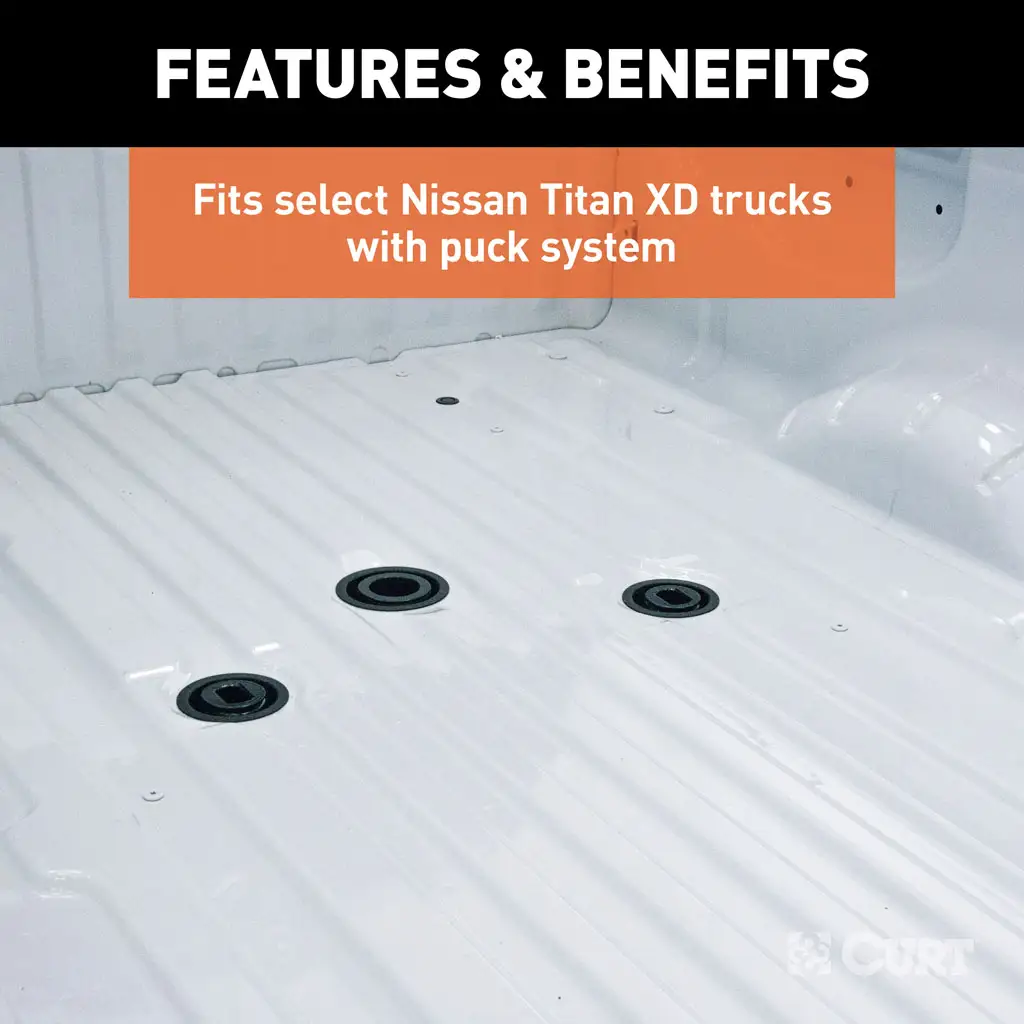

Requires Nissan puck system for installation (intended for long-bed trucks only)
Includes A16 5th wheel hitch head #16520 and Nissan Titan XD puck system legs #16026

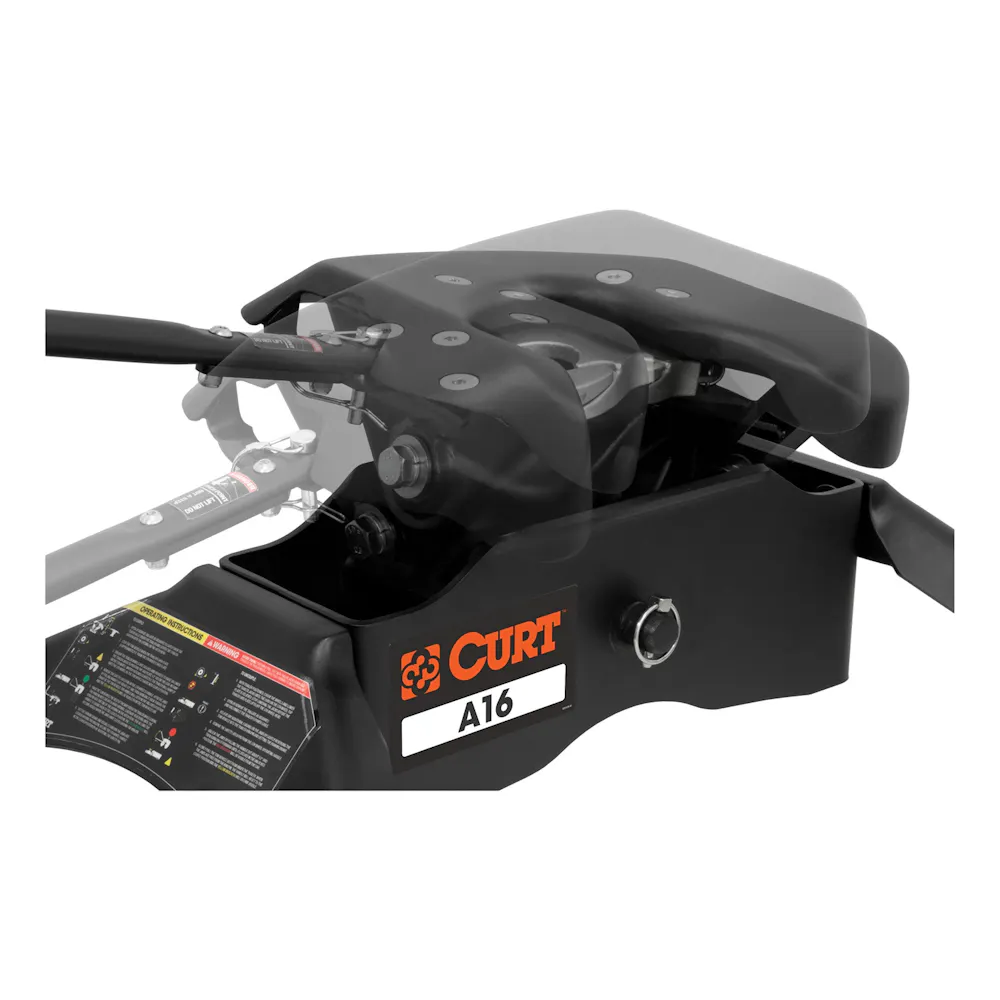

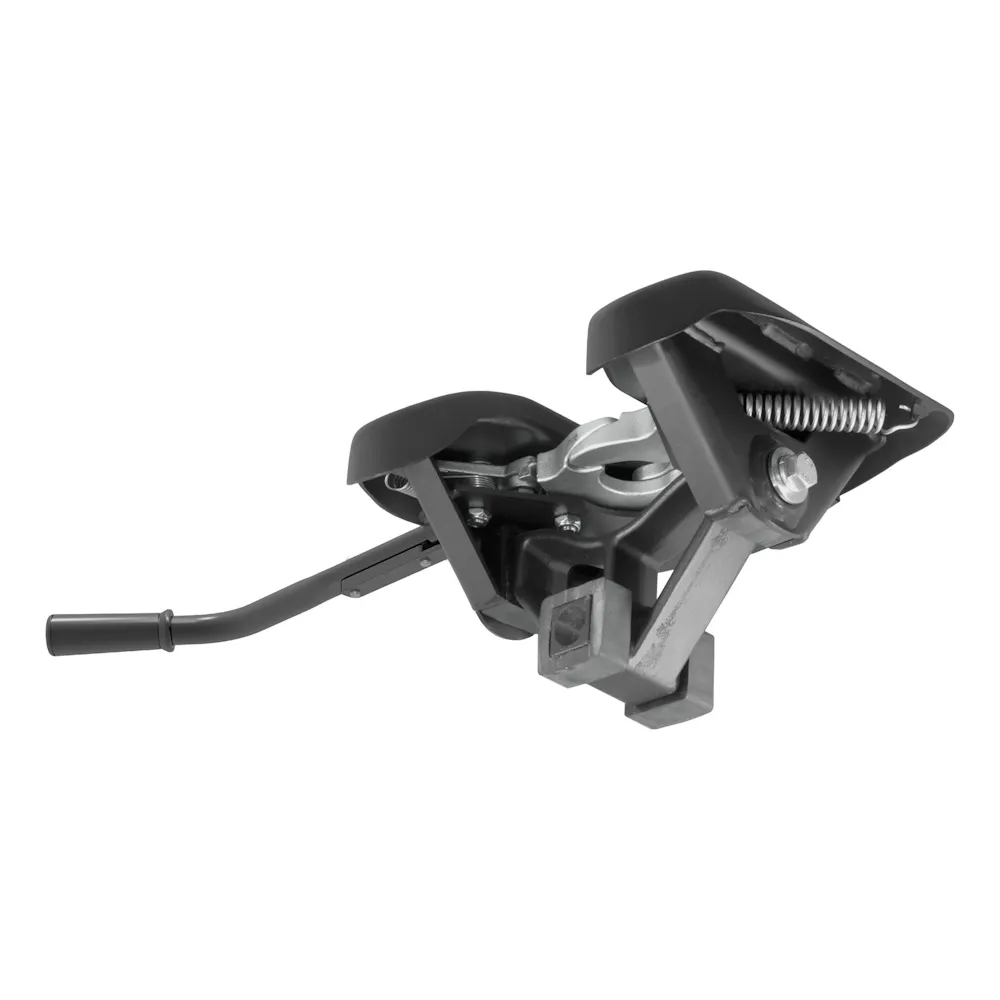

Fully articulating torsion head for controlled coupling and stable towing

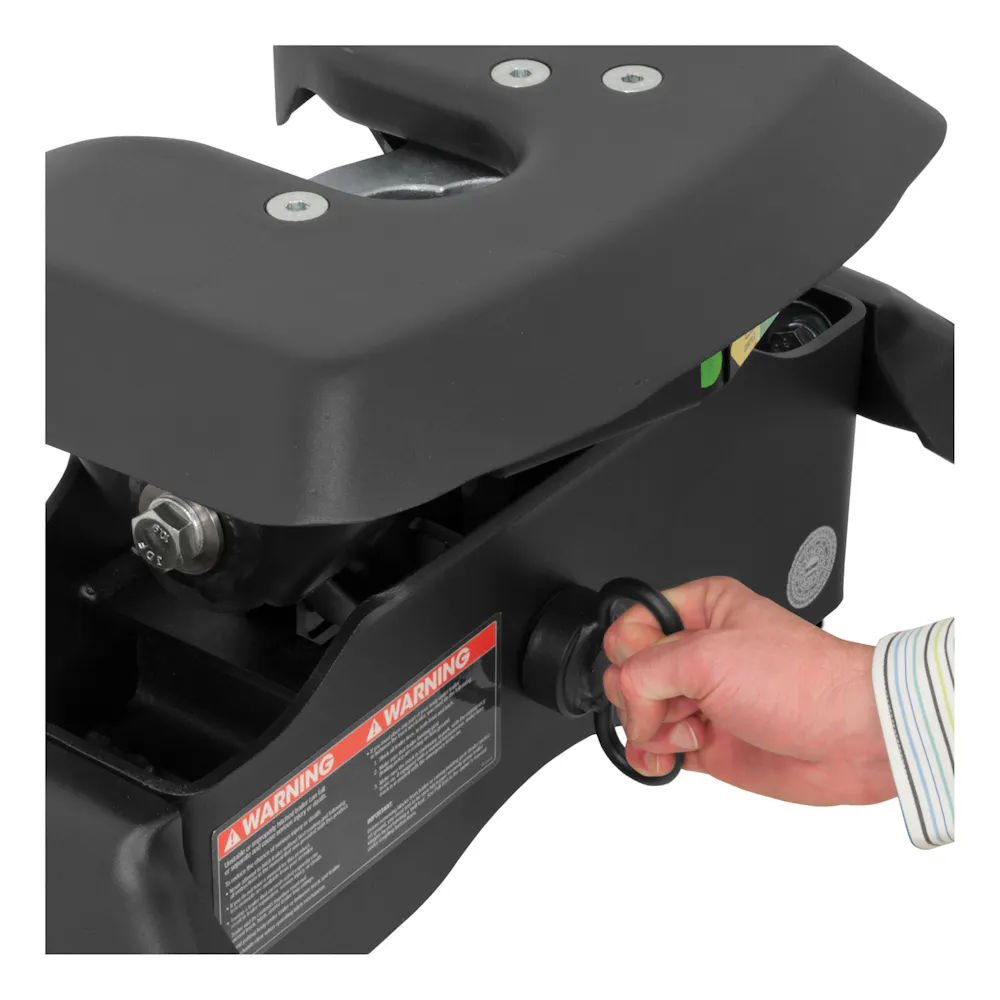

Fast, one-pin head removal makes moving easy with smaller, lighter pieces

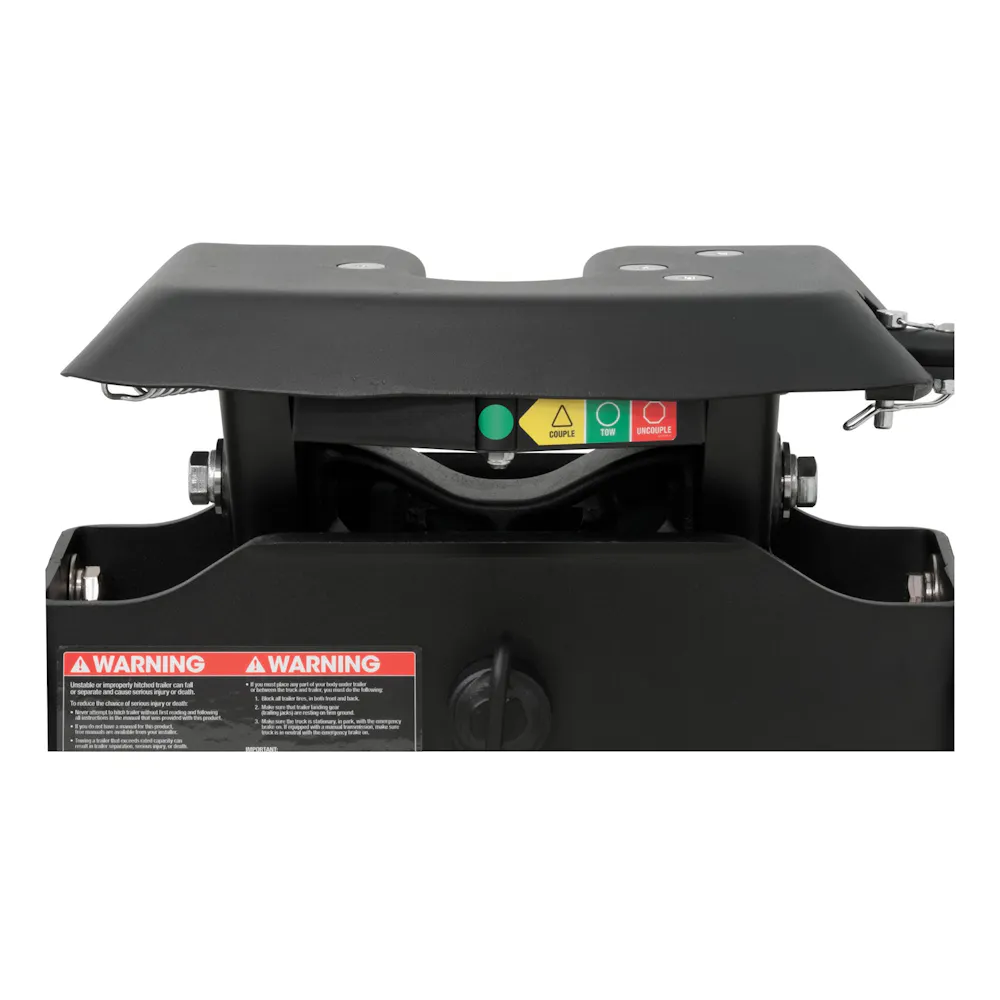

Three-position coupling indicator clearly shows coupling status

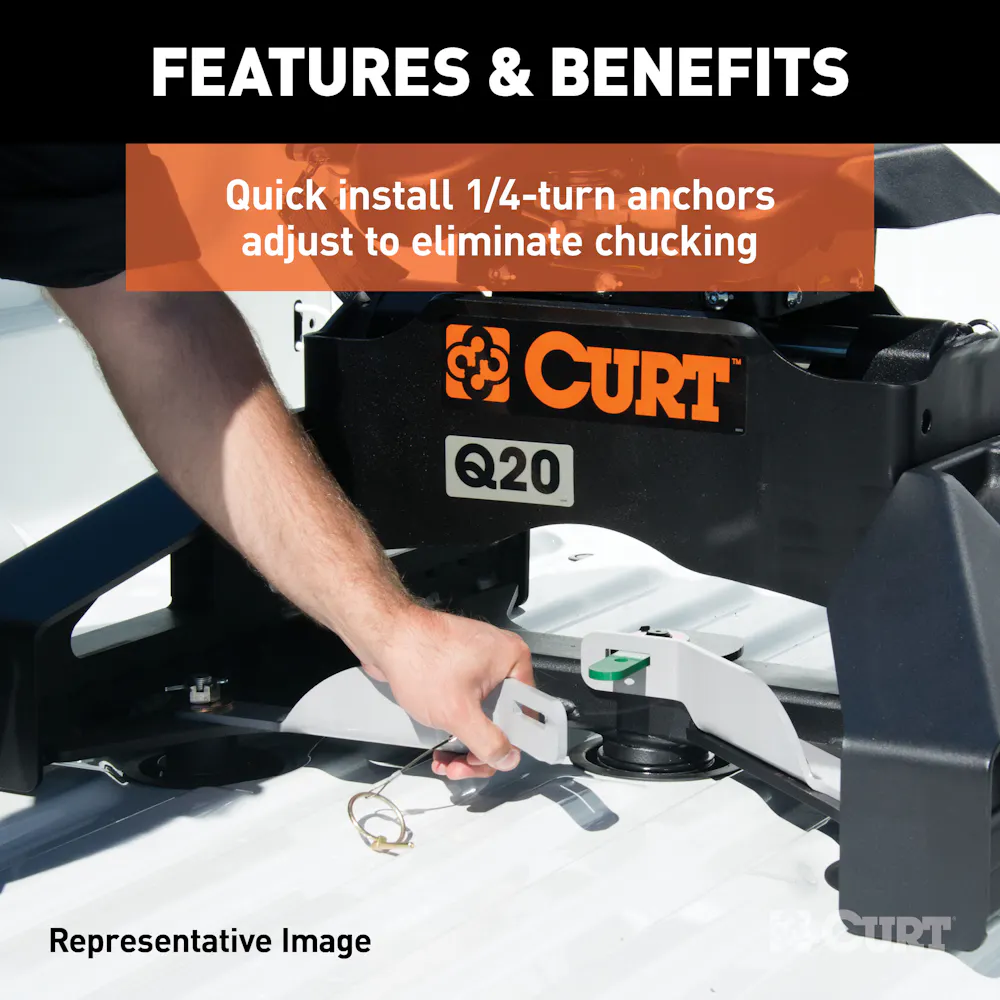

Quarter-turn anchoring system provides quick installation and removal
