CURT · 15921
Part #: 15921
UPC: 612314159215
Log in for inventory
Notify me when this item is in stock.
Description: 44" Universal Weld-On Hitch Center Section, 2-1/2" Receiver (No Side Plates); CURT 15921 44-Inch Class 5 Weld-On Hitch Center Section Only, 2-1/2-Inch Receiver, Up to 16,000 lbs
Description:
Description
CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on hitch center section features a 2-1/2-inch receiver and measures 44 inches wide. It is rated for up to 16,000 lbs. gross trailer weight. NOTE: This package includes the center section only. Side plates are not included.

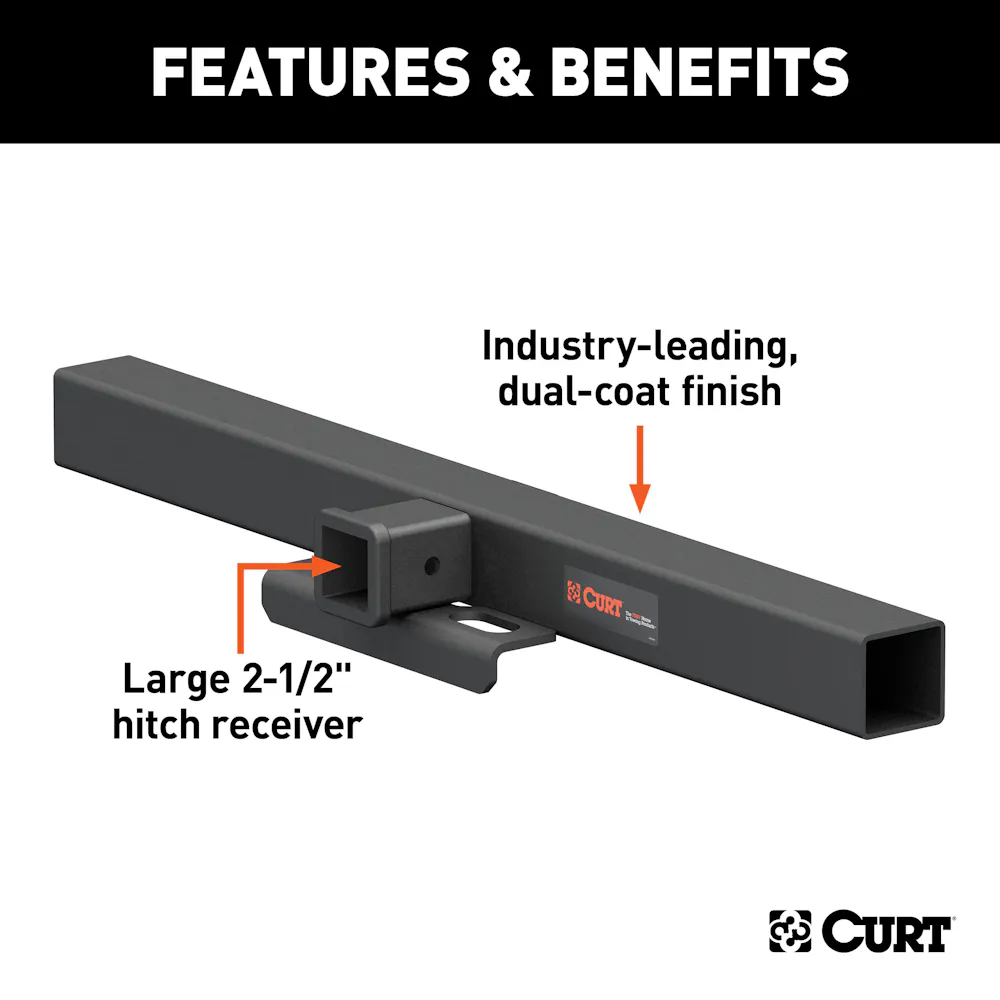

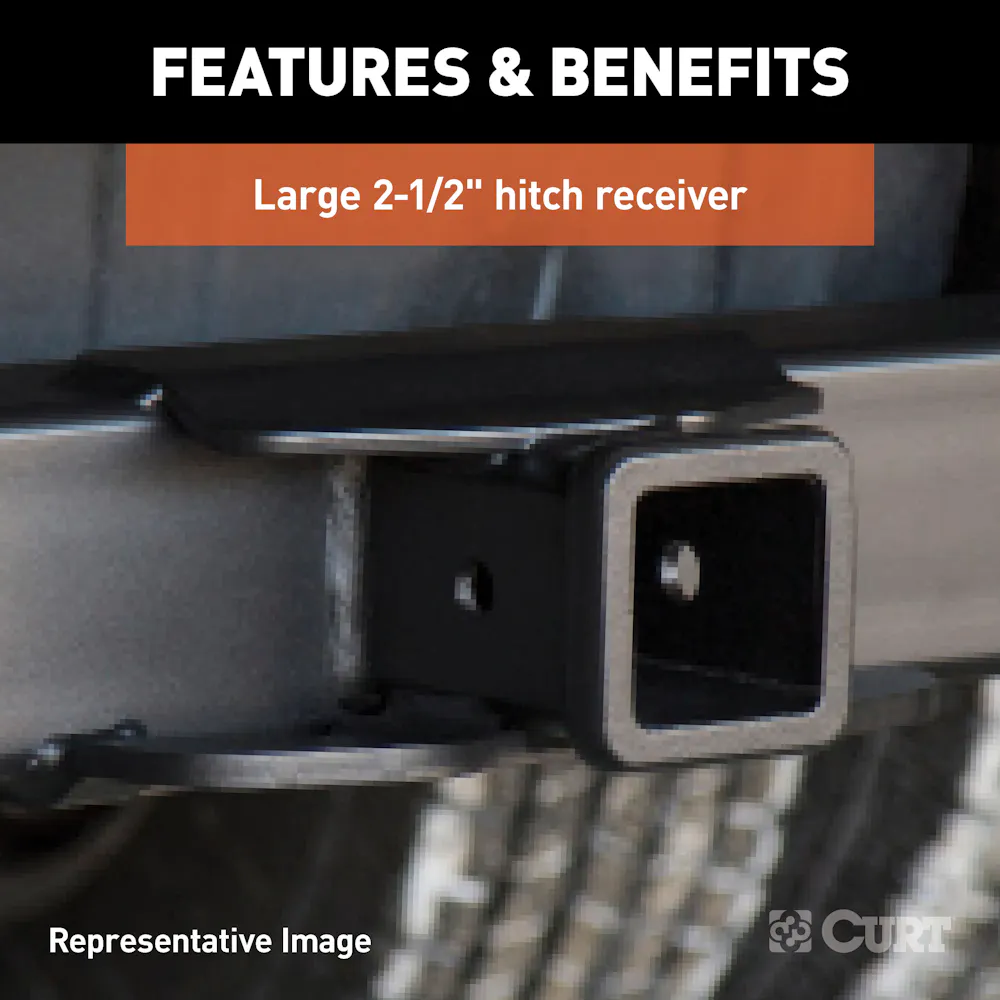

Features & benefits
- Frame fits a variety of vehicles (side plates not included)

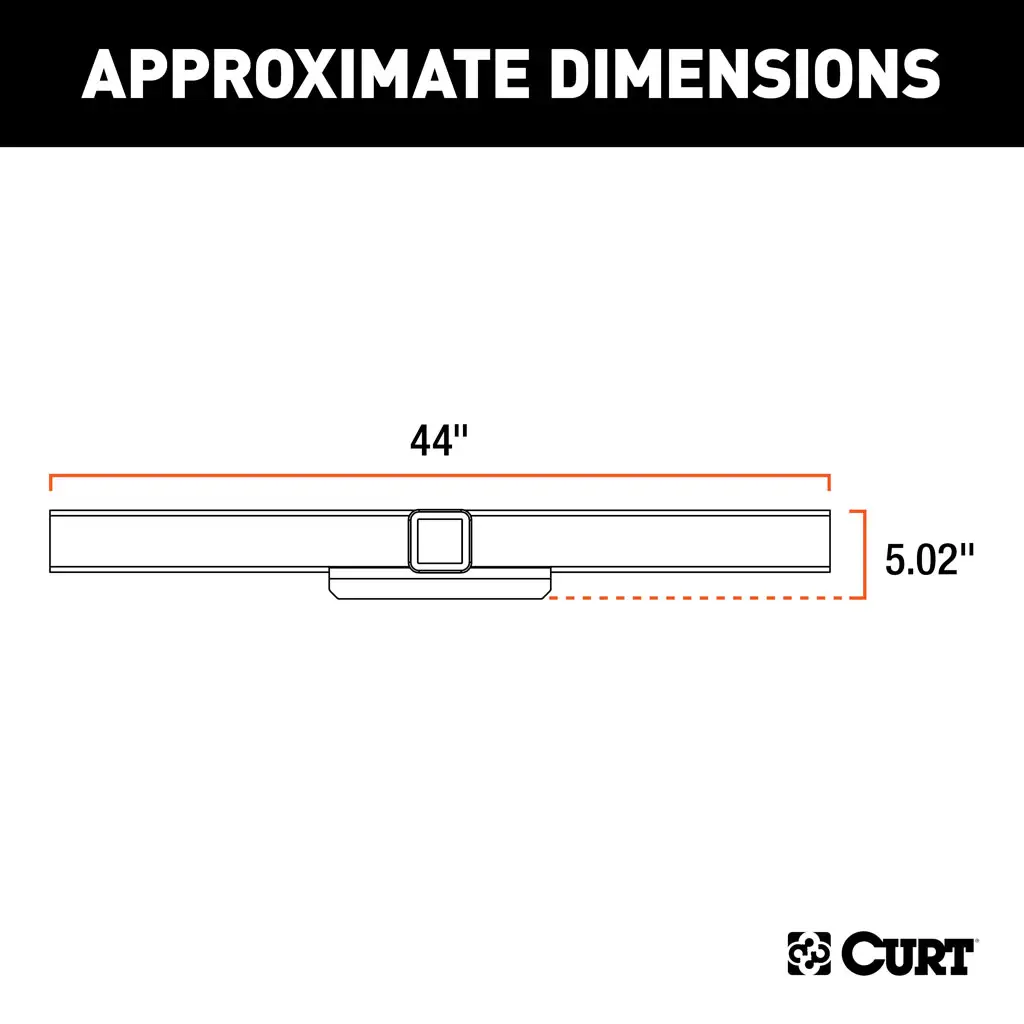

- Measures 44" wide
- Rated as a class 5 hitch
- Tested for safety in accordance with SAE J684
- Great for use with utility boxes
- Protected by a highly durable carbide powder coat finish

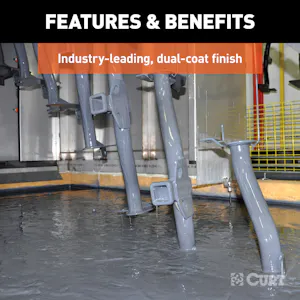

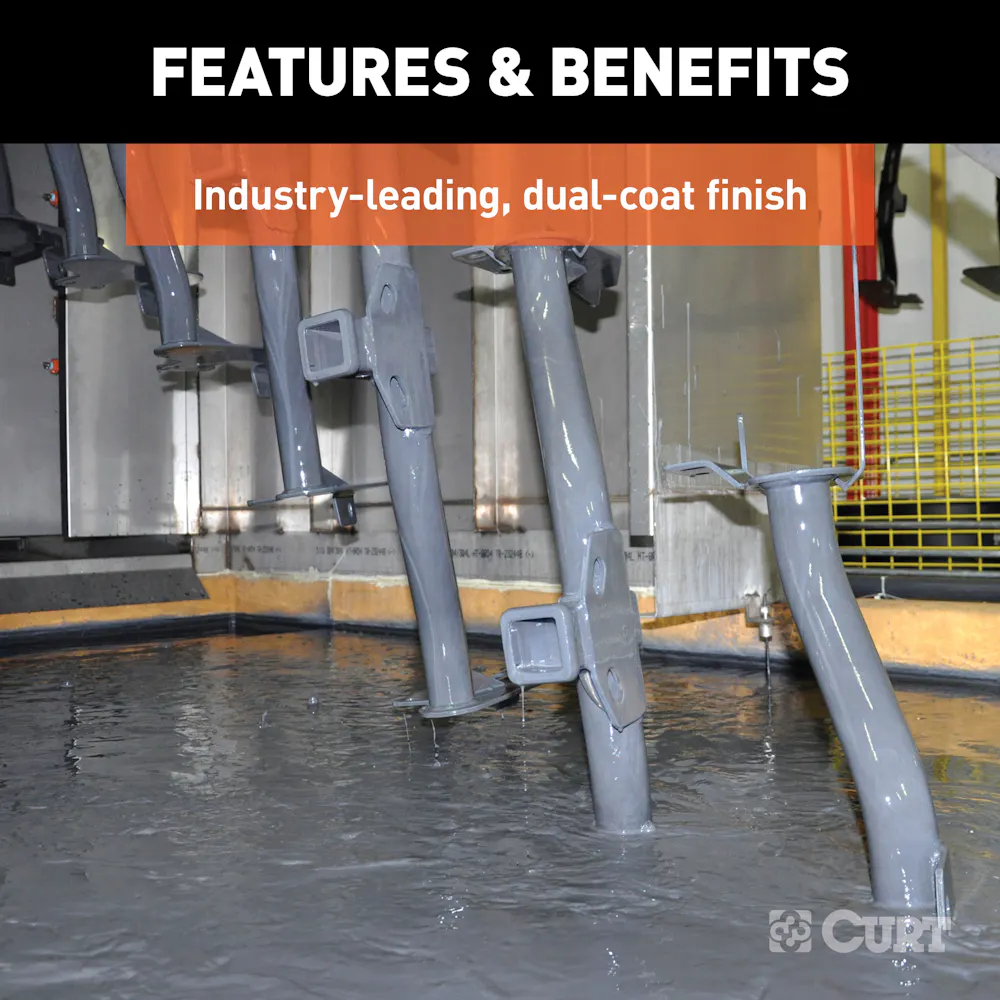

- Co-cured in a rust-resistant liquid A-coat, inside and out
- Designed, welded, and coated in Wisconsin
Information
Designed, welded, and coated in Wisconsin
Application summary
| Year | Make / model |
|---|---|
| 5921 | 44-Inch Class 5 Weld-On Hitch Center Section Only, 2-1/2-Inch Receiver, Up to 20,000 lbs |
Specifications
- GTIN
- 00612314159215
- Weight
- 47 lb
- Height
- 10.5 in
- Length
- 46.5 in
- Width
- 13.63 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Attachment Location
- Rear
- Box Height in Inches - XA
- 13
- Box Length in Inches - XA
- 46
- Box Width in Inches - XA
- 10
- California Proposition 65
- Yes
- Class ID
- 7
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drilling Required
- No
- Finish
- GLOSS BLACK POWDER COAT
- Finish - XA
- GLOSS BLACK POWDER COAT
- Gross Trailer Weight
- 20000 lbs.
- Hitch Class
- V
- Item Class - XA
- MFH
- Item Height - XA
- 5.020
- Item Length - XA
- 44.000
- Item Width - XA
- 8.000
- Main Body Shape
- Square
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material
- Carbon Steel
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Not Applicable
- Mounting Hardware Included
- No
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 25.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Position
- Rear
- Price Code - XA
- 16
- Product Weight - XA
- 37.000
- Rate Class - XA
- 125.0
- Receiver Included
- Yes
- Receiver Size
- 2 1/2
- Receiver Tube Size
- 2-1/2 IN
- Retail Height - XA
- 13.630
- Retail Length - XA
- 46.500
- Retail Width - XA
- 10.500
- Sales Family Code - XA
- HITCH
- Sales Family Description - XA
- HITCH
- Sales Group Description - XA
- CL 5
- Shipping Weight - XA
- 47.000
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- No
- Title
- 44" Universal Weld-On Hitch Center Section, 2-1/2" Receiver (No Side Plates)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime
- Weight Carrying Capacity (WC)
- 16,000 LB
Fitment status
This product is universal and will fit your application.
Application summary
CURT 15921 44-Inch Class 5 Weld-On Hitch Center Section Only, 2-1/2-Inch Receiver, Up to 20,000 lbs
