CURT · 15703
Part #: 15703
UPC: 612314157037
Log in for inventory
Notify me when this item is in stock.

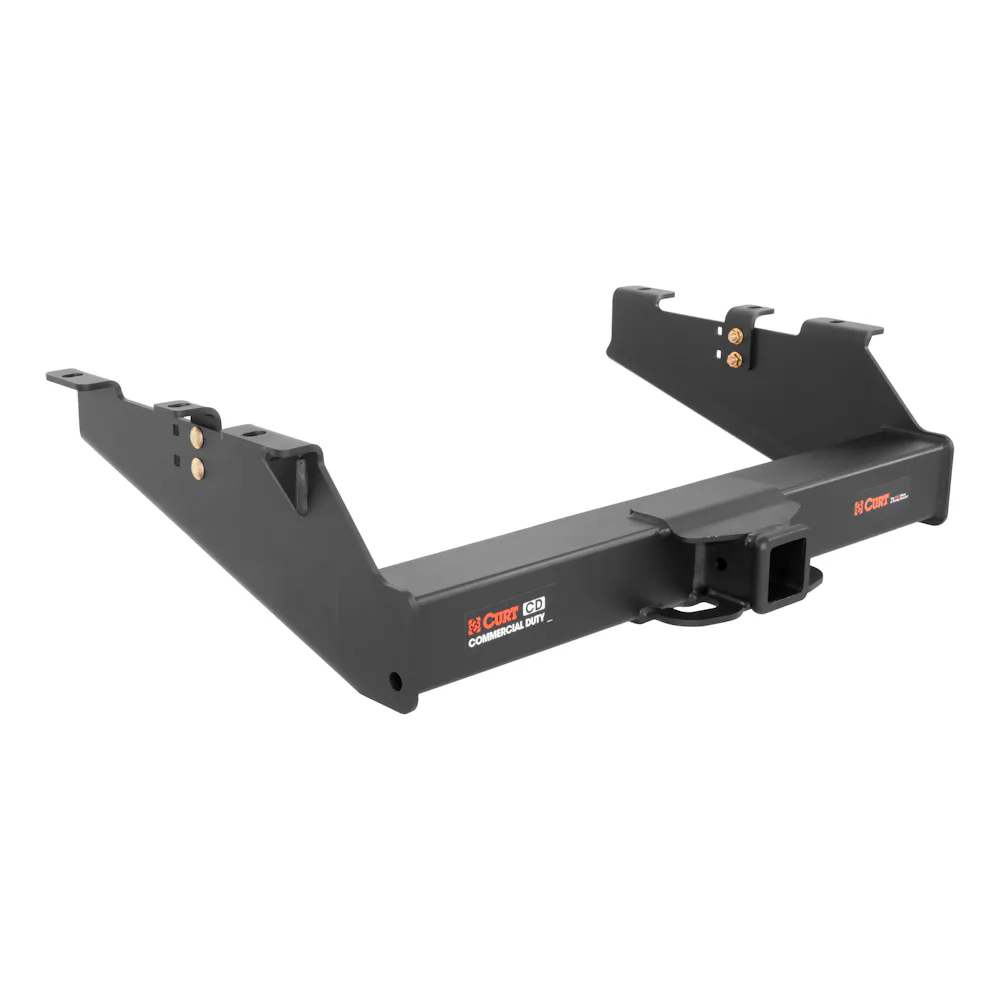

Description: Commercial Duty Class 5 Hitch, 2-1/2", Select Silverado, Sierra 2500, 3500 HD; CURT 15703 Commercial Duty Class 5 Hitch for Silverado and Sierra HD
Description:
Description
In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 18,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 2500, 2500 HD, 2500 HD Classic, 3500, 3500 HD or 3500 Classic and GMC Sierra 2500, 2500 HD, 2500 HD Classic, 3500, 3500 HD or 3500 Classic (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

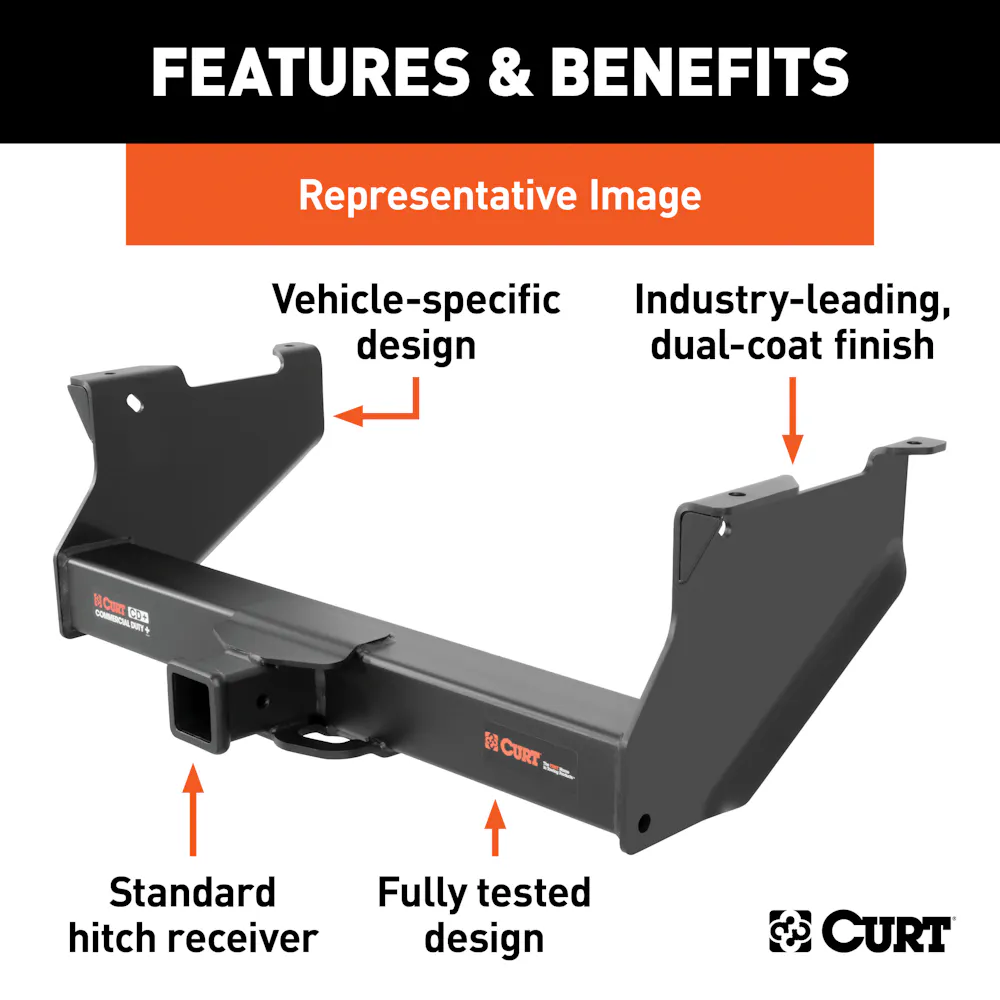

Features & benefits
- Rated to 18,000 lbs. gross trailer weight and 2,700 lbs. tongue weight
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Features wide safety chain openings for heavy-duty hooks
- Limited lifetime warranty (one-year finish, one-year parts)
- Designed, welded, and coated in Wisconsin
- Compatible with weight distribution hitch (18,000 lbs. WD / 2,700 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Constructed with a large, powerful main body
- Protected by a highly durable carbide powder coat finish
Information
Constructed with a large, powerful main body
Application summary
| Year | Make / model |
|---|---|
| 2001-2004 | Chevrolet Silverado 2500 |
| 2001-2010 | Chevrolet Silverado 2500 HD |
| 2007 | Chevrolet Silverado 2500 HD Classic |
| 2001-2006 | Chevrolet Silverado 3500 |
| 2007 | Chevrolet Silverado 3500 Classic |
| 2007-2010 | Chevrolet Silverado 3500 HD |
| 2001-2004 | GMC Sierra 2500 |
| 2001-2010 | GMC Sierra 2500 HD |
| 2007 | GMC Sierra 2500 HD Classic |
| 2001-2006 | GMC Sierra 3500 |
| 2007 | GMC Sierra 3500 Classic |
| 2007-2010 | GMC Sierra 3500 HD |
Specifications
- GTIN
- 00612314157037
- Weight
- 73.2 lb
- Height
- 14 in
- Length
- 48 in
- Width
- 33 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Class V Trailer Hitch
- Attachment Location
- Rear
- Body Shape
- Square
- Box Height in Inches - XA
- 33
- Box Length in Inches - XA
- 48
- Box Width in Inches - XA
- 14
- California Proposition 65
- Yes
- Class ID
- 10
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drilling Required
- No
- Finish
- Powder Coated
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Gross Trailer Weight
- 18000 lbs.
- Gross Trailer Weight (lbs.)
- 18000
- Hitch Class
- V
- Install Time
- 30 Minutes
- Item Class - XA
- MFH
- Item Height - XA
- 9.830
- Item Length - XA
- 40.630
- Item Width - XA
- 27.860
- Main Body Shape
- Square
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Mounting Hardware Included
- Yes
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 12.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Position
- Rear
- Price Code - XA
- 87
- Product Weight - XA
- 65.200
- Rate Class - XA
- 125.0
- Receiver Included
- No
- Receiver Size
- 2
- Receiver Tube Size
- 2.500 in.
- Retail Height - XA
- 33.000
- Retail Length - XA
- 48.000
- Retail Width - XA
- 14.000
- Sales Family Code - XA
- HITCH
- Sales Family Description - XA
- HITCH
- Sales Group Description - XA
- CL 5
- Shipping Weight - XA
- 73.200
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- No
- Title
- Commercial Duty Class 5 Hitch, 2-1/2", Select Silverado, Sierra 2500, 3500 HD
- Tongue Weight (TW)
- 2,700 LB
- Tongue Weight(TW)
- 2,700 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Visibility
- Concealed
- WC Tongue Weight
- 2700
- WD Tongue Weight
- 2700
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity
- 18000
- Weight Carrying Capacity (WC)
- 18,000 LB
- Weight Carrying Capacity(WC)
- 18,000 LB
- Weight Distribution
- 18000
- Weight Distribution (WD)
- 18,000 LB
- Weight Distribution Tongue Weight (WDTW)
- 2,700 LB
- Weight Distribution Tongue Weight(WDTW)
- 2,700 LB
- Weight Distribution(WD)
- 18,000 LB
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2001-2004 Chevrolet Silverado 2500; 2001-2010 Chevrolet Silverado 2500 HD; 2007 Chevrolet Silverado 2500 HD Classic; 2001-2006 Chevrolet Silverado 3500; 2007 Chevrolet Silverado 3500 Classic; 2007-2010 Chevrolet Silverado 3500 HD; 2001-2004 GMC Sierra 2500; 2001-2010 GMC Sierra 2500 HD; 2007 GMC Sierra 2500 HD Classic; 2001-2006 GMC Sierra 3500; 2007 GMC Sierra 3500 Classic; 2007-2010 GMC Sierra 3500 HD
