CURT · 15511
Part #: 15511
UPC: 612314155118
Log in for inventory
Notify me when this item is in stock.
Description: Class 5 Multi-Fit Trailer Hitch with 2" Receiver; CURT 15511 Multi-Fit Class 5 Adjustable Hitch, 7-1/2-Inch Drop, 2-Inch Receiver, 15,000 lbs. Select Chevrolet, Dodge, Ford, GMC Trucks
Description:
Description
When a custom hitch is not available for your vehicle, CURT offers the multi-fit hitch. Designed to be the ultimate in versatility, CURT universal trailer hitches fit several different vehicle manufacturers, including Chevy, GMC, Dodge, Ford and more. The multi-fit hitch is a universally designed alternative to our custom hitches. It provides a more affordable option and flexibility in installation. Very simply, a CURT multi-fit trailer hitch uses a sliding or adjustable frame to match the width of your vehicle's frame. In general, multi-fit hitches are used on mid-size and full-size pickup trucks and class 5 multi-fit trailer hitch features a gross trailer weight capacity of 15,000 lbs., a tongue weight capacity of 1,500 lbs. and a 2" x 2" receiver tube opening, making it an excellent choice for towing toy haulers, dump trailers, logging trailers, gravity boxes, small yacht trailers, as well as cargo carriers, bike racks and winch mounts. For a little extra towing power and stability, this multi-fit hitch can also be used in combination with a weight distribution system, bringing its gross trailer weight capacity up to 16,000 lbs. and its tongue weight capacity up to 1,600 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component).

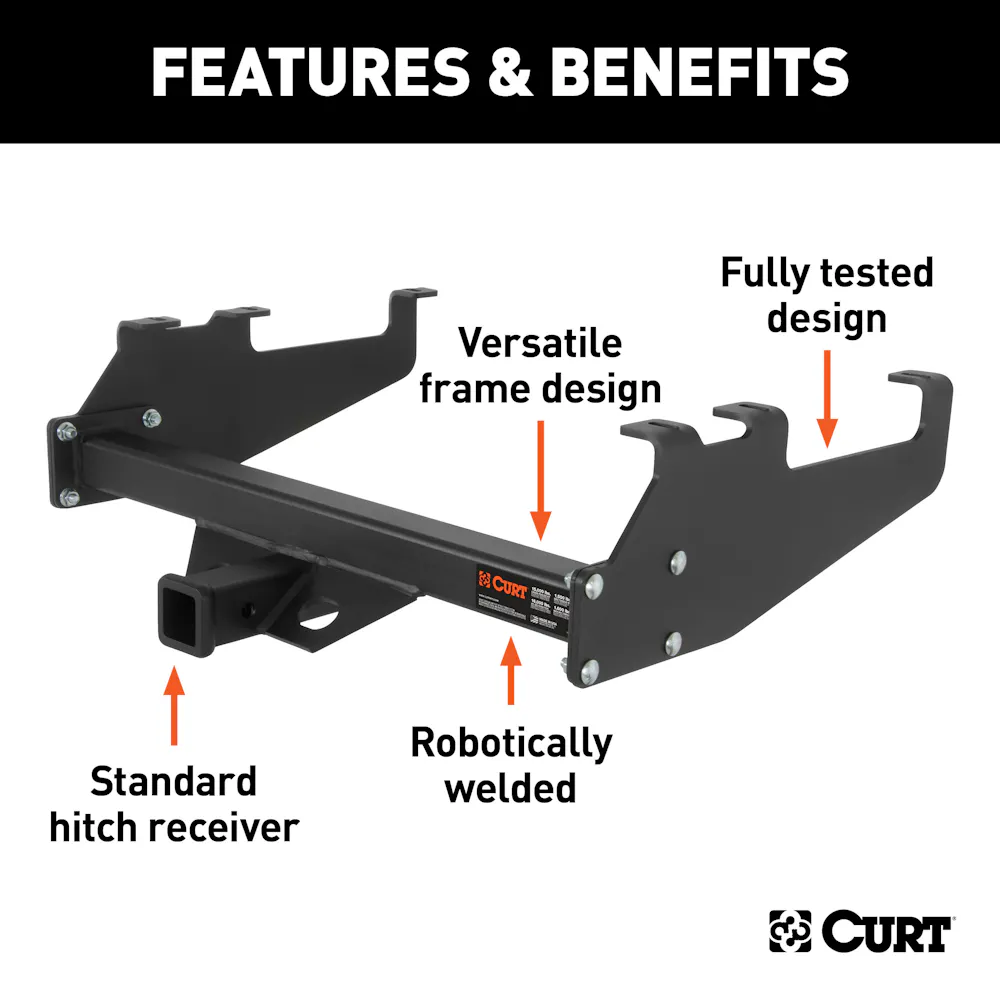

Features & benefits
- Features multiple mounting holes to fit a variety of vehicles
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a highly durable carbide powder coat finish

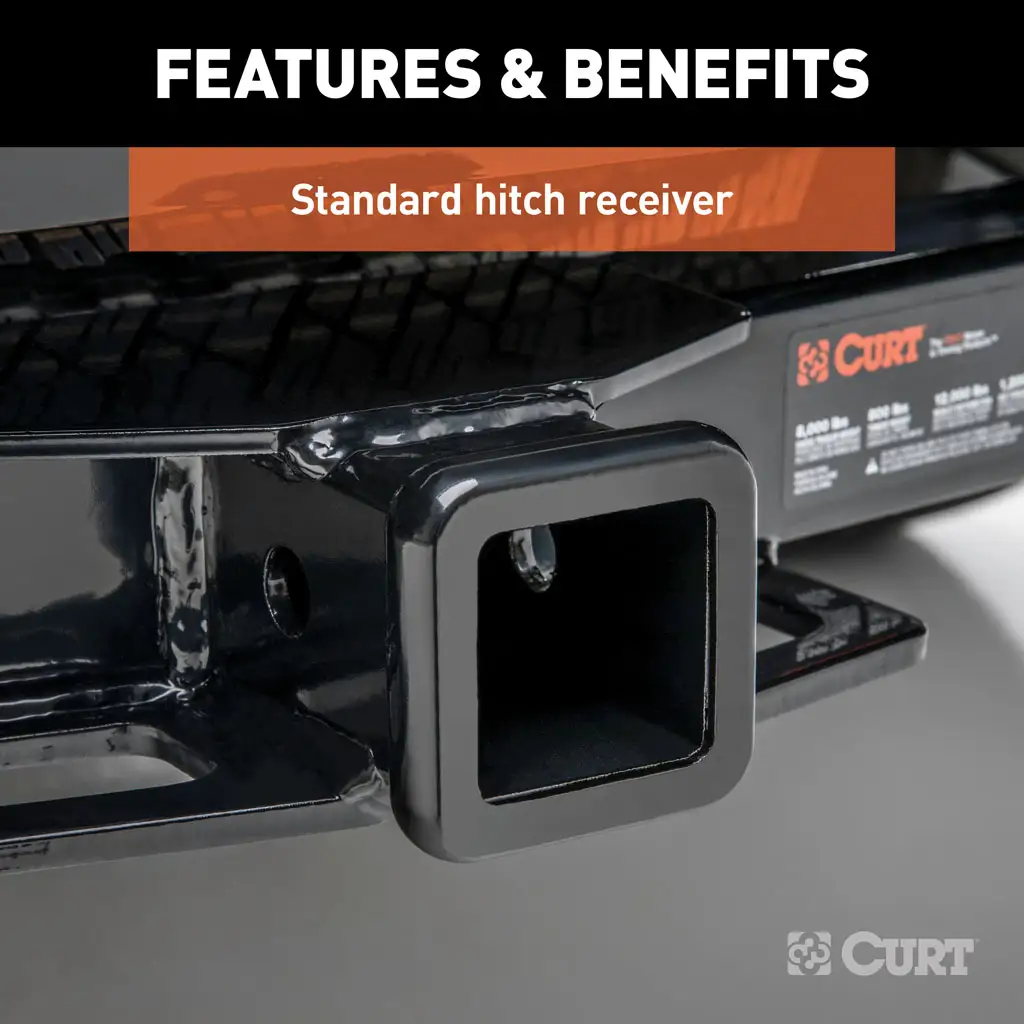

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 5511 | Multi-Fit Class 5 Adjustable Hitch, 7-1/2-Inch Drop, 2-Inch Receiver, 15,000 lbs. Select Chevrolet, Dodge, Ford, GMC Trucks |
Specifications
- GTIN
- 00612314155118
- Weight
- 67 lb
- Height
- 10 in
- Length
- 42 in
- Width
- 21 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Class V Multi-Fit
- Attachment Location
- Rear
- Body Shape
- Square
- Box Height in Inches - XA
- 19
- Box Length in Inches - XA
- 41
- Box Width in Inches - XA
- 9
- California Proposition 65
- Yes
- Class ID
- 0
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drilling Required
- Yes
- Drop
- 7 1/2 IN
- Finish
- CARBIDE BLACK POWDER COAT
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Gross Trailer Weight
- 15000 lbs.
- Gross Trailer Weight (GTW)
- 15,000 LB
- Gross Trailer Weight (lbs.)
- 16000
- Gross Trailer Weight(GTW)
- 15,000 LB
- Hitch Class
- V
- Item Class - XA
- MFH
- Item Height - XA
- 8.750
- Item Length - XA
- 41.000
- Item Width - XA
- 18.500
- Main Body Shape
- Square
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material
- Carbon Steel
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Mounting Hardware Included
- Yes
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 8.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Position
- Rear
- Price Code - XA
- 71
- Product Weight - XA
- 62.000
- Rate Class - XA
- 125.0
- Receiver Included
- Yes
- Receiver Size
- 2
- Receiver Tube Size
- 2.000 in.
- Retail Height - XA
- 10.000
- Retail Length - XA
- 42.000
- Retail Width - XA
- 21.000
- Sales Family Code - XA
- HITCH
- Sales Family Description - XA
- HITCH
- Sales Group Description - XA
- CL 5
- Shipping Weight - XA
- 67.000
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- No
- Title
- Class 5 Multi-Fit Trailer Hitch with 2" Receiver
- Tongue Weight (TW)
- 1,500 LB
- Tongue Weight(TW)
- 1,500 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Visibility
- Concealed
- WC Tongue Weight
- 1500
- WD Tongue Weight
- 1600
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity (WC)
- 15,000 LB
- Weight Distribution
- 16000
- Weight Distribution (WD)
- 16,000 LB
- Weight Distribution Tongue Weight (WDTW)
- 1,600 LB
- Weight Distribution Tongue Weight(WDTW)
- 1,600 LB
- Weight Distribution(WD)
- 16,000 LB
Fitment status
This product is universal and will fit your application.
Application summary
CURT 15511 Multi-Fit Class 5 Adjustable Hitch, 7-1/2-Inch Drop, 2-Inch Receiver, 15,000 lbs. Select Chevrolet, Dodge, Ford, GMC Trucks
