CURT / 14001

Part #: 14001
UPC: 612314140015

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: Class 4 Hitches

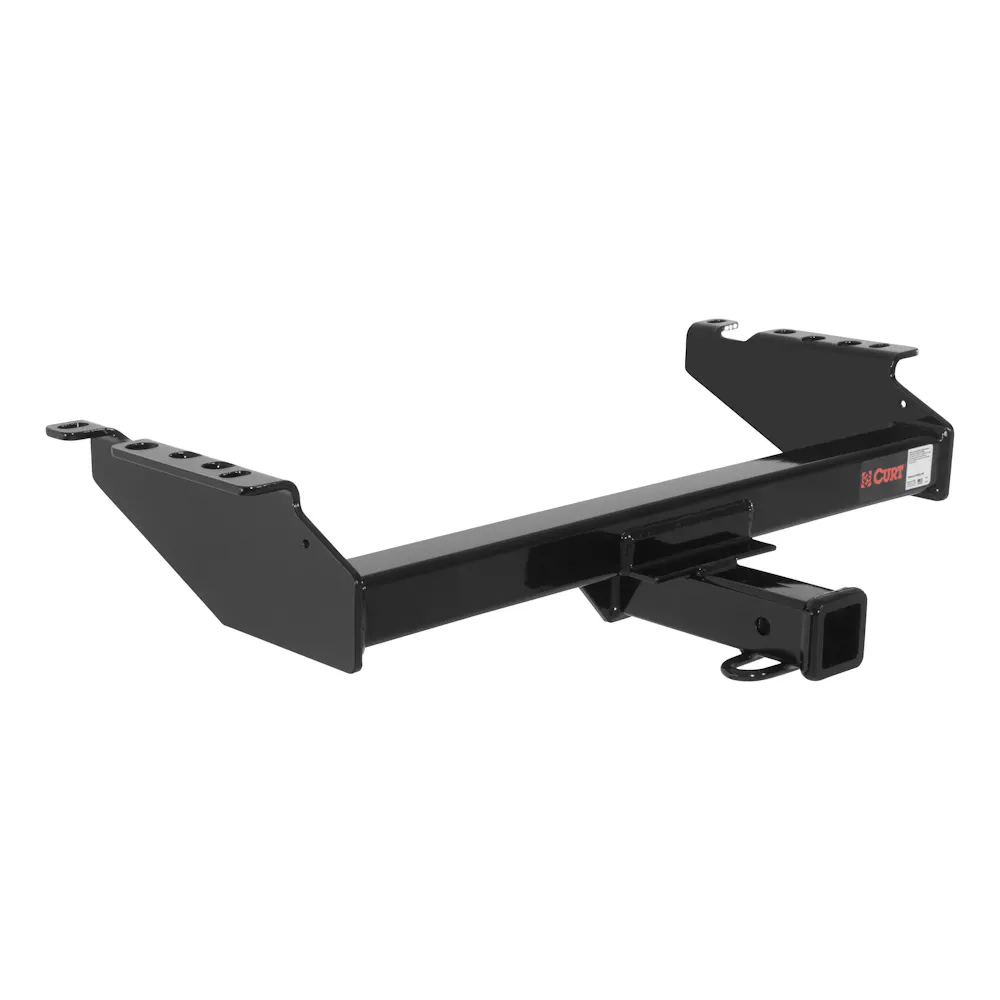

Description: Class 4 Trailer Hitch, 2" Receiver, Select Dodge, Ram, Ford (Drilling Required); CURT 14001 Class 4 Trailer Hitch, 2-Inch Receiver, Drilling Required, Fits Select Dodge D-Series, Ram, Ford F-Series

Description:

Description

Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Dodge D100, D150, D200, D250, D300, D350, Ram 1500, 2500 or 3500 and Ford Bronco, F100, F150, F250, F250 HD or F350 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.

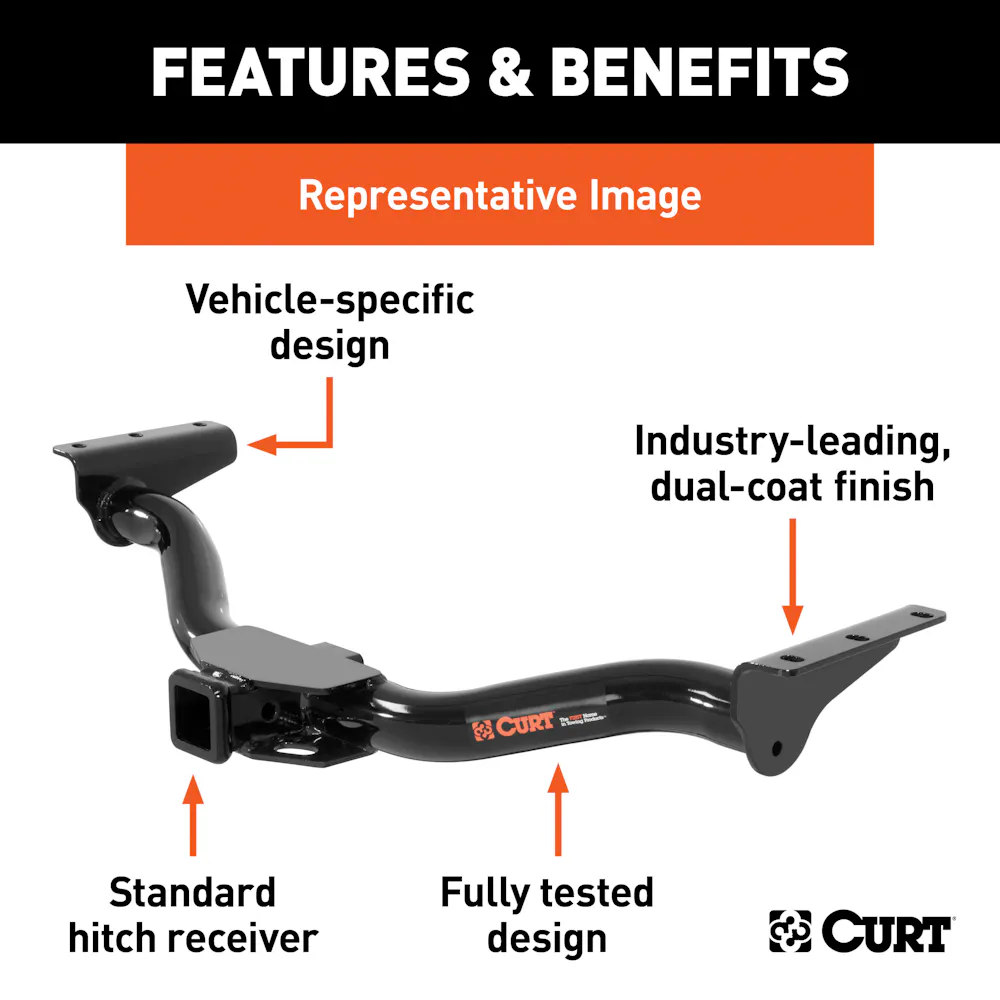

Features & benefits

  • Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
  • Co-cured in a rust-resistant liquid A-coat, inside and out

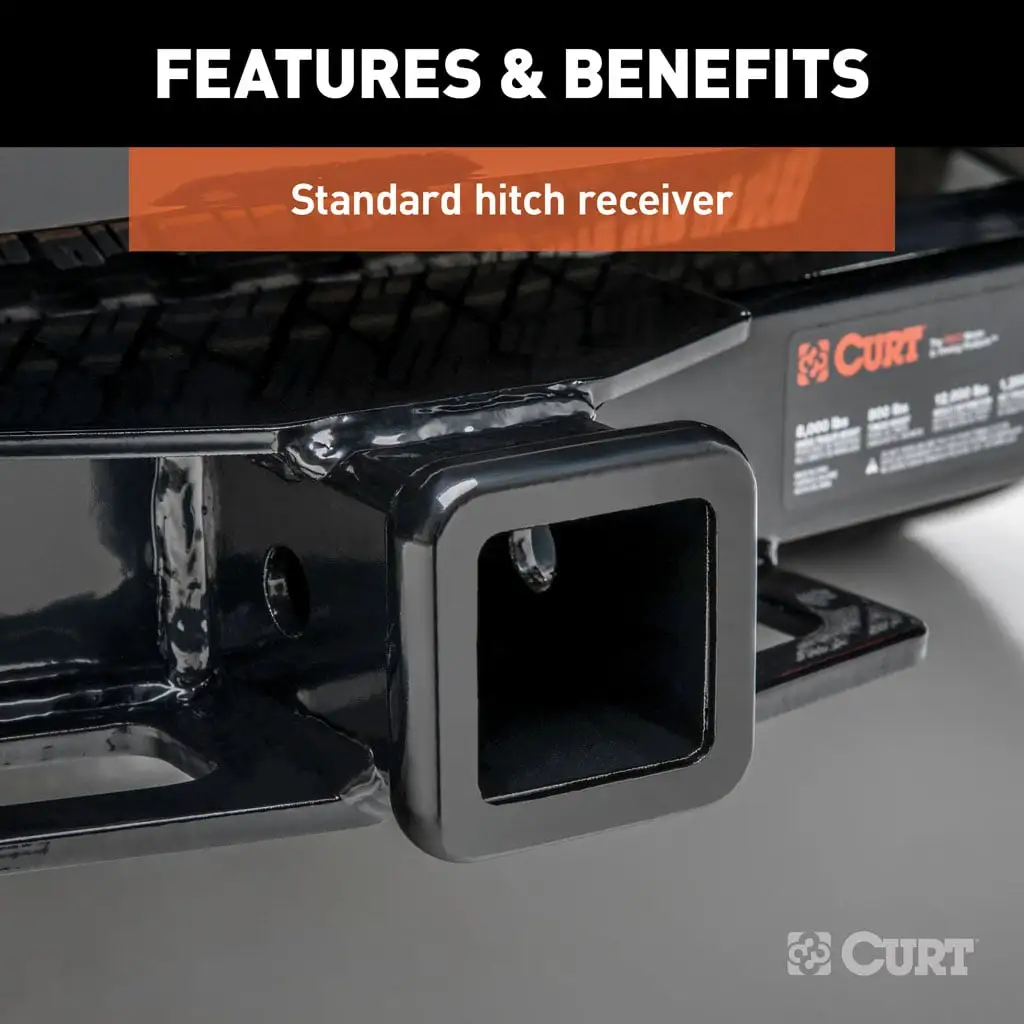

  • Equipped with an open-back receiver for easy cleaning
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Designed, welded, and coated in Wisconsin
  • Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
  • Engineered with a vehicle-specific design for a custom fit
  • Concealed main body for OE look and seamless integration with the vehicle
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a durable high-gloss black powder coat finish

Information

Protected by a durable high-gloss black powder coat finish

Application summary

Year Make / model
1975-1979 Dodge D100
1984-1989 Dodge D100
1968-1974 Dodge D100 Pickup
1977-1993 Dodge D150
1968-1974 Dodge D200 Pickup
1981-1993 Dodge D250
1968-1974 Dodge D300 Pickup
1981-1993 Dodge D350
1994-2001 Dodge Ram 1500
1994-2002 Dodge Ram 2500
1994-2002 Dodge Ram 3500
1978-1996 Ford Bronco
1973-1983 Ford F-100
1975-1996 Ford F-150
1973-1997 Ford F-250
1997 Ford F-250 HD
1973-1997 Ford F-350

Specifications

GTIN
00612314140015
Weight
50 lb
Height
12 in
Length
40 in
Width
20 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Class IV Trailer Hitch
Attachment Location
Rear
Body Shape
Square
Box Height in Inches - XA
27
Box Length in Inches - XA
38
Box Width in Inches - XA
9
California Proposition 65
Yes
Class ID
4
Color
Black
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Drilling Required
Yes
Finish
Powder Coated
Finish - XA
GLOSS BLACK POWDER COAT
Gross Trailer Weight
10000 lbs.
Gross Trailer Weight (lbs.)
10000
Hitch Class
IV
Install Time
60 Minutes
Item Class - XA
MFH
Item Height - XA
8.650
Item Length - XA
37.620
Item Width - XA
21.630
Main Body Shape
Square
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material - XA
Carbon Steel
Mount Type Description - XA
Blank
Mounting Hardware Included
Yes
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
26.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Position
Rear
Price Code - XA
55
Product Weight - XA
46.000
Rate Class - XA
125.0
Receiver Included
No
Receiver Size
2
Receiver Tube Size
2.000 in.
Retail Height - XA
40.000
Retail Length - XA
12.000
Retail Width - XA
20.000
Sales Family Code - XA
HITCH
Sales Family Description - XA
HITCH
Sales Group Description - XA
CL 4
Shipping Weight - XA
50.000
Side Application Type Description - XA
Blank
Tariff 301 - XA
No
Title
Class 4 Trailer Hitch, 2" Receiver, Select Dodge, Ram, Ford (Drilling Required)
Tongue Weight (TW)
1,000 LB
Tongue Weight(TW)
1,000 LB
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Visibility
Concealed
WC Tongue Weight
1000
WD Tongue Weight
1200
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity
10000
Weight Carrying Capacity (WC)
10,000 LB
Weight Carrying Capacity(WC)
10,000 LB
Weight Distribution
12000
Weight Distribution (WD)
12,000 LB
Weight Distribution Tongue Weight (WDTW)
1,200 LB
Weight Distribution Tongue Weight(WDTW)
1,200 LB
Weight Distribution(WD)
12,000 LB

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1975-1979 Dodge D100; 1984-1989 Dodge D100; 1968-1974 Dodge D100 Pickup; 1977-1993 Dodge D150; 1968-1974 Dodge D200 Pickup; 1981-1993 Dodge D250; 1968-1974 Dodge D300 Pickup; 1981-1993 Dodge D350; 1994-2001 Dodge Ram 1500; 1994-2002 Dodge Ram 2500; 1994-2002 Dodge Ram 3500; 1978-1996 Ford Bronco; 1973-1983 Ford F-100; 1975-1996 Ford F-150; 1973-1997 Ford F-250; 1997 Ford F-250 HD; 1973-1997 Ford F-350
