CURT · 13355
Part #: 13355
UPC: 612314133550
Loading...
Notify me when this item is in stock.

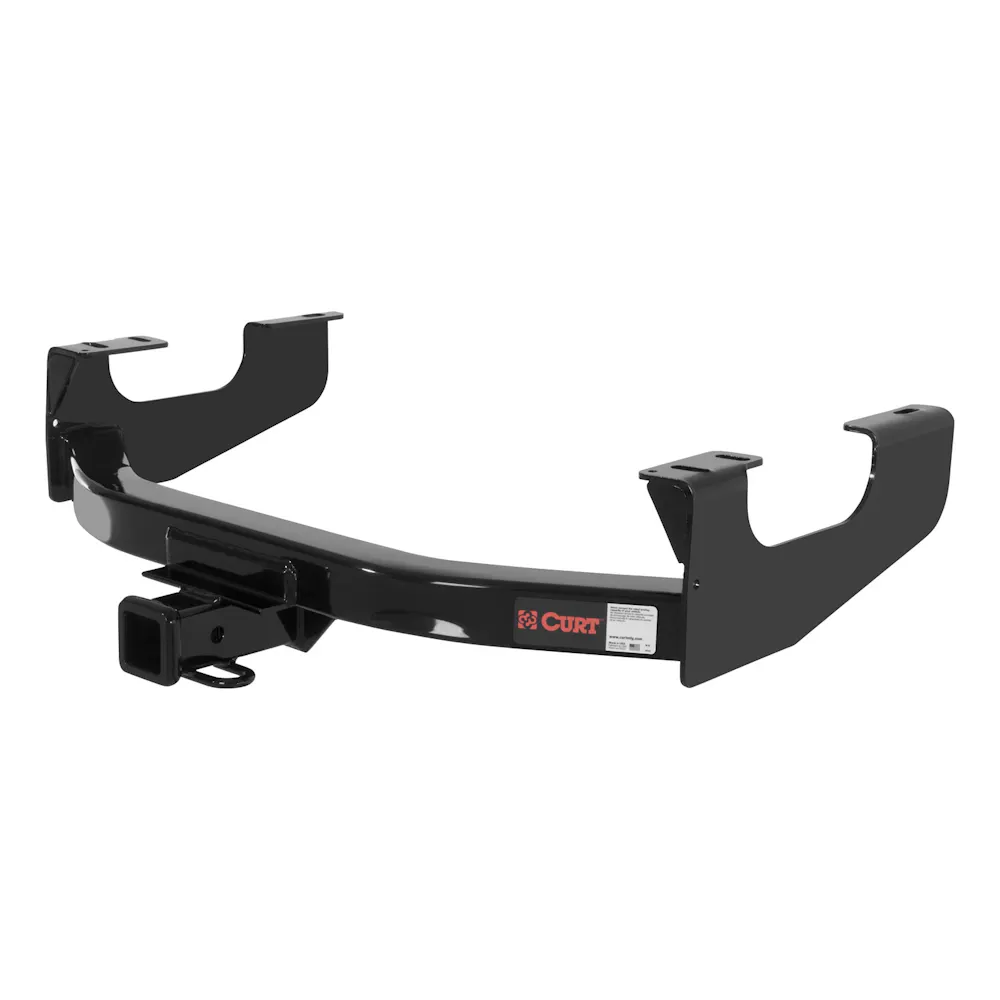

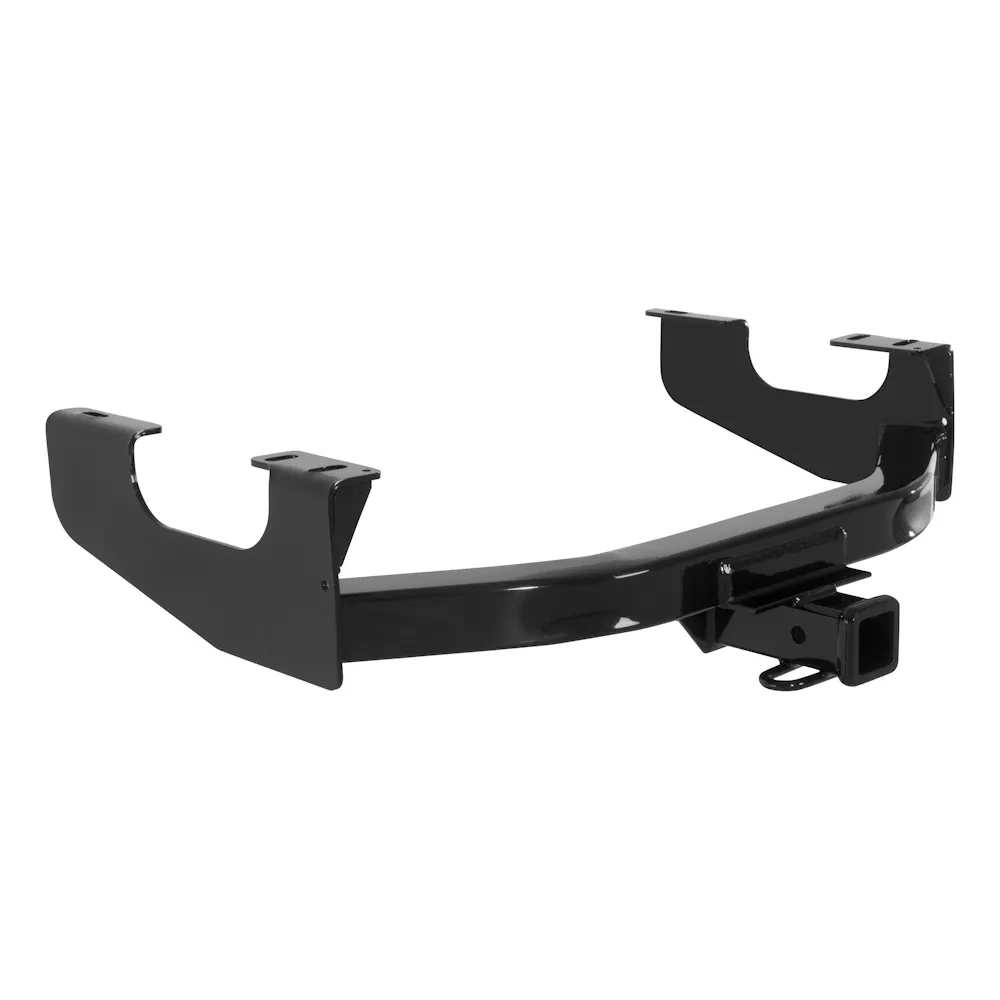

Description: Class 3 Hitch, 2" Receiver, Select Ford F-150, F-250, F-350, F-450 Super Duty; CURT 13355 Class 3 Hitch, 2" Receiver for Ford F-150, F-250, F-350, F-450
Description:
Description
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford F150, F150 Heritage, F250, F250 Super Duty, F350 Super Duty and F450 Super Duty (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

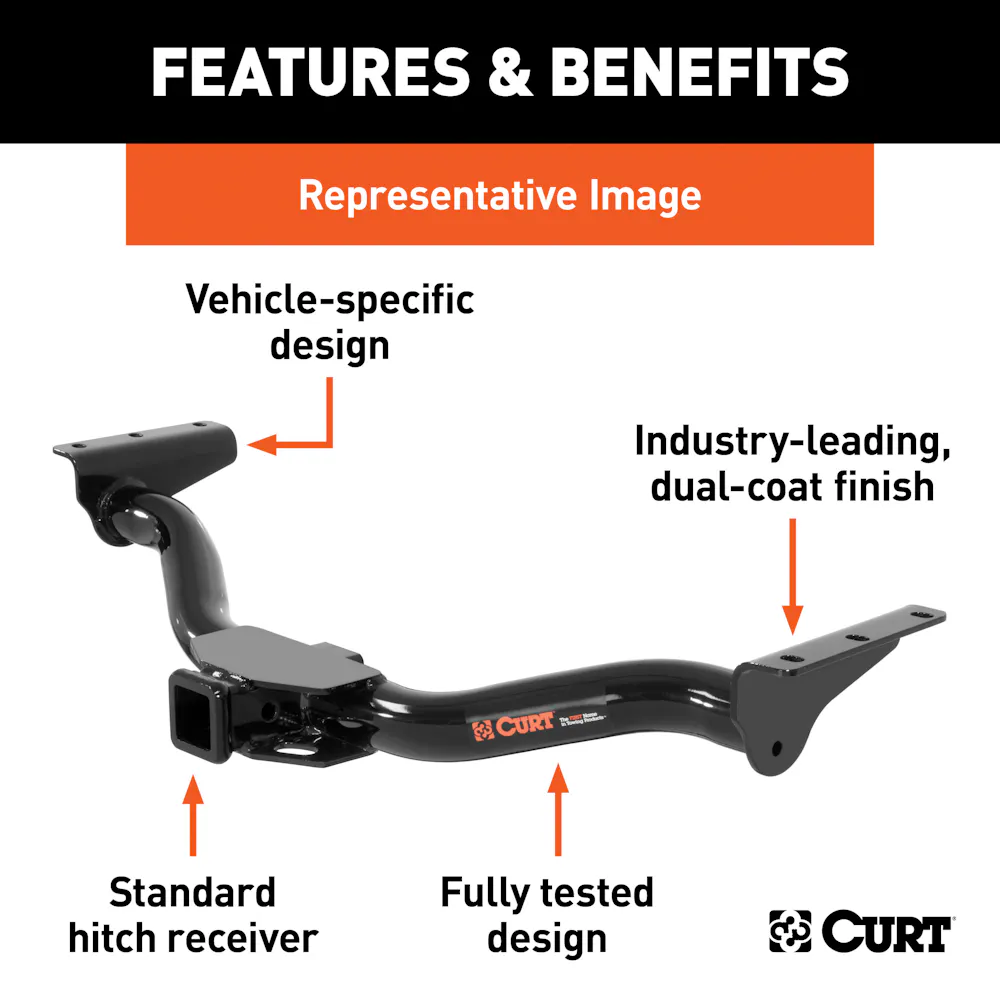

Features & benefits
- Rated to 6,000 lbs. gross trailer weight and 600 lbs. tongue weight

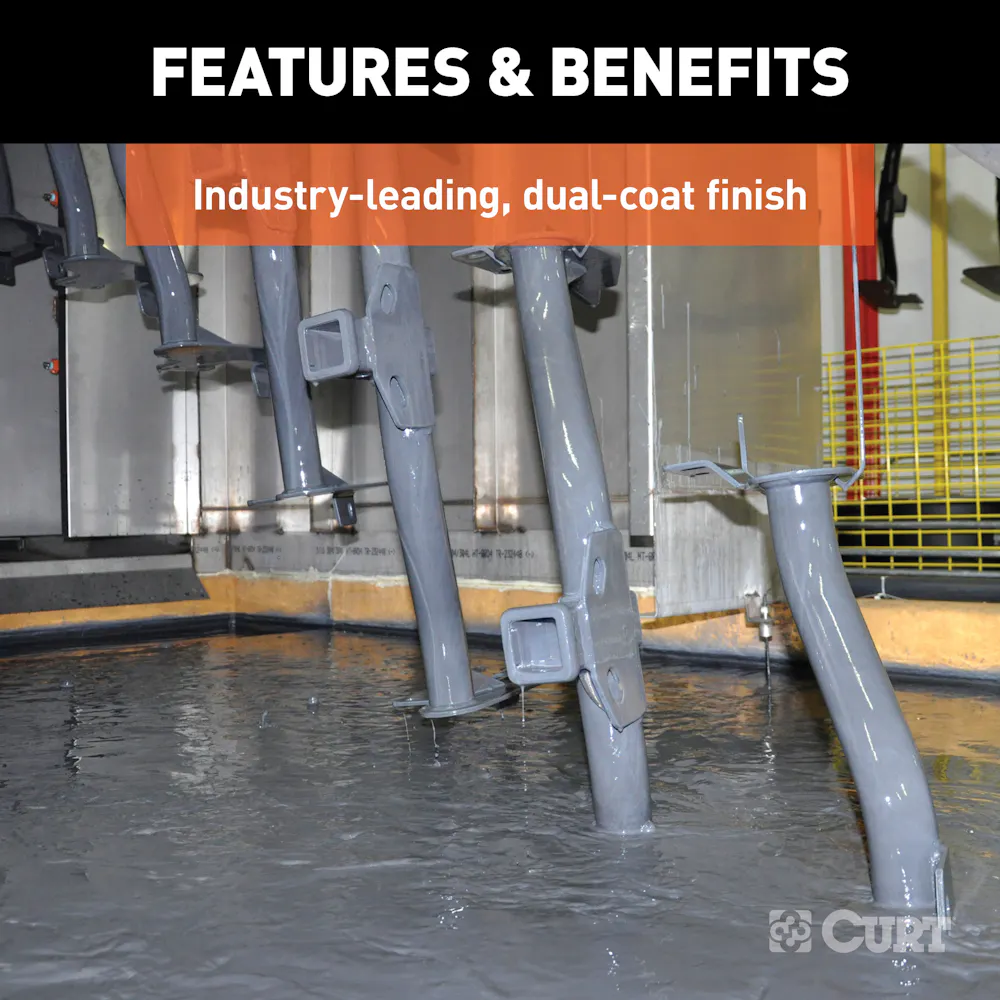

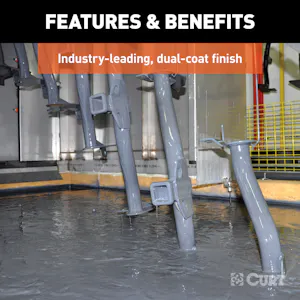

- Co-cured in a rust-resistant liquid A-coat, inside and out

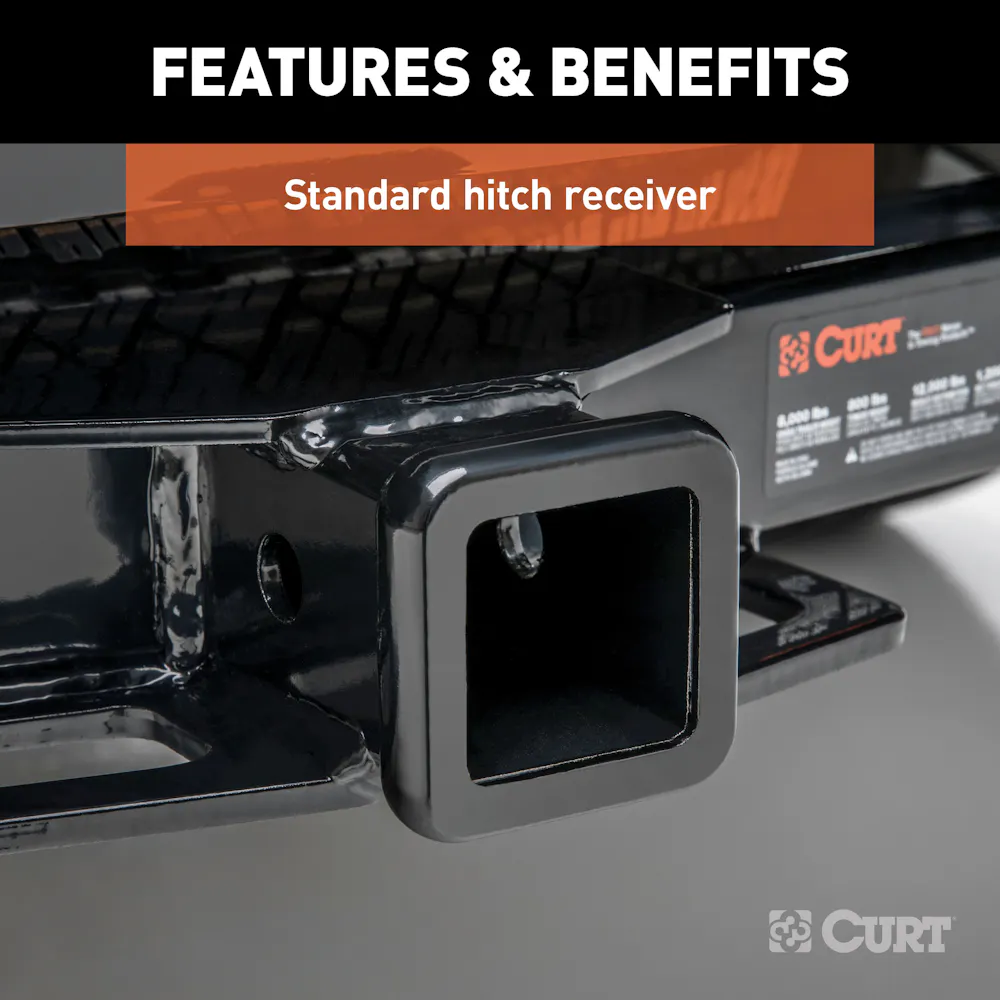

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Designed, welded, and coated in Wisconsin
- Compatible with weight distribution hitch (10,000 lbs. WD / 1,000 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
Information
Protected by a durable high-gloss black powder coat finish
Application summary
| Year | Make / model |
|---|---|
| 1997-2003 | Ford F-150 |
| 2004 | Ford F-150 Heritage |
| 1997-1999 | Ford F-250 |
| 1999-2015 | Ford F-250 Super Duty |
| 1999-2015 | Ford F-350 Super Duty |
| 2008-2015 | Ford F-450 Super Duty |
Specifications
- GTIN
- 00612314133550
- Weight
- 50 lb
- Height
- 10 in
- Length
- 39 in
- Width
- 29 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Class III Trailer Hitch
- Attachment Location
- Rear
- Body Shape
- Square
- Box Height in Inches - XA
- 32
- Box Length in Inches - XA
- 38
- Box Width in Inches - XA
- 10
- California Proposition 65
- Yes
- Class ID
- 3
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drilling Required
- No
- Finish
- Powder Coated
- Finish - XA
- GLOSS BLACK POWDER COAT
- Gross Trailer Weight
- 6000 lbs.
- Gross Trailer Weight (lbs.)
- 6000
- Hitch Class
- III
- Install Time
- 30 Minutes
- Item Class - XA
- MFH
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Main Body Shape
- Square
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Mounting Hardware Included
- Yes
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 16.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Position
- Rear
- Price Code - XA
- 43
- Product Weight - XA
- 42.000
- Rate Class - XA
- 125.0
- Receiver Included
- No
- Receiver Size
- 2
- Receiver Tube Size
- 2.000 in.
- Retail Height - XA
- 10.000
- Retail Length - XA
- 39.000
- Retail Width - XA
- 29.000
- Sales Family Code - XA
- HITCH
- Sales Family Description - XA
- HITCH
- Sales Group Description - XA
- CL 3
- Shipping Weight - XA
- 50.000
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- No
- Title
- Class 3 Hitch, 2" Receiver, Select Ford F-150, F-250, F-350, F-450 Super Duty
- Tongue Weight (TW)
- 600 LB
- Tongue Weight(TW)
- 600 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Visibility
- Concealed
- WC Tongue Weight
- 600
- WD Tongue Weight
- 1000
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity
- 6000
- Weight Carrying Capacity (WC)
- 6,000 LB
- Weight Carrying Capacity(WC)
- 6,000 LB
- Weight Distribution
- 10000
- Weight Distribution (WD)
- 10,000 LB
- Weight Distribution Tongue Weight (WDTW)
- 1,000 LB
- Weight Distribution Tongue Weight(WDTW)
- 1,000 LB
- Weight Distribution(WD)
- 10,000 LB
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1997-2003 Ford F-150; 2004 Ford F-150 Heritage; 1997-1999 Ford F-250; 1999-2015 Ford F-250 Super Duty; 1999-2015 Ford F-350 Super Duty; 2008-2015 Ford F-450 Super Duty
