CURT / 13193

Part #: 13193
UPC: 612314131938

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: Class 3 Hitches

Description: Class 3 Trailer Hitch, 2" Receiver, Select Ford Transit 150, 250, 350, E-Transit; CURT 13193 Class 3 Trailer Hitch for Ford Transit and E-Transit Vans

Description:

Description

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford Transit-150, Transit-250, Transit-350 and E-Transit (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 900 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

Features & benefits

  • Rated to 6,000 lbs. gross trailer weight and 900 lbs. tongue weight
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Designed, welded, and coated in Wisconsin
  • Compatible with weight distribution hitch (8,000 lbs. WD / 900 lbs. WDTW)

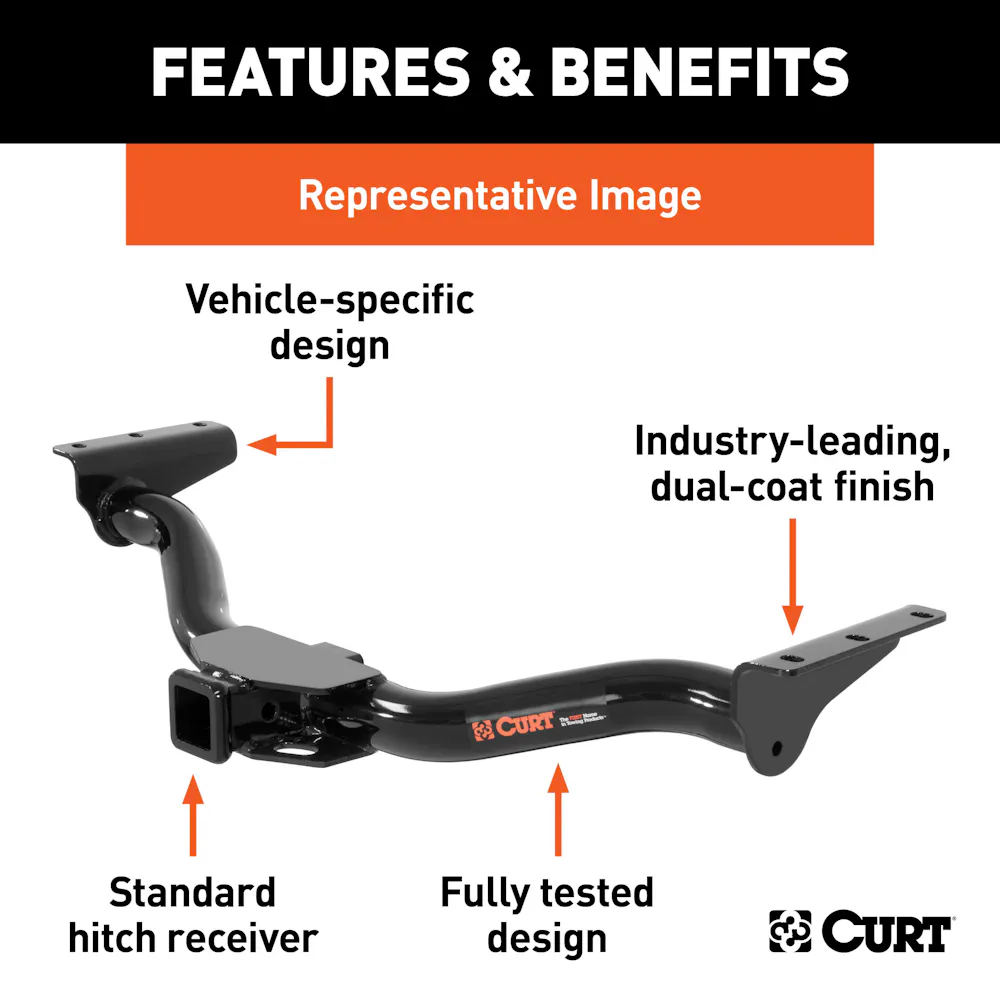

  • Engineered with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a durable high-gloss black powder coat finish

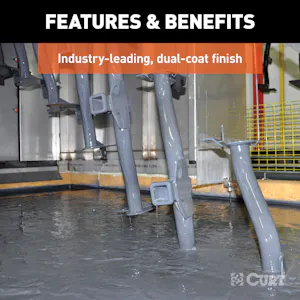

  • Co-cured in a rust-resistant liquid A-coat, inside and out

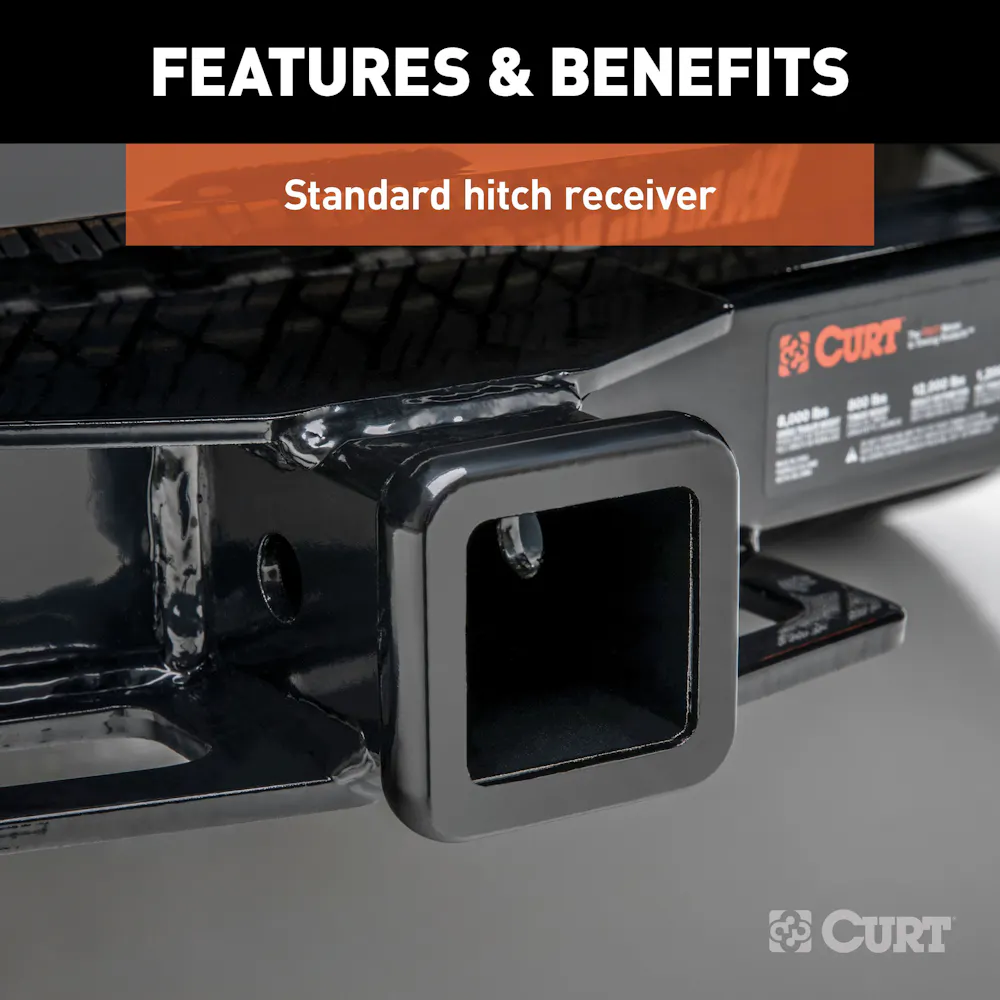

  • Equipped with an open-back receiver for easy cleaning

Information

Equipped with an open-back receiver for easy cleaning

Application summary

Year Make / model
2022-2026 Ford E-Transit
2015-2026 Ford Transit-150
2015-2026 Ford Transit-250
2015-2026 Ford Transit-350

Specifications

GTIN
00612314131938
Weight
41 lb
Height
4 in
Length
37 in
Width
19 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Class III Trailer Hitch
Attachment Location
Rear
Body Shape
Round
Box Height in Inches - XA
19
Box Length in Inches - XA
41
Box Width in Inches - XA
9
California Proposition 65
Yes
Class ID
3
Color
Black
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Drilling Required
No
Finish
Powder Coated
Finish - XA
GLOSS BLACK POWDER COAT
Gross Trailer Weight
6000 lbs.
Gross Trailer Weight (lbs.)
6000
Hitch Class
III
Install Time
15 Minutes
Item Class - XA
MFH
Item Height - XA
3.780
Item Length - XA
37.370
Item Width - XA
18.990
Main Body Shape
Round
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material - XA
Carbon Steel
Mount Type Description - XA
Blank
Mounting Hardware Included
Yes
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
30.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Position
Rear
Price Code - XA
33
Product Weight - XA
41.000
Rate Class - XA
125.0
Receiver Included
No
Receiver Size
2
Receiver Tube Size
2.000 in.
Retail Height - XA
19.000
Retail Length - XA
37.000
Retail Width - XA
4.000
Sales Family Code - XA
HITCH
Sales Family Description - XA
HITCH
Sales Group Description - XA
CL 3
Shipping Weight - XA
41.000
Side Application Type Description - XA
Blank
Tariff 301 - XA
No
Title
Class 3 Trailer Hitch, 2" Receiver, Select Ford Transit 150, 250, 350
Tongue Weight (TW)
900 LB
Tongue Weight(TW)
900 LB
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Visibility
Exposed
WC Tongue Weight
900
WD Tongue Weight
900
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity
6000
Weight Carrying Capacity (WC)
6,000 LB
Weight Carrying Capacity(WC)
6,000 LB
Weight Distribution
8000
Weight Distribution (WD)
8,000 LB
Weight Distribution Tongue Weight (WDTW)
900 LB
Weight Distribution Tongue Weight(WDTW)
900 LB
Weight Distribution(WD)
8,000 LB

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2022-2026 Ford E-Transit; 2015-2026 Ford Transit-150; 2015-2026 Ford Transit-250; 2015-2026 Ford Transit-350
