CURT · 12923
Part #: 12923
UPC: 612314129232
Log in for inventory
Notify me when this item is in stock.
Description: Class 2 Multi-Fit Trailer Hitch with 1-1/4" Receiver; CURT 12923 Multi-Fit Class 2 Adjustable Hitch, 6-3/4-Inch Drop, 2-Inch Receiver, 3,500 lbs.
Description:
Description
When a custom hitch is not available for your vehicle, CURT offers the multi-fit hitch. Designed to be the ultimate in versatility, CURT universal trailer hitches fit several different vehicle manufacturers, including Chevrolet, Chrysler, Dodge, Ford, GMC, Jeep, Nissan, Oldsmobile, Plymouth, Pontiac and Toyota. The multi-fit hitch is a universally designed alternative to our custom hitches. It provides a more affordable option and flexibility in installation. Very simply, a CURT multi-fit trailer hitch uses a sliding or adjustable frame to match the width of your vehicle's frame. In general, multi-fit hitches are used on mid-size and full-size pickup trucks and SUVs. This class 2 multi-fit trailer hitch features a gross trailer weight capacity of 3,500 lbs., a tongue weight capacity of 350 lbs. and a 1-1/4" x 1-1/4" receiver tube opening, making it an excellent choice for towing smaller utility trailers, boat trailers and popup campers, as well as cargo carriers and bike racks (NOTE: Never exceed the lowest weight capacity of any towing component). It comes with mounting hardware and instructions, and typically requires little or no drilling during installation.

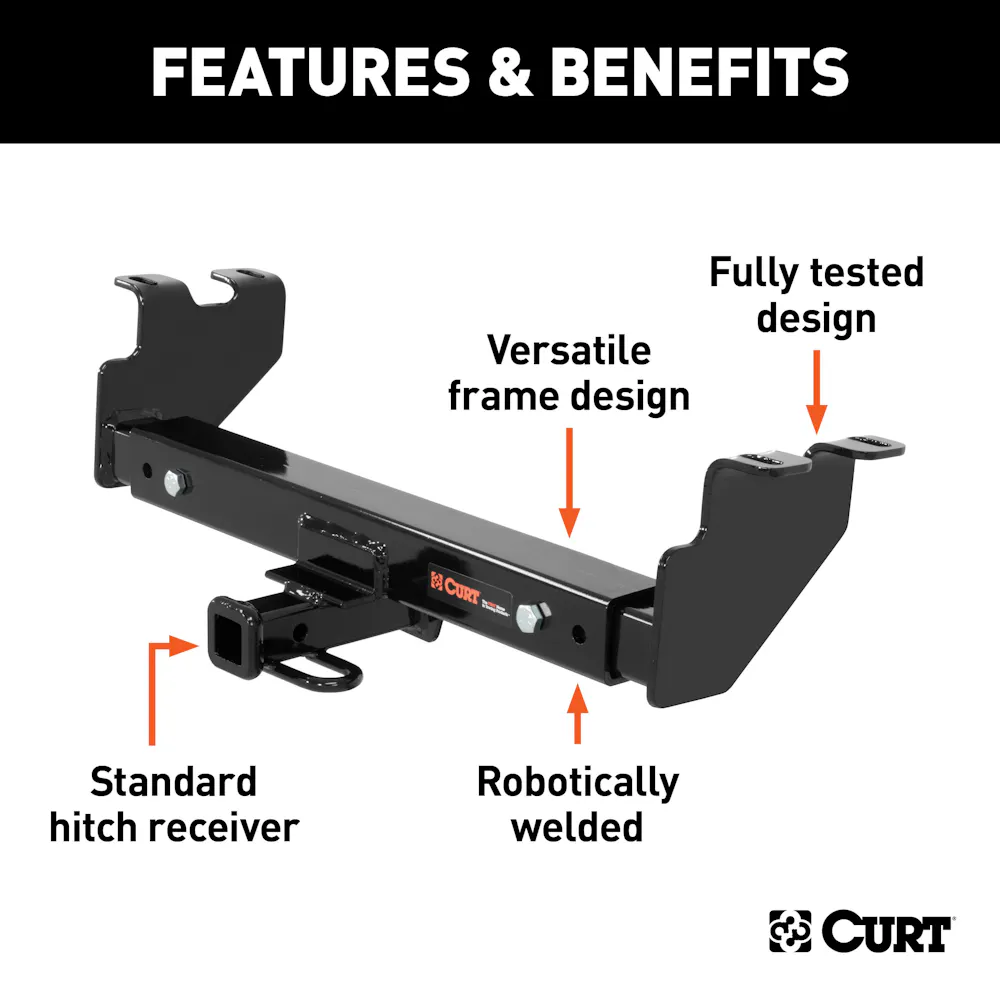

Features & benefits

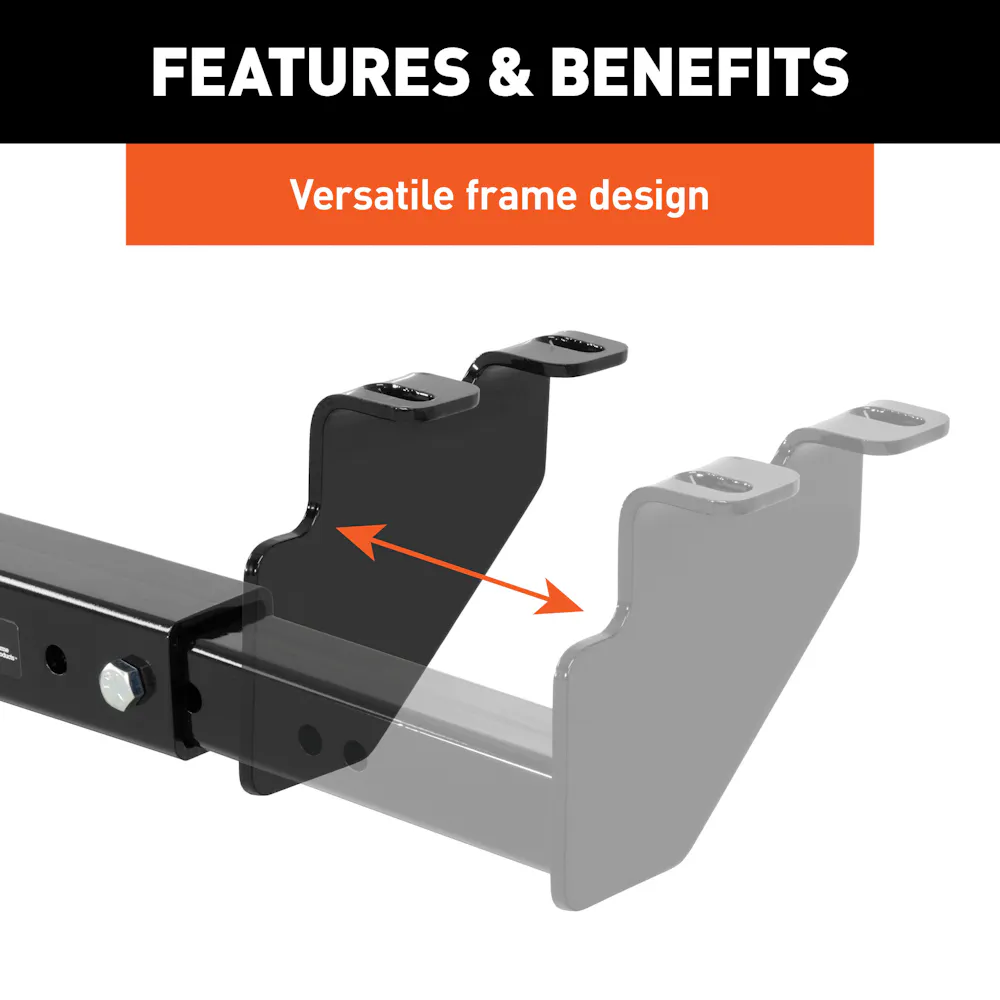

- Features an adjustable frame to fit a variety of vehicles
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Requires little or no drilling on most models
- Protected by a durable high-gloss black powder coat finish
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 1985-2005 | Chevrolet Astro |
| 1975-1986 | Chevrolet C10 |
| 1961-1974 | Chevrolet C10 Pickup |
| 1988-1998 | Chevrolet C1500 |
| 1992-1999 | Chevrolet C1500 Suburban |
| 1975-1986 | Chevrolet C20 |
| 1961-1974 | Chevrolet C20 Pickup |
| 1992-1999 | Chevrolet C2500 Suburban |
| 1975-1986 | Chevrolet K10 |
| 1961-1974 | Chevrolet K10 Pickup |
| 1988-1998 | Chevrolet K1500 |
| 1992-1999 | Chevrolet K1500 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1961-1974 | Chevrolet K20 Pickup |
| 1992-1999 | Chevrolet K2500 Suburban |
| 1987 | Chevrolet R10 |
| 1987-1988 | Chevrolet R20 |
| 2000-2003 | Chevrolet Suburban 1500 |
| 2000-2003 | Chevrolet Suburban 2500 |
| 1987 | Chevrolet V10 |
| 1987 | Chevrolet V20 |
| 1997-2004 | Chevrolet Venture |
| 1988 | Chrysler Town & Country |
| 1990-2007 | Chrysler Town & Country |
| 1988-2007 | Dodge Caravan |
| 1975-1979 | Dodge D100 |
| 1984-1989 | Dodge D100 |
| 1968-1974 | Dodge D100 Pickup |
| 1967 | Dodge D100 Series |
| 1977-1993 | Dodge D150 |
| 1975-1980 | Dodge D200 |
| 1968-1974 | Dodge D200 Pickup |
| 1967 | Dodge D200 Series |
| 1981-1993 | Dodge D250 |
| 1975-1980 | Dodge D300 |
| 1968-1974 | Dodge D300 Pickup |
| 1967 | Dodge D300 Series |
| 1981-1993 | Dodge D350 |
| 1979-1982 | Dodge D50 |
| 1987-2004 | Dodge Dakota |
| 1987-2007 | Dodge Grand Caravan |
| 1974 | Dodge M300 |
| 1974 | Dodge M350 |
| 1994 | Dodge Ram 1500 |
| 1994 | Dodge Ram 2500 |
| 1978-1993 | Dodge Ramcharger |
| 1978 | Dodge RD200 |
| 1980 | Dodge RD200 |
| 1975-1977 | Dodge W100 |
| 1986-1989 | Dodge W100 |
| 1968-1974 | Dodge W100 Pickup |
| 1967 | Dodge W100 Series |
| 1977-1993 | Dodge W150 |
| 1975-1980 | Dodge W200 |
| 1968-1974 | Dodge W200 Pickup |
| 1967 | Dodge W200 Series |
| 1981-1993 | Dodge W250 |
| 1967 | Dodge W300 Series |
| 1978-1996 | Ford Bronco |
| 1985-1990 | Ford Bronco II |
| 1980-1983 | Ford E-100 Econoline |
| 1980-1983 | Ford E-100 Econoline Club Wagon |
| 1980-1998 | Ford E-150 Econoline |
| 1980-1998 | Ford E-150 Econoline Club Wagon |
| 1980-1998 | Ford E-250 Econoline |
| 1980-1991 | Ford E-250 Econoline Club Wagon |
| 1974-1983 | Ford F-100 |
| 1975-1996 | Ford F-150 |
| 1974-1996 | Ford F-250 |
| 1974-1996 | Ford F-350 |
| 1984-2010 | Ford Ranger |
| 1962-1965 | GMC 1000 Series |
| 1962-1965 | GMC 1500 Series |
| 1962-1963 | GMC 2500 Series |
| 1975-1978 | GMC C15 |
Specifications
- GTIN
- 00612314129232
- Weight
- 36 lb
- Height
- 6 in
- Length
- 28 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Class II Mlti-Fit Trailer Hitch
- Body Shape
- Square
- Box Height in Inches - XA
- 29
- Box Length in Inches - XA
- 39
- Box Width in Inches - XA
- 16
- California Proposition 65
- Yes
- Class ID
- 0
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drilling Required
- No
- Drop
- 6 3/4 IN
- Finish
- GLOSS BLACK POWDER COAT
- Finish - XA
- GLOSS BLACK POWDER COAT
- Gross Trailer Weight
- 3500 lbs.
- Gross Trailer Weight (GTW)
- 3,500 LB
- Gross Trailer Weight (lbs.)
- 3500
- Gross Trailer Weight(GTW)
- 3,500 LB
- Hitch Class
- II
- Item Class - XA
- MFH
- Item Height - XA
- 6.500
- Item Length - XA
- 28.750
- Item Width - XA
- 9.000
- Main Body Shape
- Square
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material
- Carbon Steel
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Mounting Hardware Included
- Yes
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 25.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Position
- Rear
- Price Code - XA
- 145
- Product Weight - XA
- 34.000
- Rate Class - XA
- 175.0
- Receiver Included
- Yes
- Receiver Size
- 1-1/4
- Receiver Tube Size
- 1.250 in.
- Retail Height - XA
- 6.000
- Retail Length - XA
- 28.000
- Retail Width - XA
- 9.000
- Sales Family Code - XA
- HITCH
- Sales Family Description - XA
- HITCH
- Sales Group Description - XA
- CL 2
- Shipping Weight - XA
- 36.000
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- No
- Title
- Class 2 Multi-Fit Trailer Hitch with 1-1/4" Receiver
- Tongue Weight (TW)
- 350 LB
- Tongue Weight(TW)
- 350 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Visibility
- Concealed
- WC Tongue Weight
- 350
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity (WC)
- 3,500 LB
- Weight Distribution (WD)
- n/a
- Weight Distribution Tongue Weight (WDTW)
- n/a
Fitment status
This product is universal and will fit your application.
Application summary
1985-2005 Chevrolet Astro; 1975-1986 Chevrolet C10; 1961-1974 Chevrolet C10 Pickup; 1988-1998 Chevrolet C1500; 1992-1999 Chevrolet C1500 Suburban; 1975-1986 Chevrolet C20; 1961-1974 Chevrolet C20 Pickup; 1992-1999 Chevrolet C2500 Suburban; 1975-1986 Chevrolet K10; 1961-1974 Chevrolet K10 Pickup; 1988-1998 Chevrolet K1500; 1992-1999 Chevrolet K1500 Suburban; 1975-1986 Chevrolet K20; 1961-1974 Chevrolet K20 Pickup; 1992-1999 Chevrolet K2500 Suburban; 1987 Chevrolet R10; 1987-1988 Chevrolet R20; 2000-2003 Chevrolet Suburban 1500; 2000-2003 Chevrolet Suburban 2500; 1987 Chevrolet V10; 1987 Chevrolet V20; 1997-2004 Chevrolet Venture; 1988 Chrysler Town & Country; 1990-2007 Chrysler Town & Country; 1988-2007 Dodge Caravan; 1975-1979 Dodge D100; 1984-1989 Dodge D100; 1968-1974 Dodge D100 Pickup; 1967 Dodge D100 Series; 1977-1993 Dodge D150; 1975-1980 Dodge D200; 1968-1974 Dodge D200 Pickup; 1967 Dodge D200 Series; 1981-1993 Dodge D250; 1975-1980 Dodge D300; 1968-1974 Dodge D300 Pickup; 1967 Dodge D300 Series; 1981-1993 Dodge D350; 1979-1982 Dodge D50; 1987-2004 Dodge Dakota; 1987-2007 Dodge Grand Caravan; 1974 Dodge M300; 1974 Dodge M350; 1994 Dodge Ram 1500; 1994 Dodge Ram 2500; 1978-1993 Dodge Ramcharger; 1978 Dodge RD200; 1980 Dodge RD200; 1975-1977 Dodge W100; 1986-1989 Dodge W100; 1968-1974 Dodge W100 Pickup; 1967 Dodge W100 Series; 1977-1993 Dodge W150; 1975-1980 Dodge W200; 1968-1974 Dodge W200 Pickup; 1967 Dodge W200 Series; 1981-1993 Dodge W250; 1967 Dodge W300 Series; 1978-1996 Ford Bronco; 1985-1990 Ford Bronco II; 1980-1983 Ford E-100 Econoline; 1980-1983 Ford E-100 Econoline Club Wagon; 1980-1998 Ford E-150 Econoline; 1980-1998 Ford E-150 Econoline Club Wagon; 1980-1998 Ford E-250 Econoline; 1980-1991 Ford E-250 Econoline Club Wagon; 1974-1983 Ford F-100; 1975-1996 Ford F-150; 1974-1996 Ford F-250; 1974-1996 Ford F-350; 1984-2010 Ford Ranger; 1962-1965 GMC 1000 Series; 1962-1965 GMC 1500 Series; 1962-1963 GMC 2500 Series; 1975-1978 GMC C15; ...
