CURT / 116633
Part #: 116633
UPC: 612314056675
Loading...
Notify me when this item is in stock.
Description: Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Subaru WRX; CURT 116633 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Subaru WRX
Description:
Description

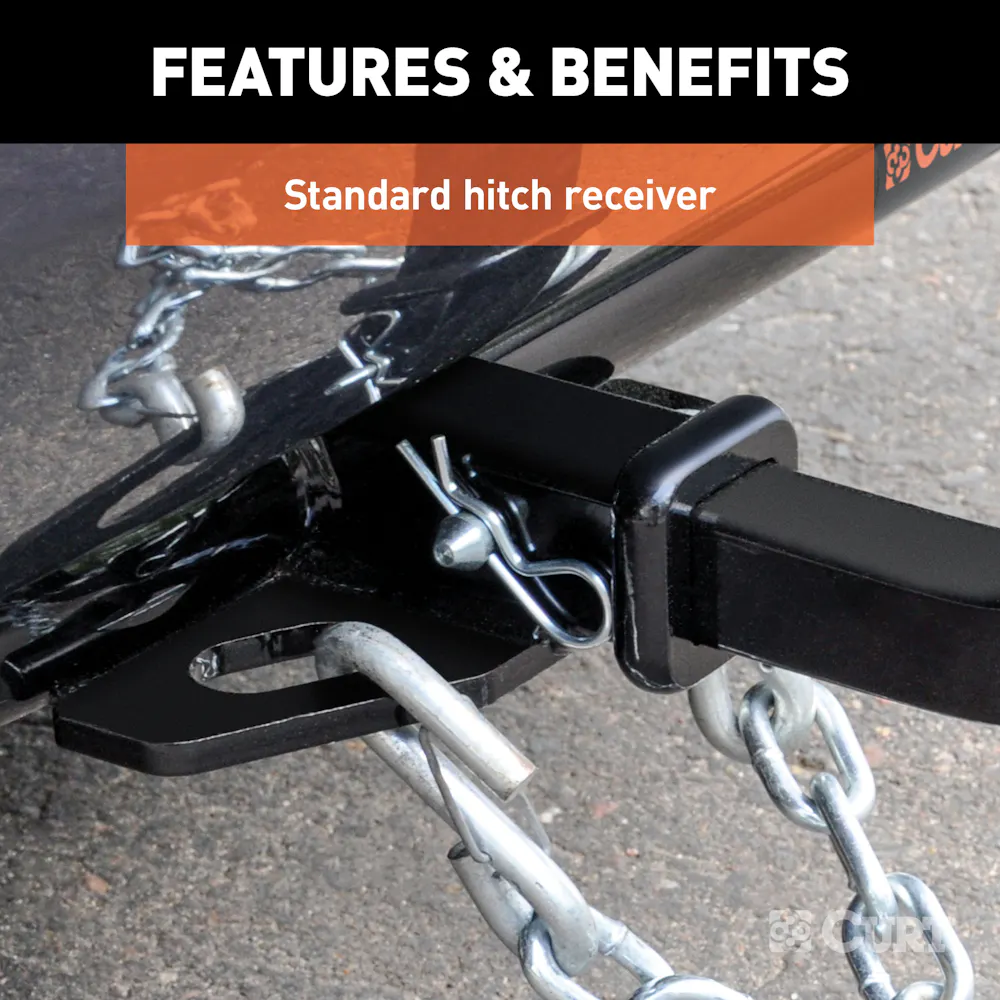

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Subaru WRX (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Features & benefits
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
- Limited lifetime warranty (one-year finish, one-year parts)
- Designed, welded, and coated in Wisconsin
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

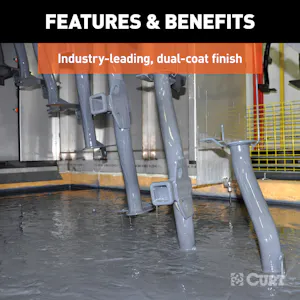

- Co-cured in a rust-resistant liquid A-coat, inside and out
- 1-1/4" x 1-1/4" ball mount features a 3/4" hole to accept a trailer ball shank
- Ball mount can be flipped to provide drop or rise for level towing
Information
Ball mount can be flipped to provide drop or rise for level towing
Application summary
| Year | Make / model |
|---|---|
| 2022-2026 | Subaru WRX |
Specifications
- GTIN
- 00612314056675
- Weight
- 35 lb
- Height
- 11 in
- Length
- 38 in
- Width
- 23 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Attachment Location
- Rear
- Box Height in Inches - XA
- 23
- Box Length in Inches - XA
- 38
- Box Width in Inches - XA
- 11
- California Proposition 65
- Yes
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drilling Required
- No
- Finish
- GLOSS BLACK POWDER COAT
- Finish - XA
- GLOSS BLACK POWDER COAT
- Gross Trailer Weight
- 2000 lbs.
- Hitch Class
- I
- Item Class - XA
- MFH
- Item Height - XA
- 8.840
- Item Length - XA
- 37.060
- Item Width - XA
- 18.310
- Main Body Shape
- Square
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material
- Steel
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Not Applicable
- Mounting Hardware Included
- No
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 16.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Position
- Rear
- Price Code - XA
- 137K
- Product Weight - XA
- 0.000
- Rate Class - XA
- 125.0
- Receiver Tube Size
- 1-1/4 IN
- Retail Height - XA
- 23.000
- Retail Length - XA
- 38.000
- Retail Width - XA
- 11.000
- Sales Family Code - XA
- HITCH
- Sales Family Description - XA
- HITCH
- Sales Group Description - XA
- CL 1
- Shipping Weight - XA
- 35.000
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- No
- Tongue Weight (TW)
- 200 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity (WC)
- 2,000 LBS
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2022-2026 Subaru WRX
