CURT · 116483

Part #: 116483
UPC: 612314056385

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: CURT Series: Class 1 Hitches

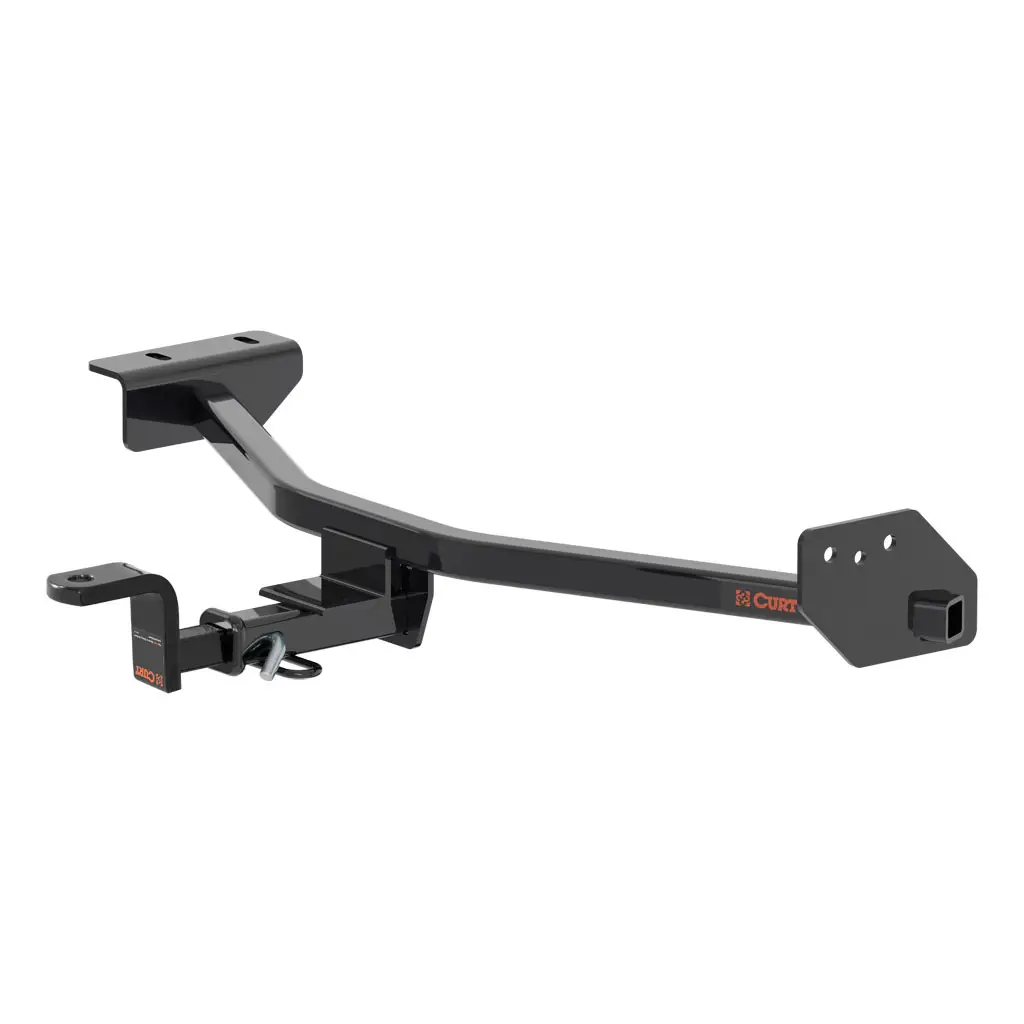

Description: Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Nissan Leaf; CURT 116483 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Nissan Leaf

Description:

Description

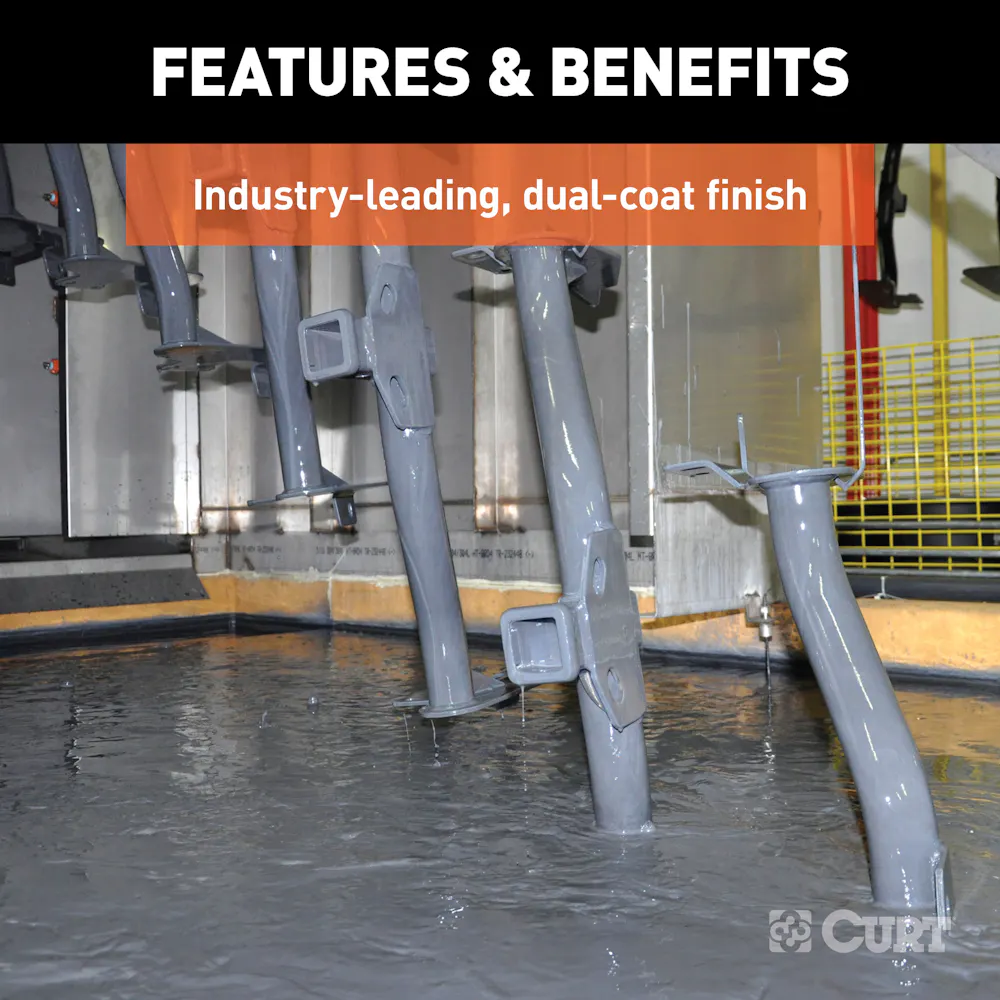

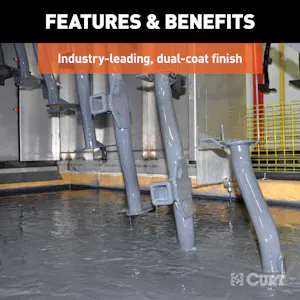

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Nissan Leaf (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 1,500 pounds gross trailer weight and 150 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.

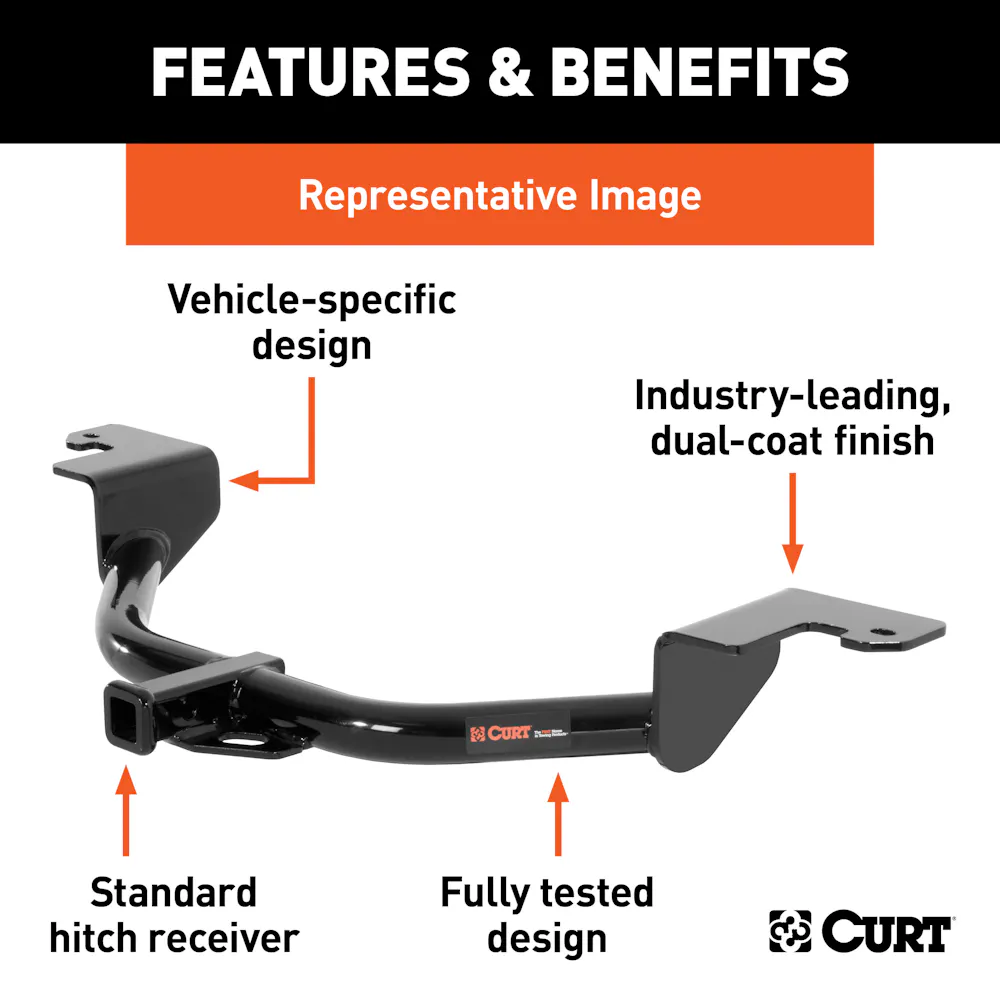

Features & benefits

  • Rated to 1,500 lbs. gross trailer weight and 150 lbs. tongue weight
  • 1-1/4" x 1-1/4" ball mount features a 3/4" hole to accept a trailer ball shank
  • Ball mount can be flipped to provide drop or rise for level towing
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Designed, welded, and coated in Wisconsin
  • Engineered with a vehicle-specific design for a custom fit
  • Concealed main body for OE look and seamless integration with the vehicle
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a durable high-gloss black powder coat finish

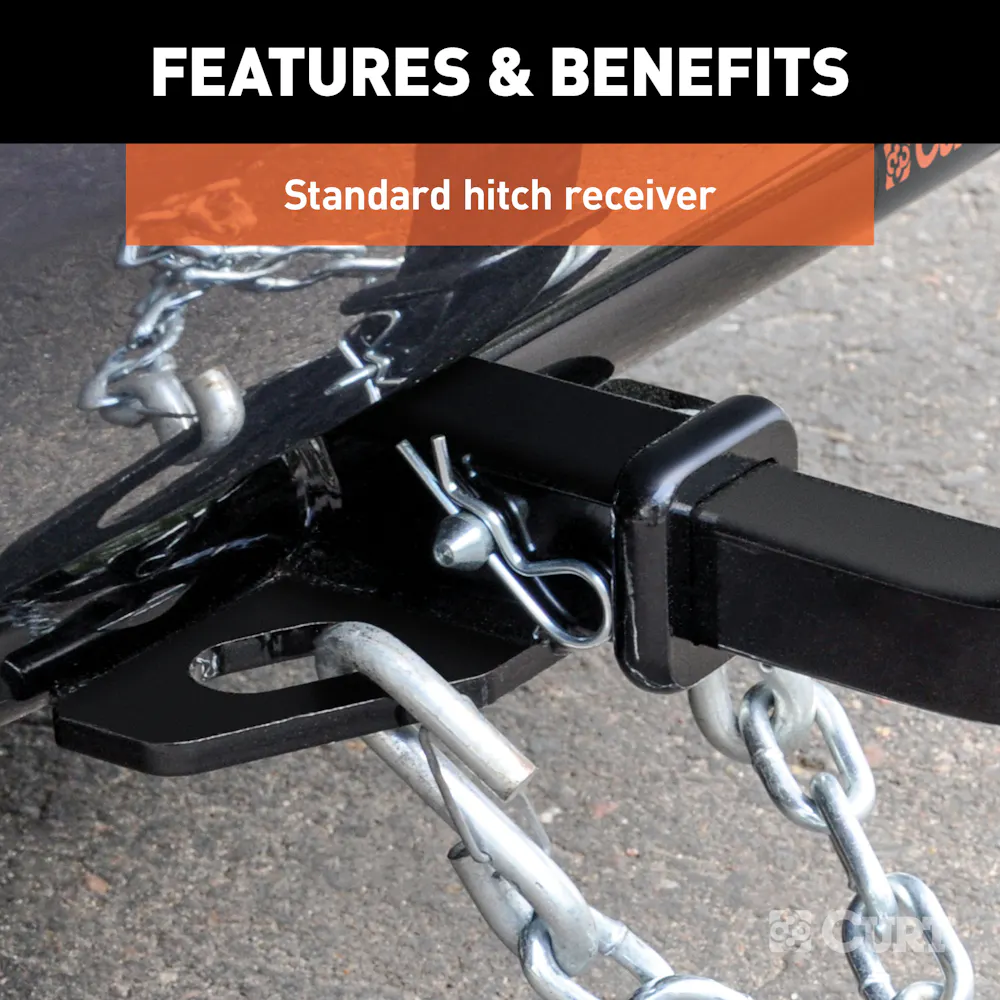

  • Equipped with an open-back receiver for easy cleaning

Information

Equipped with an open-back receiver for easy cleaning

Application summary

Year Make / model
2018-2025 Nissan LEAF

Specifications

GTIN
00612314056385
Weight
40 lb
Height
13 in
Length
43 in
Width
21 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

Attachment Location
Rear
Box Height in Inches - XA
18
Box Length in Inches - XA
42
Box Width in Inches - XA
12
California Proposition 65
Yes
Color
Black
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Drilling Required
Yes
Finish
GLOSS BLACK POWDER COAT
Finish - XA
GLOSS BLACK POWDER COAT
Gross Trailer Weight
3000 lbs.
Hitch Class
I
Item Class - XA
MFH
Item Height - XA
8.210
Item Length - XA
42.370
Item Width - XA
17.440
Main Body Shape
Square
Master Case Height Inches - XA
0.000
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material
Steel
Material - XA
Carbon Steel
Mount Type Description - XA
Not Applicable
Mounting Hardware Included
Yes
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
30.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Position
Rear
Price Code - XA
153K
Product Weight - XA
34.000
Rate Class - XA
175.0
Receiver Tube Size
1-1/4 IN
Retail Height - XA
13.000
Retail Length - XA
43.000
Retail Width - XA
21.000
Sales Family Code - XA
HITCH
Sales Family Description - XA
HITCH
Sales Group Description - XA
CL 1
Shipping Weight - XA
40.000
Side Application Type Description - XA
Not Applicable
Tariff 301 - XA
No
Tongue Weight (TW)
150 LB
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Weight Carrying Capacity (WC)
1,500 LB

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2018-2025 Nissan LEAF
