CURT / 114743
Part #: 114743
UPC: 612314042289
Loading...
Notify me when this item is in stock.

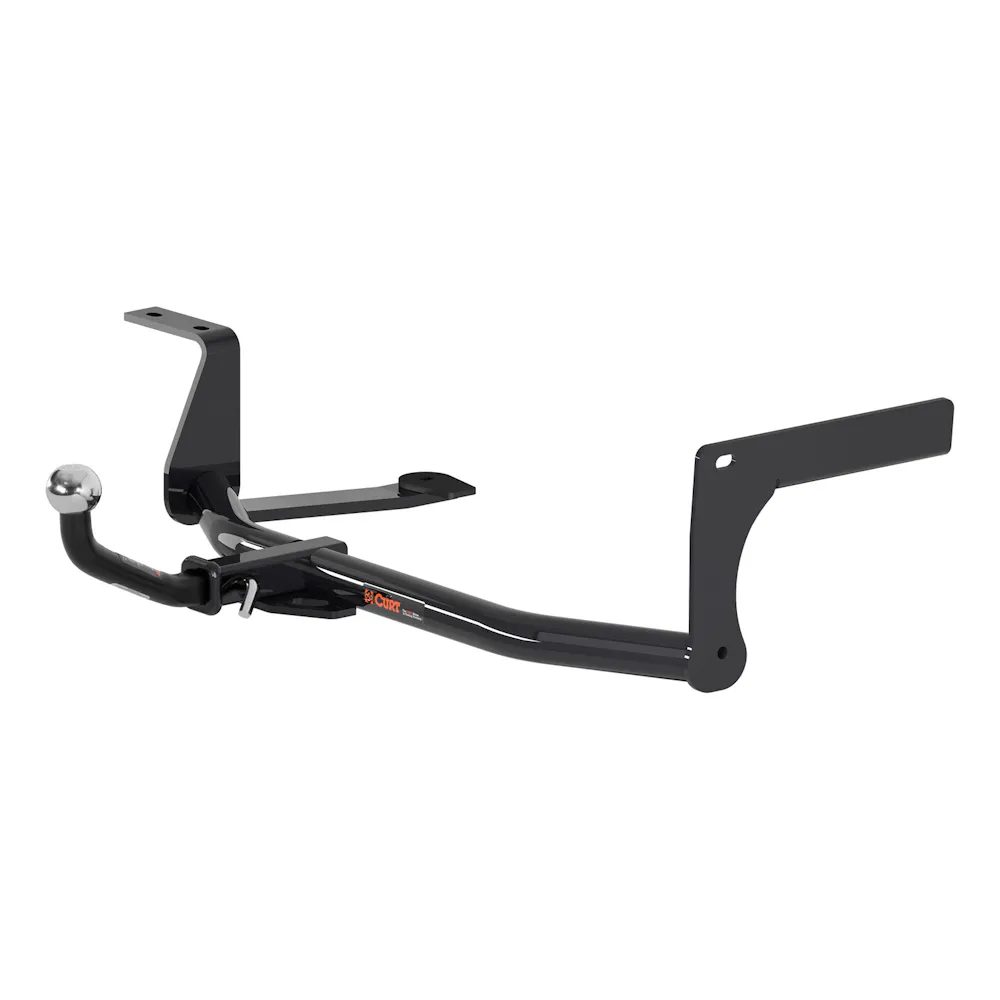

Description: Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Volkswagen Golf, Jetta; CURT 114743 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Volkswagen Golf, Jetta
Description:
Description
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Volkswagen Golf and Jetta (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Features & benefits
- Designed, welded, and coated in Wisconsin
- Limited lifetime warranty (one-year finish, one-year parts)
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

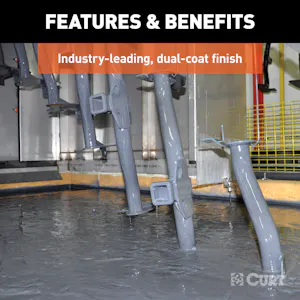

- Co-cured in a rust-resistant liquid A-coat, inside and out

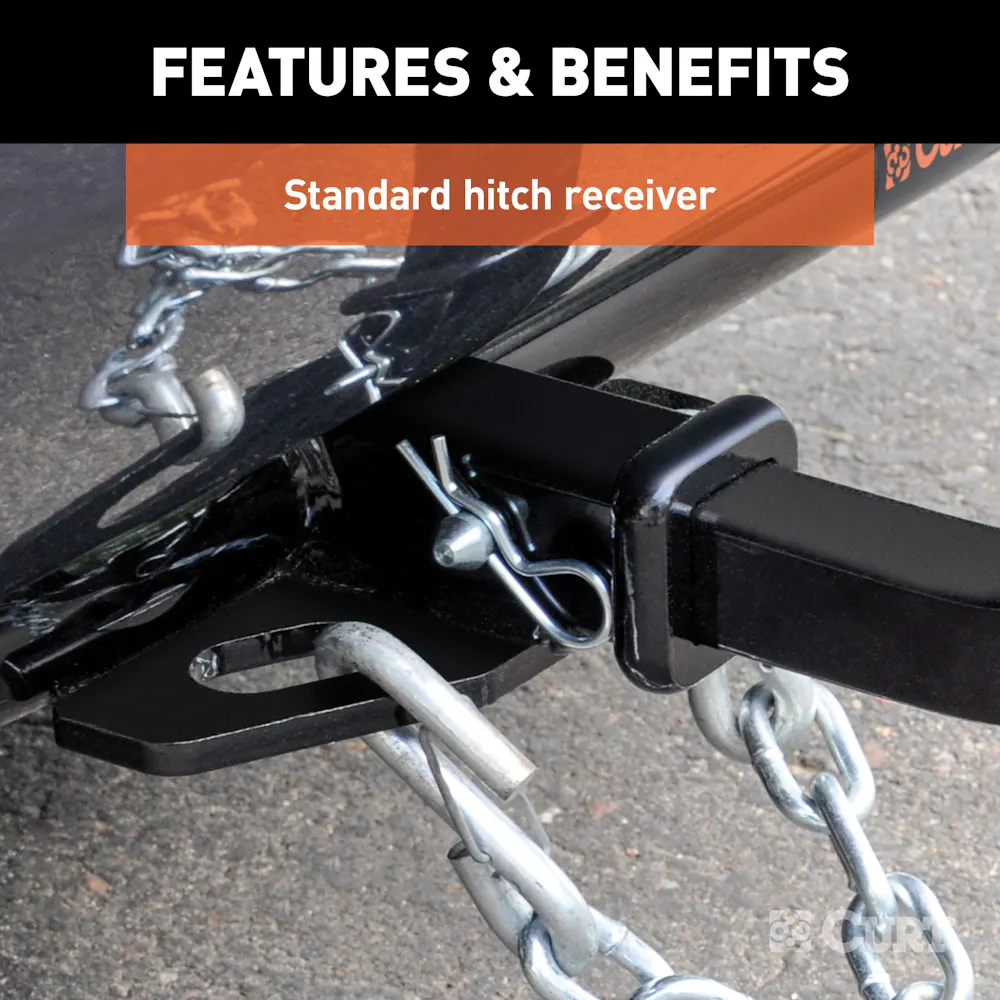

- 1-1/4" x 1-1/4" ball mount features a 3/4" hole to accept a trailer ball shank
- Ball mount can be flipped to provide drop or rise for level towing
Information
Ball mount can be flipped to provide drop or rise for level towing
Application summary
| Year | Make / model |
|---|---|
| 2010-2014 | Volkswagen Golf |
| 2005-2018 | Volkswagen Jetta |
Specifications
- GTIN
- 00612314042289
- Weight
- 41 lb
- Height
- 11.5 in
- Length
- 44.5 in
- Width
- 19.63 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Body Shape
- Round
- Box Height in Inches - XA
- 19
- Box Length in Inches - XA
- 44
- Box Width in Inches - XA
- 11
- California Proposition 65
- Yes
- Class ID
- 1
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drilling Required
- No
- Finish
- GLOSS BLACK POWDER COAT
- Finish - XA
- GLOSS BLACK POWDER COAT
- Gross Trailer Weight
- 2000 lbs.
- Gross Trailer Weight (lbs.)
- 2000
- Hole Size
- 3/4 IN
- Install Time
- 45 Minutes
- Item Class - XA
- MFH
- Item Height - XA
- 10.000
- Item Length - XA
- 38.240
- Item Width - XA
- 21.180
- Main Body Shape
- Round
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Position
- Rear
- Price Code - XA
- 135K
- Product Weight - XA
- 31.000
- Rate Class - XA
- 60.0
- Receiver Tube Size
- 1.250 in.
- Retail Height - XA
- 19.630
- Retail Length - XA
- 44.500
- Retail Width - XA
- 11.500
- Rise
- 3 1/8 IN
- Sales Family Code - XA
- HITCH
- Sales Family Description - XA
- HITCH
- Sales Group Description - XA
- CL 1
- Shipping Weight - XA
- 41.000
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- No
- Title
- Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Volkswagen Golf, Jetta
- Tongue Weight (TW)
- 200 LB
- Tongue Weight(TW)
- 200 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Visibility
- Exposed
- WC Tongue Weight
- 200
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity
- 2000
- Weight Carrying Capacity (WC)
- 2,000 LB
- Weight Carrying Capacity(WC)
- 2,000 LB
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010-2014 Volkswagen Golf; 2005-2018 Volkswagen Jetta
