CURT / 11349

Part #: 11349
UPC: 612314035793

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: Class 1 Hitches

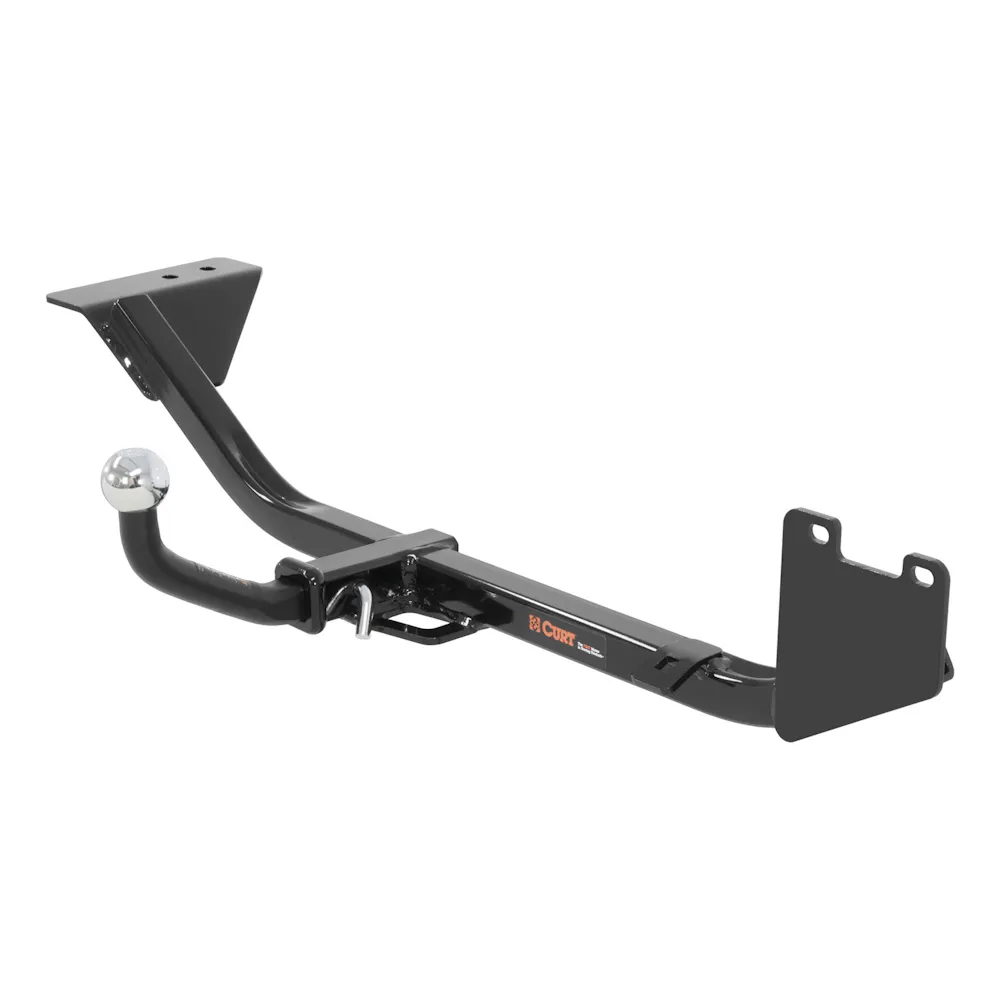

Description: Class 1 Trailer Hitch, 1-1/4" Receiver, Select Nissan Sentra; CURT 11349 Class 1 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Nissan Sentra

Description:

Description

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Nissan Sentra (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.

Features & benefits

  • Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
  • Engineered with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a durable high-gloss black powder coat finish

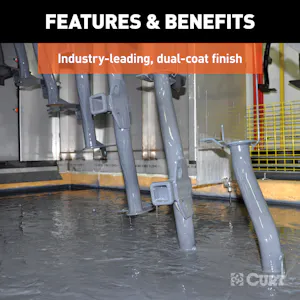

  • Co-cured in a rust-resistant liquid A-coat, inside and out

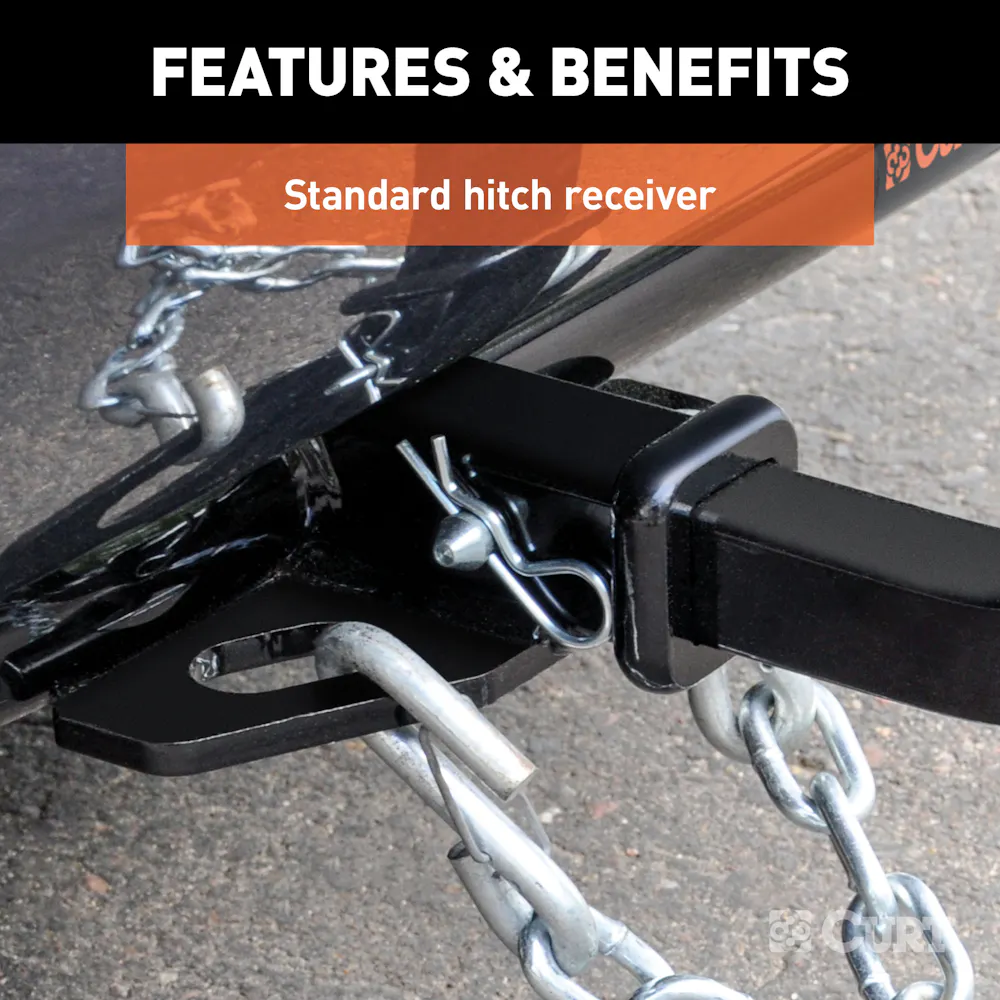

  • Equipped with an open-back receiver for easy cleaning
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Designed, welded, and coated in Wisconsin

Information

Designed, welded, and coated in Wisconsin

Application summary

Year Make / model
2013-2022 Nissan Sentra

Specifications

GTIN
00612314035793
Weight
27.35 lb
Height
11 in
Length
47 in
Width
16 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Class I Trailer Hitch, Pin & Clip, No Ball Mount
Attachment Location
Rear
Body Shape
Square
Box Height in Inches - XA
13
Box Length in Inches - XA
46
Box Width in Inches - XA
10
California Proposition 65
Yes
Class ID
1
Color
Black
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Drilling Required
Yes
Finish
Powder Coated
Finish - XA
GLOSS BLACK POWDER COAT
Gross Trailer Weight
2000 lbs.
Gross Trailer Weight (lbs.)
2000
Hitch Class
I
Install Time
30 Minutes
Item Class - XA
MFH
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Main Body Shape
Square
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material - XA
Carbon Steel
Mount Type Description - XA
Blank
Mounting Hardware Included
Yes
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
24.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Position
Rear
Price Code - XA
137
Product Weight - XA
22.350
Rate Class - XA
250.0
Receiver Included
No
Receiver Size
1-1/4
Receiver Tube Size
1.250 in.
Retail Height - XA
11.000
Retail Length - XA
47.000
Retail Width - XA
16.000
Sales Family Code - XA
HITCH
Sales Family Description - XA
HITCH
Sales Group Description - XA
CL 1
Shipping Weight - XA
27.350
Side Application Type Description - XA
Blank
Tariff 301 - XA
No
Title
Class 1 Trailer Hitch, 1-1/4" Receiver, Select Nissan Sentra
Tongue Weight (TW)
200 LB
Tongue Weight(TW)
200 LB
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Visibility
Exposed
WC Tongue Weight
200
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity
2000
Weight Carrying Capacity (WC)
2,000 LB
Weight Carrying Capacity(WC)
2,000 LB
Weight Distribution (WD)
n/a
Weight Distribution Tongue Weight (WDTW)
n/a
Weight Distribution Tongue Weight(WDTW)
n/a
Weight Distribution(WD)
n/a

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2013-2022 Nissan Sentra
