CURT · 112603

Part #: 112603
UPC: 612314112609

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: CURT Series: Class 1 Hitches

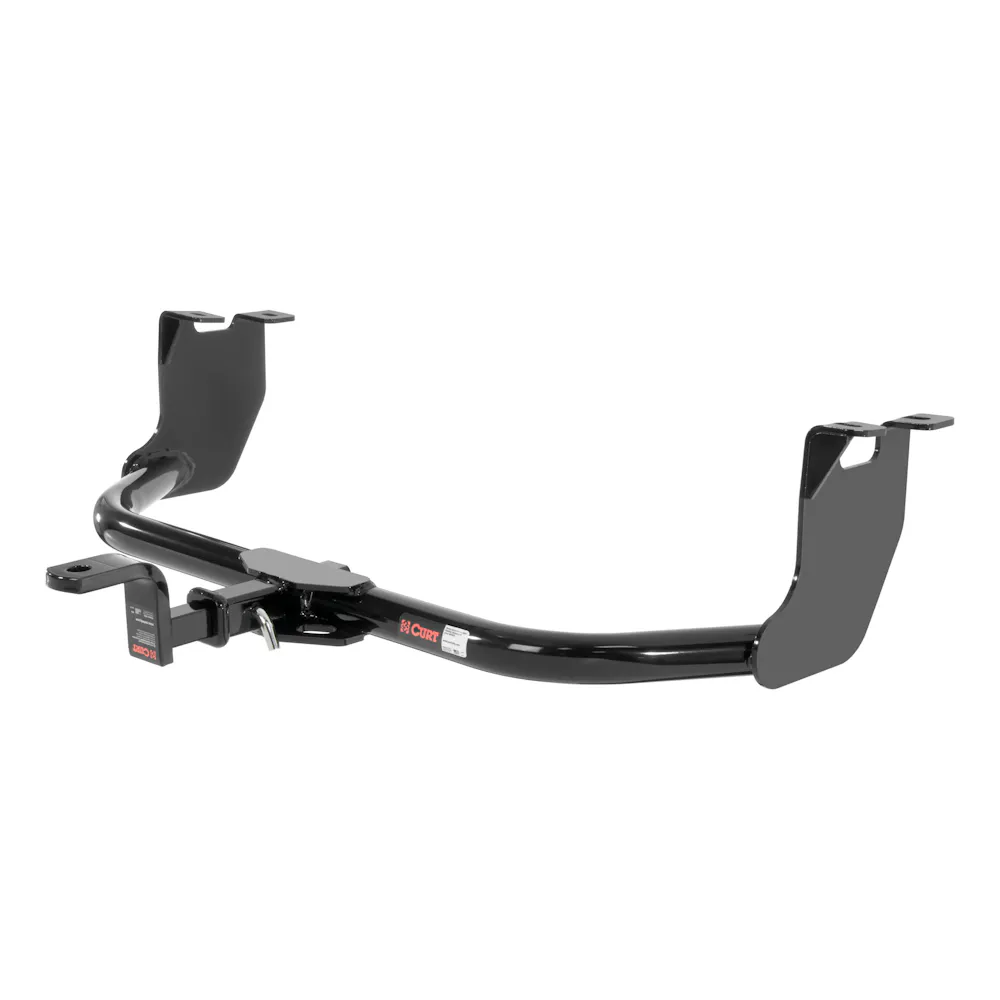

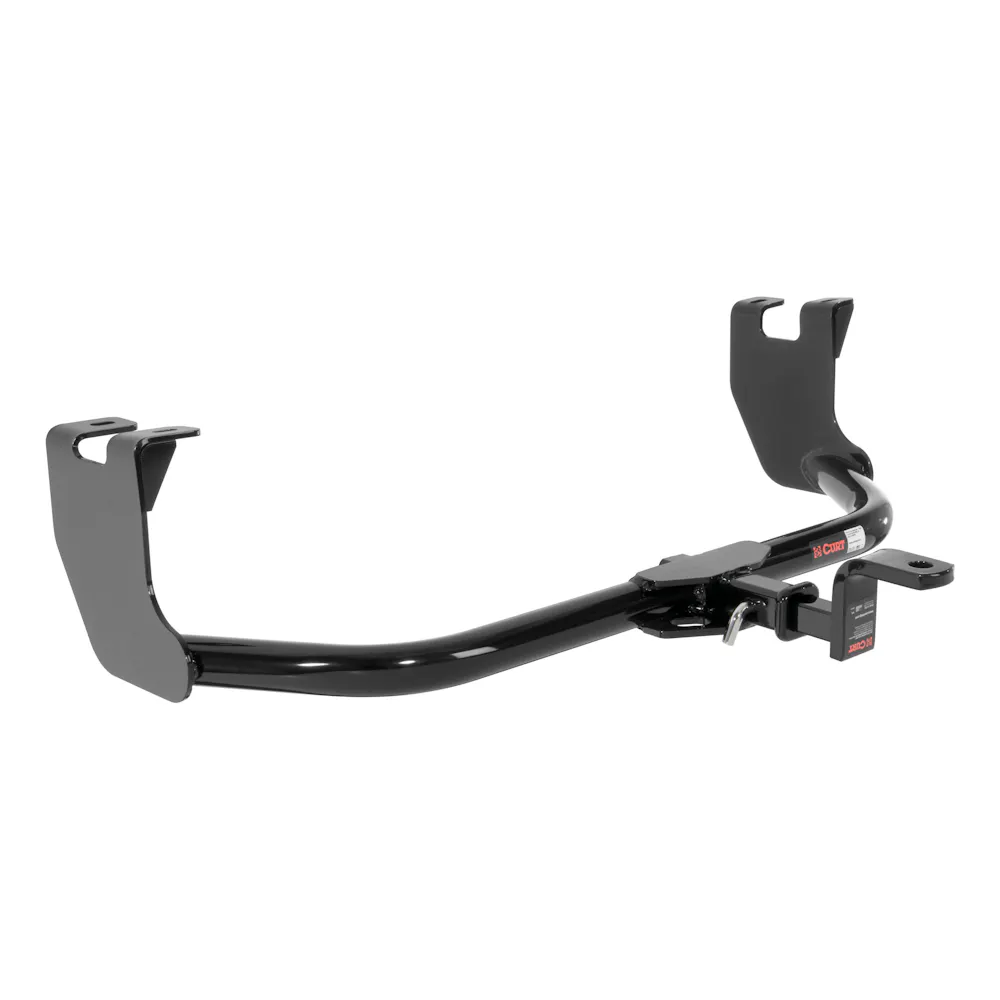

Description: Class 1 Trailer Hitch, 1-1/4 Ball Mount, Select Volkswagen Beetle; CURT 112603 Class 1 Trailer Hitch with Ball Mount; 1-1/4-In Receiver; Fits Select Volkswagen Beetle

Description:

Description

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Volkswagen Beetle (see application info to verify fitment). The hitch integrates with the vehicles frame and provides a useful and dependable 1-1/4 in. x 1-1/4 in. receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 1,500 pounds gross trailer weight and 150 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4 in. trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where youre headed or which season of the year you're towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.

Features & benefits

  • Made w/A Vehicle-Specific Design For A Custom Fit
  • Constructed w/A Sleek Round-Tube Main Body
  • Protected By A Durable High-Gloss Black Powder Coat Finish
  • Co-Cured In A Rust-Resistant Liquid Bonderite Coating
  • Strengthened w/A Cast Welded Seamless Collar
  • Equipped w/An Open-Back Receiver For Easy Cleaning
  • Old-Style Ball Mount Can Be Flipped To Provide Drop Or Rise
  • Backed By A Limited Lifetime Warranty
  • Made in USA [may include imported hardware]
  • Tested For Safety In Accordance w/SAE J684
  • Precisely Welded For Superior Strength And Fit

Information

Class 1 Trailer Hitch, 1-1/4 Ball Mount, Select Volkswagen Beetle; Rated to 1,500 lbs. gross trailer weight and 150 lbs. tongue weight; Engineered with a vehicle-specific design for a custom fit; Tested for safety in accordance with SAE J684; Precisely welded for superior strength and fit; Protected by a durable high-gloss black powder coat finish; Co-cured in a rust-resistant liquid A-coat, inside and out; Equipped with an open-back receiver for easy cleaning; 1-1/4 x 1-1/4 ball mount features a 3/4 hole to accept a trailer ball shank; Ball mount can be flipped to provide drop or rise for level towing; Limited lifetime warranty (one-year finish, one-year parts); Made in USA (may include imported hardware)

Application summary

Year Make / model

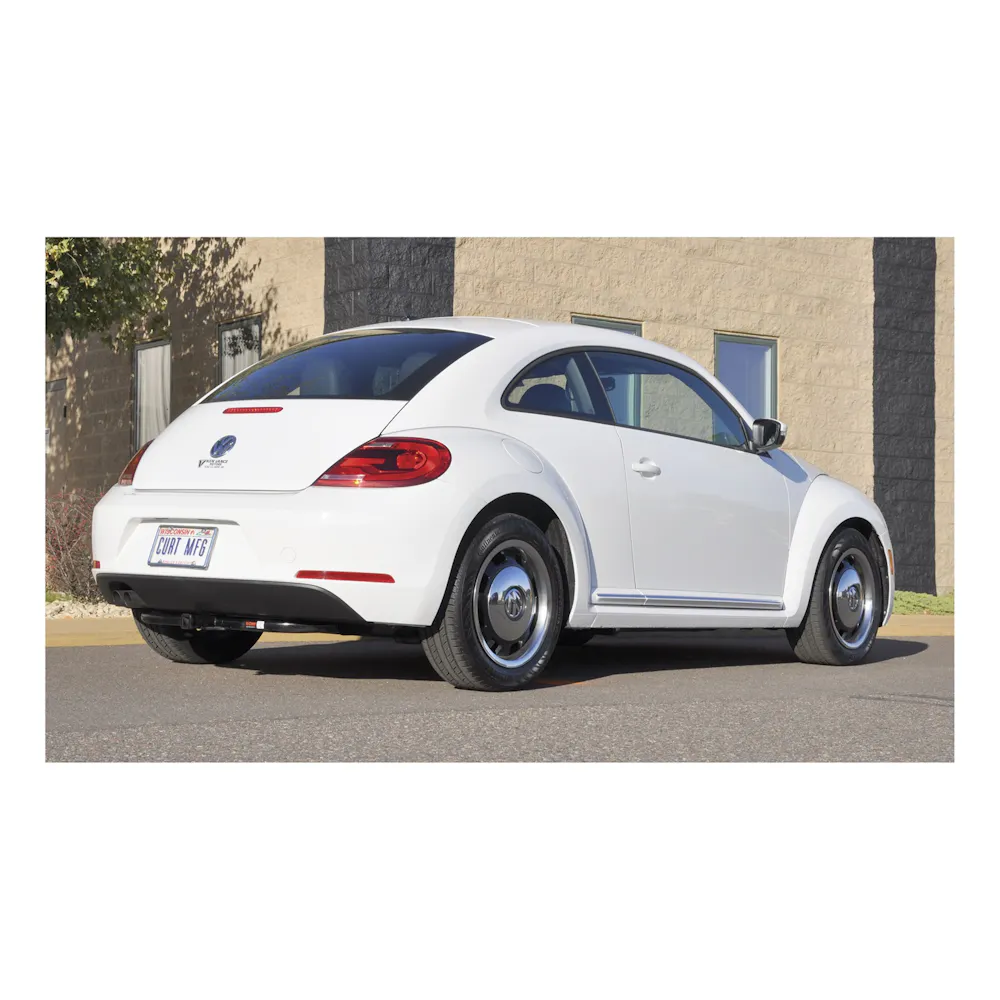

2012-2015 Volkswagen Beetle

Specifications

GTIN
00612314112609
Weight
40 lb
Height
11 in
Length
49 in
Width
24 in
EO
Legal US
Life cycle
Available Only While Supplies Last
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Class I Trailer Hitch, Pin & Clip, Old-Style Ball Mount
Body Shape
Round
Box Height in Inches - XA
22
Box Length in Inches - XA
48
Box Width in Inches - XA
10
California Proposition 65
Yes
Class ID
1
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Drilling Required
No
Finish
Gloss Black Powder Coat
Finish - XA
GLOSS BLACK POWDER COAT
Gross Trailer Weight
1500 lbs.
Gross Trailer Weight (lbs.)
1500
Hole Size
3/4 IN
Install Time
15 Minutes
Item Class - XA
MFH
Item Height - XA
9.540
Item Length - XA
41.940
Item Width - XA
20.310
Main Body Shape
Round
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material - XA
Carbon Steel
Mount Type Description - XA
Blank
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Position
Rear
Price Code - XA
145K
Product Weight - XA
33.000
Rate Class - XA
60.0
Receiver Tube Size
1.250 in.
Retail Height - XA
11.000
Retail Length - XA
49.000
Retail Width - XA
24.000
Sales Family Code - XA
HITCH
Sales Family Description - XA
HITCH
Sales Group Description - XA
CL 1
Shipping Weight - XA
40.000
Side Application Type Description - XA
Blank
Tariff 301 - XA
No
Title
Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Volkswagen Beetle
Tongue Weight (TW)
150 LB
Tongue Weight(TW)
150 LB
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Visibility
Exposed
WC Tongue Weight
150
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity
1500
Weight Carrying Capacity (WC)
1,500 LB
Weight Carrying Capacity(WC)
1,500 LB

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2012-2015 Volkswagen Beetle
