Cloyes High Performance · 9-3673TX9Z

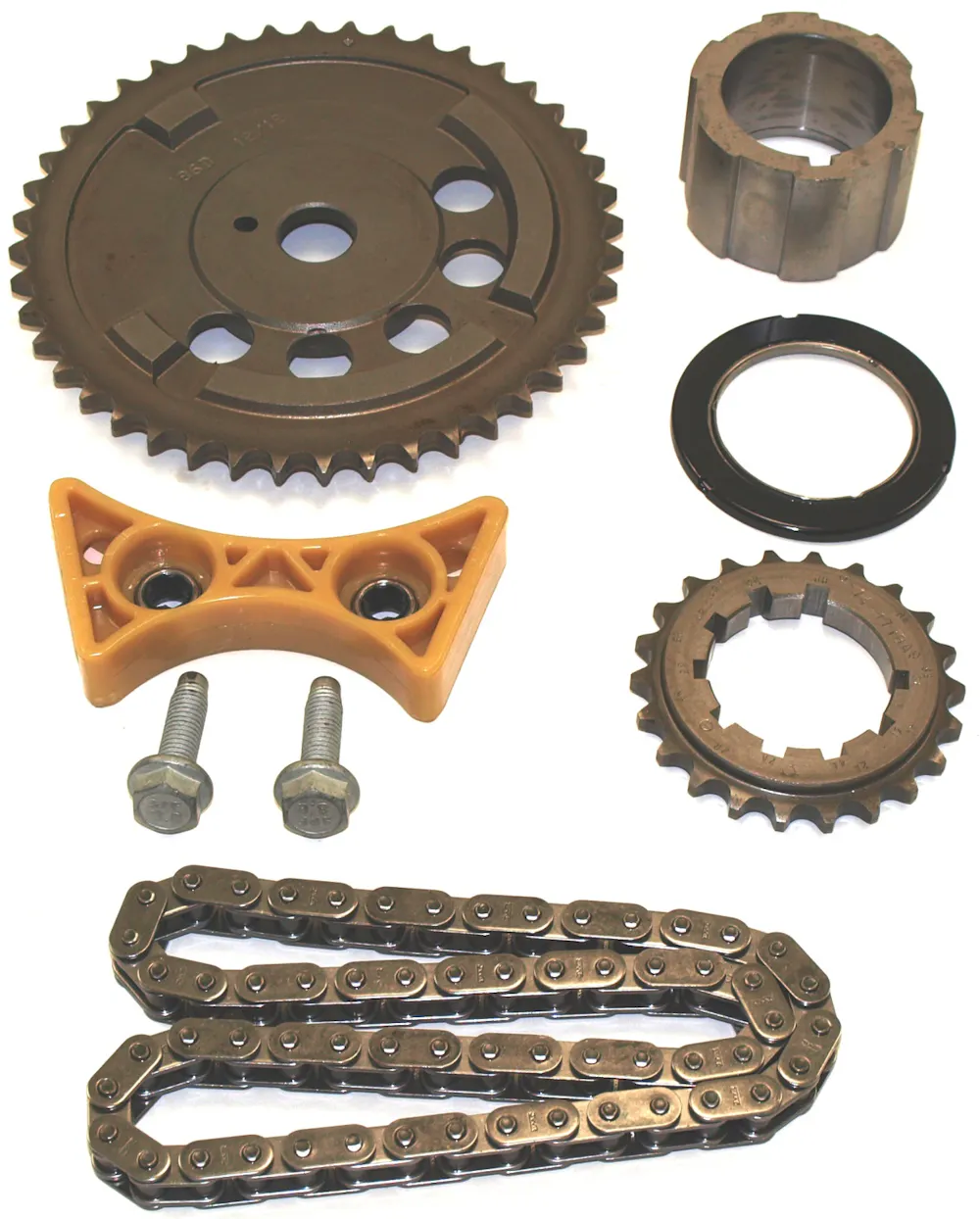

Cloyes High Performance 9-3673TX9Z

Part #: 9-3673TX9Z
UPC: 750385809827

Log in for inventory
Notify me when this item is in stock.

Brand: Cloyes High Performance Series: Race Billet True Roller Timing Sets
Log in to order

Description: High Performance Timing Set

Description:

Proposition 65 WarningCancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

Billet Crankshaft Sprocket Has Nine Keyways for +/- 8 Degrees Adjustability. Both Billet Steel Sprockets are Heat Treated for Durability. TRUE Roller 0.250" Roller Diameter "Z" Chain for Reduced Friction. "Z" Chain Approximately 33% Overall Increased Strength Over the Standard High Performance Chain. "Z" Chain Featuring a Press Fit Center Link design that Increases Load Distribution with Heat Treated and Processed Links to Maximize Ultimate Breaking Strength while Remaining Ductile for Toughness and Pre-Stressed to Increase Fatigue Life. Includes Captured Needle Camshaft Sprocket Thrust Bearing to Minimize Block Thrust Surface Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout. Includes Captured Needle Camshaft Sprocket Thrust Bearing to Minimize Block Thrust Surface Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout.

Features & benefits

  • The complete kits, which meet or exceed OEM performance requirements, ensure a quiet and maintenance-free experience
  • Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
  • Cloyes Timing Kits may include camshaft sprockets, crankshaft sprockets, timing chains, tensioners, and guides
  • Refer to our online catalog for detailed application-specific information
  • Keep your engine's valve train in perfect time with Cloyes, the world leader in timing drive systems.

Application summary

Year Make / model
2008-2009 Buick LaCrosse
2007 Cadillac CTS
2009-2015 Cadillac CTS
2007-2013 Chevrolet Avalanche
2010-2015 Chevrolet Camaro
2011-2015 Chevrolet Caprice
2009-2012 Chevrolet Colorado
2007-2015 Chevrolet Corvette
2007-2014 Chevrolet Express 1500
2007-2015 Chevrolet Express 2500
2007-2015 Chevrolet Express 3500
2007-2009 Chevrolet Impala
2007 Chevrolet Monte Carlo
2014-2015 Chevrolet SS
2007-2014 Chevrolet Suburban 1500
2007-2015 Chevrolet Tahoe
2007-2009 Chevrolet Trailblazer
2007-2009 Chevrolet W3500 Tiltmaster
2007-2010 Chevrolet W4500 Tiltmaster
2007-2009 GMC Envoy
2007-2014 GMC Savana 1500
2007-2015 GMC Savana 2500
2007-2015 GMC Savana 3500
2009-2015 GMC Savana 4500
2007-2015 GMC Sierra
2007-2015 GMC Sierra 1500
2007 GMC Sierra 1500 Classic
2007 GMC Sierra 1500 HD Classic
2007-2015 GMC Sierra 2500 HD
2007 GMC Sierra 2500 HD Classic
2007-2015 GMC Yukon
2015 GMC Yukon XL
2007-2014 GMC Yukon XL 1500
2008-2010 Hummer H3
2009-2010 Hummer H3T
2008-2009 Pontiac G8
2007-2008 Pontiac Grand Prix
2007-2009 Saab 9-7x

Specifications

GTIN
00750385809827
Weight
2.95 lb
Height
2 in
Length
7.5 in
Width
7.5 in
EO
Legal US
Life cycle
Available to Order
AAM brand code
CLO
Warehouse brand code
JFPT
AAIA brand code
JFPT

Attributes

California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Camshaft Sprocket Material
Steel
Crankshaft Sprocket Material
Steel
Engine Make/Size
Chevy 294-364
Grade Type
Performance
Keyway Adjustable
Yes
Keyway Adjustments
9
Maximum Advance At Camshaft
4
Maximum Retard At Camshaft
4
Meets or Exceeds Original Equipment Manufacture Specifications
Yes
Roller
Yes
Sprockets Included
Yes
Tensioner Included
No
Timing Chain Type
Single Roller
Universal Or Specific Fit
Specific

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2008-2009 Buick LaCrosse; 2007 Cadillac CTS; 2009-2015 Cadillac CTS; 2007-2013 Chevrolet Avalanche; 2010-2015 Chevrolet Camaro; 2011-2015 Chevrolet Caprice; 2009-2012 Chevrolet Colorado; 2007-2015 Chevrolet Corvette; 2007-2014 Chevrolet Express 1500; 2007-2015 Chevrolet Express 2500; 2007-2015 Chevrolet Express 3500; 2007-2009 Chevrolet Impala; 2007 Chevrolet Monte Carlo; 2014-2015 Chevrolet SS; 2007-2014 Chevrolet Suburban 1500; 2007-2015 Chevrolet Tahoe; 2007-2009 Chevrolet Trailblazer; 2007-2009 Chevrolet W3500 Tiltmaster; 2007-2010 Chevrolet W4500 Tiltmaster; 2007-2009 GMC Envoy; 2007-2014 GMC Savana 1500; 2007-2015 GMC Savana 2500; 2007-2015 GMC Savana 3500; 2009-2015 GMC Savana 4500; 2007-2015 GMC Sierra; 2007-2015 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2007 GMC Sierra 1500 HD Classic; 2007-2015 GMC Sierra 2500 HD; 2007 GMC Sierra 2500 HD Classic; 2007-2015 GMC Yukon; 2015 GMC Yukon XL; 2007-2014 GMC Yukon XL 1500; 2008-2010 Hummer H3; 2009-2010 Hummer H3T; 2008-2009 Pontiac G8; 2007-2008 Pontiac Grand Prix; 2007-2009 Saab 9-7x
