Cloyes High Performance · 9-3658TX9ZR
Part #: 9-3658TX9ZR
UPC: 750385809766
Log in for inventory
Notify me when this item is in stock.
Description: High Performance Timing Set
Description:
Description

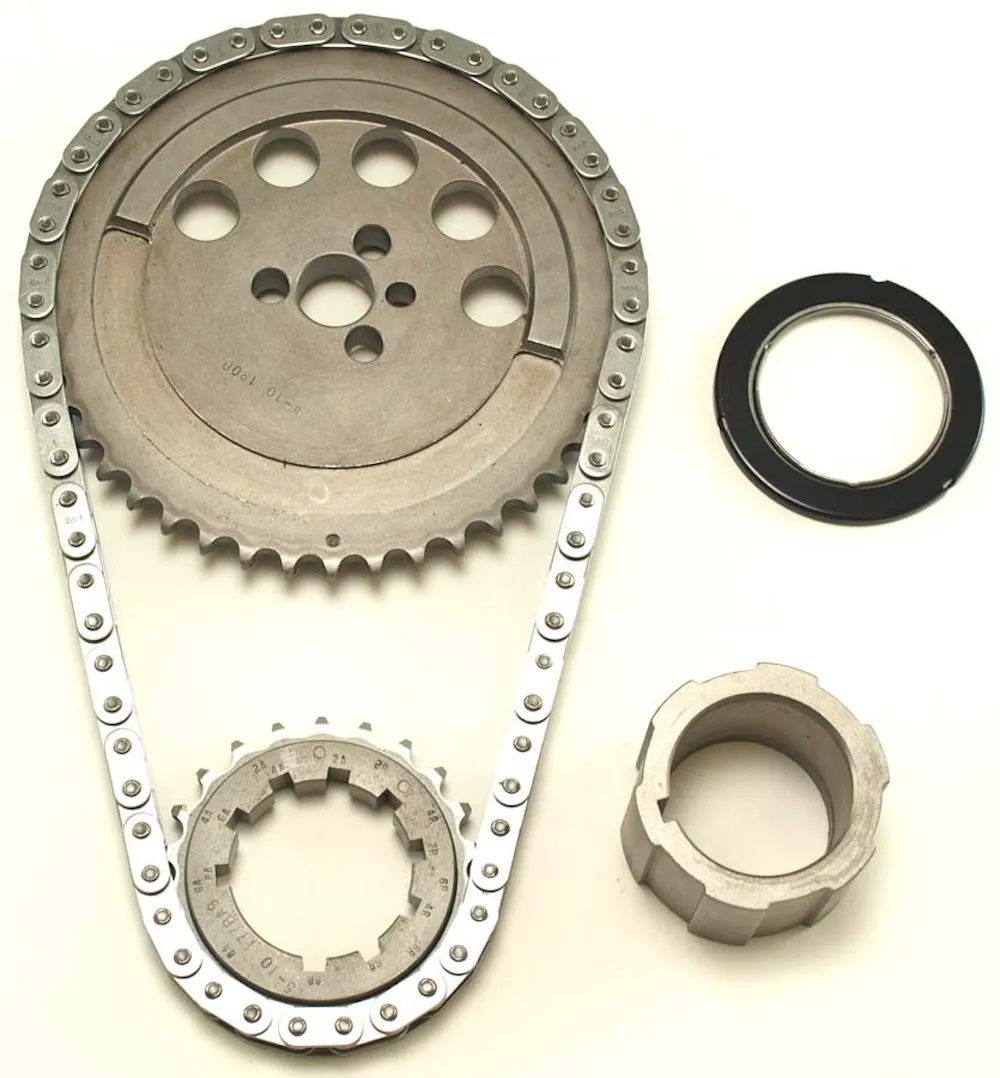

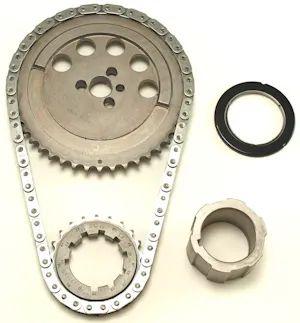

Billet Crankshaft Sprocket Has Nine Keyways for +/- 8 Degrees Adjustability. Both Billet Steel Sprockets are Heat Treated for Durability. TRUE Roller 0.250" Roller Diameter "Z" Chain for Reduced Friction. "Z" Chain Approximately 33% Overall Increased Strength Over the Standard High Performance Chain. "Z" Chain Featuring a Press Fit Center Link design that Increases Load Distribution with Heat Treated and Processed Links to Maximize Ultimate Breaking Strength while Remaining Ductile for Toughness and Pre-Stressed to Increase Fatigue Life. Includes Captured Needle Camshaft Sprocket Thrust Bearing to Minimize Block Thrust Surface Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout. Includes Captured Needle Camshaft Sprocket Thrust Bearing to Minimize Block Thrust Surface Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout.
Features & benefits
- The complete kits, which meet or exceed OEM performance requirements, ensure a quiet and maintenance-free experience
- Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
- Cloyes Timing Kits may include camshaft sprockets, crankshaft sprockets, timing chains, tensioners, and guides
- Refer to our online catalog for detailed application-specific information
- Keep your engine's valve train in perfect time with Cloyes, the world leader in timing drive systems.
Application summary
| Year | Make / model |
|---|---|
| 2004-2007 | Buick Rainier |
| 2006-2007 | Cadillac CTS |
| 2002-2006 | Cadillac Escalade |
| 2007 | Chevrolet Avalanche |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 1998-2002 | Chevrolet Camaro |
| 1997-2007 | Chevrolet Corvette |
| 2003-2007 | Chevrolet Express 1500 |
| 2003-2007 | Chevrolet Express 2500 |
| 2003-2007 | Chevrolet Express 3500 |
| 2006-2007 | Chevrolet Impala |
| 2006-2007 | Chevrolet Monte Carlo |
| 1999-2007 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2001-2003 | Chevrolet Silverado 1500 HD |
| 2005-2006 | Chevrolet Silverado 1500 HD |
| 2007 | Chevrolet Silverado 1500 HD Classic |
| 1999-2007 | Chevrolet Silverado 2500 |
| 2001-2007 | Chevrolet Silverado 2500 HD |
| 2007 | Chevrolet Silverado 2500 HD Classic |
| 2001-2006 | Chevrolet Silverado 3500 |
| 2007 | Chevrolet Silverado 3500 Classic |
| 2007 | Chevrolet Silverado 3500 HD |
| 2003-2004 | Chevrolet Sonora |
| 2003-2006 | Chevrolet SSR |
| 2000-2007 | Chevrolet Suburban 1500 |
| 2000-2007 | Chevrolet Suburban 2500 |
| 2000-2007 | Chevrolet Tahoe |
| 2006-2007 | Chevrolet Trailblazer |
| 2003-2006 | Chevrolet Trailblazer EXT |
| 1999-2007 | Chevrolet W3500 Tiltmaster |
| 1999-2007 | Chevrolet W4500 Tiltmaster |
| 2005-2007 | GMC Envoy |
| 2003-2006 | GMC Envoy XL |
| 2004-2005 | GMC Envoy XUV |
| 2003-2007 | GMC Savana 1500 |
| 2003-2007 | GMC Savana 2500 |
| 2003-2007 | GMC Savana 3500 |
| 2007 | GMC Sierra |
| 1999-2007 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2001-2003 | GMC Sierra 1500 HD |
| 2005-2006 | GMC Sierra 1500 HD |
| 2007 | GMC Sierra 1500 HD Classic |
| 1999-2004 | GMC Sierra 2500 |
| 2001-2007 | GMC Sierra 2500 HD |
| 2007 | GMC Sierra 2500 HD Classic |
| 2001-2006 | GMC Sierra 3500 |
| 2007 | GMC Sierra 3500 Classic |
| 2007 | GMC Sierra 3500 HD |
| 2000-2007 | GMC Yukon |
| 2000-2007 | GMC Yukon XL 1500 |
| 2000-2007 | GMC Yukon XL 2500 |
| 2003-2007 | Hummer H2 |
| 2003-2006 | Isuzu Ascender |
| 1998-2002 | Pontiac Firebird |
| 2005-2007 | Pontiac Grand Prix |
| 2004-2006 | Pontiac GTO |
| 2005-2007 | Saab 9-7x |
Specifications
- GTIN
- 00750385809766
- Weight
- 3.08 lb
- Height
- 2 in
- Length
- 7.5 in
- Width
- 7.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLO
- Warehouse brand code
- JFPT
- AAIA brand code
- JFPT
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Sprocket Material
- Steel
- Crankshaft Sprocket Material
- Steel
- Engine Make/Size
- Chevy 294-364
- Grade Type
- Performance
- Keyway Adjustable
- Yes
- Keyway Adjustments
- 9
- Maximum Advance At Camshaft
- 4
- Maximum Retard At Camshaft
- 4
- Meets or Exceeds Original Equipment Manufacture Specifications
- Yes
- Roller
- Yes
- Sprockets Included
- Yes
- Tensioner Included
- No
- Timing Chain Type
- Single Roller
- Universal Or Specific Fit
- Specific
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004-2007 Buick Rainier; 2006-2007 Cadillac CTS; 2002-2006 Cadillac Escalade; 2007 Chevrolet Avalanche; 2002-2006 Chevrolet Avalanche 1500; 1998-2002 Chevrolet Camaro; 1997-2007 Chevrolet Corvette; 2003-2007 Chevrolet Express 1500; 2003-2007 Chevrolet Express 2500; 2003-2007 Chevrolet Express 3500; 2006-2007 Chevrolet Impala; 2006-2007 Chevrolet Monte Carlo; 1999-2007 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2001-2003 Chevrolet Silverado 1500 HD; 2005-2006 Chevrolet Silverado 1500 HD; 2007 Chevrolet Silverado 1500 HD Classic; 1999-2007 Chevrolet Silverado 2500; 2001-2007 Chevrolet Silverado 2500 HD; 2007 Chevrolet Silverado 2500 HD Classic; 2001-2006 Chevrolet Silverado 3500; 2007 Chevrolet Silverado 3500 Classic; 2007 Chevrolet Silverado 3500 HD; 2003-2004 Chevrolet Sonora; 2003-2006 Chevrolet SSR; 2000-2007 Chevrolet Suburban 1500; 2000-2007 Chevrolet Suburban 2500; 2000-2007 Chevrolet Tahoe; 2006-2007 Chevrolet Trailblazer; 2003-2006 Chevrolet Trailblazer EXT; 1999-2007 Chevrolet W3500 Tiltmaster; 1999-2007 Chevrolet W4500 Tiltmaster; 2005-2007 GMC Envoy; 2003-2006 GMC Envoy XL; 2004-2005 GMC Envoy XUV; 2003-2007 GMC Savana 1500; 2003-2007 GMC Savana 2500; 2003-2007 GMC Savana 3500; 2007 GMC Sierra; 1999-2007 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2001-2003 GMC Sierra 1500 HD; 2005-2006 GMC Sierra 1500 HD; 2007 GMC Sierra 1500 HD Classic; 1999-2004 GMC Sierra 2500; 2001-2007 GMC Sierra 2500 HD; 2007 GMC Sierra 2500 HD Classic; 2001-2006 GMC Sierra 3500; 2007 GMC Sierra 3500 Classic; 2007 GMC Sierra 3500 HD; 2000-2007 GMC Yukon; 2000-2007 GMC Yukon XL 1500; 2000-2007 GMC Yukon XL 2500; 2003-2007 Hummer H2; 2003-2006 Isuzu Ascender; 1998-2002 Pontiac Firebird; 2005-2007 Pontiac Grand Prix; 2004-2006 Pontiac GTO; 2005-2007 Saab 9-7x
