Cloyes High Performance · 9-3646TX9-10
Part #: 9-3646TX9-10
UPC: 750385810854
Log in for inventory
Notify me when this item is in stock.

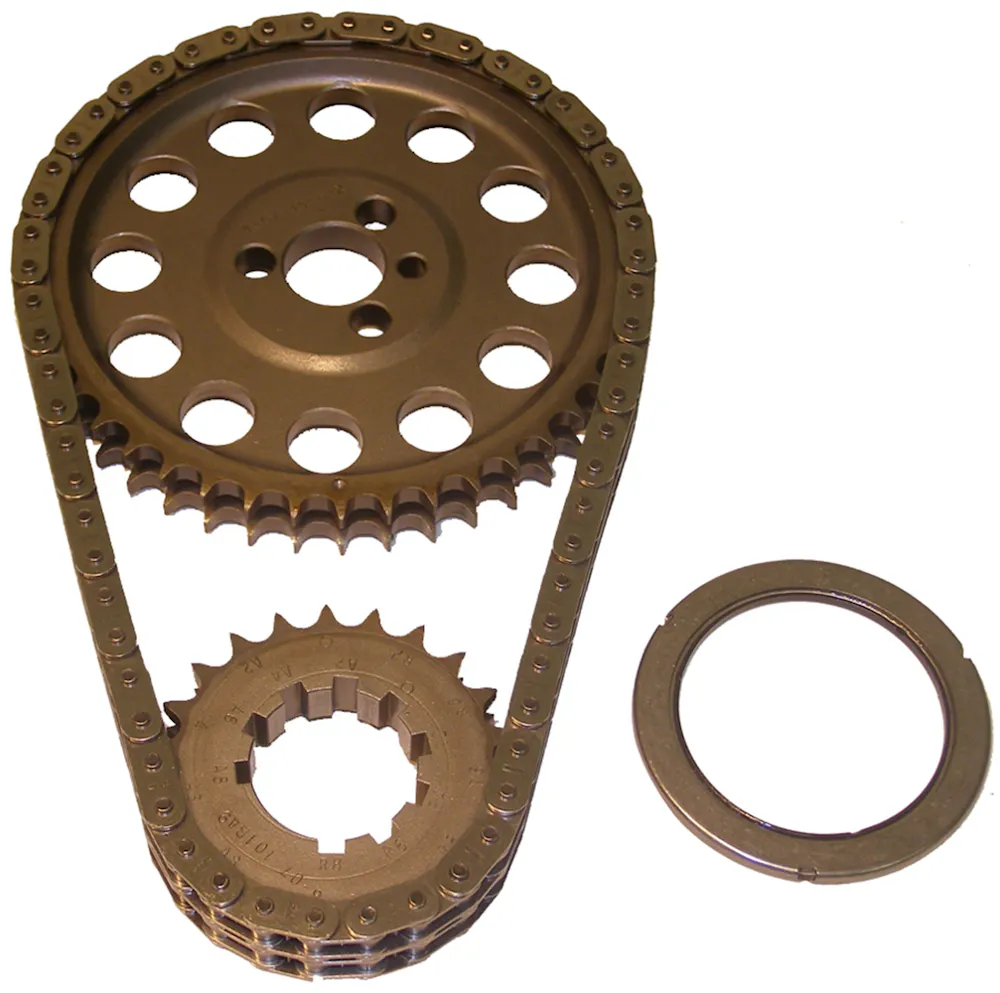

Description: High Performance Timing Set
Description:
Description
Billet Crankshaft Sprocket Has Nine Keyways for +/- 8 Degrees Adjustability. Both Billet Steel Sprockets are Heat Treated for Durability. TRUE Roller 0.250" Roller Diameter Chain for Reduced Friction. Includes Captured Needle Camshaft Sprocket Thrust Bearing to Minimize Block Thrust Surface Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout.
Features & benefits
- The complete kits, which meet or exceed OEM performance requirements, ensure a quiet and maintenance-free experience
- Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
- Cloyes Timing Kits may include camshaft sprockets, crankshaft sprockets, timing chains, tensioners, and guides
- Refer to our online catalog for detailed application-specific information
- Keep your engine's valve train in perfect time with Cloyes, the world leader in timing drive systems.
Application summary
| Year | Make / model |
|---|---|
| 1986 | Chevrolet Astro |
| 1955-1959 | Chevrolet Bel Air |
| 1961-1966 | Chevrolet Bel Air |
| 1969-1975 | Chevrolet Bel Air |
| 1958-1959 | Chevrolet Biscayne |
| 1961-1968 | Chevrolet Biscayne |
| 1970-1972 | Chevrolet Biscayne |
| 1970 | Chevrolet Blazer |
| 1972-1973 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1976-1986 | Chevrolet C10 |
| 1961-1963 | Chevrolet C10 Pickup |
| 1966-1972 | Chevrolet C10 Pickup |
| 1968 | Chevrolet C10 Suburban |
| 1970-1973 | Chevrolet C10 Suburban |
| 1977-1986 | Chevrolet C10 Suburban |
| 1976-1986 | Chevrolet C20 |
| 1961-1971 | Chevrolet C20 Pickup |
| 1973 | Chevrolet C20 Pickup |
| 1968 | Chevrolet C20 Suburban |
| 1970-1971 | Chevrolet C20 Suburban |
| 1973 | Chevrolet C20 Suburban |
| 1976-1986 | Chevrolet C20 Suburban |
| 1976-1978 | Chevrolet C30 |
| 1980 | Chevrolet C30 |
| 1983 | Chevrolet C30 |
| 1961-1963 | Chevrolet C30 Pickup |
| 1966-1969 | Chevrolet C30 Pickup |
| 1971-1973 | Chevrolet C30 Pickup |
| 1967-1975 | Chevrolet Camaro |
| 1977-1984 | Chevrolet Camaro |
| 1966-1984 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1964-1968 | Chevrolet Chevy II |
| 1955-1956 | Chevrolet Corvette |
| 1959-1965 | Chevrolet Corvette |
| 1967-1968 | Chevrolet Corvette |
| 1970-1971 | Chevrolet Corvette |
| 1976-1978 | Chevrolet Corvette |
| 1980 | Chevrolet Corvette |
| 1964-1965 | Chevrolet El Camino |
| 1967 | Chevrolet El Camino |
| 1969-1984 | Chevrolet El Camino |
| 1976-1986 | Chevrolet G10 |
| 1968-1971 | Chevrolet G10 Van |
| 1973 | Chevrolet G10 Van |
| 1976-1986 | Chevrolet G20 |
| 1968 | Chevrolet G20 Van |
| 1976-1980 | Chevrolet G30 |
| 1982-1985 | Chevrolet G30 |
| 1959-1961 | Chevrolet Impala |
| 1963-1971 | Chevrolet Impala |
| 1973-1984 | Chevrolet Impala |
| 1975-1978 | Chevrolet K10 |
| 1980 | Chevrolet K10 |
| 1982-1986 | Chevrolet K10 |
| 1961 | Chevrolet K10 Pickup |
| 1963-1969 | Chevrolet K10 Pickup |
| 1968-1973 | Chevrolet K10 Suburban |
| 1976-1986 | Chevrolet K10 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1961-1967 | Chevrolet K20 Pickup |
| 1969 | Chevrolet K20 Pickup |
| 1968-1973 | Chevrolet K20 Suburban |
| 1975-1981 | Chevrolet K20 Suburban |
| 1984-1985 | Chevrolet K20 Suburban |
| 1977-1980 | Chevrolet K30 |
| 1982 | Chevrolet K30 |
| 1985 | Chevrolet K30 |
| 1968-1973 | Chevrolet K30 Pickup |
Specifications
- GTIN
- 00750385810854
- Weight
- 3.63 lb
- Height
- 2 in
- Length
- 7.5 in
- Width
- 7.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLO
- Warehouse brand code
- JFPT
- AAIA brand code
- JFPT
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Sprocket Material
- Steel
- Crankshaft Sprocket Material
- Steel
- Engine Make/Size
- Chevy Small Block (262-400)
- Grade Type
- Performance
- Keyway Adjustable
- Yes
- Maximum Advance At Camshaft
- 4
- Maximum Retard At Camshaft
- 4
- Roller
- Yes
- Sprockets Included
- Yes
- Tensioner Included
- No
- Timing Chain Type
- Double Roller
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1986 Chevrolet Astro; 1955-1959 Chevrolet Bel Air; 1961-1966 Chevrolet Bel Air; 1969-1975 Chevrolet Bel Air; 1958-1959 Chevrolet Biscayne; 1961-1968 Chevrolet Biscayne; 1970-1972 Chevrolet Biscayne; 1970 Chevrolet Blazer; 1972-1973 Chevrolet Blazer; 1969-1972 Chevrolet Brookwood; 1976-1986 Chevrolet C10; 1961-1963 Chevrolet C10 Pickup; 1966-1972 Chevrolet C10 Pickup; 1968 Chevrolet C10 Suburban; 1970-1973 Chevrolet C10 Suburban; 1977-1986 Chevrolet C10 Suburban; 1976-1986 Chevrolet C20; 1961-1971 Chevrolet C20 Pickup; 1973 Chevrolet C20 Pickup; 1968 Chevrolet C20 Suburban; 1970-1971 Chevrolet C20 Suburban; 1973 Chevrolet C20 Suburban; 1976-1986 Chevrolet C20 Suburban; 1976-1978 Chevrolet C30; 1980 Chevrolet C30; 1983 Chevrolet C30; 1961-1963 Chevrolet C30 Pickup; 1966-1969 Chevrolet C30 Pickup; 1971-1973 Chevrolet C30 Pickup; 1967-1975 Chevrolet Camaro; 1977-1984 Chevrolet Camaro; 1966-1984 Chevrolet Caprice; 1964-1973 Chevrolet Chevelle; 1964-1968 Chevrolet Chevy II; 1955-1956 Chevrolet Corvette; 1959-1965 Chevrolet Corvette; 1967-1968 Chevrolet Corvette; 1970-1971 Chevrolet Corvette; 1976-1978 Chevrolet Corvette; 1980 Chevrolet Corvette; 1964-1965 Chevrolet El Camino; 1967 Chevrolet El Camino; 1969-1984 Chevrolet El Camino; 1976-1986 Chevrolet G10; 1968-1971 Chevrolet G10 Van; 1973 Chevrolet G10 Van; 1976-1986 Chevrolet G20; 1968 Chevrolet G20 Van; 1976-1980 Chevrolet G30; 1982-1985 Chevrolet G30; 1959-1961 Chevrolet Impala; 1963-1971 Chevrolet Impala; 1973-1984 Chevrolet Impala; 1975-1978 Chevrolet K10; 1980 Chevrolet K10; 1982-1986 Chevrolet K10; 1961 Chevrolet K10 Pickup; 1963-1969 Chevrolet K10 Pickup; 1968-1973 Chevrolet K10 Suburban; 1976-1986 Chevrolet K10 Suburban; 1975-1986 Chevrolet K20; 1961-1967 Chevrolet K20 Pickup; 1969 Chevrolet K20 Pickup; 1968-1973 Chevrolet K20 Suburban; 1975-1981 Chevrolet K20 Suburban; 1984-1985 Chevrolet K20 Suburban; 1977-1980 Chevrolet K30; 1982 Chevrolet K30; 1985 Chevrolet K30; 1968-1973 Chevrolet K30 Pickup; ...
