Cloyes High Performance · 9-3158AZR
Part #: 9-3158AZR
UPC: 750385809223
Log in for inventory
Notify me when this item is in stock.
Description: High Performance Timing Set
Description:
Description

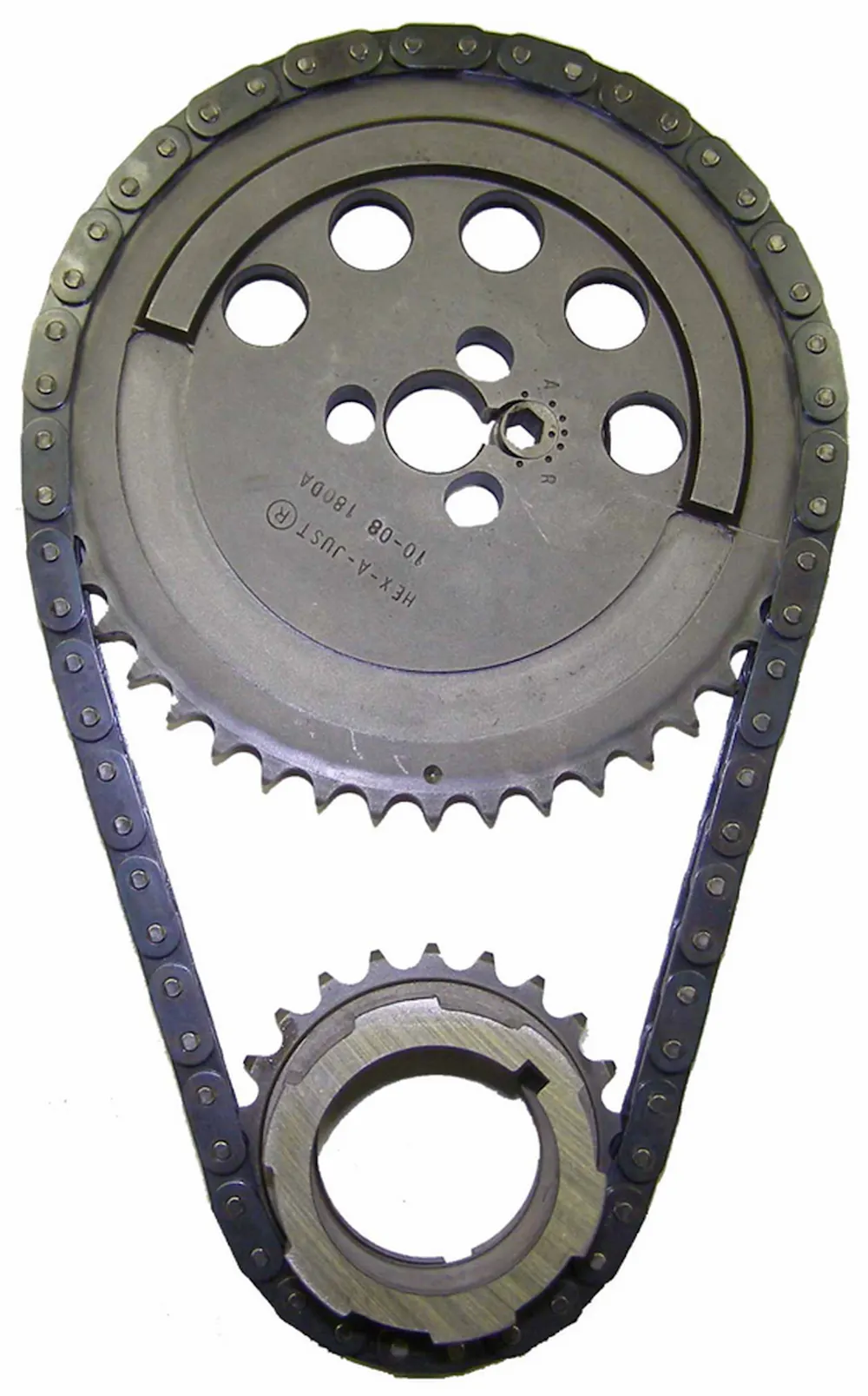

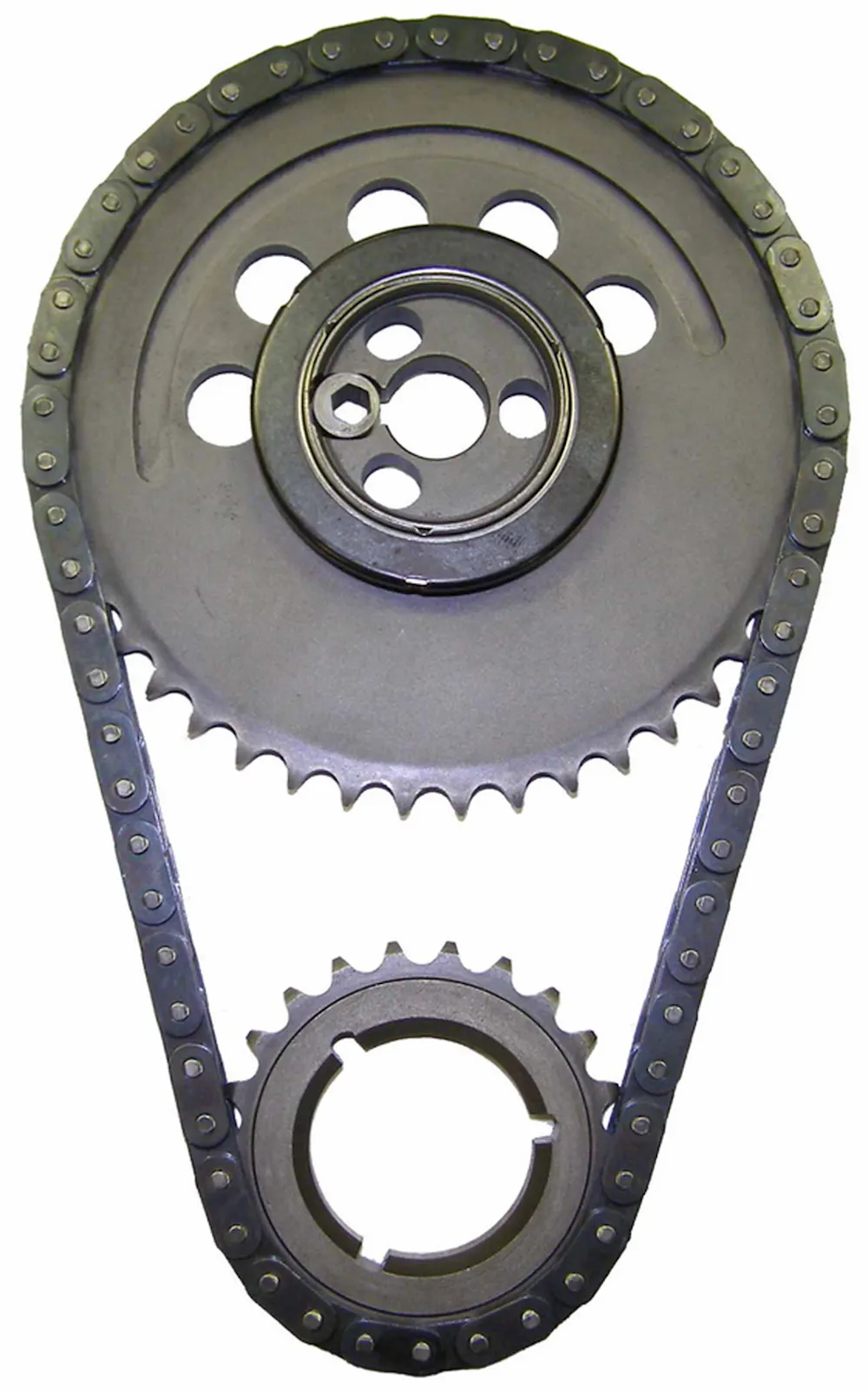

HEX-A-JUST Allows for Infinite Valve Timing Adjustability of +/-6 Degrees to Tune for Maximum Engine Performance Output. One Piece Camshaft Sprocket Design Featuring a Billet Eccentric Camshaft Dowel Bushing. Both Billet Steel Sprockets are Heat Treated for Durability. Upgraded "Z" Chain TRUE Roller 0.250" Roller Diameter Chain for Reduced Friction. Includes Captured Needle Camshaft Sprocket Thrust Bearing to Minimize Friction. Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout.
Features & benefits
- The complete kits, which meet or exceed OEM performance requirements, ensure a quiet and maintenance-free experience
- Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
- Cloyes Timing Kits may include camshaft sprockets, crankshaft sprockets, timing chains, tensioners, and guides
- Refer to our online catalog for detailed application-specific information
- Keep your engine's valve train in perfect time with Cloyes, the world leader in timing drive systems.
Application summary
| Year | Make / model |
|---|---|
| 2004-2007 | Buick Rainier |
| 2006-2007 | Cadillac CTS |
| 2002-2006 | Cadillac Escalade |
| 2007 | Chevrolet Avalanche |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 1998-2002 | Chevrolet Camaro |
| 1997-2007 | Chevrolet Corvette |
| 2003-2007 | Chevrolet Express 1500 |
| 2003-2007 | Chevrolet Express 2500 |
| 2003-2007 | Chevrolet Express 3500 |
| 2006-2007 | Chevrolet Impala |
| 2006-2007 | Chevrolet Monte Carlo |
| 1999-2007 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2001-2003 | Chevrolet Silverado 1500 HD |
| 2005-2006 | Chevrolet Silverado 1500 HD |
| 2007 | Chevrolet Silverado 1500 HD Classic |
| 1999-2007 | Chevrolet Silverado 2500 |
| 2001-2007 | Chevrolet Silverado 2500 HD |
| 2007 | Chevrolet Silverado 2500 HD Classic |
| 2001-2006 | Chevrolet Silverado 3500 |
| 2007 | Chevrolet Silverado 3500 Classic |
| 2007 | Chevrolet Silverado 3500 HD |
| 2003-2004 | Chevrolet Sonora |
| 2003-2006 | Chevrolet SSR |
| 2000-2007 | Chevrolet Suburban 1500 |
| 2000-2007 | Chevrolet Suburban 2500 |
| 2000-2007 | Chevrolet Tahoe |
| 2006-2007 | Chevrolet Trailblazer |
| 2003-2006 | Chevrolet Trailblazer EXT |
| 1999-2007 | Chevrolet W3500 Tiltmaster |
| 1999-2007 | Chevrolet W4500 Tiltmaster |
| 2005-2007 | GMC Envoy |
| 2003-2006 | GMC Envoy XL |
| 2004-2005 | GMC Envoy XUV |
| 2003-2007 | GMC Savana 1500 |
| 2003-2007 | GMC Savana 2500 |
| 2003-2007 | GMC Savana 3500 |
| 2007 | GMC Sierra |
| 1999-2007 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2001-2003 | GMC Sierra 1500 HD |
| 2005-2006 | GMC Sierra 1500 HD |
| 2007 | GMC Sierra 1500 HD Classic |
| 1999-2004 | GMC Sierra 2500 |
| 2001-2007 | GMC Sierra 2500 HD |
| 2007 | GMC Sierra 2500 HD Classic |
| 2001-2006 | GMC Sierra 3500 |
| 2007 | GMC Sierra 3500 Classic |
| 2007 | GMC Sierra 3500 HD |
| 2000-2007 | GMC Yukon |
| 2000-2007 | GMC Yukon XL 1500 |
| 2000-2007 | GMC Yukon XL 2500 |
| 2003-2007 | Hummer H2 |
| 2003-2006 | Isuzu Ascender |
| 1998-2002 | Pontiac Firebird |
| 2005-2007 | Pontiac Grand Prix |
| 2004-2006 | Pontiac GTO |
| 2005-2007 | Saab 9-7x |
Specifications
- GTIN
- 00750385809223
- Weight
- 3.1 lb
- Height
- 2 in
- Length
- 7.5 in
- Width
- 7.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLO
- Warehouse brand code
- JFPT
- AAIA brand code
- JFPT
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Sprocket Material
- Steel
- Crankshaft Sprocket Material
- Steel
- Engine Make/Size
- Chevy 294-364
- Grade Type
- Performance
- Keyway Adjustable
- Yes
- Maximum Advance At Camshaft
- 6
- Maximum Retard At Camshaft
- 6
- Roller
- Yes
- Sprockets Included
- Yes
- Tensioner Included
- No
- Timing Chain Type
- Single Roller
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004-2007 Buick Rainier; 2006-2007 Cadillac CTS; 2002-2006 Cadillac Escalade; 2007 Chevrolet Avalanche; 2002-2006 Chevrolet Avalanche 1500; 1998-2002 Chevrolet Camaro; 1997-2007 Chevrolet Corvette; 2003-2007 Chevrolet Express 1500; 2003-2007 Chevrolet Express 2500; 2003-2007 Chevrolet Express 3500; 2006-2007 Chevrolet Impala; 2006-2007 Chevrolet Monte Carlo; 1999-2007 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2001-2003 Chevrolet Silverado 1500 HD; 2005-2006 Chevrolet Silverado 1500 HD; 2007 Chevrolet Silverado 1500 HD Classic; 1999-2007 Chevrolet Silverado 2500; 2001-2007 Chevrolet Silverado 2500 HD; 2007 Chevrolet Silverado 2500 HD Classic; 2001-2006 Chevrolet Silverado 3500; 2007 Chevrolet Silverado 3500 Classic; 2007 Chevrolet Silverado 3500 HD; 2003-2004 Chevrolet Sonora; 2003-2006 Chevrolet SSR; 2000-2007 Chevrolet Suburban 1500; 2000-2007 Chevrolet Suburban 2500; 2000-2007 Chevrolet Tahoe; 2006-2007 Chevrolet Trailblazer; 2003-2006 Chevrolet Trailblazer EXT; 1999-2007 Chevrolet W3500 Tiltmaster; 1999-2007 Chevrolet W4500 Tiltmaster; 2005-2007 GMC Envoy; 2003-2006 GMC Envoy XL; 2004-2005 GMC Envoy XUV; 2003-2007 GMC Savana 1500; 2003-2007 GMC Savana 2500; 2003-2007 GMC Savana 3500; 2007 GMC Sierra; 1999-2007 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2001-2003 GMC Sierra 1500 HD; 2005-2006 GMC Sierra 1500 HD; 2007 GMC Sierra 1500 HD Classic; 1999-2004 GMC Sierra 2500; 2001-2007 GMC Sierra 2500 HD; 2007 GMC Sierra 2500 HD Classic; 2001-2006 GMC Sierra 3500; 2007 GMC Sierra 3500 Classic; 2007 GMC Sierra 3500 HD; 2000-2007 GMC Yukon; 2000-2007 GMC Yukon XL 1500; 2000-2007 GMC Yukon XL 2500; 2003-2007 Hummer H2; 2003-2006 Isuzu Ascender; 1998-2002 Pontiac Firebird; 2005-2007 Pontiac Grand Prix; 2004-2006 Pontiac GTO; 2005-2007 Saab 9-7x
Resources
- Brand logo
- Brochure
- Technical Drawing
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Photo - Primary
- Photo - Unmounted
- Cloyes Hex-A-Just System as Part of a Proper Camshaft Degreeing Process
- Cloyes Multi-Keyway High-Performance Crank Sprocket Adjustments
- GM Gen 3/4 Timing Chain Replacement, Cloyes 9-4205SA
