Cloyes High Performance / 9-3145B
Part #: 9-3145B
UPC: 750385703200
Loading...
Notify me when this item is in stock.
Description: High Performance Timing Set
Description:
Description
HEX-A-JUST Allows for Infinite Valve Timing Adjustability of +/-6 Degrees to Tune for Maximum Engine Performance Output. One Piece Camshaft Sprocket Design Featuring a Billet Eccentric Camshaft Dowel Bushing. Both Billet Steel Sprockets are Heat Treated for Durability. TRUE Roller 0.250" Roller Diameter Chain for Reduced Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout. 0.005" and 0.010" Reduced Center Distance Sets Available, to Order Add -5 or -10 to the End of this Part Number
Features & benefits
- The complete kits, which meet or exceed OEM performance requirements, ensure a quiet and maintenance-free experience
- Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
- Cloyes Timing Kits may include camshaft sprockets, crankshaft sprockets, timing chains, tensioners, and guides
- Refer to our online catalog for detailed application-specific information
- Keep your engine's valve train in perfect time with Cloyes, the world leader in timing drive systems.
Application summary
| Year | Make / model |
|---|---|
| 1991-1993 | Buick Commercial Chassis |
| 1991-1993 | Buick Roadmaster |
| 1990-1992 | Cadillac Brougham |
| 1992-1993 | Cadillac Commercial Chassis |
| 1993 | Cadillac Fleetwood |
| 1992-1998 | Chevrolet Astro |
| 1996-1998 | Chevrolet Blazer |
| 1992-1998 | Chevrolet C1500 |
| 1992-1995 | Chevrolet C2500 |
| 1985-1992 | Chevrolet Camaro |
| 1987-1993 | Chevrolet Caprice |
| 1991-1992 | Chevrolet Commercial Chassis |
| 1987-1991 | Chevrolet Corvette |
| 1996-1998 | Chevrolet Express 1500 |
| 1996-1998 | Chevrolet Express 2500 |
| 1992-1995 | Chevrolet G10 |
| 1992-1995 | Chevrolet G20 |
| 1992-1996 | Chevrolet G30 |
| 1992-1998 | Chevrolet K1500 |
| 1992-1995 | Chevrolet K2500 |
| 1992-1998 | Chevrolet P30 |
| 1992-1998 | Chevrolet S10 |
| 1992-1994 | Chevrolet S10 Blazer |
| 1988-1995 | GMC C1500 |
| 1988-1995 | GMC C2500 |
| 1987 | GMC Caballero |
| 1987-1995 | GMC G1500 |
| 1987-1995 | GMC G2500 |
| 1987-1995 | GMC G3500 |
| 1992-1995 | GMC Jimmy |
| 1988-1995 | GMC K1500 |
| 1988-1995 | GMC K2500 |
| 1990-1995 | GMC P3500 |
| 1987 | GMC R1500 |
| 1987 | GMC R2500 |
| 1988-1990 | GMC S15 |
| 1988-1991 | GMC S15 Jimmy |
| 1987-1994 | GMC Safari |
| 1991-1995 | GMC Sonoma |
| 1991 | GMC Syclone |
| 1992-1993 | GMC Typhoon |
| 1987 | GMC V1500 |
| 1991-1992 | Oldsmobile Custom Cruiser |
| 1987-1992 | Pontiac Firebird |
| 1987 | Pontiac Grand Prix |
Specifications
- GTIN
- 00750385703200
- Weight
- 3.41 lb
- Height
- 2 in
- Length
- 7.5 in
- Width
- 7.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLO
- Warehouse brand code
- JFPT
- AAIA brand code
- JFPT
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Sprocket Material
- Metal
- Crankshaft Sprocket Material
- Steel
- Engine Make/Size
- Chevy Small Block (262-400)
- Grade Type
- Performance
- Keyway Adjustable
- Yes
- Maximum Advance At Camshaft
- 2
- Maximum Retard At Camshaft
- 2
- Roller
- Yes
- Sprockets Included
- Yes
- Tensioner Included
- No
- Timing Chain Type
- Double Roller
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1991-1993 Buick Commercial Chassis; 1991-1993 Buick Roadmaster; 1990-1992 Cadillac Brougham; 1992-1993 Cadillac Commercial Chassis; 1993 Cadillac Fleetwood; 1992-1998 Chevrolet Astro; 1996-1998 Chevrolet Blazer; 1992-1998 Chevrolet C1500; 1992-1995 Chevrolet C2500; 1985-1992 Chevrolet Camaro; 1987-1993 Chevrolet Caprice; 1991-1992 Chevrolet Commercial Chassis; 1987-1991 Chevrolet Corvette; 1996-1998 Chevrolet Express 1500; 1996-1998 Chevrolet Express 2500; 1992-1995 Chevrolet G10; 1992-1995 Chevrolet G20; 1992-1996 Chevrolet G30; 1992-1998 Chevrolet K1500; 1992-1995 Chevrolet K2500; 1992-1998 Chevrolet P30; 1992-1998 Chevrolet S10; 1992-1994 Chevrolet S10 Blazer; 1988-1995 GMC C1500; 1988-1995 GMC C2500; 1987 GMC Caballero; 1987-1995 GMC G1500; 1987-1995 GMC G2500; 1987-1995 GMC G3500; 1992-1995 GMC Jimmy; 1988-1995 GMC K1500; 1988-1995 GMC K2500; 1990-1995 GMC P3500; 1987 GMC R1500; 1987 GMC R2500; 1988-1990 GMC S15; 1988-1991 GMC S15 Jimmy; 1987-1994 GMC Safari; 1991-1995 GMC Sonoma; 1991 GMC Syclone; 1992-1993 GMC Typhoon; 1987 GMC V1500; 1991-1992 Oldsmobile Custom Cruiser; 1987-1992 Pontiac Firebird; 1987 Pontiac Grand Prix
Resources
- Brand logo
- Technical Drawing
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Photo - Primary
- Link To Manufacturer Page
- Cloyes Hex-A-Just System as Part of a Proper Camshaft Degreeing Process
- Cloyes Multi-Keyway High-Performance Crank Sprocket Adjustments

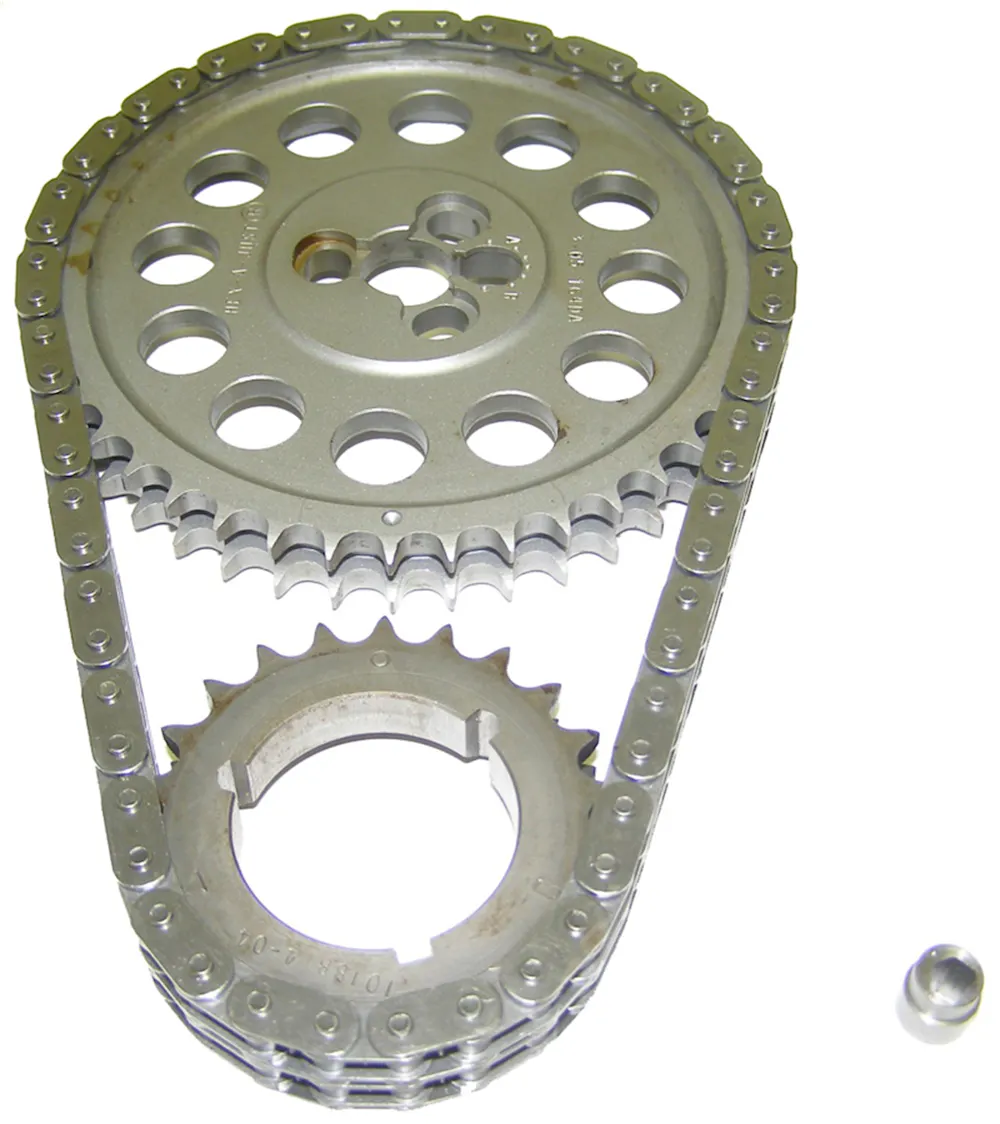

Cloyes High Performance 9-3145B
